Tilta Foldable Charging Station for L-Series/NP-F Battery Kit (6 Batteries, US) - Black

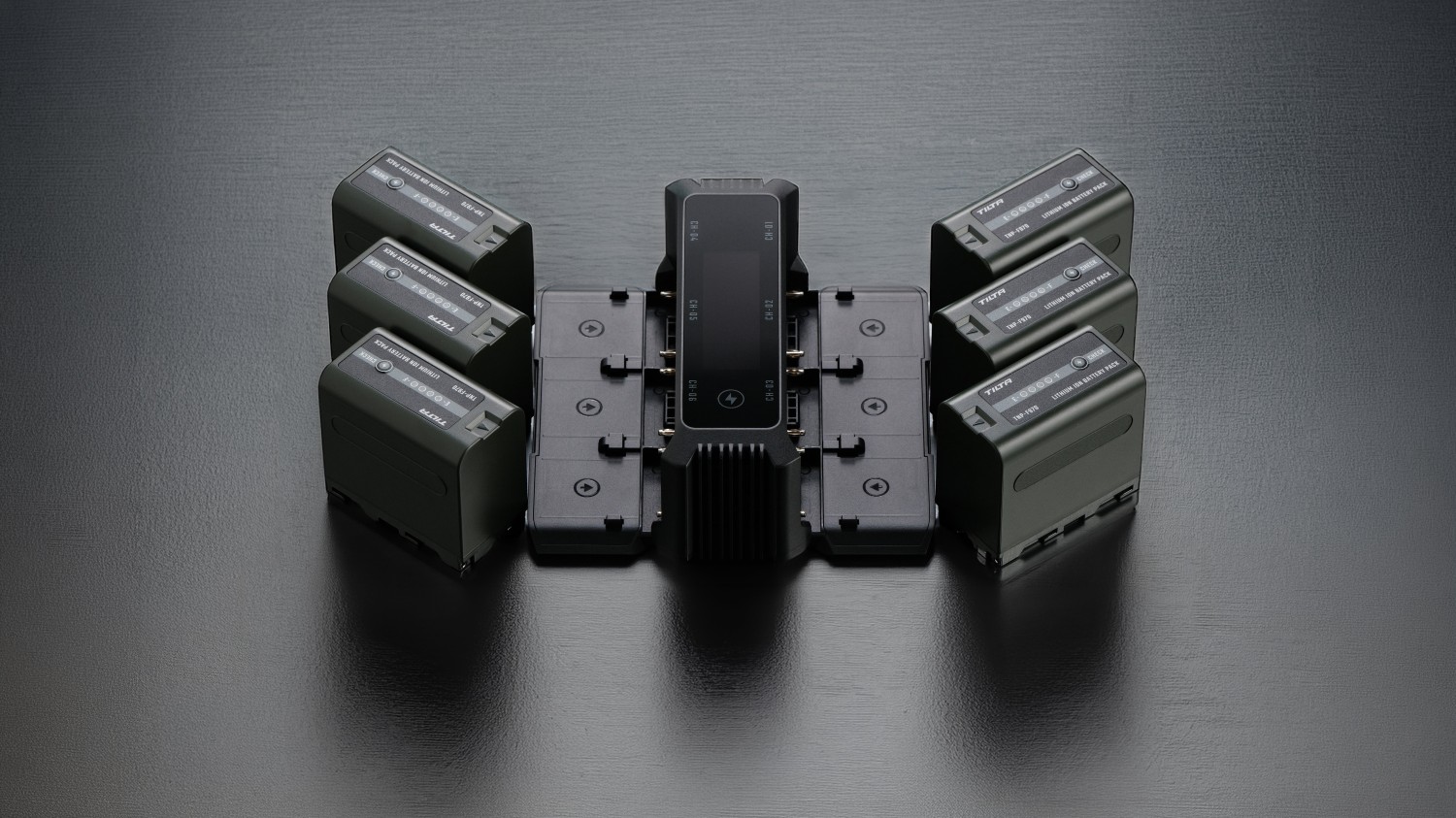

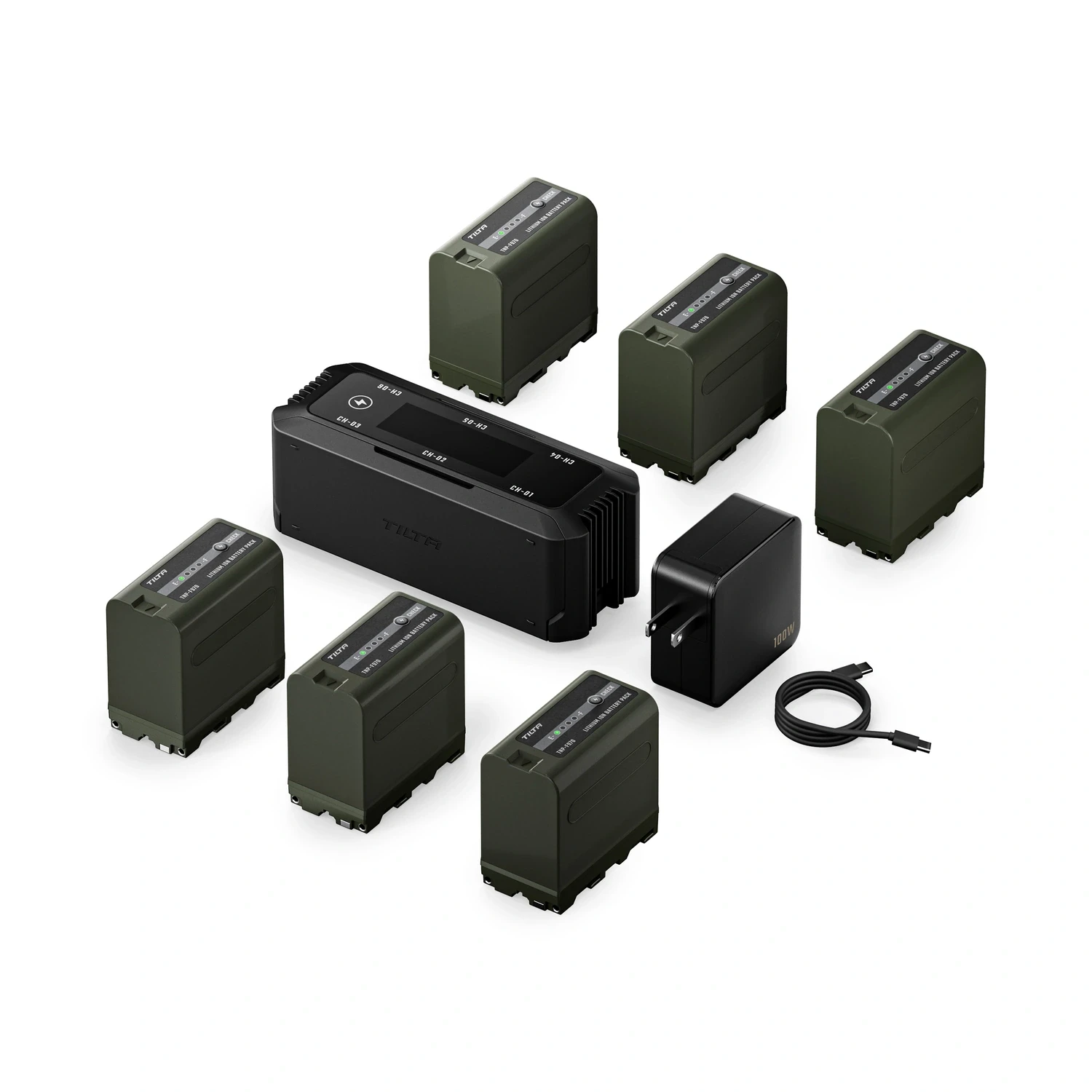

A full NP-F power set: a foldable six-channel Tilta charging station, six 10,500 mAh NP-F970 batteries and a 100 W quick charger with a American (US) plug. The station charges all six cells at once, the colour TFT display reports every channel, and priority Fast-Charge mode returns three batteries in about 5 hours 11 minutes.

The Tilta Foldable Charging Station for L-Series/NP-F Battery Kit with six batteries fills the station to the last bay and adds a 100 W quick charger with a American (US) plug. Six 10,500 mAh NP-F970 cells are a reserve that carries a whole shooting day.

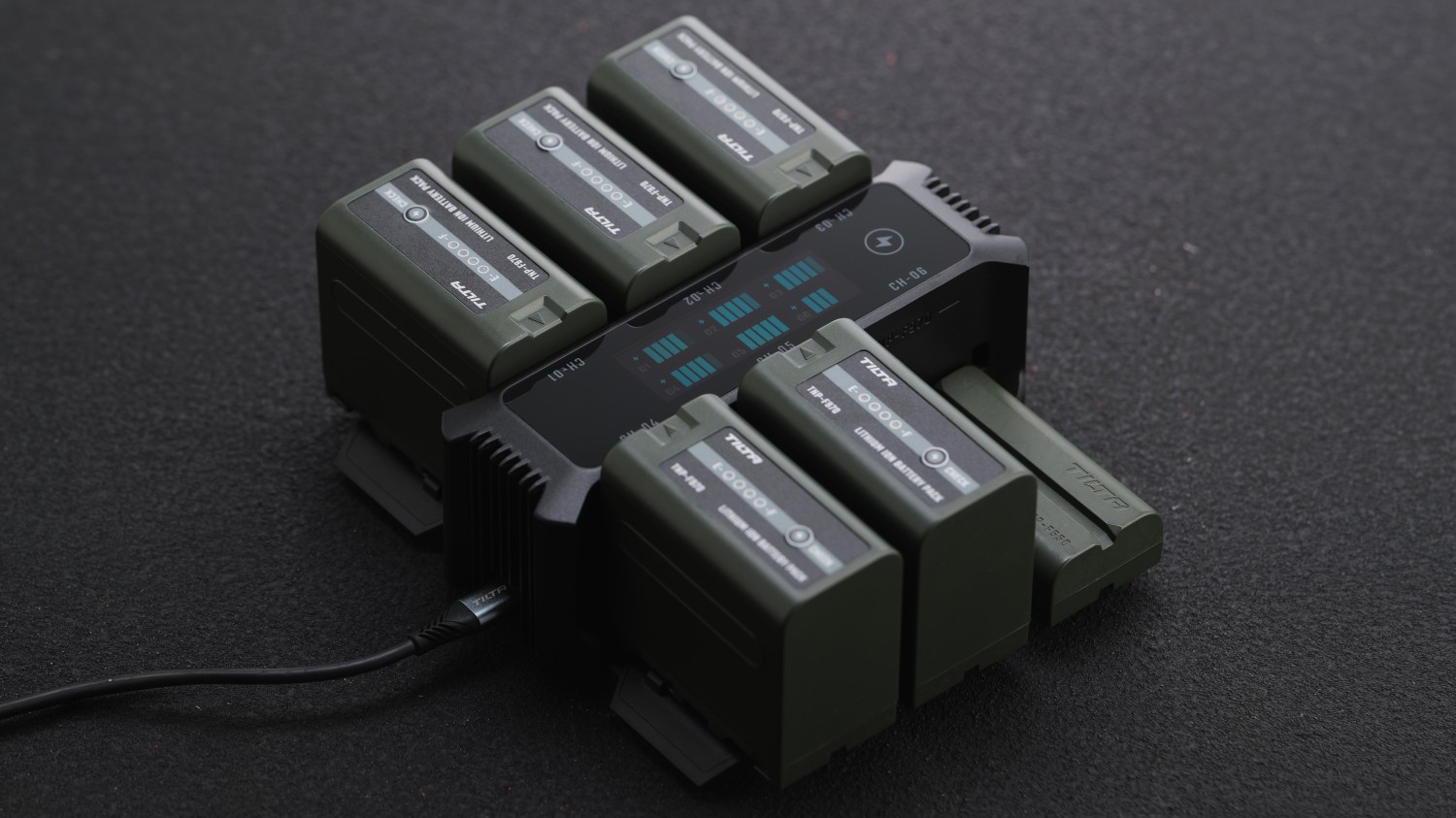

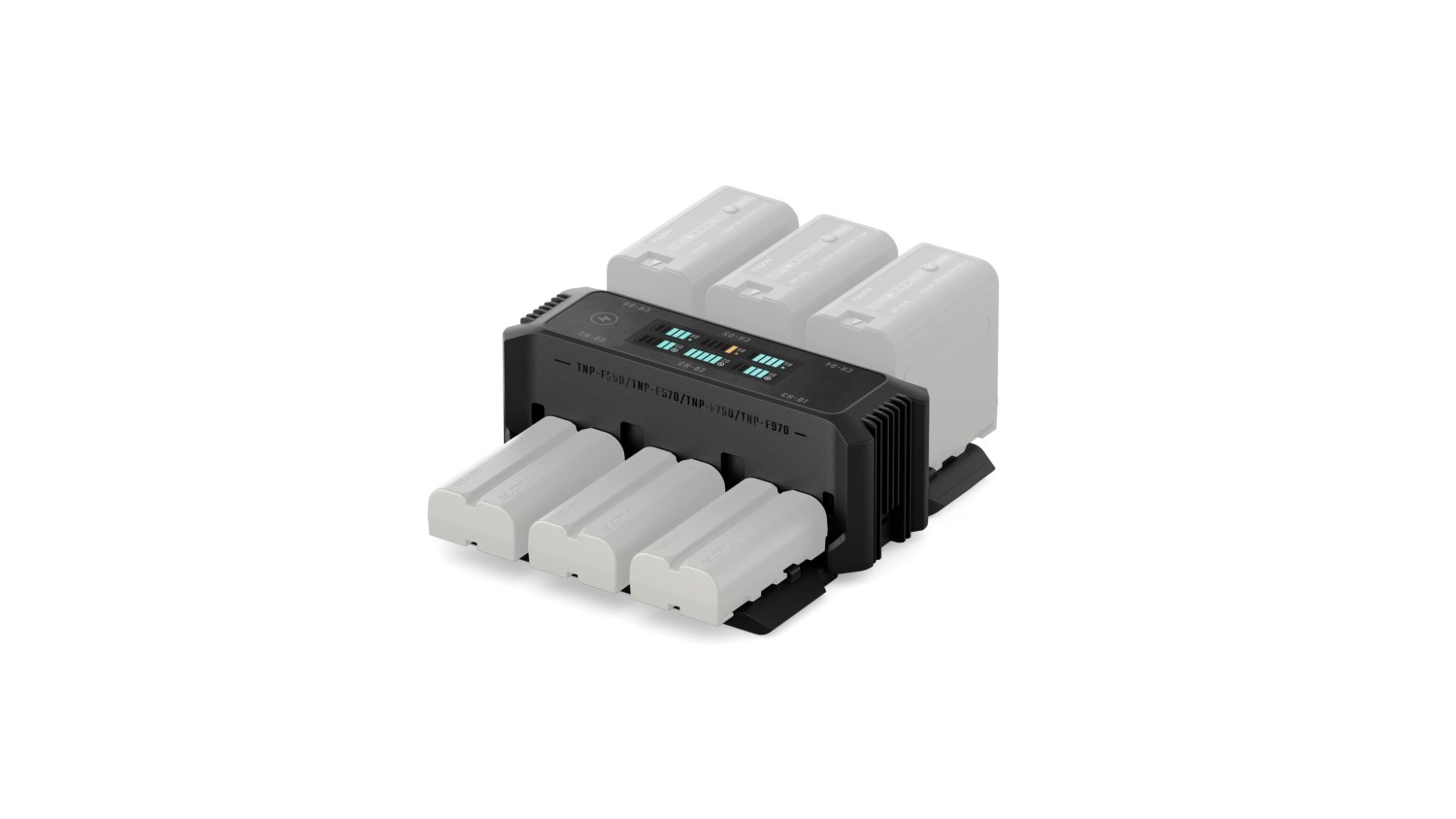

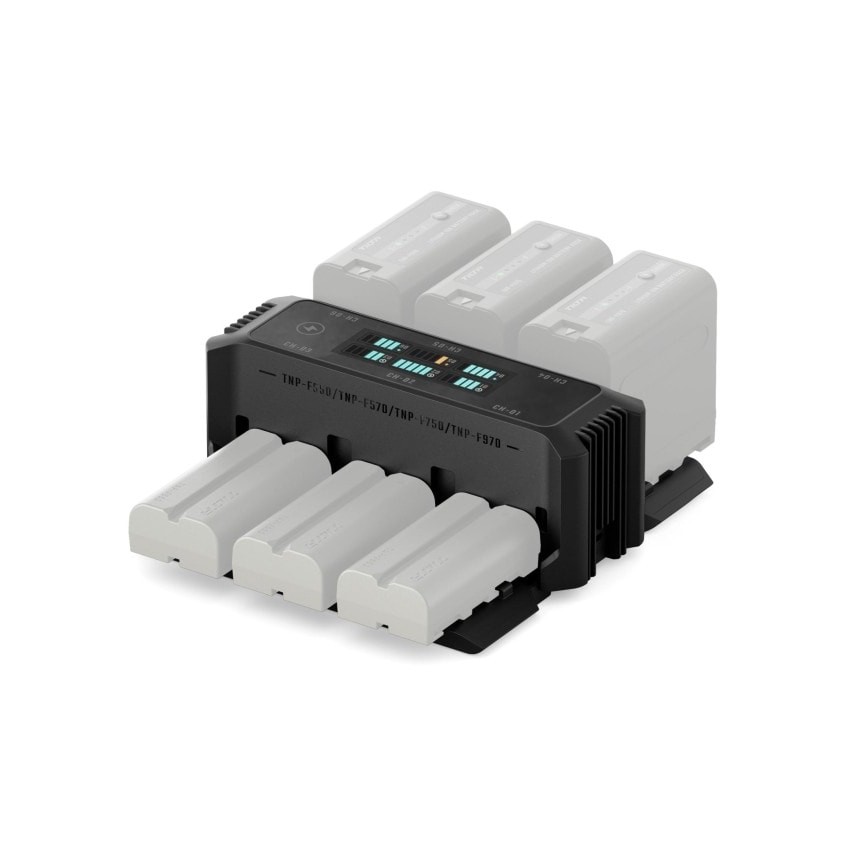

Six channels, folds flat

The station charges six NP-F cells at once. The side holders fold in and the station packs flat, taking a fraction of the case space six separate chargers would need.

A colour display for every channel

A colour TFT display shows each channel separately, labelled CH-01 to CH-06. When a battery drops below 10 %, its bar turns orange.

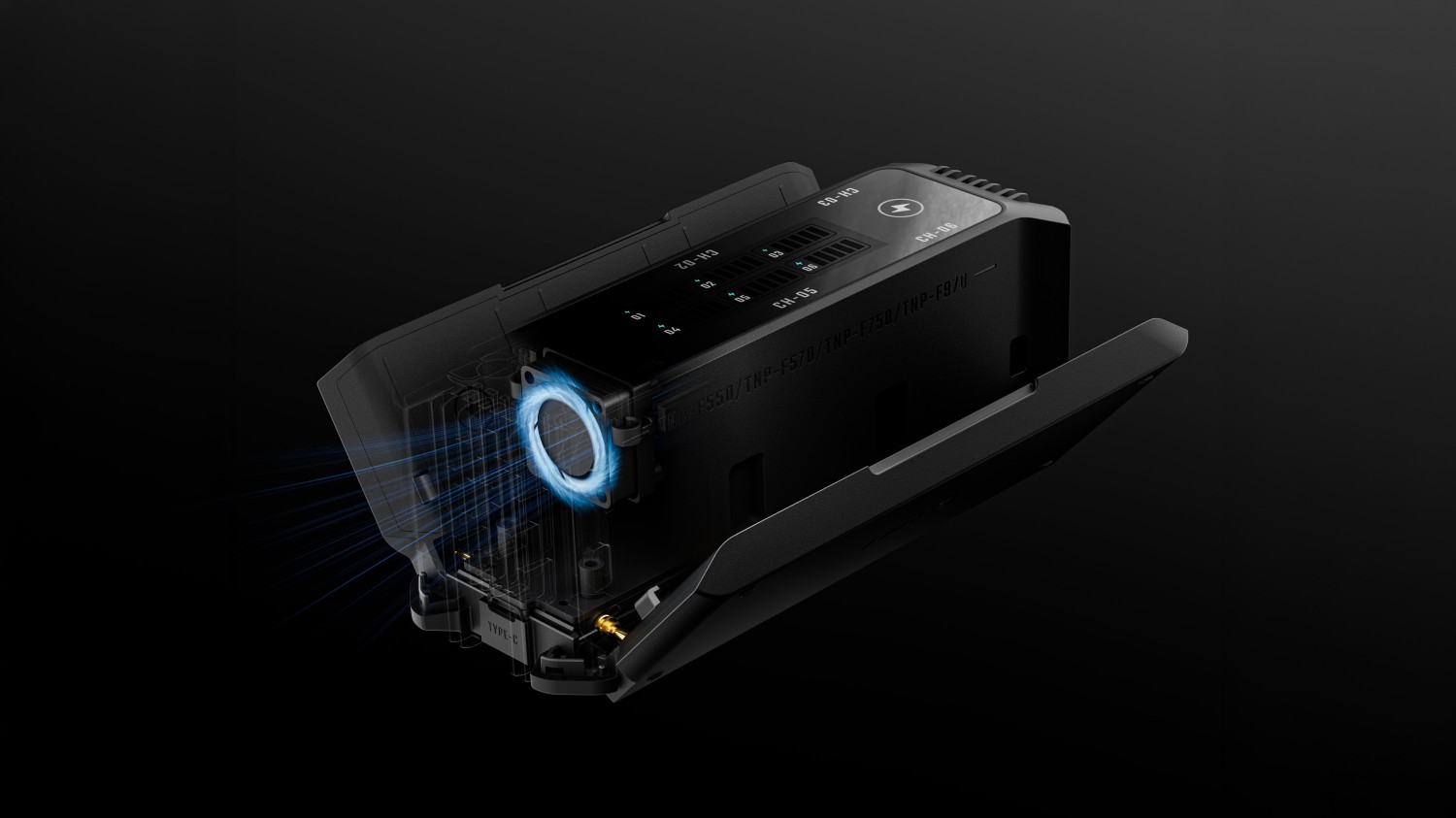

Active fan cooling

The built-in cooling starts by itself as the temperature rises and stops once it settles. The fan kicks in at roughly 70 °C, at 90 °C the station also halves the charging current, and it shuts off at about 40 °C.

Protection in several layers

Protection circuits watch for under-voltage (input below 9 V), over-voltage (input above 23 V), short circuit and overcharge, and report a fault. Charging ends automatically once a cell is full.

Two charging modes

Standard mode spreads the power evenly across all six bays. Hold the button for three seconds to switch to priority Fast-Charge, which tops up the three highest-charged cells first — you get those back sooner and can return to work.

How long it takes

In Fast-Charge mode three NP-F970 batteries are full in about 5 hours 11 minutes, all six in about 8 hours 53 minutes. In Standard mode a full charge takes around 6 hours 30 minutes. Fast-Charge therefore fills the whole set slightly later but hands you three usable cells much sooner.

Cells, temperature and power

The station takes NP-F550, NP-F570, NP-F750 and NP-F970 batteries — the whole L-Series / NP-F range. Capacity differs a great deal between types (NP-F550 around 3,500 mAh, NP-F970 around 10,500 mAh), and so does charging time; the figures above are for the NP-F970.

A low-voltage recovery mode revives cells that have sat unused for a long time and dropped below the usual threshold. The dock supports PD, QC and other mainstream fast-charging protocols.

Operating temperature is 0 to 40 °C, storage temperature −10 to 50 °C. For full performance the manufacturer recommends a 100 W power adapter.

A note on the plug

The supplied adapter has an American plug (US) with flat blades. It will not go into a continental European socket without a travel adapter, and none is included. If you need an adapter for a local socket, choose the EU version.
