Lilliput WS500-TX and RX

  • LAST PIECE
SKU: WS500-TX and RX

The Lilliput WS500 is a transmitter and receiver set for wireless video from camera to monitor. It accepts both HDMI and 3G-SDI, outputs both again at the receiver, reaches up to 1,600 ft (488 m) with 80 ms latency and also sends the picture to a mobile app. It runs on a Sony NP-F battery or via USB-C from a power bank, and an OLED display shows the link …

More information

609 € with VAT 503.31 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
SKU:
WS500-TX and RX
Add to Compare Price history

Top accessories for Lilliput WS500-TX and RX

SmallRig NP-F970 Battery and Charger Kit 3823

Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs

SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)

  • SHOWROOM PRAHA
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
94 €
In stock > 5 pcs

Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs

K&F Concept Sony NP-F970 10500mAh Battery with USB-C Charging

  • SHOWROOM PRAHA
A battery on a Sony NP-F mount with 10,500 mAh. It charges over USB-C at 20 W PD
63 €
In stock > 5 pcs

PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors

  • 8K resolution
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.7 €
In stock 3 pcs

SmallRig NP-F970 Camera Battery Charger 4086

SmallRig 4086 dual-slot charger for Sony NP-F550 to NP-F970 batteries. It charges
13 €
In stock > 5 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput WS500 is a transmitter and receiver set for wireless video from camera to monitor. It accepts both HDMI and 3G-SDI, outputs both again at the receiver, reaches up to 1,600 ft (488 m) with 80 ms latency and also sends the picture to a mobile app. It runs on a Sony NP-F battery or via USB-C from a power bank, and an OLED display shows the link status.

HDMI and SDI through the air, up to 1,600 ft

Transmitter on the camera, receiver at the monitor: 1080p at up to 60 frames per second, 80 ms latency, the 5 GHz band and automatic selection of the cleanest of 13 channels.

Lilliput WS500
HDMI · 3G-SDI1,600 ft (488 m)80 ms latency5 GHzNP-F / USB-C

Video on your phone too

The iOS app adds professional monitoring tools – focus peaking, exposure, zoom-in, markers, recording and snapshots – and the phone can stream live to a streaming platform.

Automatic channel search

The system picks the cleanest of 13 channels by itself, so the picture does not drop out and latency stays low.

Fanless design

Ultra-low power consumption and passive cooling allow a small, silent body – 113 × 65 × 29.2 mm and 200 g.

Dual power supply

A Sony NP-F series battery right on the unit, or USB-C from a power bank.

QR code pairing

One button shows a QR code on the display; scan it in the app to link your phone to the transmitter.

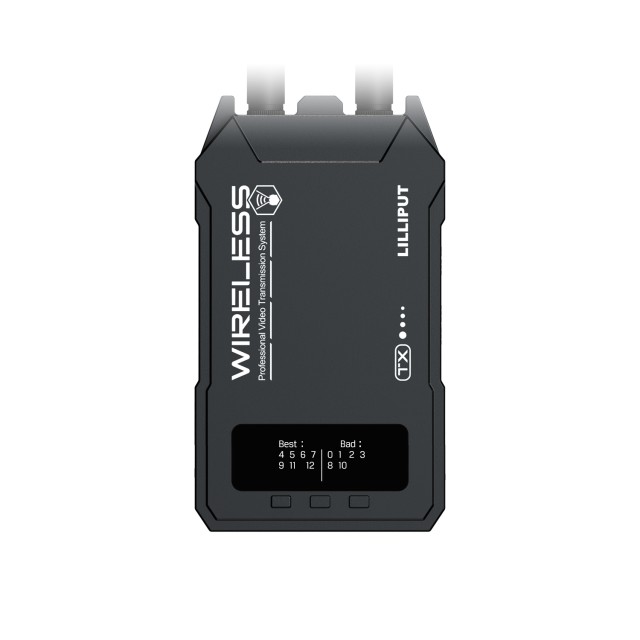

Lilliput WS500 – OLED status display

OLED status display

The 1.3" display shows signal strength, channel, format and power; three buttons below it run the menu.

Lilliput WS500 – NP-F battery

NP-F battery

A Sony NP-F battery mount on the back, next to a 1/4" thread for mounting on a camera or arm.

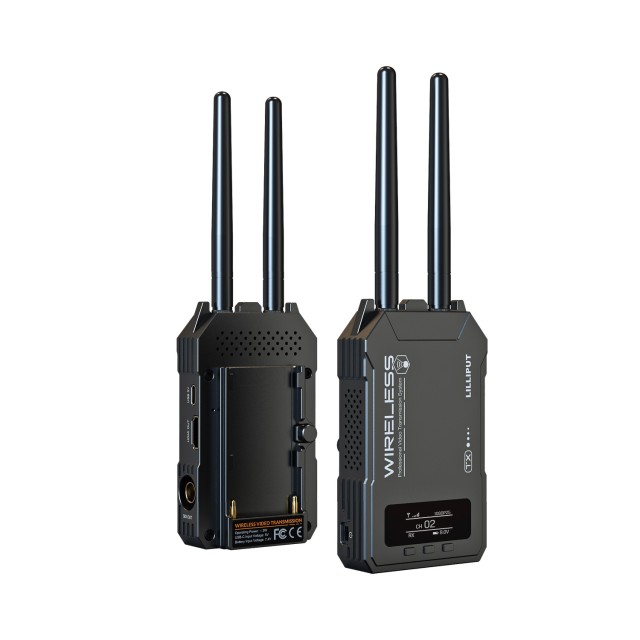

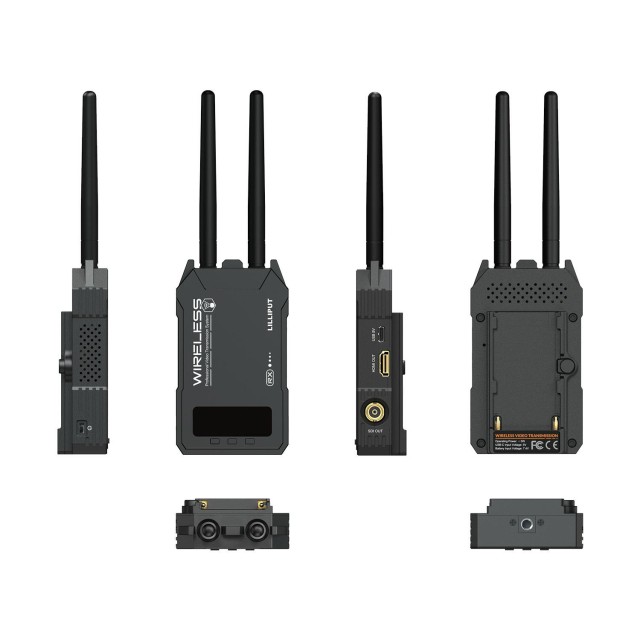

Lilliput WS500 – Transmitter and receiver

Transmitter and receiver

Both units from every side: two antennas, HDMI and SDI connectors and USB-C.

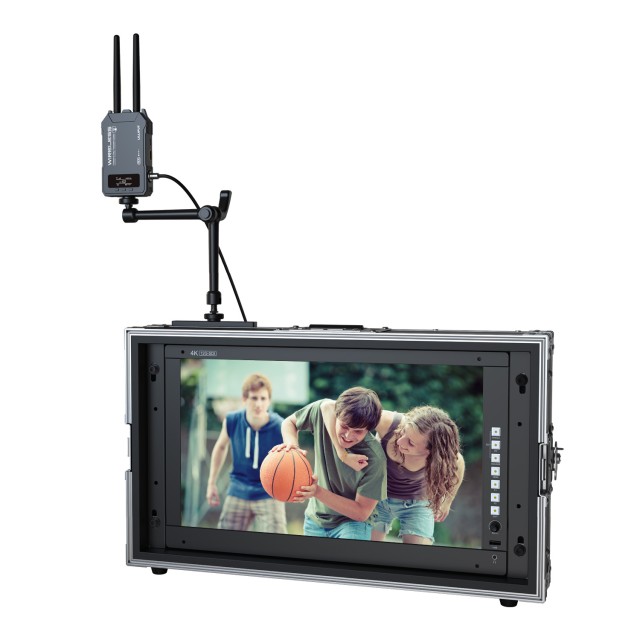

Lilliput WS500 – Receiver at the monitor

Receiver at the monitor

The receiver on an arm above a production monitor – camera video across the whole set without a cable.

How the system connects

A camera or camcorder connects over HDMI or SDI to the TX transmitter, which sends the picture wirelessly to the RX receiver and on to a monitor by cable. The transmitter also streams the picture to the mobile app.

Lilliput WS500 – How the system connects

More information

About the product

The WS500 Wireless Video Transmission System from Lilliput features a 1,600 ft (488 m) line-of-sight range and both 3G-SDI (BNC) and HDMI inputs and outputs. This compact system can be linked to up to three mobile devices, enabling multiple viewers to watch your video feed simultaneously. WS500 system features include a status screen, Sony NP-F (L-series) battery and USB Type-C power options, and 13 channels with automatic selection.

Main features: HDMI/SDI wireless transmission; low latency of 80 ms; transmission range of 1,600 ft (488 m); automatic search for quality channels; professional app for video monitoring; compact status screen; dual power supply.

PACKAGE CONTENT

  • Lilliput WS500-TX transmitter
  • Lilliput WS500-RX receiver
  • wireless antennas
  • USB-C cable
  • electronic user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: WS500-TX + WS500-RX
  • Type: wireless video transmission (transmitter + receiver)
  • Video inputs (TX): HDMI, 3G-SDI
  • Video outputs (RX): HDMI, 3G-SDI
  • Video format: HDMI and 3G-SDI: 1080p 23.98–60, 1080i 50/60, 720p 50/60
  • Audio: 48 kHz, 24-bit
  • Latency: 80 ms (transmitter to receiver, no interference)
  • Frequency band: 5 GHz
  • Transmission power: 17 dBm
  • Range: 1,600 ft (488 m) line of sight, no interference
  • Channels: 13, automatic selection
  • Status screen: 1.3" OLED
  • App: yes (iOS) – live view, focus peaking, exposure, zoom-in, markers, record, snapshot, live streaming
  • Power: 5 V DC – Sony NP-F battery or USB-C
  • Power consumption: ≤ 3.5 W
  • Operating temperature: 0 to 50 °C
  • Storage temperature: −20 to 60 °C
  • Dimensions: 113 × 65 × 29.2 mm (each unit)
  • Weight: 200 g (each unit)

WE RECOMMEND

Recommended for the Lilliput WS500-TX and RX:

Cables – SDI, HDMI and a network cable for PoE

Power – Sony NP-F batteries and a charger

Parameters

Parameters

Manufacturer: Lilliput
Category: Wireless video transmission

Main parameters

Line-of-sight range488m
Weight per unit200g
Transmitters in package1
Receivers in package1
Maximum frame rate60fps
USB-C supply voltage5V
Frequency band5 GHz
Power supplyNP-F550 · NP-F750 · NP-F970 · USB-C
FunctionsAutomatic channel selection · Fanless cooling
Audio bit depth24-bit
Status Display TypeOLED
Number of antennas per unit2
NP-F battery slots1
Latency0.08 s
InputHDMI · SDI
