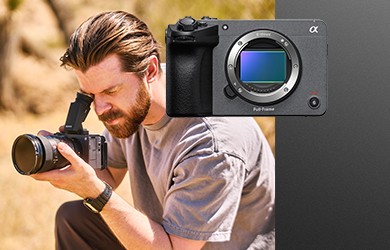

The FX5 is the uncompromising filmmaking tool you've been dreaming of. It offers 5K Open Gate mode, internal RAW recording, and a dynamic range of 15+ EV. Equipped with a detachable electronic viewfinder, dedicated timecode, and 32-bit floating-point audio, it combines compact portability with professional-grade…
The FX5 is the uncompromising filmmaking tool you've been dreaming of. It offers 5K Open Gate mode, internal RAW recording, and a dynamic range of 15+ EV. Equipped with a detachable electronic viewfinder, dedicated timecode, and 32-bit floating-point audio, it combines compact portability with professional-grade performance.
Experience maximum creative flexibility with 5K Open Gate mode and internal RAW recording across three professional codecs. This sensor supports a wide range of anamorphic formats and allows you to capture the full image for any output format, ensuring the flexible and highly faithful workflow required by professional productions.
The new 16.6MP sensor, combined with the BIONZ XR2 processor, delivers a remarkable dynamic range of over 15 EV for exceptional preservation of highlights and shadow details. This system utilizes triple base ISO sensitivity and dual amplification technology to ensure exceptionally clean, noise-free images, even when shooting in the most challenging low-light environments.
Capture the most intense action in 4K at 240p and 5K at 120p (available in a future firmware update). Thanks to the sensor’s significantly higher readout speed, the rolling shutter effect is minimized, while improved low-light autofocus ensures that perfect focus is maintained during high-speed shooting, making the camera an exceptionally reliable tool for both solo operators and professionals working with a second camera.
This body is designed for demanding shooting conditions and features a detachable, tilting electronic viewfinder and a larger four-axis LCD monitor that tilts to a wide range of angles. Whether you’re streamlining your gimbal setup or assembling a complete production rig, the sophisticated ergonomics and high-level monitoring support provide the reliable visual control that professionals need.
Thanks to compatibility with dedicated time code (TC) cables, you can easily bridge the gap between compact shooting and full-scale production. With 32-bit floating-point audio recording via the handgrip and two USB-C ports, this camera integrates seamlessly into professional workflows. It ensures perfectly synchronized audio and video as well as lightning-fast data transfers.
Designed for modern filmmakers, the FX5 features a new high-capacity battery and enhanced Wi-Fi stability for mission-critical tasks. With 4K 60p live streaming capabilities and advanced network security, you can deliver professional content directly from the field with absolute confidence and stability.
| 1x Sony FX 5body |
|---|
| 1x Rechargeable Battery NP‑SA100 |
| 1x Battery Charger BC‑SAD117 |
| 1x Body Cap |
| 1x Accessory Shoe Cap |
| 1x VF Terminal Protect Cap |
Category |
Specification |
|---|---|
| Camera Type | Interchangeable‑lens digital camera |
| Lens Mount | E‑mount |
| Latitude | 15+ stops (S‑Log3) |
| Sensor Type | 35mm Full Frame Exmor RS CMOS (35.9 × 24.0 mm) |
| Total Pixels | Approx. 18.2 MP |
| Effective Pixels | Approx. 16.6 MP |
| Optical Low‑Pass Filter | Yes |
| Color Temperature Range | 2000 K – 15000 K |
| Anti‑Dust System | Yes |
| Video Compression | X‑OCN, XAVC HS (H.265), XAVC S (H.264) |
| Audio Recording Format | LPCM/PCM 4ch (48/96 kHz, 24/32‑bit float) |
| Slow & Quick Motion | Yes |
| Proxy Recording | Yes |
| TC/UB | Yes |
| RAW Output | Yes (HDMI) |
| Memory Card Slot | SDXC UHS‑I/II / CFexpress Type A (Slot A & B) |
| Focus Type | Fast Hybrid AF (phase + contrast) |
| Focus Points | Max. 759 |
| Recognition Targets (Movies) | Human, Animal, Bird |
| AF Functions | AF Transition Speed, AF Subject Shift Sensitivity, Focus Map, AF Assist |
| ISO Sensitivity | ISO 320–409600 (AUTO with upper limit) |
| Monitor Type | 3.5" TFT |
| Touch Panel | Yes |
| Number of Dots | 2,764,800 |
| Adjustable Angle | Up 98°, Down 40°, Side 180°, Rotation 270° |
| Clear Image Zoom | ~1.5× (4K), ~2× (HD) |
| Shutter Speed | 1/8000 s – 64 F |
| Image Stabilization | 5‑axis sensor‑shift |
| Stabilization Modes | Dynamic Active / Active / Standard / Off |
| Accessibility Features | Screen Reader, Focus Magnifier, Peaking, Touch Focus, Touch Tracking |
| PC Interface | Mass‑storage |
| USB Terminals | USB‑C (10 Gbps), USB 2.0 |
| Wireless LAN | Wi‑Fi 802.11 a/b/g/n/ac/ax (2.4/5/6 GHz) |
| Bluetooth | Version 5.3 |
| HDMI Output | Type‑A |
| Multi Interface Shoe | Yes (digital audio) |
| Mic Terminal | 3.5 mm stereo |
| Headphone Terminal | 3.5 mm stereo |
| Wireless Remote | Bluetooth |
| LAN Terminal | 2.5GBASE‑T / 1000BASE‑T / 100BASE‑TX |
| Network Functions | FTP Transfer (LAN, USB tethering, Wi‑Fi) |
| Video Data Format | H.264 / H.265 |
| Video Resolution | 3840×2160, 1920×1080, 1280×720 |
| Audio Data Format | AAC‑LC 2ch |
| Streaming Protocols | RTMP, RTMPS, SRT |
| Microphone | Built‑in stereo |
| Speaker | Built‑in mono |
| Lens Compensation | Shading, CA, Distortion, Breathing |
| Supplied Battery | NP‑SA100 |
| Battery Life (Actual) | Approx. 105 min |
| Battery Life (Continuous) | Approx. 170 min |
| Internal Battery Charge | Yes (USB‑C PD) |
| USB Power Supply | Yes (USB‑C PD) |
| Power Consumption | Approx. 7.4 W |
| Weight (with battery & card) | Approx. 734 g |
| Body Only Weight | Approx. 643 g |
| Dimensions (W × H × D) | Approx. 132.2 × 79.0 × 87.0 mm |
| Operating Temperature | 0–40 °C |
| Storage Temperature | –20 to 55 °C |
| Manufacturer: | SONY |
| Category: | Digital Cinema |
| Camera Sensor size | Full Frame |
| Resolution | 4K |
| Resolution | 4K UHD |
| Resolution | 4K UHD 3840×2160 |
| Resolution | 4K UltraHD (3840 x 2160) @ 60 fps |
| Resolution | 4K UltraHD (3840 x 2160) @ 50/60 fps |
| Resolution | 4K UltraHD (3840 × 2160) @ 50/60 fps |
| Resolution | 4K UltraHD (3840 × 2160) 50/60 fps |
| Type of bayonet | E-mount |
| Type of bayonet | Sony E |
| Output | HDMI |
| Output | USB-C |
| Output | 3,5 mm jack |
| Output | Ethernet / IP |
| Velikost snímače | Full Frame |
| Bajonet | Sony E |
| Maximální rozlišení videa | 5K |
| Záznamová média | CFexpress Type A |
| Záznamová média | SD / SDHC / SDXC |
| Video výstupy a přenos | HDMI |
| Version | film |
| Version | Mirrorless |
| Version | Compact |
| Record format | RAW |
| Record format | XAVC S |
| Record format | XAVC HS |
| Record format | H.264 / H.265 |
| FPS | 5K 120 fps |
| Media type | SD card |
| Media type | CFexpress Type A |
| Media type | SD / SDHC / SDXC |
| Media type | SD + CFexpress Type A |
| Battery type | NP-SA100 |
| Colour depth | 16 bit |
| Other features | RAW |
| Other features | Tally |
| Other features | Proxy recording |
| Other features | Timecode |
| Other features | Triple ISO |
