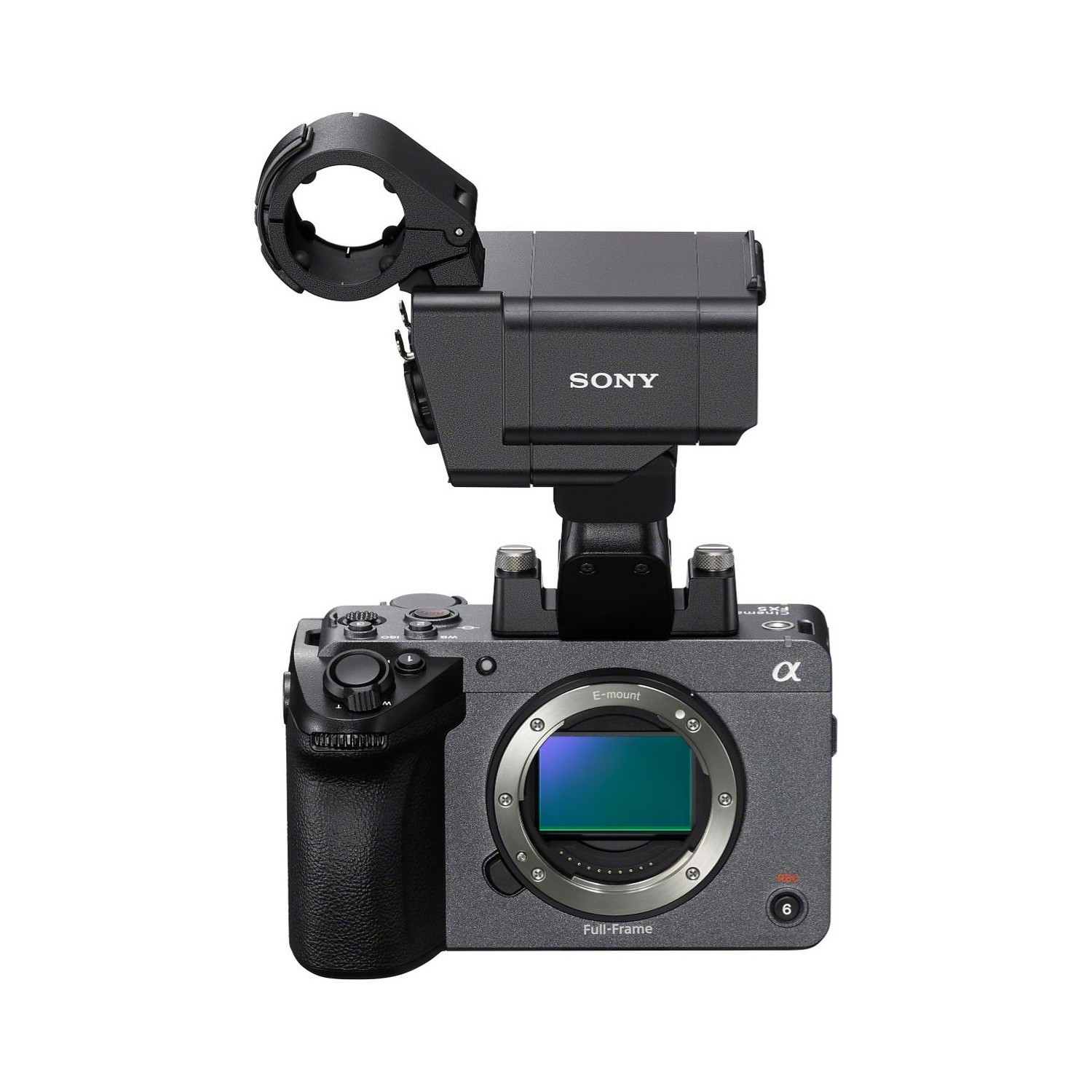

Sony FX5 (Body + XLR Handle Unit)

The FX5 is the uncompromising filmmaking tool you've been dreaming of. It offers 5K Open Gate mode, internal RAW recording, and a dynamic range of 15+ EV. With a connector for the optional DVF-EL1 OLED viewfinder, timecode and 32-bit floating-point audio, it combines compact portability with professional-grade performance.

Full-frame cinema look in a compact body

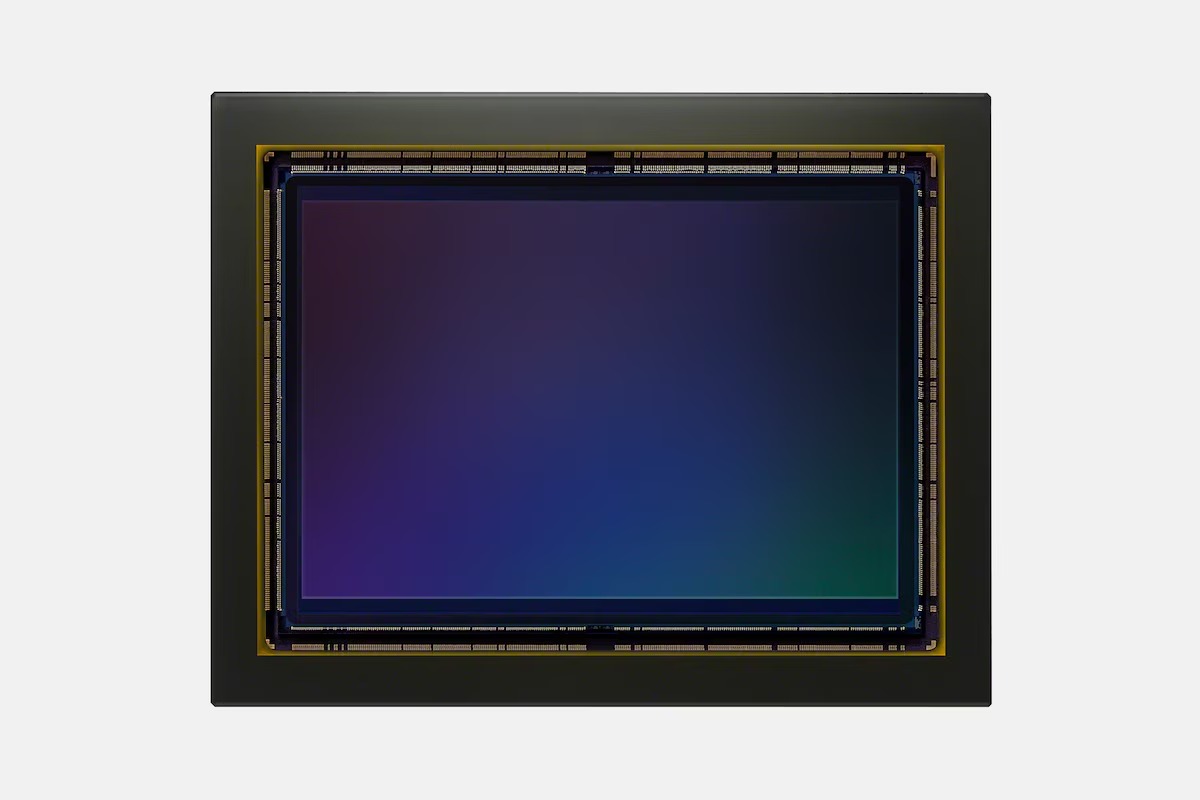

A stacked Exmor RS sensor, BIONZ XR2 with an AI processing unit and three base ISO settings in a Cinema Line body. The XLR handle with two inputs is included.

5K OPEN GATEX-OCN 16-BIT15+ STOPS3 BASE ISO

XLR handle in the box

Two XLR/TRS inputs for microphones and a mixer, with up to four channels at 96 kHz / 32-bit float. Sound goes straight into the camera, no external recorder needed.

Controls inherited from CineAlta

Dedicated buttons, a multi-function dial and the BIG6 (HOME) screen showing six key settings at once: frame rate, EI/ISO, shutter, iris, LUT and white balance.

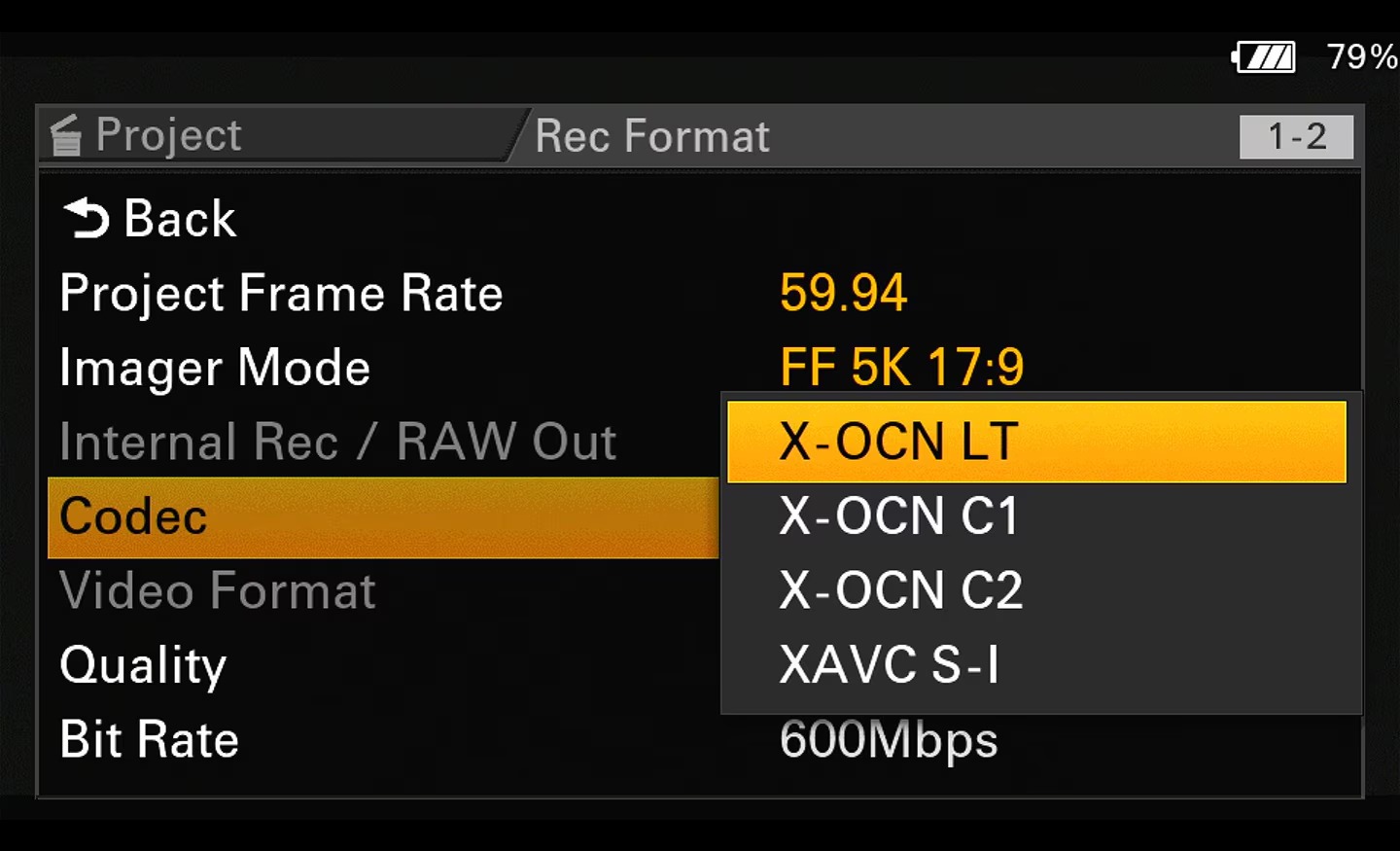

16-bit X-OCN in the camera

Scene-linear X-OCN in LT, C1 and C2 is recorded internally, with no external recorder. Open Gate uses the full 3:2 sensor area and records 5K at up to 60 frames per second.

Three base ISO and Dual Gain

Base ISO 800, 4000 and 12800 plus Dual Gain shooting keep shadows clean by day and at dusk.

5-axis stabilisation

Optical in-body stabilisation with up to twice the roll compensation range; Dynamic Active mode adds electronic support.

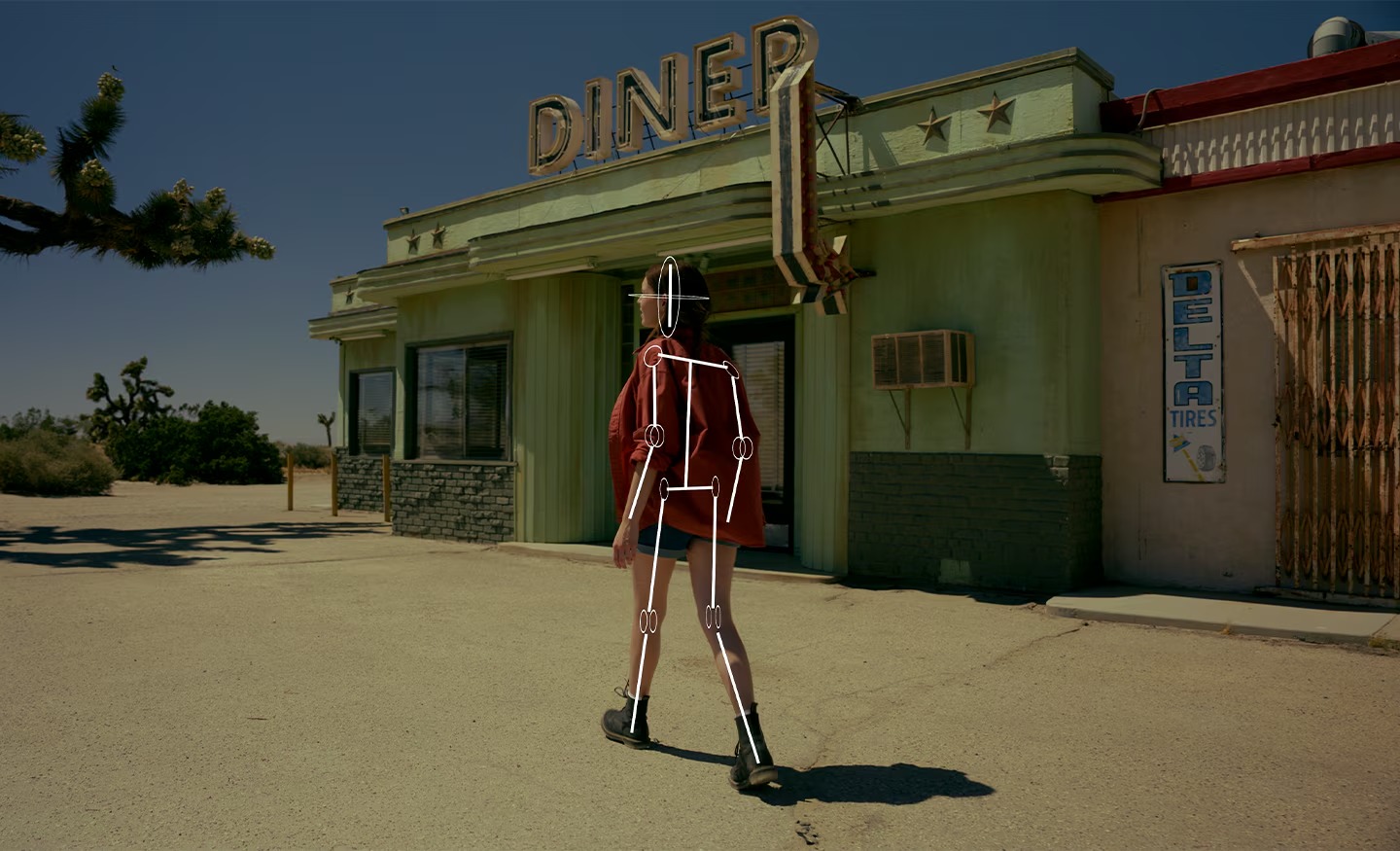

AI subject recognition

Fast Hybrid AF with up to 759 points recognises human, animal and bird eyes and holds them even at shallow depth of field.

S-Log3, S-Cinetone and LUTs

Three S-Log3 modes (Cine EI, Cine EI Quick, Flexible ISO), S-Cinetone for a finished look and up to 16 user LUTs.

UNCOMPROMISING FREEDOM FOR FILMMAKERS

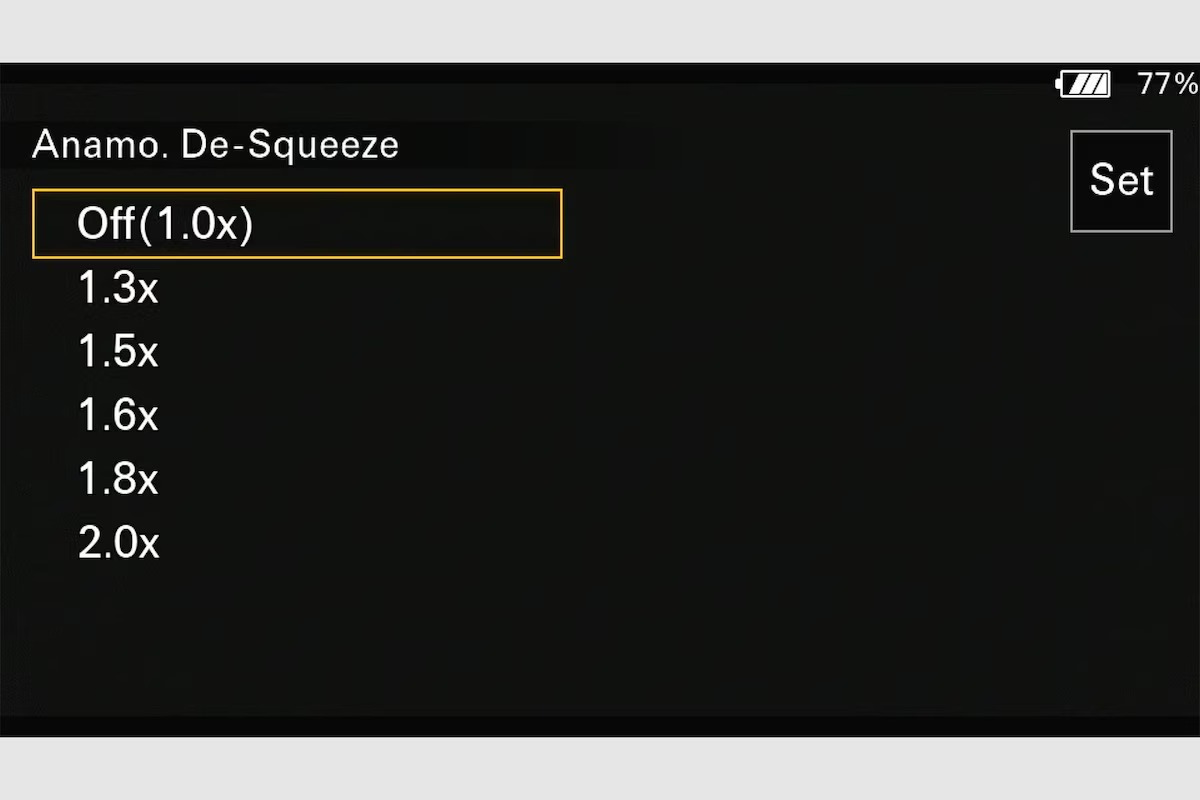

Experience maximum creative flexibility with 5K Open Gate mode and internal RAW recording across three professional codecs. This sensor supports a wide range of anamorphic formats and allows you to capture the full image for any output format, ensuring the flexible and highly accurate workflow required by professional productions.

ELITE IMAGE FIDELITY IN ANY LIGHTING CONDITION

The new 16.6MP sensor, combined with the BIONZ XR2 processor, delivers a remarkable dynamic range of over 15 EV for exceptional preservation of highlights and shadow details. This system uses three base ISO settings and dual amplification technology to ensure exceptionally clean, noise-free images, even when shooting in the most challenging low-light environments.

PRECISE HIGH-SPEED PERFORMANCE

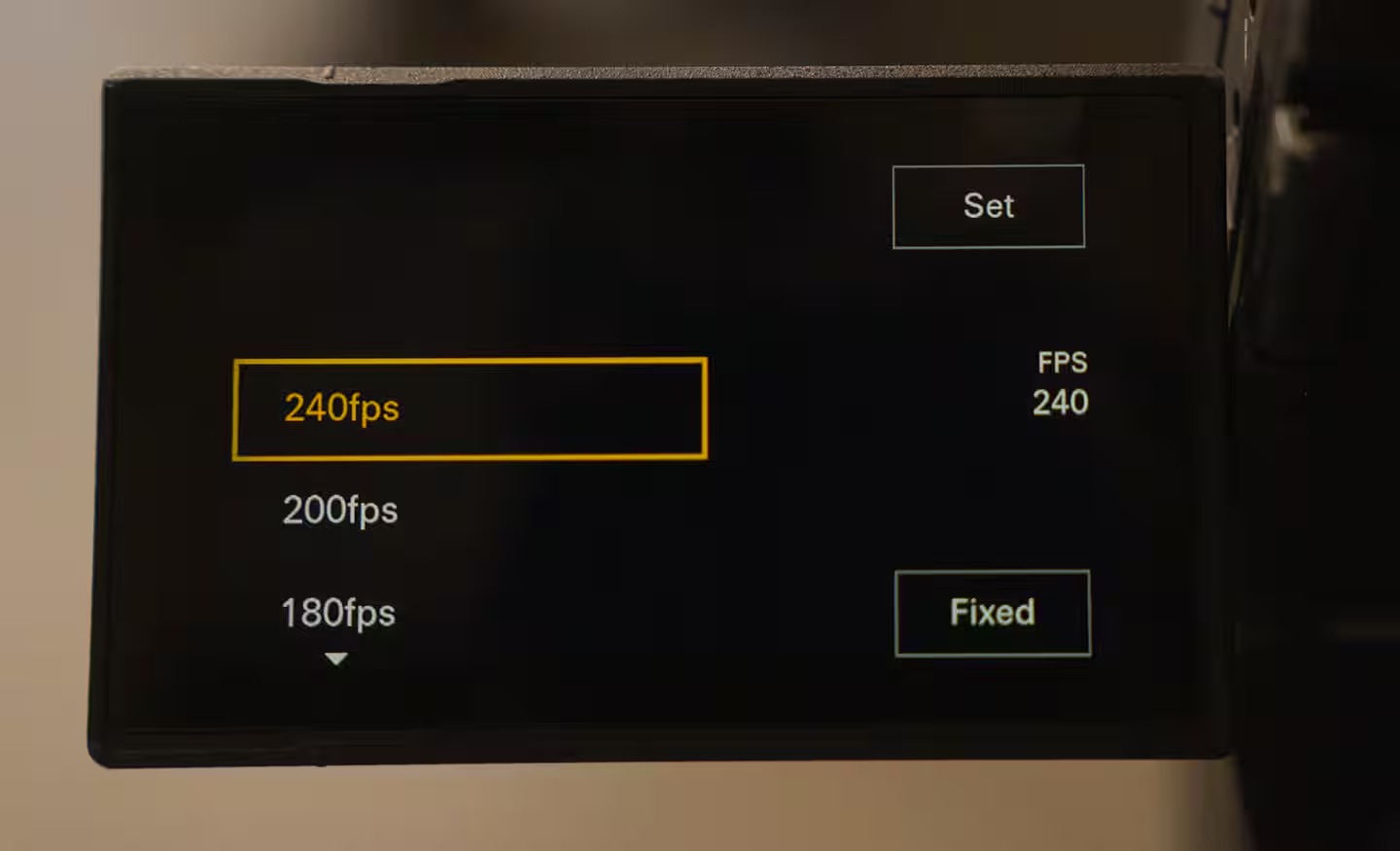

Capture the most intense action in 4K at 240p and 5K at 120p (available in a future firmware update). Thanks to the sensor’s significantly higher readout speed, the rolling shutter effect is minimized, while improved low-light autofocus ensures that perfect focus is maintained during high-speed shooting, making the camera an exceptionally reliable tool for both solo operators and professionals working with a second camera.

MODULAR MONITORING AND ERGONOMICS

This body is designed for demanding shooting conditions: the four-axis 3.5-inch LCD monitor tilts to a wide range of angles, and the viewfinder connector accepts the optional DVF-EL1 OLED viewfinder. Whether you’re streamlining your gimbal setup or assembling a complete production rig, the sophisticated ergonomics and high-level monitoring support provide the reliable visual control that professionals need.

SEAMLESS MULTI-CAMERA INTEGRATION

Thanks to compatibility with specialized time code (TC) cables, you can easily bridge the gap between compact shooting and full-scale production. With 32-bit floating-point audio recording via the XLR handle and two USB-C ports, this camera integrates seamlessly into professional workflows. It ensures perfectly synchronized audio and video as well as lightning-fast data transfers.

RELIABLE POWER AND CONNECTIVITY

The 2670 mAh NP-SA100 battery provides up to 170 minutes of continuous recording, and the camera can be charged and powered over USB-C with USB Power Delivery. Wired 2.5GBASE-T LAN and Wi-Fi in the 2.4, 5 and 6 GHz bands are available for file transfer and remote control. Live streaming via RTMP, RTMPS or SRT supports up to 3840 × 2160.

Key technologies of the Sony FX5
