SmallRig Nano72 Power Bank with 1/4"-20 Threaded Hole 6108

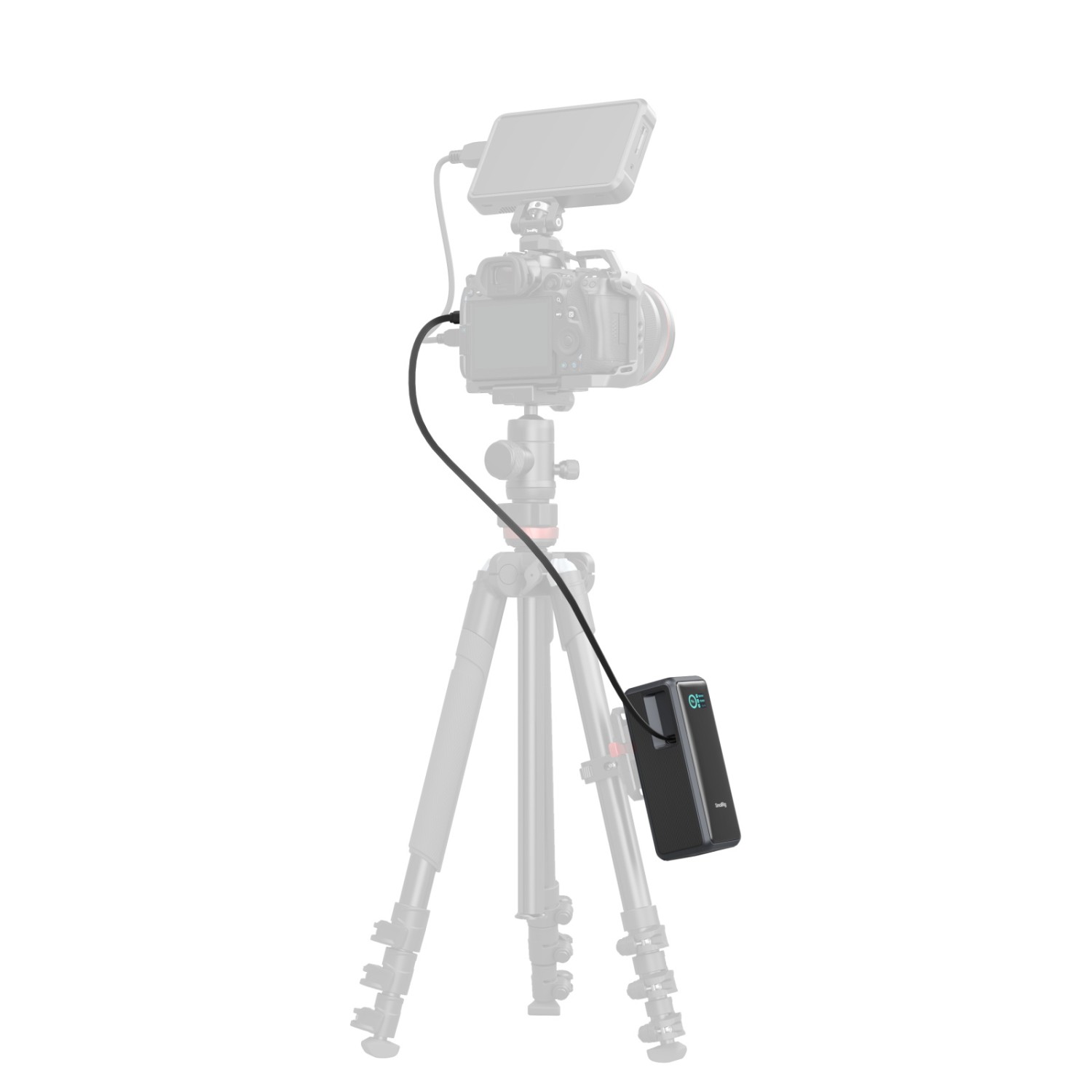

The SmallRig Nano72 power bank packs 73 Wh, a built-in retractable USB-C cable and 100 W both in and out. A 1/4"-20 thread on the back bolts it straight onto a tripod or a cage. The colour display shows the charge level and the power of every port.

More information

94 € with VAT 77.69 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The SmallRig Nano72 power bank packs 73 Wh, a built-in retractable USB-C cable and 100 W both in and out. A 1/4"-20 thread on the back bolts it straight onto a tripod or a cage. The colour display shows the charge level and the power of every port.

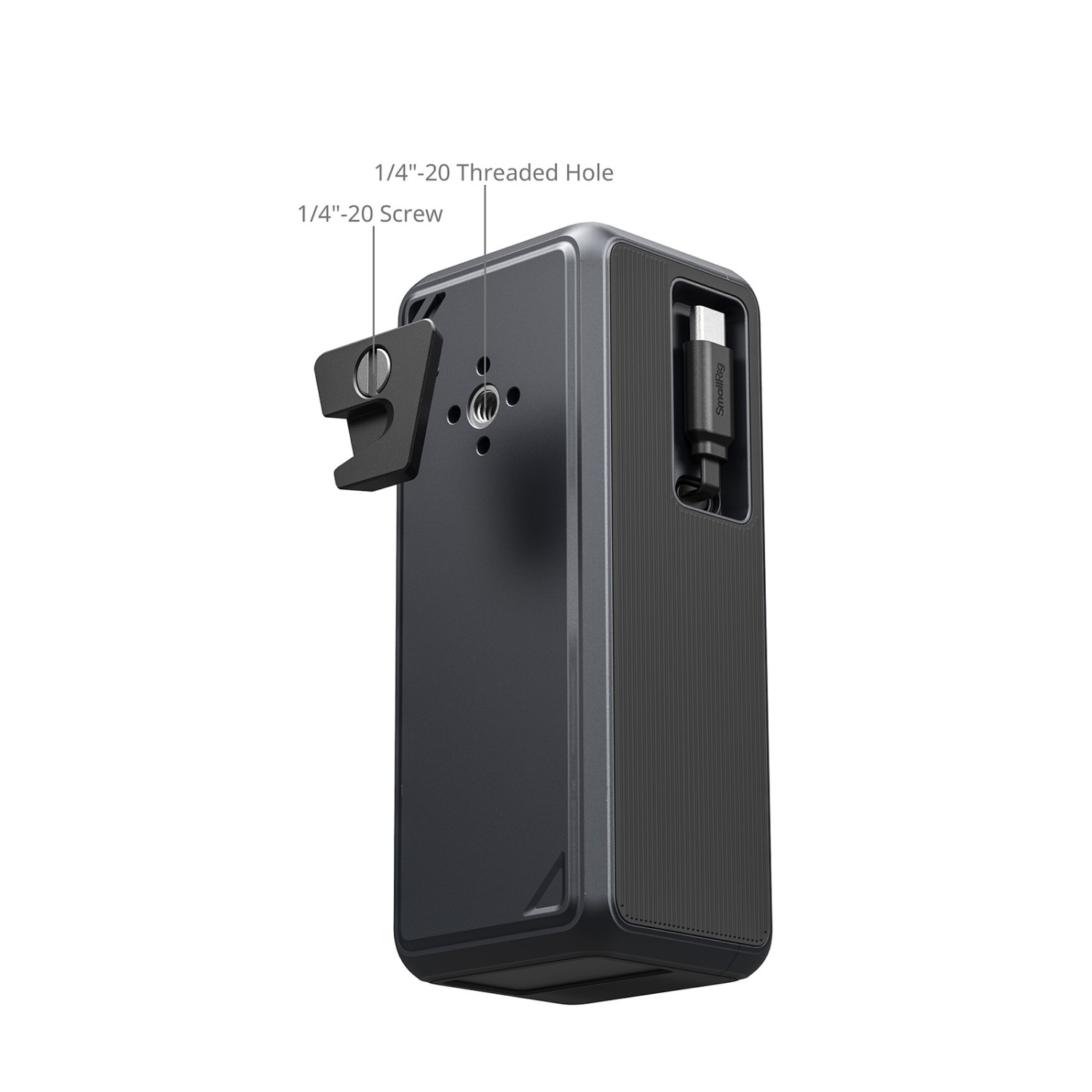

The SmallRig Nano72 is a 73 Wh power bank shaped as a slim block about as tall as a V-mount battery but roughly half its bulk. The back carries a 1/4"-20 thread and a locating hole; a slotted 1/4"-20 screw fixes a metal V-mount plate to it, so the Nano72 also works in a V-mount setup.

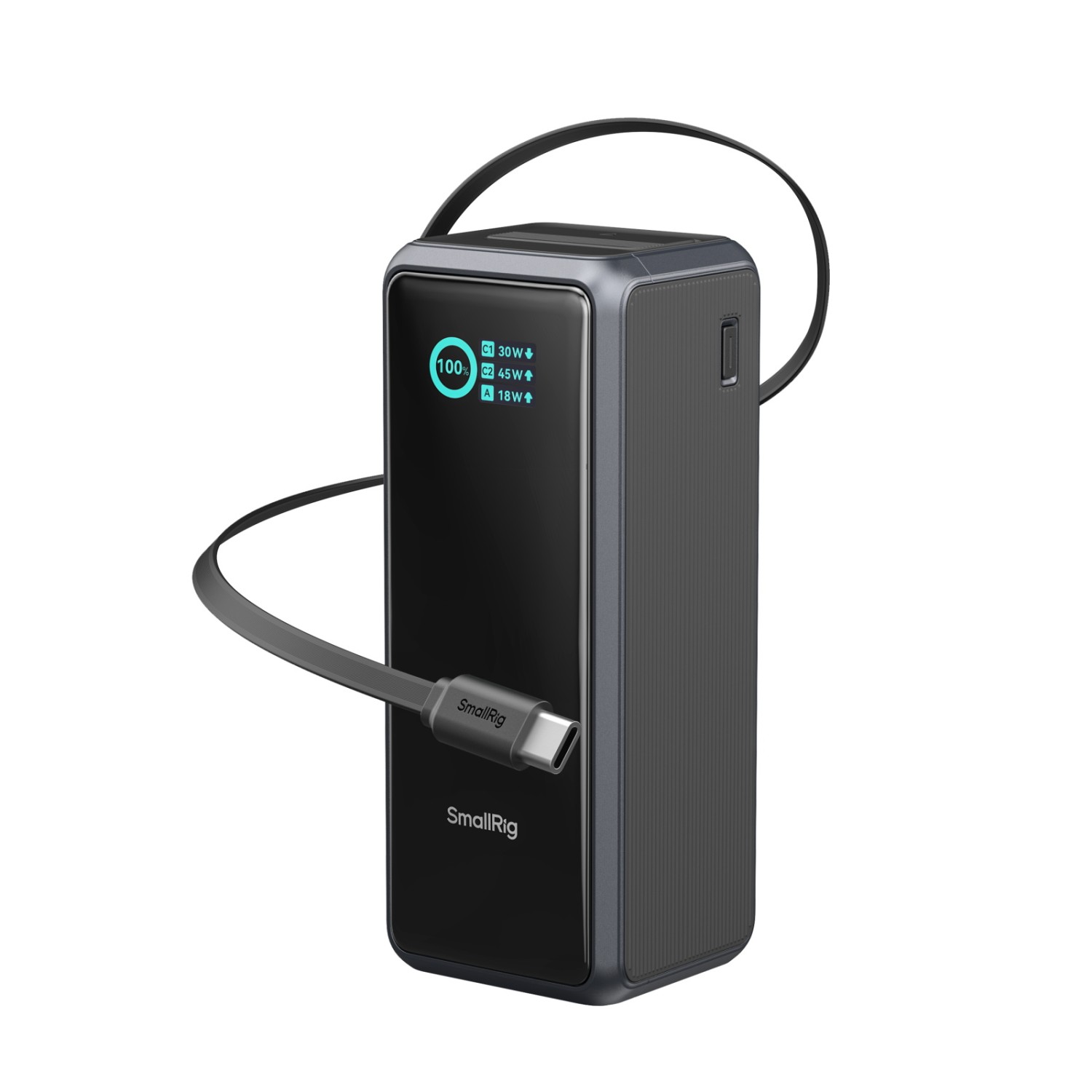

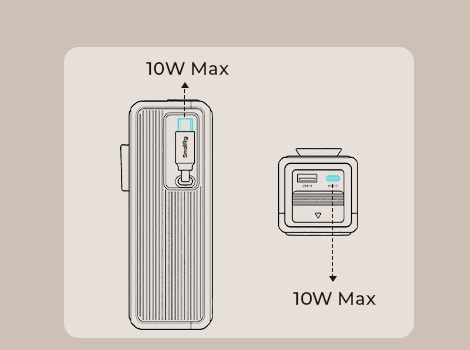

The USB-C cable is built into the body. It pulls out to about 70 cm and retracts on its own, so that is one loose cable less in the bag and in the rig. Next to it sit a separate USB-C port and a USB-A port, three outputs in total.

The colour TFT display shows the charge level and the input and output power of each port. A single press of the button switches to a second page with battery health, cycle count, remaining cycle life and temperature. The Nano72 handles 100 W in and 100 W out.

The electronics guard against short circuit, overcurrent, overtemperature, overvoltage and undervoltage. Certifications: FCC, CE, PSE, RCM, ISED.

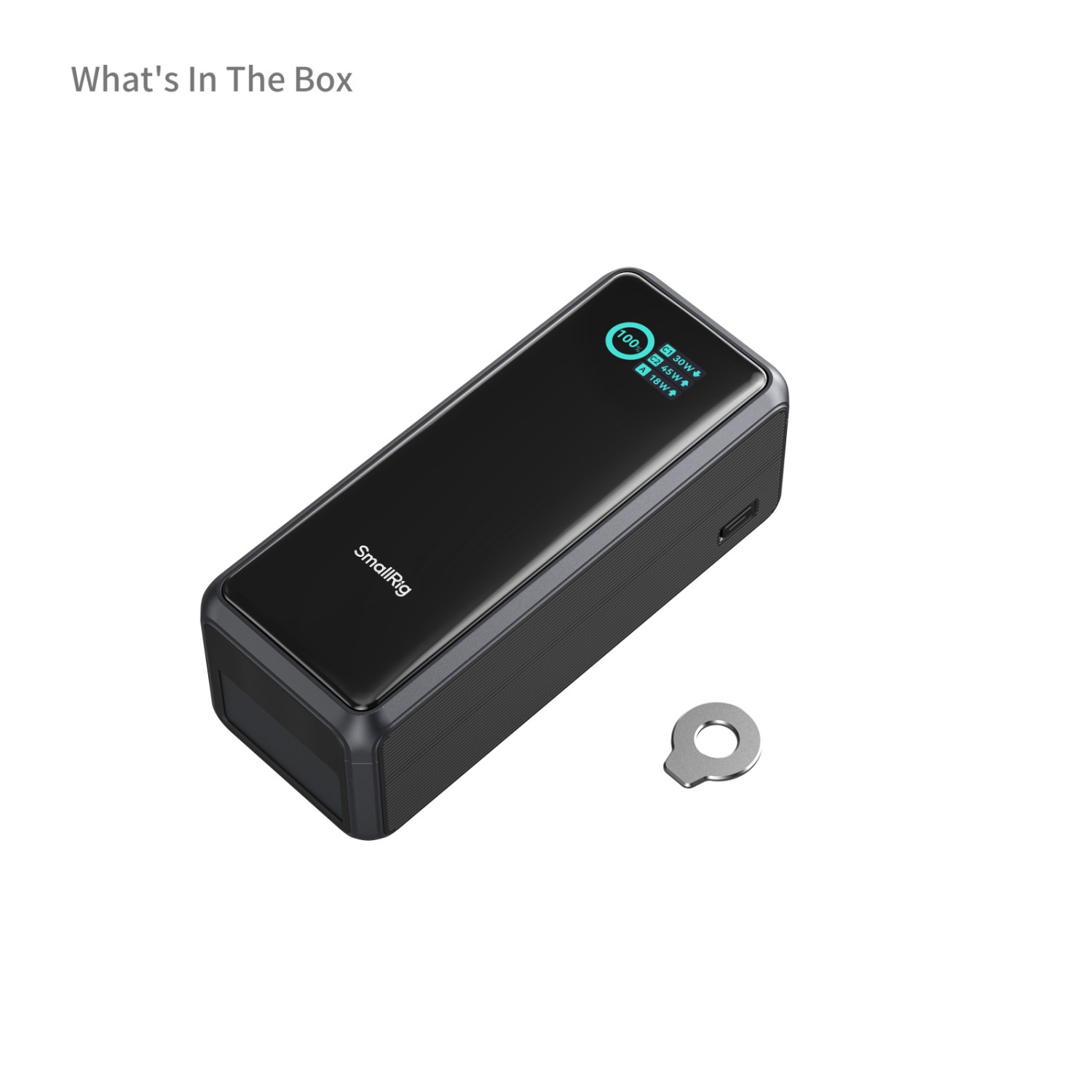

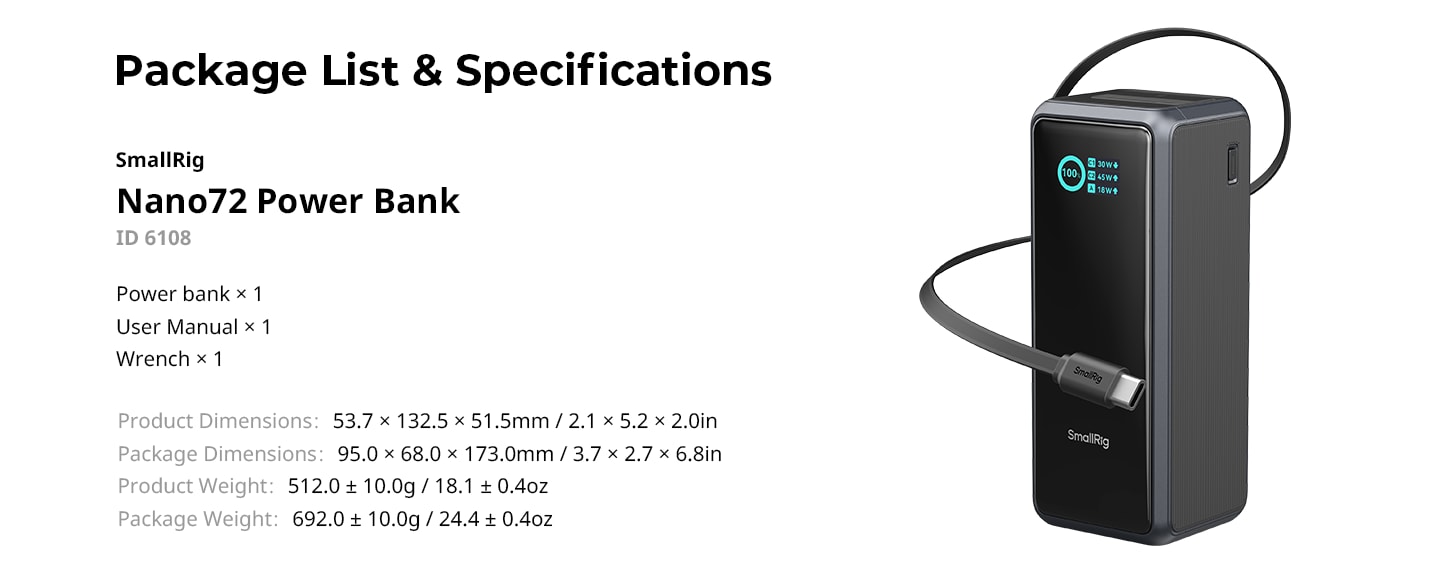

PACKAGE CONTENT

Power bank × 1
Wrench × 1
User manual × 1

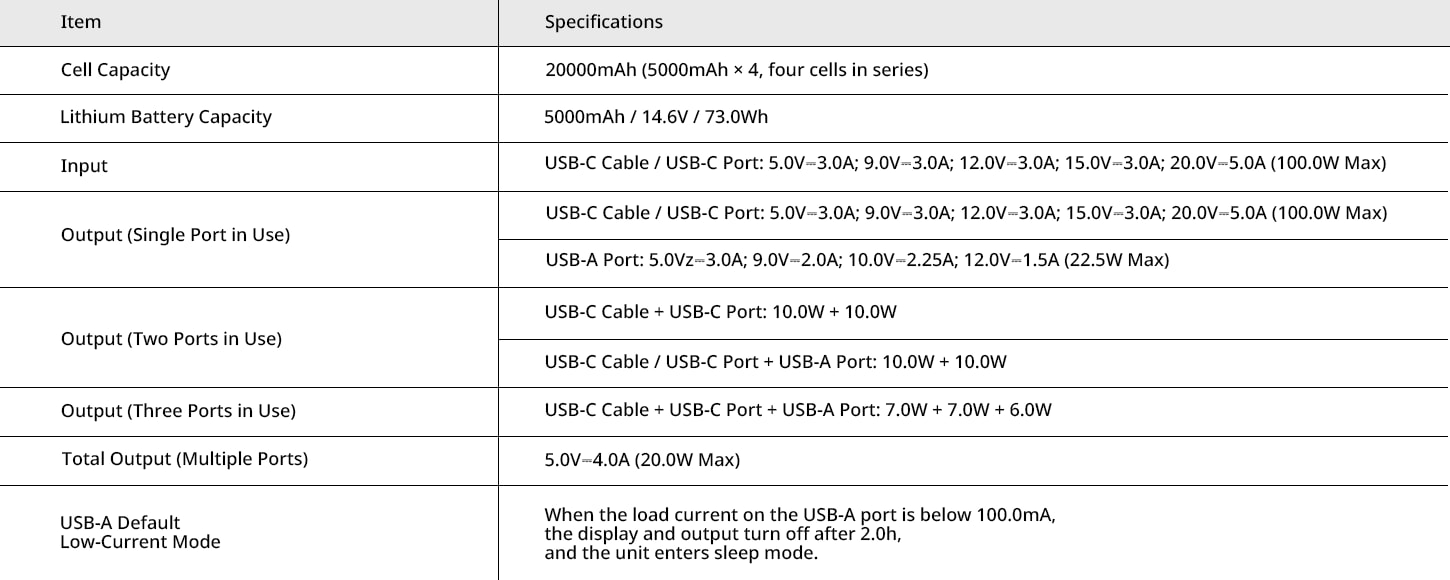

SPECIFICATIONS

Cell capacity: 20,000 mAh (4 × 5000 mAh in series)
Battery capacity: 5000 mAh / 14.6 V / 73 Wh

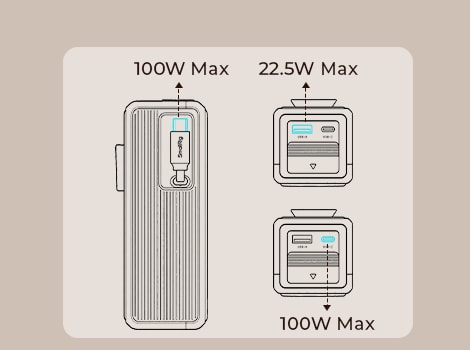

USB-C input (cable and port): 100 W max
USB-C output (cable and port): 100 W max
USB-A output: 22.5 W max
Built-in retractable cable: approx. 70 cm

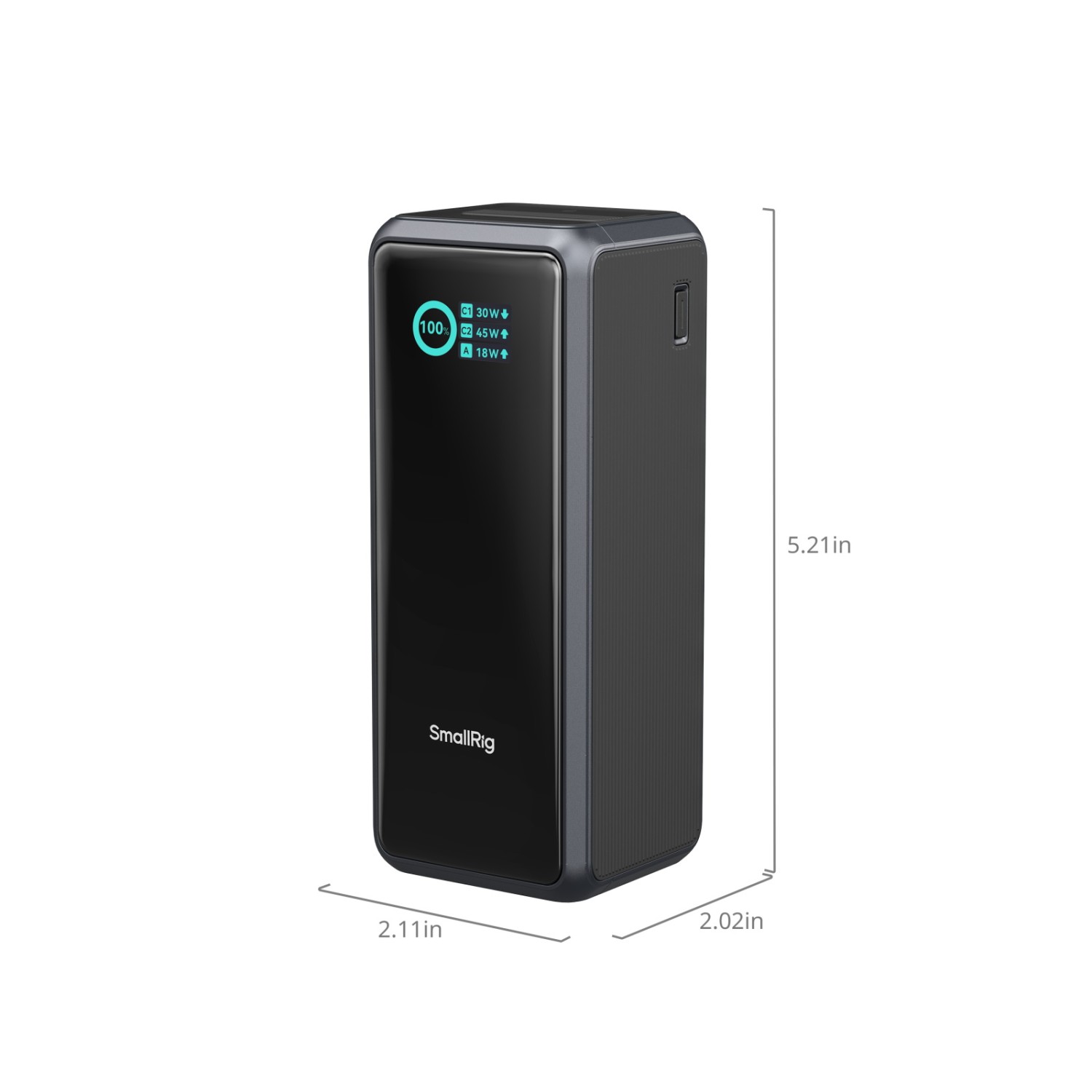

Product dimensions: 53.7 × 132.5 × 51.5 mm
Package dimensions: 95 × 68 × 173 mm
Product weight: 512 ± 10 g
Package weight: 692 ± 10 g
Material: aluminum alloy, silicone, TPU, polycarbonate V0
Mounting: 1/4"-20 thread and locating hole

Parameters

Parameters

Manufacturer: SmallRig
Category: Battery 14,4V

Main parameters

USB-C chargingYes
Battery Capacity73Wh
