Sony VMC-BNCU1 Timecode Adapter

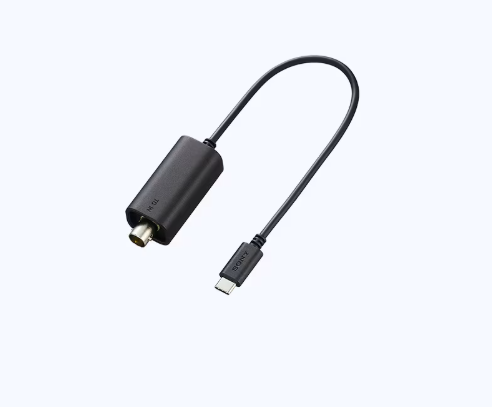

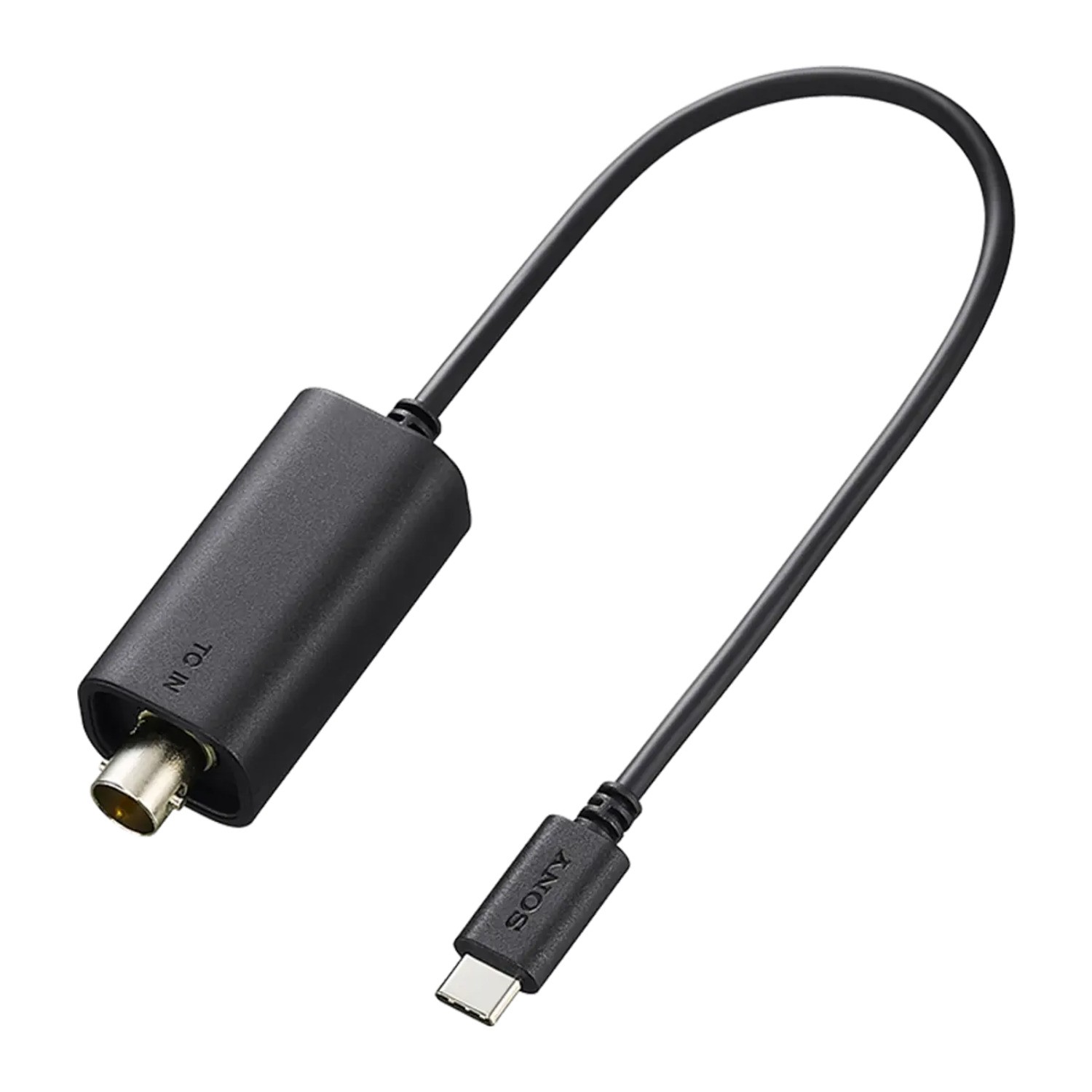

The Sony VMC-BNCU1 Timecode Adapter feeds timecode from a generator with a BNC connector into the USB Type-C® port of the Sony FX5 Cinema Line camera. In multi-camera shoots every clip carries the same timecode, so footage lines up in the edit without manual searching. The adapter needs no external power, and its cable is approximately 200 mm long.

Timecode into the FX5 over USB⁠-⁠C

One end of the adapter plugs into the FX5's USB Type-C port; the other takes timecode from a generator through a cable with a BNC connector.

TC input via BNCUSB Type-C connector200 mm cableno external power

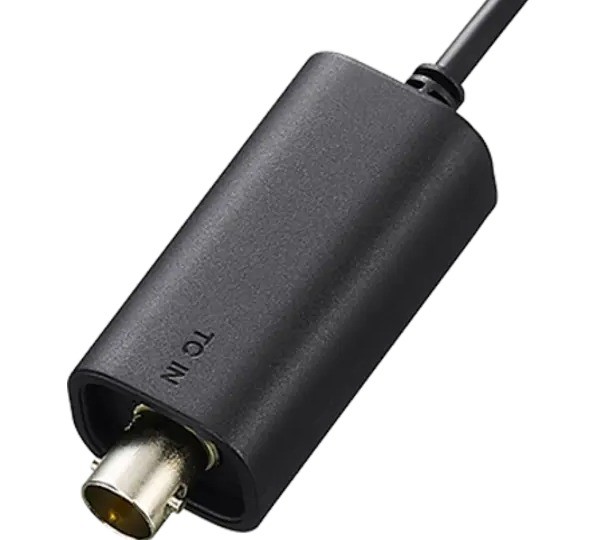

BNC connector marked TC IN

The adapter only receives timecode and has no output. The FX5 then records with the same timecode as every other camera and recorder connected to the same generator.

Multiple cameras in sync

When every camera takes timecode from the same source, your editing software lines up the clips by timecode with no manual searching.

Powered by the camera

The adapter draws a maximum of approx. 0.5 W straight from the camera, so it needs no battery or mains adapter. It weighs approx. 59 g.

The Sony VMC-BNCU1 Timecode Adapter is a compact professional accessory that feeds timecode into the Sony FX5 through its USB Type-C® port. With the camera connected to a timecode generator with a BNC connector, the adapter enables precise synchronisation across multiple cameras, simplifying editing and keeping footage aligned in post-production.

The VMC-BNCU1 adapter suits film production, broadcast, live events, documentaries and multi-camera shoots. It needs no separate power source, drawing the power it requires (approx. 0.5 W maximum) directly from the connected camera. Its compact cable of approximately 200 mm provides a neat, reliable connection while reducing cable clutter on the camera rig.

Lightweight and easy to integrate into professional workflows, the adapter is designed for creators and production teams who need to synchronise footage accurately across multiple cameras and recorders. The BNC connector marked TC IN works as a timecode input only.

Key features

• Timecode input via the Sony FX5's USB Type-C® port.
• Connects the camera to a timecode generator with a BNC connector.
• Precise synchronisation for multi-camera productions.
• Simplifies footage alignment in post-production.
• No external power supply required.
• Compact, lightweight design: approx. 200 mm cable, approx. 59 g.
• Suited to film, broadcast, live events, documentaries and studio production.
