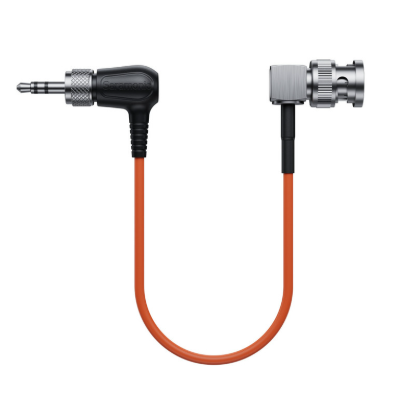

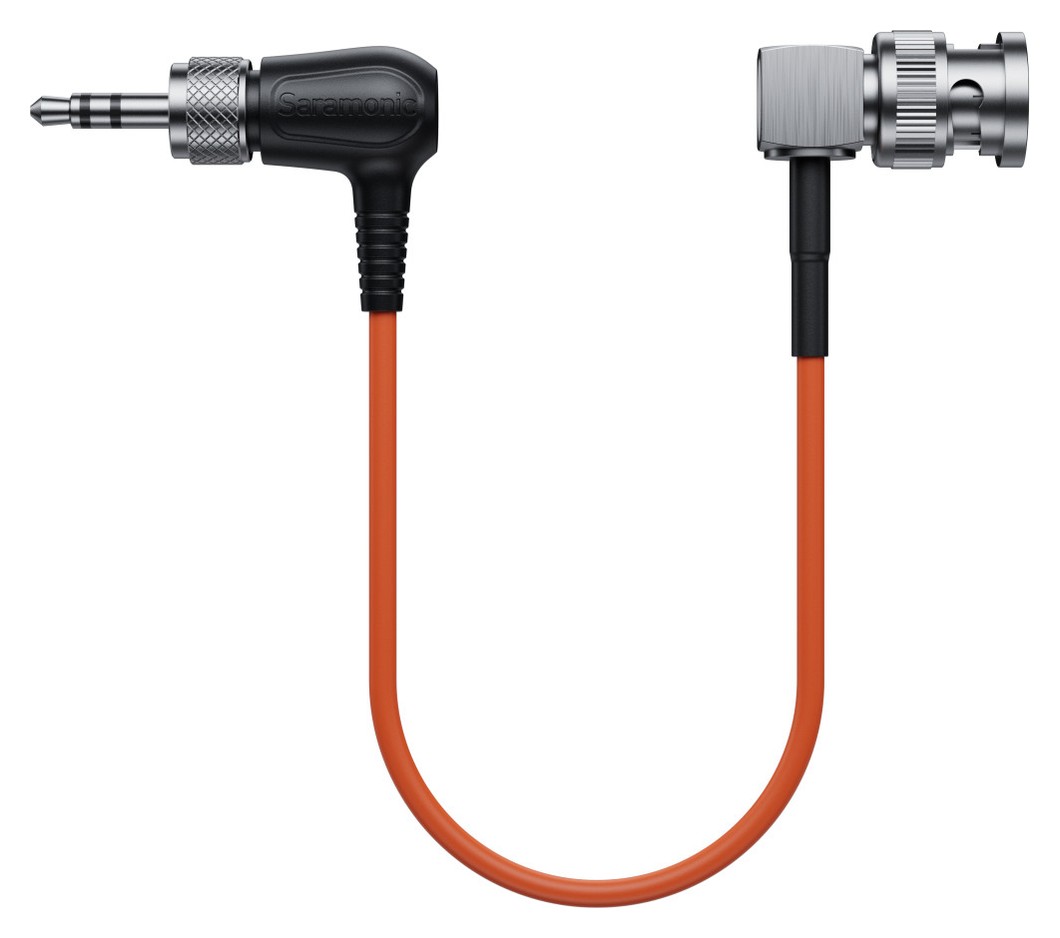

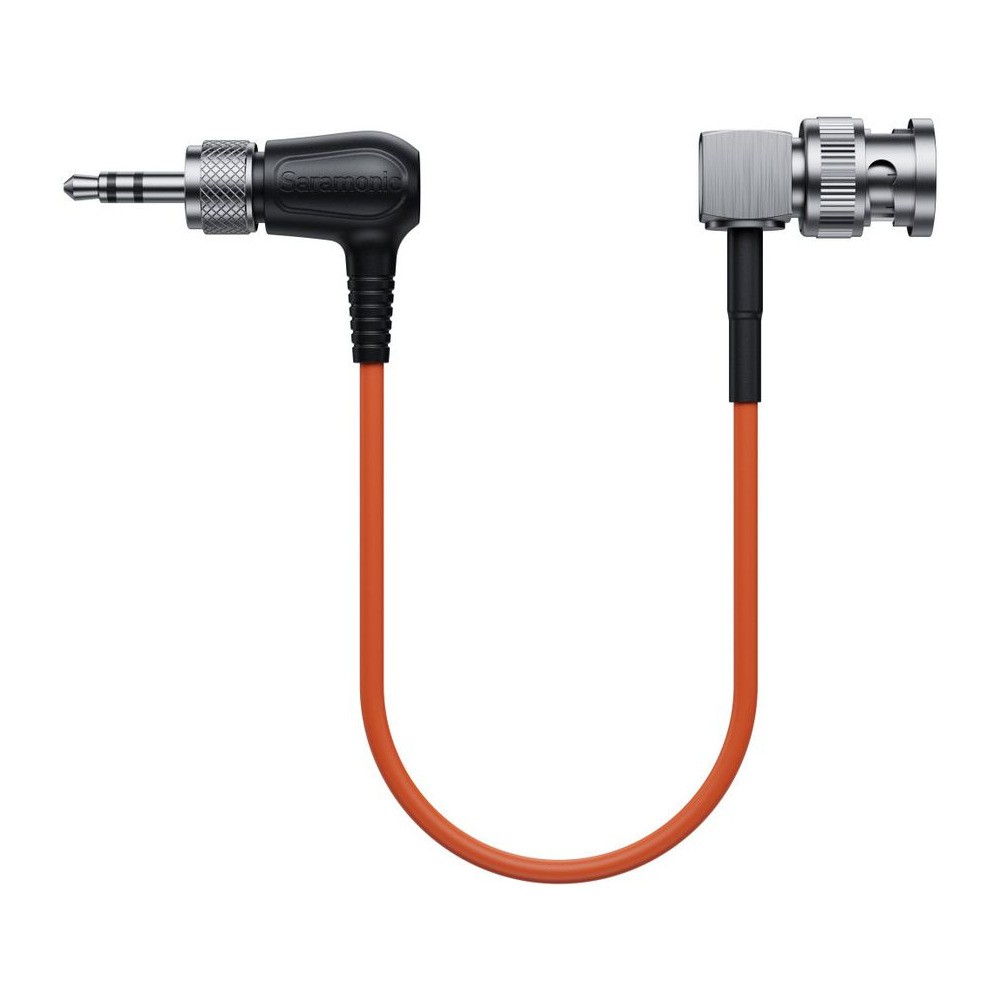

Saramonic SR-TRS-C06 Locking 3.5mm TRS to Right-Angle BNC Timecode Cable

The Saramonic SR-TRS-C06 is a timecode cable from a locking 3.5 mm TRS connector to a right-angle BNC connector. It carries timecode in both directions: from the Saramonic TC-NEO to a camera or recorder with a BNC input, or from their output to the generator. It suits the Blackmagic URSA Mini, Canon EOS C70 and C300 cameras, Sony broadcast cameras and Zoom F recorders. The cable is 33.5 cm long fully extended and weighs 28 g.

Saramonic SR-TRS-C06

Timecode in both directions between a generator and a camera or recorder over BNC.

locking 3.5 mm TRSright-angle BNC33.5 cm

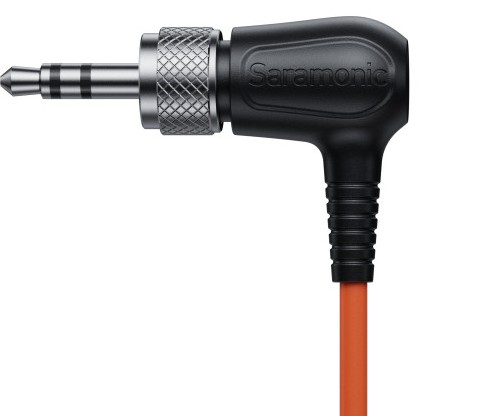

Locking 3.5 mm TRS connector

Once inserted, the right-angle 3.5 mm TRS connector is secured by a rotating locking collar, so it will not pull out even when the camera moves. It plugs into the timecode port of the Saramonic TC-NEO and of generators and slates from other makers.

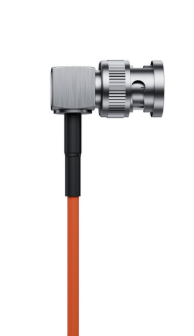

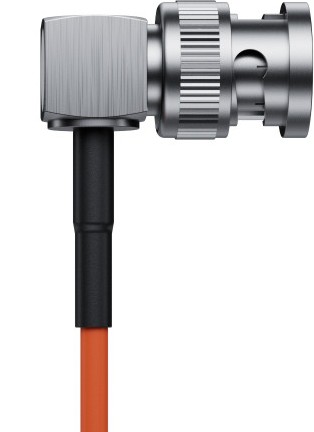

Right-angle BNC connector

The right-angle BNC connector fits the BNC timecode inputs and outputs of select Blackmagic, Canon, Sony, Panasonic, JVC and Z CAM cameras and of Zoom F, Zaxcom Nova and Sound Devices MixPre-10 II recorders.

Timecode in both directions

The cable carries timecode from the Saramonic TC-NEO to the BNC timecode input of a camera or recorder, and also the other way: from a BNC timecode output to the generator, which then takes over the timeline of the master device.

Compatible devices

• Blackmagic URSA Mini
• Canon EOS C50, C70, C300 Mark II and C300 Mark III
• Sony broadcast cameras
• select Panasonic, JVC and Z CAM cameras (e.g. Z CAM E2)
• Sound Devices MixPre-10 II
• Zaxcom Nova and Nova2
• Zoom F4, F8, F8n and F8n Pro

Additional information

The SR-TRS-C06 cable carries timecode between the generator and a camera or recorder, so the whole production runs on one timeline. The locking 3.5 mm connector stays put even when moving around the set, and the connectors and jacket stand up to daily use.
