Saramonic SR-TRS-C03 Locking 3.5mm TRS to Right-Angled 5-Pin LEMO Male Timecode Cable

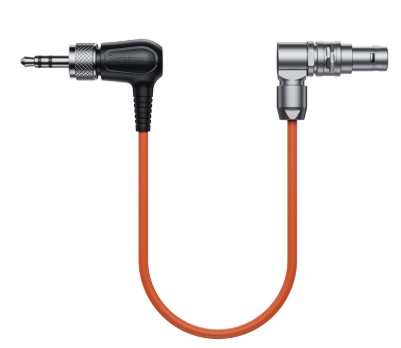

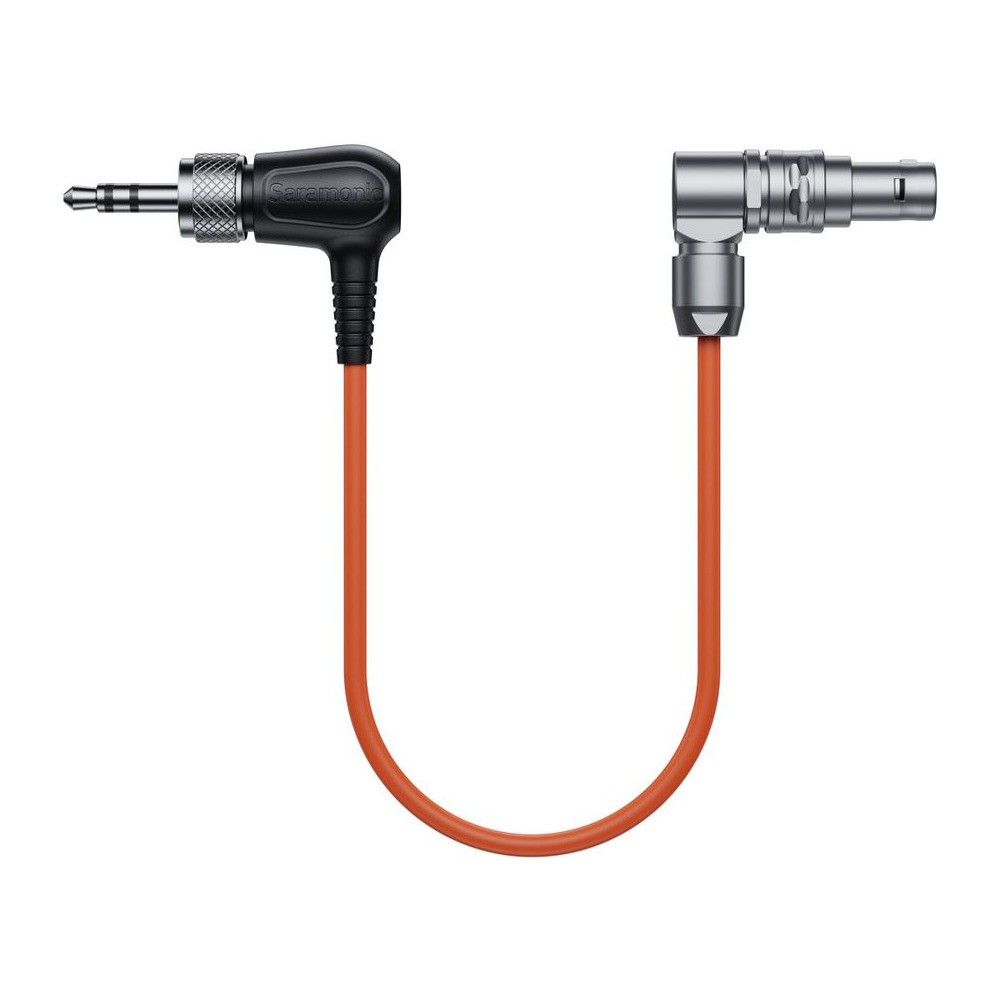

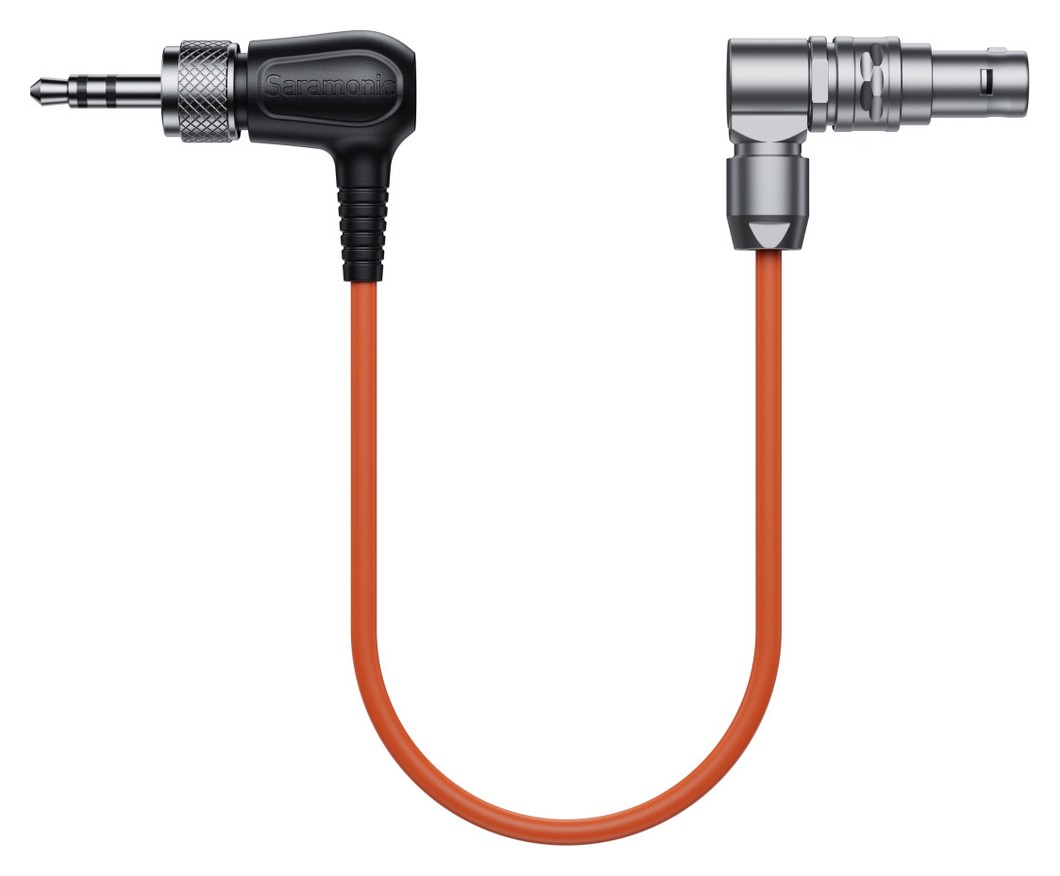

The Saramonic SR-TRS-C03 is a timecode cable from a locking 3.5 mm TRS connector to a right-angle 5-pin LEMO connector. It carries timecode from the Saramonic TC-NEO or another generator or slate to an ARRI Alexa Mini camera, so the recording runs on the same timeline as the other cameras and recorders on set. The cable is 33.5 cm long fully extended and weighs 29 g.

Saramonic SR-TRS-C03

Timecode from the Saramonic TC-NEO generator into the ARRI Alexa Mini camera.

locking 3.5 mm TRS5-pin LEMO, right-angle33.5 cm

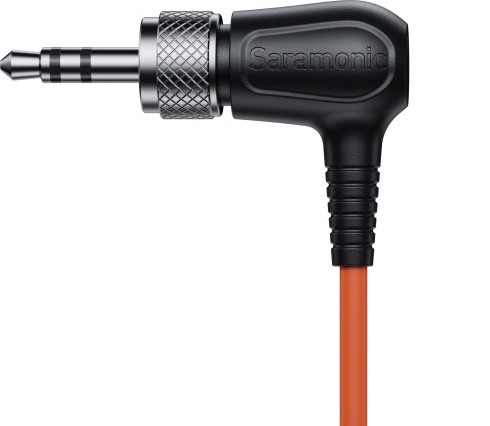

Locking 3.5 mm TRS connector

Once inserted, the right-angle 3.5 mm TRS connector is secured by a rotating locking collar, so it will not pull out even when the camera moves. It plugs into the timecode port of the Saramonic TC-NEO and of generators and slates from other makers.

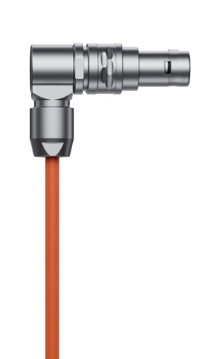

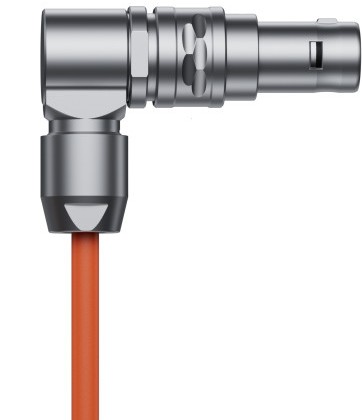

Right-angle 5-pin LEMO connector

The right-angle five-pin LEMO connector matches the timecode input of the ARRI Alexa Mini camera and other devices with a 5-pin LEMO input.

Jam sync from the generator

Plug the 3.5 mm TRS connector into the generator's timecode output and the LEMO connector into the timecode input of the ARRI Alexa Mini. The device takes over the generator's timecode, and footage from all cameras and recorders lines up on a shared timeline in the edit.

Compatible devices

• ARRI Alexa Mini
• other devices with a 5-pin LEMO timecode input

Additional information

The SR-TRS-C03 cable carries timecode from the generator to the camera or recorder, so the whole production runs on one timeline. The locking 3.5 mm connector stays put even when moving around the set, and the connectors and jacket stand up to daily use.
