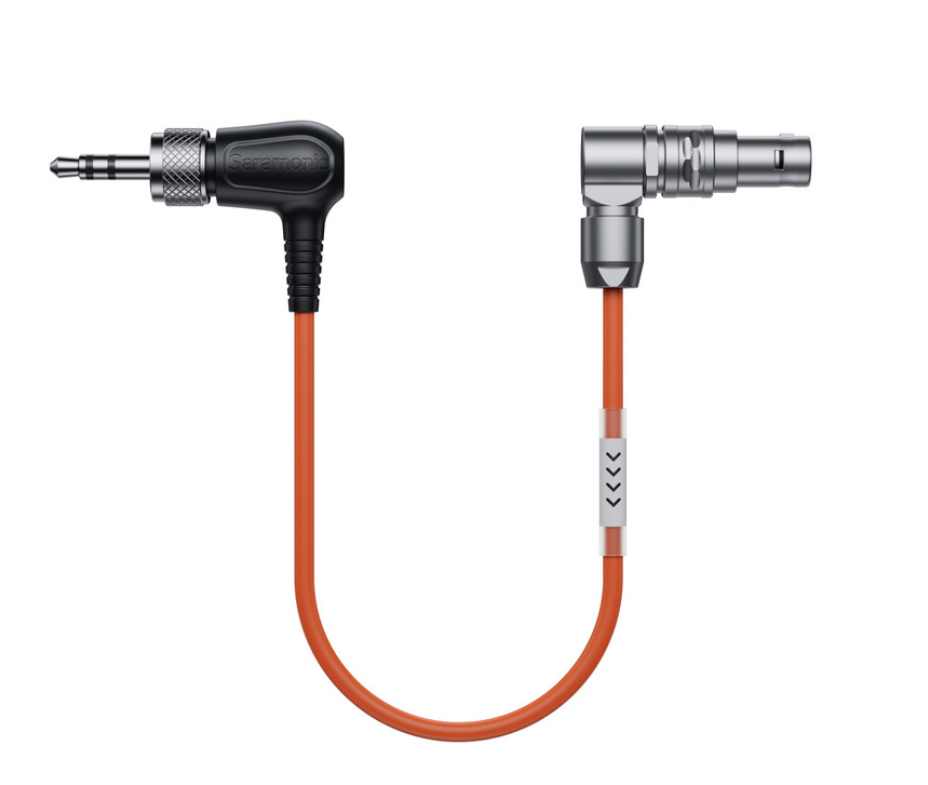

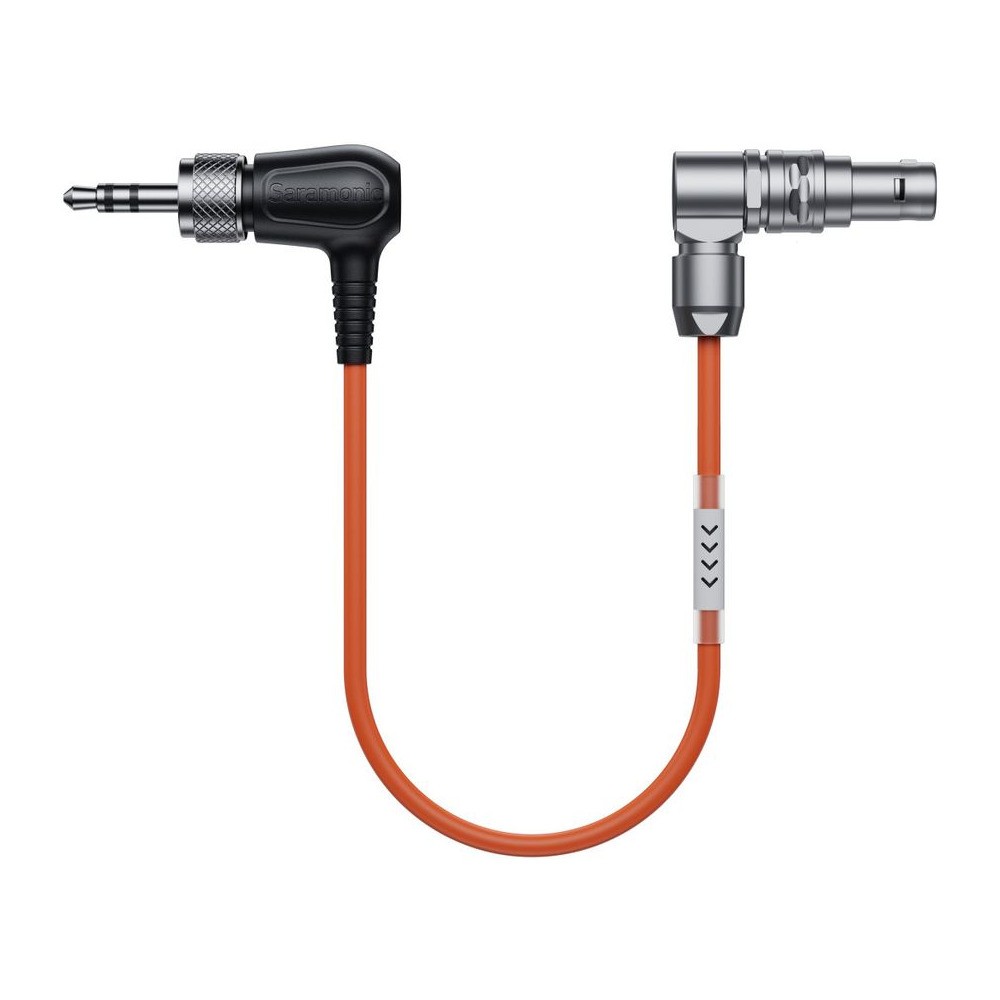

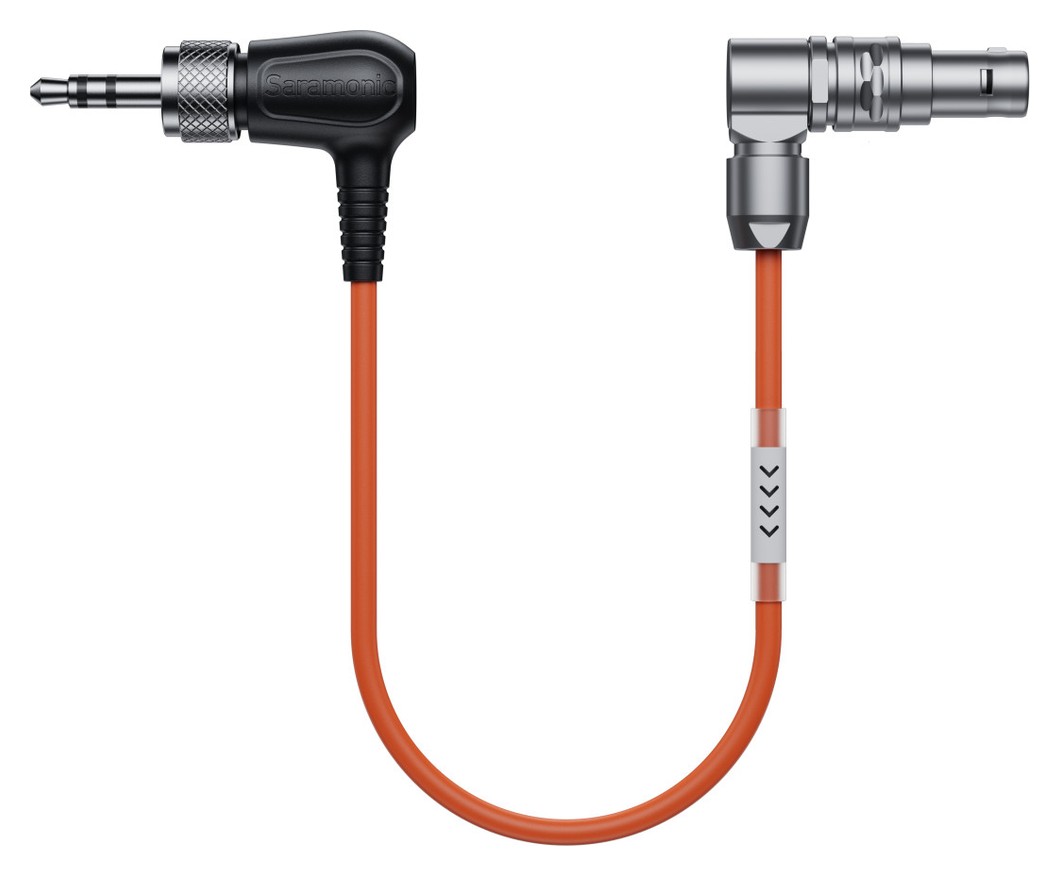

Saramonic SR-TRS-C05 Right-Angle 5-Pin LEMO Male (Reverse) to Locking 3.5mm TRS Timecode Cable

The Saramonic SR-TRS-C05 is a reverse-wired timecode cable from a right-angle 5-pin LEMO connector to a locking 3.5 mm TRS connector. It carries timecode from the output of an ARRI Alexa camera, a Sound Devices recorder, Ambient or Denecke devices or a Wooden Camera B-Box to the Saramonic TC-NEO generator, which then takes over their timeline. The cable is 32.5 cm long fully extended and weighs 34 g.

Saramonic SR-TRS-C05

Reverse wiring: timecode from a 5-pin LEMO output into the Saramonic TC-NEO generator.

locking 3.5 mm TRS5-pin LEMO, reverse32.5 cm

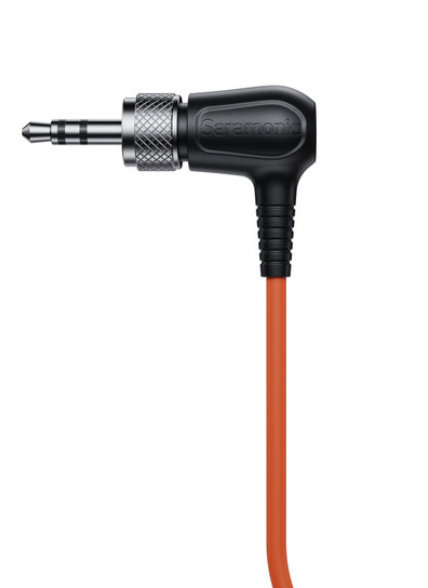

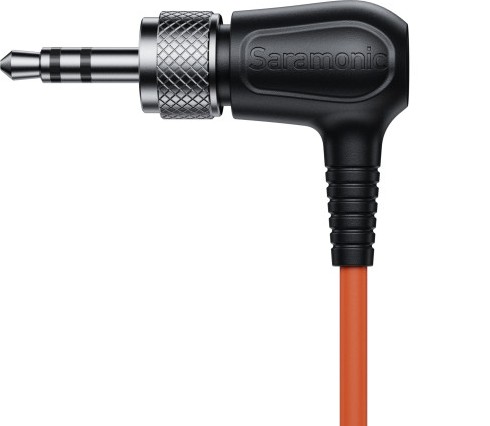

Locking 3.5 mm TRS connector

Once inserted, the right-angle 3.5 mm TRS connector is secured by a rotating locking collar, so it will not pull out even when the camera moves. It plugs into the timecode input of the Saramonic TC-NEO generator or another device with a 3.5 mm timecode input.

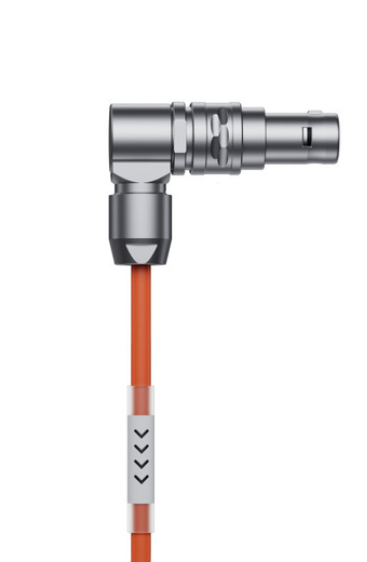

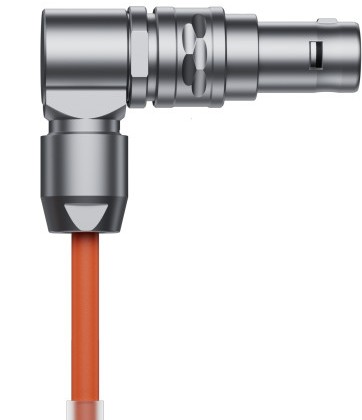

Reverse wiring

The right-angle 5-pin LEMO connector plugs into the timecode output of the source device. The cable carries timecode in the opposite direction to the SR-TRS-C03 and SR-TRS-C04: from the LEMO connector to the 3.5 mm connector.

Timecode from the device to the generator

Plug the LEMO connector into the timecode output of a camera, recorder or generator with a 5-pin LEMO connector, and the 3.5 mm TRS connector into the timecode input of the Saramonic TC-NEO. The generator takes over the timecode of the master device, and the whole production then runs on its timeline.

Compatible devices

• ARRI Alexa cameras
• Ambient generators and slates
• Denecke devices (e.g. TS-C slate)
• Sound Devices recorders (e.g. Scorpio)
• Wooden Camera B-Box
• other devices with a 5-pin LEMO timecode output

Additional information

The SR-TRS-C05 cable carries timecode from a device with a LEMO output to the generator, so the whole production runs on one timeline. The locking 3.5 mm connector stays put even when moving around the set, and the connectors and jacket stand up to daily use.
