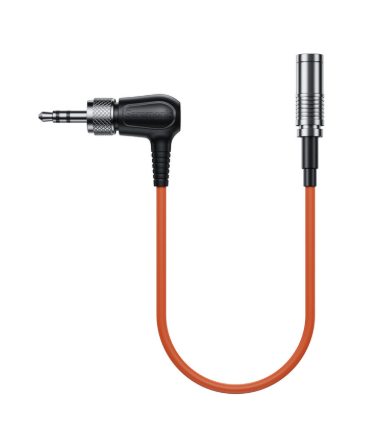

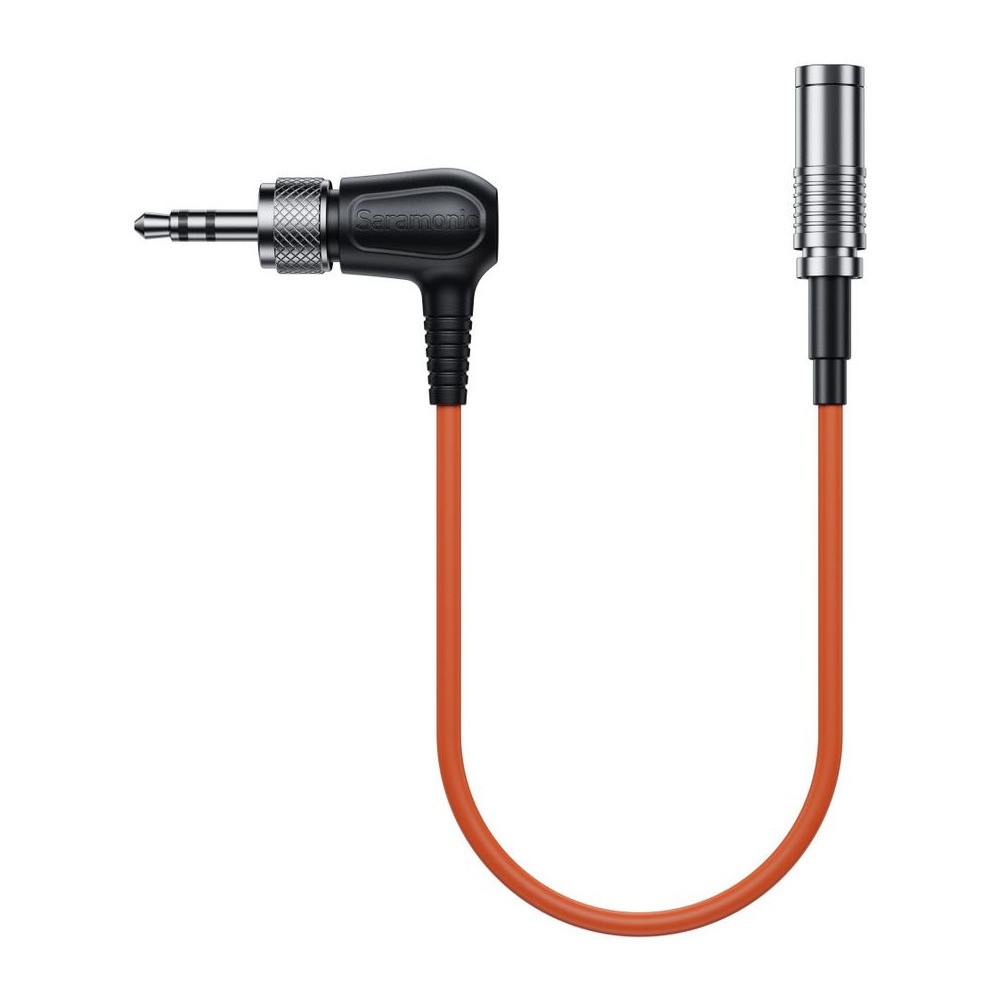

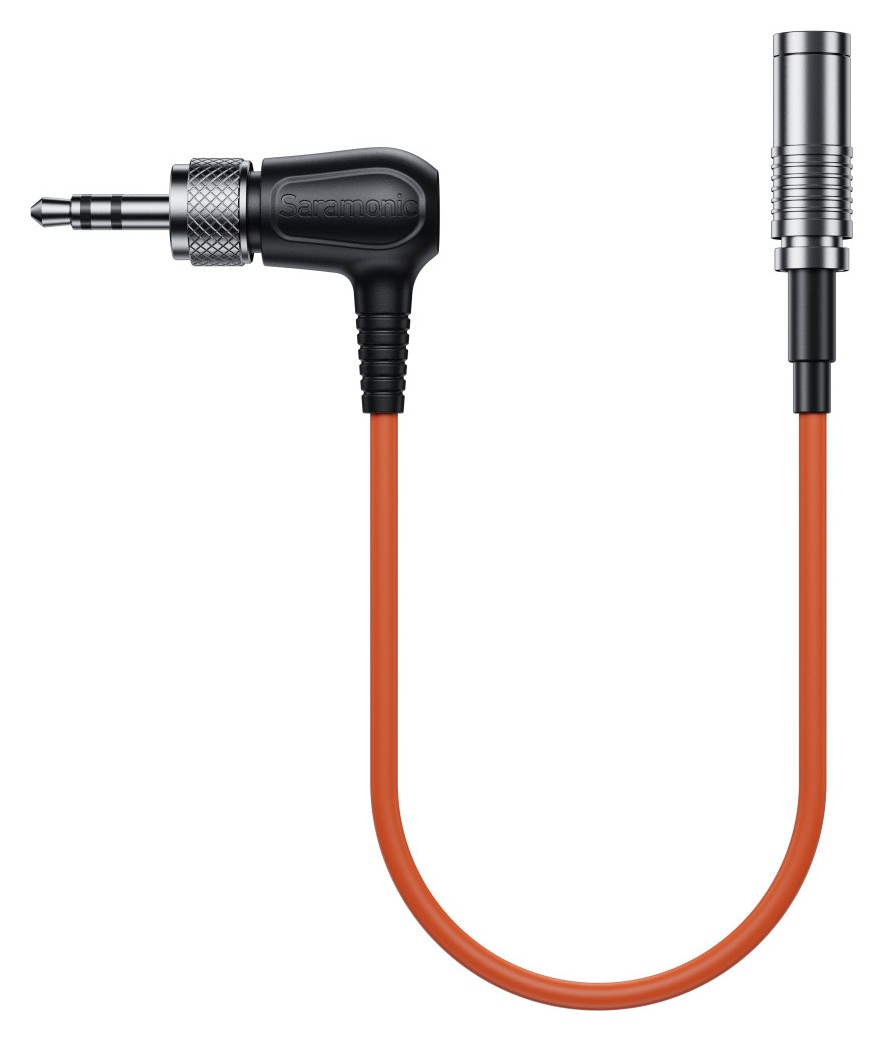

Saramonic SR-TRS-C09 Locking 3.5mm TRS to Straight Extra-Long DIN 1.0/2.3 Timecode Cable

The Saramonic SR-TRS-C09 is a timecode cable from a locking 3.5 mm TRS connector to a straight extra-long DIN 1.0/2.3 connector. It carries timecode from the Saramonic TC-NEO or another generator or slate to the Canon EOS R5 C, so the recording runs on the same timeline as the other cameras and recorders on set. The cable is 35.5 cm long fully extended and weighs 37 g.

Saramonic SR-TRS-C09

Timecode from the Saramonic TC-NEO generator into the Canon EOS R5 C camera.

locking 3.5 mm TRSDIN 1.0/2.335.5 cm

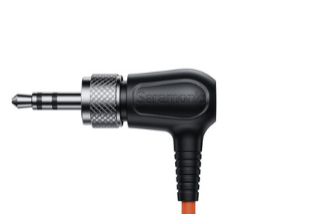

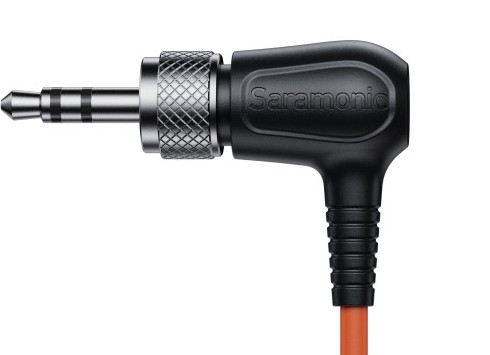

Locking 3.5 mm TRS connector

Once inserted, the right-angle 3.5 mm TRS connector is secured by a rotating locking collar, so it will not pull out even when the camera moves. It plugs into the timecode port of the Saramonic TC-NEO and of generators and slates from other makers.

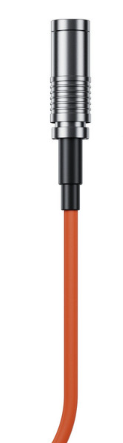

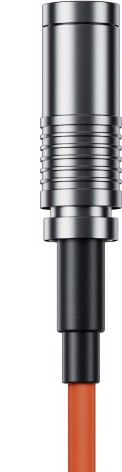

Extra-long DIN 1.0/2.3 connector

The straight DIN 1.0/2.3 connector with an extended body fits the timecode input of the Canon EOS R5 C and select Canon cameras with a DIN 1.0/2.3 input.

Jam sync from the generator

Plug the 3.5 mm TRS connector into the generator's timecode output and the DIN 1.0/2.3 connector into the timecode input of the Canon EOS R5 C. The device takes over the generator's timecode, and footage from all cameras and recorders lines up on a shared timeline in the edit.

Compatible devices

• Canon EOS R5 C
• select Canon cameras with a DIN 1.0/2.3 timecode input

Additional information

The SR-TRS-C09 cable carries timecode from the generator to the camera or recorder, so the whole production runs on one timeline. The locking 3.5 mm connector stays put even when moving around the set, and the connectors and jacket stand up to daily use.
