Portkeys PT5 III

The Portkeys PT5 III is a compact 5.4-inch touchscreen camera monitor with 800 nits of brightness, a resolution of 1920 × 1152, and the MOVNORM OS. It features an HDMI input supporting up to DCI 4K30, an HDMI output supporting up to 1080p60, professional monitoring tools, and a built-in 360° color corrector.

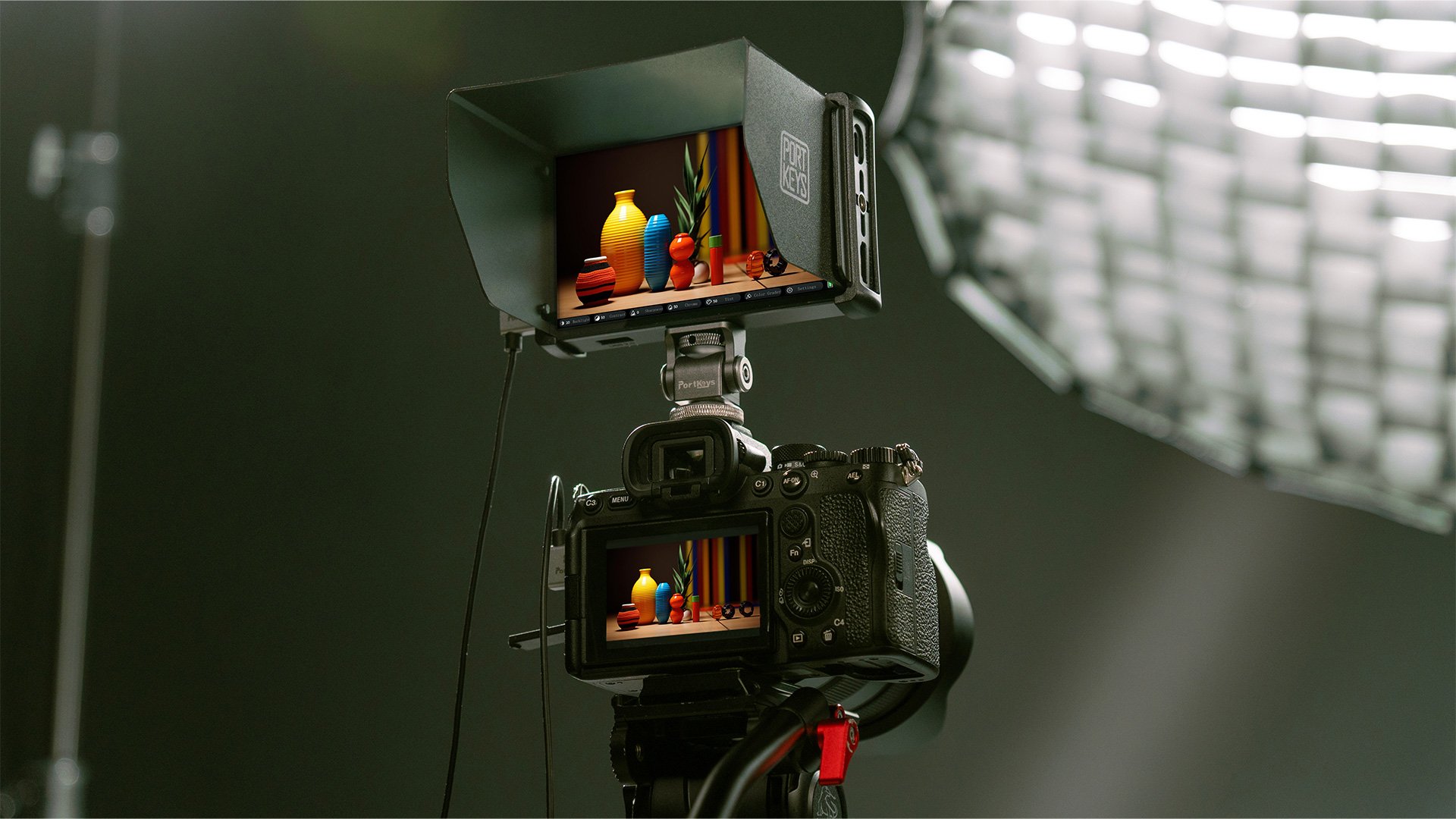

Compact Camera Monitor

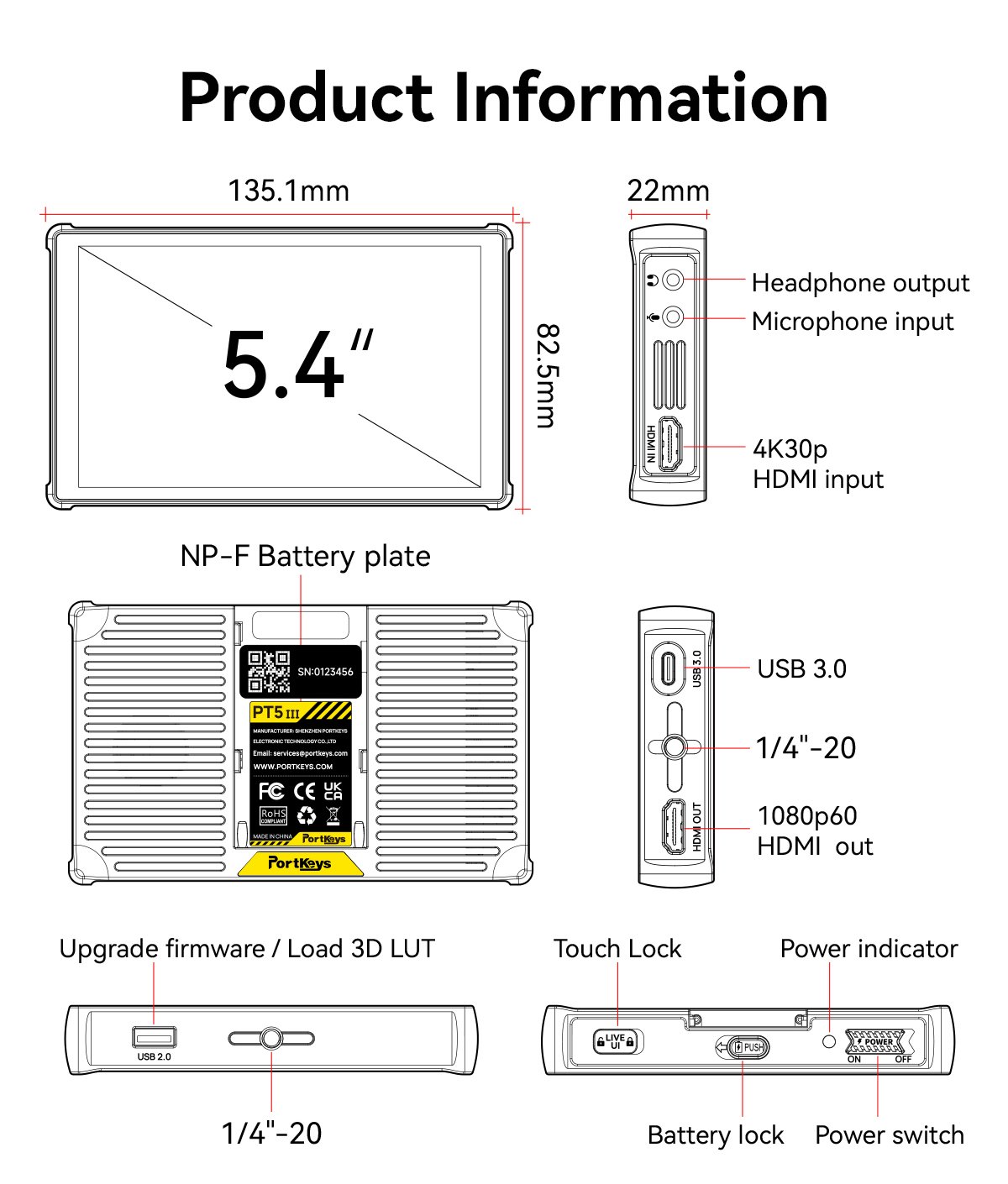

The ABS and polycarbonate body weighs only 162 g and measures 135.1 × 82.5 × 22 mm. The monitor is therefore well-suited for mirrorless cameras, DSLRs, cages, and gimbals.

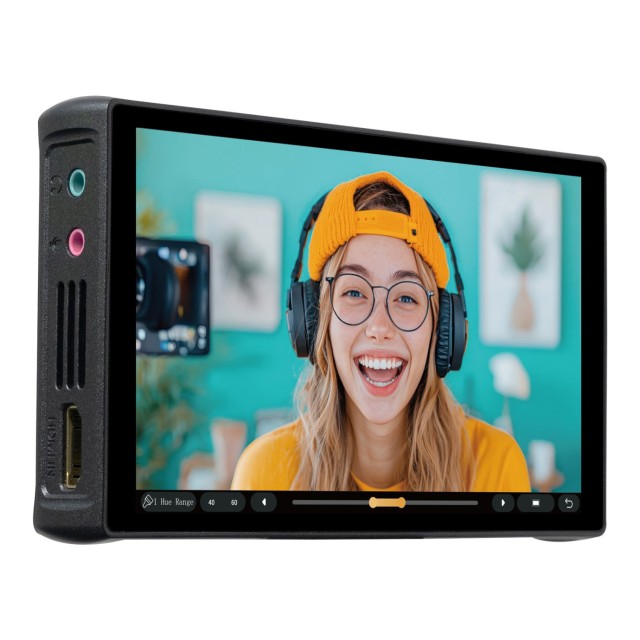

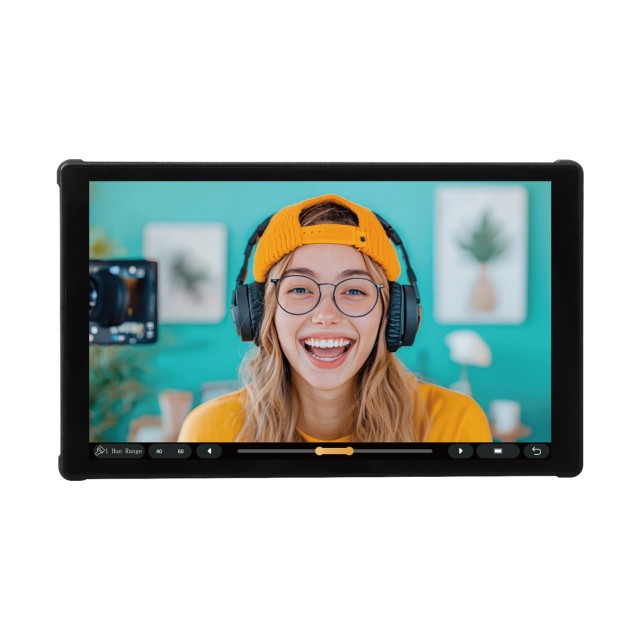

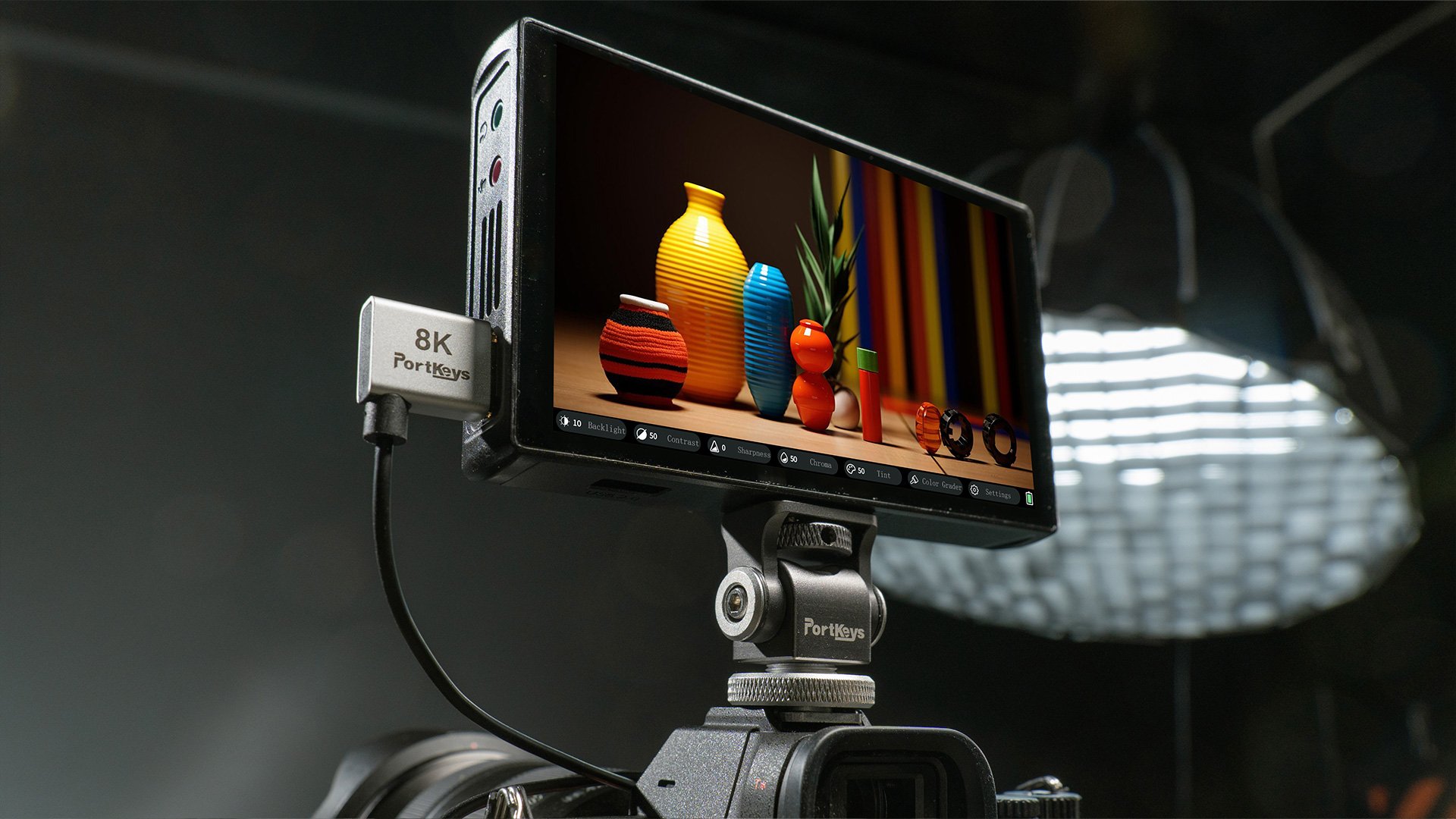

Bright touchscreen

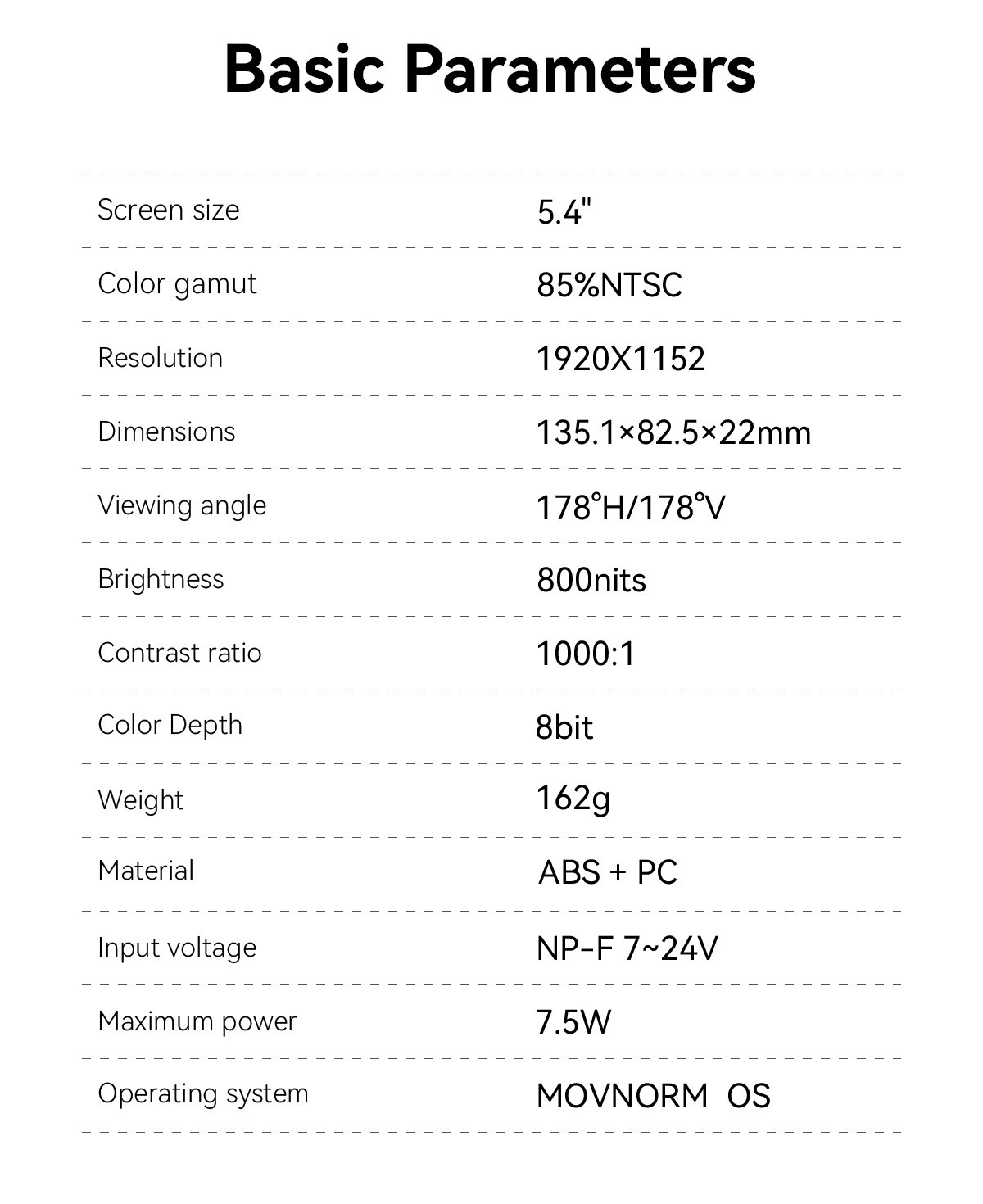

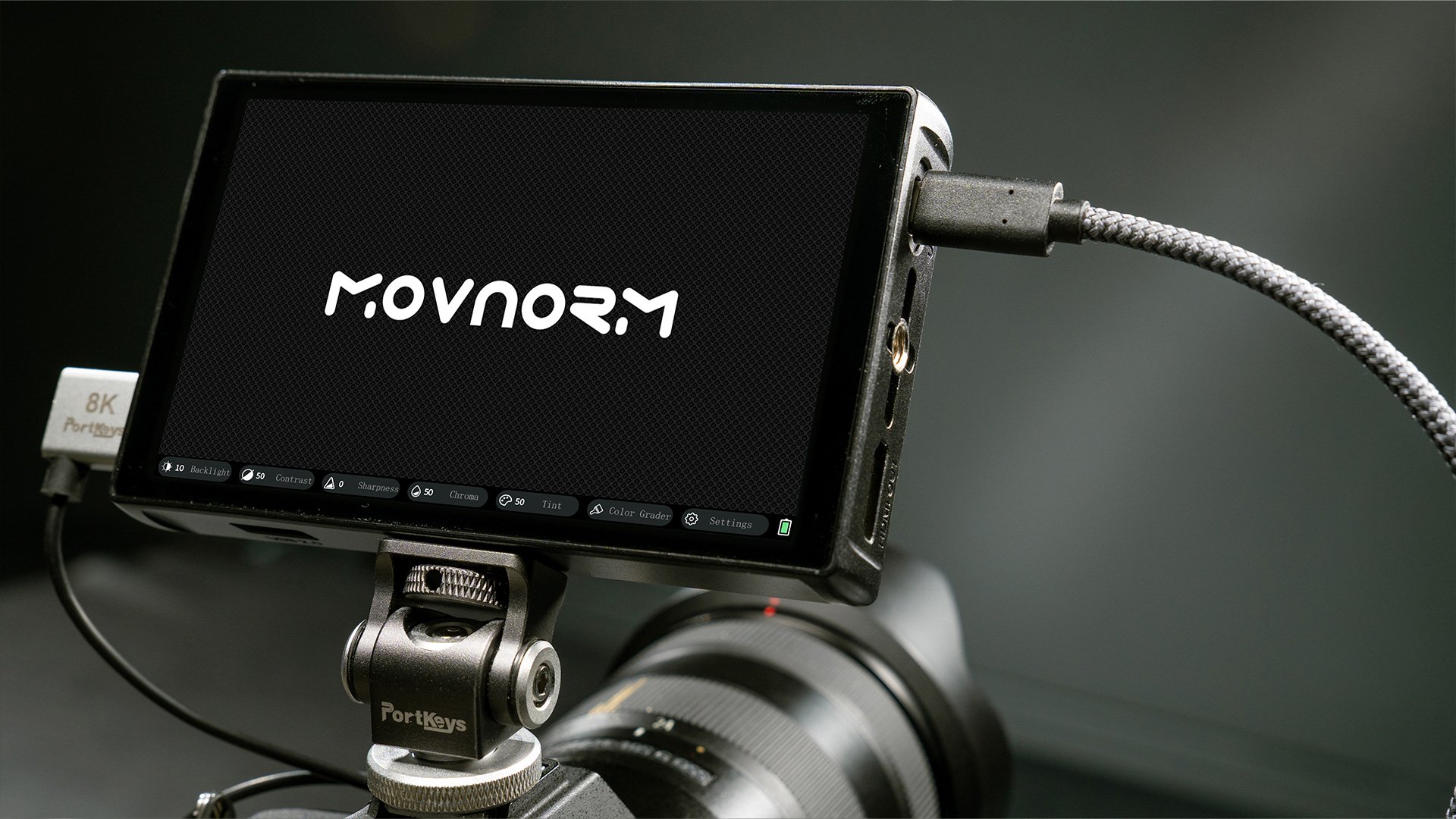

The 5.4" 8-bit panel offers a resolution of 1920 × 1152, 800 nits of brightness, a 1000:1 contrast ratio, and a 178° viewing angle. The MOVNORM OS touchscreen interface speeds up work with tools and settings.

Professional image tools

Available features include waveform, histogram, focus peaking, false color, zebra, 3D LUT, audio meters, guide frames, anamorphic de-squeeze, and a 360° color corrector for adjusting the hue and saturation of a selected portion of the image.

HDMI and Audio

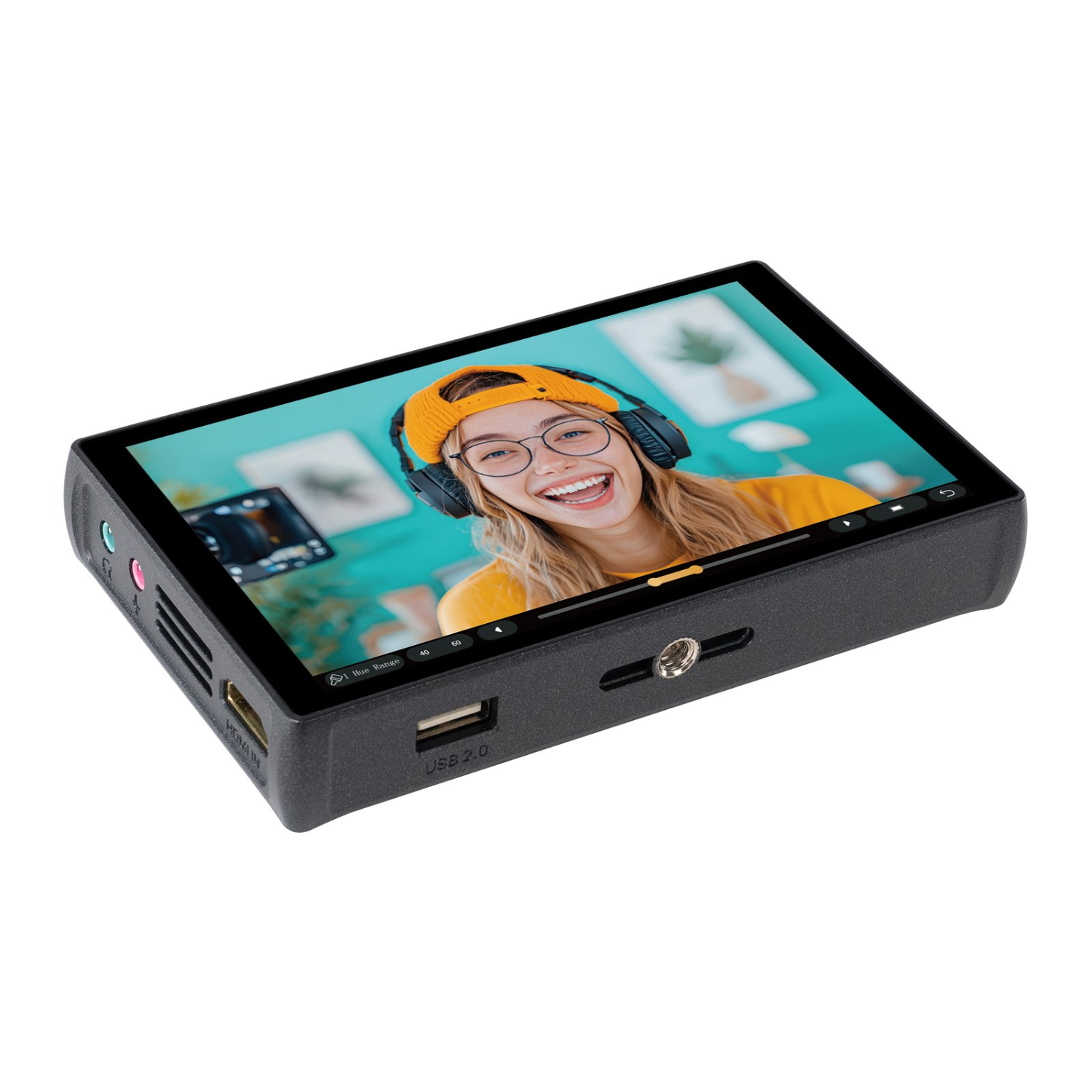

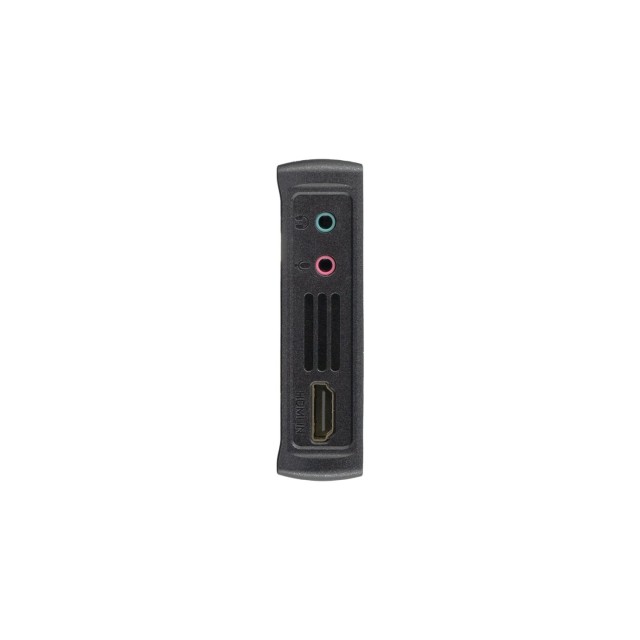

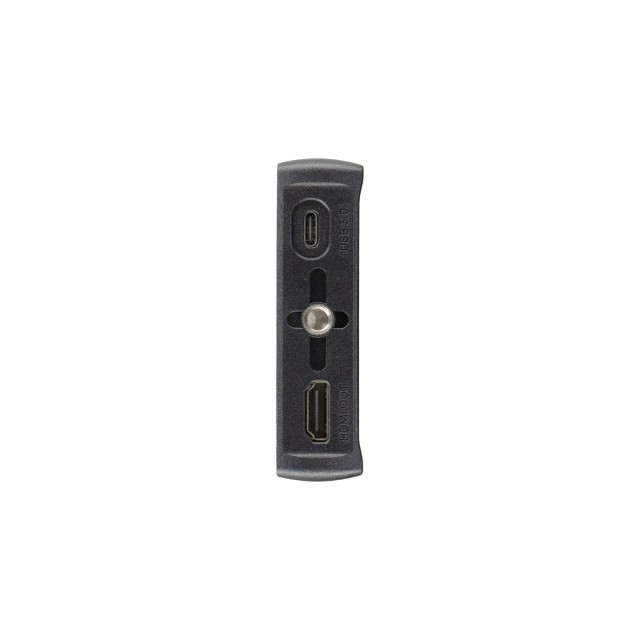

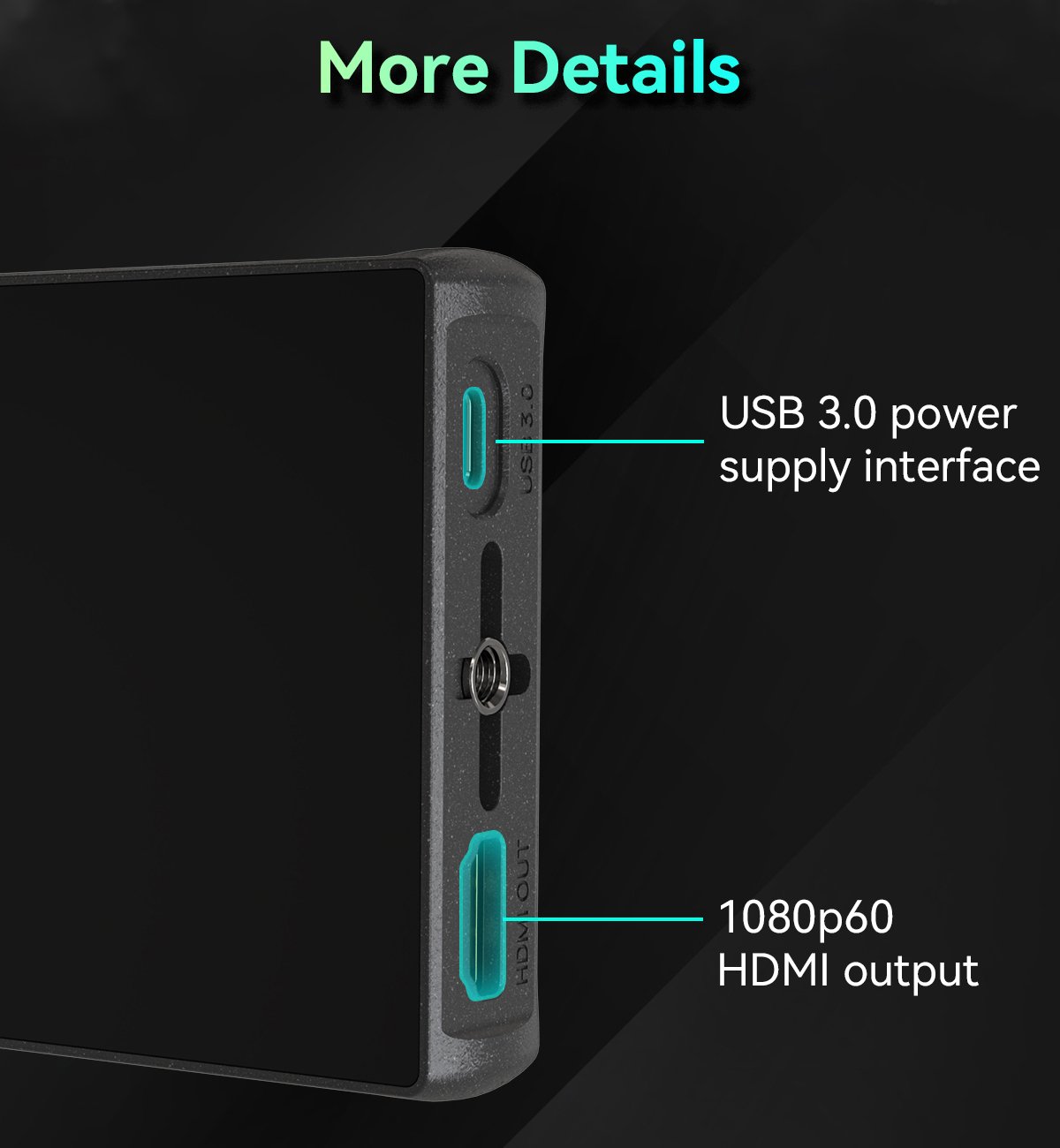

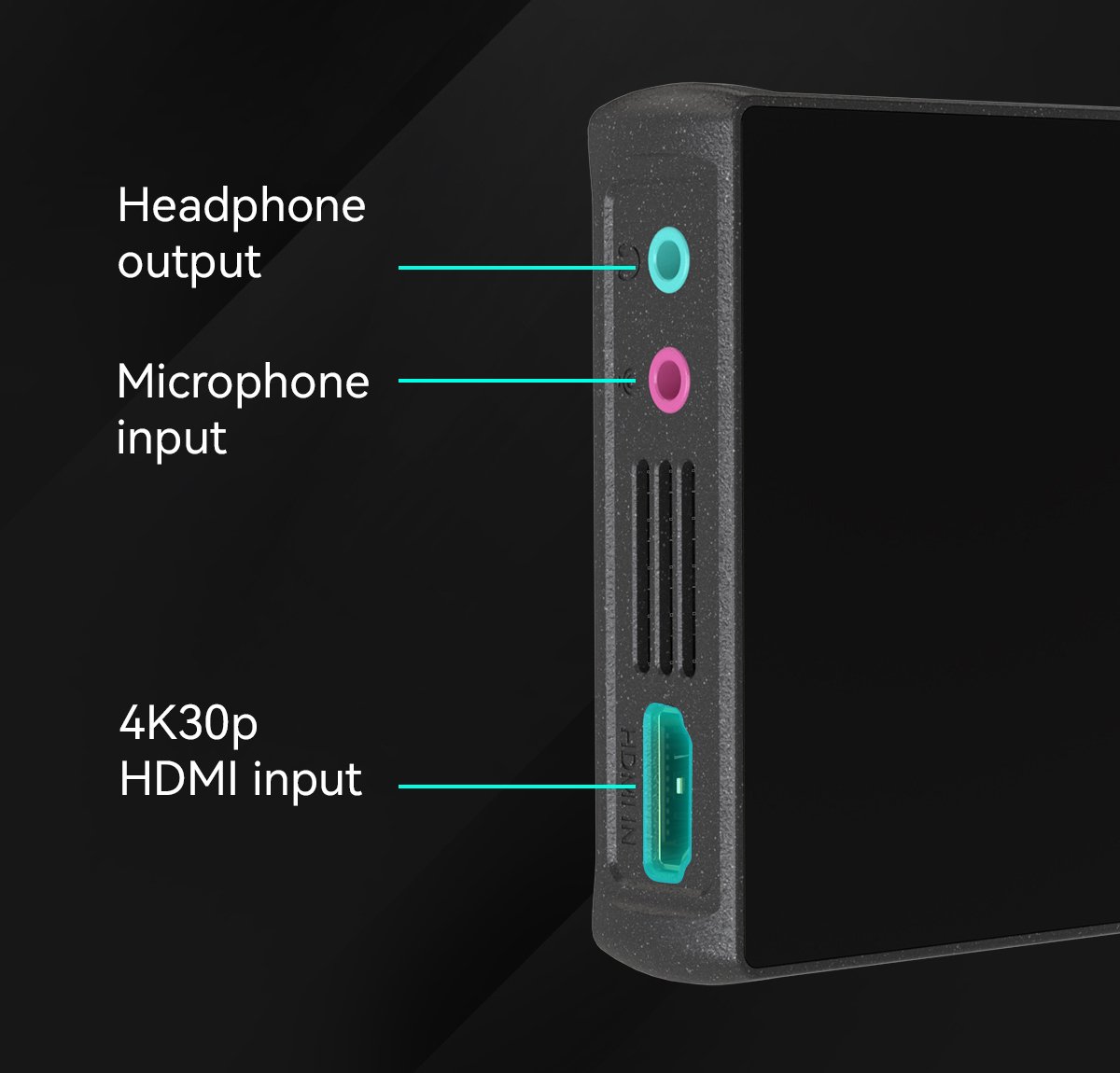

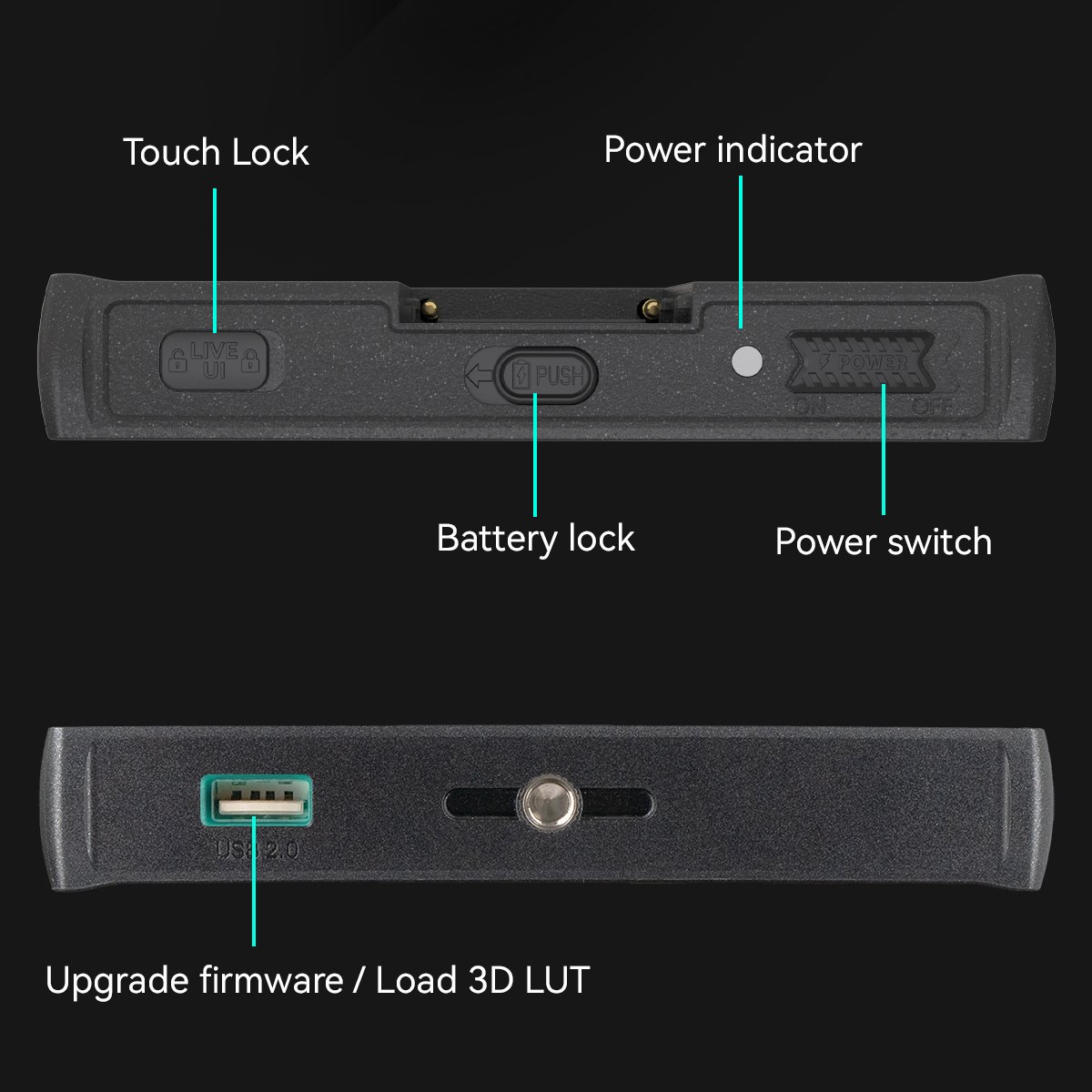

The HDMI input accepts signals up to DCI 4K30, and the HDMI output provides up to 1080p60. The monitor also features a 3.5mm audio input, headphone output, USB-A for firmware and LUT updates, and USB-C for external power.

Power and Mounting

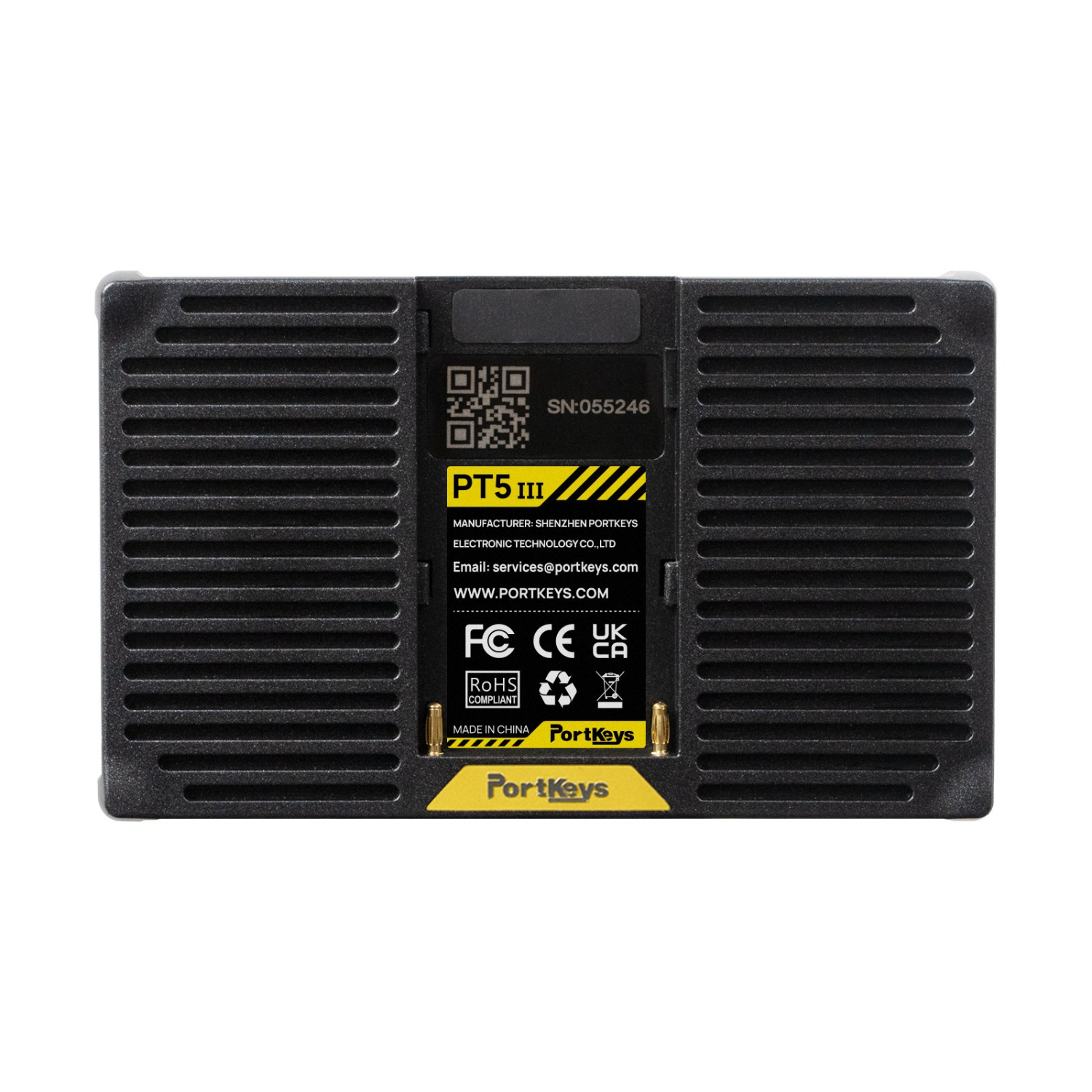

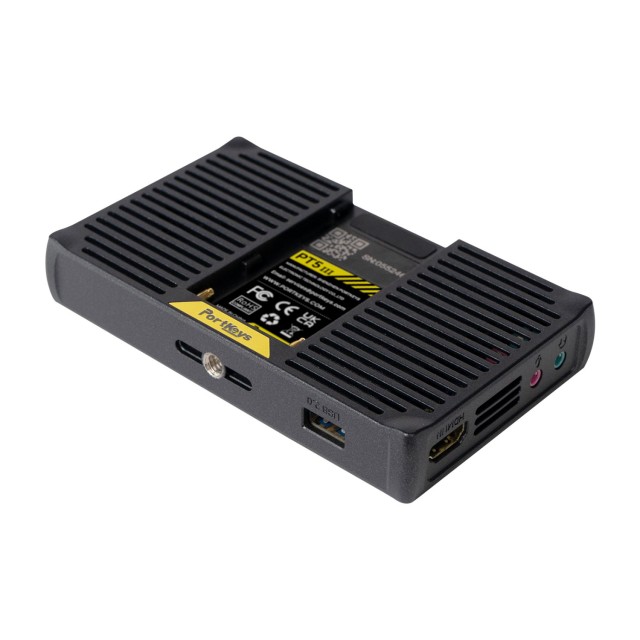

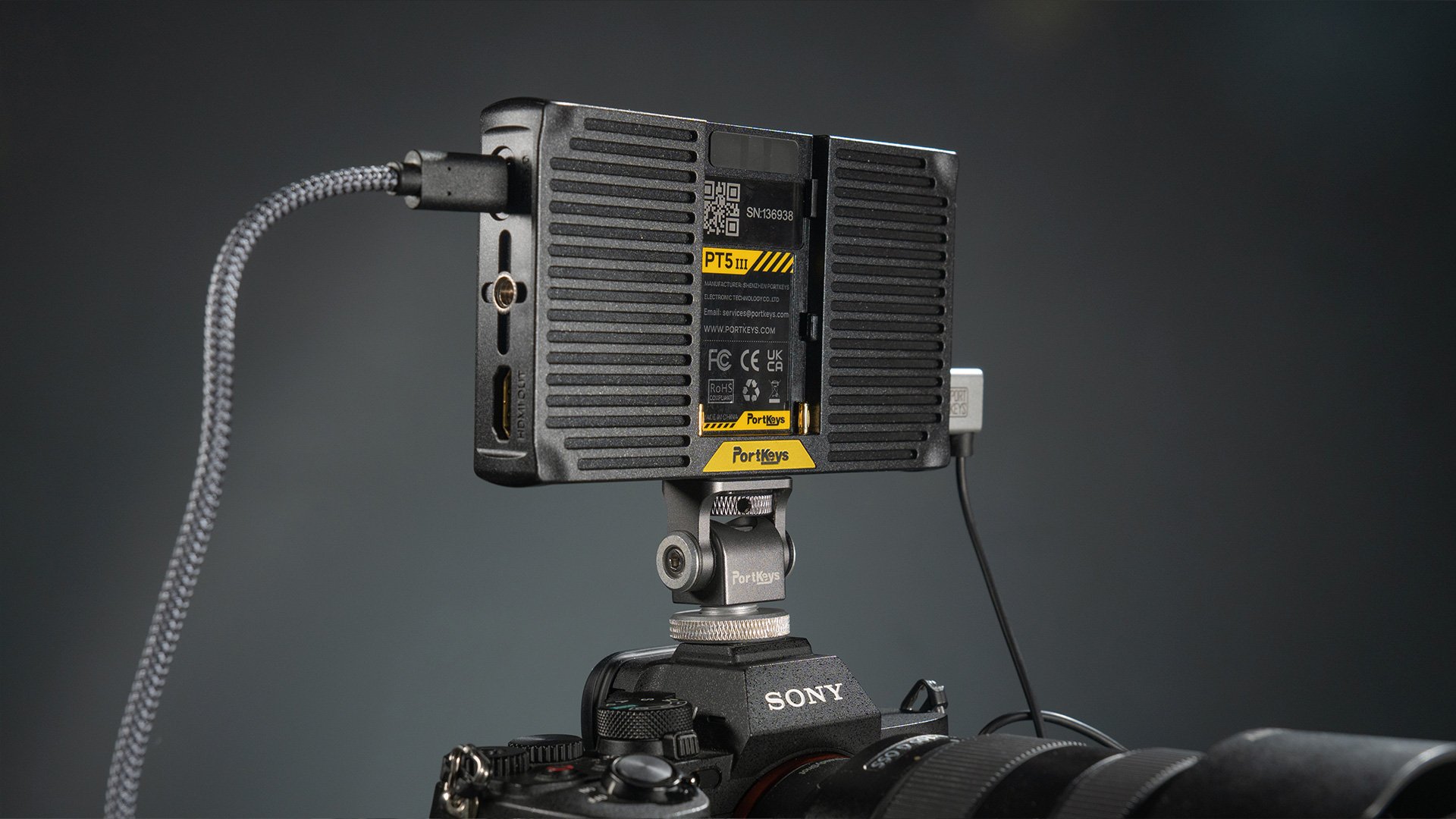

The built-in battery compartment accepts Sony NP-F batteries. Power consumption is 7.5 W at most. Two 1/4"-20 threads with locking holes allow for mounting on a camera, rig, tripod, or gimbal.

Key Features

• 5.4" touchscreen display with 1920 × 1152 resolution
• 800 nits brightness and 1000:1 contrast ratio
• HDMI input up to DCI 4K30 and 1080p60 output
• 3D LUT, waveform, histogram, false color, and peaking
• 360° color corrector
• Powered by Sony NP-F or USB-C
