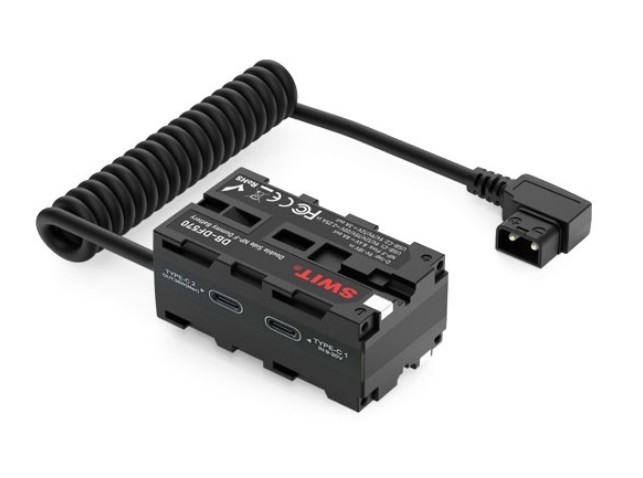

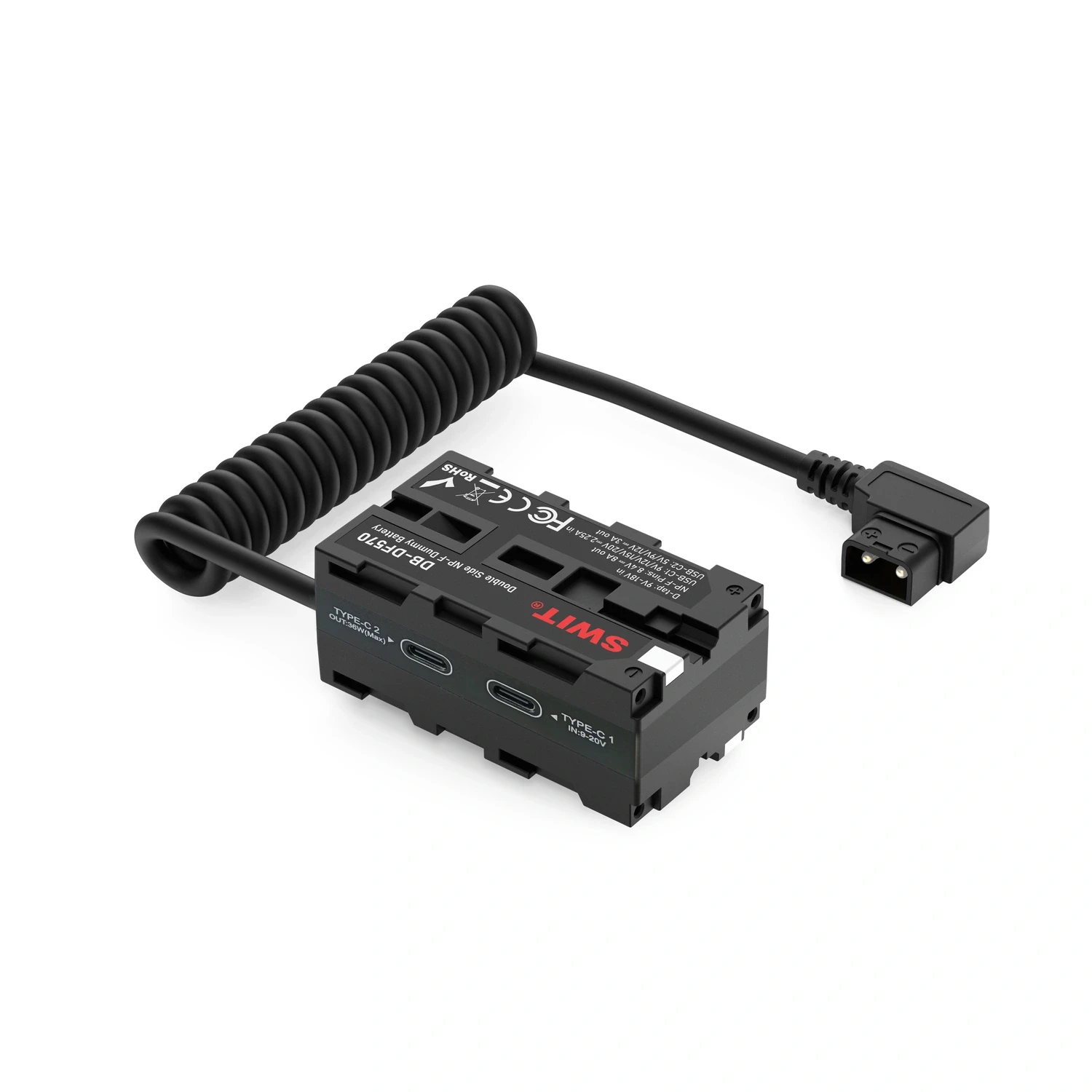

SWIT DB-DF570 Dual Side NP-F Dummy Battery with USB-C

DB-DF570 | Dual Side NP-F Dummy Battery with USB-C.

›  Dual side NP-F type dummy battery
›  D-tap or USB-C PD Power Input
›  2× Dummy Battery Pins 8.4V/8A output
›  USB-C PD 36W output ×1
›  LED input voltage display
›  For video devices with NP-F battery plate

Dual Side NP-F Dummy

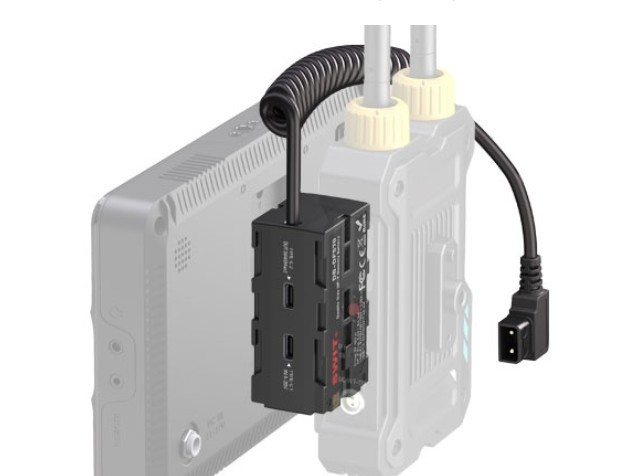

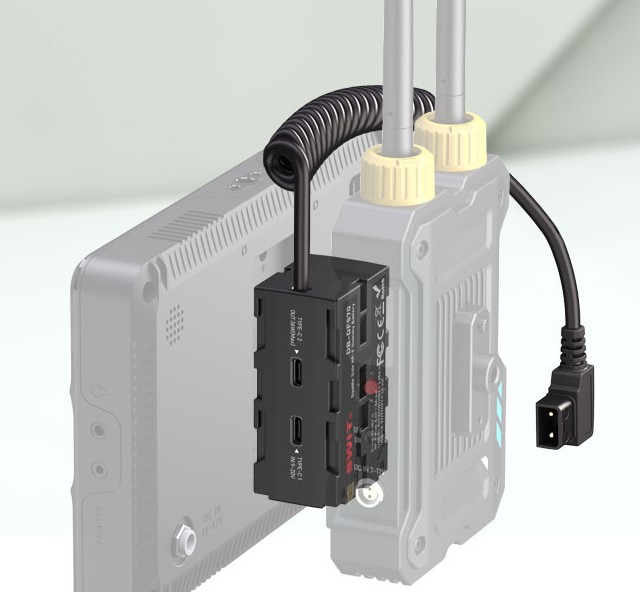

The DB-DF570 is an innovative dual-sided NP-F type dummy battery adaptor, widely used for powering a variety of video devices. It is especially designed to mount a monitor and a wireless transmitter together and power them simultaneously via a D-tap interface or a USB-C interface.

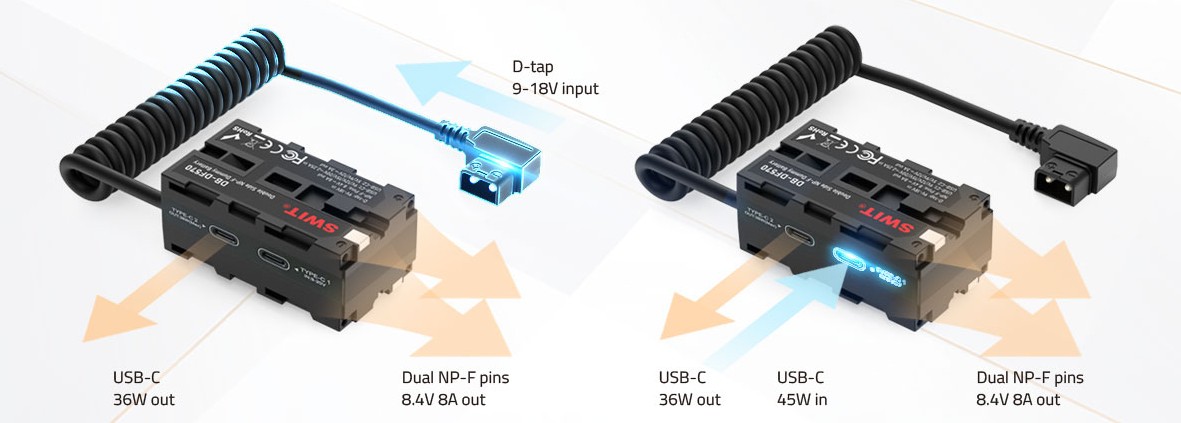

D-tap or USB-C Power Input Source

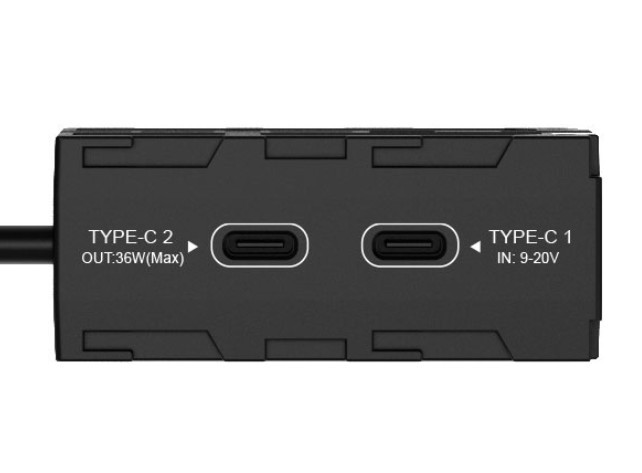

DB-DF570 dummy battery supports D-tap 9-18V power input or USB-C PD 45W input, and converts to dual NP-F pins regulated 8.4V 8A output and USB-C PD 36W output.

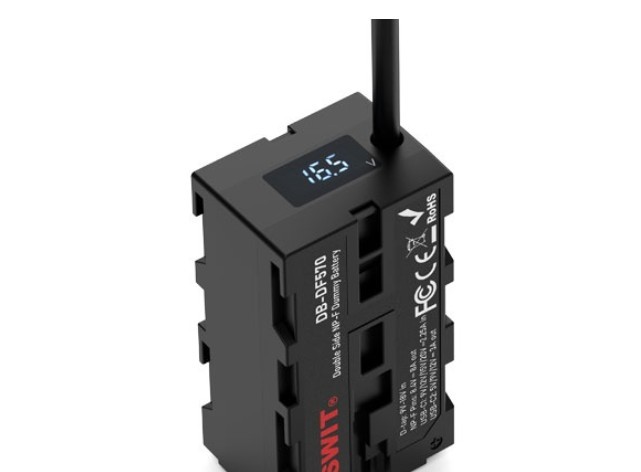

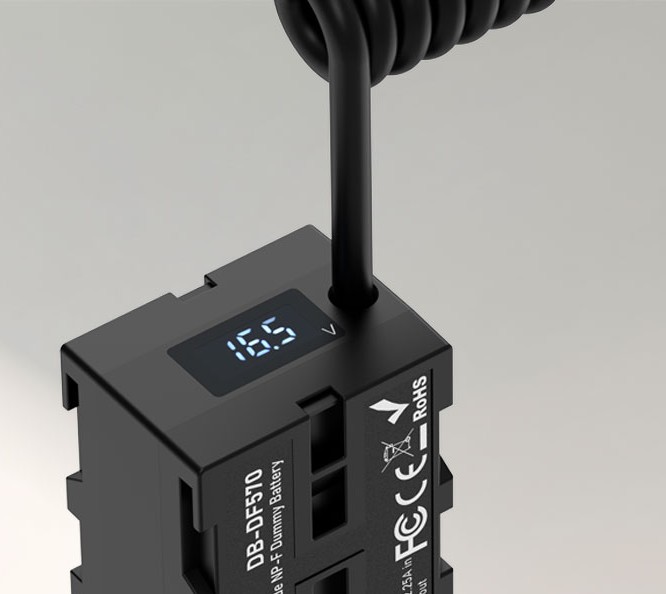

Input Voltage Display
The LED display can show the real-time voltage of the input interface, whether it is D-tap or USB-C.

Specifications

• D-tap input - 9 - 18V
• USB-C input - 9V/12V/15V/20V, 2.25A
• USB-C output - 5V/9V/12V, 3A
• Battery pins output - 8.4V, 8A
