PORTKEYS PT6 6" 4K HDMI Touchscreen Monitor

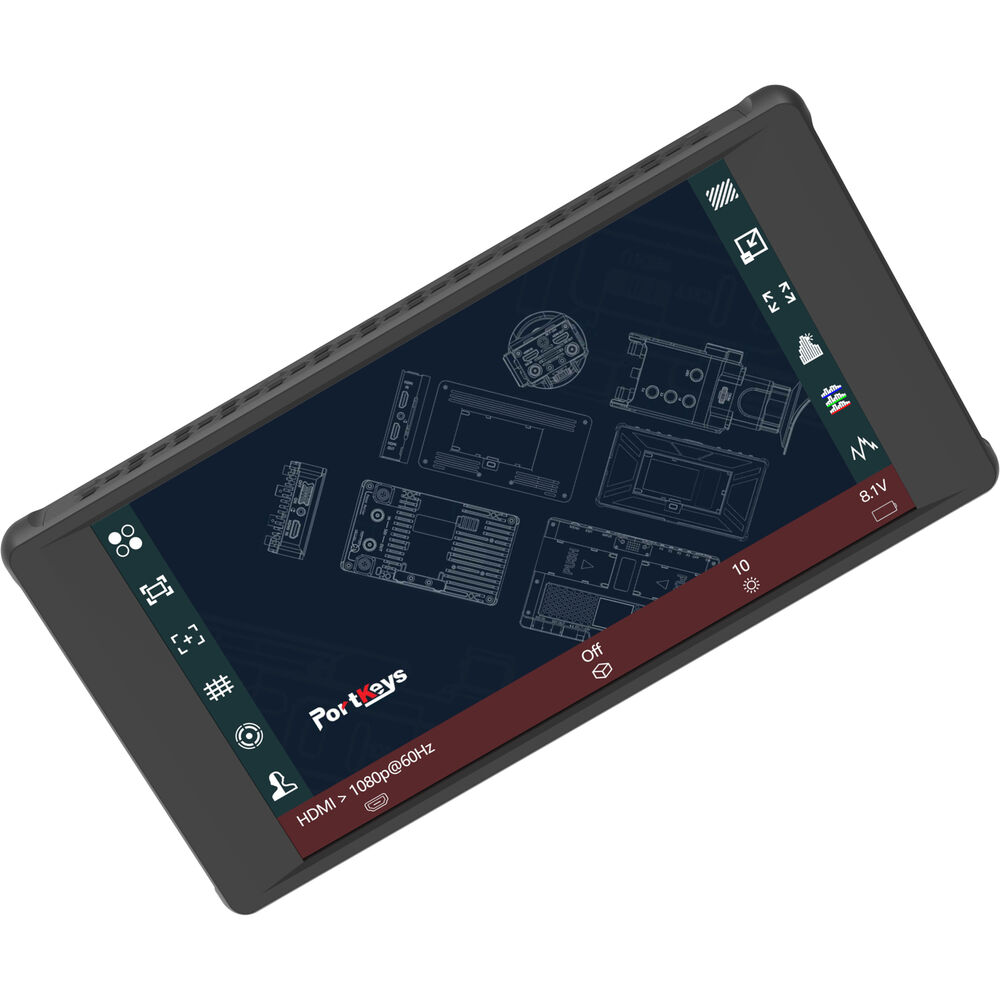

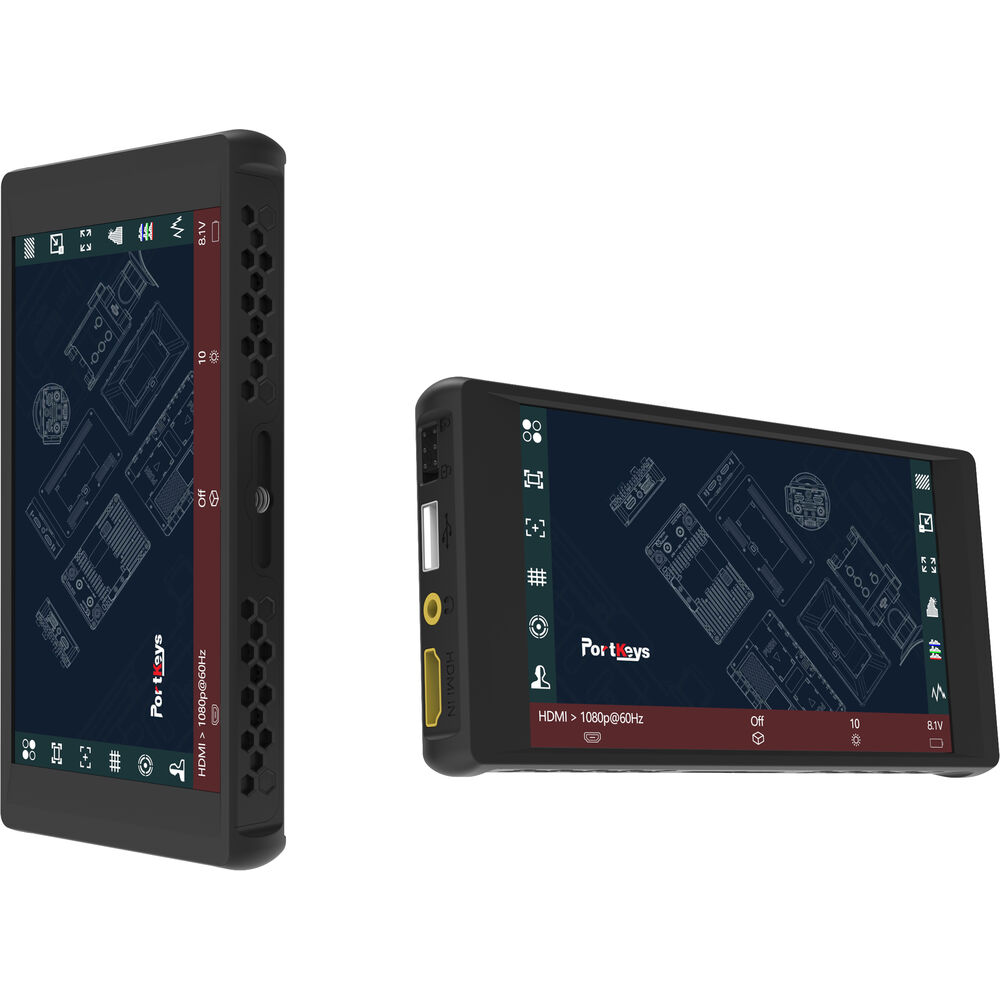

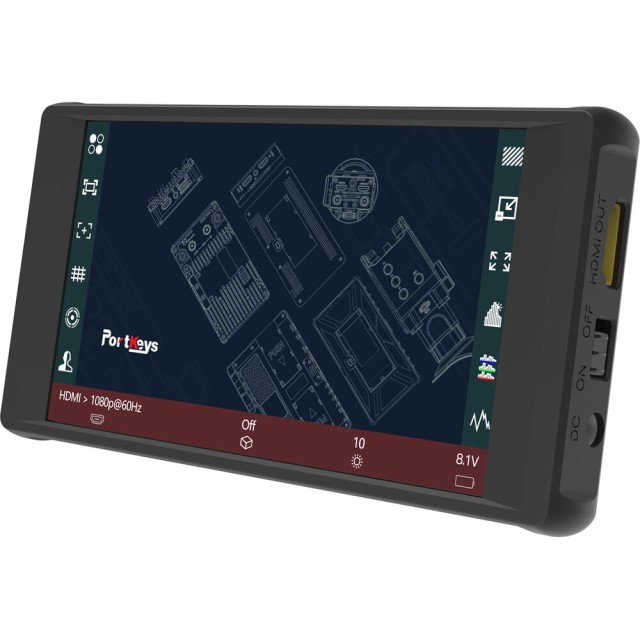

Portkeys PT6 is a lightweight 5.2-inch touchscreen on-camera monitor with Full HD resolution, 600-nit brightness and an accurate 10-bit display. It accepts signals up to DCI 4K24 or UHD 4K30 and provides HDMI output with optional 3D LUT and image adjustments.

At approximately 165 g, with a low 6 W power draw and support for Sony NP-F and Canon LP-E6 batteries, it is well suited to mirrorless cameras, DSLRs, rigs and gimbals.

Compact monitor with accurate colour

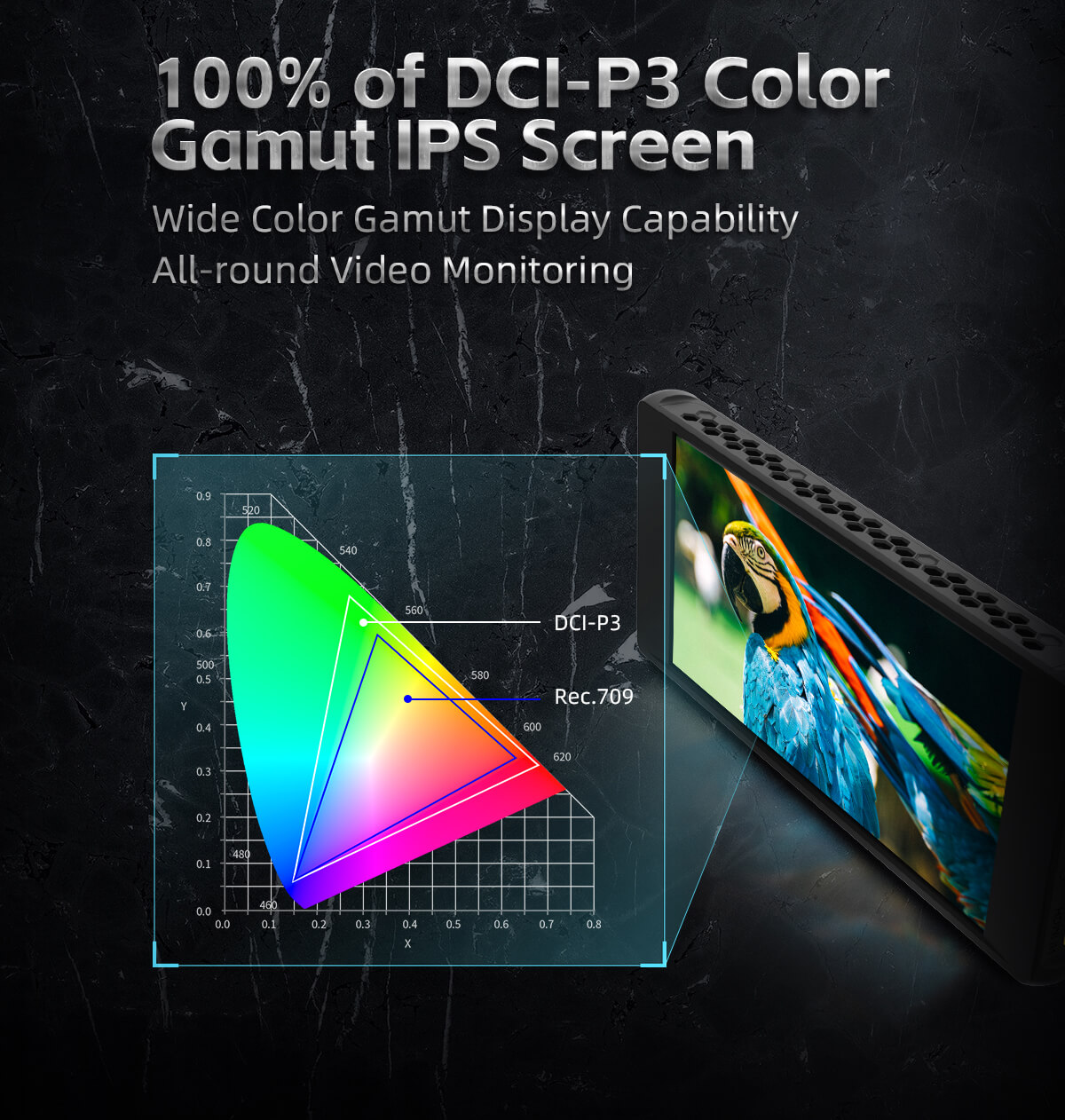

The 1920 × 1080 panel offers a 178° viewing angle, 1500:1 contrast and 100% DCI-P3 coverage. Touch control puts all monitoring tools directly on screen.

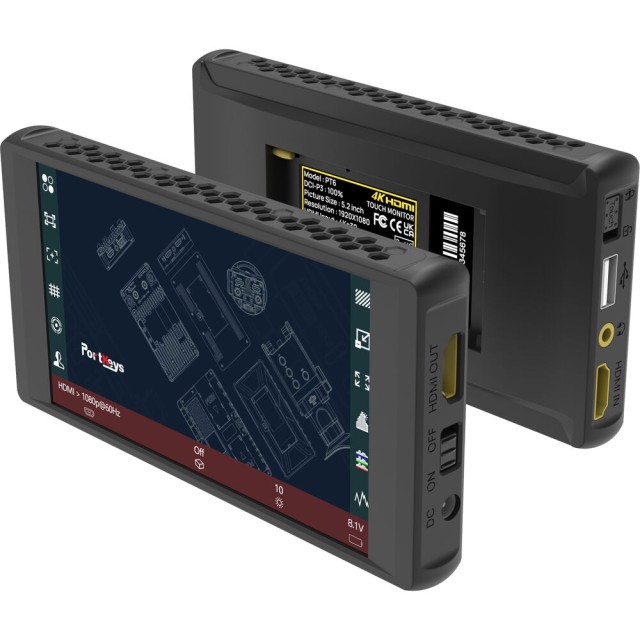

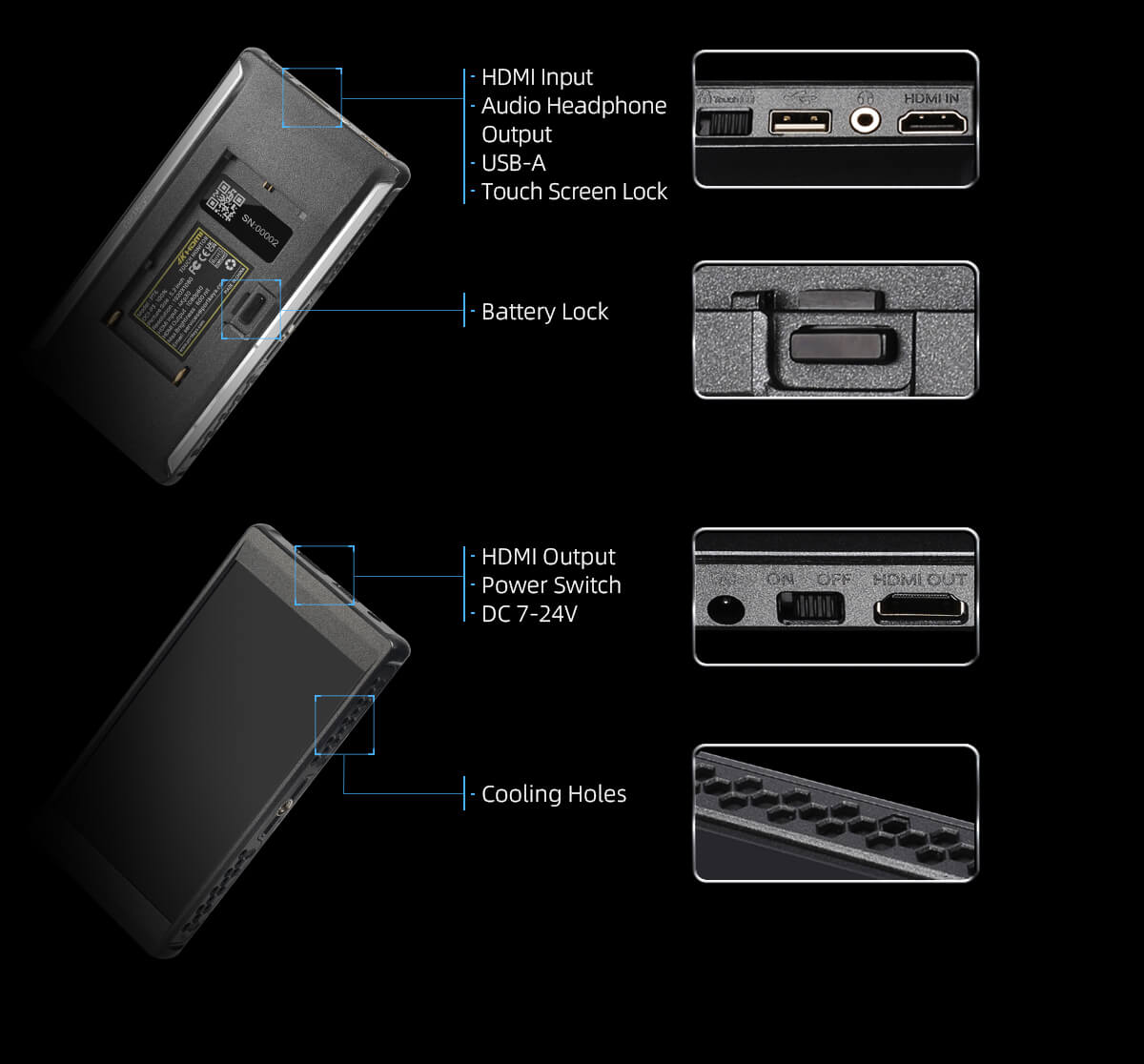

HDMI input and output

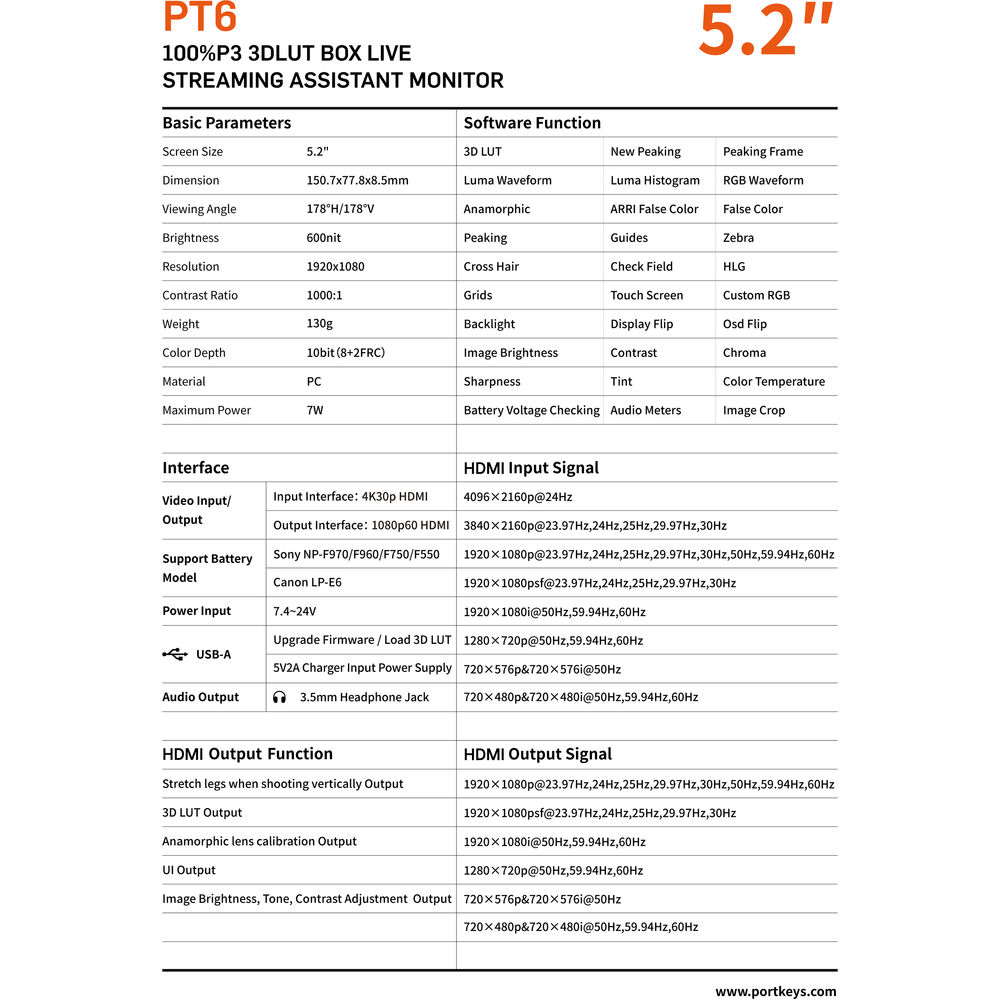

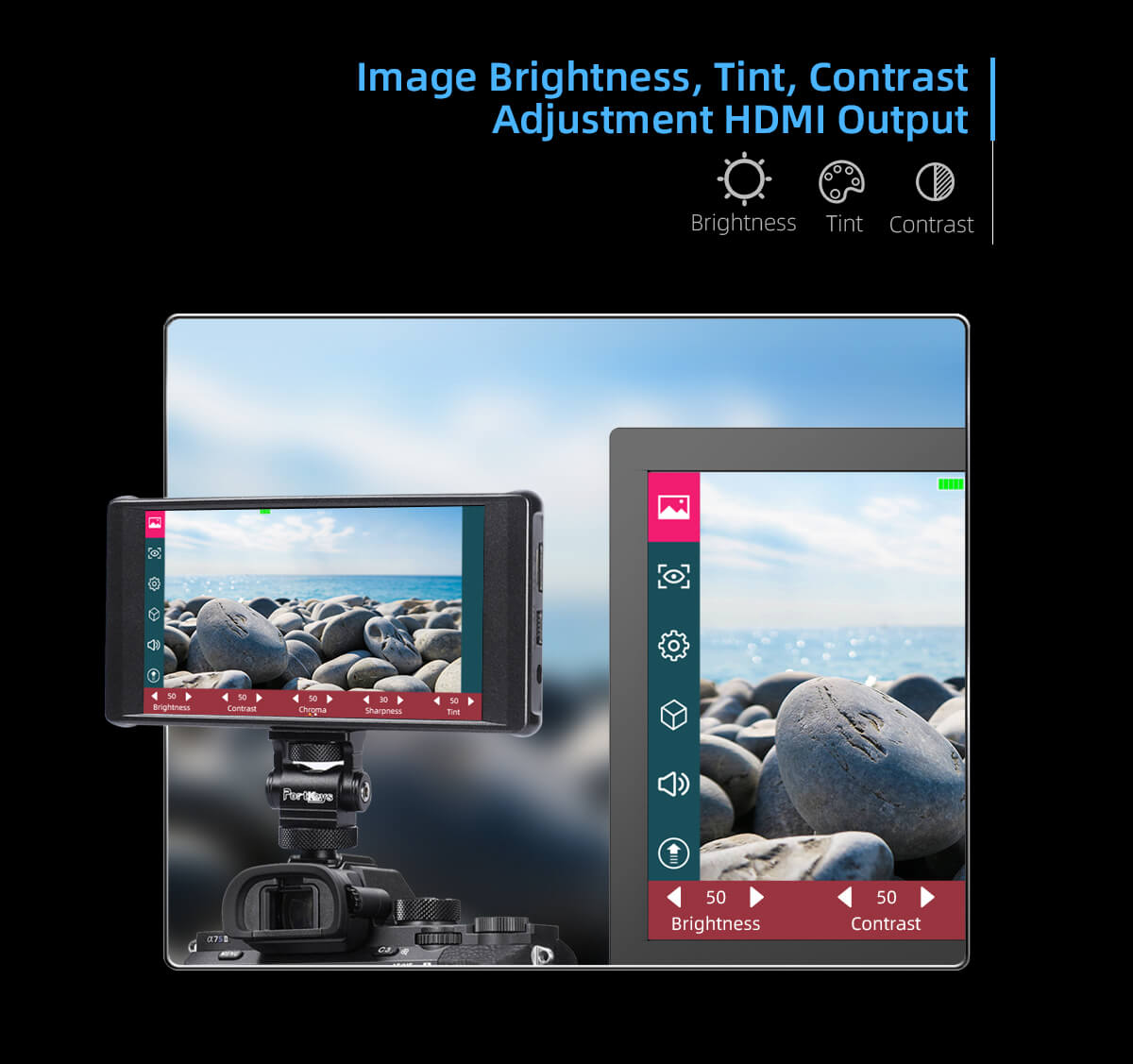

The HDMI input accepts DCI 4K up to 24p, UHD 4K up to 30p and Full HD up to 60p. HDMI output is available up to 1080p60 and can include a selected LUT, anamorphic correction or image adjustments.

Professional monitoring tools

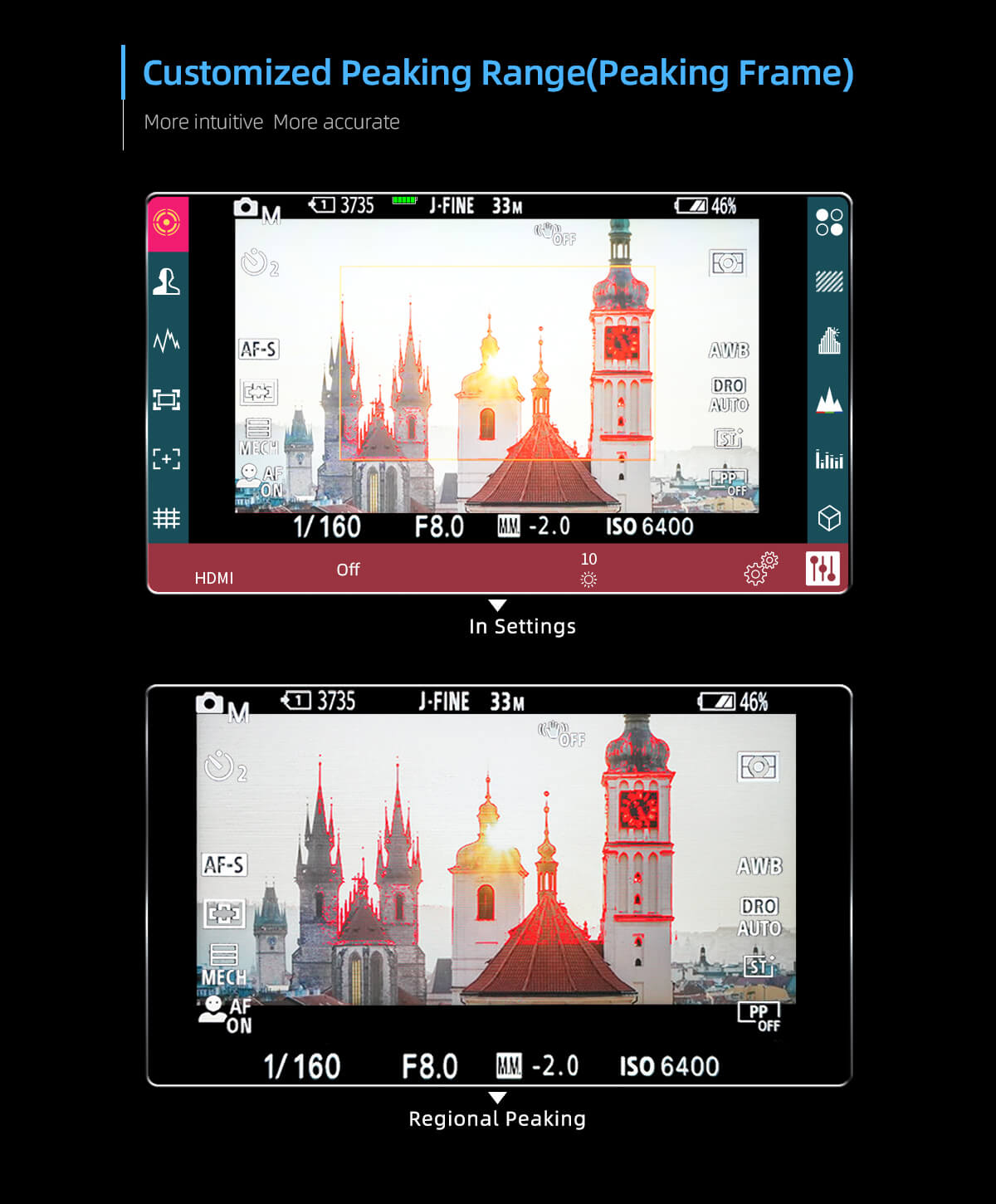

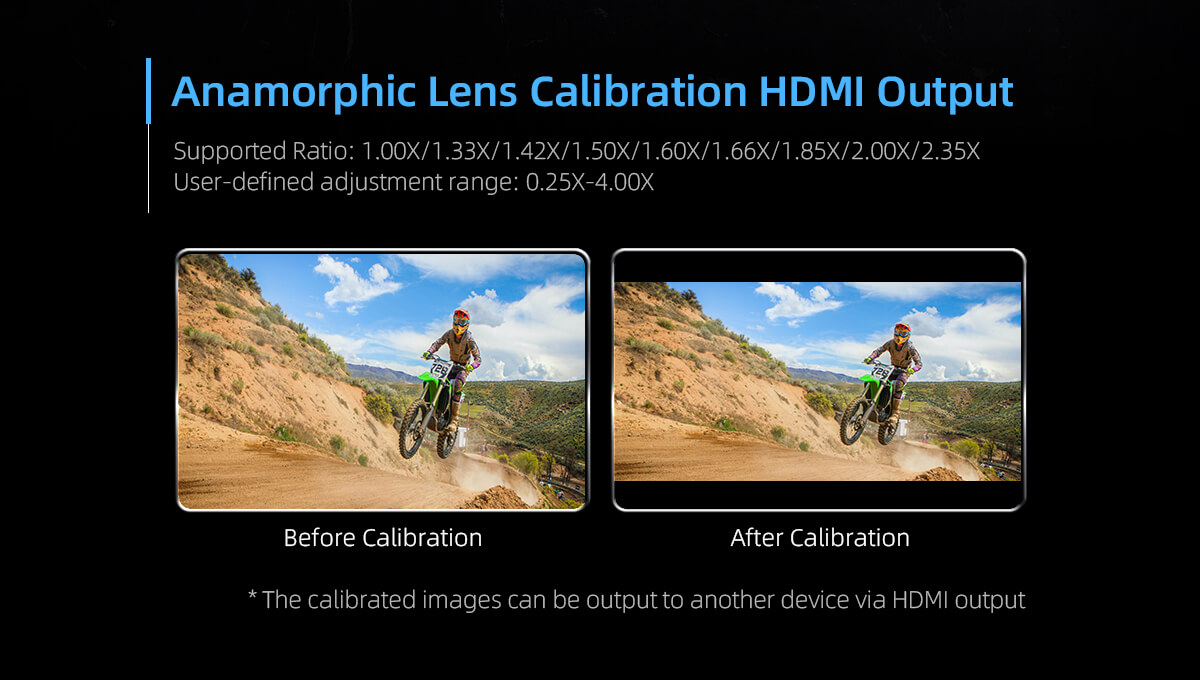

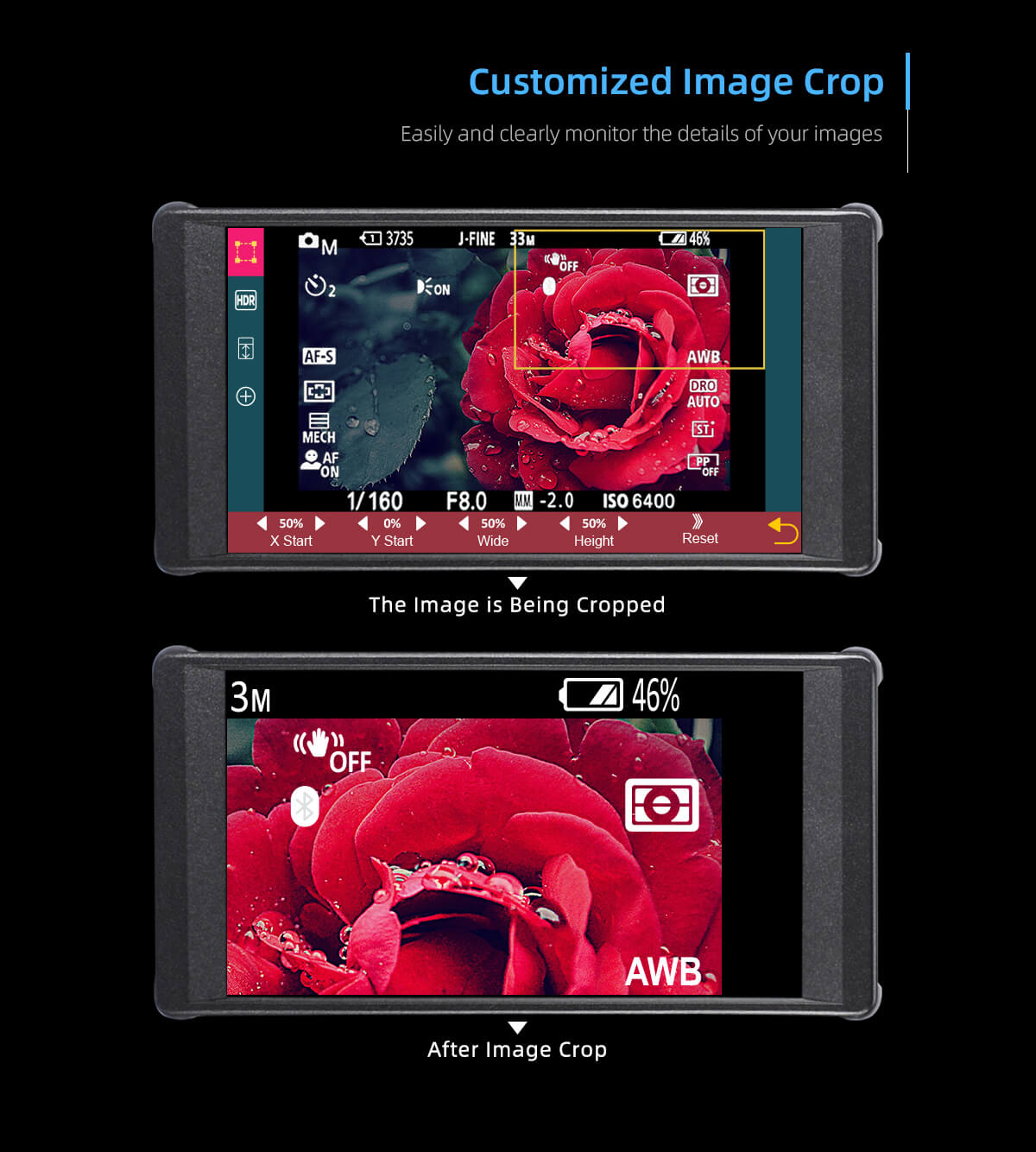

Tools include RGB and Luma waveform, vectorscope, histogram, zebra, ARRI False Color, focus peaking, image magnification, guides, audio meters and anamorphic de-squeeze with presets or a custom 0.25× to 4.00× ratio.

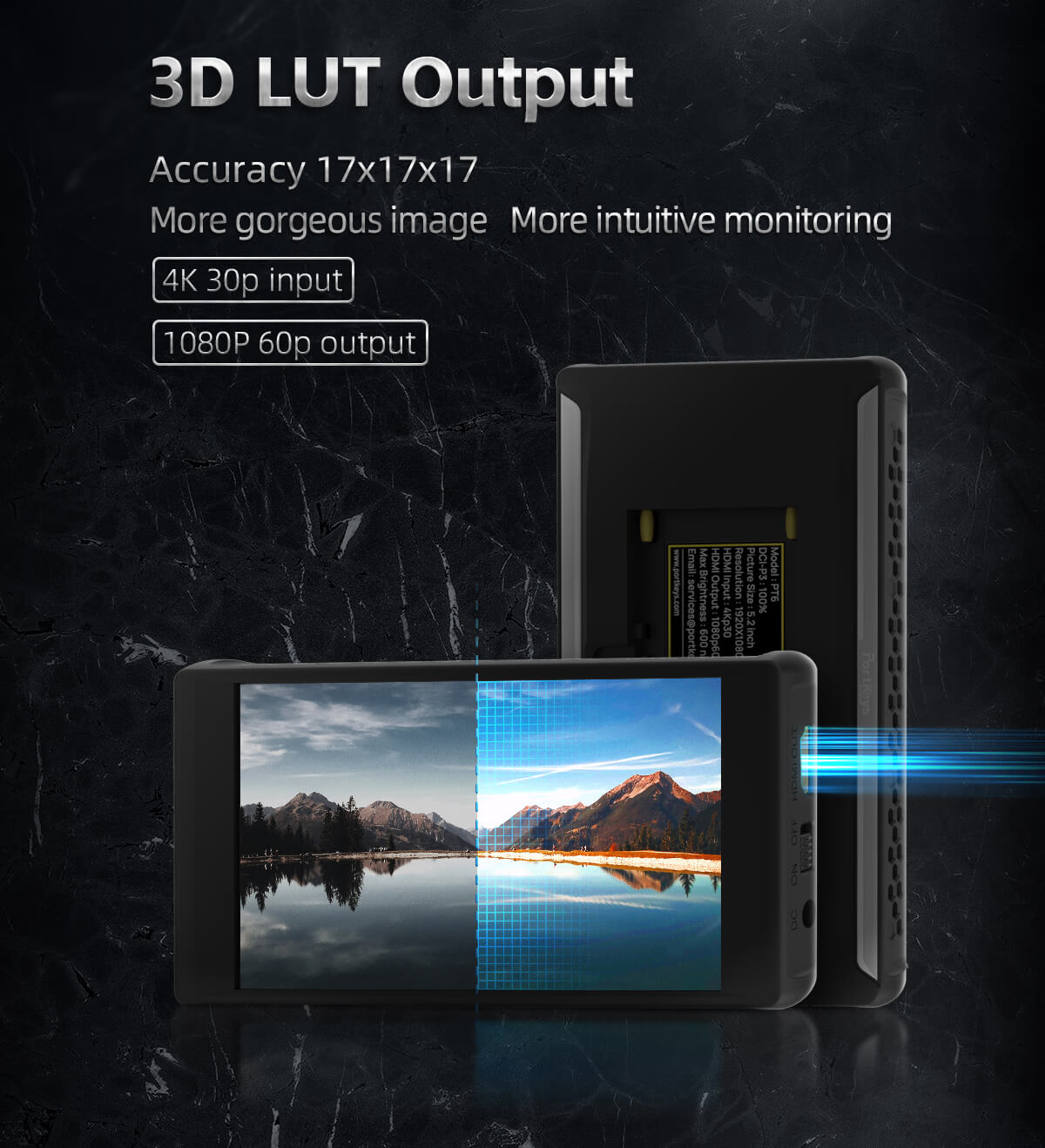

3D LUT and audio monitoring

Custom LUTs are loaded via USB. Audio can be checked with on-screen meters or the 3.5mm headphone output.

Flexible power

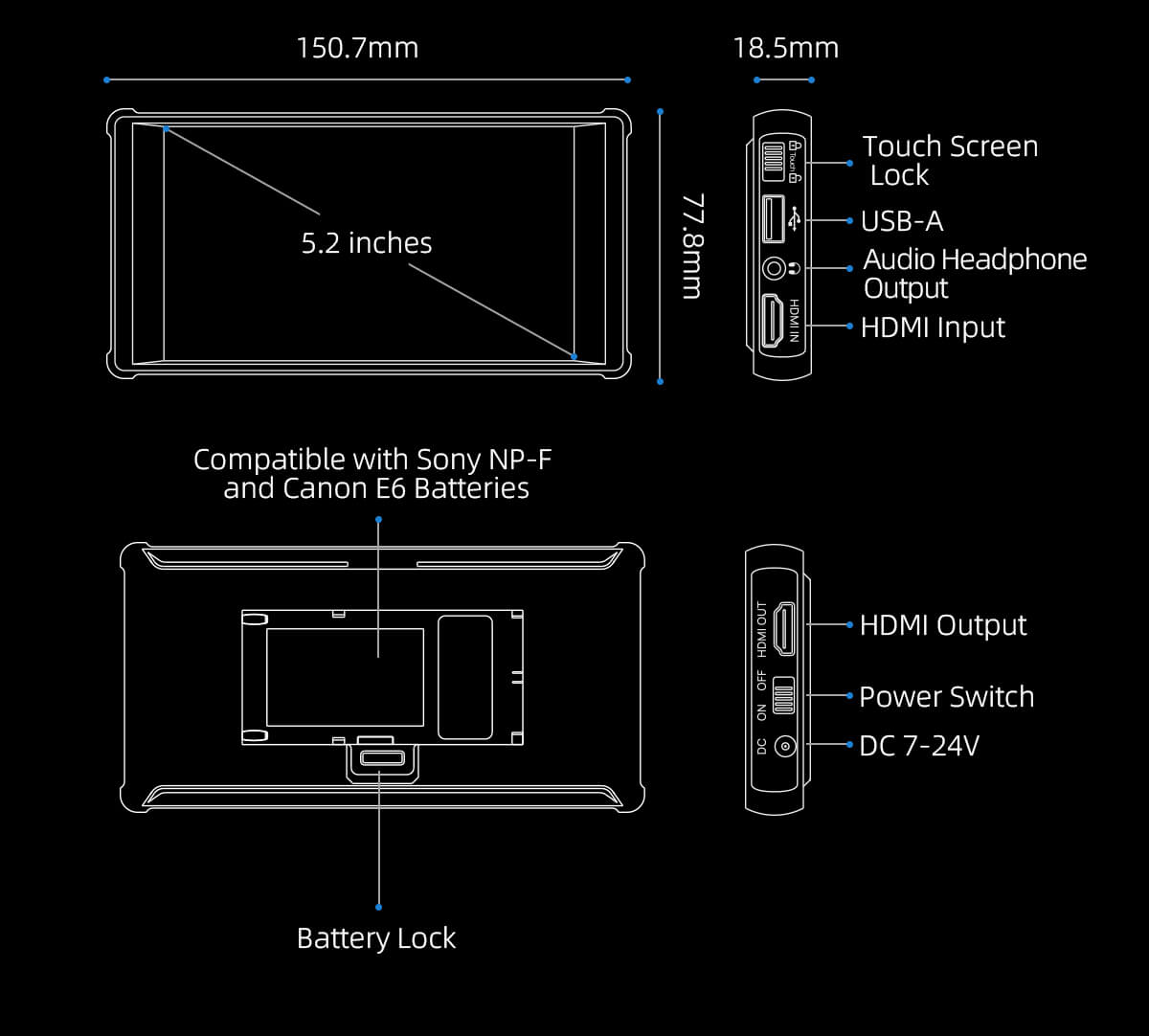

The combined battery plate accepts Sony NP-F and Canon LP-E6 batteries. External 7–24 V power is also supported. The rugged ABS and PC body weighs approximately 165 g.

Key features

• 5,2" touchscreen 10bitový panel 1920 × 1080
• brightness 600 nits, kontrast 1500:1, 100 % DCI-P3
• 4K HDMI vstup a HDMI výstup do 1080p60
• 3D LUT na displeji i HDMI výstupu
• waveform, vectorscope, false color, zebra a peaking
• power Sony NP-F, Canon LP-E6 nebo DC 7–24 V
