Portkeys LH7P

The Portkeys LH7P (black) is a 7-inch touchscreen camera monitor with a Full HD panel, 1,000-nit brightness, and wireless control of supported cameras. It features an HDMI input up to 4K30 and an HDMI output up to 1080p60, professional monitoring tools, and a lightweight design suitable for camera rigs, tripods, and studio setups.

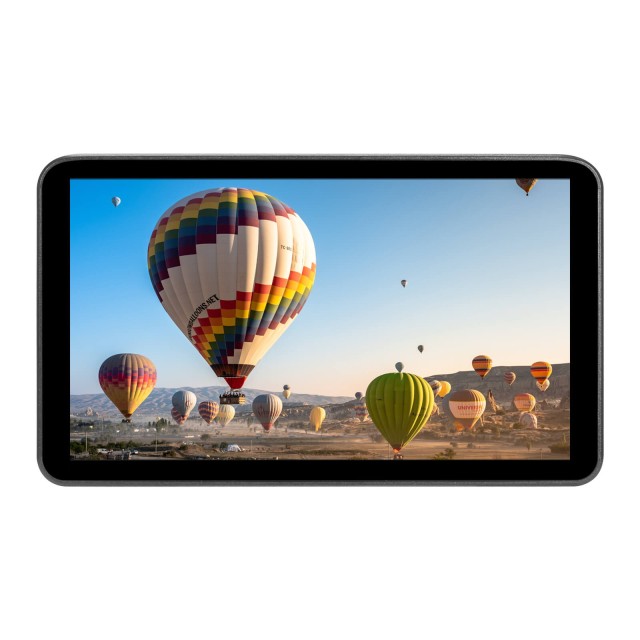

Large 7" display with 1,000 nits of brightness

The 1920 × 1080 display provides ample space for precise focusing and composition checks. The 1,000-nit brightness improves readability when working outdoors, and the touchscreen interface speeds up monitor setup.

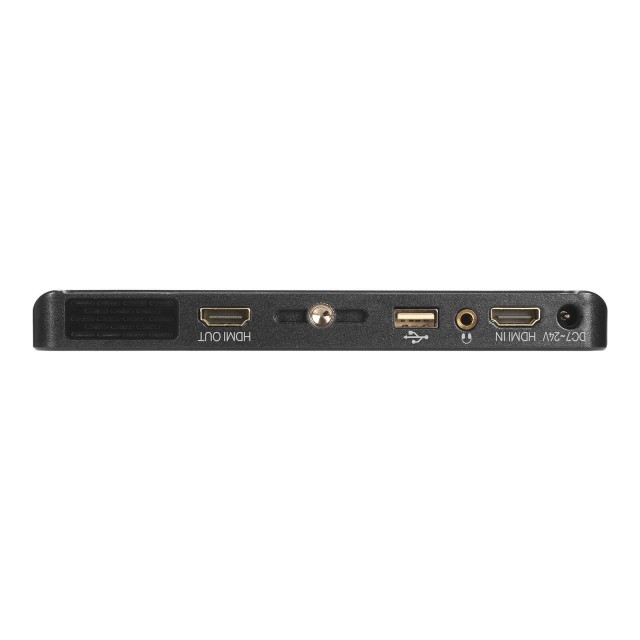

HDMI 4K30 input and pass-through output

The LH7P accepts signals up to DCI 4K30 and offers an HDMI output for a secondary monitor, wireless transmission, or a recorder. Downsampling the image from 4K to Full HD preserves the fine details of the preview.

Wireless Camera Control

You can control compatible Sony and Blackmagic Design cameras from the monitor and, depending on the supported model, adjust exposure and focus settings or start recording. Touch controls minimize the need to handle the camera body.

3D LUT and precise image control

Custom 3D LUTs can be loaded via USB. Available features include waveform, histogram, peaking, zebra, false color, anamorphic de-squeeze, zoom, guides, live view comparison with a reference JPG, and a mode for vertical video.

Flexible workflow

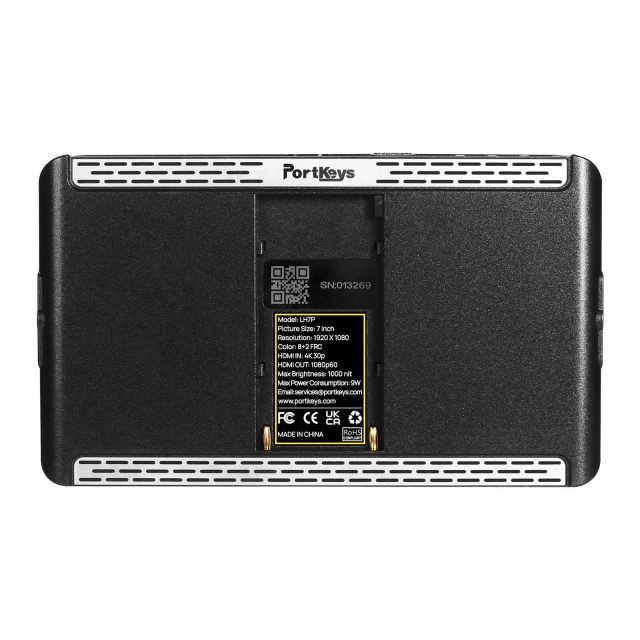

The monitor supports custom cropping, aspect ratio changes, image flipping, and other tools for quick shot review. Powered by Sony NP-F batteries, it facilitates mobile operation.
