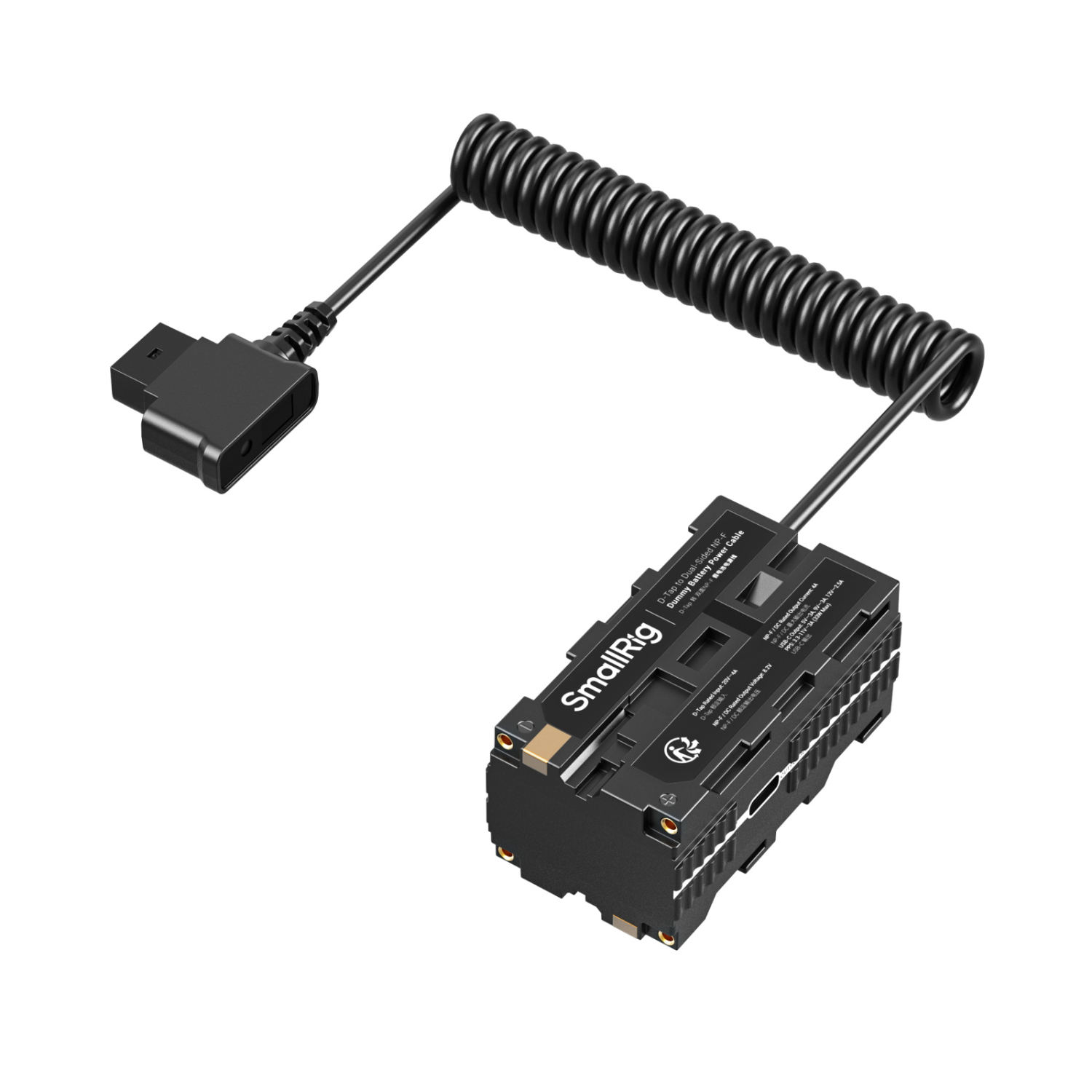

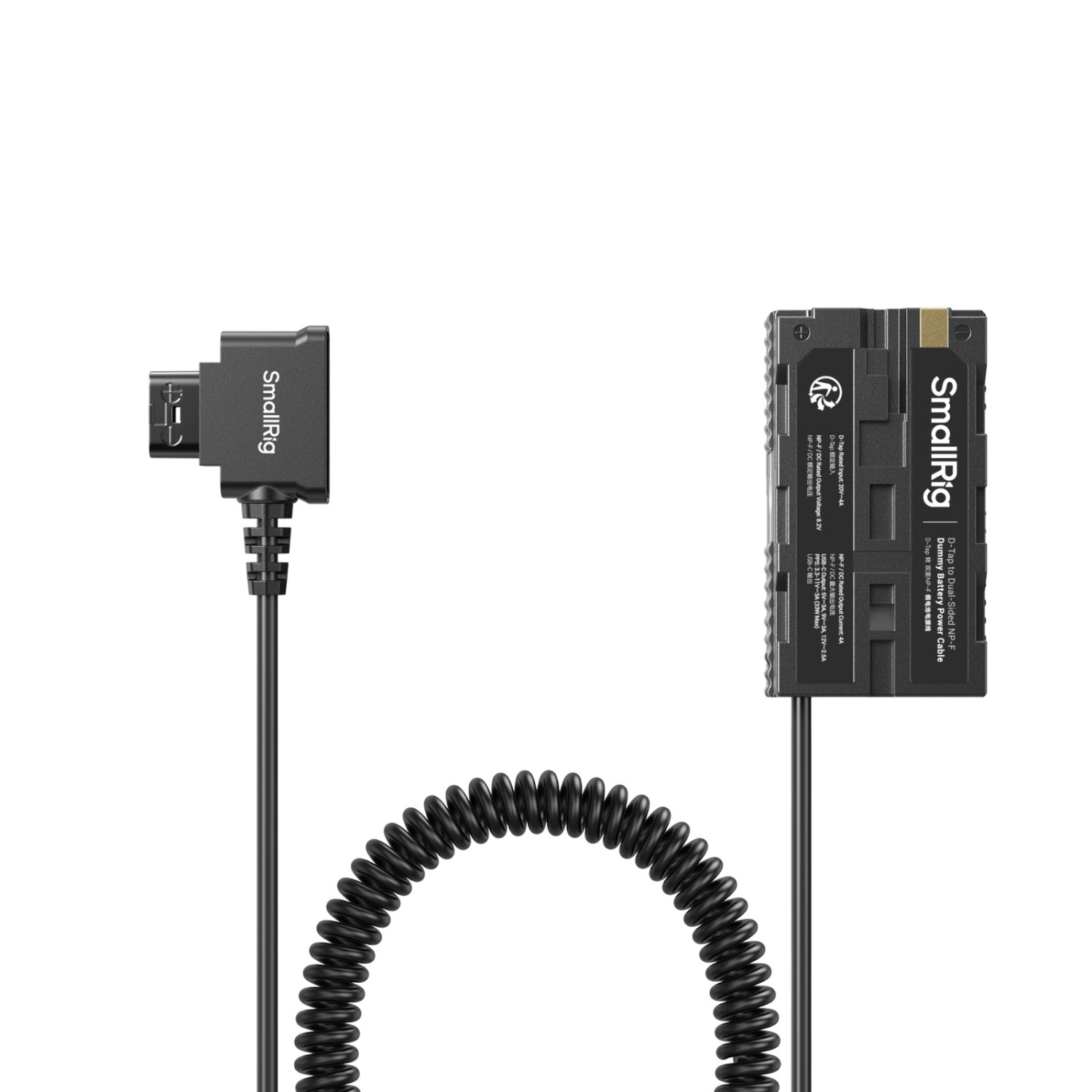

SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884

The SmallRig 4884 power cable splits a single D-Tap between four devices at once: two NP-F outputs for a monitor and a video transmitter, a DC output for a dummy battery in the camera and USB-C for a follow focus motor or a phone.

More information

47 € with VAT 38.84 € without VAT
-+
Availability
Backordered > 5 pcs - 27.11.2026
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The SmallRig 4884 power cable splits a single D-Tap between four devices at once: two NP-F outputs for a monitor and a video transmitter, a DC output for a dummy battery in the camera and USB-C for a follow focus motor or a phone.

D-Tap to NP-F and DC cable, 4 outputs

The SmallRig 4884 power cable splits a single D-Tap between four devices at once: two NP-F outputs for a monitor and a video transmitter, a DC output for a dummy battery in the camera and USB-C for a follow focus motor or a phone.

D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

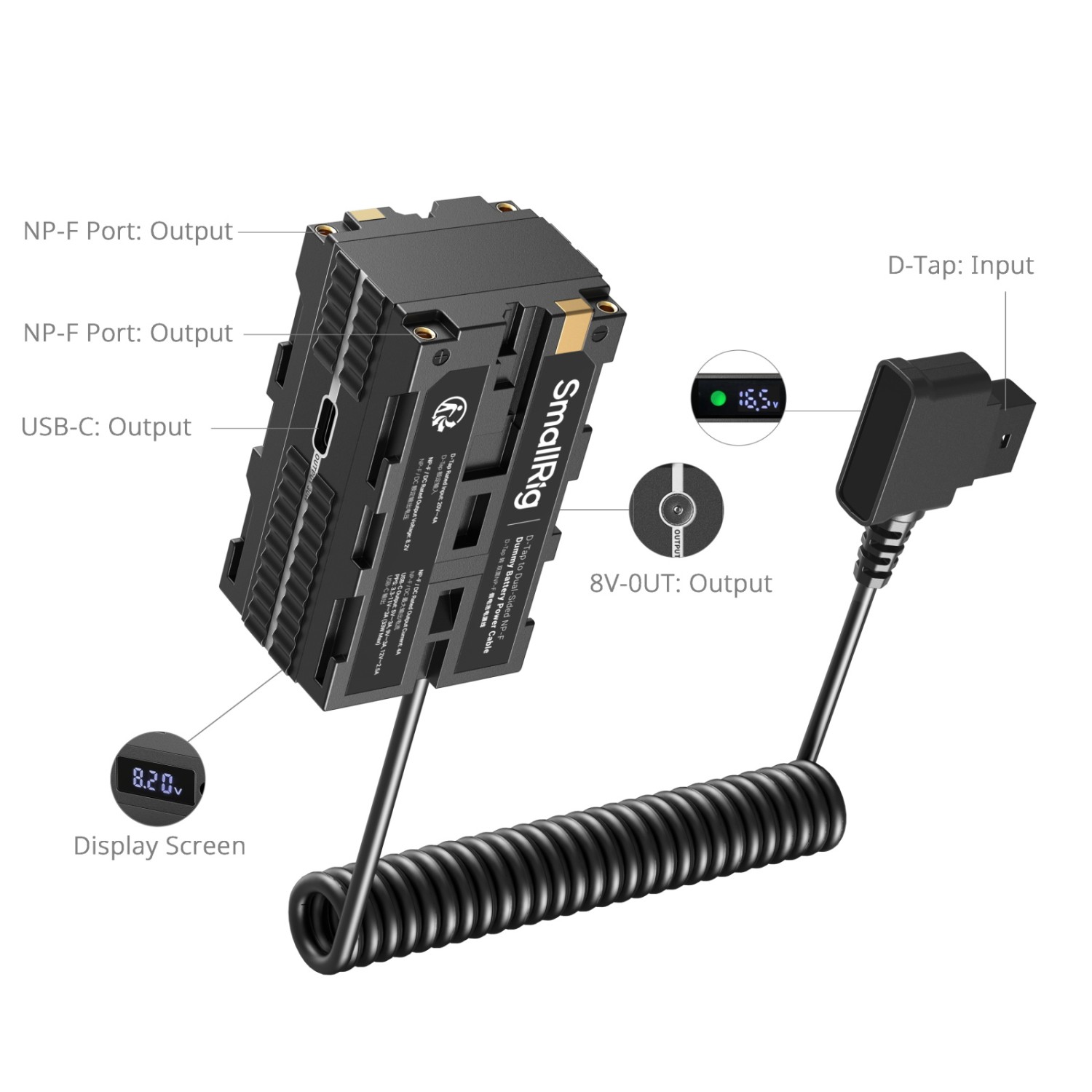

Four outputs from one D-Tap

Two NP-F outputs power a monitor and video transmitter, the DC output a dummy battery in the camera, and USB-C a follow focus or phone.

Two displays

One shows the D-Tap input voltage, the other the NP-F and DC voltage.

Indicator

Green means correct polarity, red means reversed polarity with power cut-off.

Multiple protections

Overheat, short-circuit, low-voltage and overvoltage protection.

USB-C up to 33 W

USB-C output with PD and PPS, 33 W at most.

1. Four power outputs allow for the simultaneous charging of four devices, offering easy portability and efficient cable management.
2. Two screen displays and one indicator provide real-time monitoring of input and output status.
3. Constructed from metal, PC, and PU, the cable optimizes heat dissipation and enhances fire resistance, improving both efficiency and safety.
4. Multiple circuit protections guarantee safe charging and reliable performance during shooting.

D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

SmallRig D-Tap to Dual-Sided NP-F Dummy Battery Power Cable 4884 is a multifunctional dummy battery power cable featuring one D-Tap input and four outputs: two NP-F outputs, one DC output, and one USB-C output, enabling simultaneous charging of four devices. The NP-F outputs power monitors and video transmitters, the DC output powers cameras via dummy batteries, and the USB-C output powers devices like follow focus motors and mobile phones.

Designed for portability and efficient cable management, this power cable is equipped with two displays and one indicator. The D-Tap port features a display for input voltage and an indicator for reverse plugging warning and input voltage range, while the dummy battery display shows NP-F and DC input voltage.

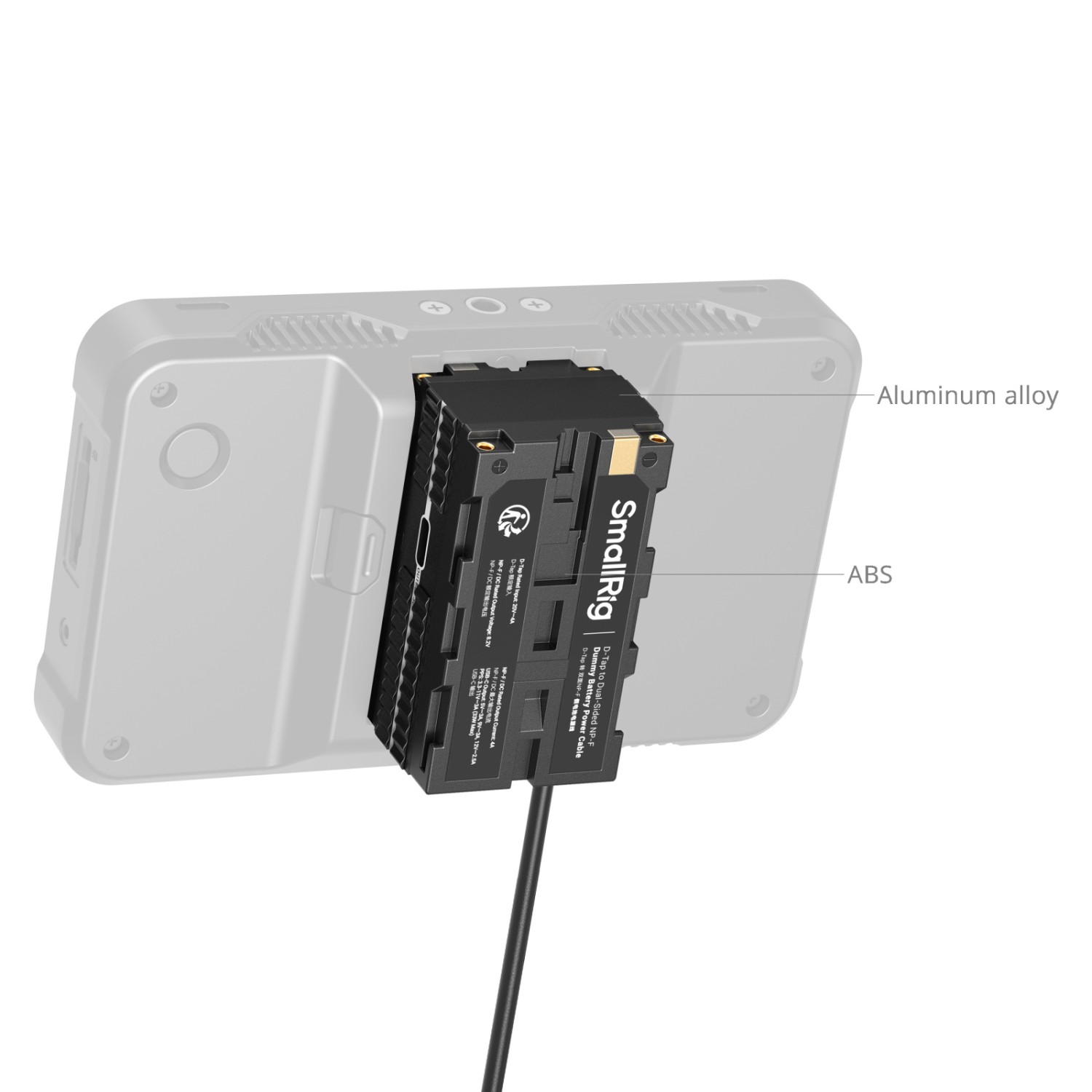

Constructed from fire-resistant PC, PU, and metal for optimal heat dissipation, this cable enhances efficiency and safety. It incorporates multiple circuit protections—overheating, short-circuit, low-voltage, and overvoltage—to ensure safe charging and reliable performance during shooting.

Certifications: FCC, CE, PSE, RoHS

Compatible With
Monitors, video transmitters, follow focus motors, V-mount batteries, NP-F batteries, direct-charge camera batteries, smartphones, tablets, laptops, etc.

PACKAGE CONTENT

1× D-Tap to Dual-Sided NP-F Dummy Battery Power Cable
1× User Manual

SPECIFICATIONS

Product Dimensions: 400 × 40 × 30 mm
Package Dimensions: 113 × 84.5 × 42 mm
Product Weight: 105 ± 5.0 g
Package Weight: 143 ± 5.0 g
Material: ABS+Aluminum Alloy
D-Tap Rated Input: 20 V / 4 A
NP-F / DC Rated Output Voltage: 8.2 V
NP-F / DC Output Current (Max): 4 A
USB-C Output:
33 W (Max)
PD: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A
PPS: 3.3-11 V / 3 A (30 W Max)

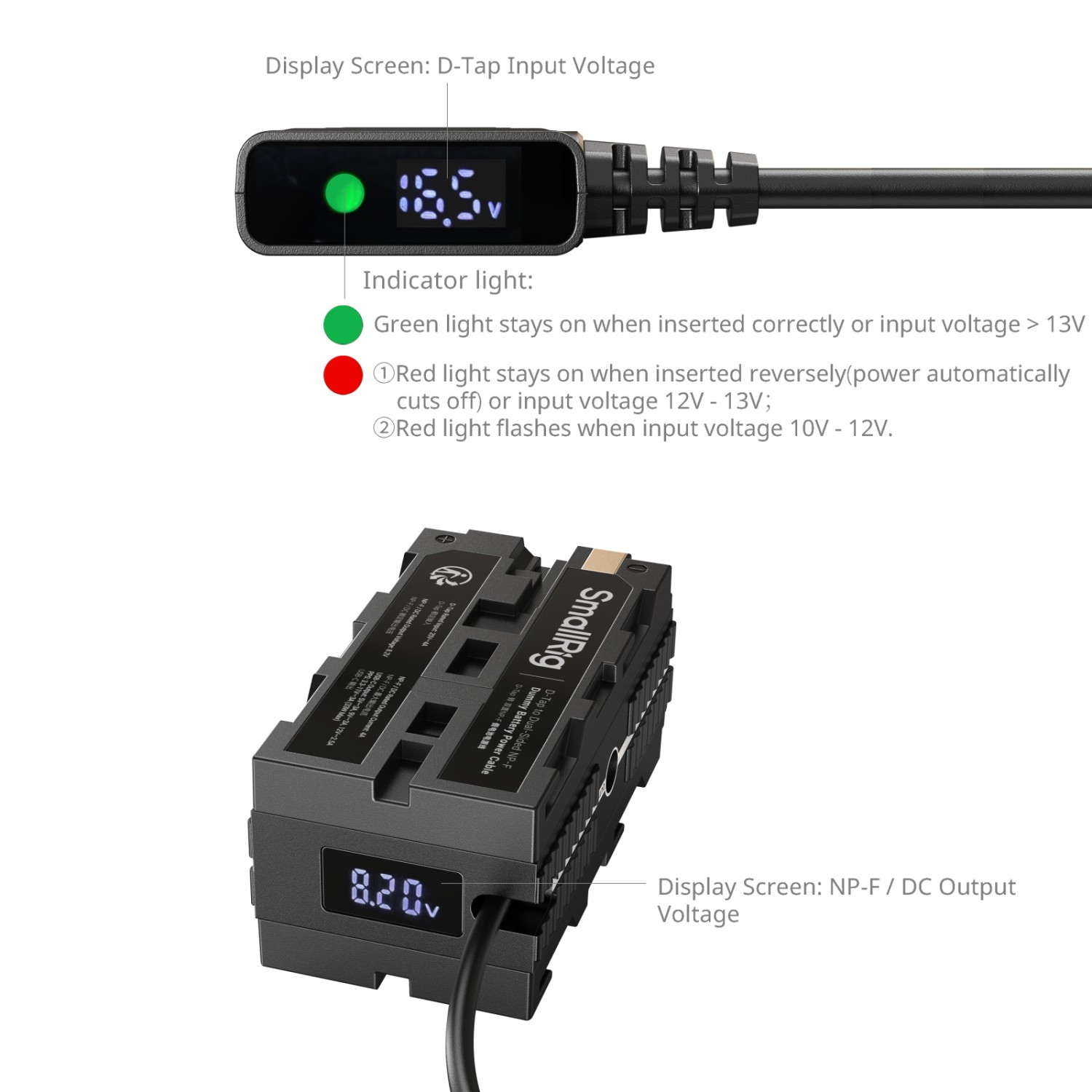

Indicator / Display Functions:
Green Light: Forward plugging
Red Light: Reverse plugging, automatically cut off the power
Flashing Red Light: Input voltage 10 V-12 V
Red Light: Input voltage 12 V-13 V
Green Light: Input voltage >13 V
D-Tap Input Voltage Display
NP-F / DC Output Voltage Display
Overheating Warning (07P)
Short-Circuit Warning
Low-Voltage Warning (OC)
Overvoltage Warning (OC)
Circuit Protections:
NP-F Port Overcurrent Protection: Activates at 5.5 A and resets when current drops to 5 A or below
Short-Circuit Protection: Engages during a short circuit and resumes once resolved

ARTICLES

Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

For batterySony NP-F
FeaturesStatus Indicator (LED)
CompatibilityUniverzální
Battery Type / MountingSony NP-F
Outputs and InterfacesD-Tap / P-Tap · Dummy baterie · USB-C PD
