The SmallRig NP-F970 Camera Battery 5729 is a high-capacity 7500mAh (55.5Wh) lithium-ion battery with built-in USB-C PD fast charging and dual-port power bank functionality. Engineered for extreme cold operation down to -40°C, it features an OLED display, smart touch controls, and independent USB-C/USB-A outputs for versatile…

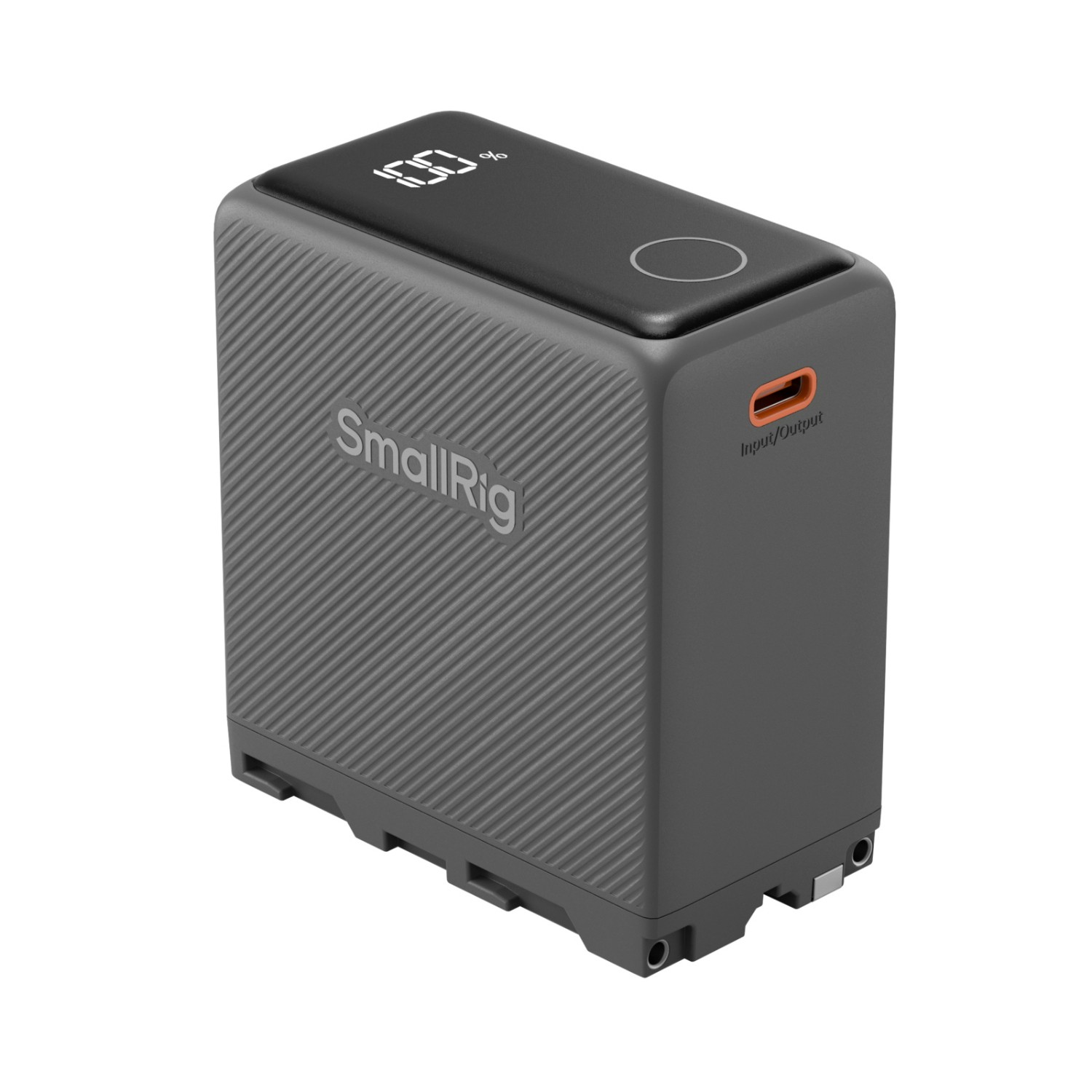

The SmallRig NP-F970 Camera Battery 5729 is a high-capacity 7500mAh (55.5Wh) lithium-ion battery with built-in USB-C PD fast charging and dual-port power bank functionality. Engineered for extreme cold operation down to -40°C, it features an OLED display, smart touch controls, and independent USB-C/USB-A outputs for versatile power delivery.

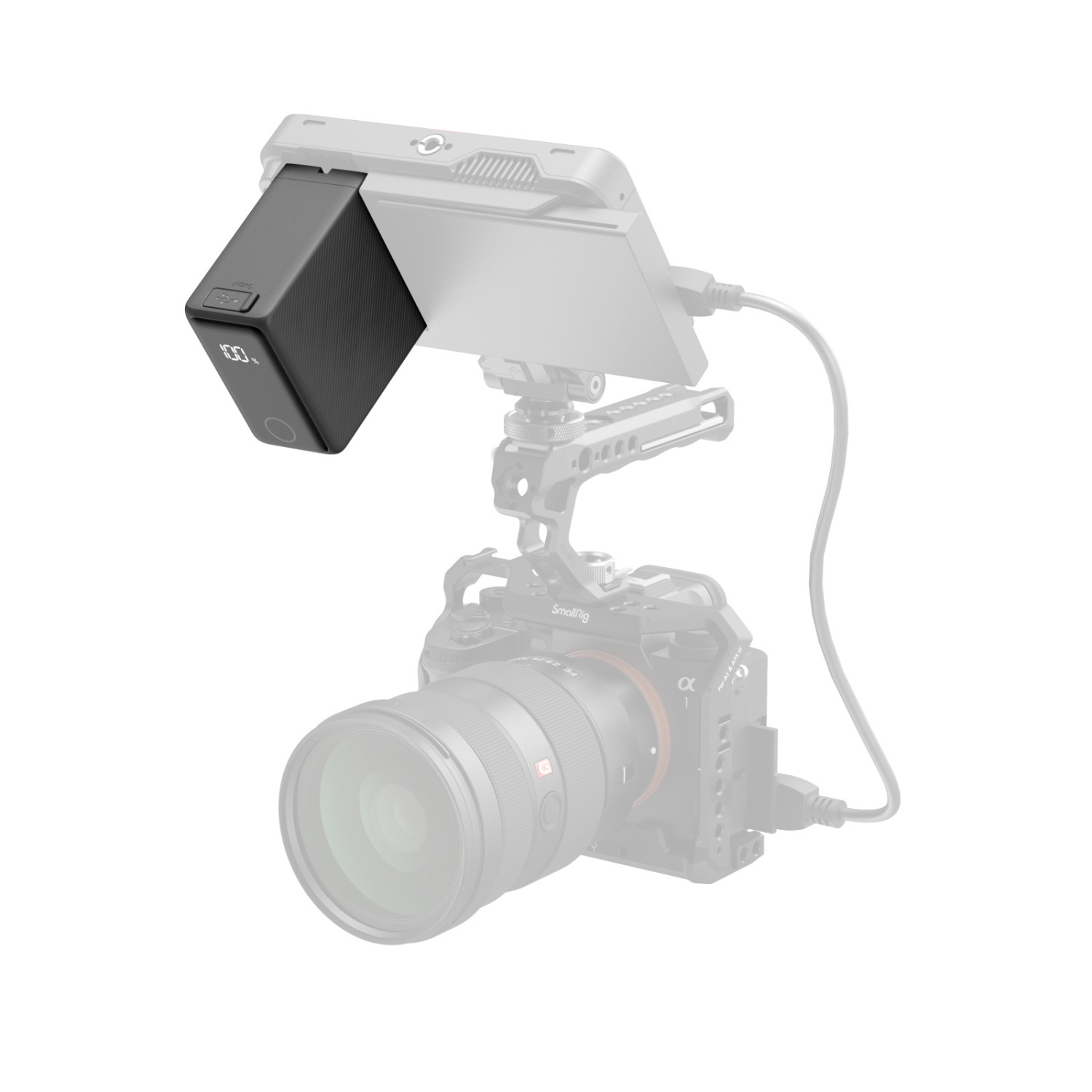

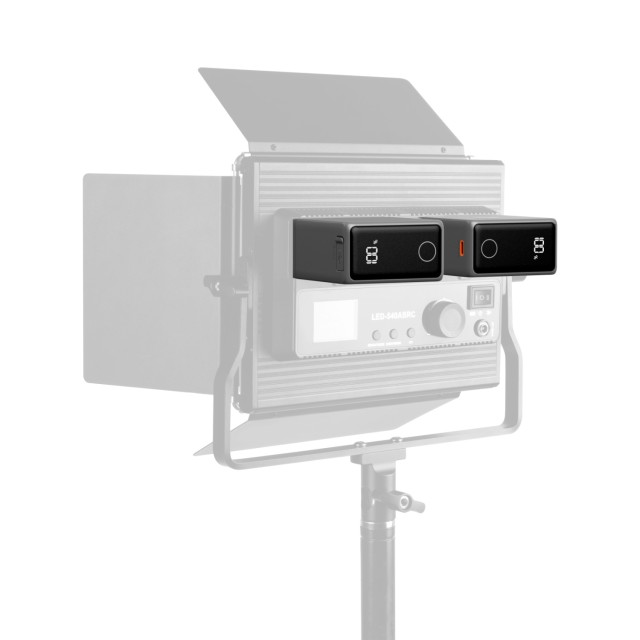

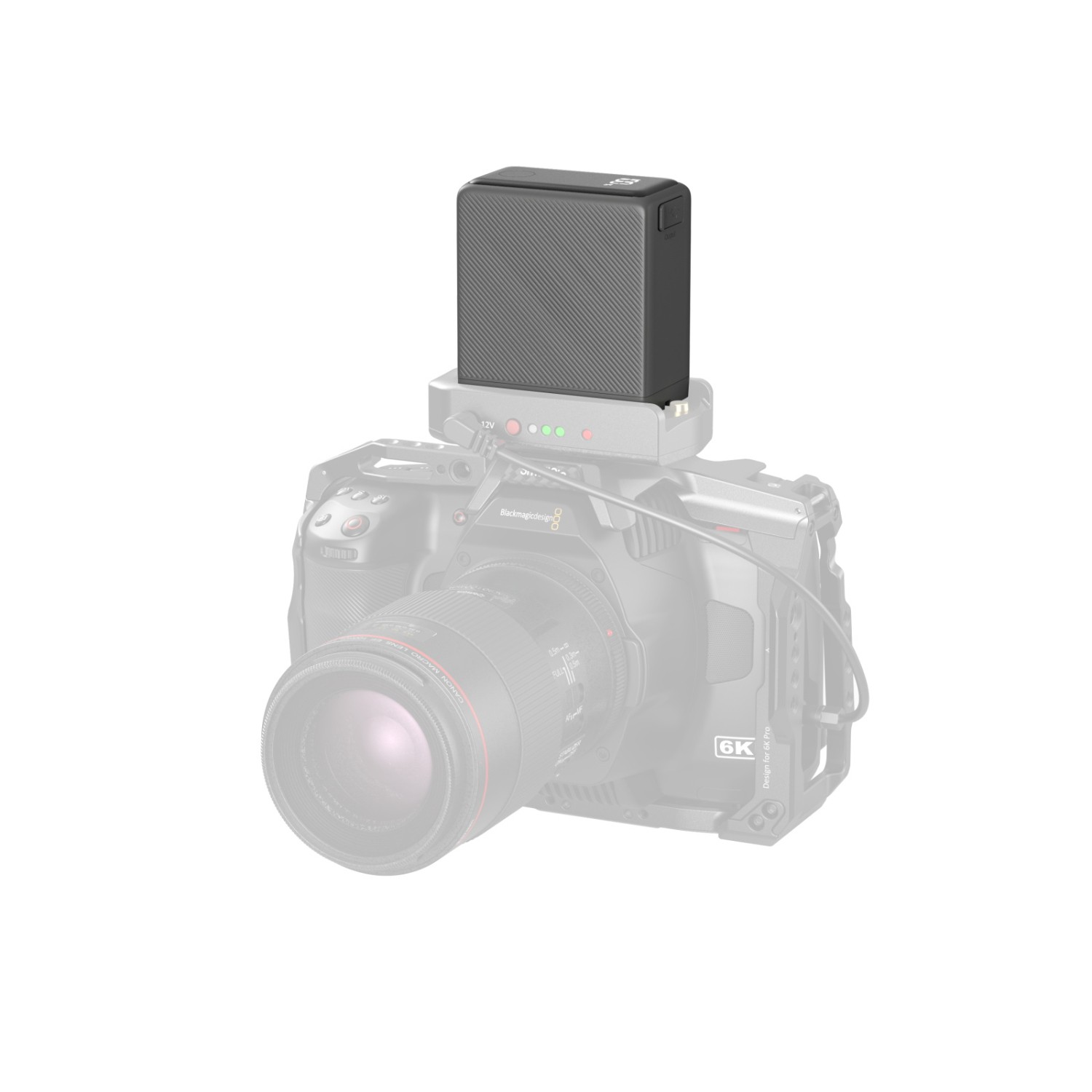

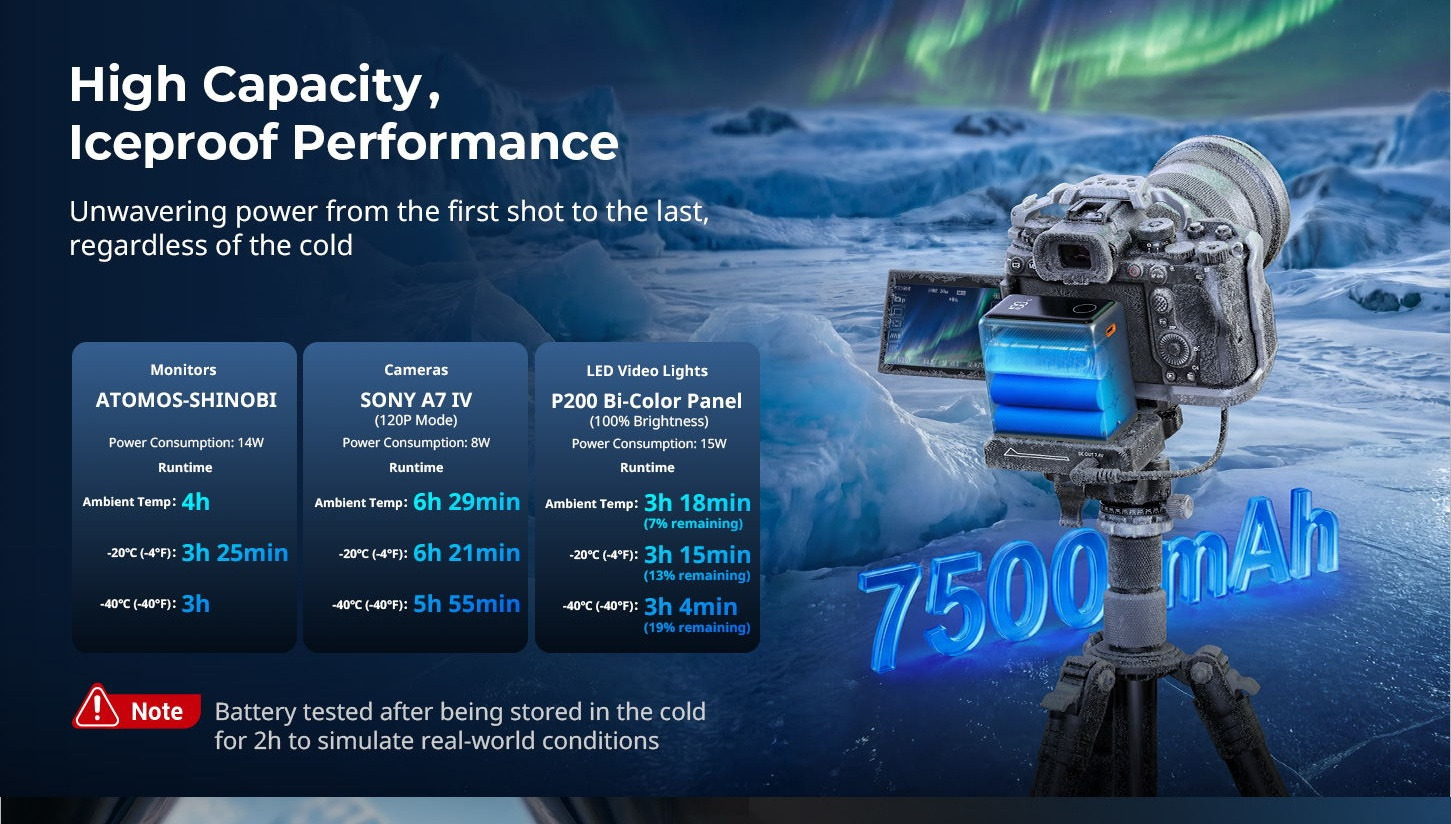

The SmallRig Camera Battery for NP-F970 (5729) is a next-generation, low-temperature-resistant power solution designed for demanding professional workflows. With a substantial 7500mAh (55.5Wh) capacity, it delivers extended runtime for cameras, LED video lights, monitors, motorized sliders, and other production equipment.
Built to perform in extreme environments, this battery supports reliable discharge at temperatures as low as -40°C (-40°F)—eliminating the need for external heating solutions during cold-weather shoots. Its advanced lithium-ion cells and intelligent battery management system ensure safe, stable, and long-lasting performance.

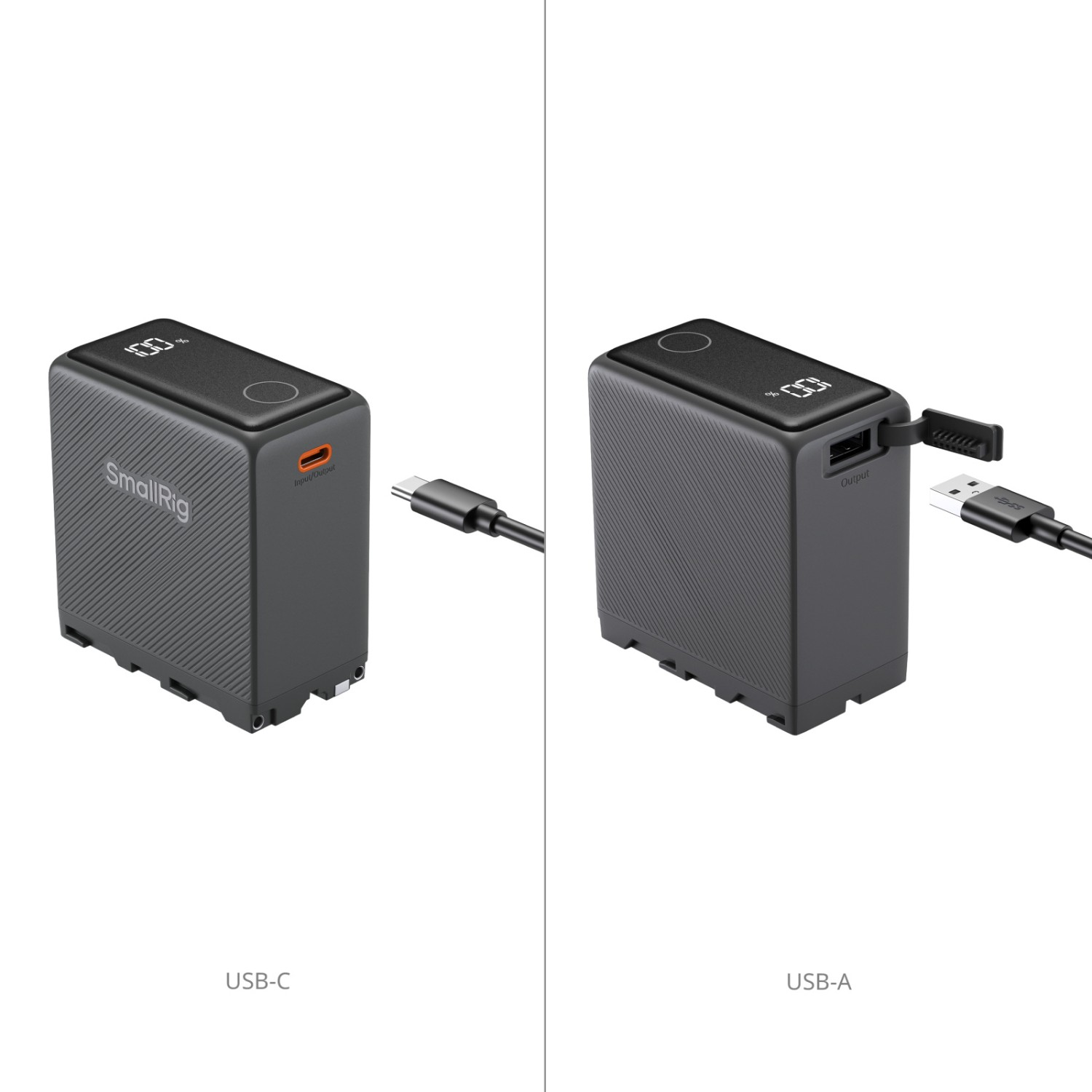

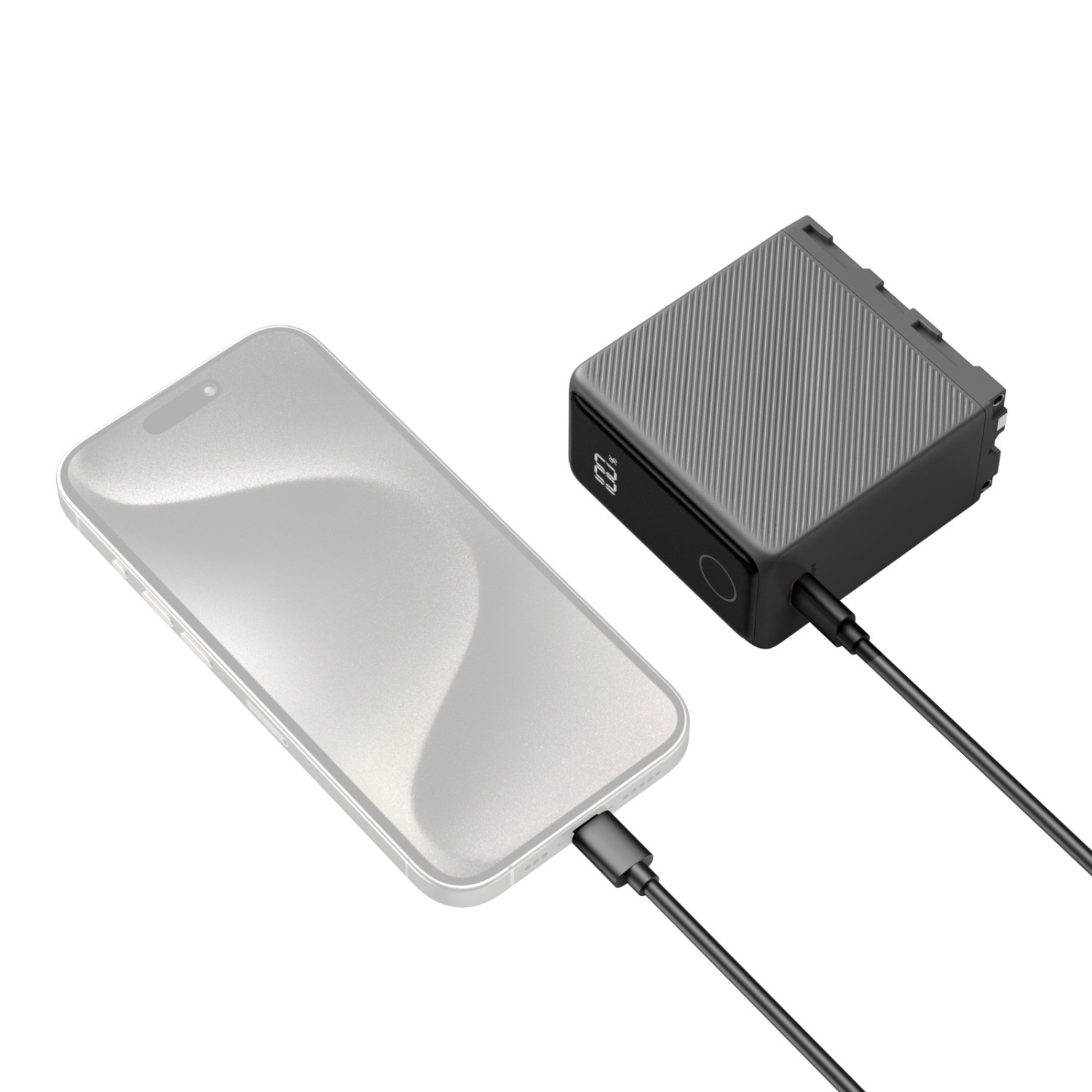

Beyond standard NP-F970 functionality, this model doubles as a high-performance power bank. It features one USB-C (input/output) port supporting 36W PD fast charging, enabling a full recharge in approximately 2 hours, plus one USB-A output (up to 27W). Independent circuitry allows both USB-C and USB-A ports to fast charge two devices simultaneously (combined output not exceeding 54W).

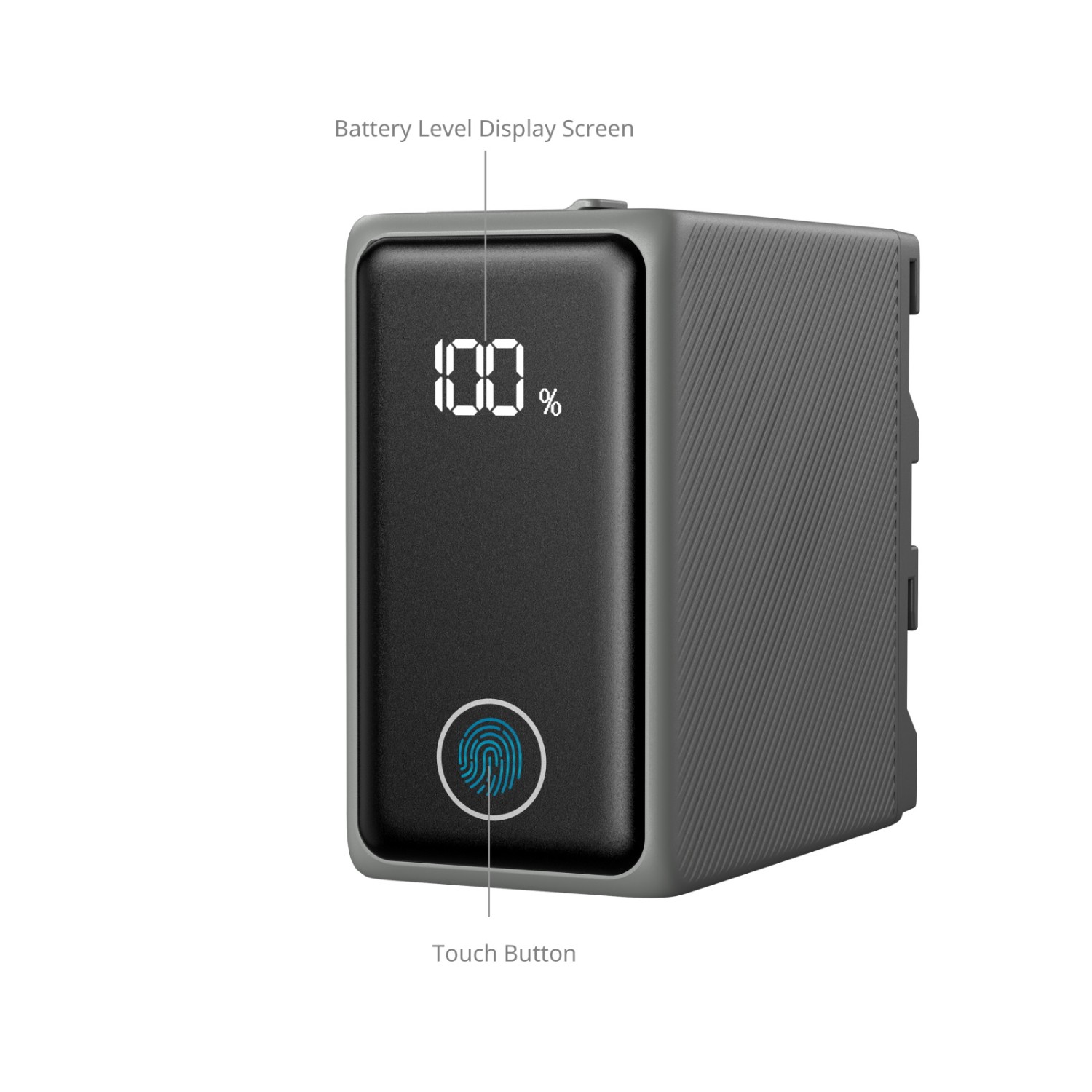

An integrated OLED display with touch-button control provides precise, real-time monitoring of battery percentage. Smart interface indicators show charging status, load detection, and low-battery warnings for reliable power management. With a sleek, tech-inspired design and premium build quality, the NP-F970 5729 blends functionality with modern aesthetics.
Certified by FCC, CE, ISED, and RCM standards, this battery is built for professional reliability across diverse shooting conditions.
Key Features
7500mAh / 55.5Wh high-capacity lithium-ion battery

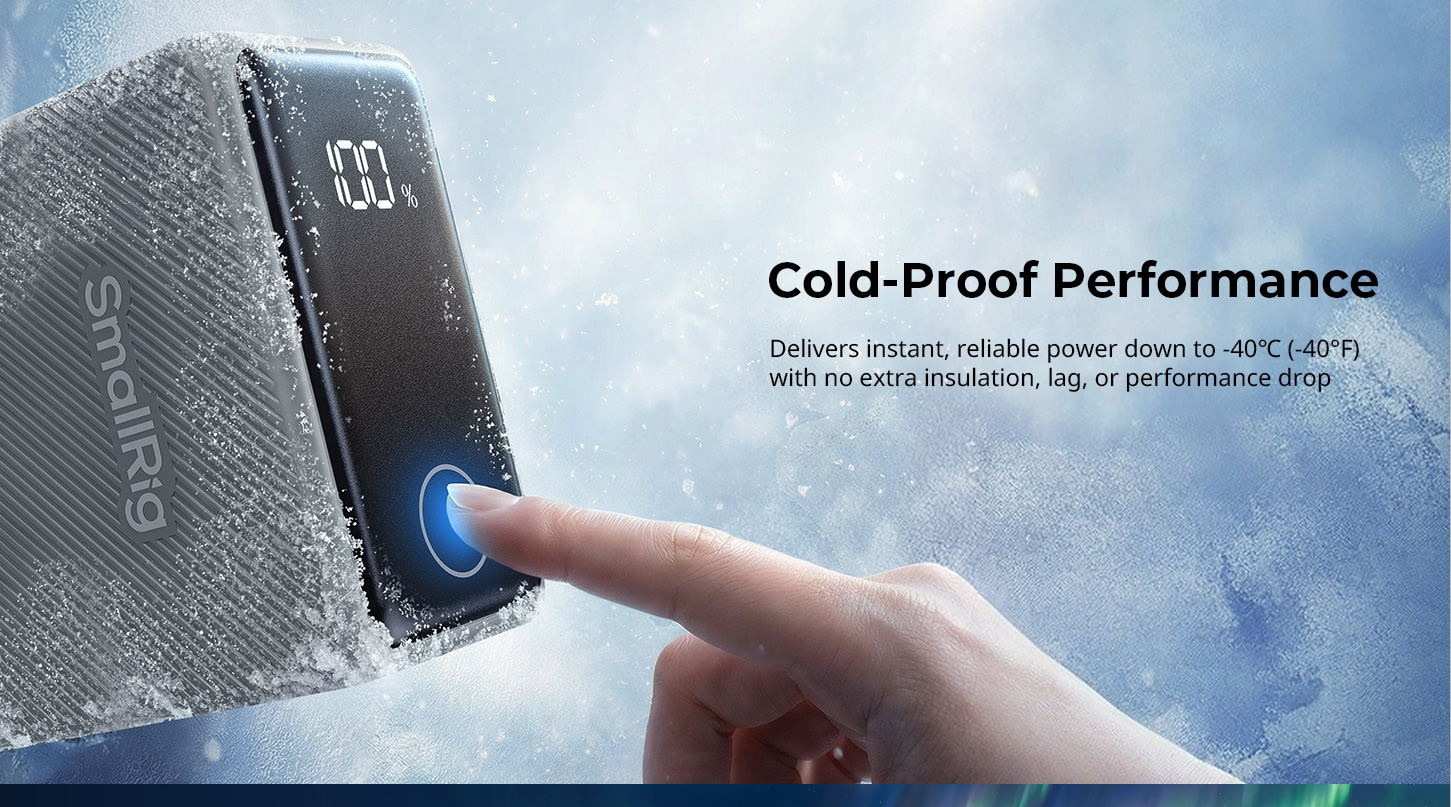

Operates in extreme cold down to -40°C (-40°F)
USB-C PD 36W fast charging (full recharge in approx. 2 hours)

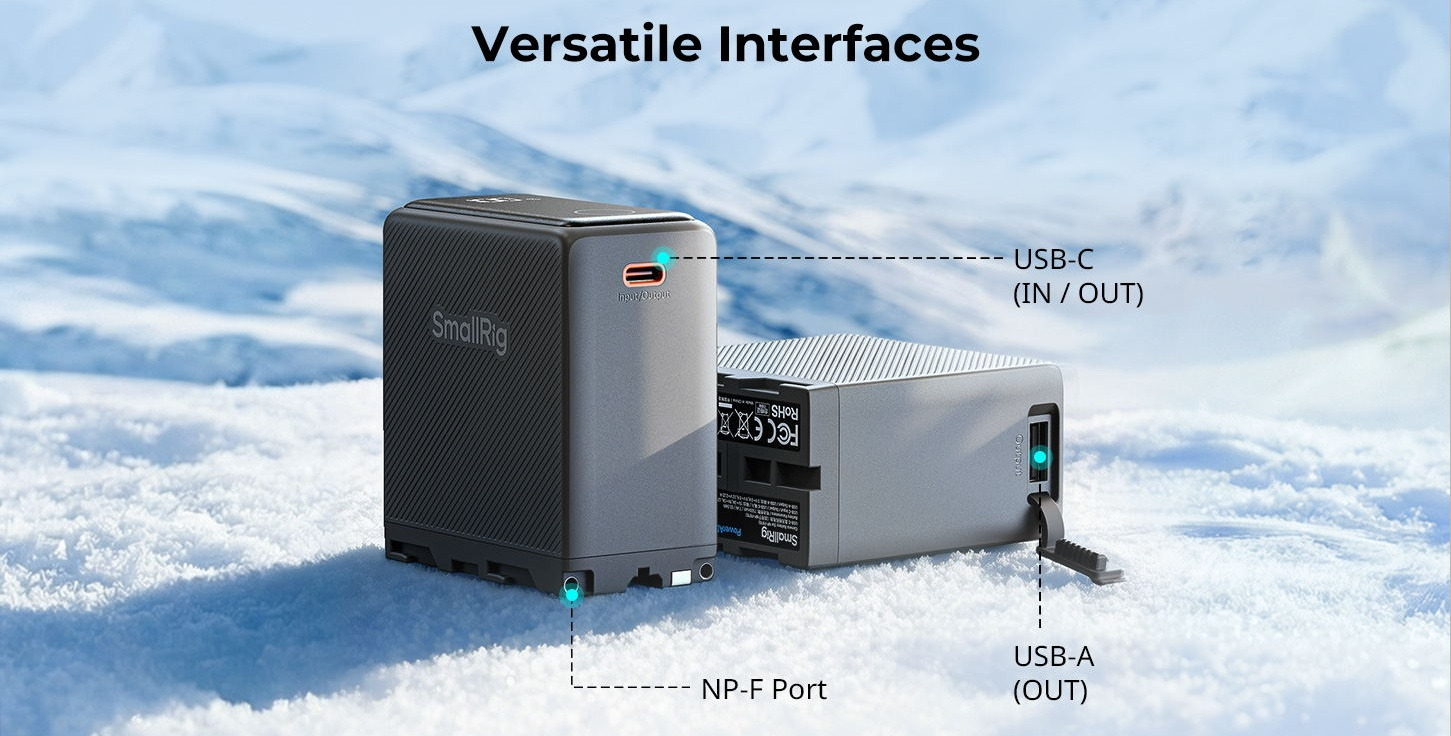

Dual-port power bank: USB-C (in/out) + USB-A (out)

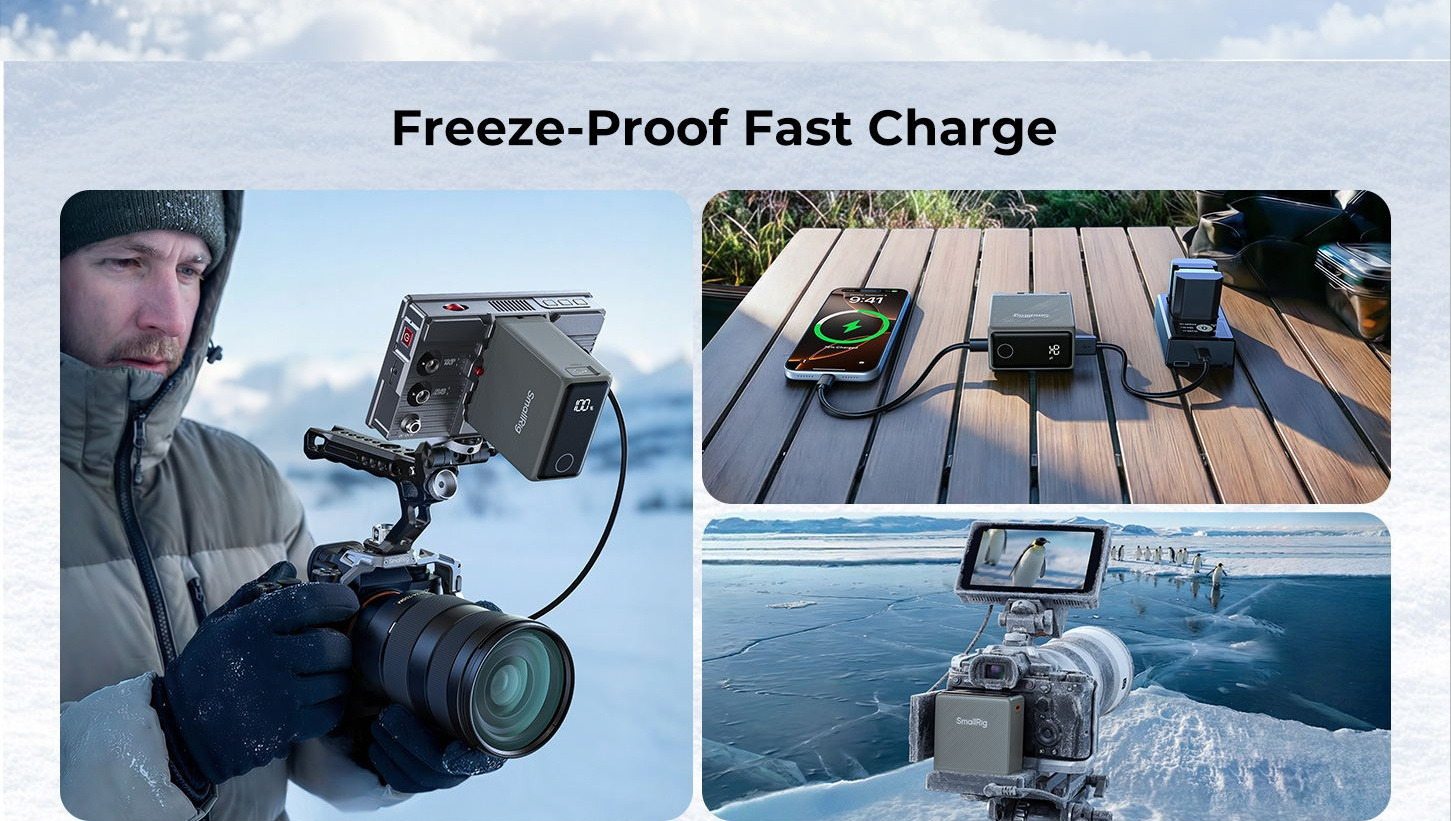

Independent output circuits for simultaneous fast charging
OLED display with touch control for real-time battery monitoring

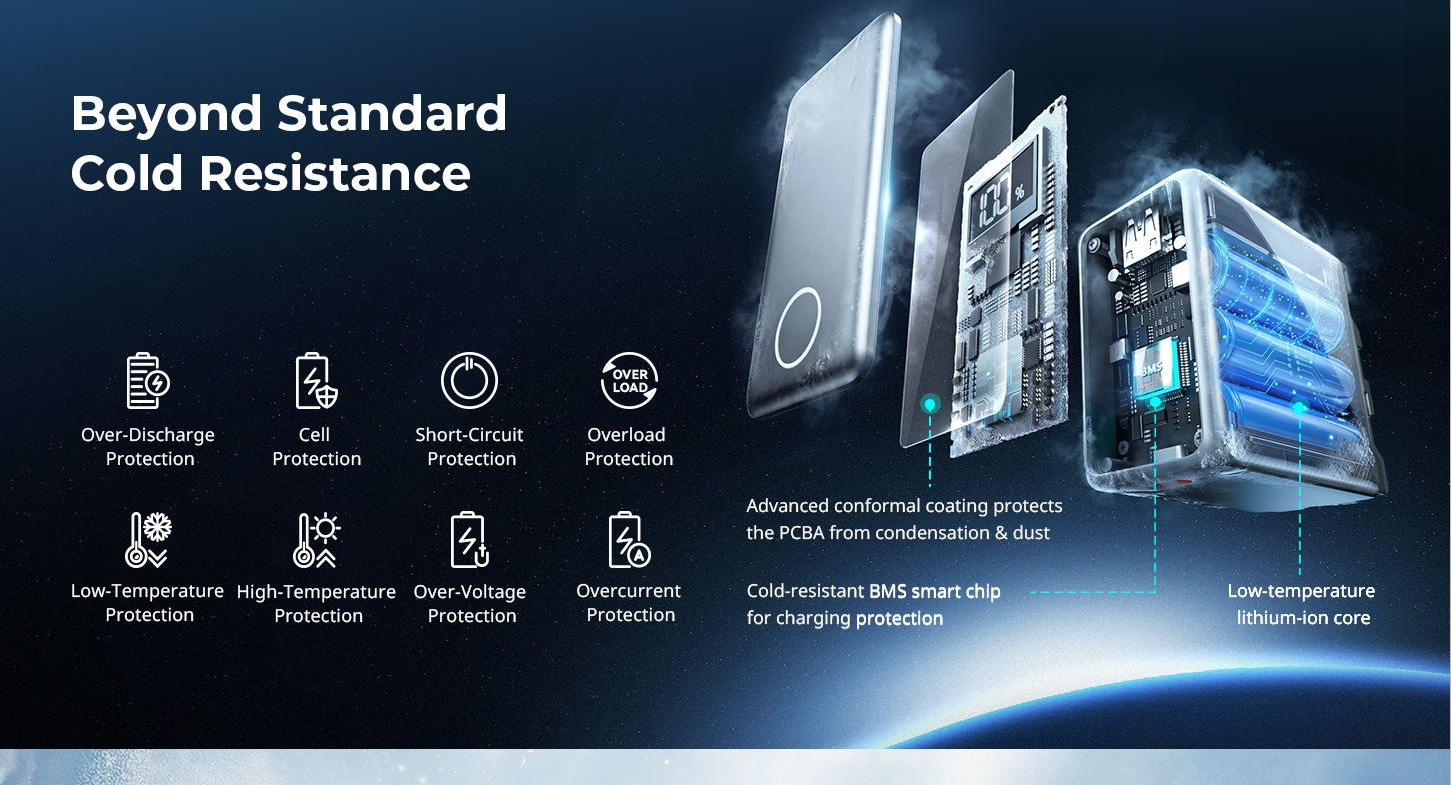

Intelligent battery management with comprehensive circuit protection
Compatible with cameras, LED lights, monitors, sliders, and more

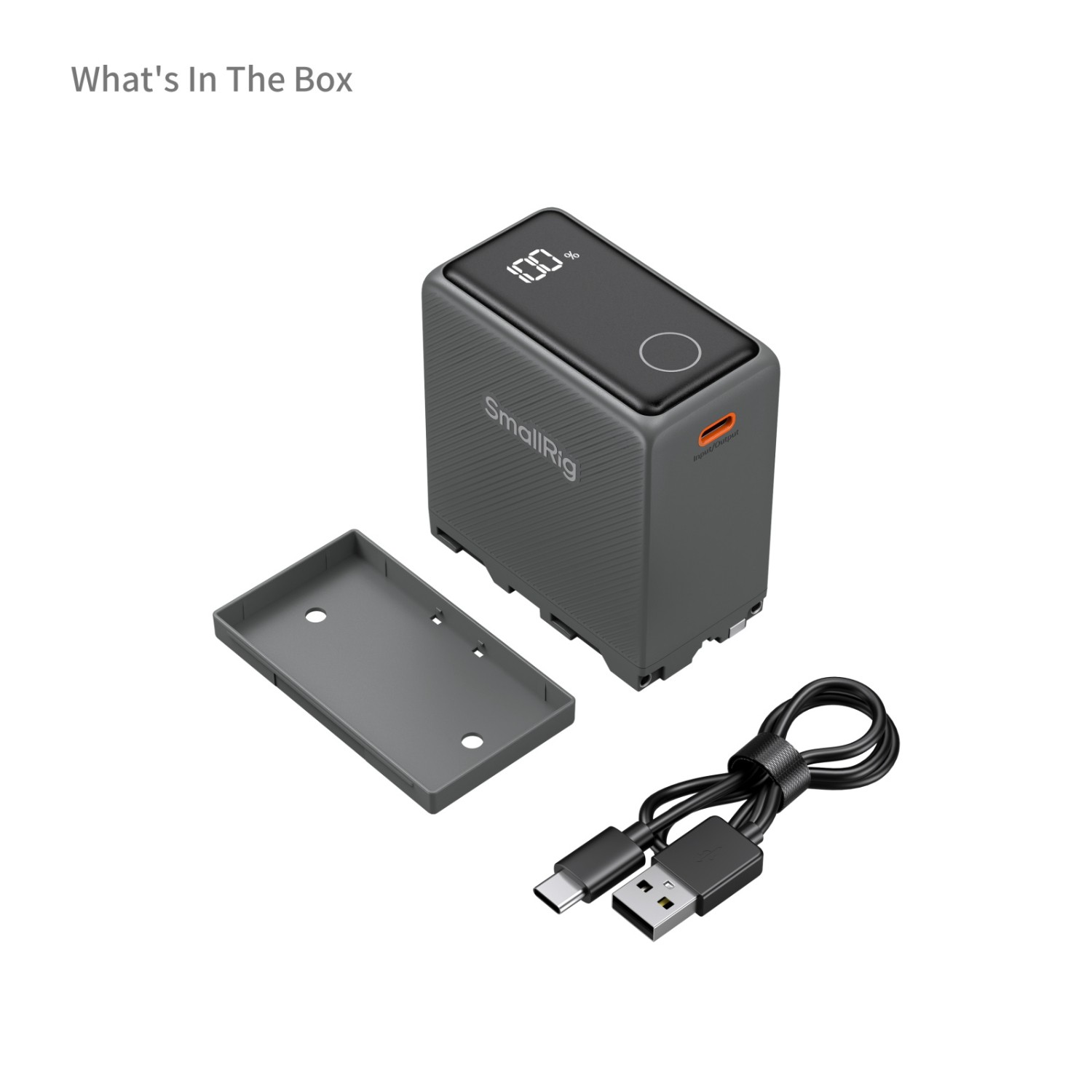

F970-LT Power Bank × 1
Battery Cover × 1
USB-C to USB-C Charging Cable × 1
Operating Instruction × 1
User Manual × 1
Guarantee Card × 1
Battery Specifications
Battery Type: Lithium-Ion
Capacity: 7500mAh / 7.4V / 55.5Wh
Nominal Voltage: 7.3V
Charging Voltage: 8.4V
Max Discharge Current (Main Port): 10A
Over-discharge Protection Threshold: 11A
Discharge Cut-off Voltage: 5.2V
USB-C Port
Input / Output: 5V/3A, 9V/3A, 12V/3A
Protocols: PD3.0 / QC3.0 / QC2.0 / FCP / AFC / PPS
Overcurrent Protection: ≥3.5A
USB-A Port
Output: 5V/3A, 9V/3A, 12V/2.25A
Protocols: QC3.0 / QC2.0 / FCP / AFC
Overcurrent Protection: 5V/9V ≥3.5A; 12V ≥2.6A
Temperature Range
Charging: 0°C to 45°C / 32°F to 113°F
Discharging: -40°C to 45°C / -40°F to 113°F
Dimensions & Weight

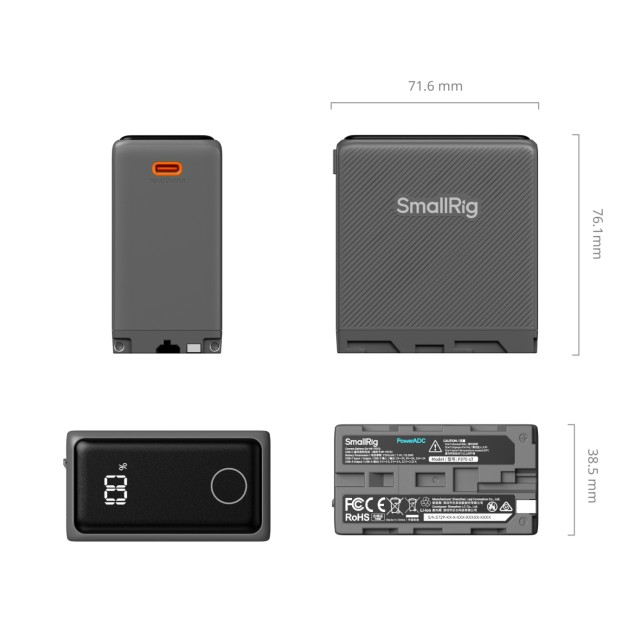

Product Dimensions: 76.2 × 71.6 × 38.6 mm / 3.0 × 2.8 × 1.5 in
Battery Weight: 372 ± 10 g / 13.1 ± 0.4 oz
Product Weight (with cable & cover): 387 ± 10 g / 13.7 ± 0.4 oz
Package Weight: 540 ± 10 g / 19.1 ± 0.4 oz
Housing Material
PC + ABS
| Manufacturer: | SmallRig |
| Category: | Battery 14,4V |
| Battery Capacity | 55.5Wh |
| Mount type | NP-F |
