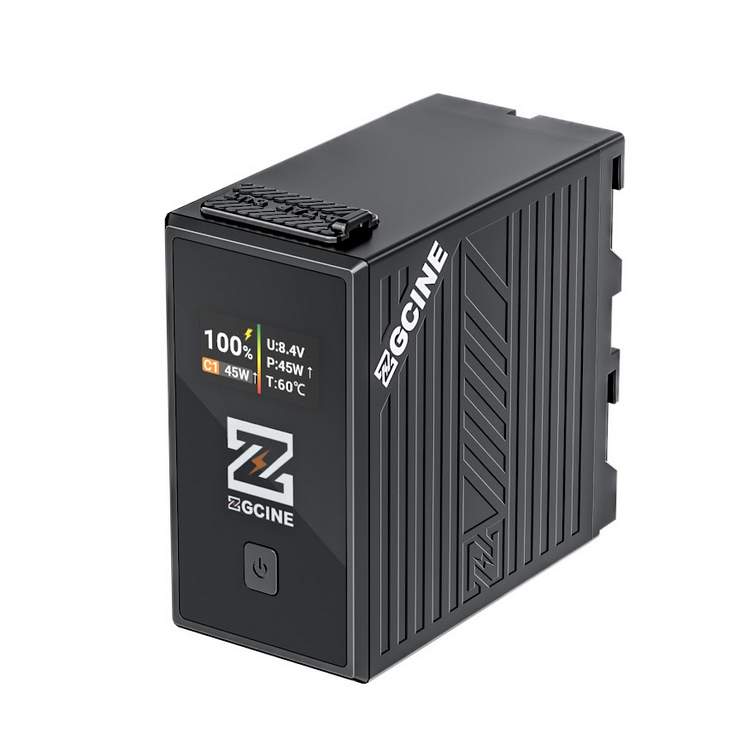

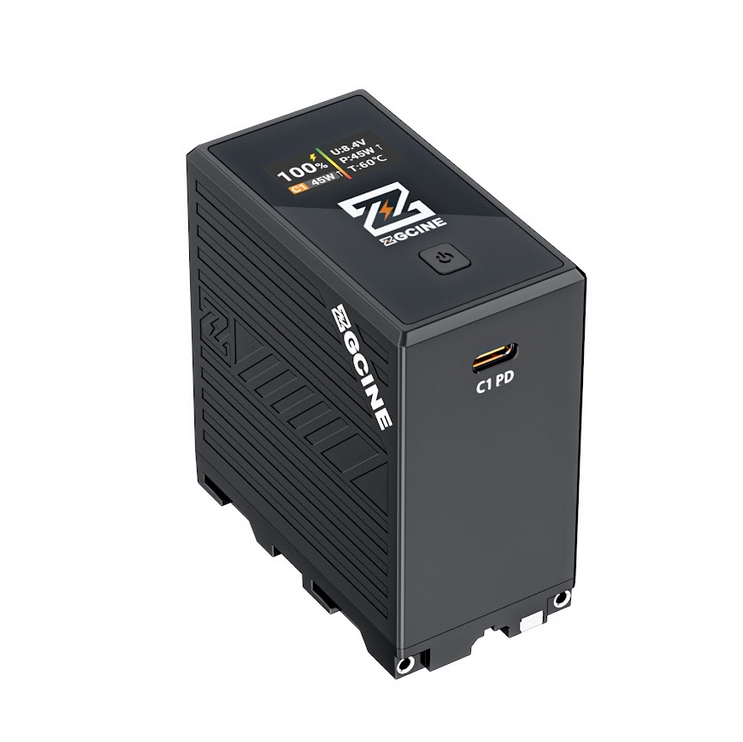

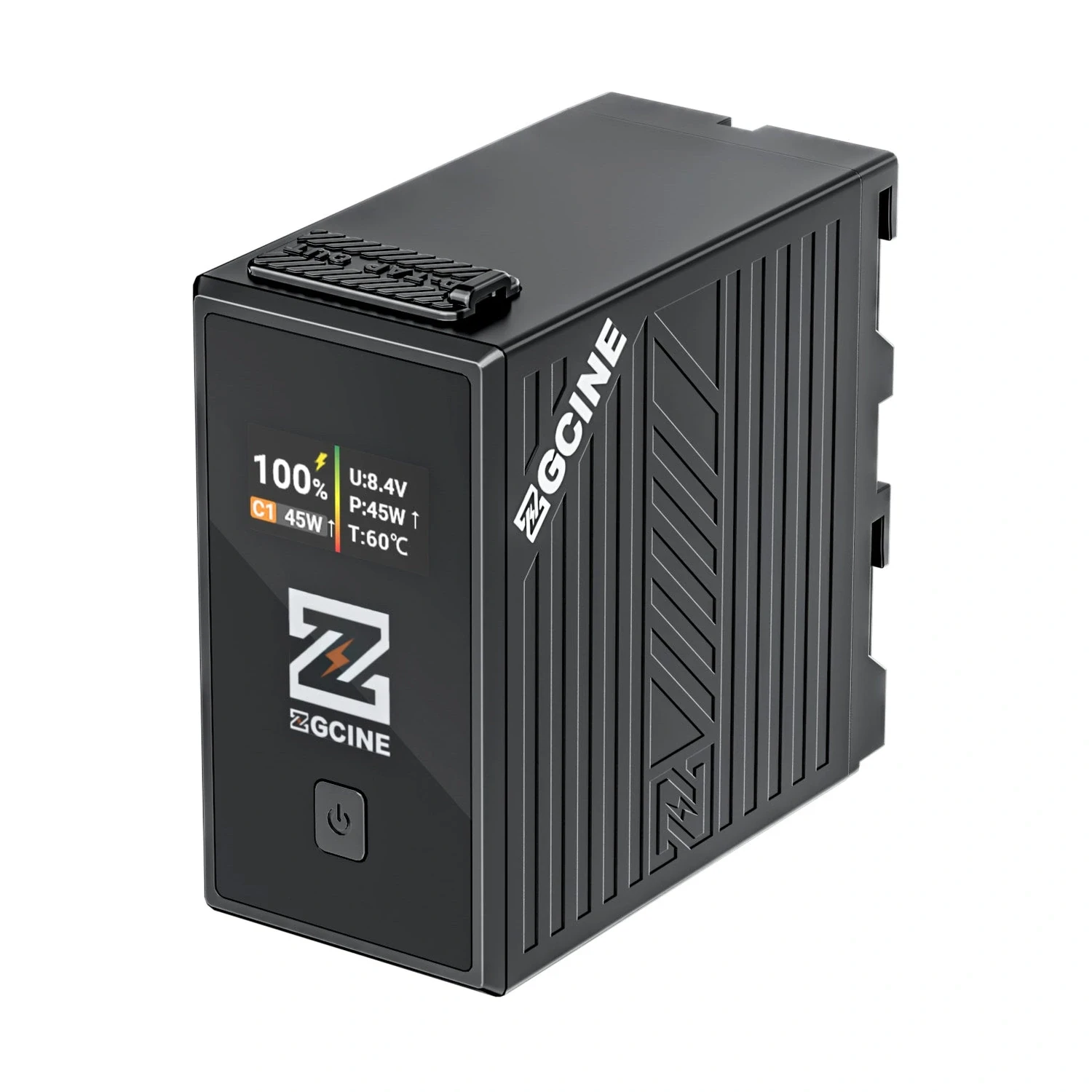

ZGCINE BT-NPF970 L Series Battery

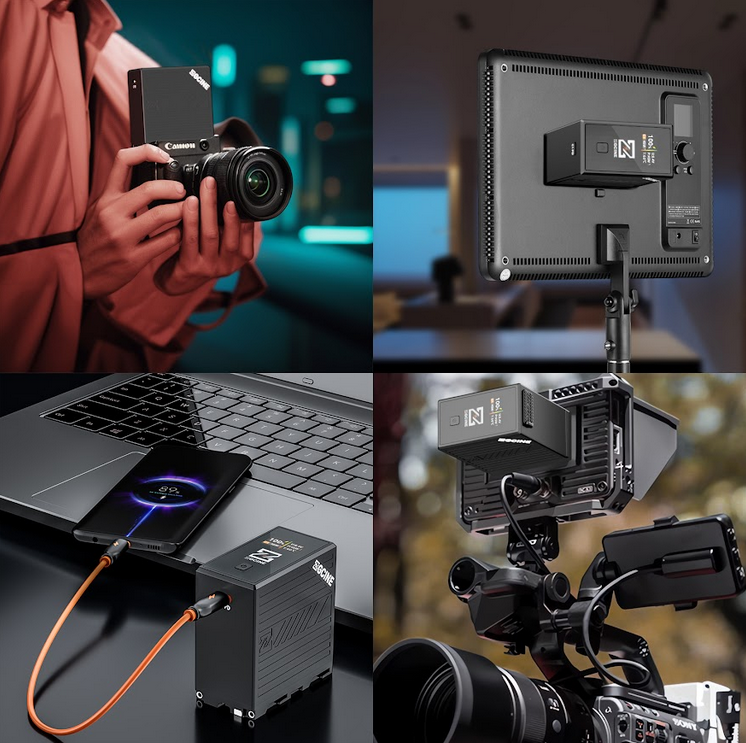

The ZGCINE BT-NPF970 is a compact 9600mAh (69.12Wh) L-series lithium-ion battery with PD fast charging up to 36W, D-TAP (8.4V/3A) and NPF outputs, real-time OLED monitoring of voltage, power, and temperature, and comprehensive safety protections—ideal for powering professional video rigs, monitors, and lights.

The ZGCINE BT-NPF970 L Series Battery delivers high-performance power in a durable, compact form with a 9600mAh (7.2V/69.12Wh) lithium-ion capacity, supporting PD fast charging and discharging up to 36W via USB-C. Equipped with a D-TAP output (8.4V/3A), NPF output (7.2V/10A), and NPF input (8.4V/6A), it powers a wide range of cine and broadcast equipment. The built-in OLED screen provides real-time monitoring of battery percentage, voltage (U), power (P), temperature (T), and C1 interface status, with a single button to toggle the display (inactive during charging). Engineered for safety throughout its lifecycle, it includes temperature, short circuit, overvoltage, overcurrent, anti-reversal, overcharge, and overpower protection. Constructed from PC+ABS, it operates reliably from -10°C to 45°C and features plug-and-play functionality for seamless integration into professional workflows.

Key Features

• 9600mAh (69.12Wh) high-capacity lithium-ion battery

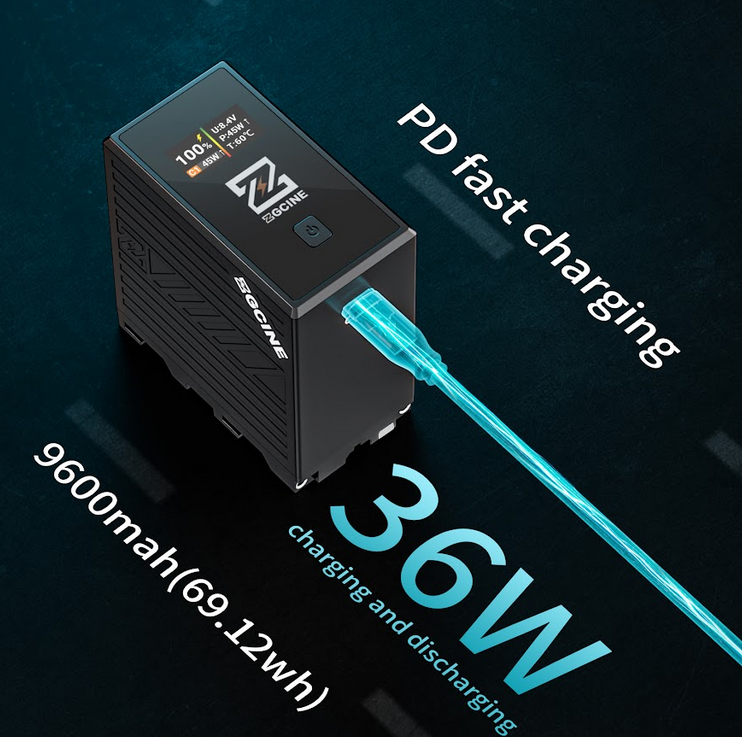

• PD fast charging/discharging up to 36W via USB-C

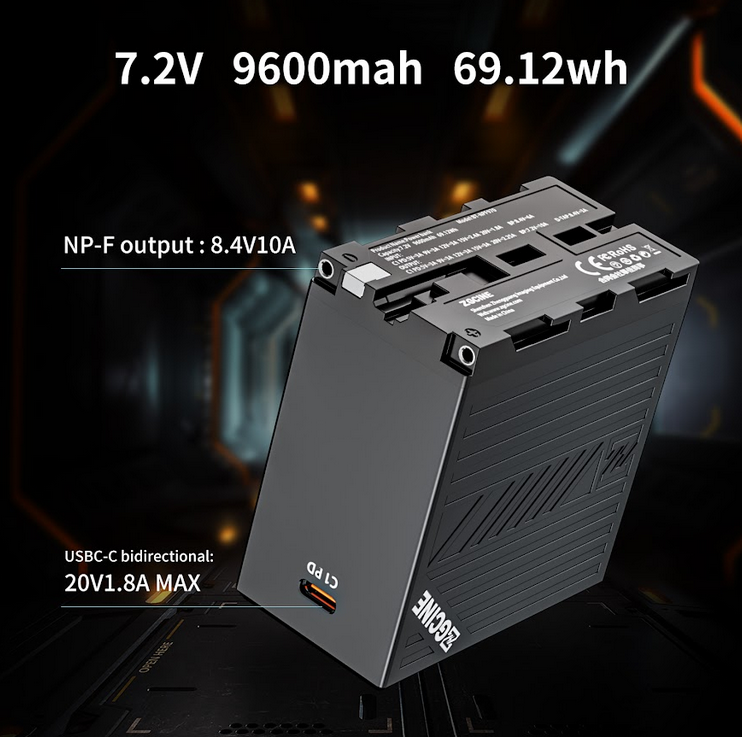

• D-TAP output (8.4V/3A) and NPF output (7.2V/10A)

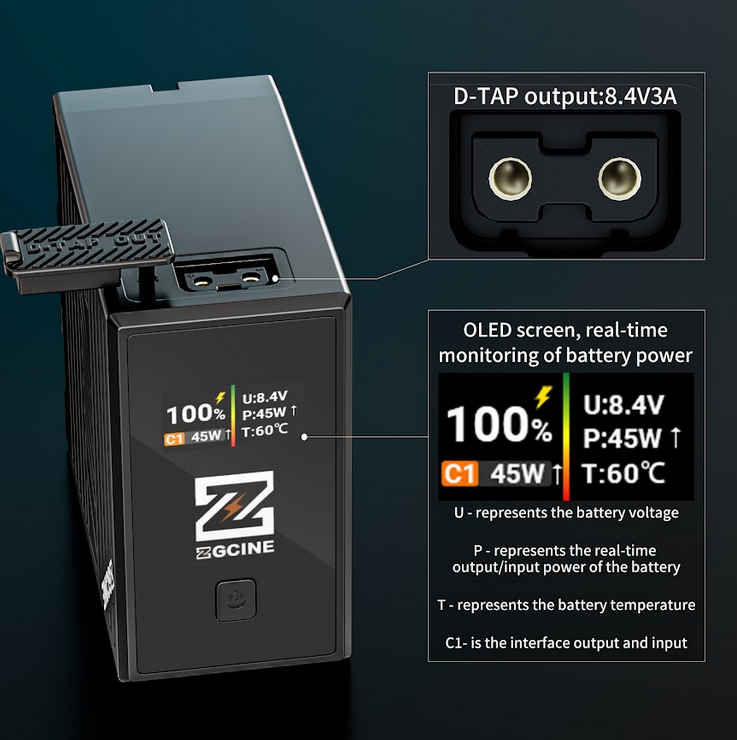

• OLED screen with real-time voltage, power, temperature, and percentage monitoring

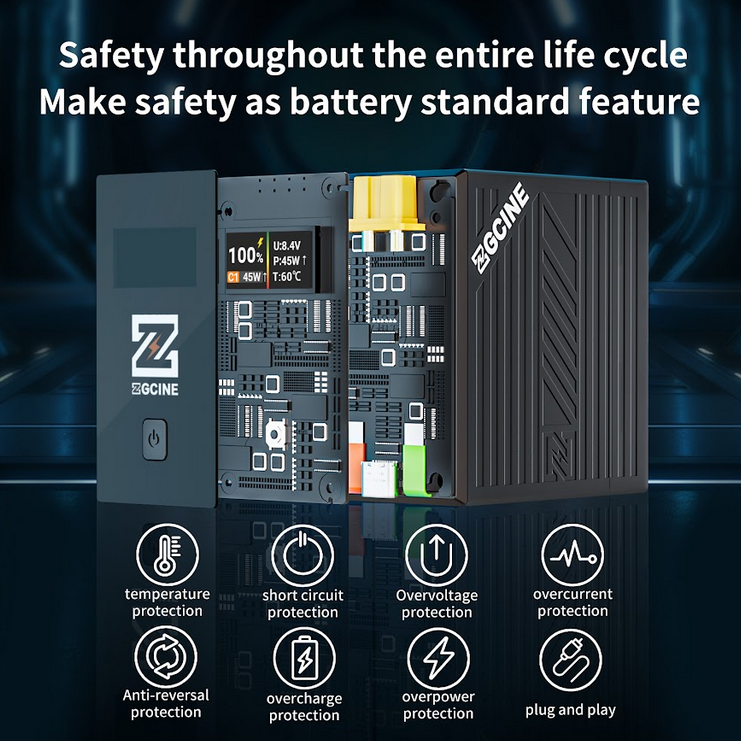

• Comprehensive safety: temperature, short circuit, overvoltage, overcurrent, anti-reversal, overcharge, overpower protection

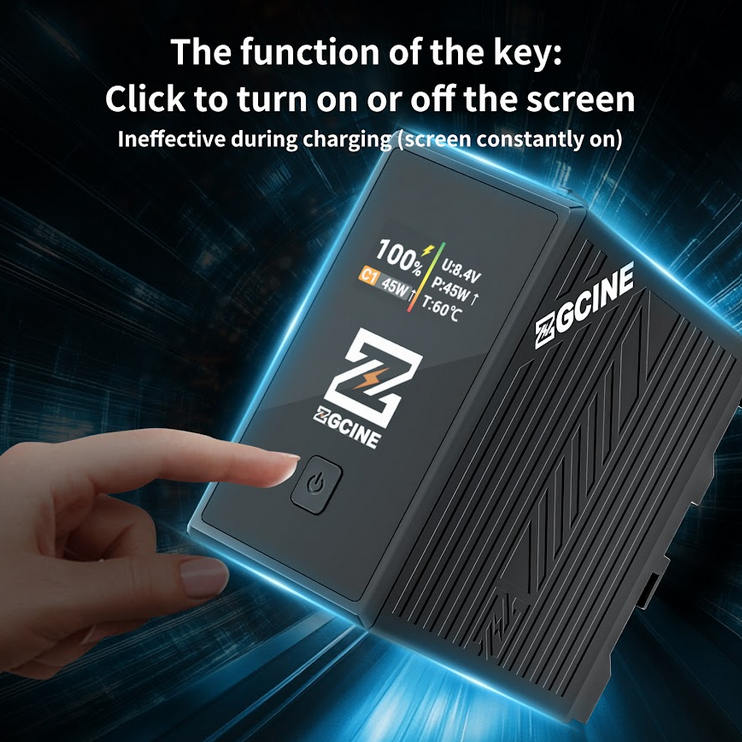

• Screen on/off button (inactive during charging)

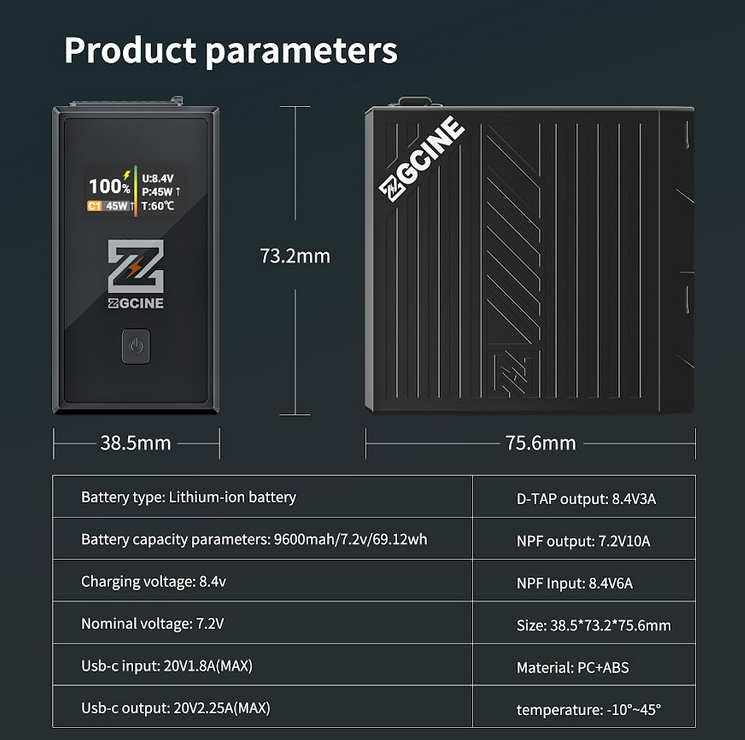

• Compact size: 38.5 × 73.2 × 75.6mm, PC+ABS construction
