SKAARHOJ Mega Panel Lyra

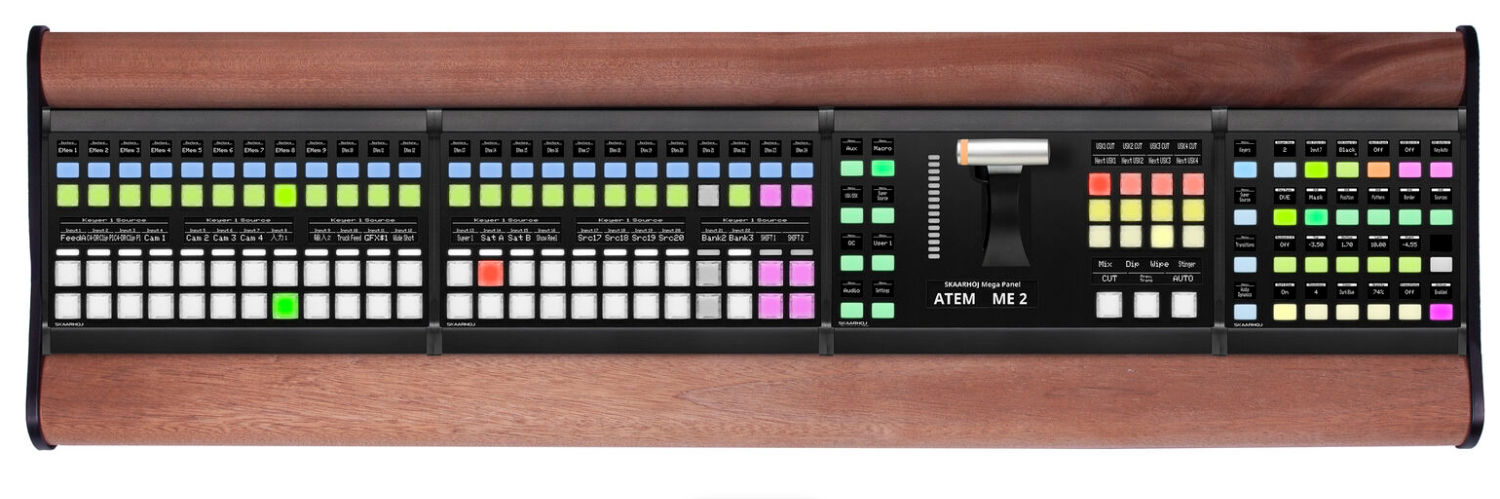

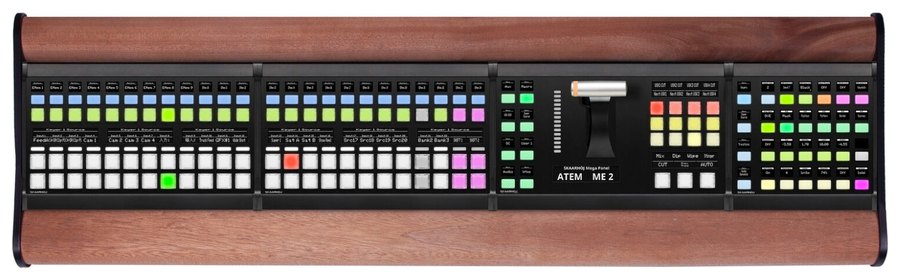

The SKAARHOJ 1 M/E Mega Panel Lyra is a modular live-switching control solution designed for professional broadcast environments. Combining multiple control surfaces into a unified system, it delivers powerful customization, seamless integration with major switchers, and streamlined operation via Gigabit PoE connectivity.

The SKAARHOJ 1 M/E Mega Panel Lyra is a highly flexible and scalable live production control panel built for demanding broadcast, streaming, and AV workflows. Designed as a modular 1 M/E (Mix Effect) system, the Lyra integrates multiple SKAARHOJ control surfaces into a cohesive and ergonomic panel, allowing operators to manage switching, routing, and device control from a single interface.

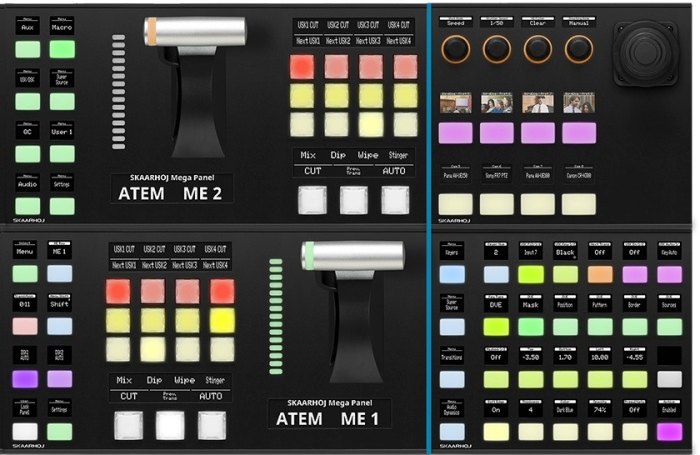

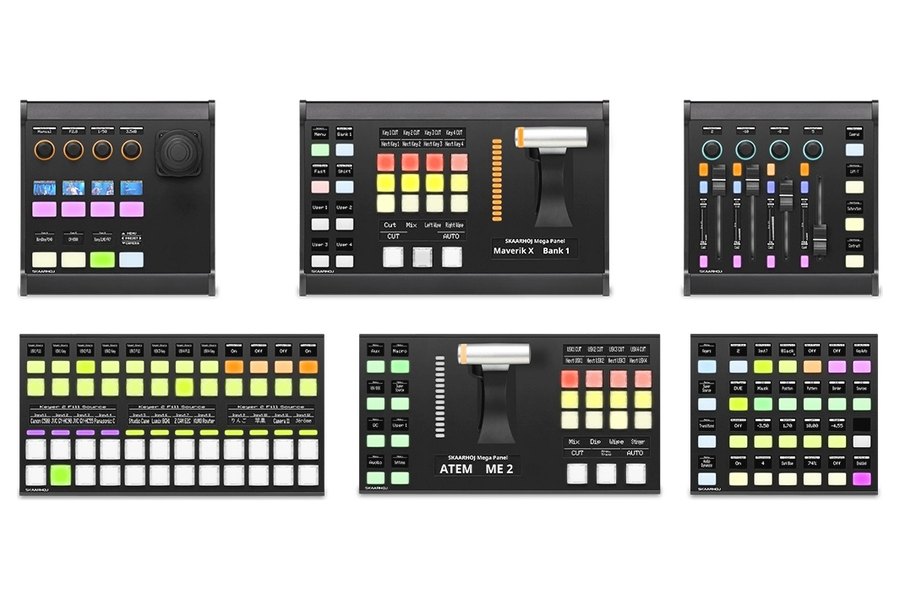

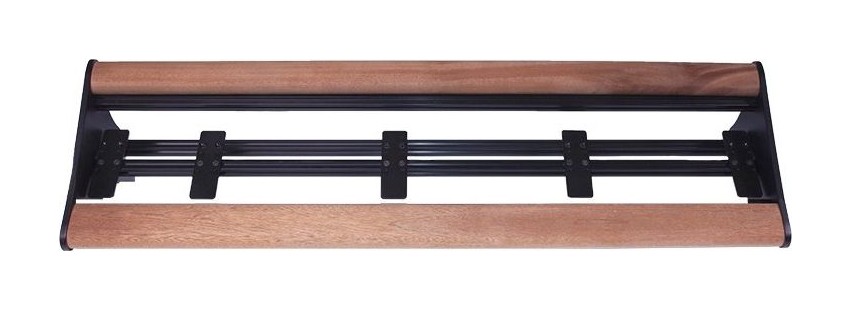

This configuration includes a T-Block Left module, two Master Key 48 modules, and a Quick Shot module, all mounted within a robust 1 M/E frame. Each module leverages SKAARHOJ’s Blue Pill Inside technology, enabling deep customization and seamless communication with a wide range of third-party systems such as ATEM, vMix, TriCaster, Kairos, AMPP, and Carbonite.

The T-Block Left module provides advanced tactile control with 15 premium NKK buttons, 8 programmable four-way buttons with OLED displays, and a precision T-bar for transitions. The Master Key 48 modules add extensive switching capabilities with RGB multi-level metering LEDs and graphical OLED feedback, while the Quick Shot module enhances workflow efficiency with 28 programmable four-way RGB buttons for rapid source selection and macros.

All modules connect via Gigabit Ethernet with PoE support, simplifying installation by combining power and data into a single cable. Powered by skaarOS, the system allows full customization of layouts, functions, and device mappings, making it adaptable to virtually any production scenario.

Key Features

• Modular 1 M/E live-switching panel configuration
• Includes T-Block Left, 2 x Master Key 48, and Quick Shot modules
• Blue Pill Inside technology for advanced customization and control
• 24 crosspoints with dedicated transition module
• Programmable four-way buttons with OLED displays
• High-quality NKK buttons for professional tactile feedback
• Precision T-bar for smooth transitions
• RGB multi-level LED metering and graphical OLED feedback
• Works with major systems including ATEM, vMix, TriCaster, Kairos, and more
• Gigabit Ethernet with PoE for simplified setup
• Fully customizable via skaarOS
