Lilliput A5 5" 4K HDMI On-Camera Monitor

This compact, lightweight and fully featured Lilliput A5 5″ on-camera monitor is designed to take on almost any production. The 1920 × 1080 IPS screen offers 400 cd/m² brightness, a 1000:1 contrast ratio and a 170° viewing angle. Its HDMI 1.4 input is compatible with DSLRs, mirrorless cameras and professional camcorders and accepts video up to UHD 4K 3840 × 2160 at 30 fps. A loop-through HDMI output feeds an additional display.

Lightweight 5" monitor with 4K input

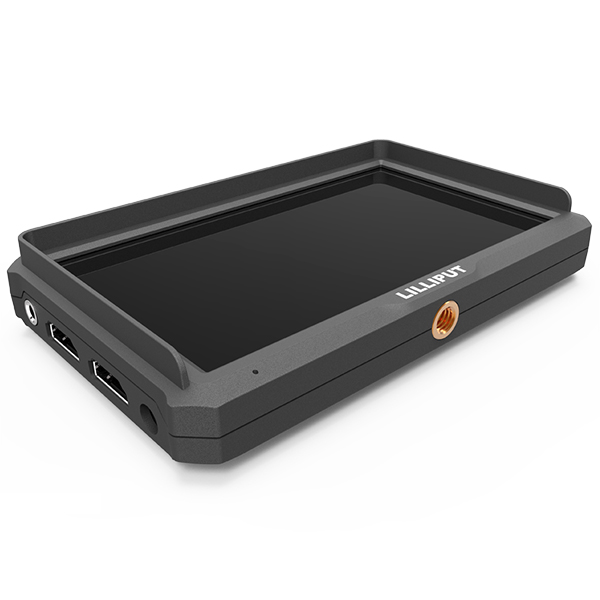

At just 118 g, the A5 won’t weigh down a gimbal or a light rig. The metal body has three 1/4" threads and runs on a Sony NP-F or Canon LP-E6 battery.

5" IPS 1920 × 1080HDMI in and out4K up to 30p400 cd/m²Only 118 g

Full monitoring without the extra weight

Sharp Full HD image, HDMI loop-through and focus and exposure tools in a body weighing 118 g. The A5 suits gimbals, handheld rigs or a second monitor for the camera assistant.

Focus and exposure

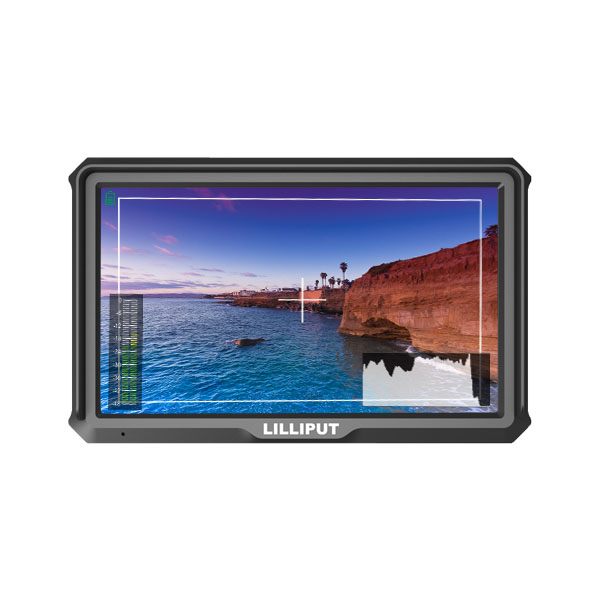

Focus peaking, false color, exposure, histogram and audio level meter.

NP-F and LP-E6

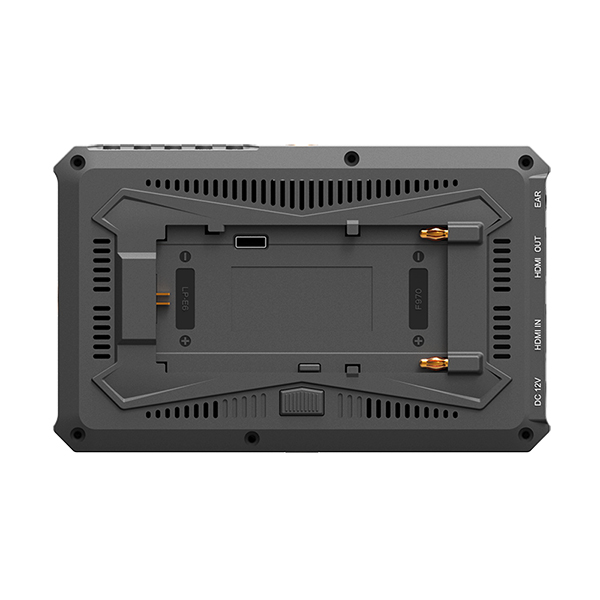

The rear plate takes a Sony NP-F or Canon LP-E6 battery, or use DC 7–24 V.

4K input

Accepts 2160p 24/25/30, shows it on the Full HD panel and passes it on via HDMI.

Audio monitoring

Built-in speaker and a 3.5 mm headphone output for listening to camera audio.
