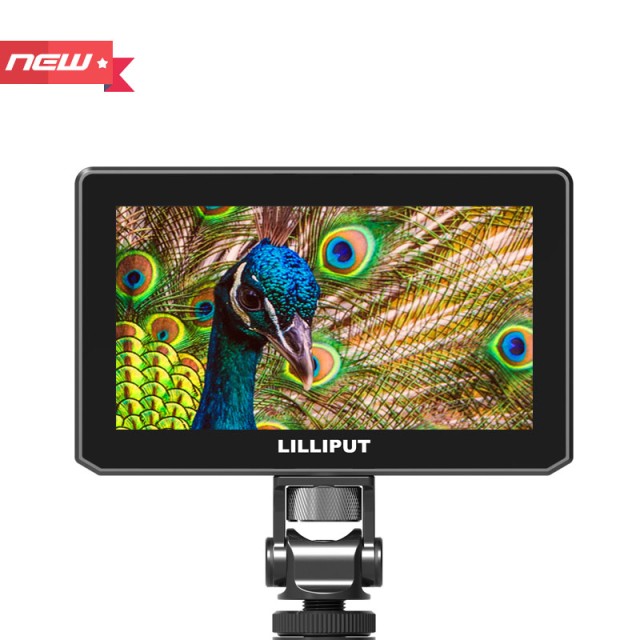

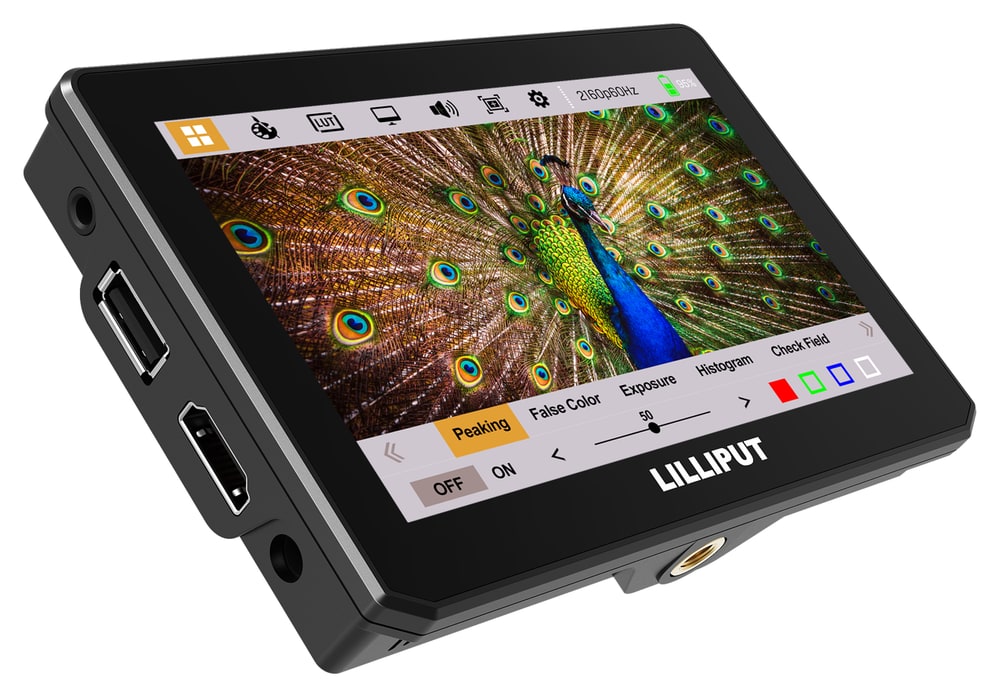

Lilliput T5 5" HDMI Touch On-Camera Monitor
SKU: T5
Compact, lightweight and well suited for on-set work, the Lilliput T5 5″ touchscreen on-camera monitor handles DCI and UHD 4K as well as 1080p, 1080i and 720p signals via its HDMI input. It scales the input video to its 1920 × 1080 IPS screen with a 1000:1 contrast ratio and 400 cd/m² brightness. It is operated by capacitive touch and weighs only 200 g.
217 € with VAT
179.34 € without VAT
Personal pickup within 90 minutes
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Lilliput T5 5" HDMI Touch On-Camera Monitor
CONST LS-F770 Sony DV battery
CONST LS-F770 Li-ion rechargeable DV battery (4000mAh/,7.2V) Compatible battery:
36 €
To be sent > 5 pcs
SmallRig NP-F970 Battery and Charger Kit 3823
Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs
Viltrox Battery NP-F970 - USB-C
The Viltrox NP-F970 is a high-capacity NP-F-type Li-ion battery for compatible camera
39 €
Backordered > 5 pcs
SmallRig Camera Battery with USB-C Charging for Canon LP-E6P 5295
The SmallRig LP-E6P USB-C Battery (2600mAh) is a rechargeable lithium-ion battery
106 €
In stock > 5 pcs
Atomos twisted cable Micro HDMI (refracted) - Mini HDMI
Atomos PRO HDMI spiral cable - more designs to choose from
28 €
To be sent 3 pcs
Lilliput FT02 Separate plugs 12V power adapter
The Lilliput FT02 power adapter with a 12 V output is designed for Lilliput monitors
17 €
To be sent 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Compact, lightweight and well suited for on-set work, the Lilliput T5 5″ touchscreen on-camera monitor handles DCI and UHD 4K as well as 1080p, 1080i and 720p signals via its HDMI input. It scales the input video to its 1920 × 1080 IPS screen with a 1000:1 contrast ratio and 400 cd/m² brightness. It is operated by capacitive touch and weighs only 200 g.
5" touchscreen monitor for 4K HDMI
The T5 is operated by touch like a phone, accepts HDMI 2.0 up to 4K60 and runs on a Canon LP-E6 or Sony NP-F battery. A DC 8 V output powers other accessories.
5" IPS 1920 × 1080Touch controlHDMI 2.0 up to 4K60HDR and 3D LUTOnly 200 g
One-finger control
Tap to toggle functions, slide to set values and use a gesture to zoom in. The T5 speeds things up where there’s no time to dig through button menus – on a gimbal, when vlogging or during quick photo shoots.

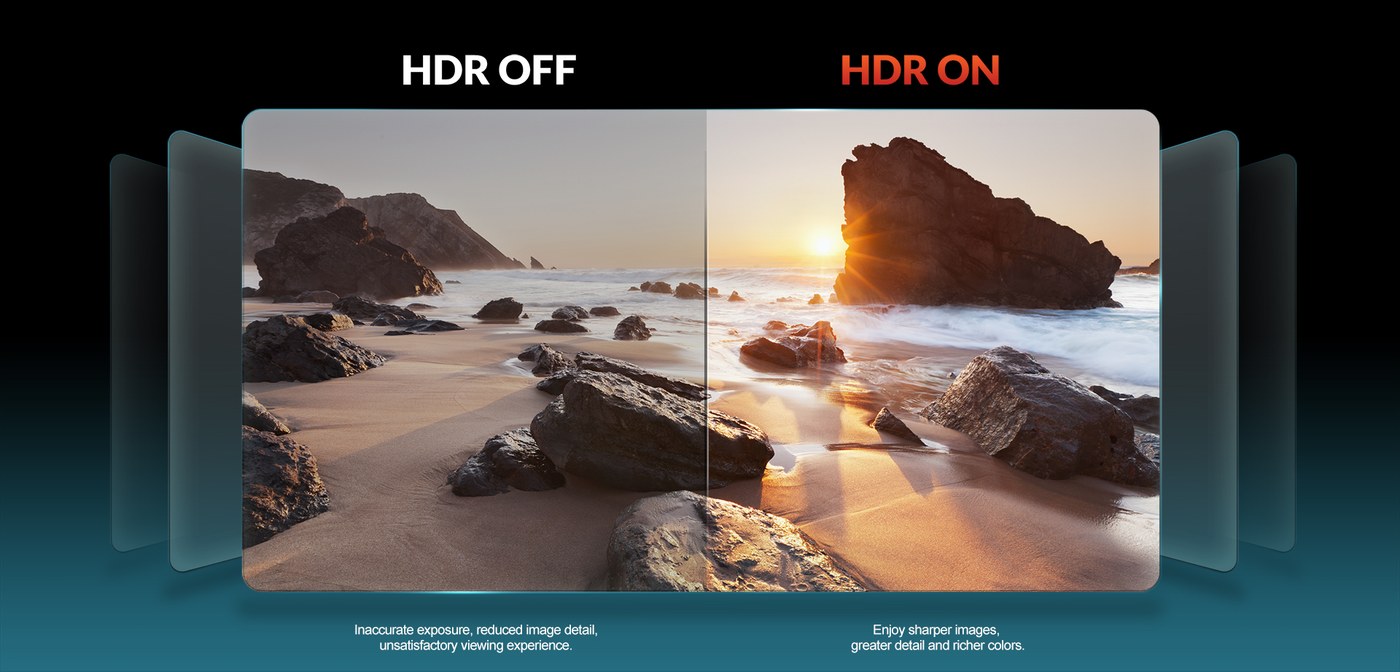

HDR and 3D LUT
ST2084 300/1000/10000 and HLG, built-in LUTs for log footage.

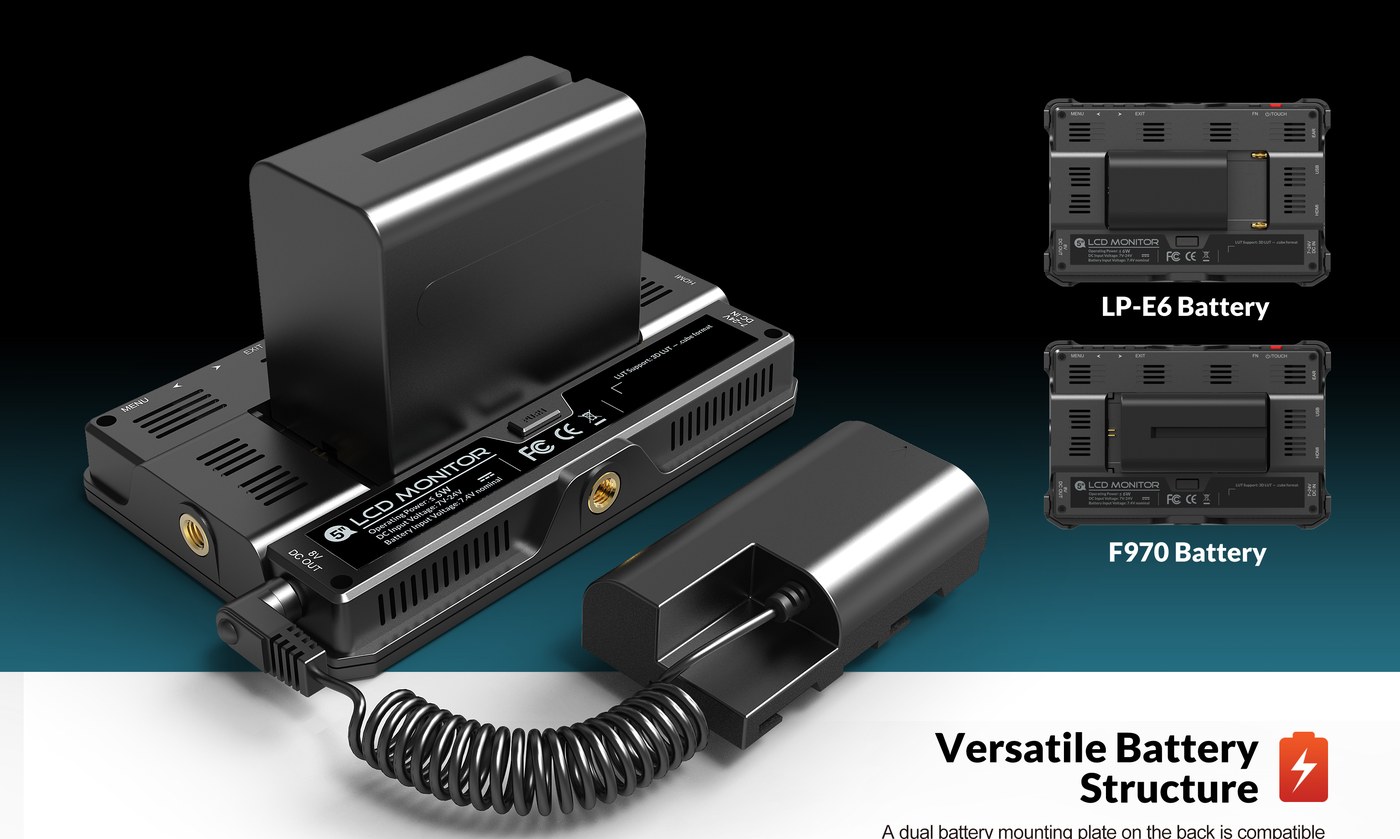

Flexible power
Dual plate for Canon LP-E6 and Sony NP-F, DC 7–24 V input and DC 8 V output.

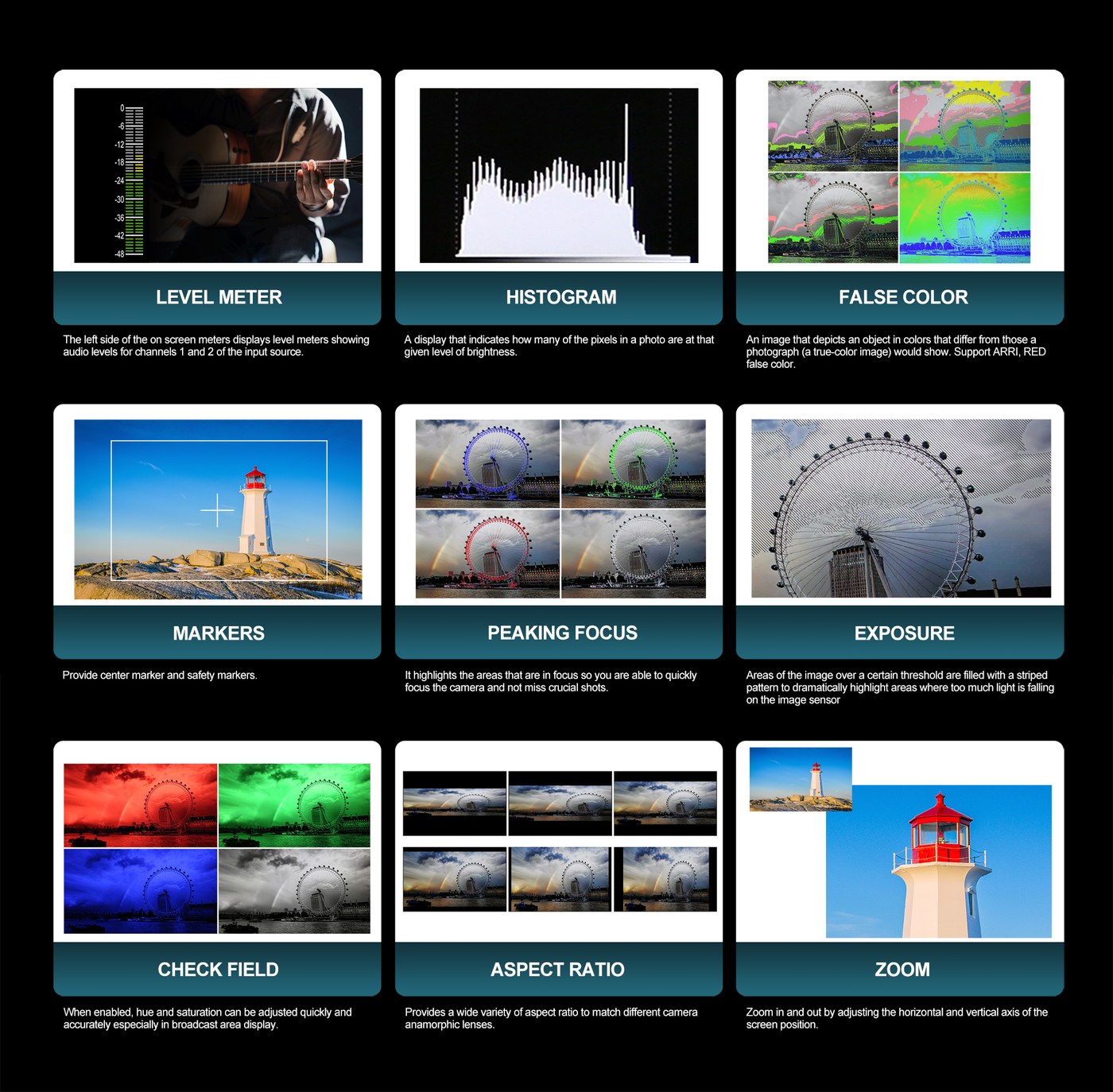

Assist functions
Level meter, histogram, ARRI/RED false color, focus peaking, exposure and more.
Landscape and portrait hoods
Sunshades for both orientations plus a frame to attach them are included.
More information

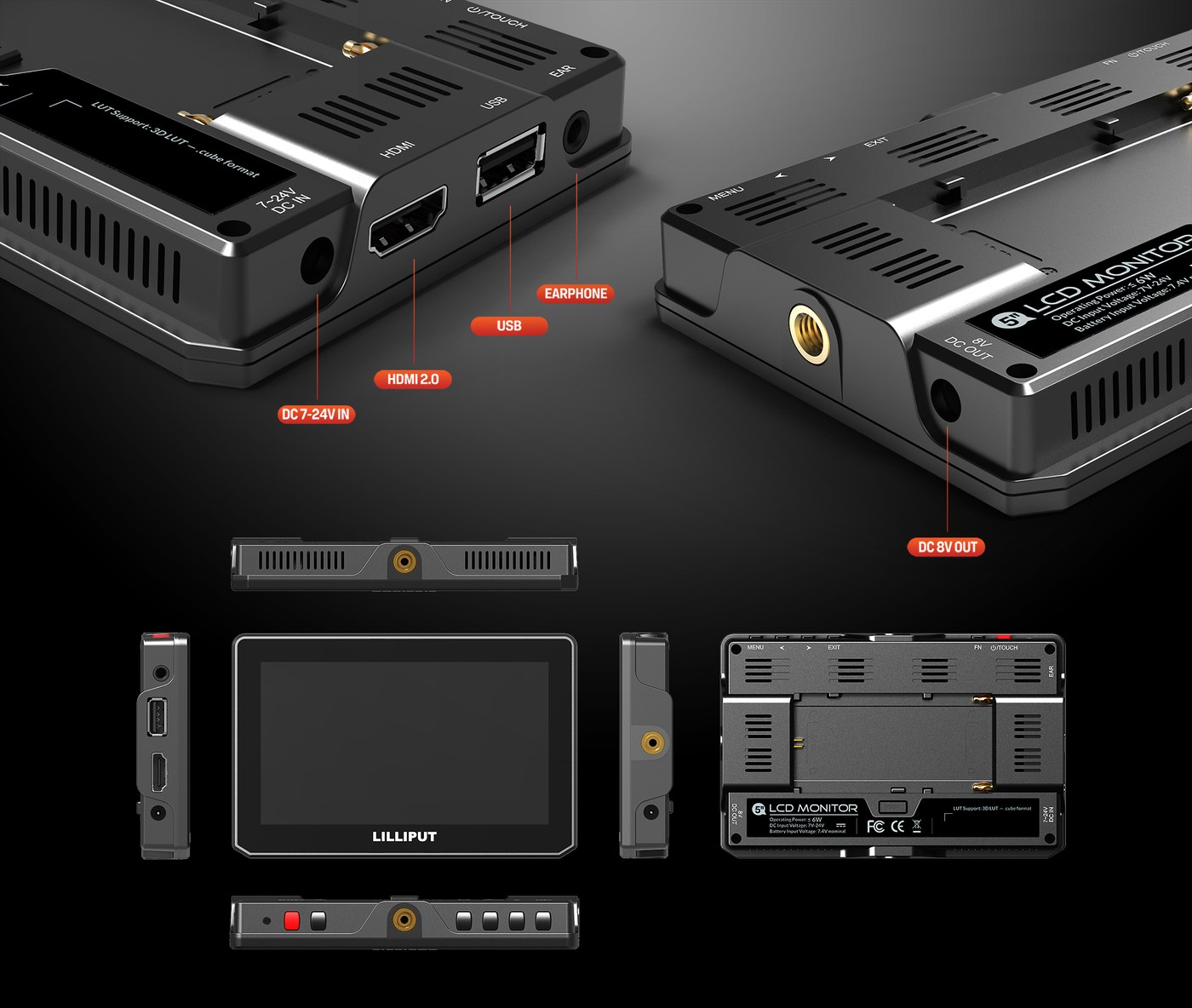

Controls and mounting
A power button and five buttons sit along the top of the monitor, providing access to the on-screen menu system. The IPS touchscreen has a 170° viewing angle side-to-side and top-to-bottom, and the monitor is adjusted with capacitive touch controls. Imaging assist tools help make sure your shots are sharp and properly exposed. Three 1/4"-20 threaded mounting holes let you attach the monitor to the camera in different positions.

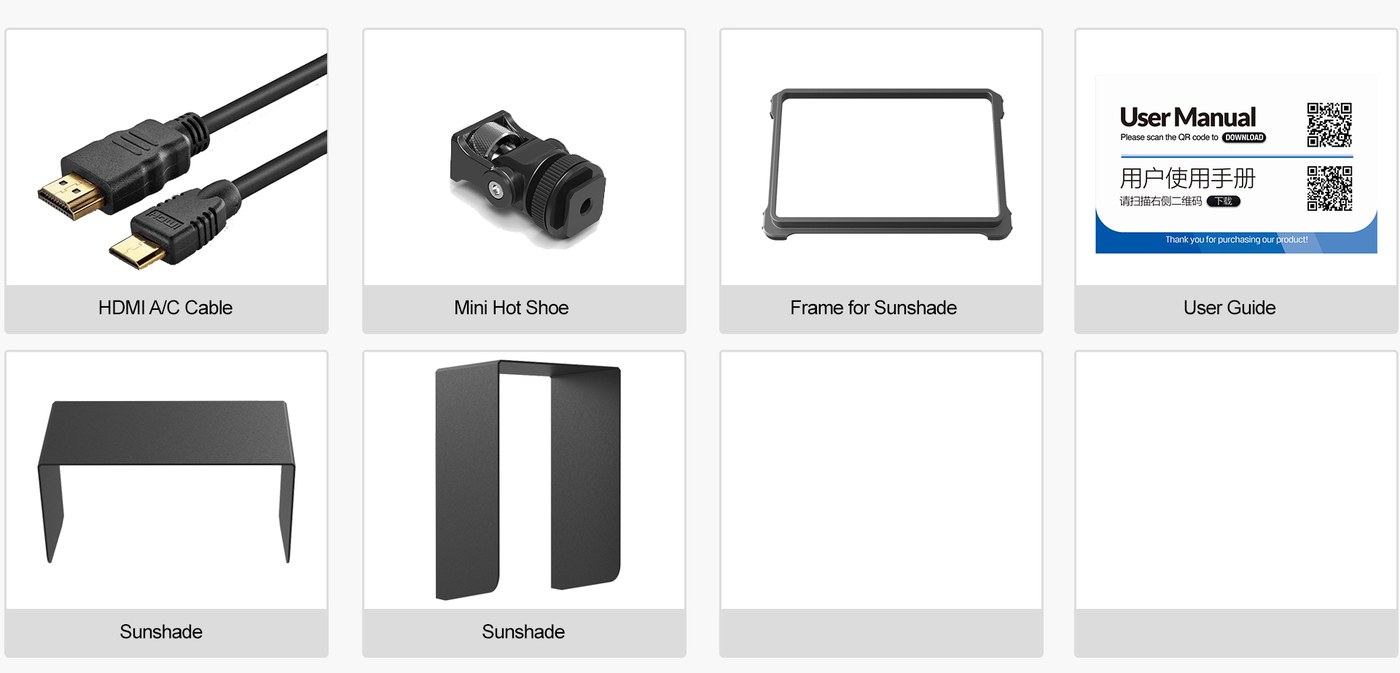

PACKAGE CONTENT
- 1× Lilliput monitor T5
- 1× HDMI A/C cable (HDMI – mini HDMI)
- 1× mini hot shoe mount
- 1× sunshade frame
- 1× sunshade (landscape)
- 1× sunshade (portrait)
- 1× user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: T5
- Display: 5" IPS
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 400 cd/m²
- Contrast: 1000:1
- Viewing angle: 170°/170° (H/V)
- Touchscreen: capacitive
- HDR: ST2084 300/1000/10000, HLG
- LUT: 3D LUT (.cube format)
- Inputs: 1× HDMI 2.0
- HDMI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: HDMI (8 ch, 24-bit), 3.5 mm headphones
- Assist functions: audio level meter, histogram, false color, markers (center, safety, aspect), focus peaking, exposure (zebra), check field, aspect markers, zoom
- Power: DC input 7–24 V, Canon LP-E6 and Sony NP-F (dual-purpose plate)
- Power consumption: ≤ 6 W / ≤ 17 W (with DC 8 V output in use)
- Power output: DC 8 V
- Operating temperature: 0 to 50 °C
- Storage temperature: −10 to 60 °C
- Mounting: 1/4" threads on three sides, hot shoe mount included
- Dimensions (L × W × D): 132 × 86 × 18.5 mm
- Weight: 200 g
WE RECOMMEND
The following accessories go with the Lilliput T5 5" HDMI Touch On-Camera Monitor.
Sony NP-F batteries
- CONST LS-F770 Sony DV battery
- Viltrox Battery NP-F970 - USB-C
- SmallRig NP-F970 Battery and Charger Kit 3823
Canon LP-E6 batteries
HDMI cables
Power
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Display aspect ratio | 16:9 |
| Size | 5" |
| Monitor inputs | HDMI · 4K HDMI · HDMI 2.0 |
| Luminosity | 400cd/m2 |
| Panel resolution | 1920x1080 |
| For monitor | On-camera / field video production monitor |
| Monitor power supply | Sony NP-F · LP-E6 · DC 7-24V |
Other parameters
| Mounting interface | 1/4″-20 thread |
| Weight | 200g |
| Dimensions (W × H × D) | 132x86x18.5mm |
| Viewing angle (horizontal × vertical) | 170x170° |
| Tally | No |
| Other features | Lightweight · Touchscreen · HDR · 3D LUT correction · Power output |
| Touchscreen display | Yes |
| Display type | IPS LCD |
| High Brightness (NITS) | No |
| SDR/HDR | SDR / HDR |
| Power supply type | batteries · power supply |
| Battery type | Canon LP-E · Sony NP-F |
