SmallRig Turbo Charging Kit for LP-E6NH Camera Batteries 5484

The SmallRig 5484 kit gives your camera two 1940 mAh LP-E6NH batteries and a dual-channel USB-C fast charger. A full decoding chip means Canon bodies take them without warnings and still show the charge level; both cells fill in about two hours.

More information

72 € with VAT 59.5 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The SmallRig 5484 kit gives your camera two 1940 mAh LP-E6NH batteries and a dual-channel USB-C fast charger. A full decoding chip means Canon bodies take them without warnings and still show the charge level; both cells fill in about two hours.

Each battery delivers a true-rated output of 1940mAh, providing extended shooting time for demanding workflows. The charger’s dual-slot design allows for simultaneous charging of two batteries or single-battery charging, fully charging two batteries in approximately 2 hours for optimal efficiency.

Intelligent circuitry offers multiple safety protections, including over-temperature and over-voltage safeguards. It monitors temperature and voltage, automatically slowing down charging during overheating, cutting off power in case of overvoltage, and employing trickle charging near full capacity to preserve battery health.

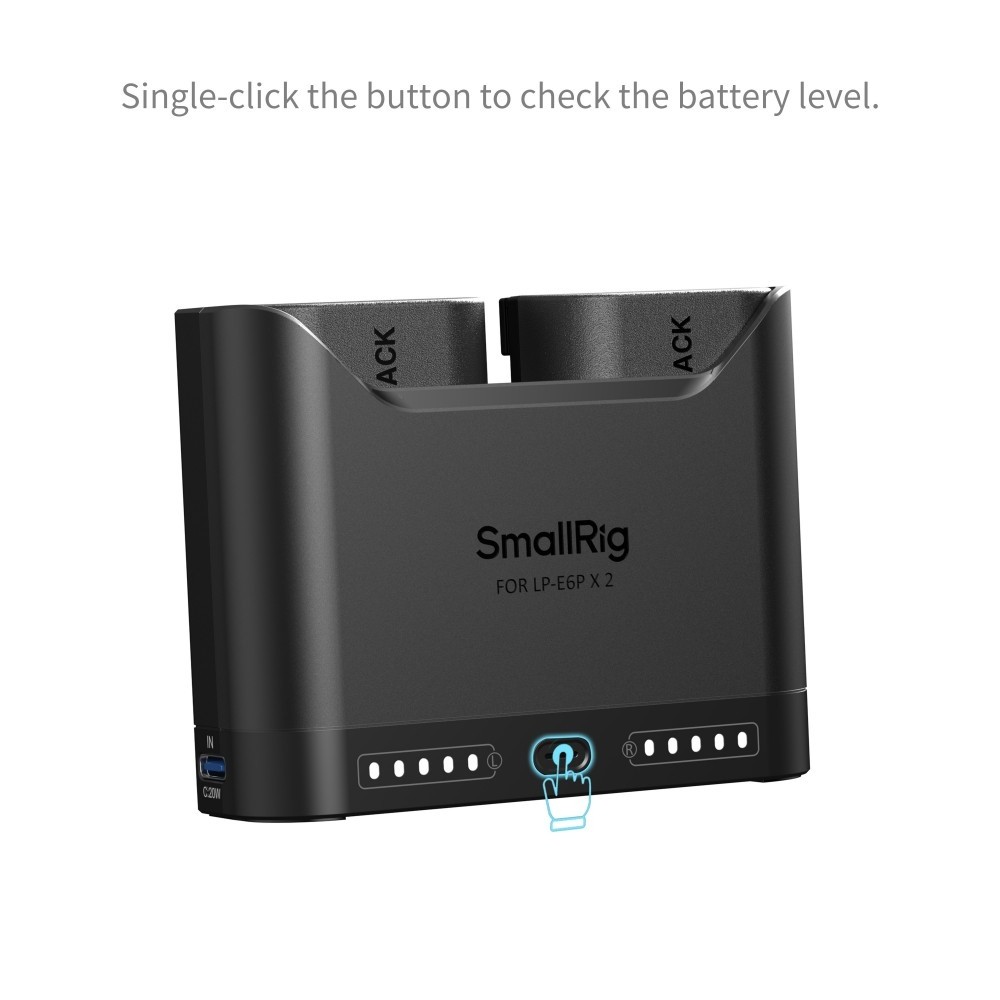

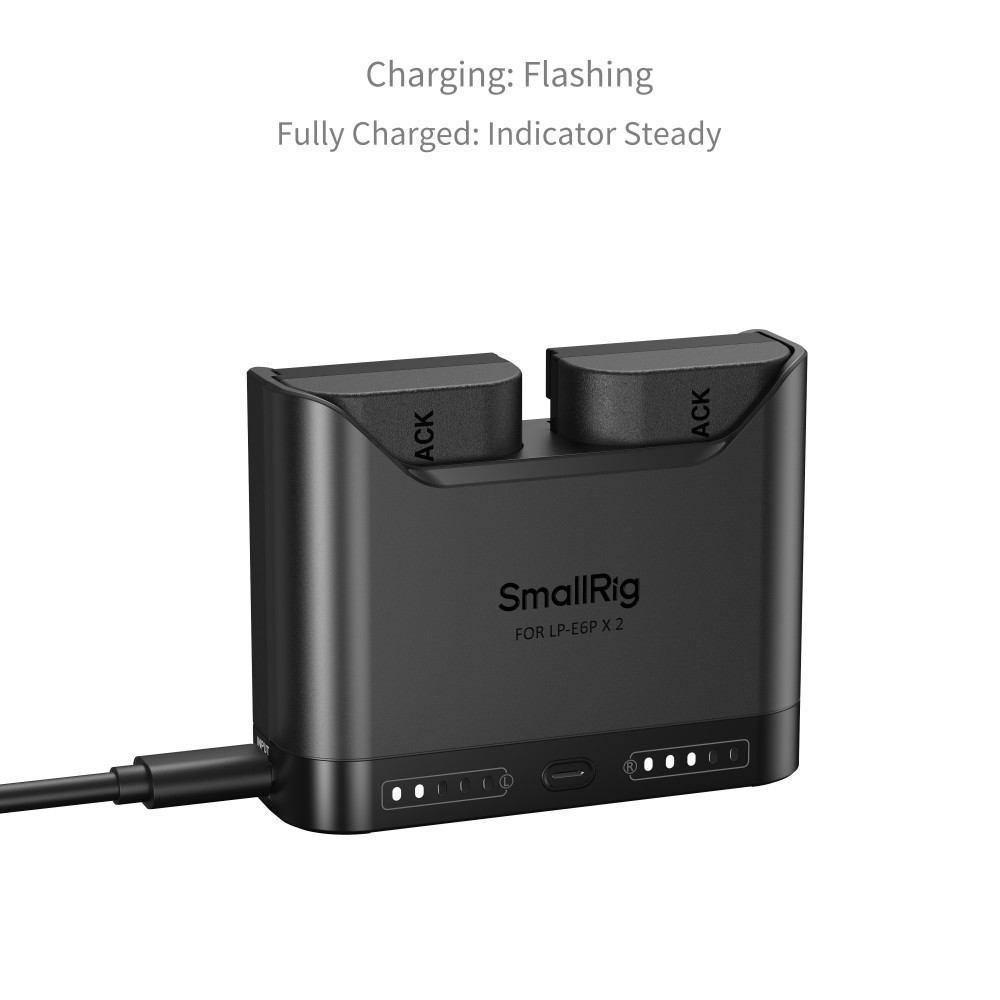

Each charging channel features five LED indicators that display power levels in 20% increments, even without external power. A red warning light activates when battery levels are critically low. Additionally, the charger incorporates a universal USB-C input port and comes with a fast-charging cable, making it compatible with wall adapters, car chargers, and power banks for versatile charging options.

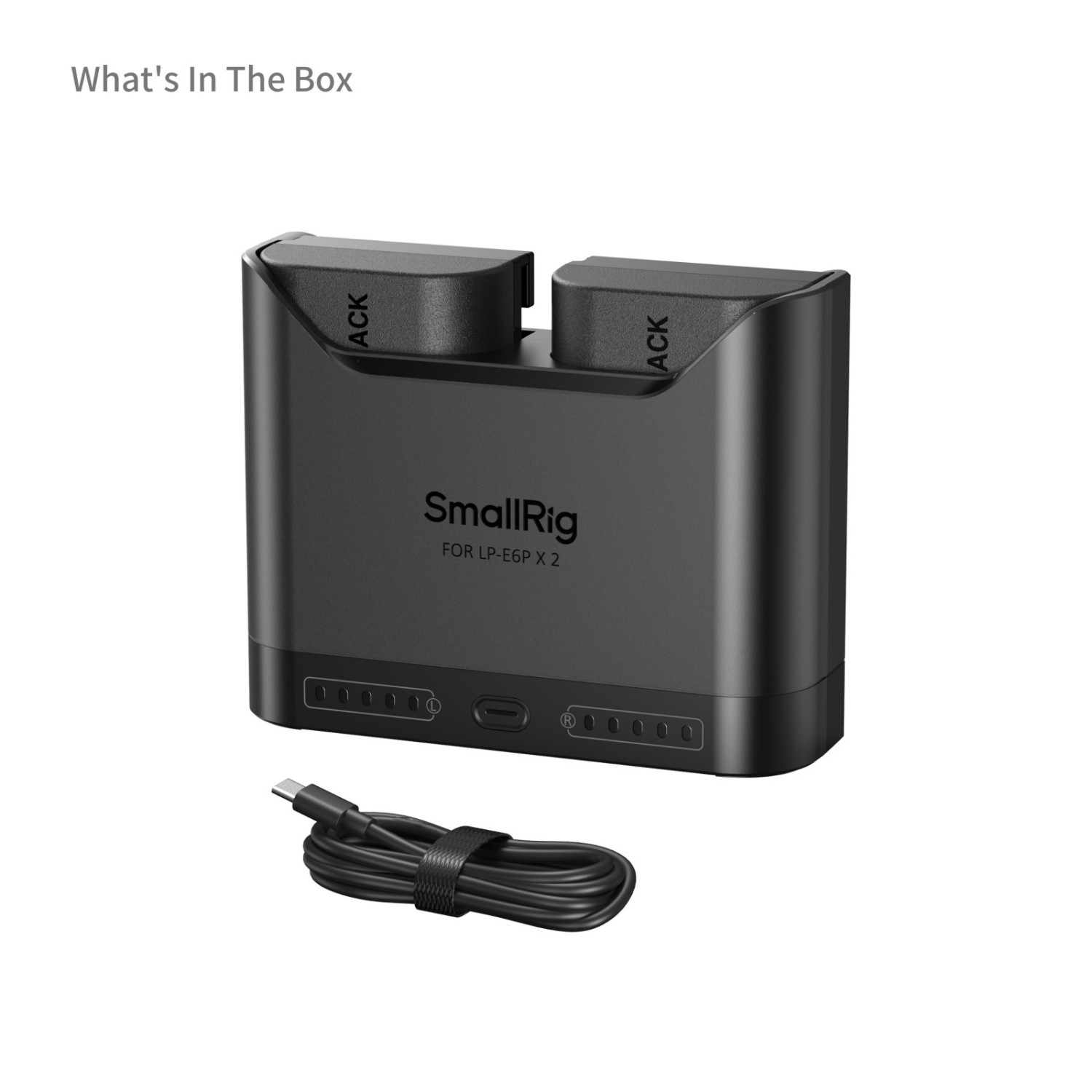

PACKAGE CONTENT

Camera Battery Charger for LP-E6NH x 1
Camera Battery for LP-E6NH x 2
Battery Cover x 2
60W USB-C to USB-C Cable (1m / 3.3ft) x 1

SPECIFICATIONS

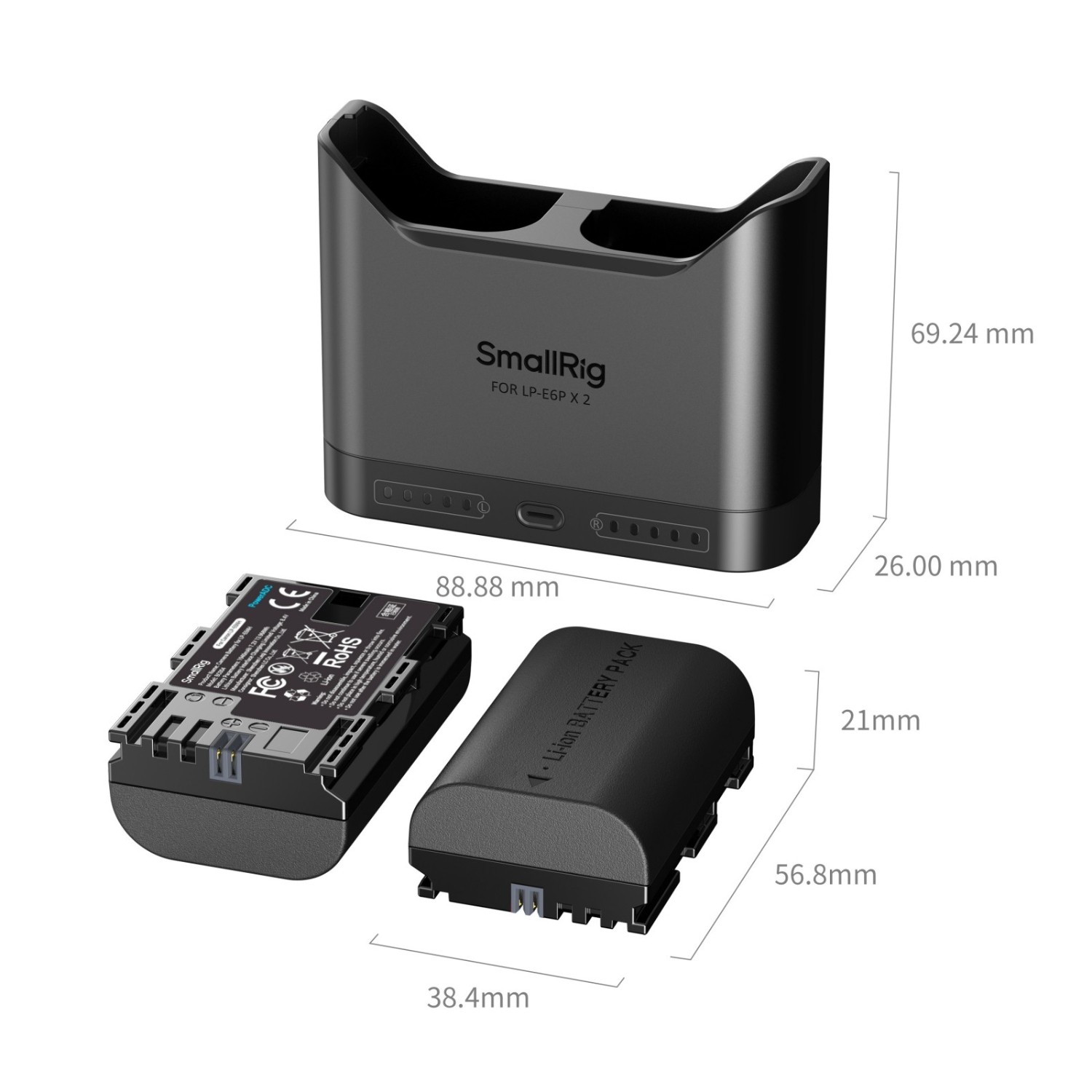

Product Dimensions: 88.9 x 69.2 x 26.0mm / 3.5 x 2.7 x 1.0in
Package Dimensions: 180.0 x 123.0 x 35.0mm / 7.1 x 4.8 x 1.4in
Product Weight: 217 ± 10g / 7.6 ± 0.4oz
Package Weight: 287 ± 10g / 10.1 ± 0.4oz
Charger Specifications:
Material(s): PC + ABS

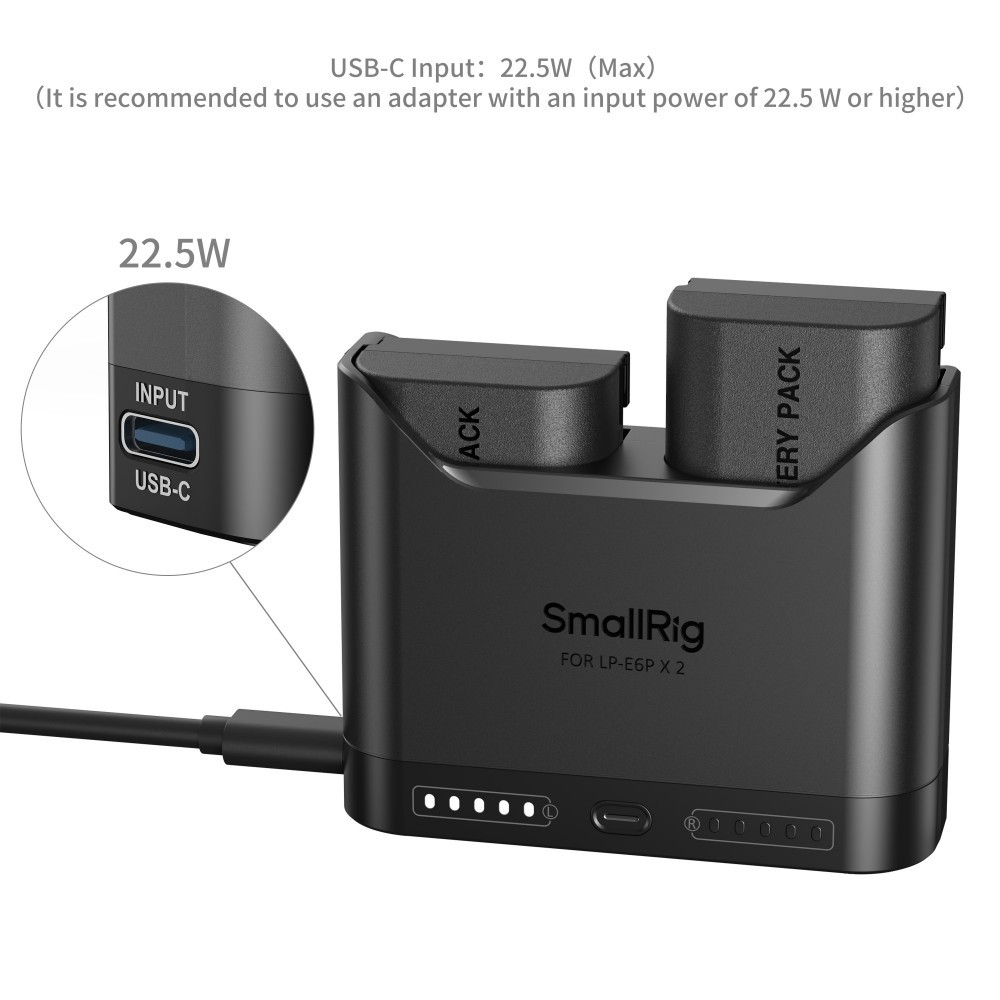

USB-C Input: 5V / 2.4A, 9V / 2A, 12V / 1.75A, 15V / 1.5A; 22.5W (Max)
USB-C Protocol: PD3.0, QC2.0, QC3.0
Rated Output (Per Channel): 8.4V / 1A
Operating Temperature: 0°C to 45°C / 32°F to 113°F
Battery Specifications:
Battery Type: Lithium-ion Battery
Nominal Voltage: 7.2V
Cell Capacity: 1940mAh
Rated Energy: 13.968Wh
Charging Limit Voltage (Li-ion Battery Interface): 8.4V
Charging Current (Li-ion Battery Interface): Standard Charge: 0.2C (408mA)
Fast Charge: 0.7C (1428mA)
Maximum Discharge Current: 4A
Discharge Cut-off Voltage: 5.0V
Charging Temperature: 0°C to 45°C / 32°F to 113°F
Discharging Temperature: -10°C to 60°C / 14°F to 140°F
Material(s): PC + ABS

Parameters

Parameters

Manufacturer: SmallRig
Category: 7.2V chargers

Main parameters

Mount typeLP-E6

Other parameters

Charger battery typeLP-E6
