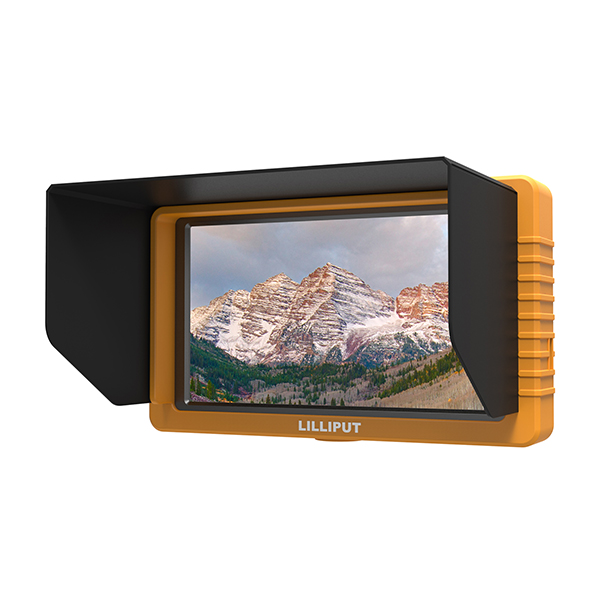

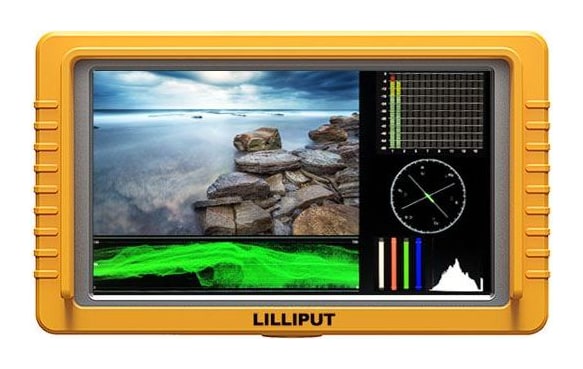

Lilliput Q5 5.5" Full HD On-Camera Monitor

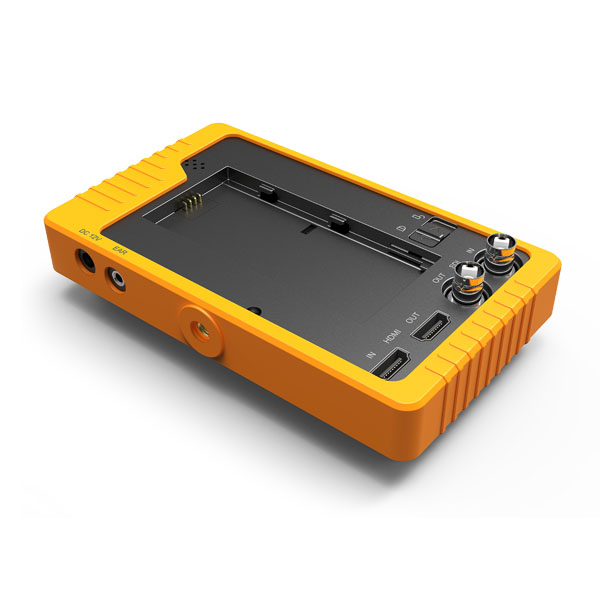

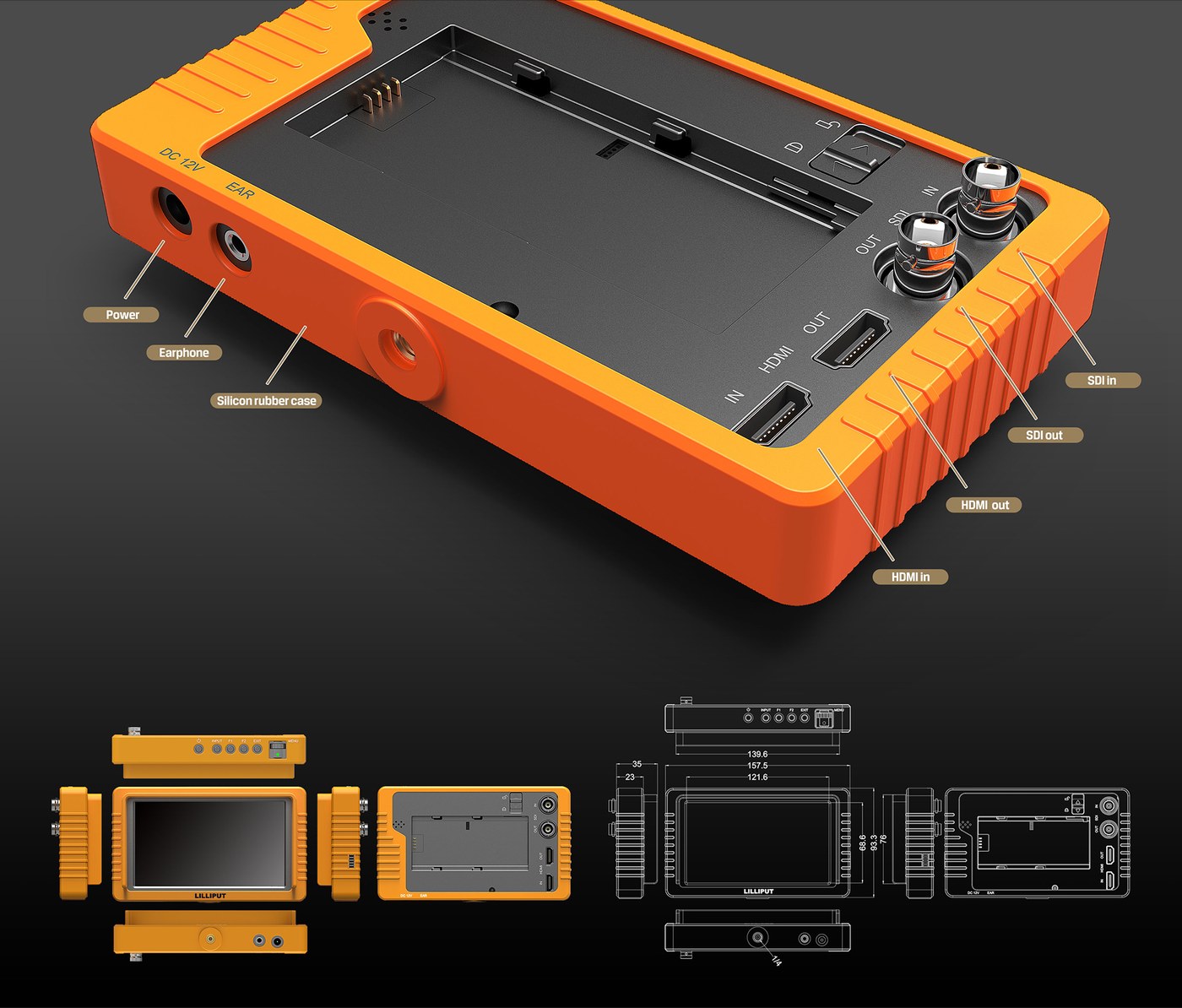

Compact yet fully featured, the Lilliput Q5 5.5″ Full HD on-camera monitor is designed to take on almost any production. The 1920 × 1080 screen packs 401 pixels per inch, with 500 cd/m² brightness and a 1000:1 contrast ratio. 3G-SDI and HDMI inputs on the rear are compatible with DSLRs, mirrorless cameras and professional camcorders, and SDI and HDMI signals can even be cross-converted.

5.5" monitor with SDI ↔ HDMI conversion

The Q5 accepts 3G-SDI and HDMI and converts the signal to the other format at the output. In its orange silicone case it weighs 340 g and runs on Sony NP-F or Canon LP-E6 batteries.

5.5" 1920 × 10803G-SDI and HDMISDI ↔ HDMI conversion500 cd/m²NP-F and LP-E6

Monitor and converter in one

SDI ↔ HDMI cross conversion solves the case where the camera has a different output than the transmitter, recorder or director’s monitor needs. On set the Q5 saves a separate converter and its power supply.

401 ppi

A dense Full HD panel shows the detail you need to focus, even on a small screen.

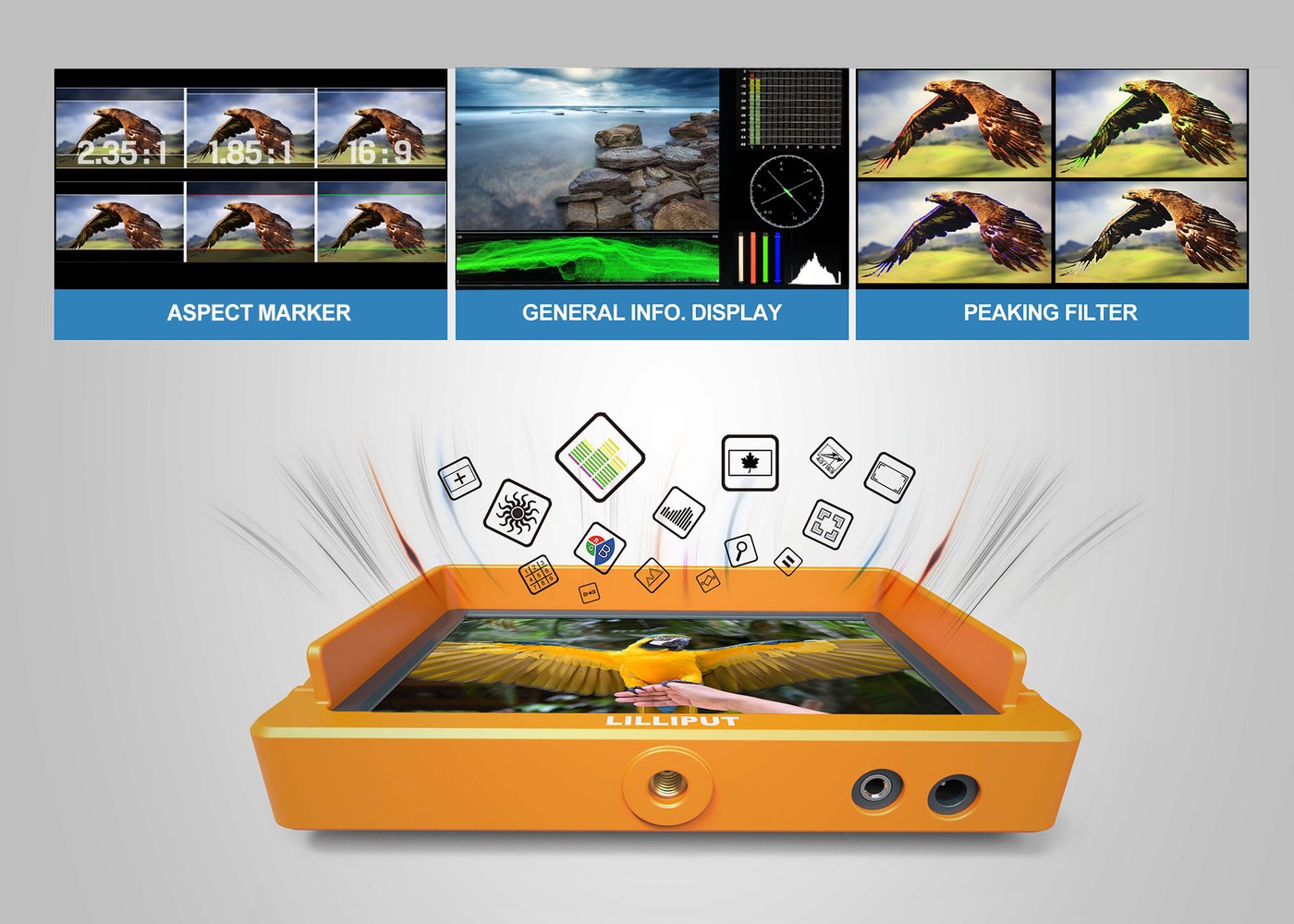

Assist functions

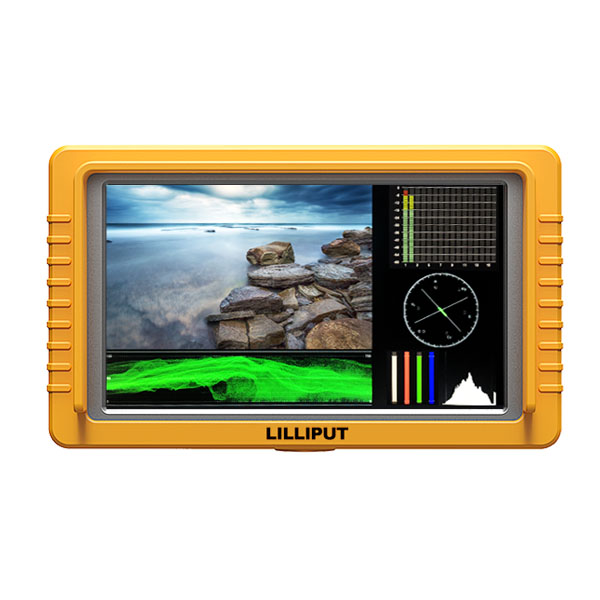

YRGB column, vectorscope, waveform, focus peaking, false color and more.

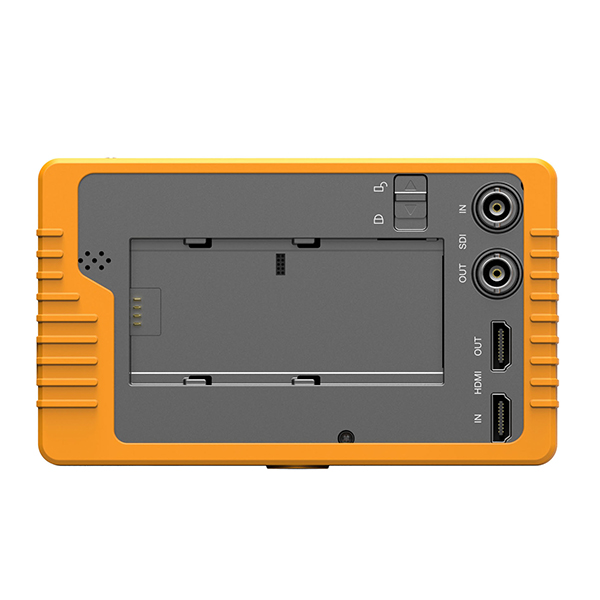

Two battery plates

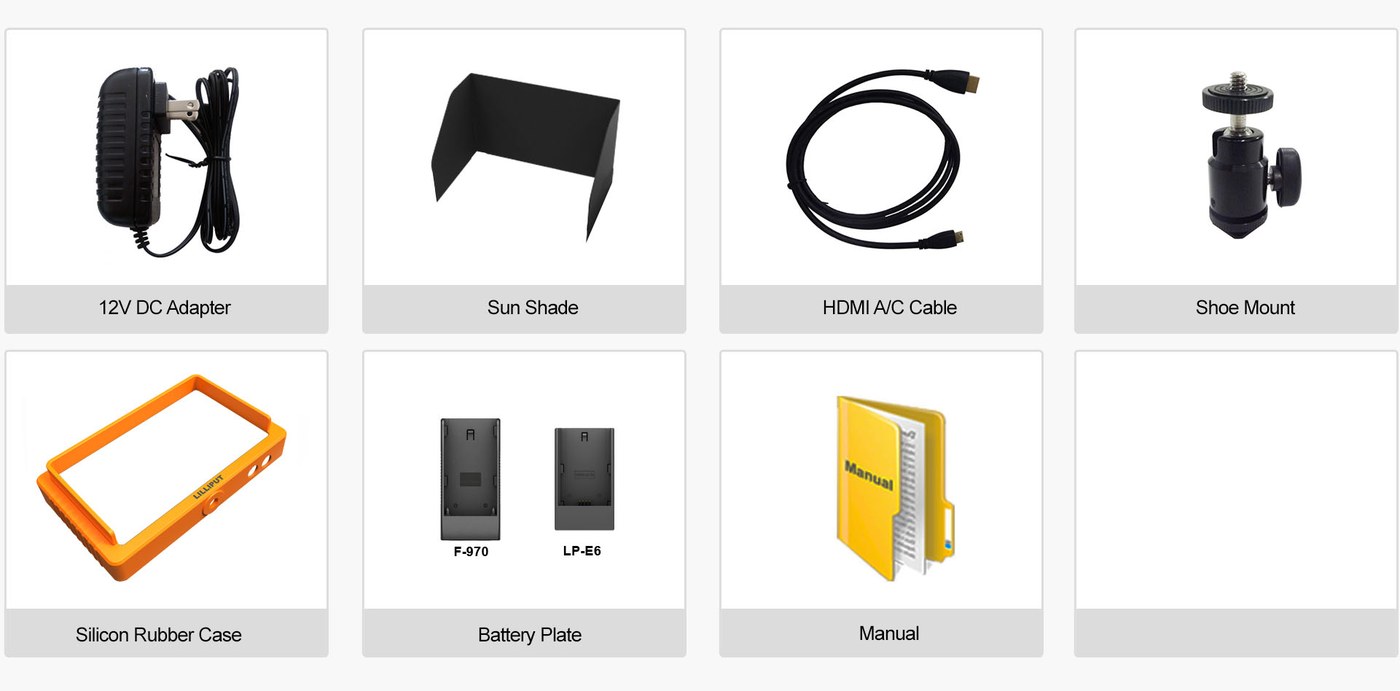

Plates for Sony NP-F and Canon LP-E6 included; DC 7–24 V power too.

Silicone case

The orange case protects the body; with it the monitor measures 157.5 × 93 × 23 mm.
