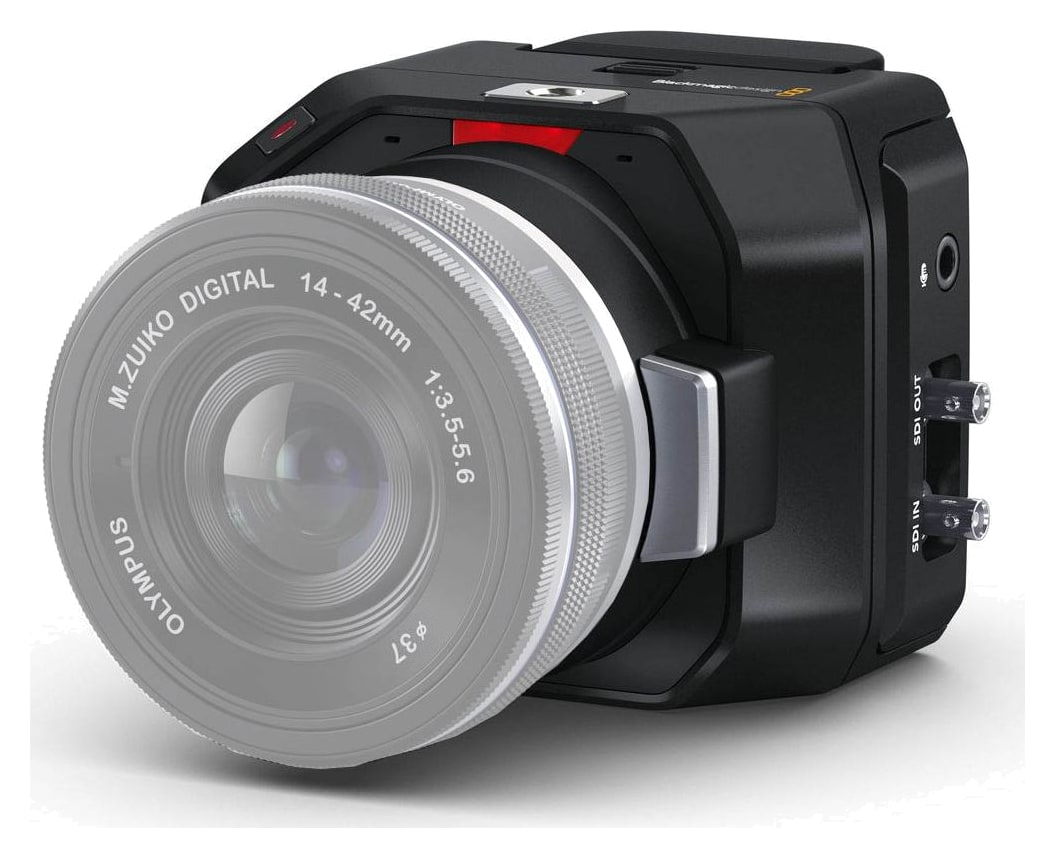

Blackmagic Micro Studio Camera 4K G2 is a miniature studio camera with an active MFT mount, a 4K sensor with 13 stops of dynamic range and dual native ISO. For live production it offers 12G-SDI and HDMI with tally and remote control from compatible ATEM switchers, and it records 12-bit Blackmagic RAW to an external USB-C disk. The body with a magnesium alloy core is not much larger than the mount, so you can place the camera where a regular camera will not fit.
A 4K sensor with 13 stops, 12G-SDI and HDMI with control from an ATEM switcher and Blackmagic RAW recording to a USB-C disk in a body measuring 84 × 69.5 × 65.8 mm.

Over SDI and HDMI the camera uses the same control protocol as ATEM switchers: tally, color corrector, iris, focus and zoom of compatible lenses and record start.

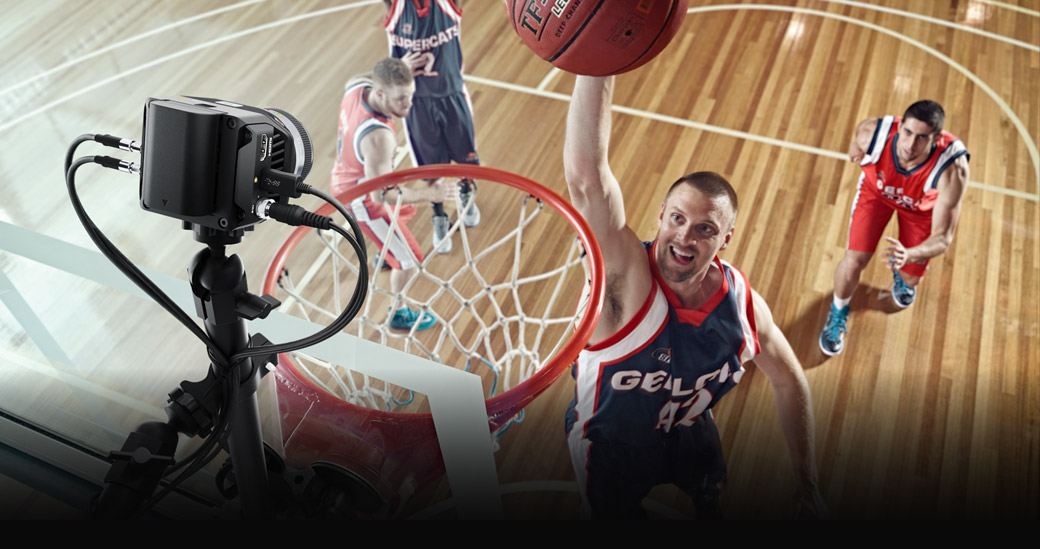

Hide the small camera on set, in a classroom, church, conference hall or sports studio and add more angles to your program. The body with a tough magnesium alloy core is not much larger than the lens mount itself.

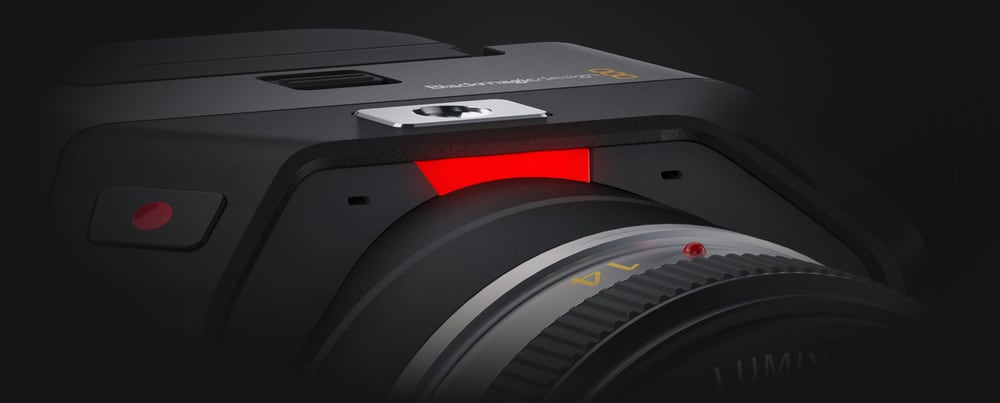

The tally light glows red when on air, green for preview and orange for ISO recording, so talent can see at a glance which camera is on air. The camera fully supports tally from ATEM switchers via SDI and HDMI.

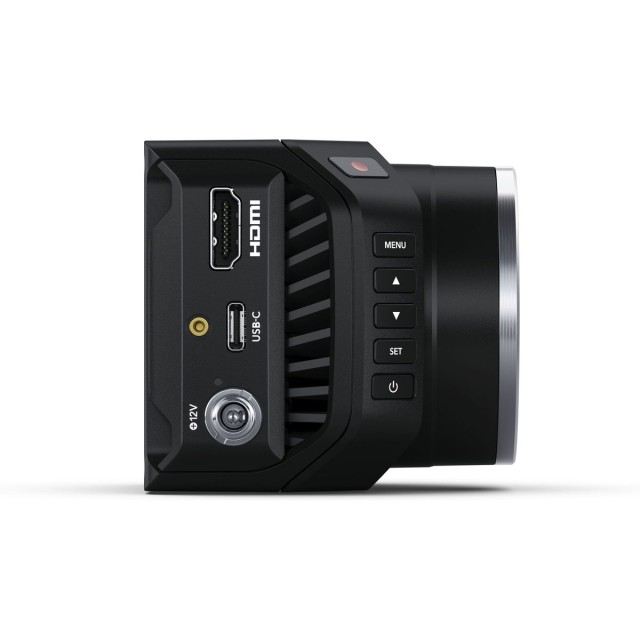

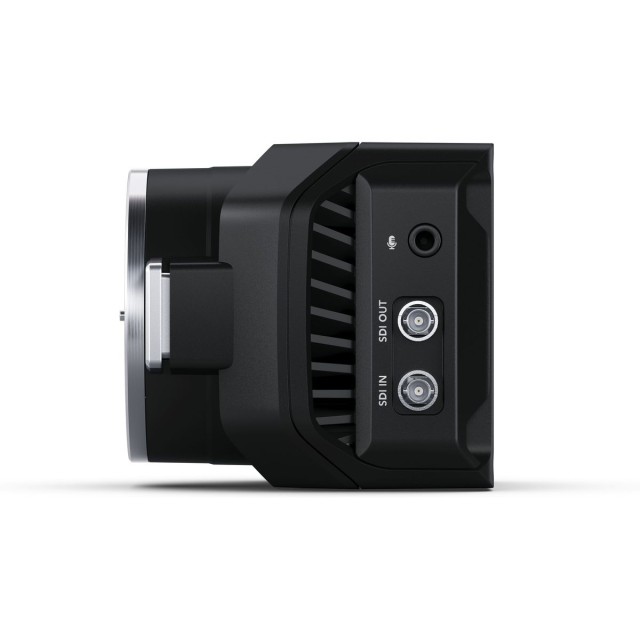

The 12G-SDI output with a Micro BNC connector carries video up to 2160p60, and the SDI program return input brings program, tally and control from the switcher. The full size HDMI output provides video up to 1080p60 for a monitor or an ATEM Mini switcher, from which the camera receives tally, color corrector control and the record trigger.

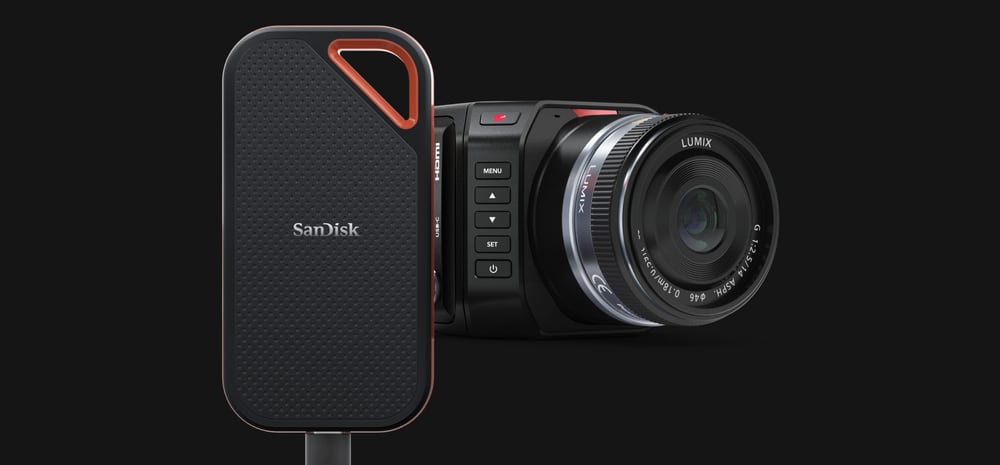

The USB-C 3.1 Gen 1 port (up to 5 Gb/s) records 12-bit Blackmagic RAW to an external disk for later editing and color correction. It is also used to control the camera over a network via a USB-Ethernet adapter (REST API) and to connect Focus Demand and Zoom Demand controllers.

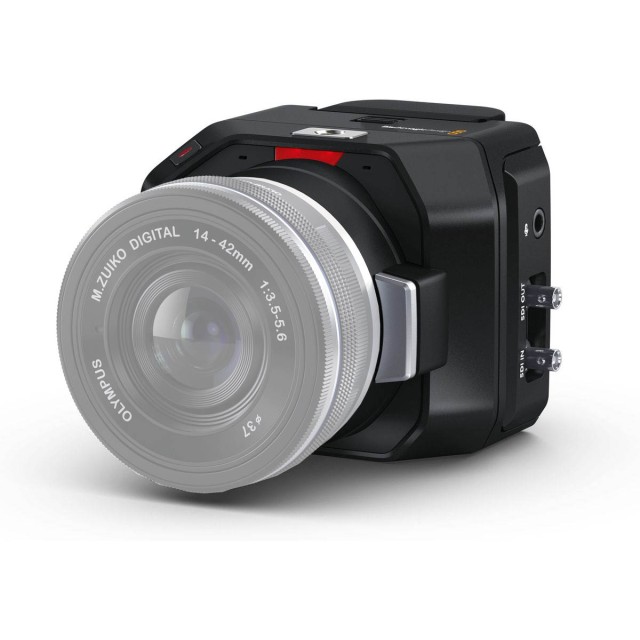

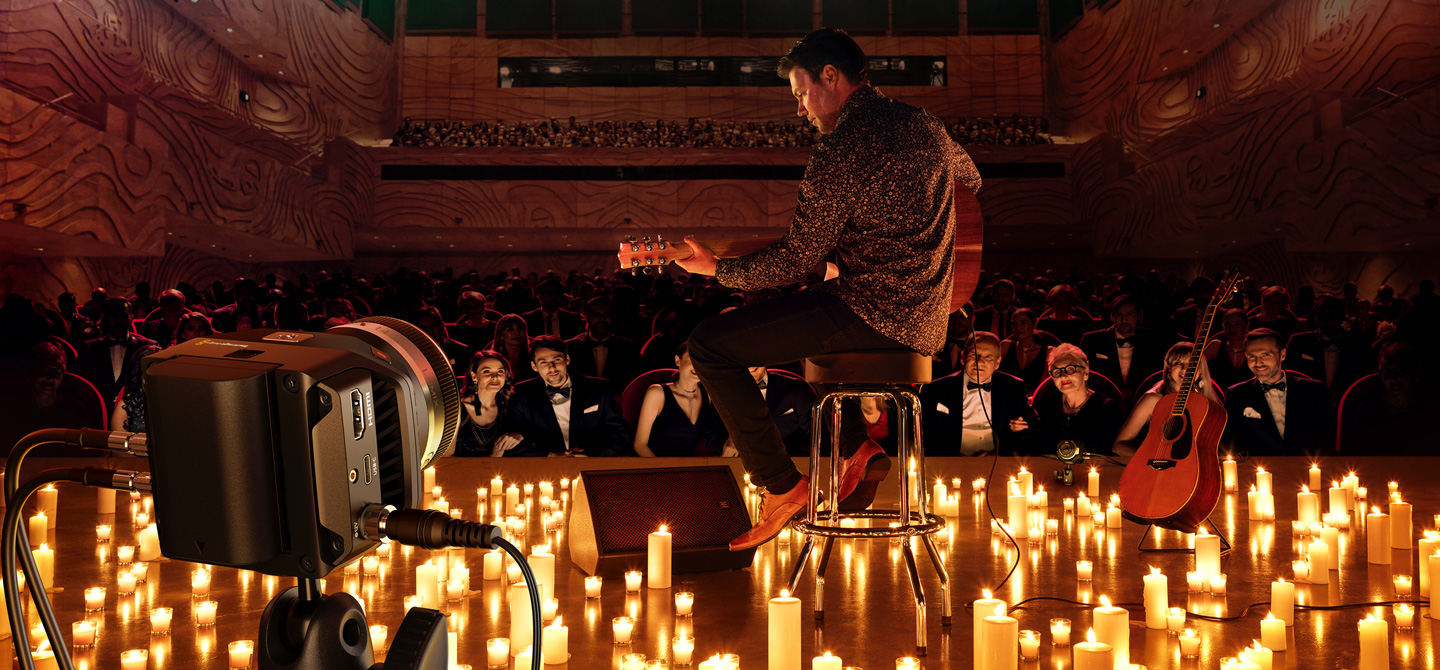

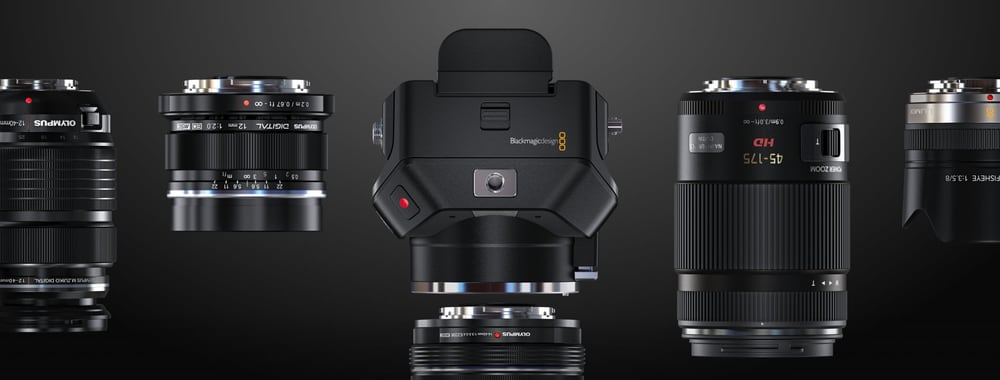

The active MFT mount takes affordable lenses from Olympus, Panasonic, Sigma and others and controls iris, focus and zoom on supported lenses. The Four Thirds sensor has 13 stops, dual native ISO 400 and 3200 and gain from −12 dB to +36 dB (ISO 100 to 25,600). The 4096 × 2160 sensor and Blackmagic Generation 5 Color Science bring the same imaging technology as digital film cameras.

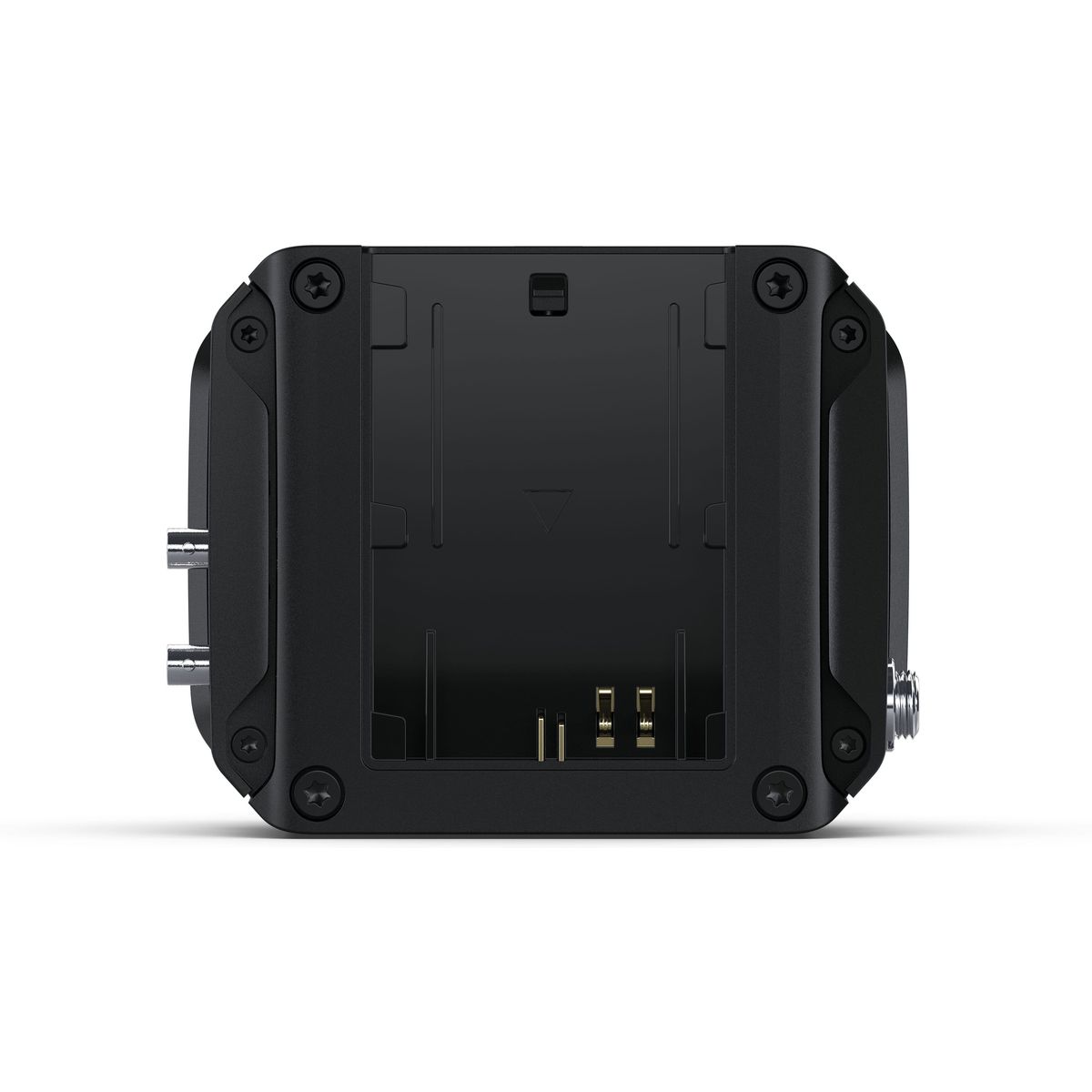

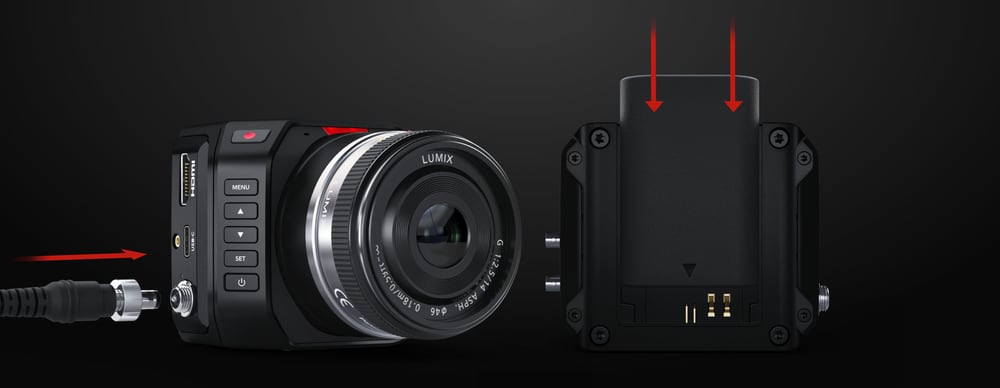

The locking 12 V DC connector cannot be pulled out accidentally and the power supply comes with five AC socket adapters for different countries. The LP-E6 compatible battery slot provides backup during critical broadcasts, and the camera keeps the battery trickle charged.

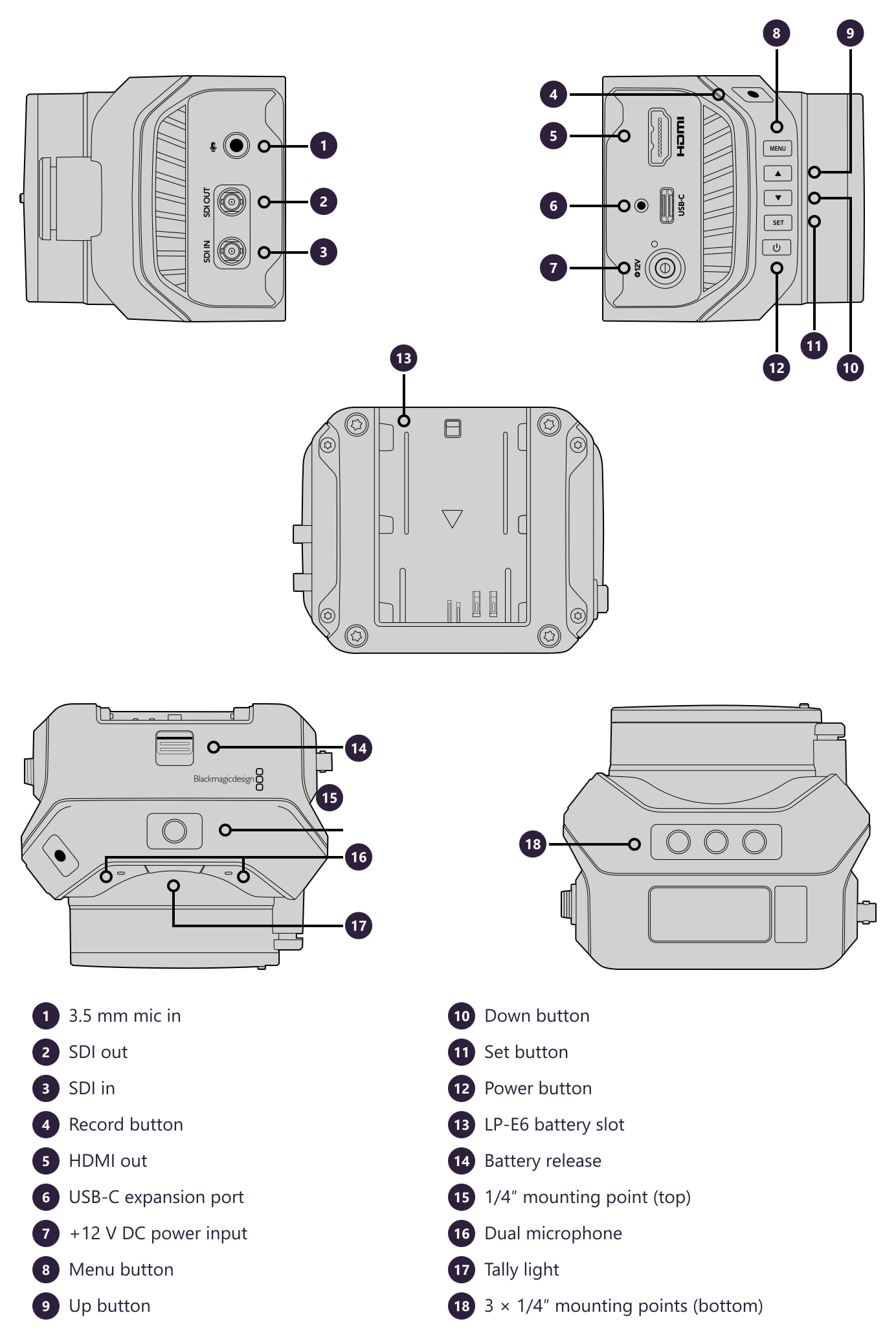

Connectors, buttons and mounting points according to the manufacturer’s drawing.

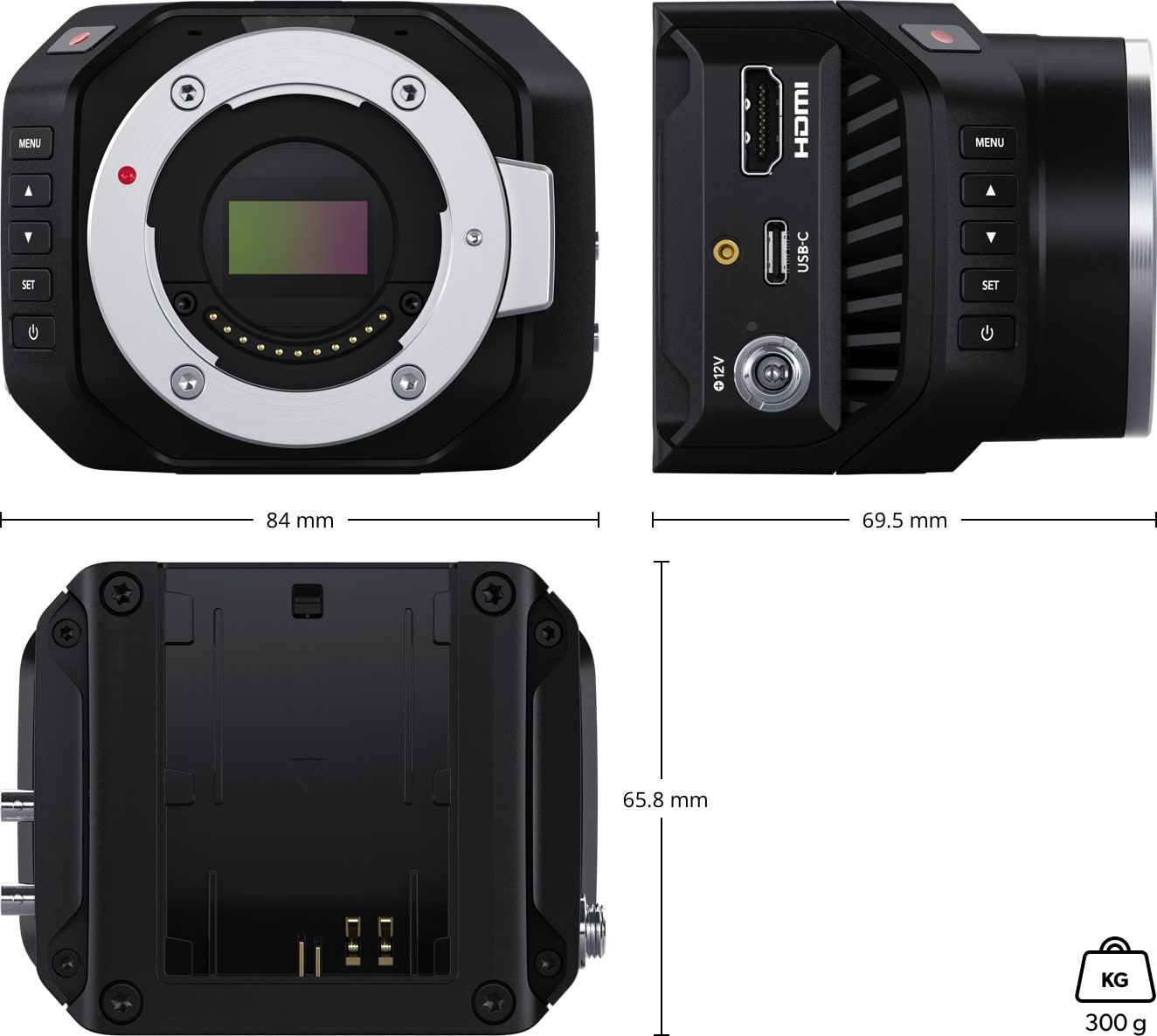

Camera dimensions in millimeters, weight in grams.

Blackmagic Micro Studio Camera 4K G2 is a miniature studio camera with an MFT mount, 12G-SDI and HDMI and Blackmagic RAW recording to a USB-C disk. It works best with MFT lenses, external SSD disks, lens controllers, Micro BNC cables and LP-E6 batteries as backup power.
MFT lenses - Micro Four Thirds lenses; on supported lenses the camera controls iris, focus and zoom.
SSD disks - External USB-C disks the camera records 12-bit Blackmagic RAW to.
Lens controllers - The Focus Demand and Zoom Demand controllers connect to the camera with a USB-C cable.
Cables - Micro BNC to full size BNC cables for the 12G-SDI output and return input.
Power - LP-E6 compatible batteries provide backup power and the camera keeps them charged.
| Manufacturer: | Blackmagic Design |
| Category: | Compact cameras |
| Resolution | 4K |
| Type of bayonet | MFT |
| Output | HDMI · 12G SDI |
| Velikost snímače | Micro Four Thirds |
| Bajonet | Micro Four Thirds |
| Maximální rozlišení videa | 4K |
| Záznamová média | SSD |
| Video výstupy a přenos | HDMI · SDI · USB-C |
| Version | studio |
| Record format | BMD RAW |
| FPS | UHD 30fps · UHD 60fps · UHD 50fps · UHD 25fps · UHD 24fps |
| Media type | SSD |
| Battery type | LP-E |
| Colour depth | 12 bit |
| Other features | RAW · Tally · Timecode · Dual ISO |
