Datavideo BC-15C 4K CS-Mount POV Camera

The Datavideo BC-15C is a compact 4K POV camera built around a 1/2.3-inch CMOS sensor and an interchangeable CS mount. It captures video up to 2160p at 60/59.94/50 fps and also supports Full HD 1080p. A lens is not included; use a CS-mount lens or a C-mount lens with the supplied 5 mm CS-C adapter ring. The camera provides HDMI 2.0 output, a 3.5 mm stereo…

More information

1 109 € with VAT 916.53 € without VAT
-+
Availability
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo BC-15C is a compact 4K POV camera built around a 1/2.3-inch CMOS sensor and an interchangeable CS mount. It captures video up to 2160p at 60/59.94/50 fps and also supports Full HD 1080p. A lens is not included; use a CS-mount lens or a C-mount lens with the supplied 5 mm CS-C adapter ring. The camera provides HDMI 2.0 output, a 3.5 mm stereo line/mic input, DVIP network control and RTMP(S)/SRT streaming over Ethernet. Installation is simplified by PoE (IEEE 802.3af) or 12 V DC power, three 1/4-20 UNC mounting holes and a built-in dual-color tally light. It suits detailed point-of-view shots in studios, live productions and esports.

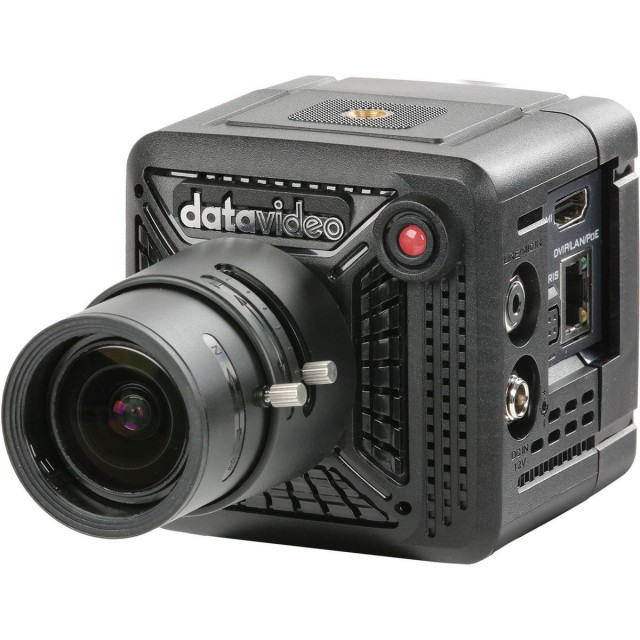

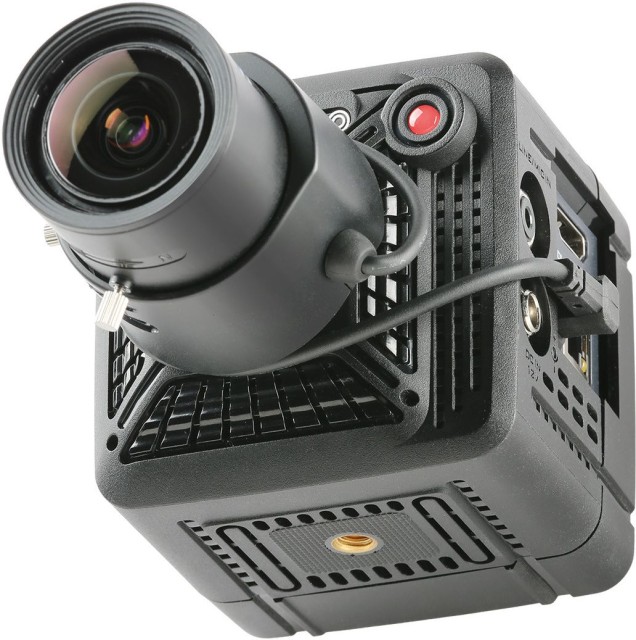

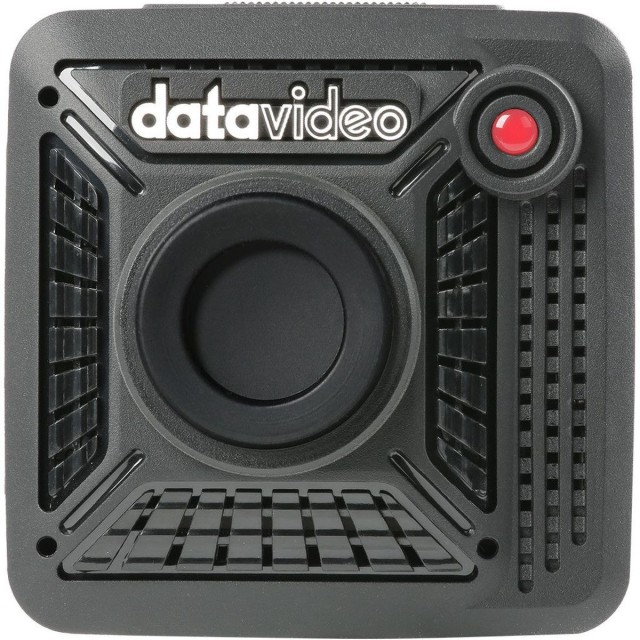

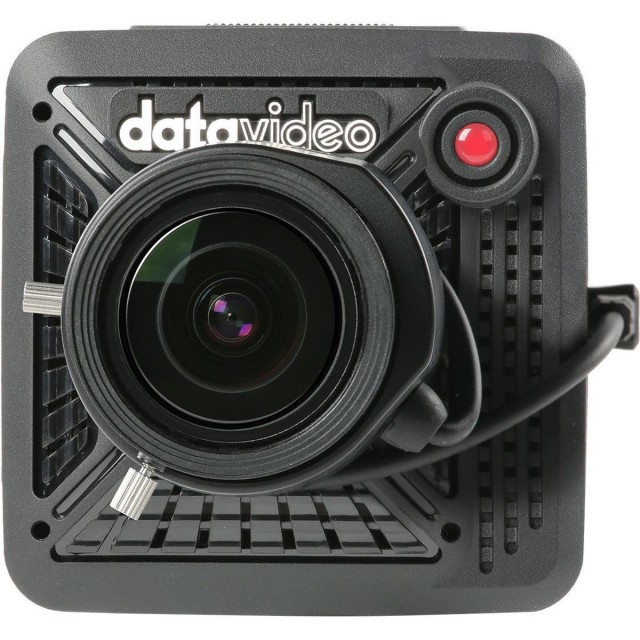

Compact 4K camera with a CS mount

The Datavideo BC-15C combines a compact installation camera with resolution up to 4K and the flexibility to choose a lens. Its interchangeable CS mount lets you match the field of view to the shot; the supplied 5 mm CS-C adapter ring enables the use of C-mount lenses.

Choose a lens for the shot

The camera is supplied without a lens. Fit a compatible CS-mount lens directly, or attach a C-mount lens with the included 5 mm adapter. Focal length, field of view and optical zoom therefore depend on the selected lens. Full manual focus and DC iris support (when the lens provides it) help fine-tune the image during setup.

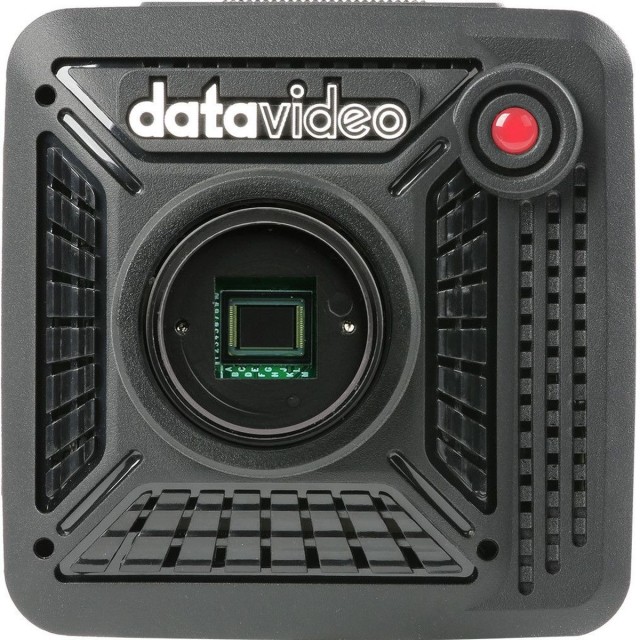

Datavideo BC-15C sensor and lens-mount detail

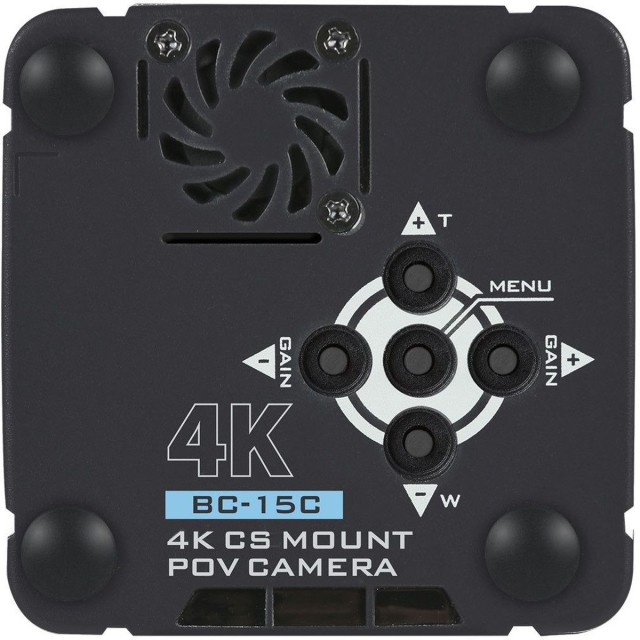

Datavideo BC-15C rear panel with physical controls and connectors

Connections and network control

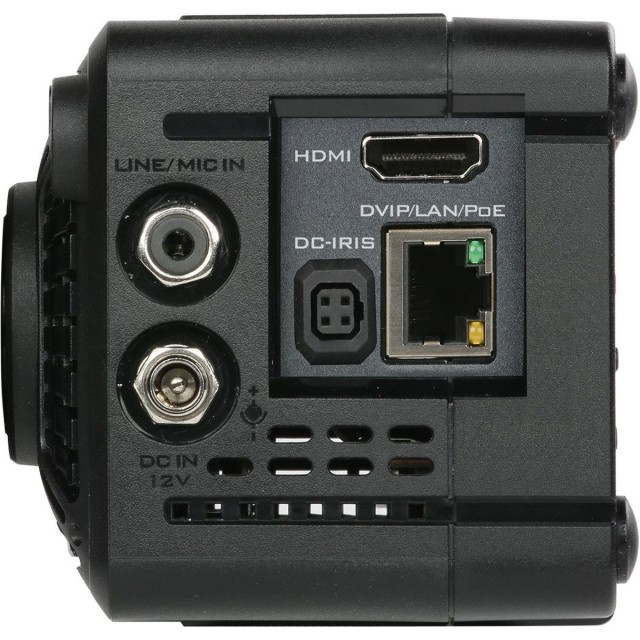

The rear panel brings together HDMI 2.0 output, a 3.5 mm stereo line/mic input, an RJ-45 Ethernet port for DVIP and a 12 V DC input. The camera can also be powered by IEEE 802.3af PoE; RTMP(S) and SRT are available over Ethernet. Physical buttons simplify basic camera setup, while the dual-color tally light indicates its production status.

PACKAGE CONTENT

In the box

  • 1× Datavideo BC-15C main unit
  • 1× 5 mm CS-C lens adapter ring
  • 1× DC 12 V power adapter
  • 1× carrying case

Specifications

  • Type: 4K CS-mount POV camera
  • Sensor: 1/2.3-inch CMOS
  • Effective sensor pixels: Approx. 12.3 megapixels
  • Video formats: 2160p: 60/59.94/50/30/29.97/25 fps; 1080p: 60/59.94/50/30/29.97/25 fps
  • Lens: Interchangeable CS mount; lens not included; C-mount lenses via the supplied 5 mm CS-C adapter
  • Focus and iris: Full manual focus; DC iris depends on the lens
  • Zoom: 2× digital; optical zoom depends on the lens
  • Video output: 1× HDMI 2.0
  • Audio input: 3.5 mm stereo line/mic input
  • Network interface and control: RJ-45, 10/100/1000 Mbps; DVIP; firmware updates via Ethernet
  • Streaming and compression: RTMP(S), SRT; H.264/H.265; 1–7 Mbps; CBR/VBR; 1–60 fps in 60 Hz systems or 1–50 fps in 50 Hz systems
  • Power: 12 V DC, 9 W or IEEE 802.3af PoE
  • Tally: Dual-color LED, red/green

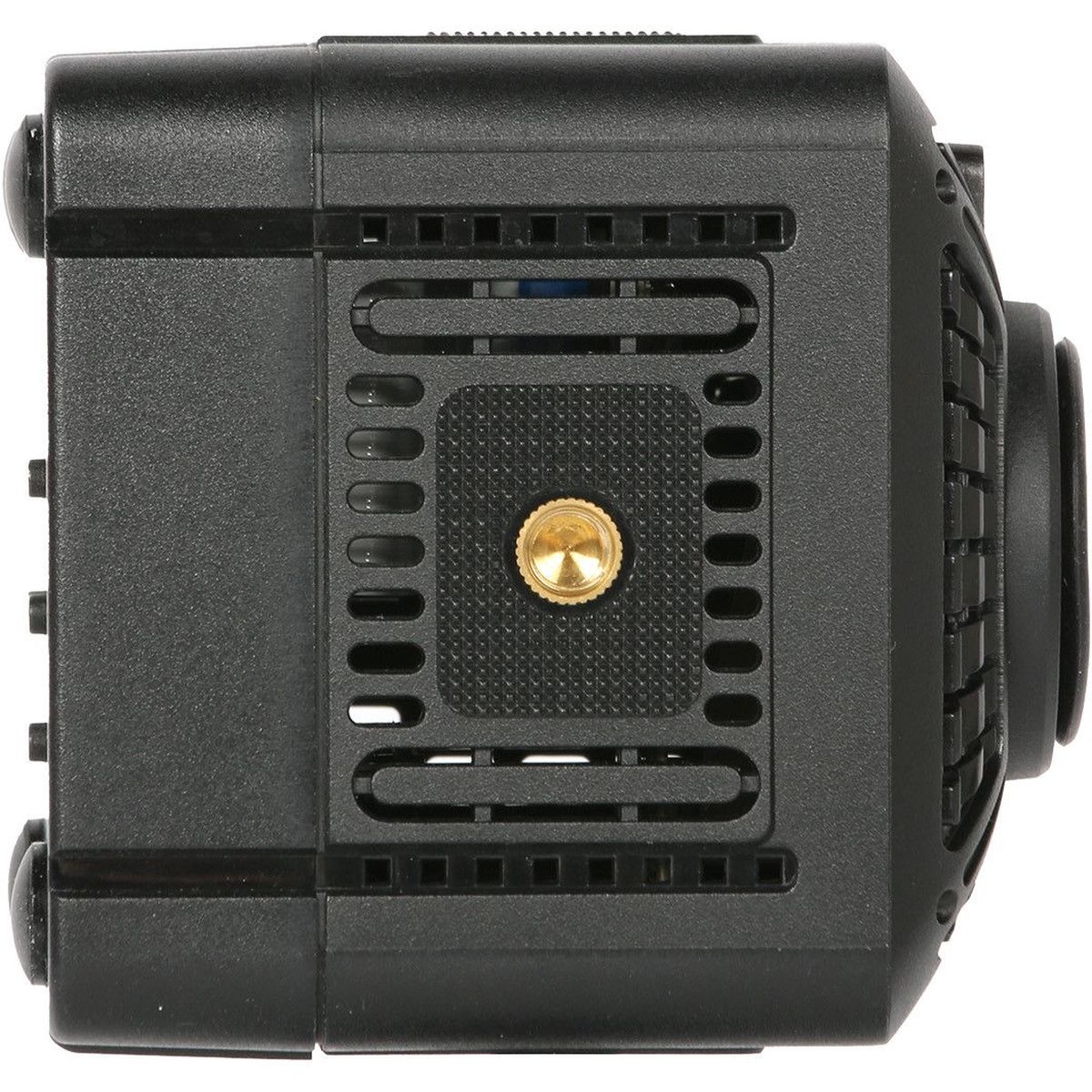

  • Mounting: 3× 1/4-20 UNC
  • Dimensions: 77 × 82 × 78 mm
  • Weight: 204 g without lens
  • Operating temperature: 0–40 °C
  • Noise reduction: 2D/3D
  • White balance: Auto, indoor, outdoor, one-push, color temperature, R/B gain, lock
  • WDR: Yes

SPECIFICATIONS

A view from the action

The compact cube-shaped body can be mounted in different orientations to capture a detail that the main camera does not cover. The BC-15C can, for example, frame a player, a work surface or another fixed position in a multi-camera production.

WE RECOMMEND

The Datavideo BC-15C is a compact 4K POV camera with a CS mount that, thanks to PoE support and an integrated tally light, is ideal for fixed installations and eSports. For optimal operation in a professional environment, we recommend supplementing the camera with monitoring displays, signal distribution converters for long distances, and studio communication systems.

Monitors and Displays - High-quality monitoring monitors for checking 4K images directly at the workstation.

Converters and Signal Distribution - Devices for converting HDMI signals from cameras to SDI or USB for streaming and remote transmission.

Reading devices and accessories - Teleprompters suitable for POV cameras and spare parts for their maintenance.

Communication and Audio Processing - Intercoms and audio processors to ensure synchronization and communication during production.

Control Room and Editing Accessories - Production stations and accessories for rack-mount installation.

Parameters

Parameters

Manufacturer: Datavideo
Category: Compact cameras

Main parameters

Sensor size1/2.3 palce
Resolution1920 × 1080 · 3840 × 2160 (4K UHD)
Lens mountCS mount
Zoom2x
Maximum video resolution4K
OutputEthernet / IP · HDMI 2.0
Video outputs and transferEthernet / IP

Other parameters

Other featuresPoE · Tally
Control protocolDVIP
