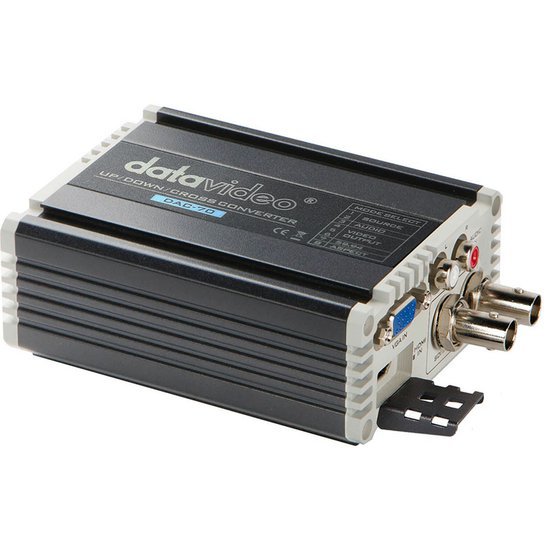

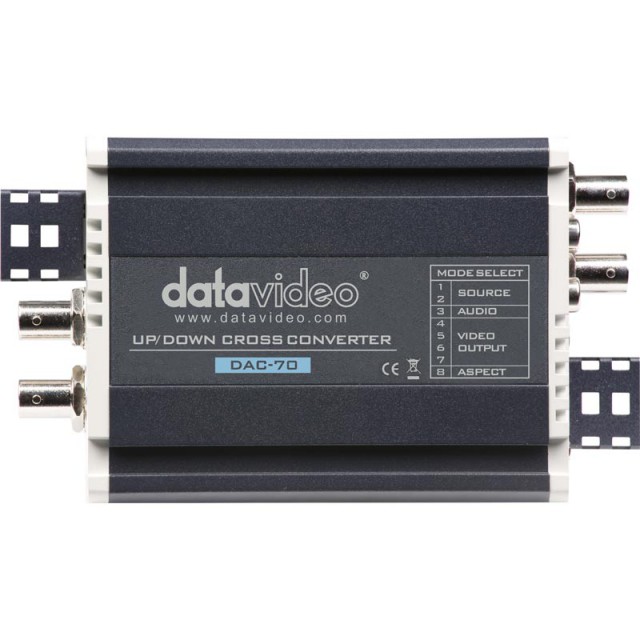

Datavideo DAC-70 Up/Down/Cross Converter

  • Top product
SKU: 2000-2270

The Datavideo DAC-70 is a standalone external video scaler, allowing the conversion of video signals from VGA, HDMI and SDI (incl. audio) to 3G/HD or SD-SDI outputs. Ideal for connecting VGA/HDMI output from PC to SDI devices (e.g. for longer distances).

More information

729 € with VAT 602.48 € without VAT
Add to Compare Price history
Availability
Backordered 1 pcs
SKU:
2000-2270
Add to Compare Price history

Top accessories for Datavideo DAC-70 Up/Down/Cross Converter

HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m

  • 4K / UHD
  • LAST PIECE
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
In stock 1 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
  • SHOWROOM PRAHA
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

Datavideo RMK-2 2U Rackmount Kit

The Datavideo RMK-2 is a 2U rackmount kit that holds up to eight compatible Datavideo
439 €
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo DAC-70 is a standalone external video scaler, allowing the conversion of video signals from VGA, HDMI and SDI (incl. audio) to 3G/HD or SD-SDI outputs. Ideal for connecting VGA/HDMI output from PC to SDI devices (e.g. for longer distances).

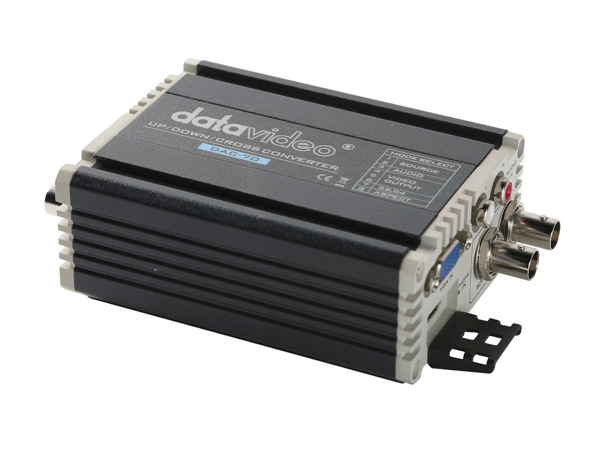

Datavideo DAC-70 multi-format converter on a white background

VGA, HDMI AND SDI SIGNAL CONVERSION

The Datavideo DAC-70 converts VGA, HDMI and 3G/HD/SD-SDI sources to HDMI and SDI. Up, down and cross conversion connects computers, cameras and studio equipment using different video formats.

VGA · HDMI · SDI2× SDI + HDMI output

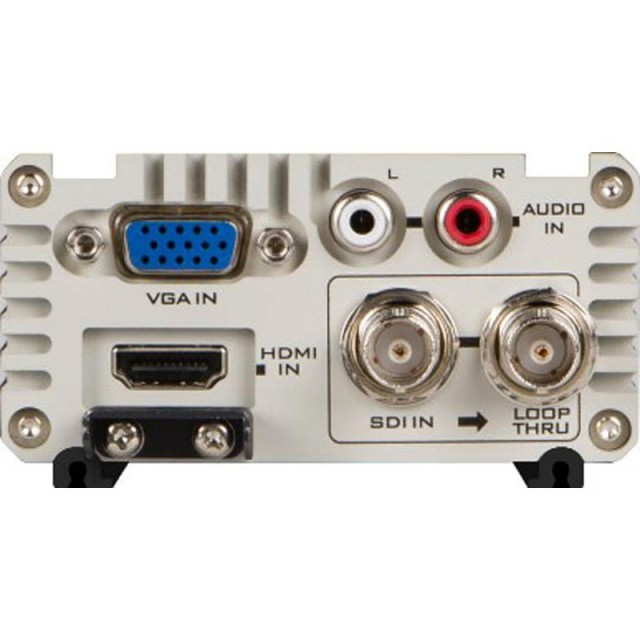

INPUTS AND SIGNAL ROUTING

It accepts VGA, HDMI or 3G/HD/SD-SDI. The SDI input also provides loop-through, allowing the original signal to continue to another device.

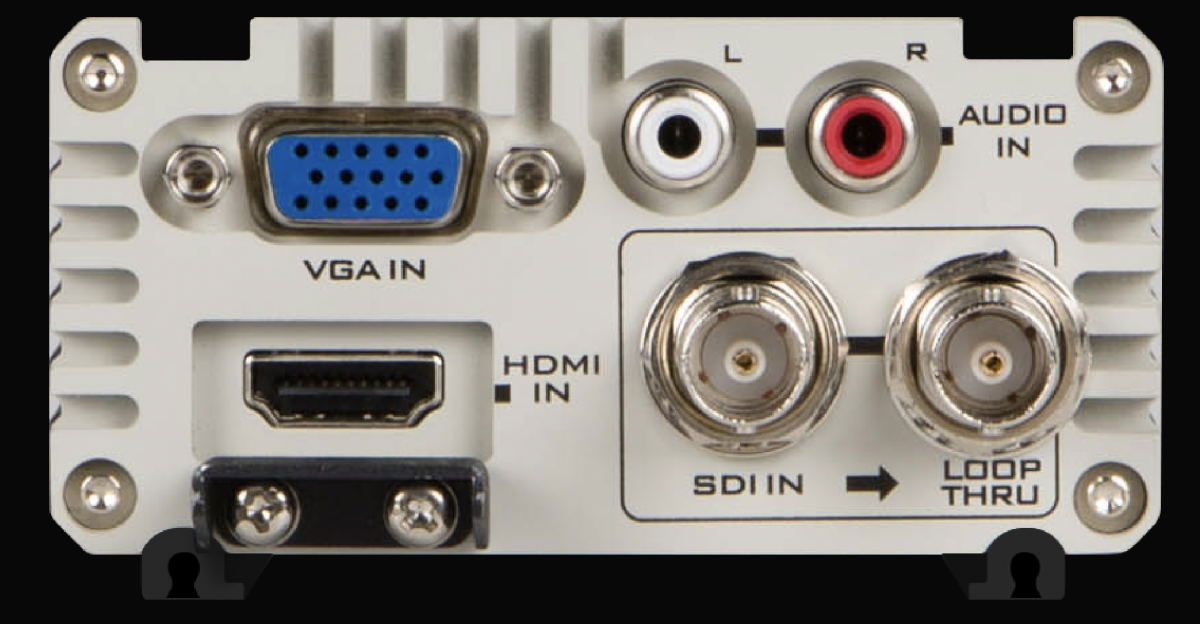

DAC-70 VGA, HDMI, SDI loop-through and stereo RCA audio inputs

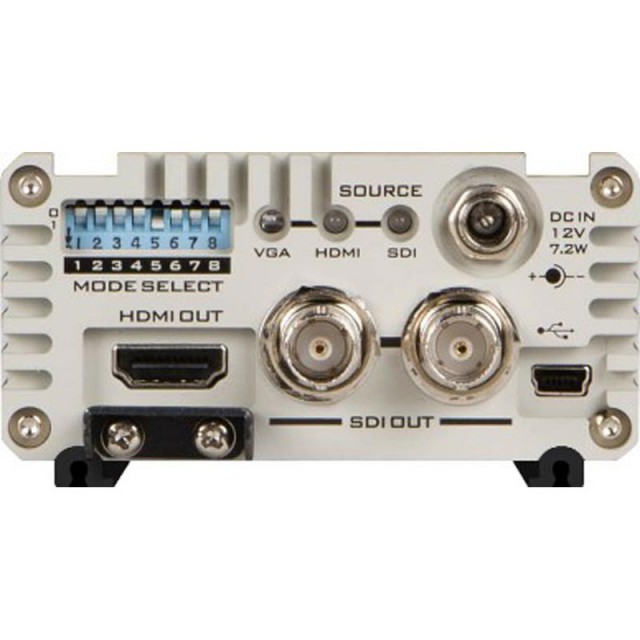

THREE OUTPUTS WITH AUDIO

It provides two 3G/HD/SD-SDI outputs and one HDMI output at the same time. Audio can come from stereo RCA inputs or embedded audio and travel in the SDI or HDMI output signal.

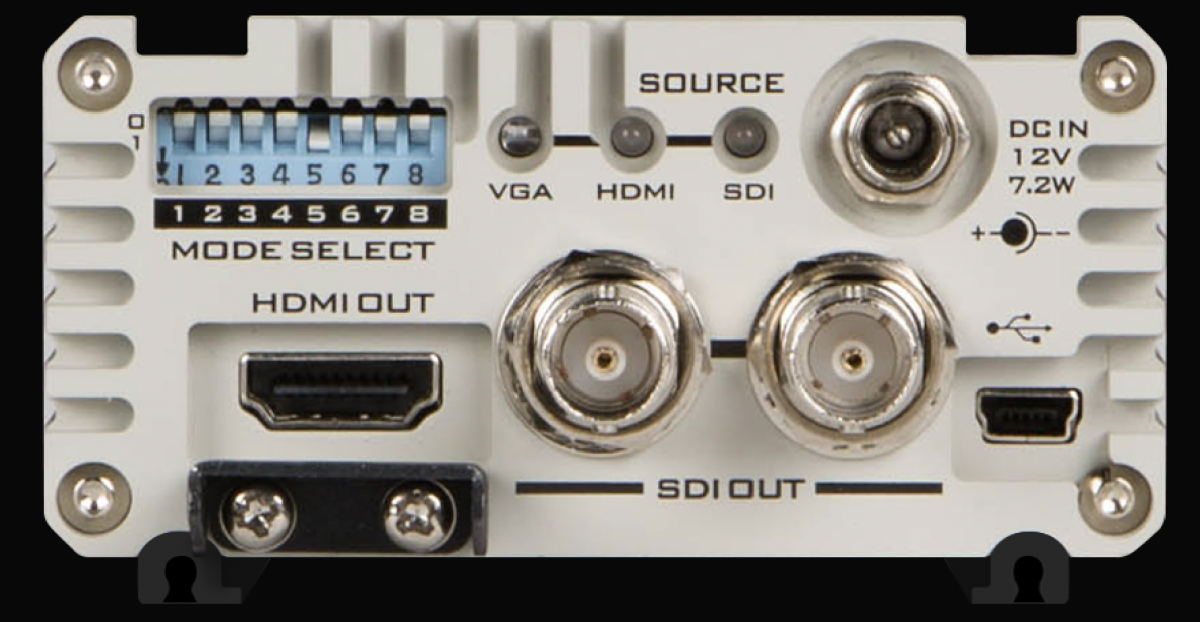

DAC-70 HDMI and SDI outputs and rear controls

PACKAGE CONTENT

  • Datavideo DAC-70 converter
  • 12 V / 1 A power adapter and power cord
  • DIP switch Pin 8 label

SPECIFICATIONS

  • Inputs: 1 × VGA, 1 × HDMI, 1 × 3G/HD/SD-SDI
  • Outputs: 2 × 3G/HD/SD-SDI, 1 × HDMI

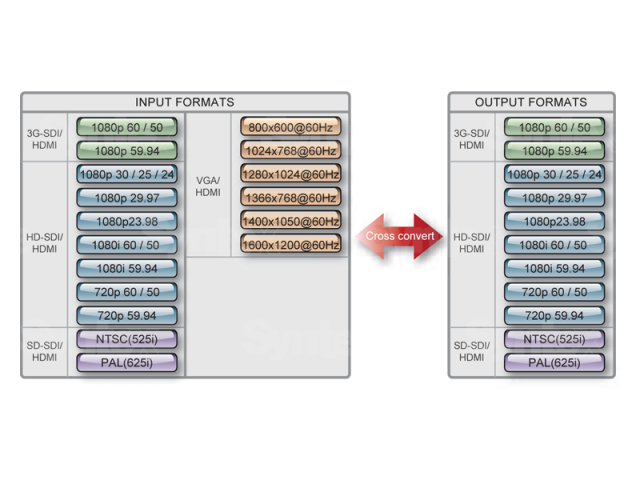

  • Conversion: Up, down and cross conversion between VGA, HDMI and SDI
  • SDI support: 3G-SDI Level A/B; equalizer and reclocking
  • Power: 12 V DC, 6 W
  • Dimensions and weight: 112 × 85 × 45 mm; 0.4 kg
  • Operating temperature: 0 to 40 °C
Parameters

Parameters

Manufacturer: Datavideo
Category: Signal converters

Main parameters

Other featuresScaler · Audio input · Audio output · SDI loop-through
SourceSDI · HDMI · VGA
TargetHDMI · SDI
