AvMatrix SC7030

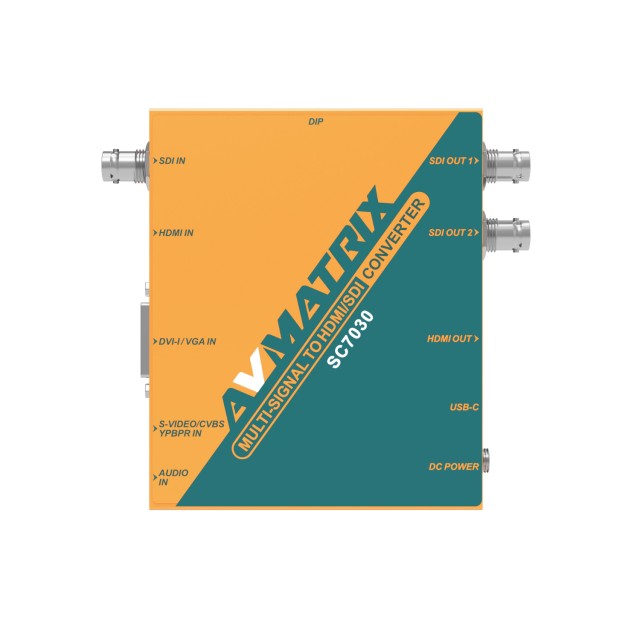

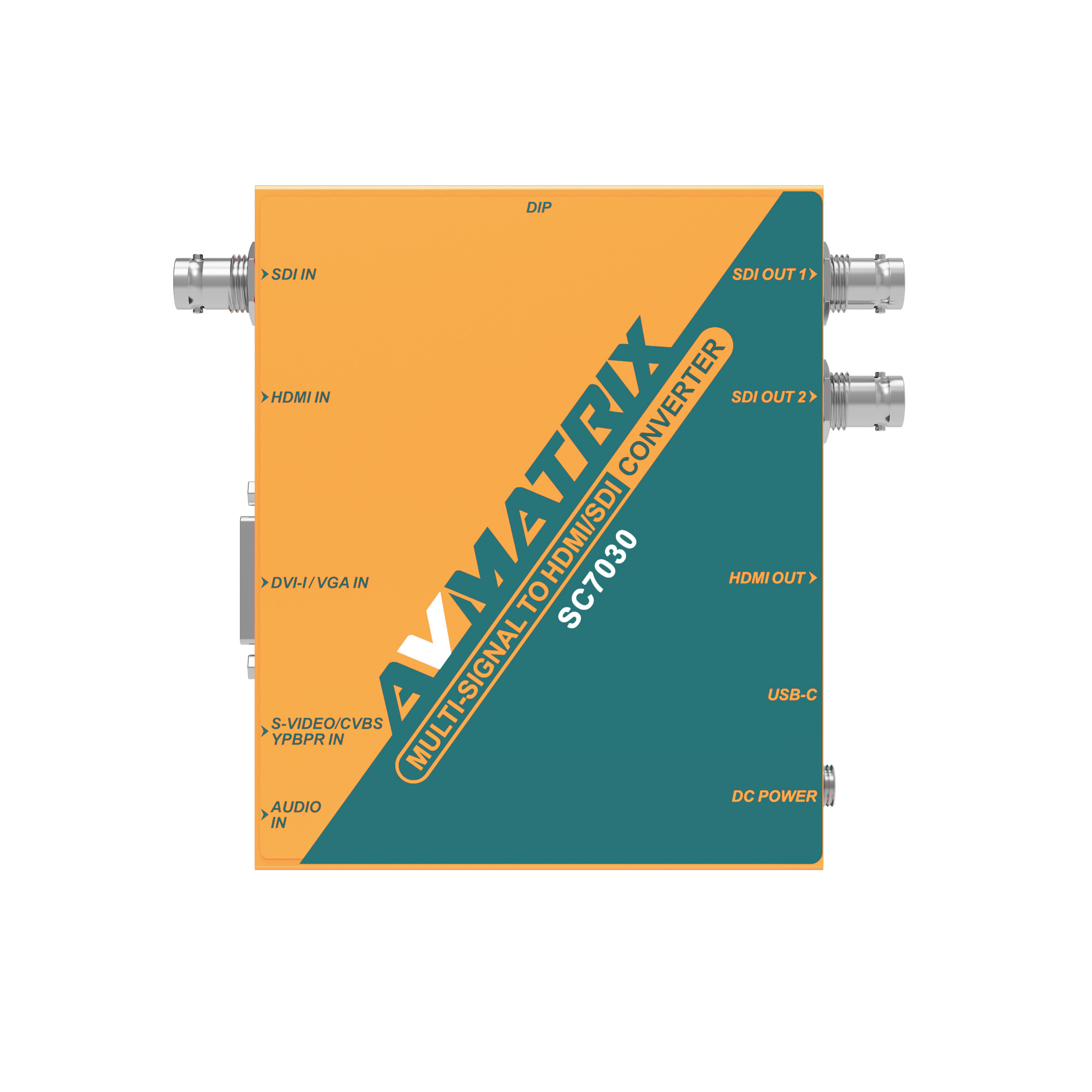

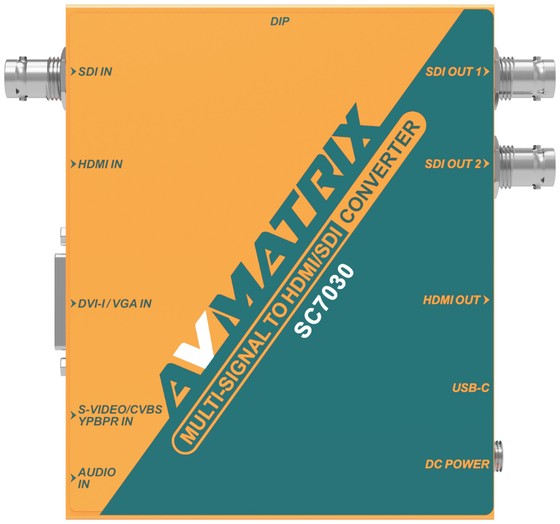

AVMATRIX SC7030 is a universal multi-format scaler and cross-converter for SDI, HDMI, DVI-I, VGA, CVBS, S-Video and component YPbPr. It converts and scales the selected input to dual SDI outputs and one HDMI output up to 1080p60.

AVMATRIX SC7030 is a universal multi-format scaler and cross-converter for SDI, HDMI, DVI-I, VGA, CVBS, S-Video and component YPbPr. It converts and scales the selected input to dual SDI outputs and one HDMI output up to 1080p60.

Key features

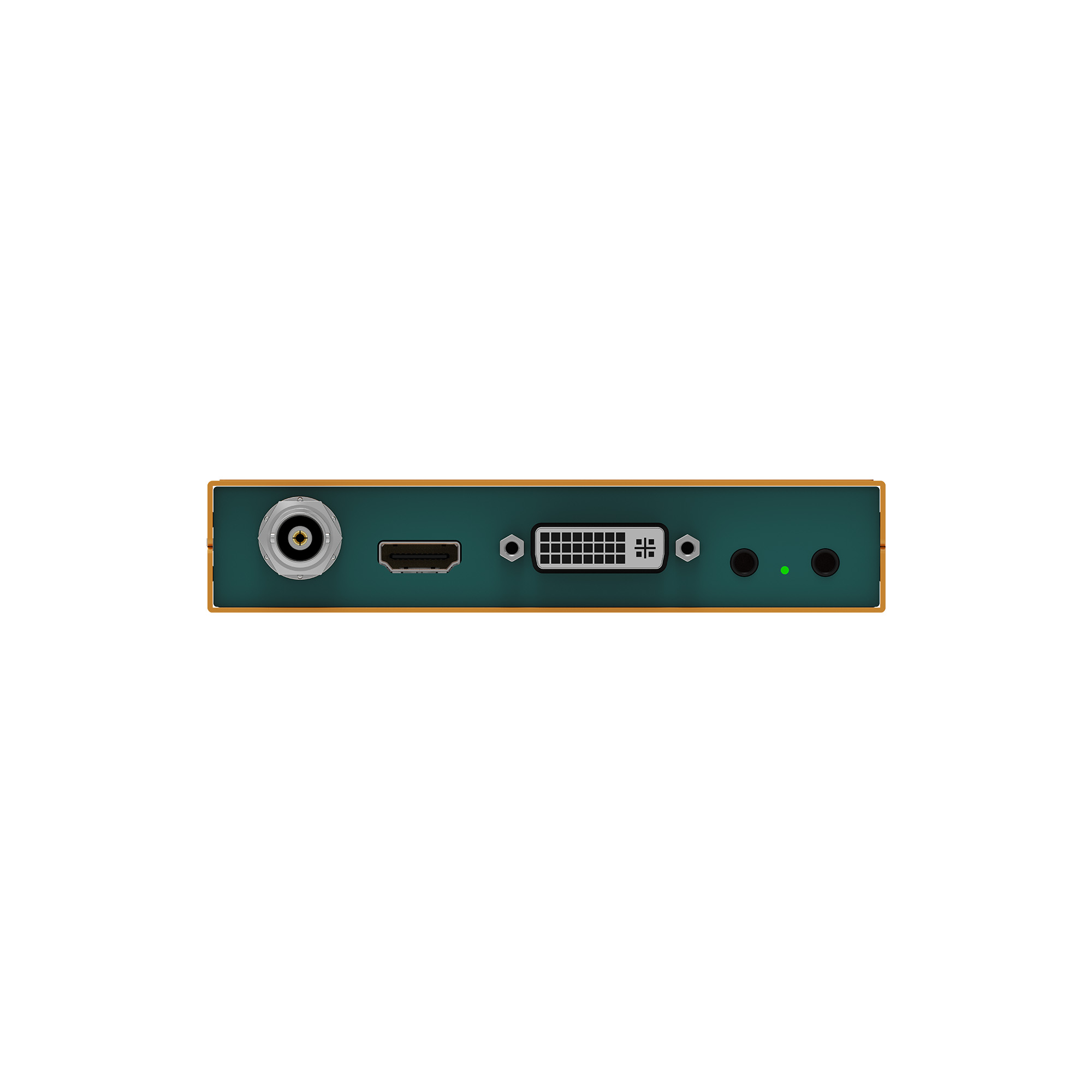

• SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr inputs

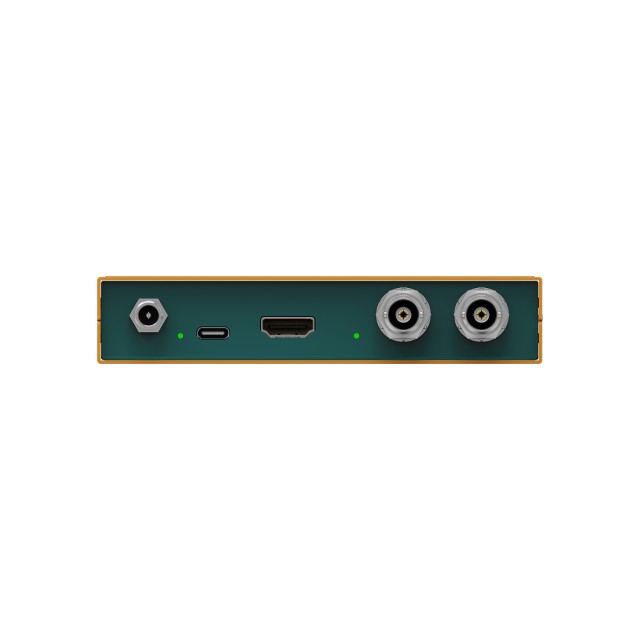

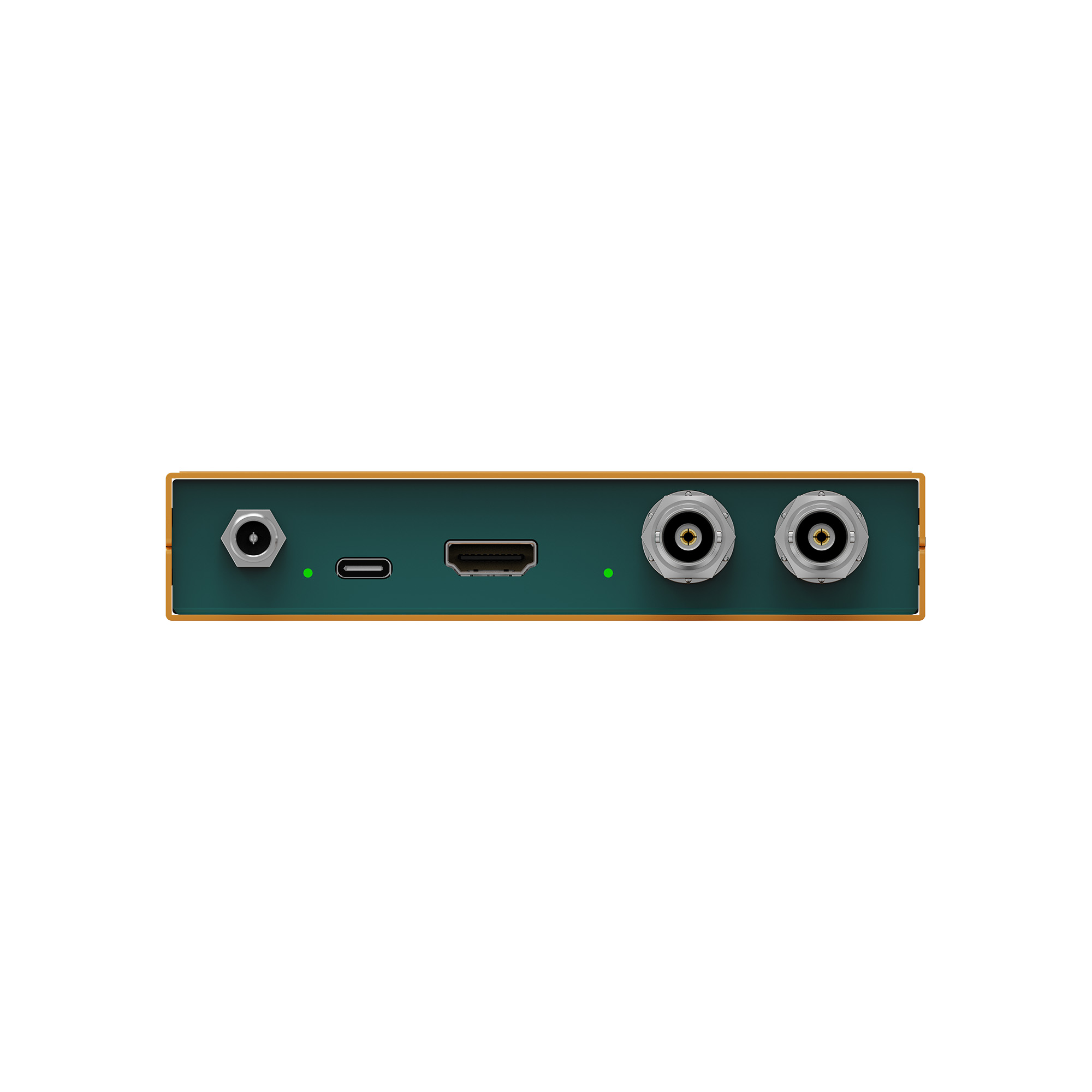

• 2× SDI and 1× HDMI outputs
• Up/downscaling and frame-rate conversion
• Support up to 1080p60
• 4:3 and 16:9 aspect-ratio conversion
• Analogue audio embedding
• Video and power LED indicators

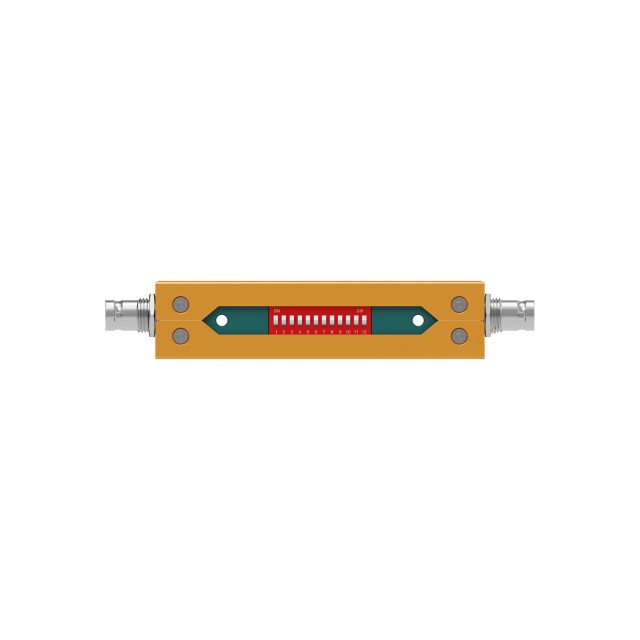

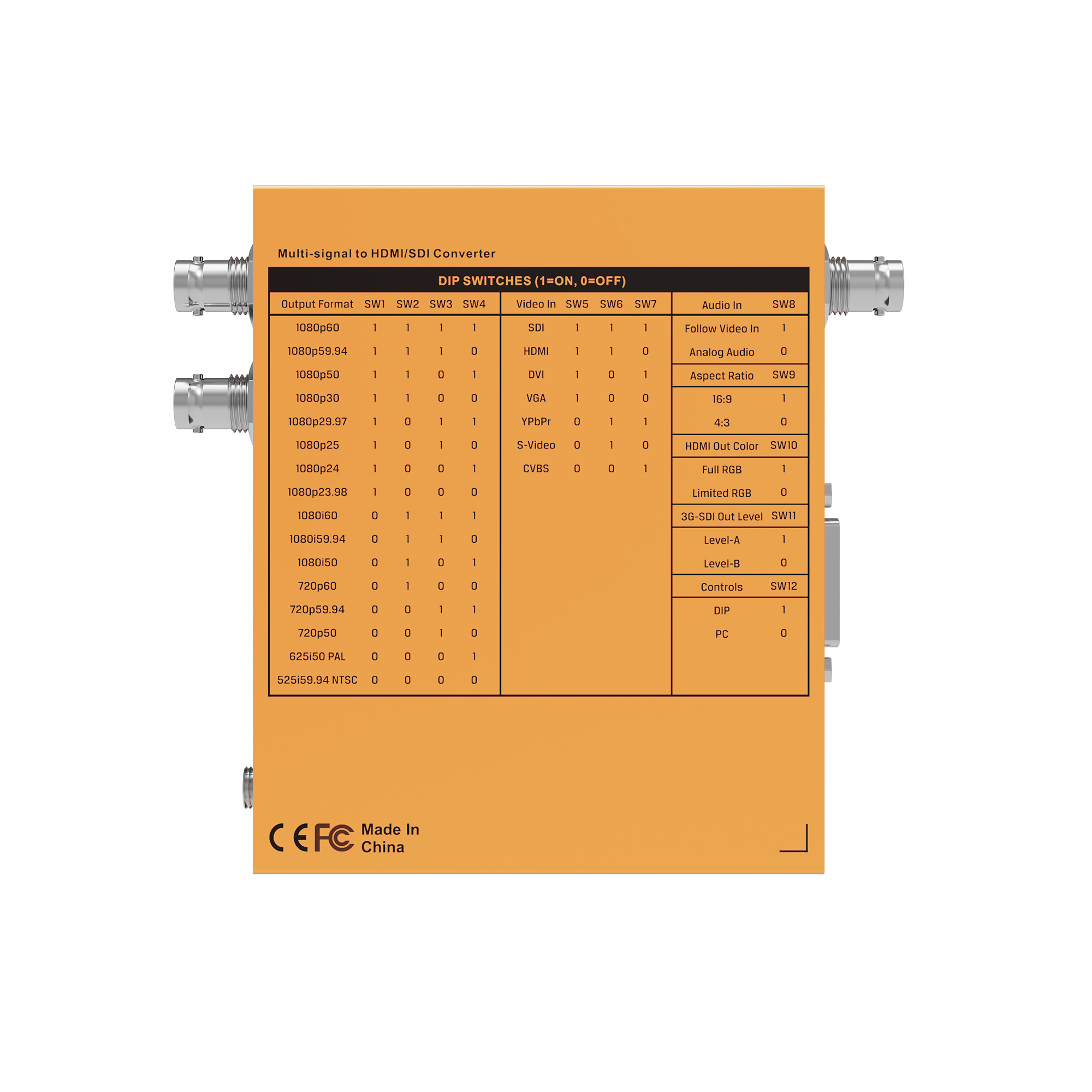

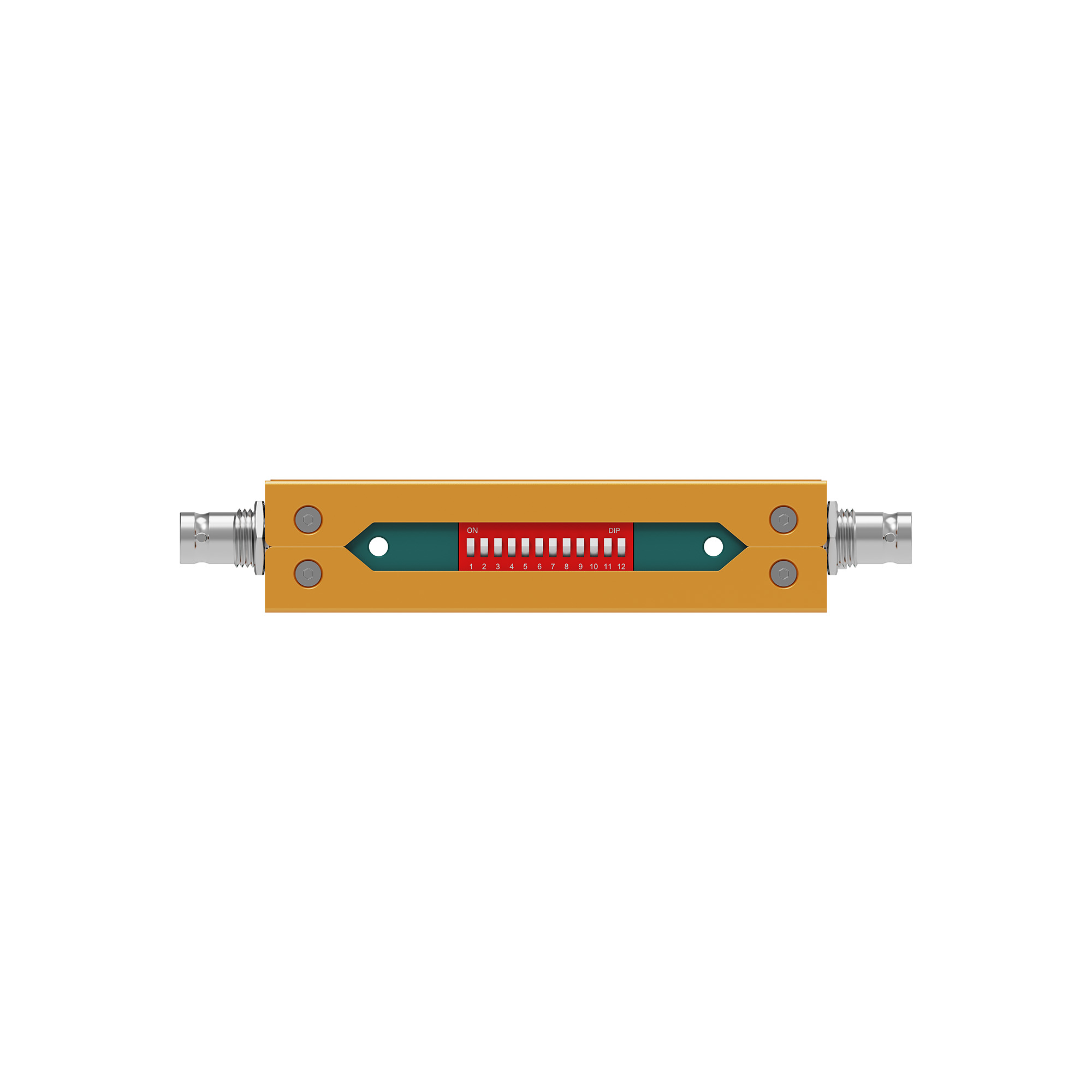

• DIP-switch and PC software control
• 12V DC or 5V USB-C power

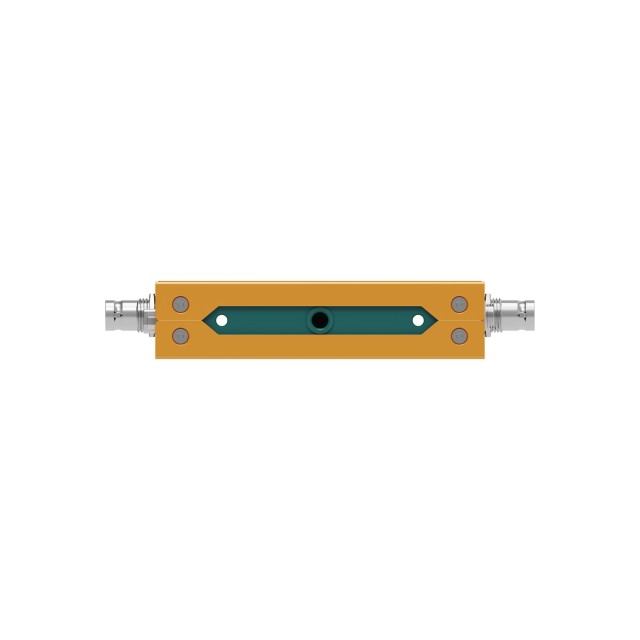

• Optional detachable bracket

Central converter for modern and legacy sources

SC7030 unifies a broad range of digital and analogue interfaces into professional SDI and HDMI outputs. It integrates legacy players, computers, cameras and presentation equipment into a modern production chain.

Scaler and aspect-ratio conversion

The output can be adapted by resolution, frame rate and 4:3 or 16:9 aspect ratio. An analogue audio input embeds separate sound into the resulting signal.
