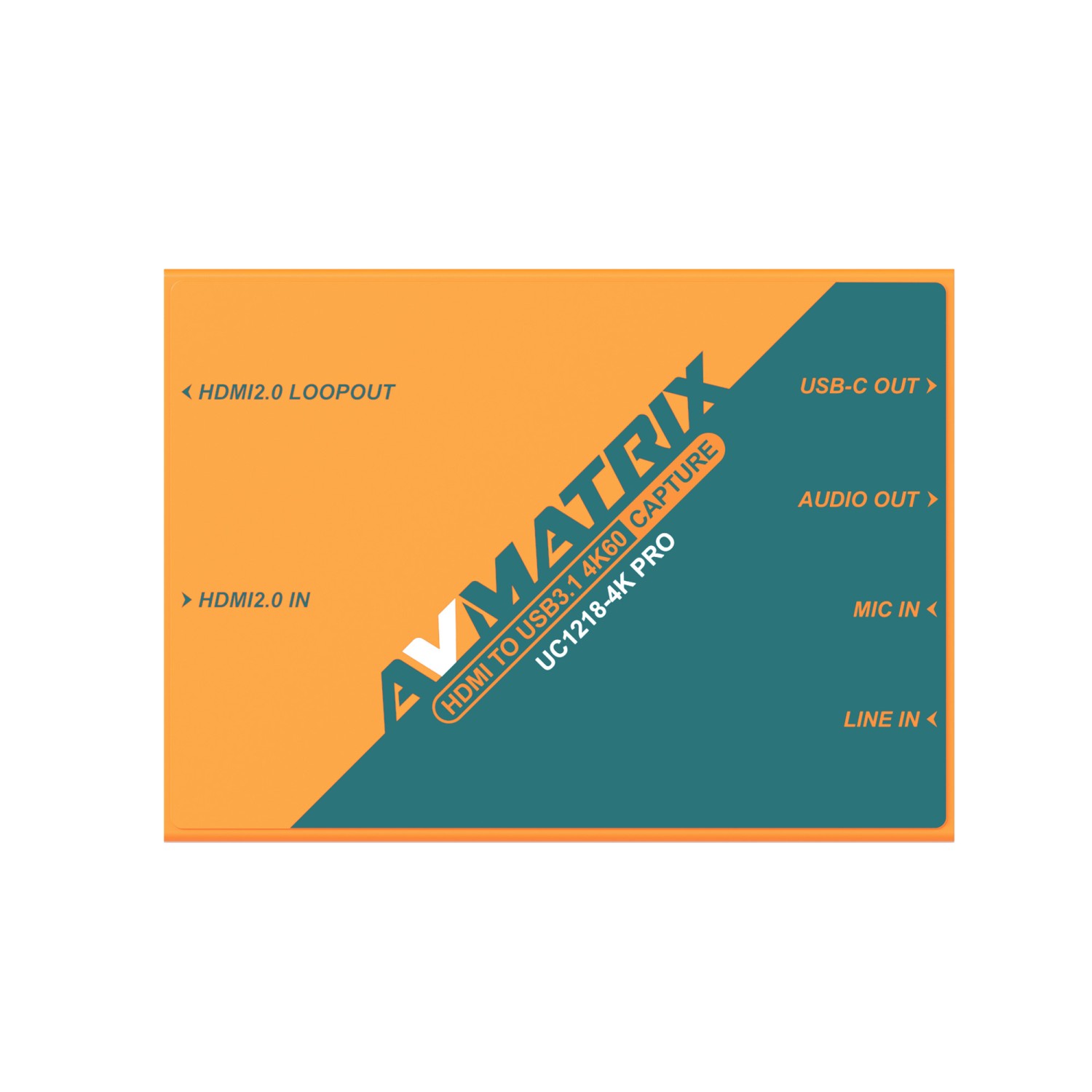

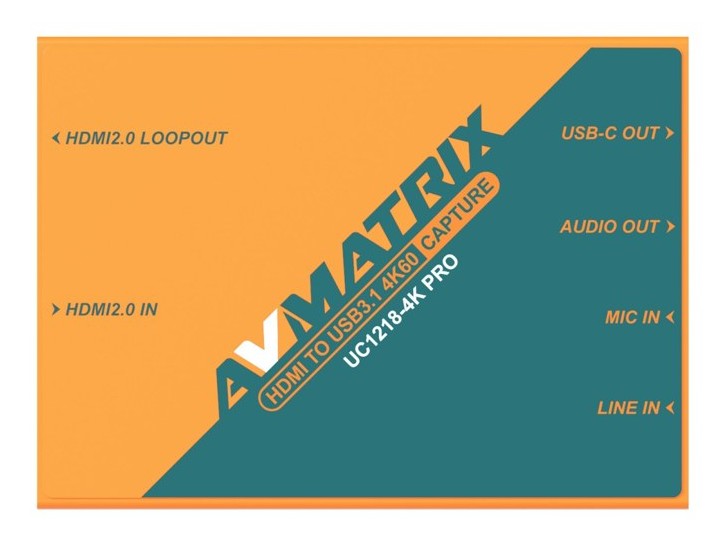

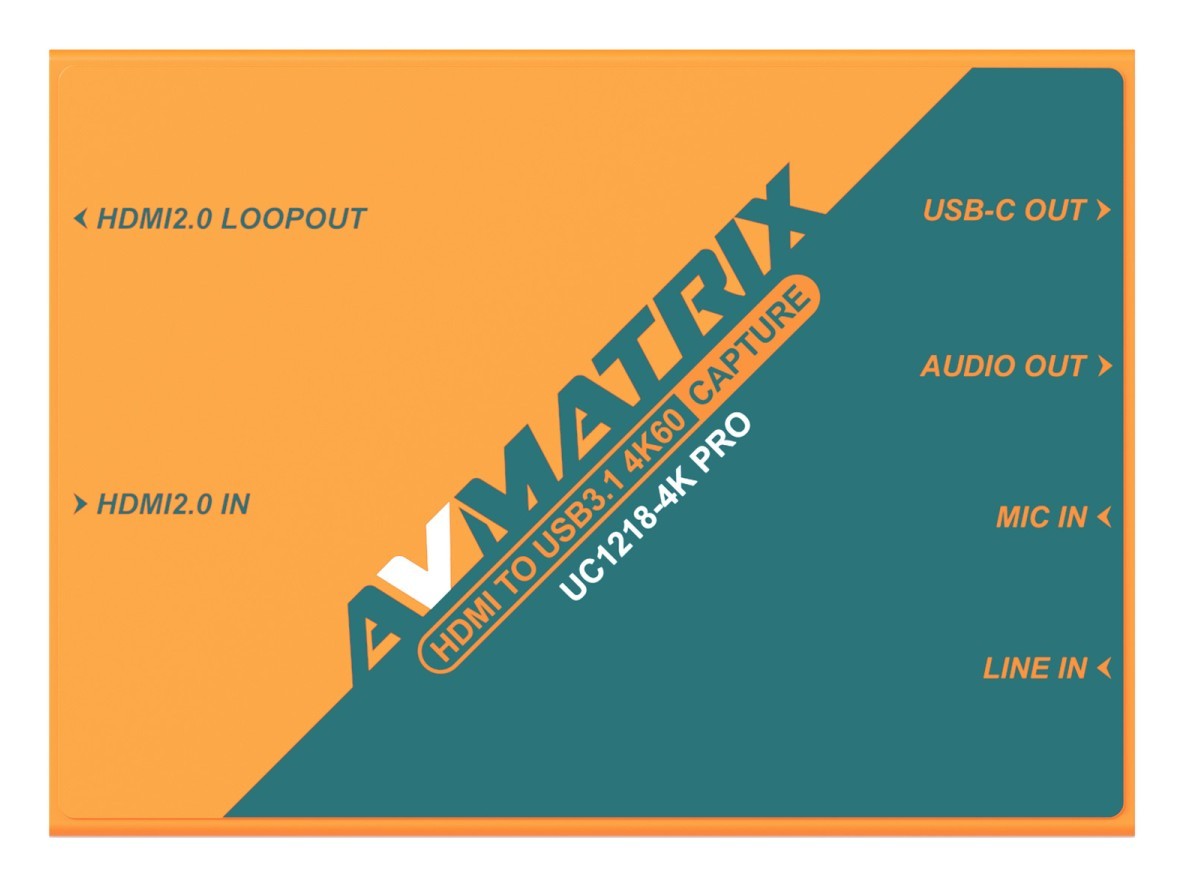

AVMatrix UC1218-4K PRO HDMI TO USB3.1 4K60 Capture Box

AVMATRIX UC1218-4K PRO is a professional HDMI capture box providing uncompressed video and audio capture up to 4K60 over USB 3.1. It features a 4K HDMI loop, mic/line input, audio output and broad captured-format support.

AVMATRIX UC1218-4K PRO is a professional HDMI capture box providing uncompressed video and audio capture up to 4K60 over USB 3.1. It features a 4K HDMI loop, mic/line input, audio output and broad captured-format support.

Key features

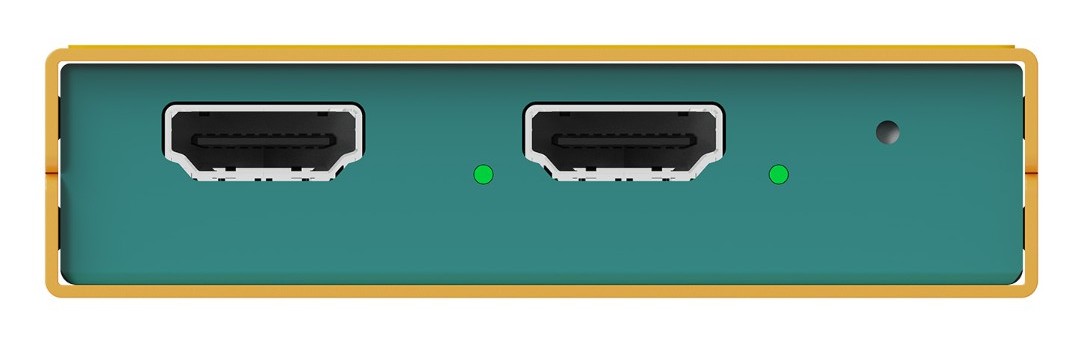

• HDMI input and uncompressed capture up to 4K60
• 4K HDMI loop output
• USB 3.1 output

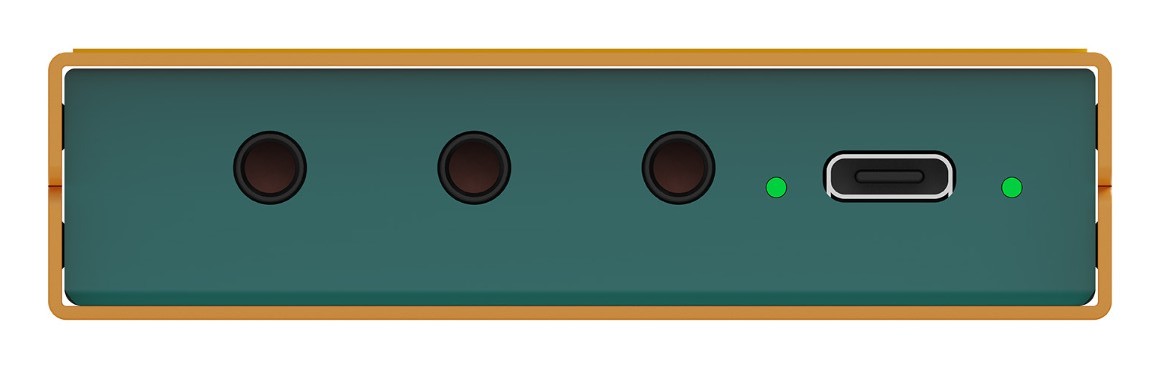

• Mic/line input and audio output
• RGB24, P010, YUY2, NV12, I420 and MJPG
• Driver-free and adapter-free plug-and-play
• Windows, Linux and macOS
• OBS, Zoom, Teams, Twitch and vMix

Uncompressed 4K60 capture

The PRO version preserves the original picture up to 4K60 and offers professional formats including 10-bit P010. Its HDMI loop enables simultaneous monitoring without loading the computer.
