AvMatrix UC7018
SKU: UC7018
AVMATRIX UC7018 is a multi-format USB capture device for SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr. It converts digital and analogue sources to uncompressed UVC video up to 1080p60 and UAC audio over USB 3.1 Gen 1 Type-C.
398 € with VAT
328.93 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for AvMatrix UC7018
Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs
Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
In stock 1 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
AVMATRIX UC7018 is a multi-format USB capture device for SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr. It converts digital and analogue sources to uncompressed UVC video up to 1080p60 and UAC audio over USB 3.1 Gen 1 Type-C.
Digital and analogue sources over one USB-C
AVMATRIX UC7018 is a multi-format USB capture device for SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr. It converts digital and analogue sources to uncompressed UVC video up to 1080p60 and UAC audio over USB 3.1 Gen 1 Type-C.
SDI, HDMI, DVI-IVGA, CVBS, S-Video, YPbPrUp to 1080p60USB 3.1 Gen 1 Type-CUVC/UAC, driver-freeUSB bus powered
Modern and legacy sources in one workflow
UC7018 unifies modern and legacy video interfaces into a standard USB capture workflow. It suits archiving, presentations, education, live streaming and integration of older equipment.
Digital inputs
SDI, HDMI and DVI-I for modern cameras, computers and players.
Analogue inputs
VGA, CVBS, S-Video and YPbPr, plus an analogue audio input.
Uncompressed capture
Up to 1080p60 in RGB, YUY2 and NV12 with automatic input signal detection.
DIP switch and PC control
Select the input with the DIP switches or PC software; LEDs show video and power status.

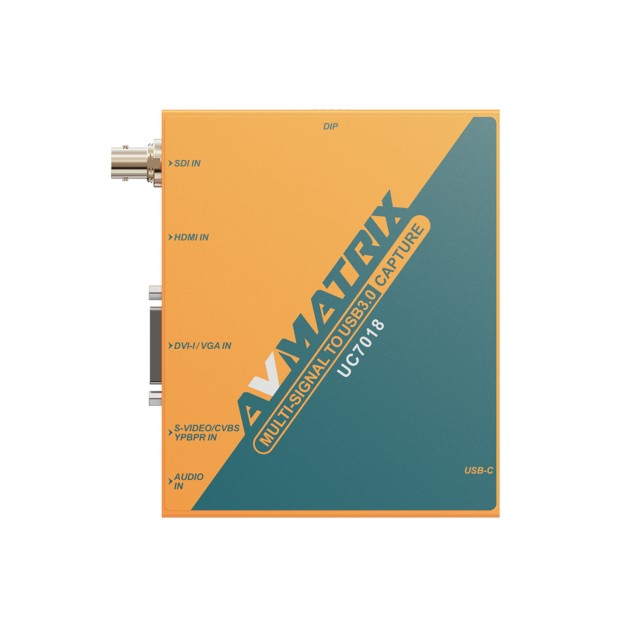

Device view
Compact metal body with the model name and input/output labels.

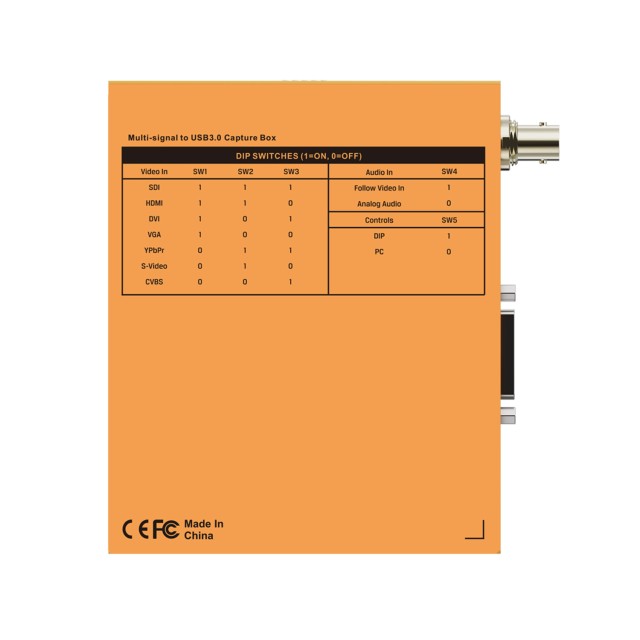

DIP switch table
The back carries the table of DIP-switch settings used to select the input.

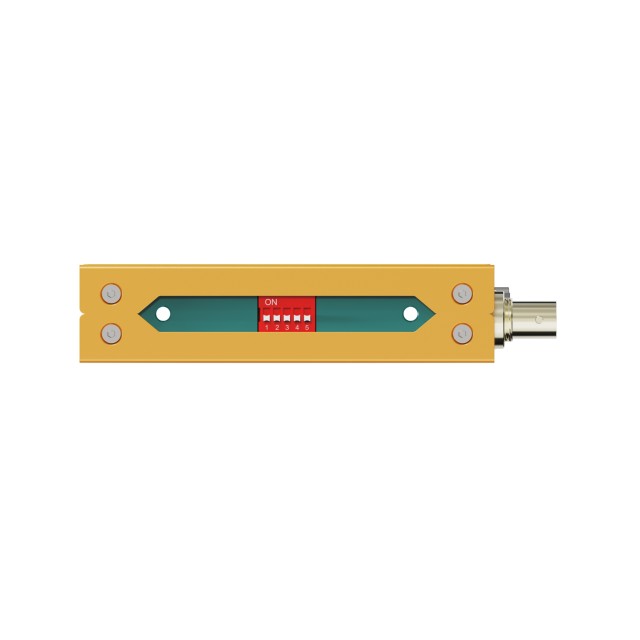

DIP switches and BNC connector
Side panel with the DIP switches and the BNC connector for the SDI input.
More information
About the device
AVMATRIX UC7018 is a multi-format USB capture device for SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr. It converts digital and analogue sources to uncompressed UVC video up to 1080p60 and UAC audio over USB 3.1 Gen 1 Type-C.
Key features
- SDI, HDMI, DVI-I, VGA, CVBS, S-Video and YPbPr inputs
- Analogue audio input
- USB 3.1 Gen 1 Type-C
- Uncompressed capture up to 1080p60
- UVC/UAC; RGB, YUY2 and NV12
- Automatic input signal detection
- Video and power LED indicators
- USB-C for capture, power and firmware
- DIP-switch and PC software control
- Windows, Linux, macOS; OBS, Zoom, Teams, Twitch and vMix
Capture from digital and analogue sources. UC7018 unifies modern and legacy video interfaces into a standard USB capture workflow. It suits archiving, presentations, education, live streaming and integration of older equipment.
PACKAGE CONTENT
- 1× AVMATRIX UC7018
- 1× USB Type-C cable
- 1× user documentation
SPECIFICATIONS
- Video inputs: SDI, HDMI, DVI-I, VGA, CVBS, S-Video, YPbPr
- Audio input: analogue
- USB: USB 3.1 Gen 1 Type-C
- Maximum capture: 1080p60
- Formats: UVC/UAC; RGB, YUY2, NV12
- Power: USB bus powered
ARTICLES
Parameters
![]()
![]()
Parameters
| Manufacturer: | AVMATRIX |
| Category: | Capture cards external USB/TB |
Main parameters
| Maximum resolution | 1920×1080 @ 60 fps |
| Output | USB-C (UVC/UAC) |
| Inputs | HDMI · SDI · YUV · Composite · S-Video · Audio |
| Interface type | UVC/UAC compliant · USB-C |
Other parameters
| Other | Multiple inputs |
