AVMatrix SHARK S8X

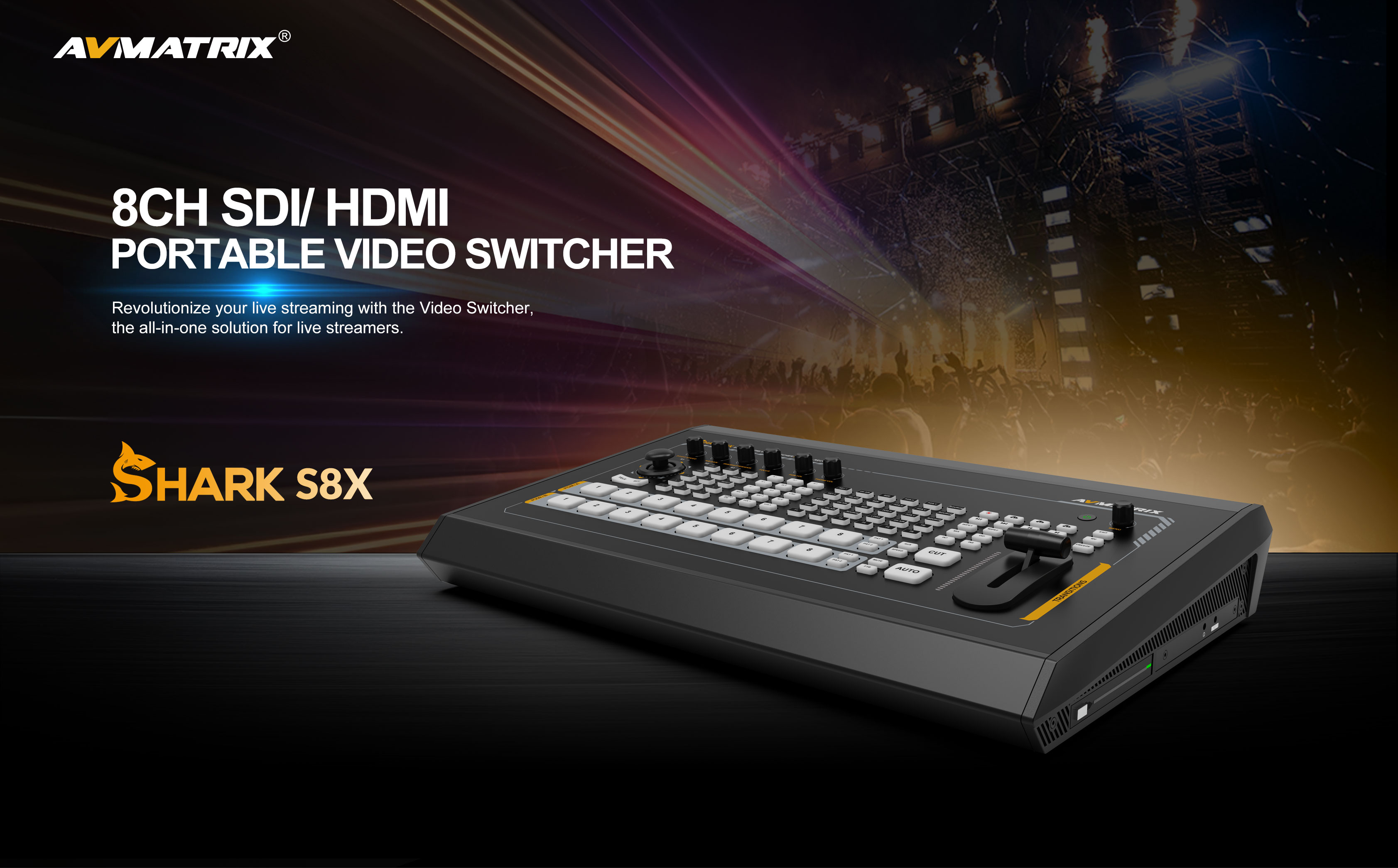

AVMatrix Shark S8X – 8-Channel SDI/HDMI Live Production Switcher: 6×3G-SDI + 2×4K HDMI inputs, flexible multi-view routing, AUX (playback/UVC/NDI), 6×PGM outputs, RTMP/SRT/NDI streaming, USB-C UVC, 8×PTZ control, pro XLR audio, T-bar, chroma key, 3×PIP, macros & tally.

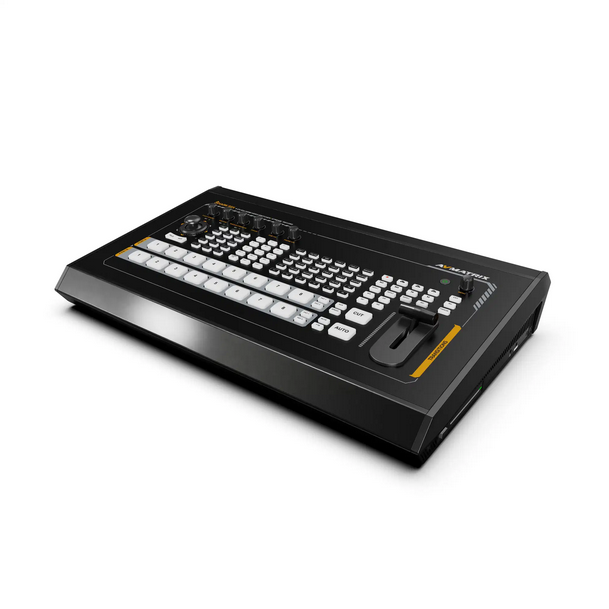

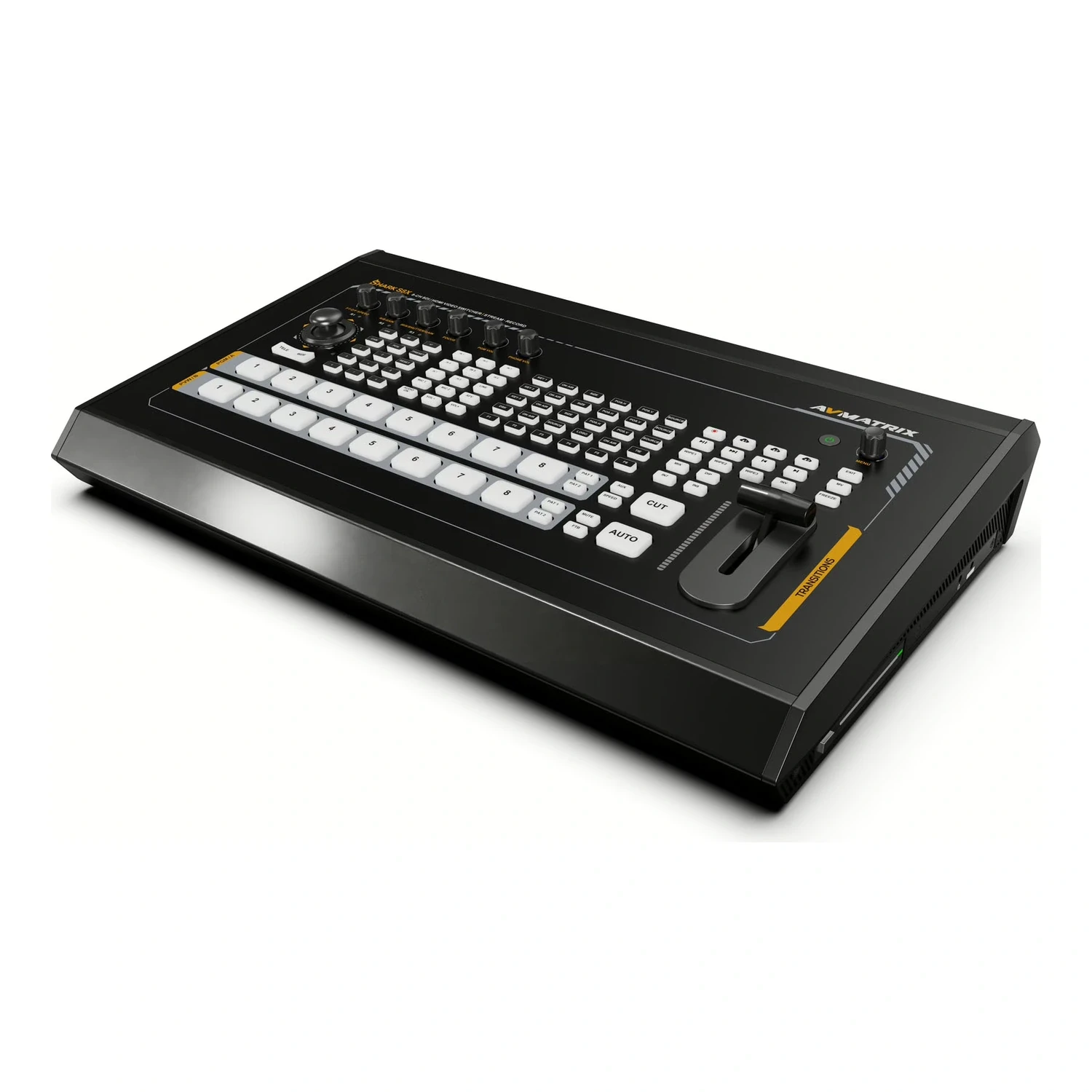

The AVMatrix Shark S8X is the ultimate compact 8-channel live production switcher for professional multi-camera workflows. Built around a bright 15.6″ 1080p touchscreen, it handles 6×3G-SDI + 2×4K60 HDMI inputs with full multi-view source routing – assign any source to any preview window instantly.

A dedicated AUX input accepts local video playback, UVC webcam, RTSP pull-stream, or optional NDI, making it perfect for remote guests or pre-recorded content. Output simultaneously via 2×HDMI PGM, 4×SDI PGM (all independently configurable), plus HDMI multiview and REF loop-through. Stream via RTMP/SRT/RTSP or optional NDI while recording PGM or ISO to USB drive, SD card, or 2.5″ SATA SSD. USB-C delivers lossless UVC/UAC capture straight to OBS/vMix/Zoom.

Vision mixing includes chroma key, luma key, 3× resizable PIP/POP, DSK, logo overlay, and silky T-bar/Auto/Cut transitions. Professional balanced XLR audio (48V phantom) with embedded + line inputs and full mixing. Control up to 8 PTZ cameras (VISCA/IP, Pelco) with speed, presets, WB, and focus. Record and edit complex macro scripts, plus GPIO tally for on-air lights.

Rugged aluminum chassis, single 12-19V power, and optional V-mount plate make the Shark S8X the ideal flypack for houses of worship, corporate events, education, esports, and mobile production.

Key Features

• 8-Channel Switching – 6×3G-SDI + 2×HDMI 2.0 (4K60) + AUX (playback/UVC/RTSP/NDI)
• Flexible Multi-View – Freely route any source to any preview window

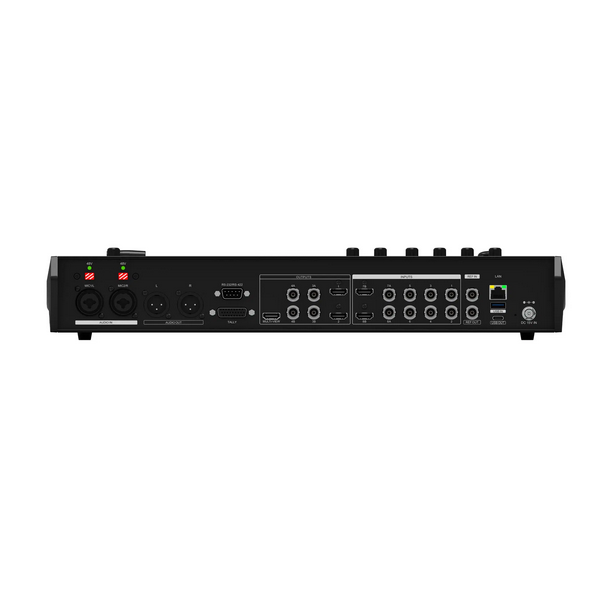

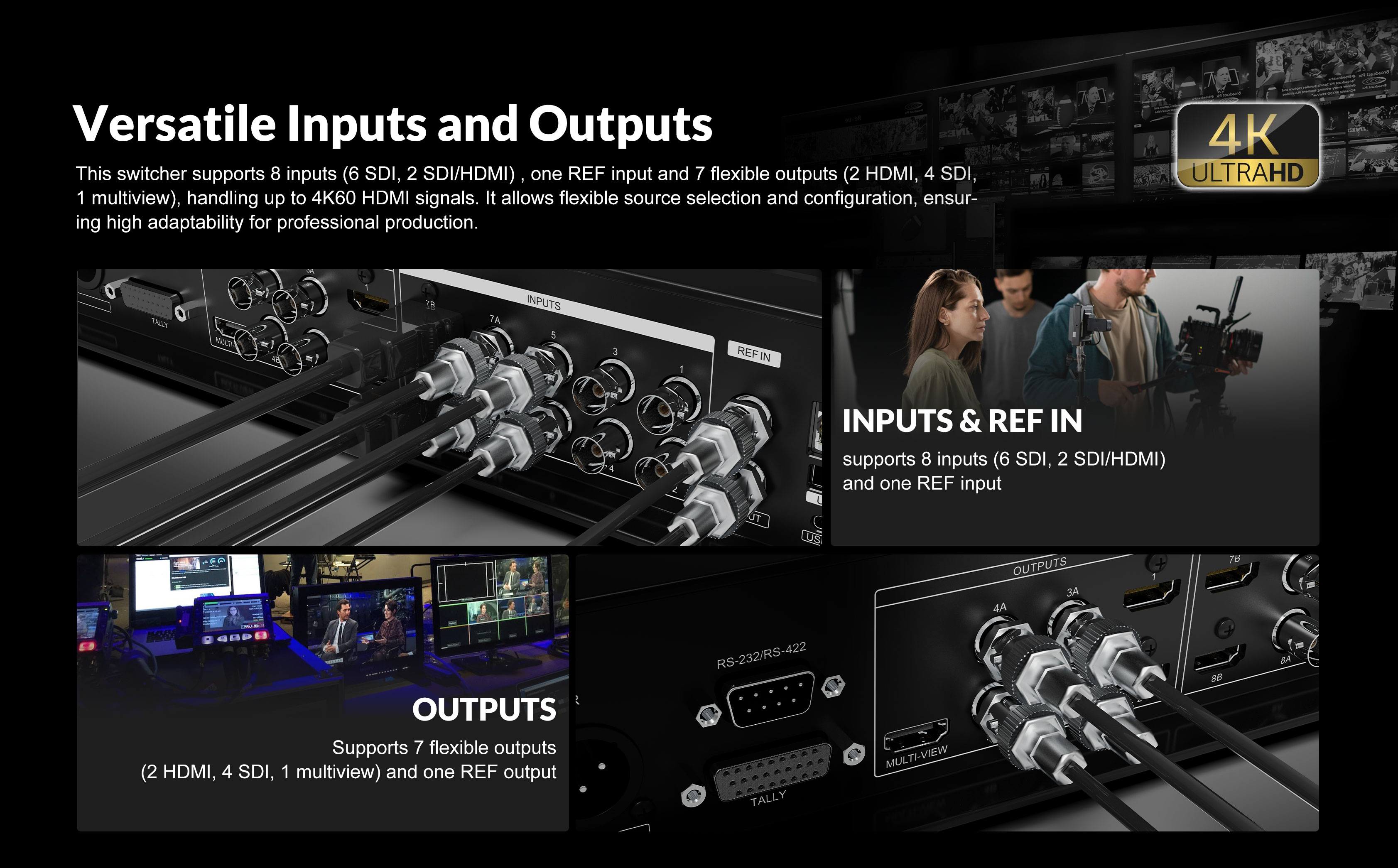

• Outputs – 2×HDMI PGM + 4×SDI PGM + HDMI multiview + REF loop-through
• Streaming – RTMP/SRT/RTSP + optional NDI

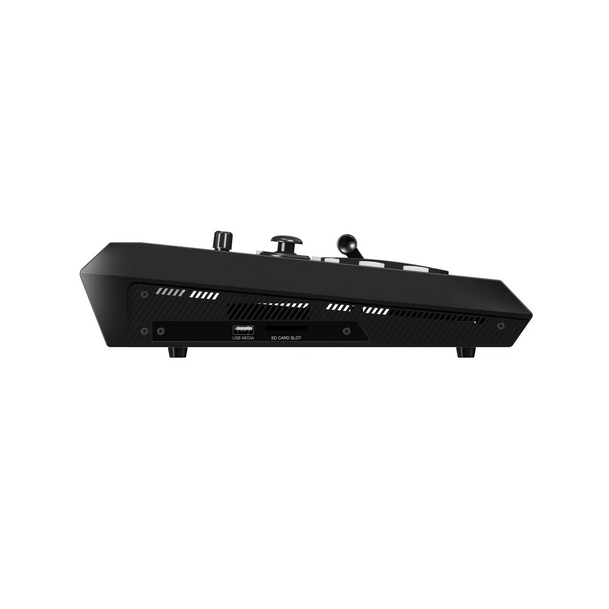

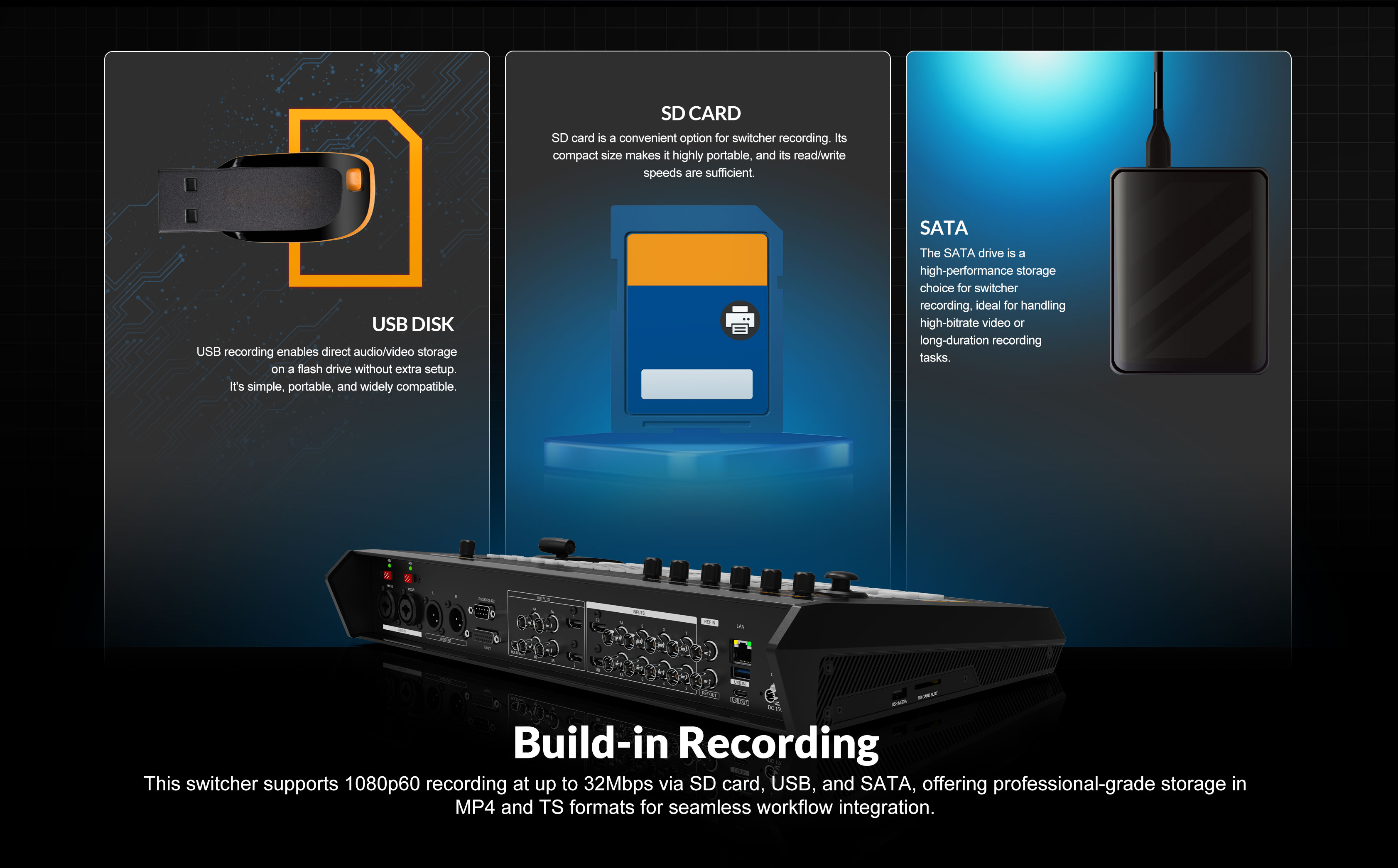

• Recording – USB drive / SD card / 2.5″ SATA SSD
• USB-C UVC – Lossless plug-and-play capture to laptop

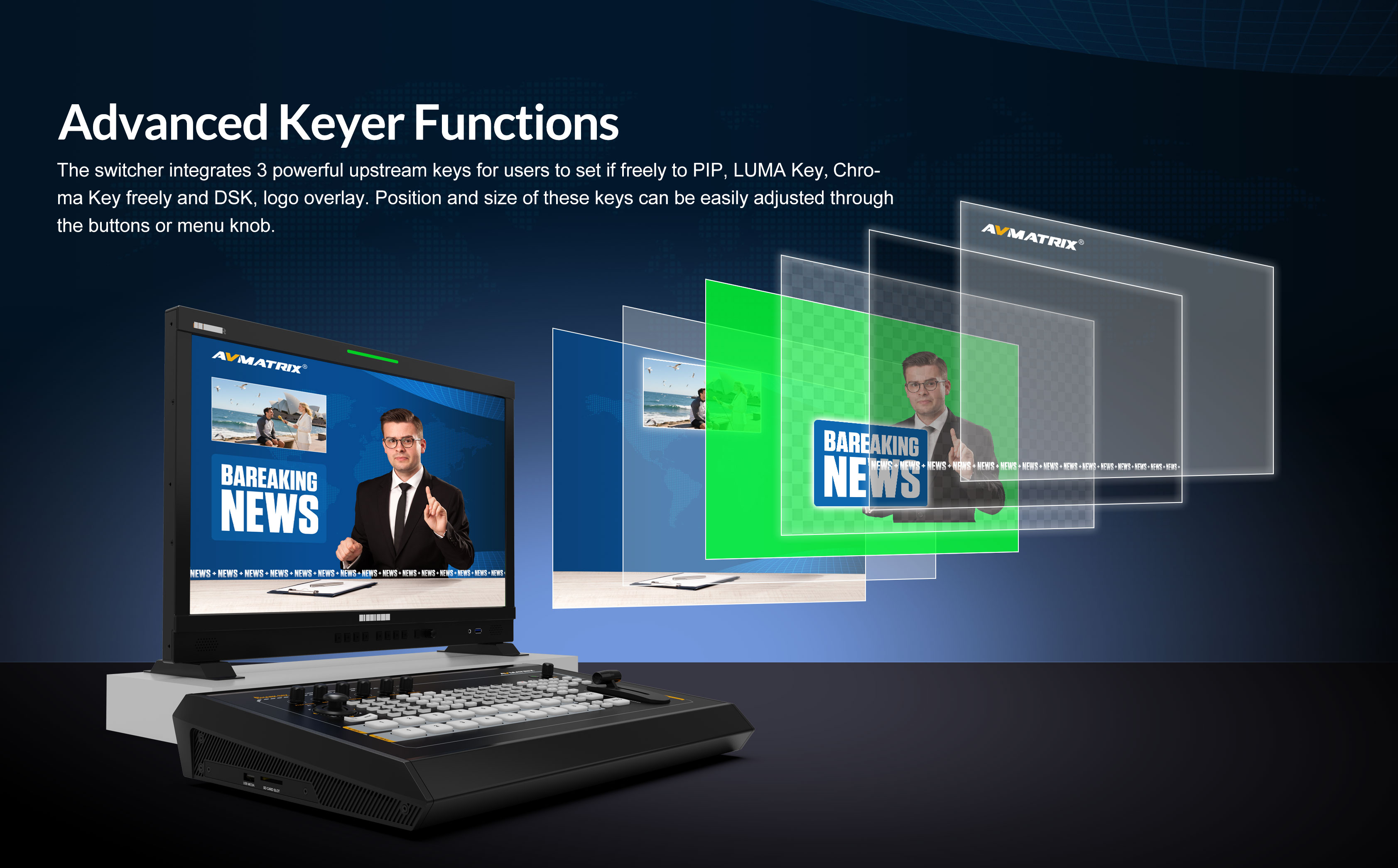

• Advanced Keying – Chroma/luma key, 3×PIP/POP, DSK, logo overlay

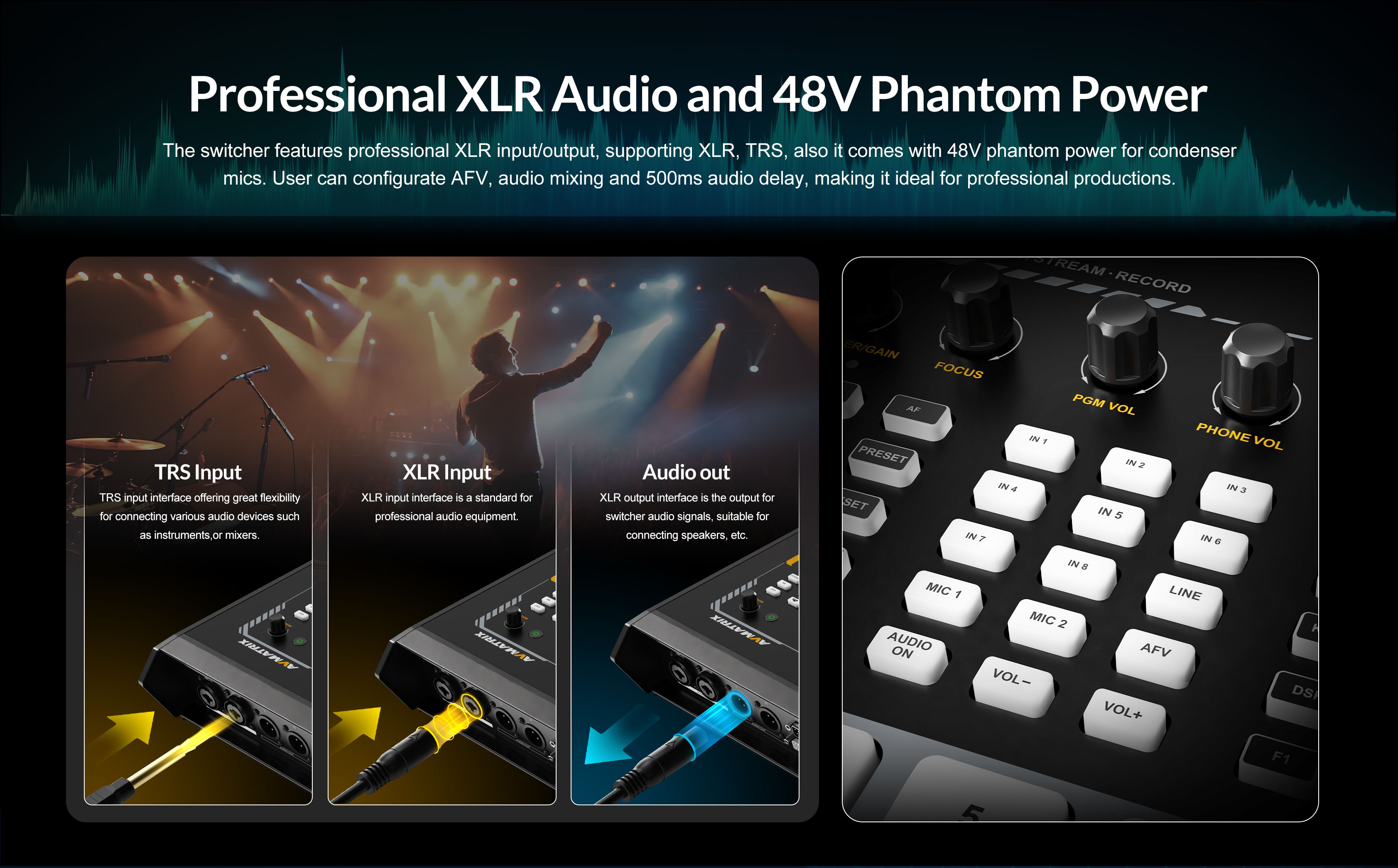

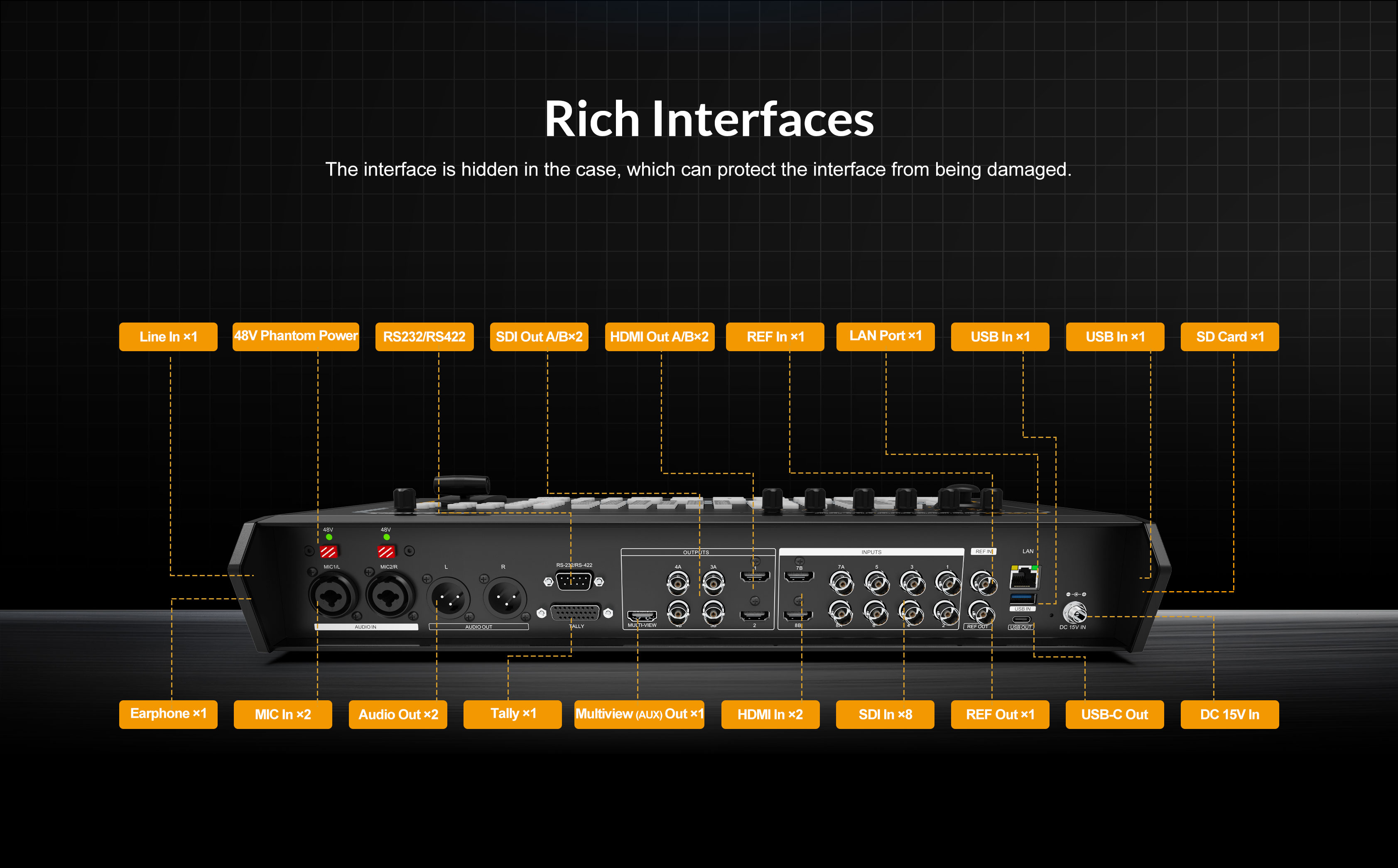

• Pro Audio – 2×XLR balanced (48V phantom), embedded + line inputs, XLR + 3.5mm monitoring
• 8×PTZ Control – VISCA-over-IP / Pelco, presets, speed, WB, focus

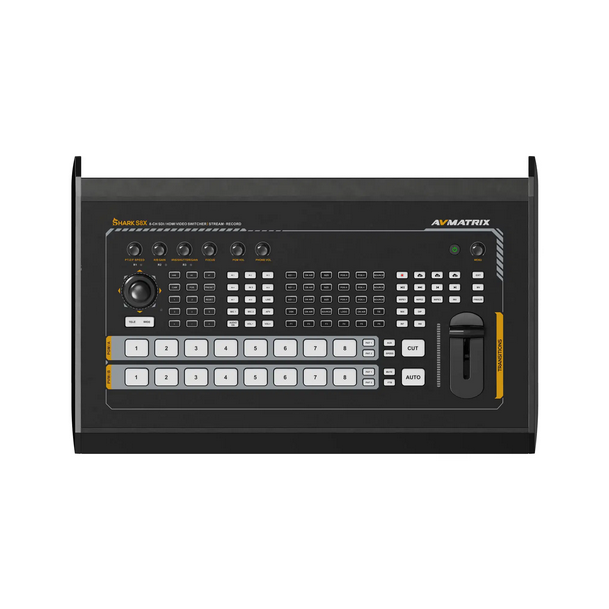

• T-Bar + Macros – Manual transitions + fully editable macro scripts
• Tally – GPIO port
