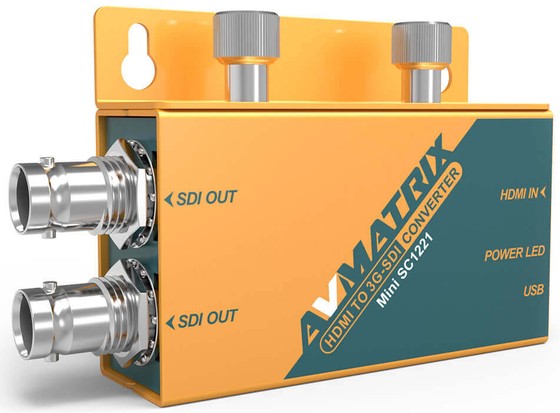

AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter wPSU

SKU: Mini SC1221

AVMATRIX Mini SC1221 is a compact HDMI to dual 3G-SDI converter for bringing HDMI cameras, computers or players into a professional SDI infrastructure. It provides a full-size HDMI input, two SDI outputs, metal housing, Micro-USB power and operation up to 1080p60.

More information

96 € with VAT 79.34 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Bratislava 3 pcs
SKU:
Mini SC1221
Add to Compare Price history

Top accessories for AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter wPSU

Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 5m

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 3m

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
  • SHOWROOM PRAHA
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent 2 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX Mini SC1221 is a compact HDMI to dual 3G-SDI converter for bringing HDMI cameras, computers or players into a professional SDI infrastructure. It provides a full-size HDMI input, two SDI outputs, metal housing, Micro-USB power and operation up to 1080p60.

HDMI to dual 3G-SDI

Pocket converter for a professional SDI path

Mini SC1221 converts an HDMI signal to two simultaneous 3G-SDI outputs. It quickly connects an HDMI source to a switcher, monitor, recorder or longer coax run without a large desktop converter.

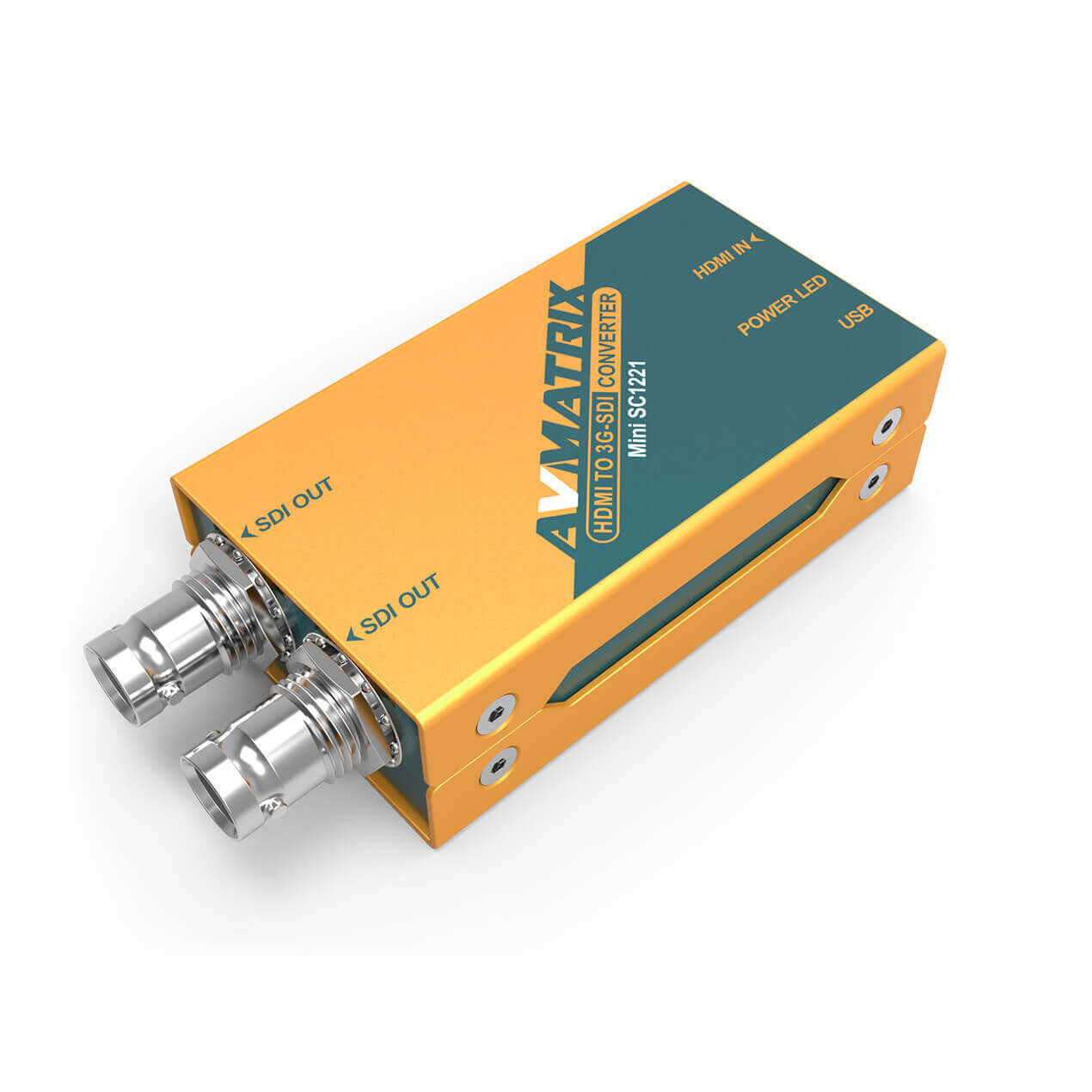

AVMATRIX Mini SC1221

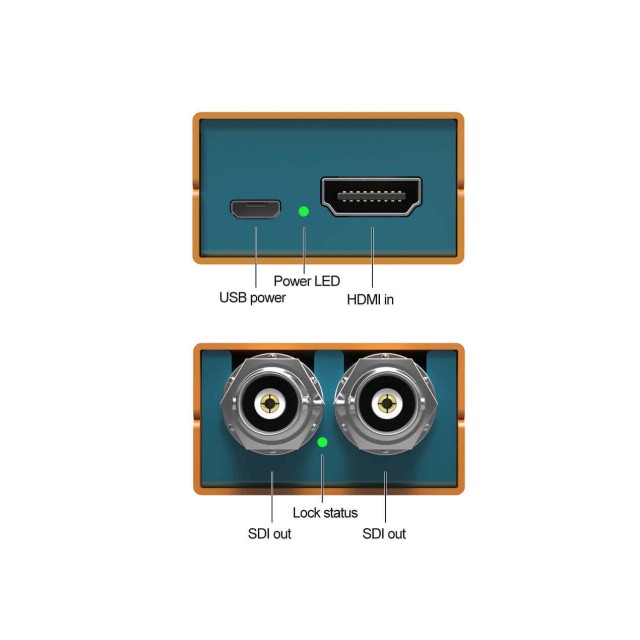

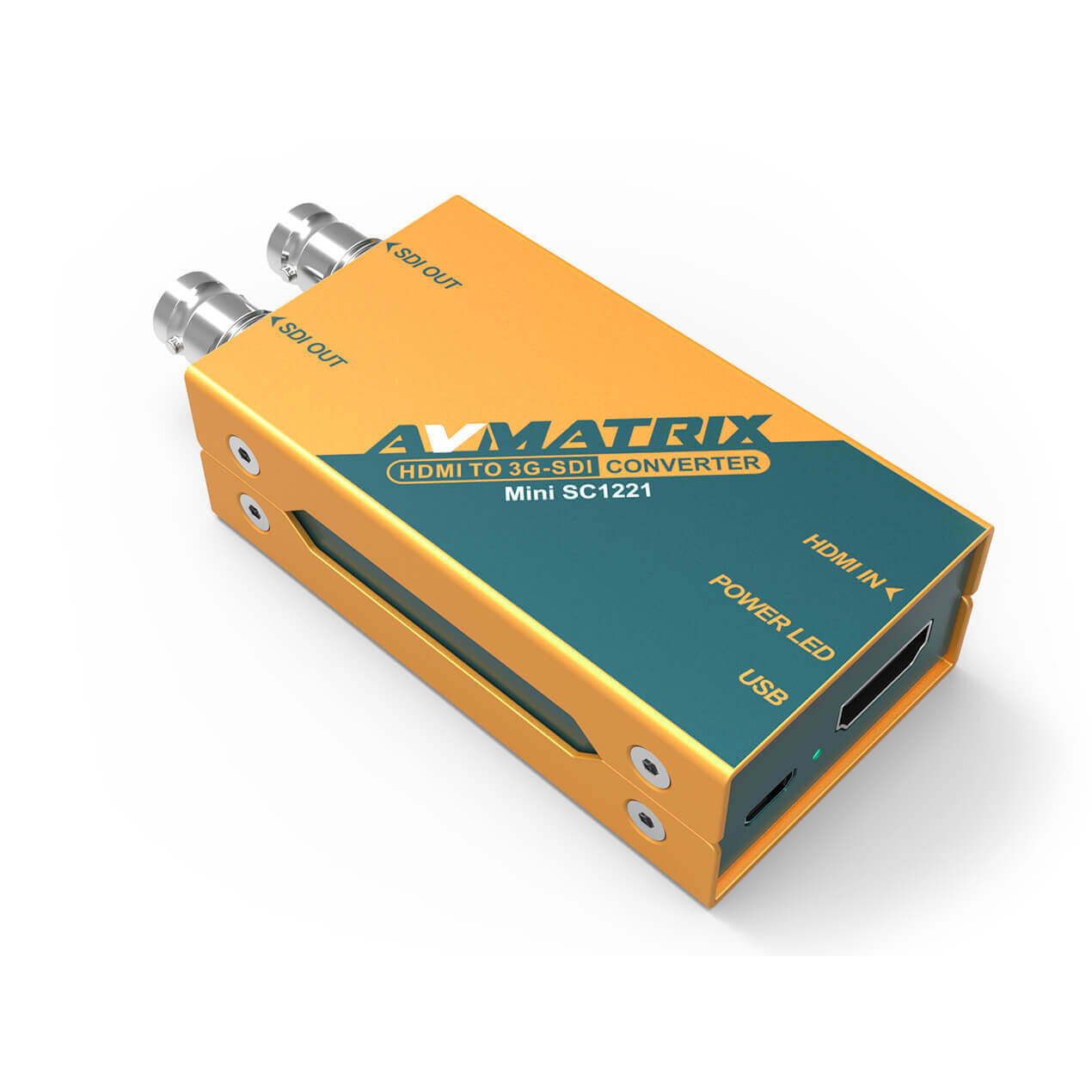

AVMATRIX Mini SC1221 connectors

Full-size connectors in a small body

The converter uses full-size HDMI and BNC connectors, so it fits into a rig without fragile adapters. The rugged metal enclosure and detachable mounting bracket suit fixed installs and mobile production.

  • 1× HDMI Type-A input
  • 2× SD/HD/3G-SDI outputs
  • compact metal housing
  • power LED indicator

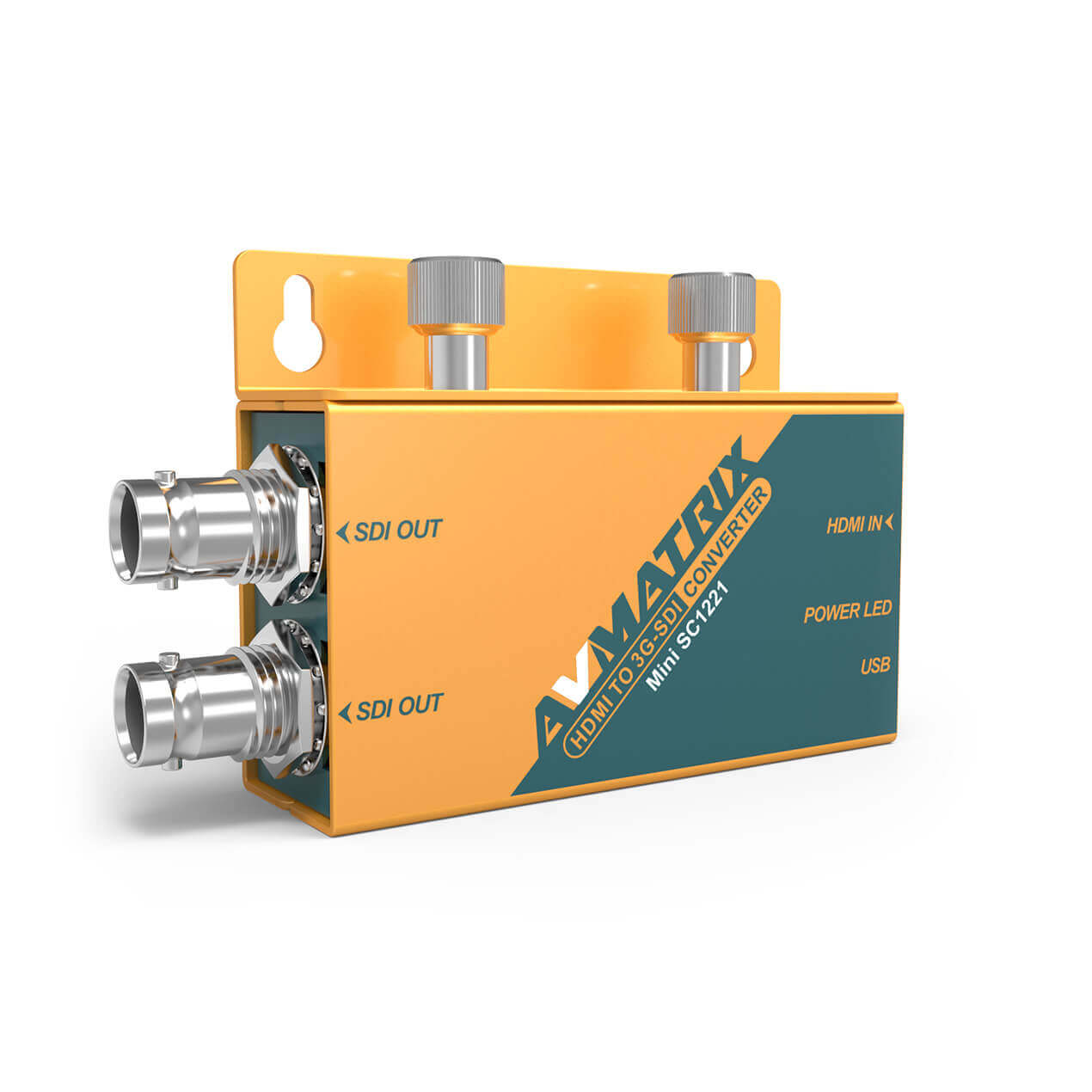

AVMATRIX Mini SC1221 workflow

Two SDI outputs at once

Send one HDMI source simultaneously to a switcher and a local monitor or recorder without a separate distribution amplifier.

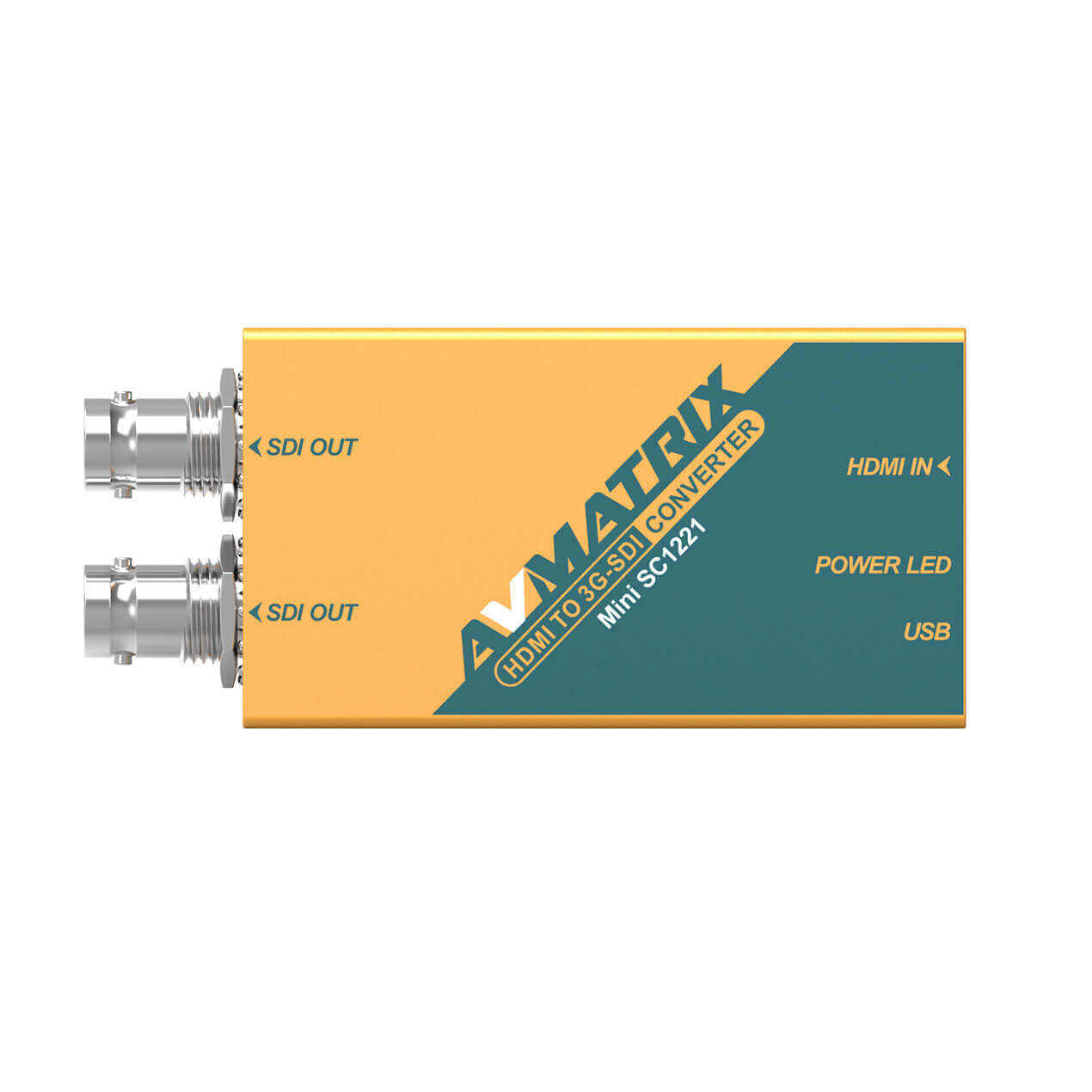

AVMATRIX Mini SC1221 power

Micro-USB power

Micro-USB power lets you use the supplied adapter, a computer or a power bank — practical for fixed installs and field work.

Key features

  • HDMI to dual 3G-SDI conversion
  • SD/HD/3G-SDI support up to 1080p60
  • full-size HDMI connector and BNC outputs
  • compact metal housing for 24/7 operation
  • Micro-USB power
  • detachable mounting bracket included

PACKAGE CONTENT

  • 1× AVMATRIX Mini SC1221
  • 1× mounting bracket
  • 1× power adapter
  • 1× Micro-USB cable
  • 1× user documentation

SPECIFICATIONS

  • Video input: 1× HDMI Type-A
  • Video outputs: 2× SD/HD/3G-SDI, BNC
  • Maximum resolution: up to 1080p60
  • SDI standards: SD-SDI, HD-SDI, 3G-SDI
  • Construction: pocket-size metal housing
  • Power: Micro-USB, 5V
  • Indicator: power status LED
  • Mounting: detachable bracket

WE RECOMMEND

The AVMATRIX Mini SC1221 is a compact HDMI-to-dual-3G-SDI broadcast converter, ideal for integrating HDMI sources into a professional SDI infrastructure. To fully utilize its potential, it is recommended to pair it with SDI production consoles, recording cards, or PTZ cameras to form a complete production workflow.

Video Signal Sources - Cameras with HDMI output that can be connected to SDI distribution systems using the converter.

Production consoles and multiviewers - Devices for processing and switching the 3G-SDI signal output from the converter.

Recording and Streaming to PC - Cards and converters that enable the digitization of SDI signals for streaming or editing.

Accessories and Installation - Accessories for mounting and expanding functionality within a camera system.

Parameters

Parameters

Manufacturer: AVMATRIX
Category: Signal converters

Main parameters

SourceHDMI
TargetSDI · 3G SDI
