AVMATRIX MMV1630 16 Channel 3G-SDI Multiviewer

+2
  • Free transport
SKU: MMV1630

AVMATRIX MMV1630 combines a 16-channel 3G-SDI multiviewer and a 16×16 matrix switcher in one unit for control rooms and broadcast. It offers 20 screen layouts, UMD, audio meter and timecode overlays, and control from the front panel or a PC.

More information

1 699 € with VAT 1 404.13 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Bratislava 1 pcs
SKU:
MMV1630
Add to Compare Price history

Top accessories for AVMATRIX MMV1630 16 Channel 3G-SDI Multiviewer

Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX MMV1630 combines a 16-channel 3G-SDI multiviewer and a 16×16 matrix switcher in one unit for control rooms and broadcast. It offers 20 screen layouts, UMD, audio meter and timecode overlays, and control from the front panel or a PC.

16-channel multiviewer and 16×16 matrix in one

Large control rooms and monitoring stations watch up to 16 SDI sources on one output, or route them flexibly: any of the 16 inputs to any of the 16 outputs.

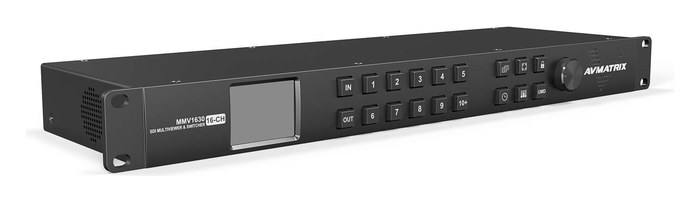

AVMATRIX MMV1630
16× 3G/HD/SD-SDIMultiviewer + 16×16 matrix20 layoutsUMD · audio meters · timecodePanel or PC software

Two modes in one device

In multiviewer mode it shows up to 16 SDI sources on one output; in matrix mode it routes any input to any output. Inputs detect SD, HD and 3G-SDI automatically.

20 layouts

Layouts for 4 to 16 windows, SOLO shows the selected input full screen.

9 output formats

From 720p to 1080p.

Information on screen

UMD labels, audio meters, signal status and timecode.

Fast control

Front panel with buttons and a rotary selector, or PC software.

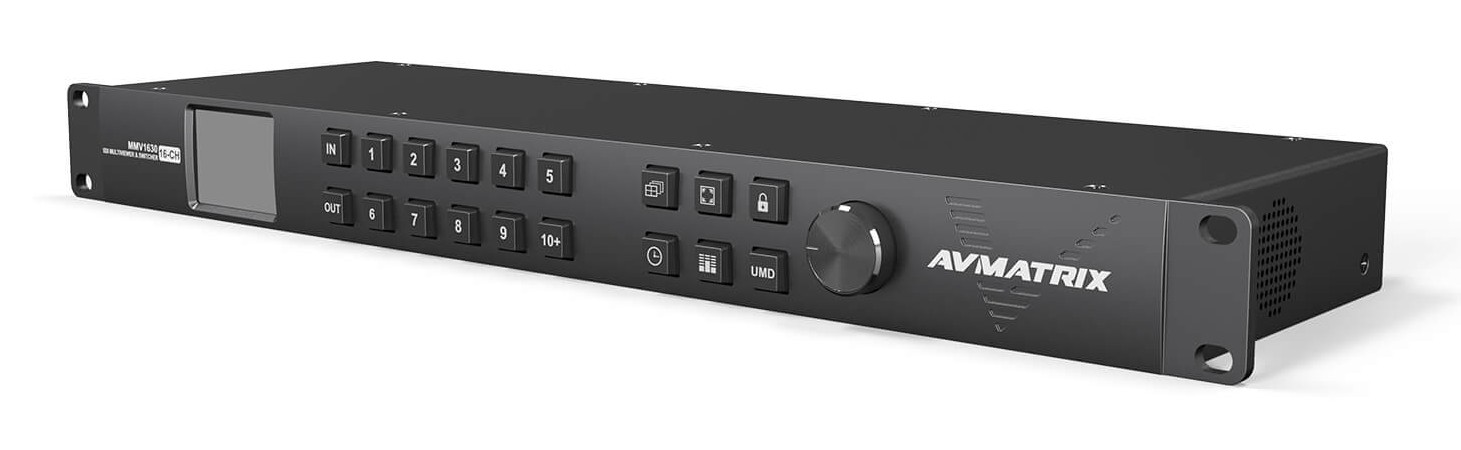

AVMATRIX MMV1630 – Front panel

Front panel

Buttons and a rotary selector for quick control.

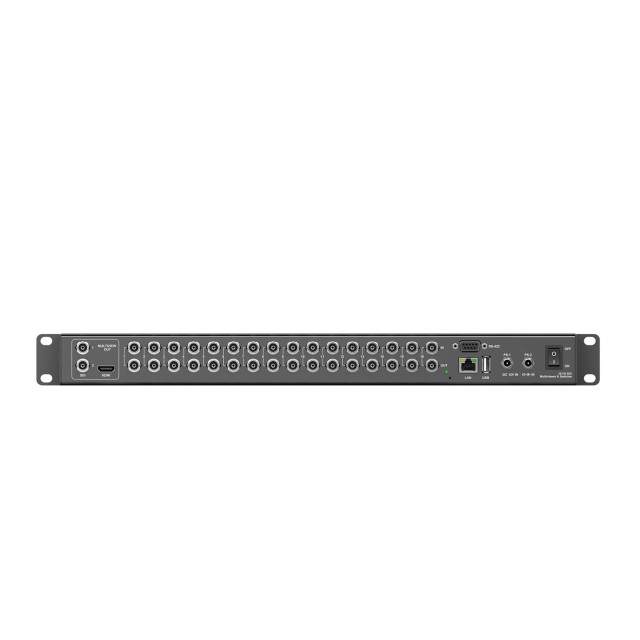

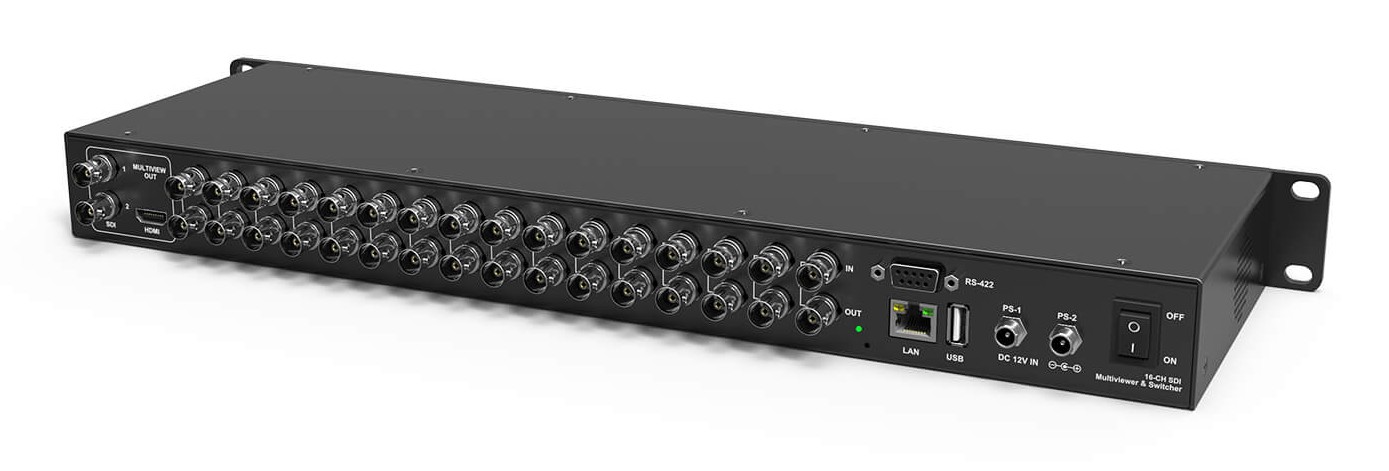

AVMATRIX MMV1630 – Rear panel with 16 inputs

Rear panel with 16 inputs

Sixteen SDI inputs for multiviewer and matrix mode.

More information

About the product

AVMATRIX MMV1630 combines a sixteen-channel 3G-SDI multiviewer and a 16×16 SDI matrix switcher in one device. It is designed for large control rooms, monitoring stations and broadcast installations that need to view many sources and route them flexibly.

Two operating modes in one unit

Multiviewer mode displays up to 16 SDI sources on one output. Matrix mode routes any of the 16 inputs to any of the 16 outputs. Inputs automatically detect SD, HD and 3G-SDI.

Twenty ready-made layouts

Twenty standard layouts are provided for 16, 12, 11, 10, 9, 8, 6 or 4 windows. A selected input can instantly be displayed full-screen using the SOLO shortcut. Nine output formats are selectable from 720p to 1080p.

UMD, audio meters and signal status

UMD labels, audio levels, signal status and timecode can be overlaid on the multiview output, giving operators essential information without additional monitoring equipment.

Fast control

All functions are available from the front panel with buttons and rotary selector or from PC control software.

Key features

  • 16-channel 3G/HD/SD-SDI multiviewer
  • 16×16 SDI matrix mode
  • 20 preset layouts
  • full-screen SOLO view
  • nine output formats from 720p to 1080p
  • UMD, audio meters, signal status and timecode
  • front-panel or PC control

PACKAGE CONTENT

  • 1× AVMATRIX MMV1630
  • 1× power cable
  • 1× user documentation

SPECIFICATIONS

  • Modes: 16-channel multiviewer / 16×16 SDI matrix
  • Inputs: 16× 3G/HD/SD-SDI
  • Layouts: 20 presets for 4 to 16 windows
  • Output formats: 9 modes, 720p to 1080p
  • Overlays: UMD, audio meters, signal status, timecode
  • Function: full-screen SOLO
  • Control: front panel and PC software

WE RECOMMEND

The AVMATRIX MMV1630 is a high-performance 16-channel 3G-SDI multiviewer and matrix switcher that serves as the heart of professional broadcast facilities. To fully utilize its capabilities, it is recommended to supplement it with SDI converters, signal distribution systems, and devices for digitizing the output to a PC.

Converters and Signal Extenders - Devices for converting and transmitting SDI signals over long distances or into other formats.

Video capture and digitization - External and internal cards for capturing SDI or HDMI output from a multiviewer to a computer for streaming or recording.

Cameras and Signal Sources - PTZ cameras with SDI output that are directly compatible with the multiviewer's inputs.

Production Accessories - Accessories for signaling, mounting, and decoding streams within the production chain.

Parameters

Parameters

Manufacturer: AVMATRIX
Category: Multiviewer

Main parameters

Multiview resolutionHD · SD
Number of multiview inputs16
