AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)

Wireless tally system for multi-camera production

Four lamps in the kit, up to 16 lamps per system

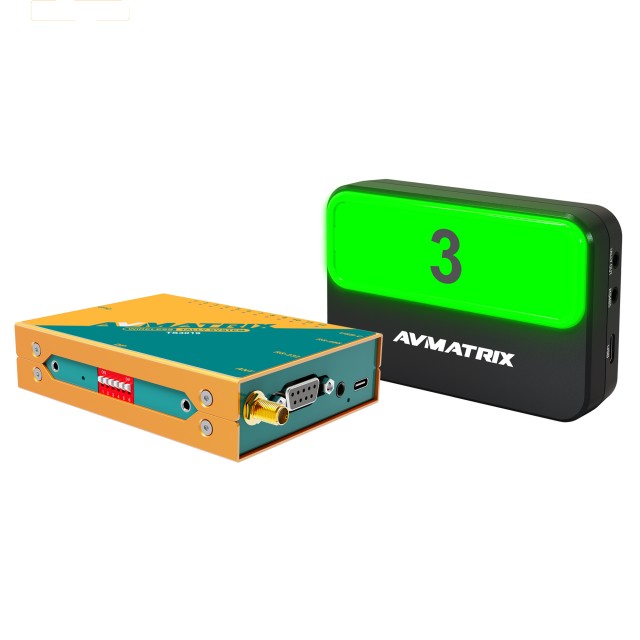

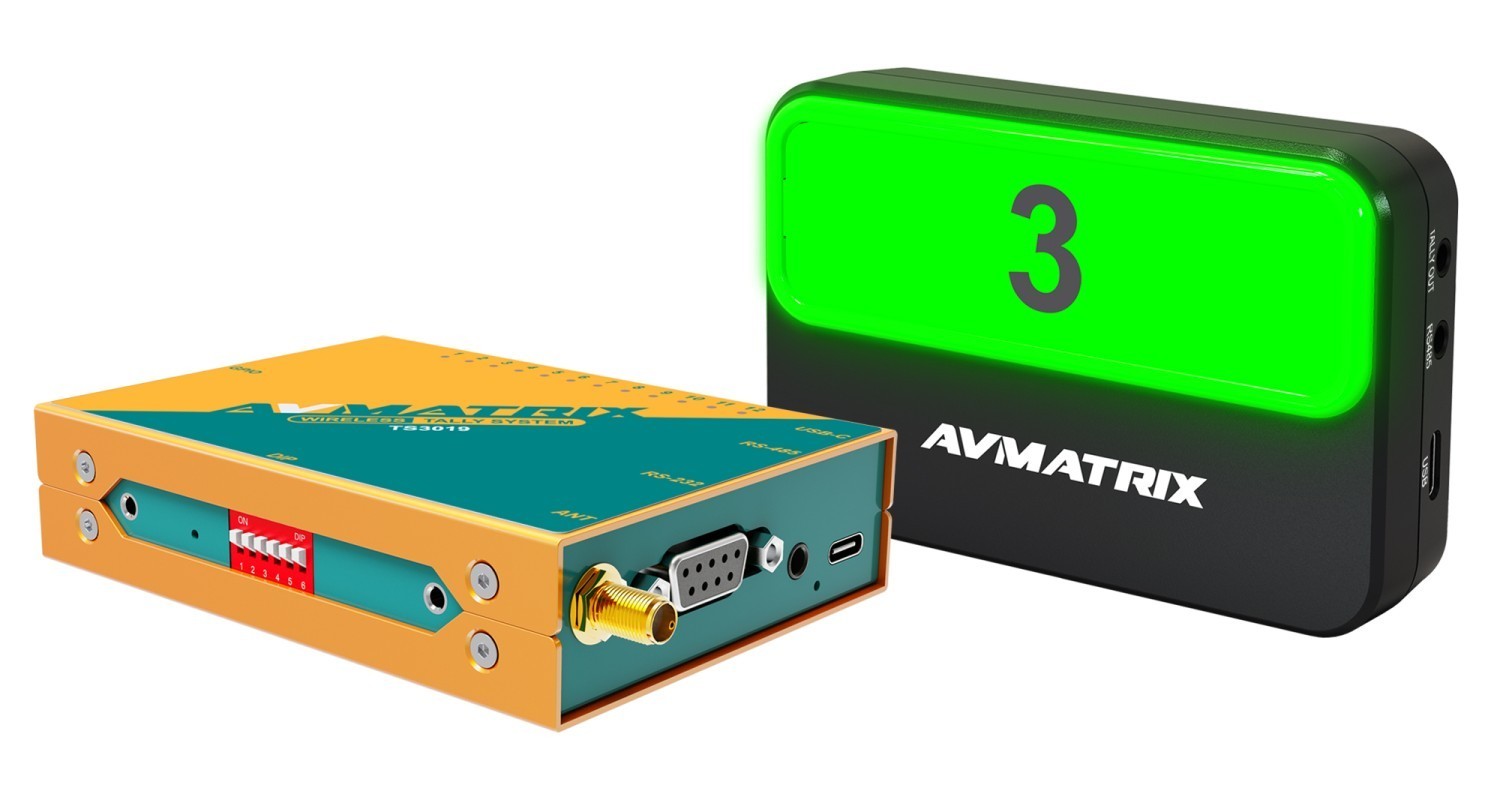

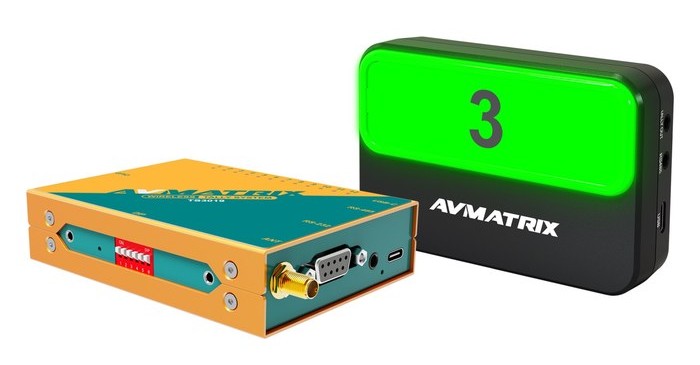

AVMATRIX TS3019-4 displays preview/program status directly at the cameras, so operators and on-camera talent can immediately see which camera is on air. The kit includes a base unit and four wireless tally lamps.

Up to 200 metres without long cable runs

Tally communication works wirelessly at 433 MHz or over a wired connection. With up to 200 m line-of-sight range, it suits studios, live events, halls and mobile multi-camera productions.

GPIO, USB-C and serial control

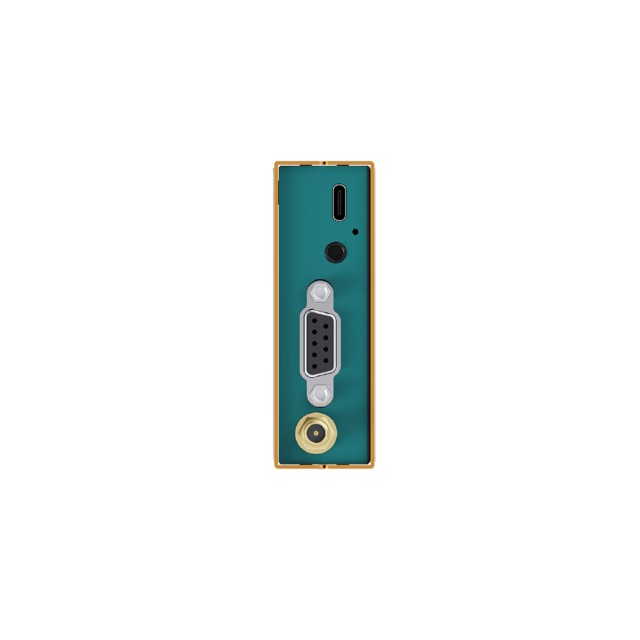

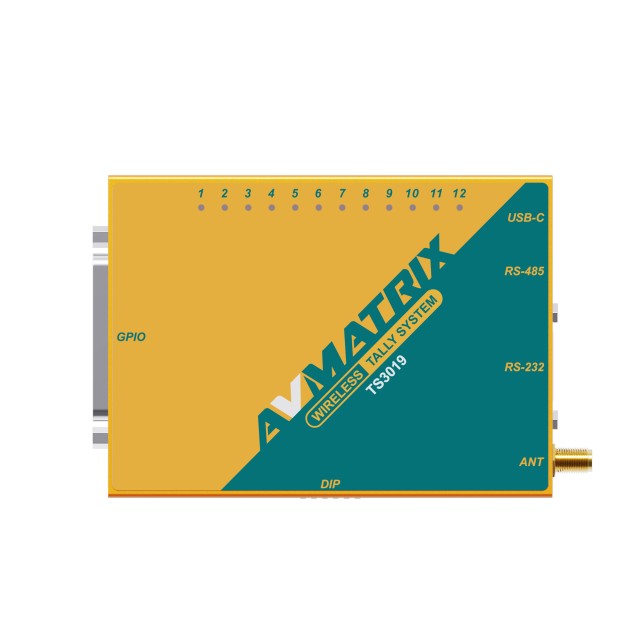

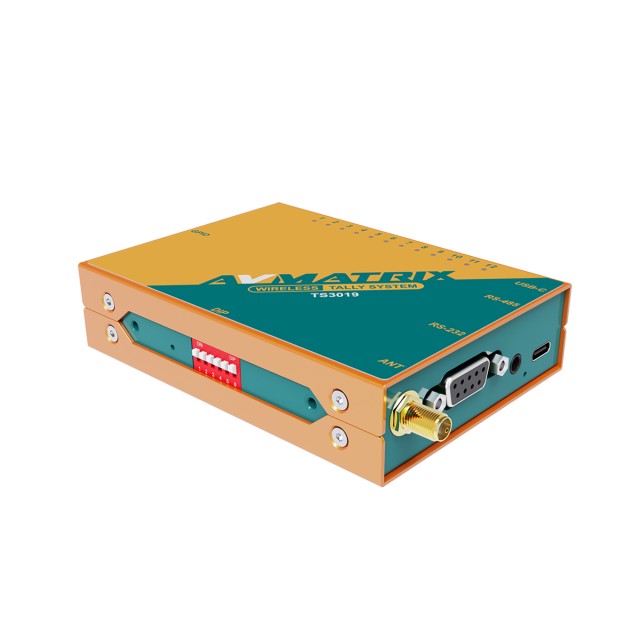

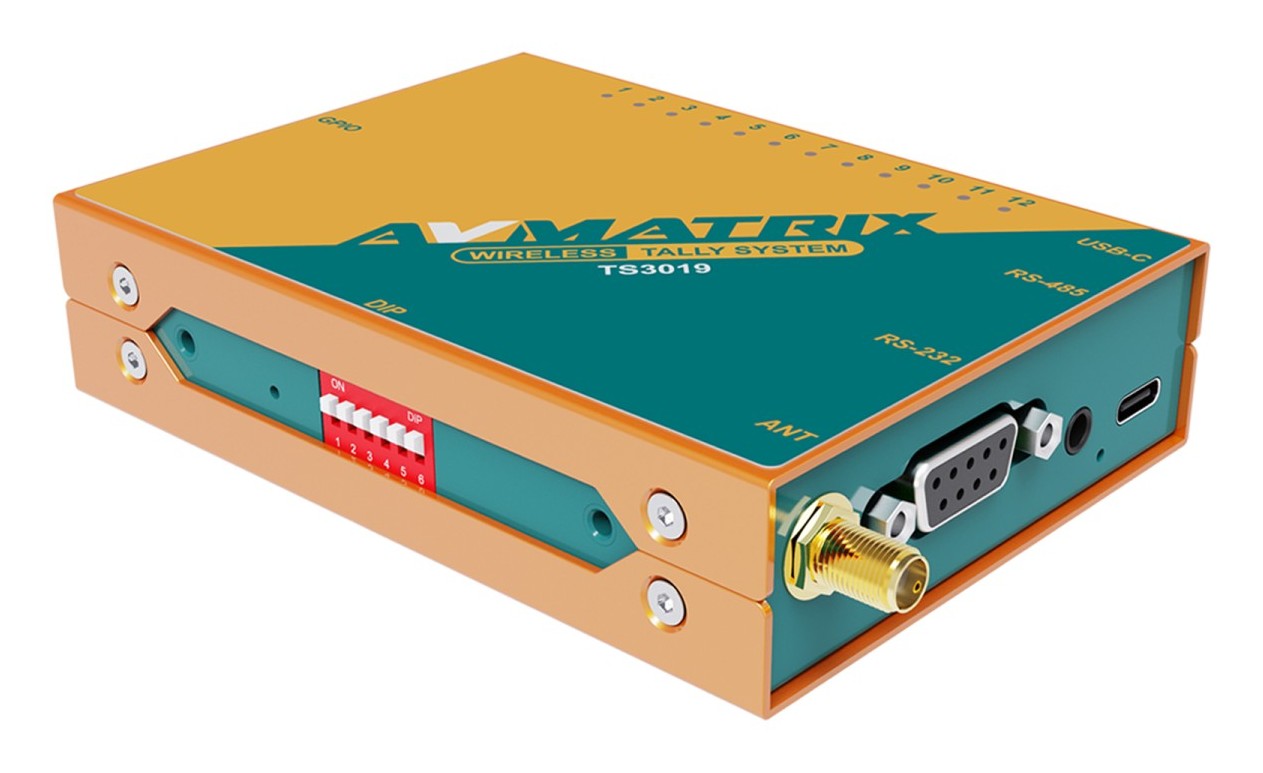

The base box provides GPIO, USB-C, RS-232 and RS-485. GPIO connects tally to AVMATRIX switchers and selected third-party systems, USB-C enables vMix integration and RS-232/RS-485 pass-through carries control for compatible PTZ cameras.

Clear indication and flexible power

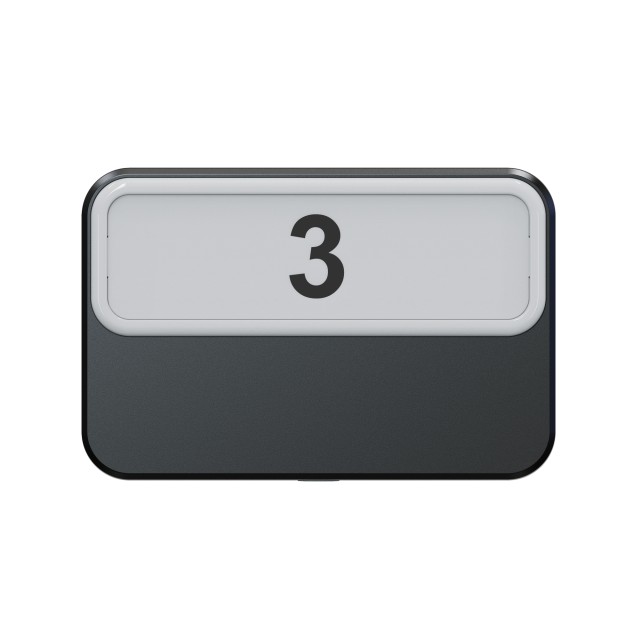

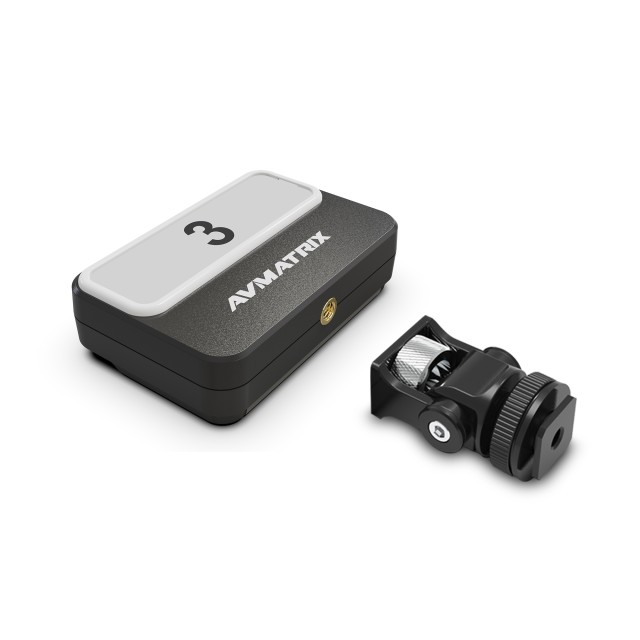

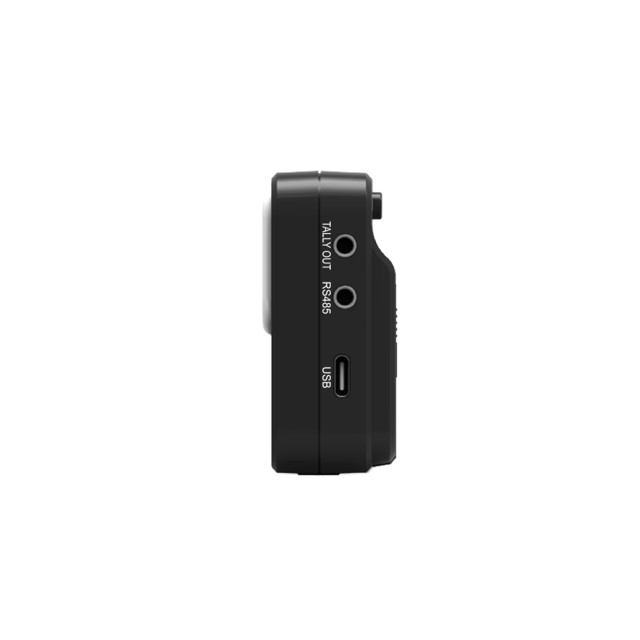

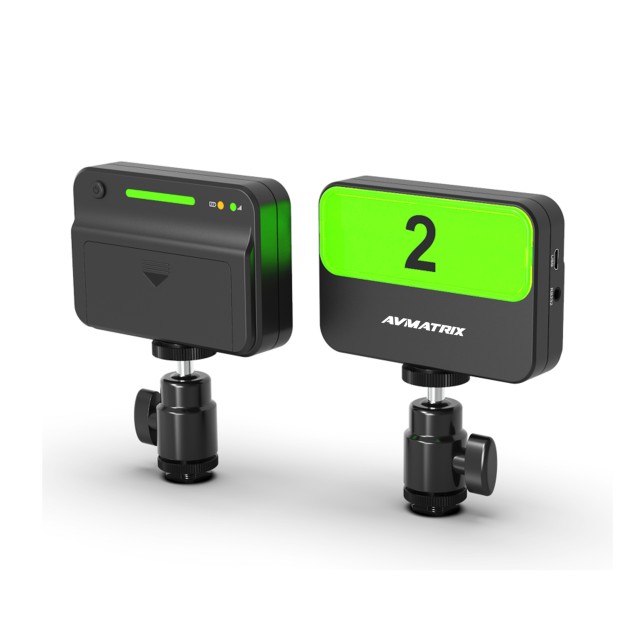

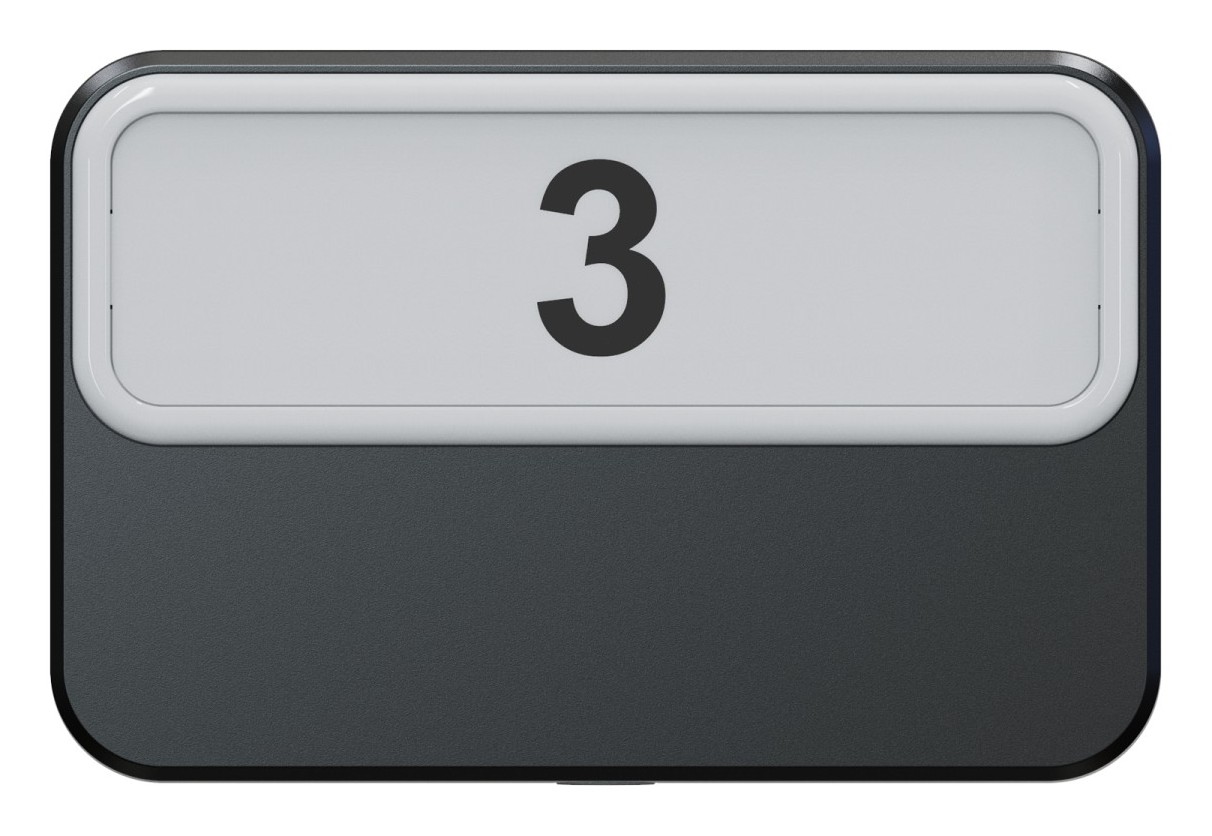

Each lamp has front and rear indicators, four brightness levels, signal-strength display and battery status. Power is possible via USB-C or a separately available 18650 Li-ion cell, and mounting uses a 1/4"-20 thread for a cold-shoe adapter.
