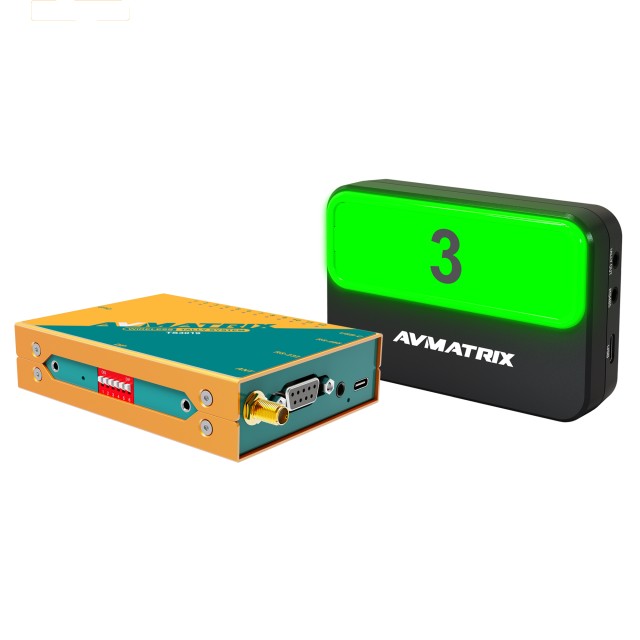

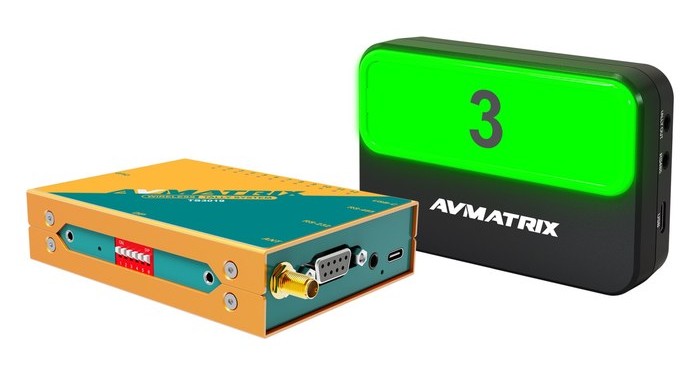

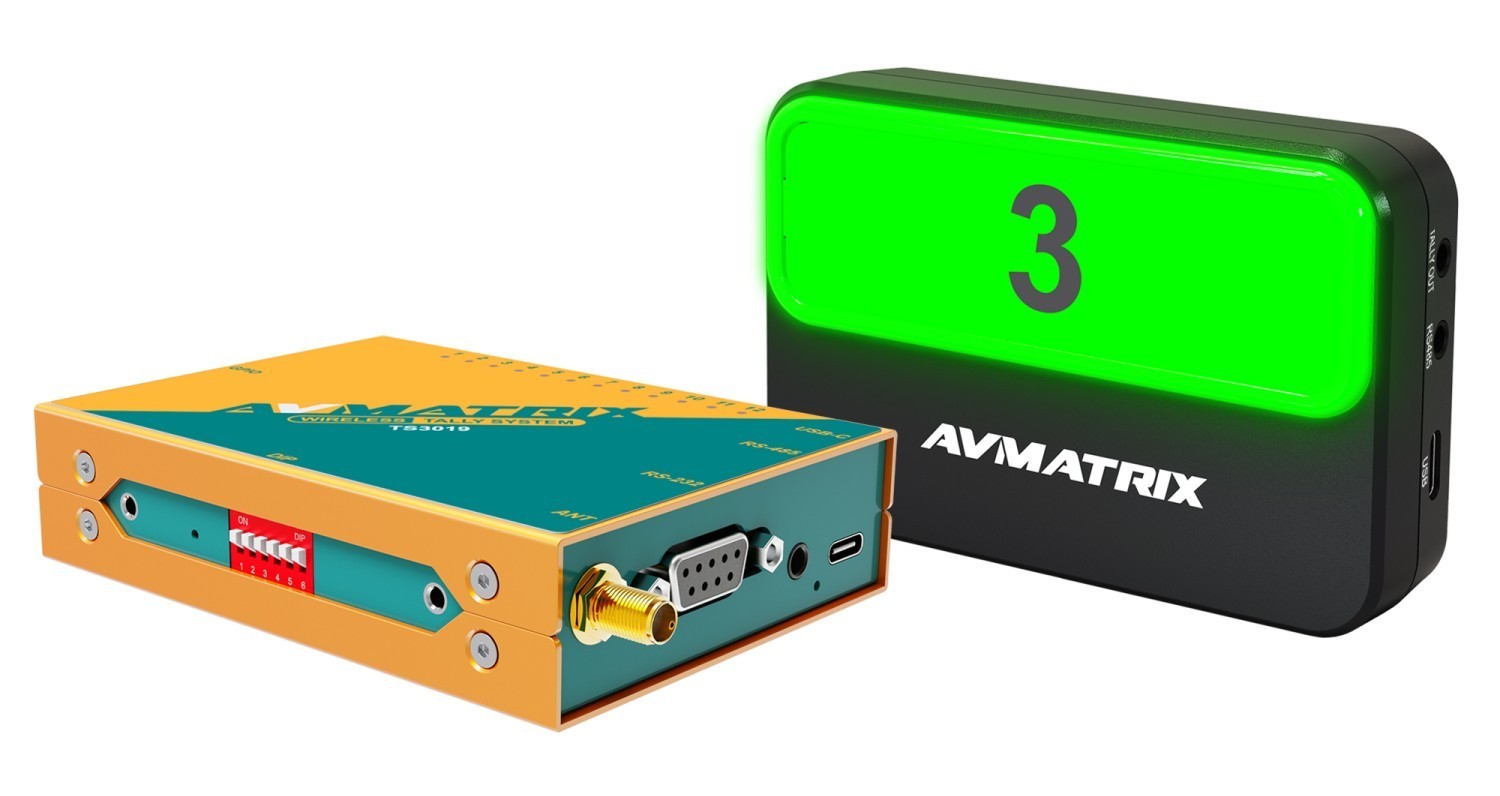

AVMATRIX Wireless Multi-Camera Tally Light System (6 x Tally Lamps)

Display the on-air status of each camera in your set configuration with the AVMATRIX Wireless Multi-Camera Tally Light System with six tally lamps. The system can wirelessly communicate from up to 200m away. Multiple interface connections on the tally box—from GPIO and USB Type-C to RS-232 and RS-485—create wide compatibility with various switchers and vMix software for integration with your preexisting gear setup. An included antenna can attach to the box to improve its signal.

Key Features

•     1 x Tally Box, 6 x Tally Lamps
•     200m Wireless Transmission
•     GPIO, USB, RS-232/485 Interfaces
•     Compatible with vMix and Switchers
•     Front and Rear Lamp Indicators
•     Powered via USB Type-C or Battery
•     Includes Antenna, USB Type-C Cords
•     Carrying Case and Power Adapter

Each tally light has a front and rear indicator light for its on-air status, as well as indicators to display the wireless signal strength and battery level. They can be powered via USB Type-C input or with a separately available 18650 lithium-ion battery. The bottom of each lamp has a 1/4"-20 thread for installation with a hot shoe to the top of a camera. Five USB Type-C cords, a GPIO connector, a power adapter, and a carrying case complete the system's accessories.

Connectivity
    Supports 433 MHz wireless or wired tally connection
    Up to 200m line-of-sight wireless connection distance

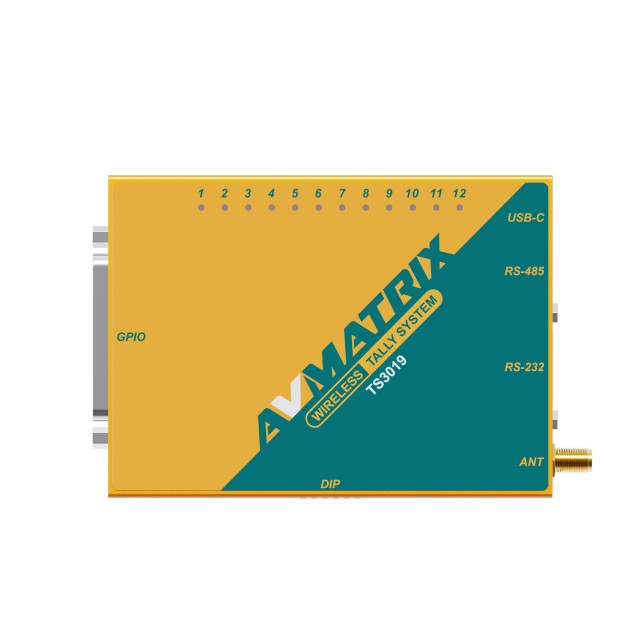

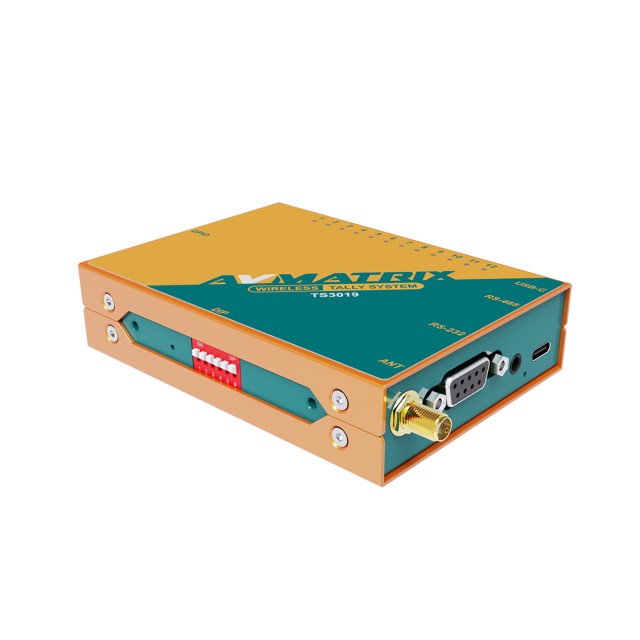

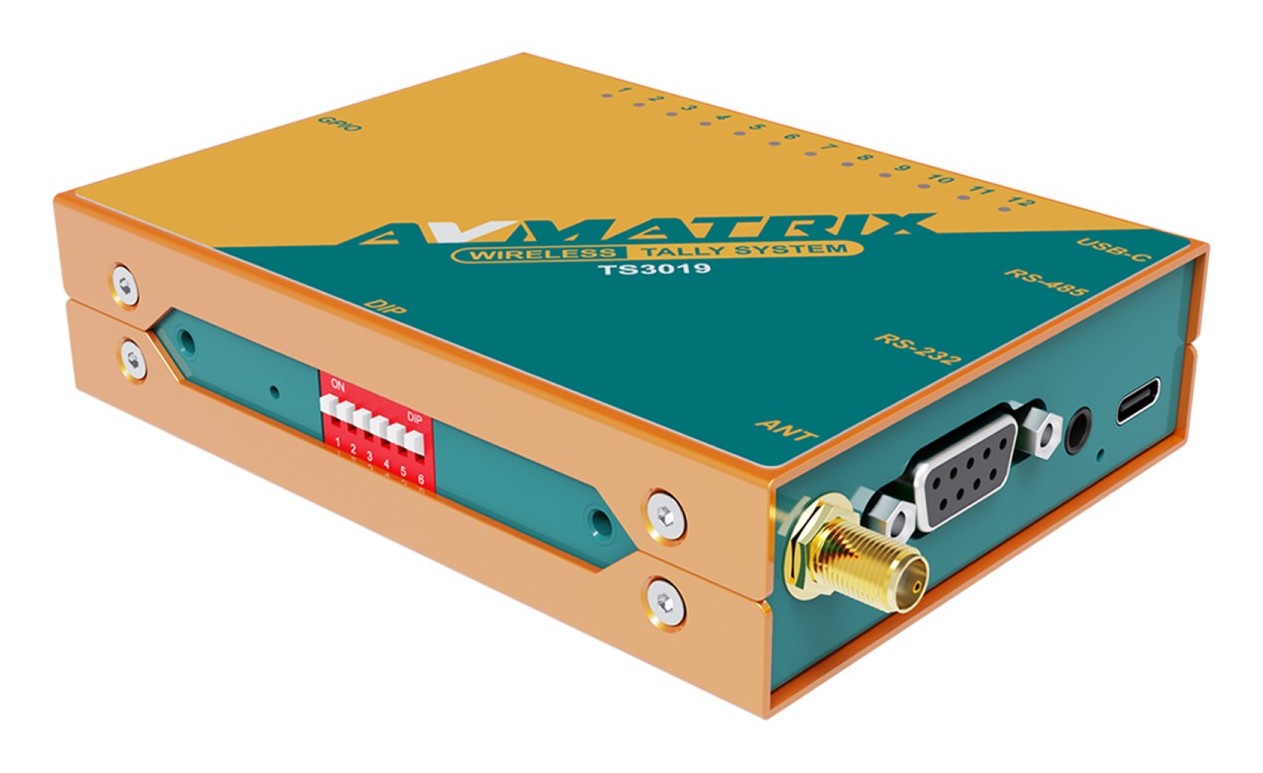

Tally Box

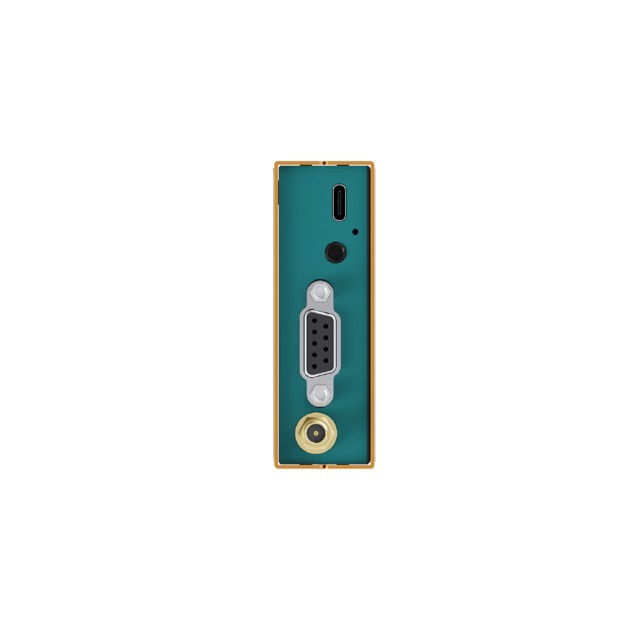

    GPIO, USB Type-C, RS-485, and RS-232 interfaces
    1-pin antenna input
    GPIO compatible with AVMATRIX, Roland, Sony, NewTek, Panasonic, Datavideo, or other tally converter boxes
    PTZ remote control via RS-232/RS-485 pass-through    USB Type-C input compatible with vMix software
    Can support up to 16 tally lamps

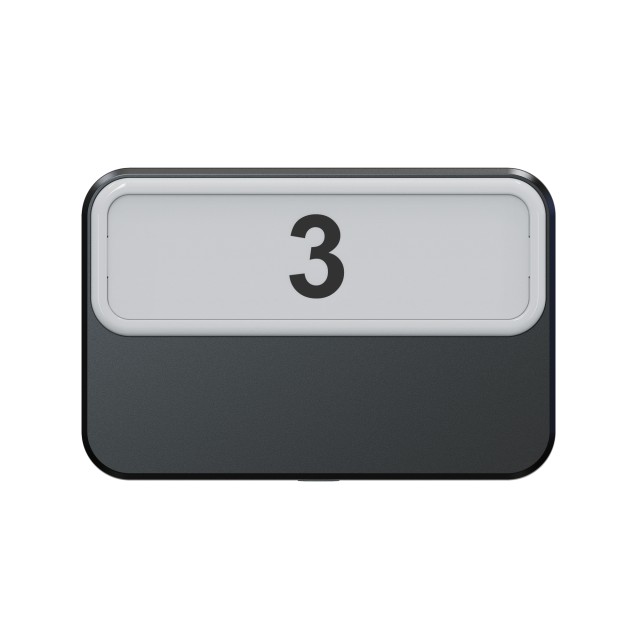

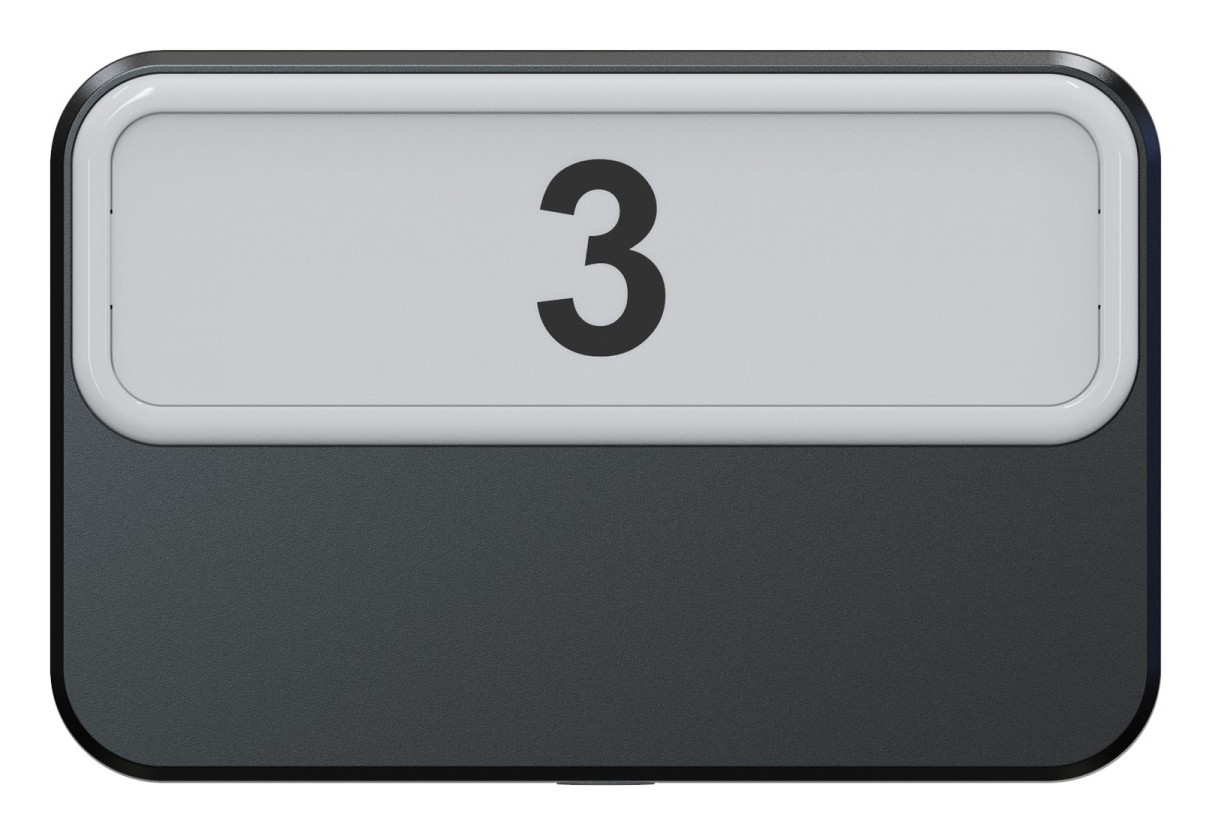

Tally Lamp

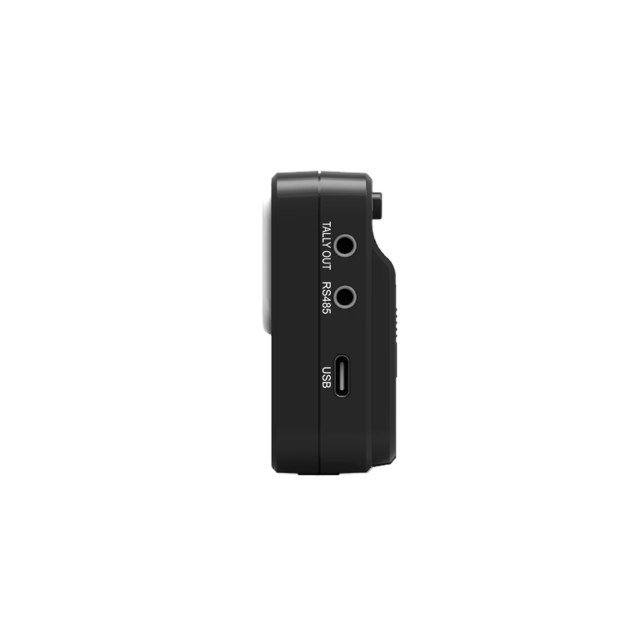

    PTZ camera connection via RS-485 input

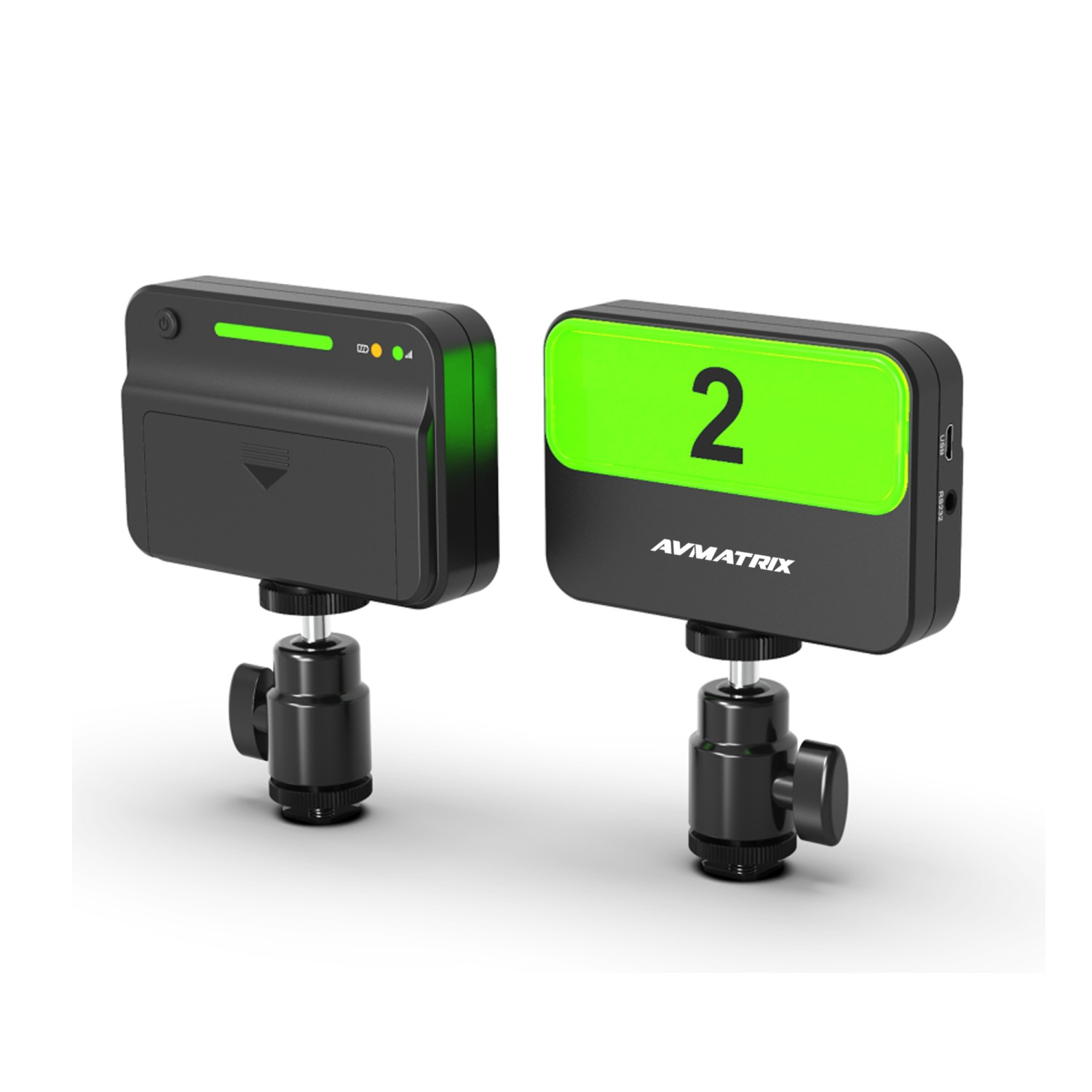

    Front and rear indicators with four-level brightness adjustment
    Signal strength and battery status indicators
    Powered via USB Type-C input or with separately available 18650 lithium-ion battery

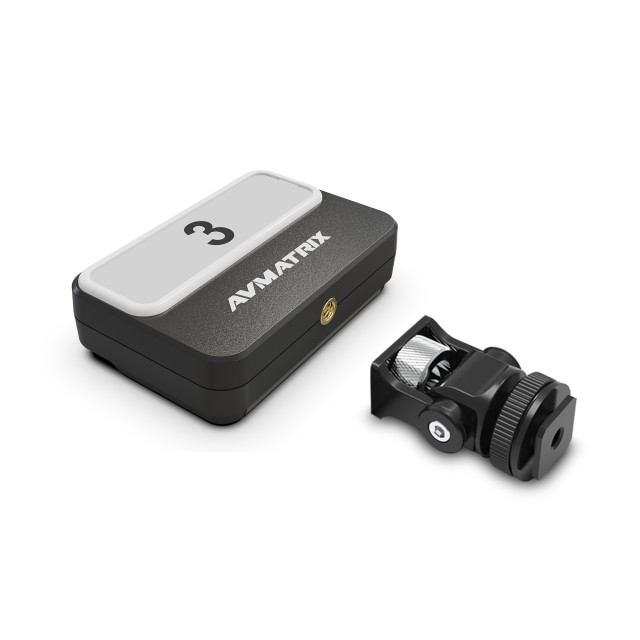

    1/4"-20 thread for installation of hot shoe
