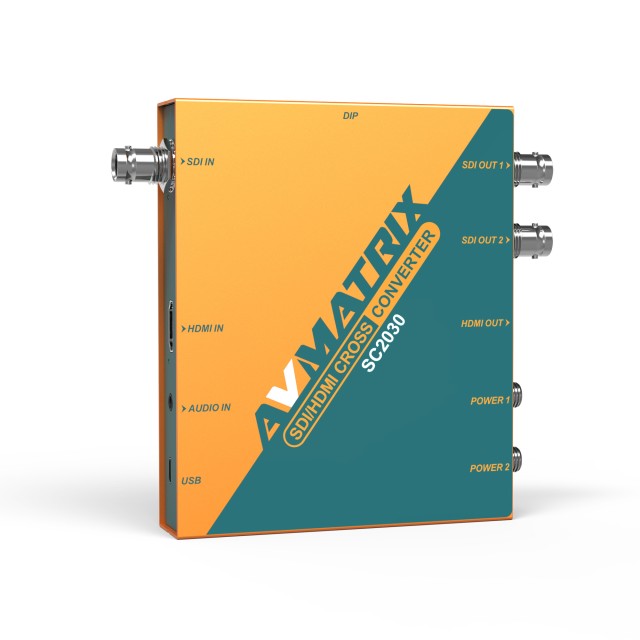

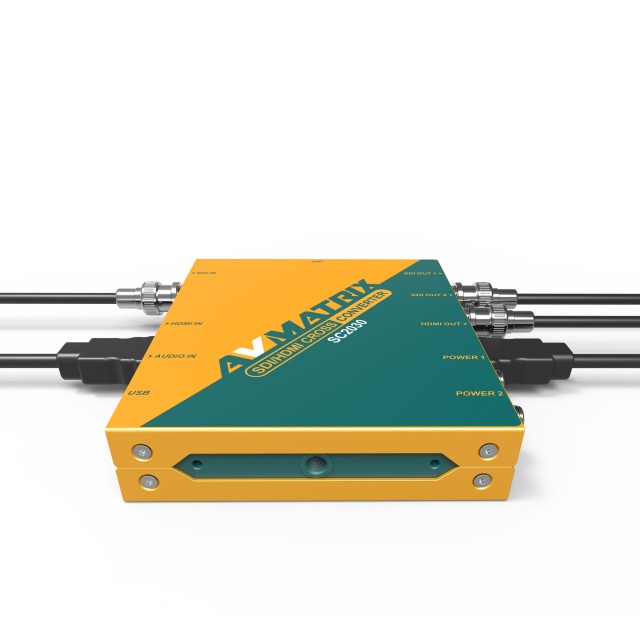

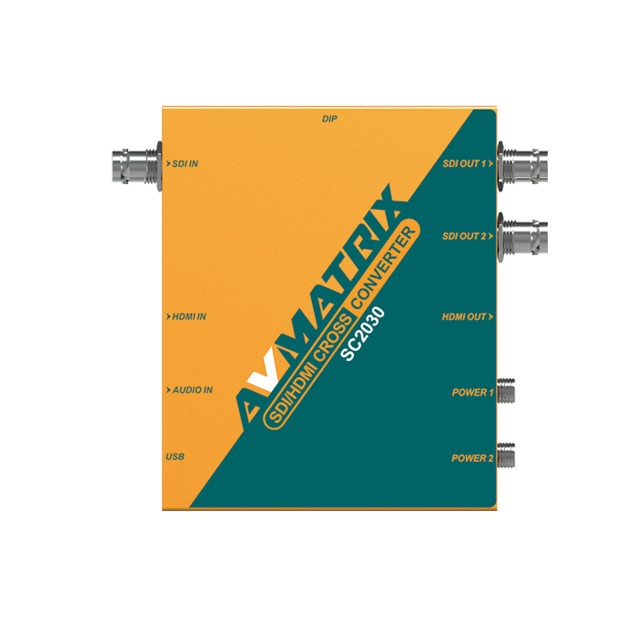

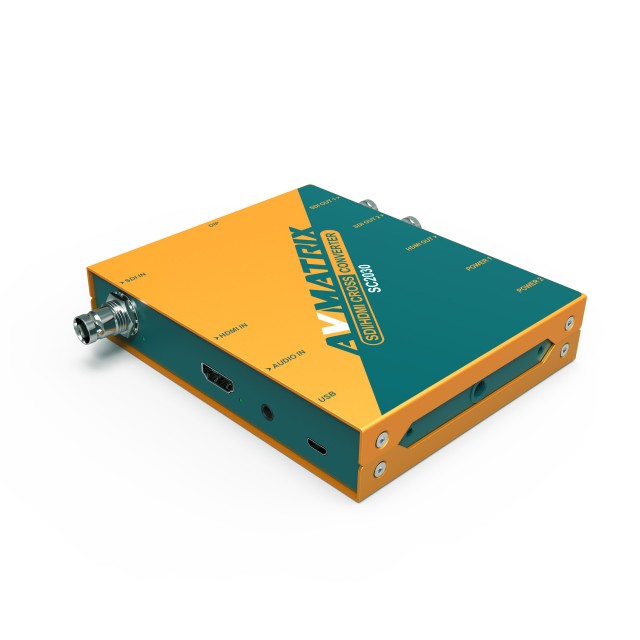

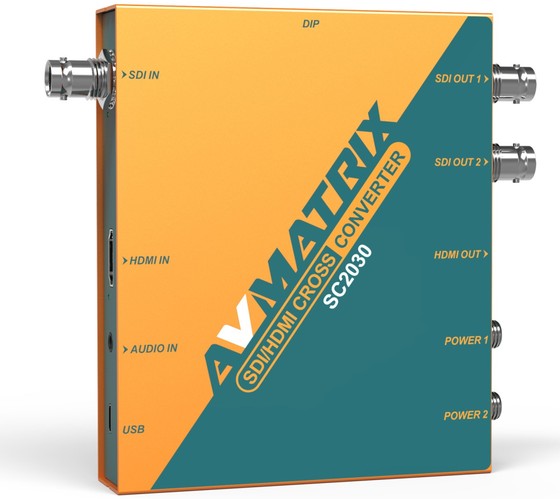

AVMATRIX SC2030 3G-SDI/ HDMI Scaling Cross Converter

AVMATRIX SC2030 is a scaling cross-converter with a selectable HDMI or 3G-SDI input and simultaneous 2× 3G-SDI plus 1× HDMI outputs. It provides up/downscaling, frame-rate conversion, analogue audio embedding and redundant power.

AVMATRIX SC2030 is a scaling cross-converter with a selectable HDMI or 3G-SDI input and simultaneous 2× 3G-SDI plus 1× HDMI outputs. It provides up/downscaling, frame-rate conversion, analogue audio embedding and redundant power.

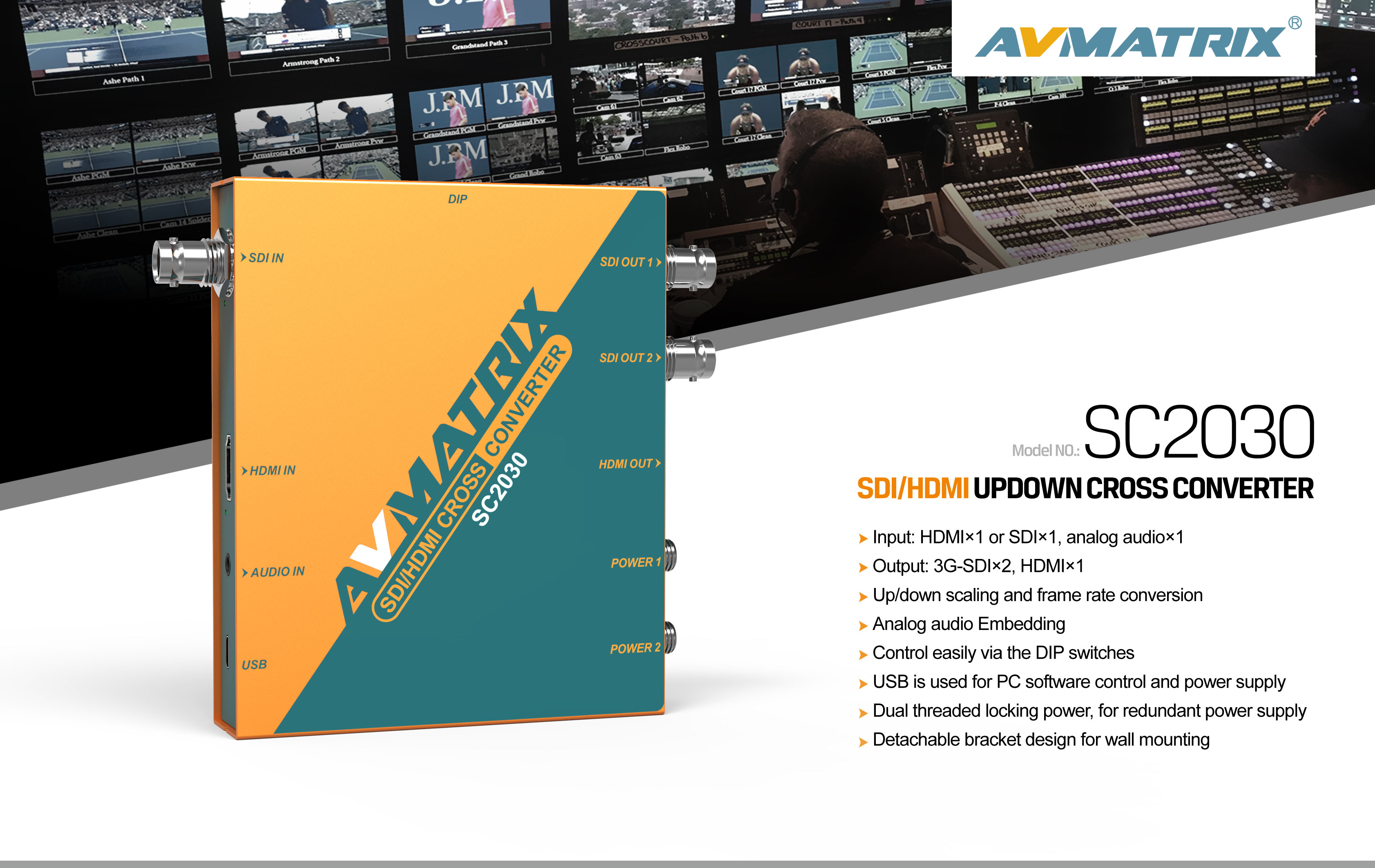

Key features

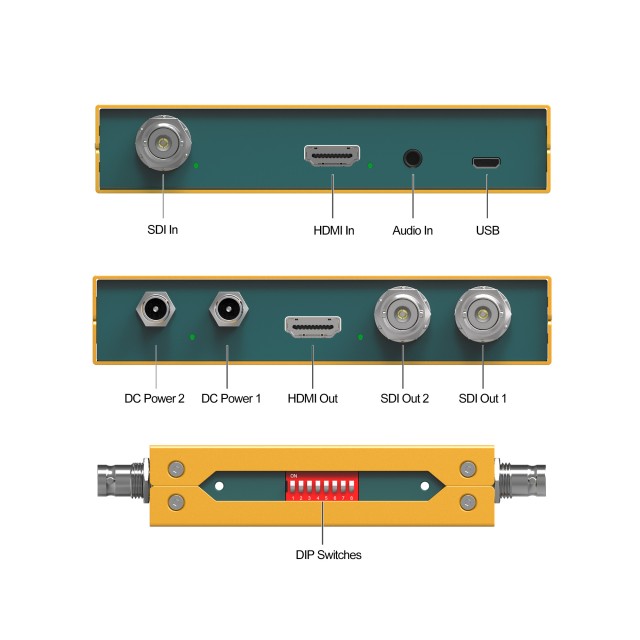

• Selectable 1× HDMI or 1× 3G-SDI input
• 2× 3G-SDI and 1× HDMI outputs
• Analogue audio input
• Up/downscaling and frame-rate conversion
• Automatic HDMI/SDI detection and configuration

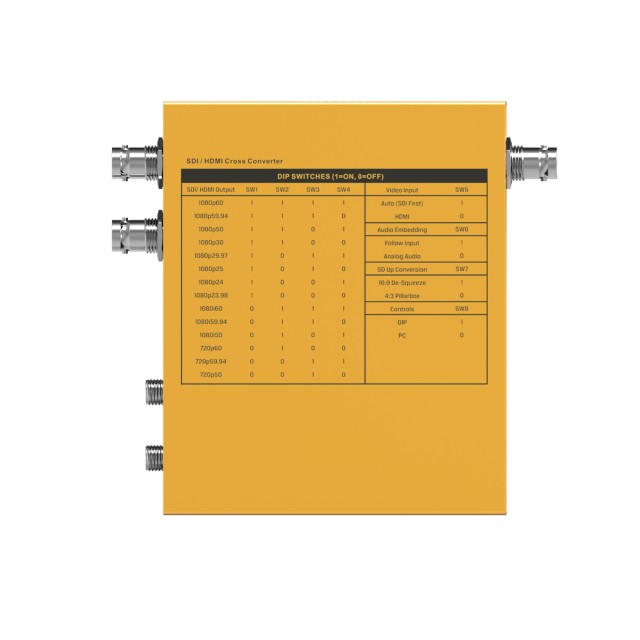

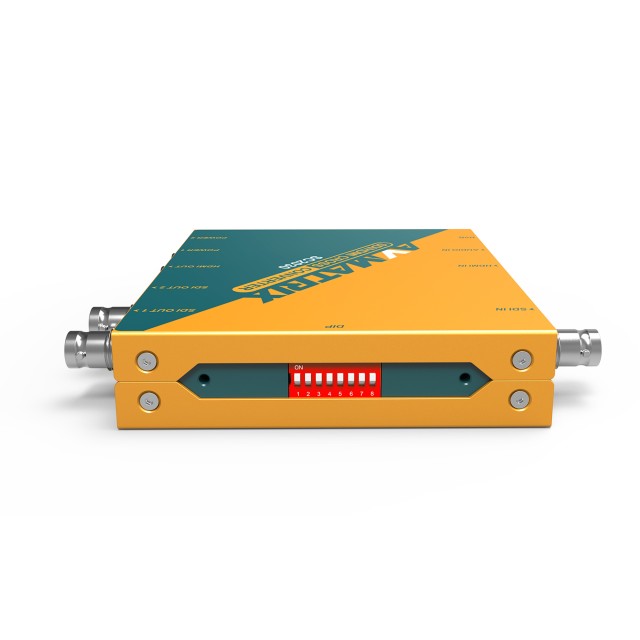

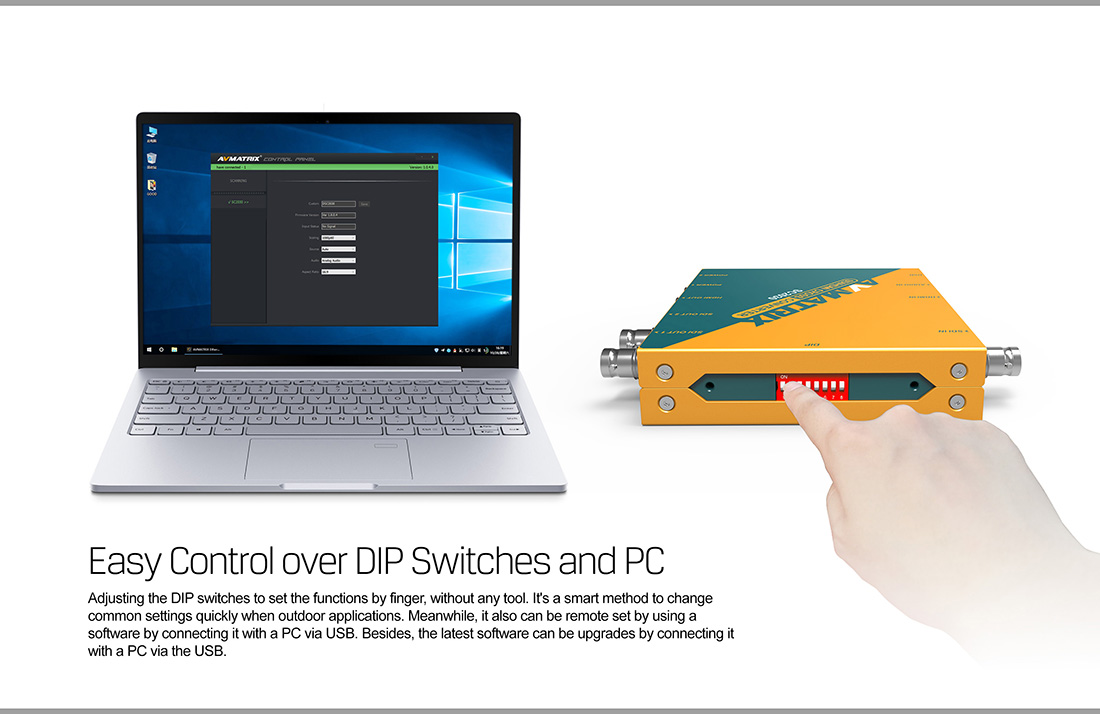

• DIP-switch control
• USB for PC software and power

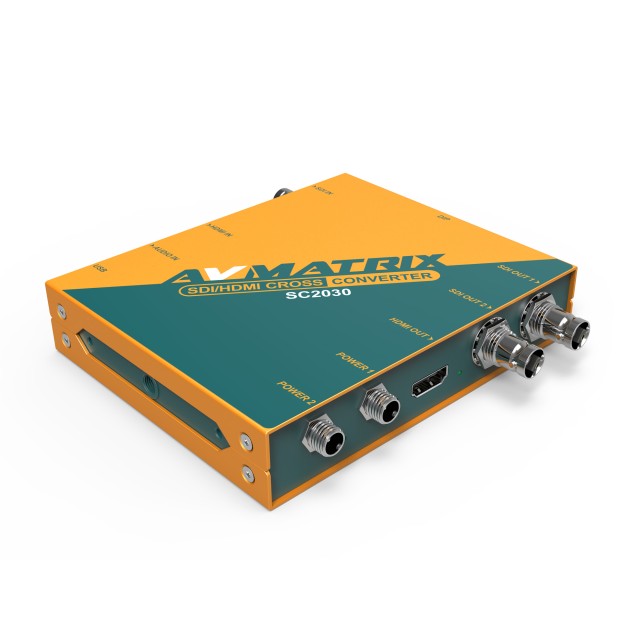

• Dual locking power inputs for redundancy
• Detachable mounting bracket

Any HDMI or SDI source to both output types

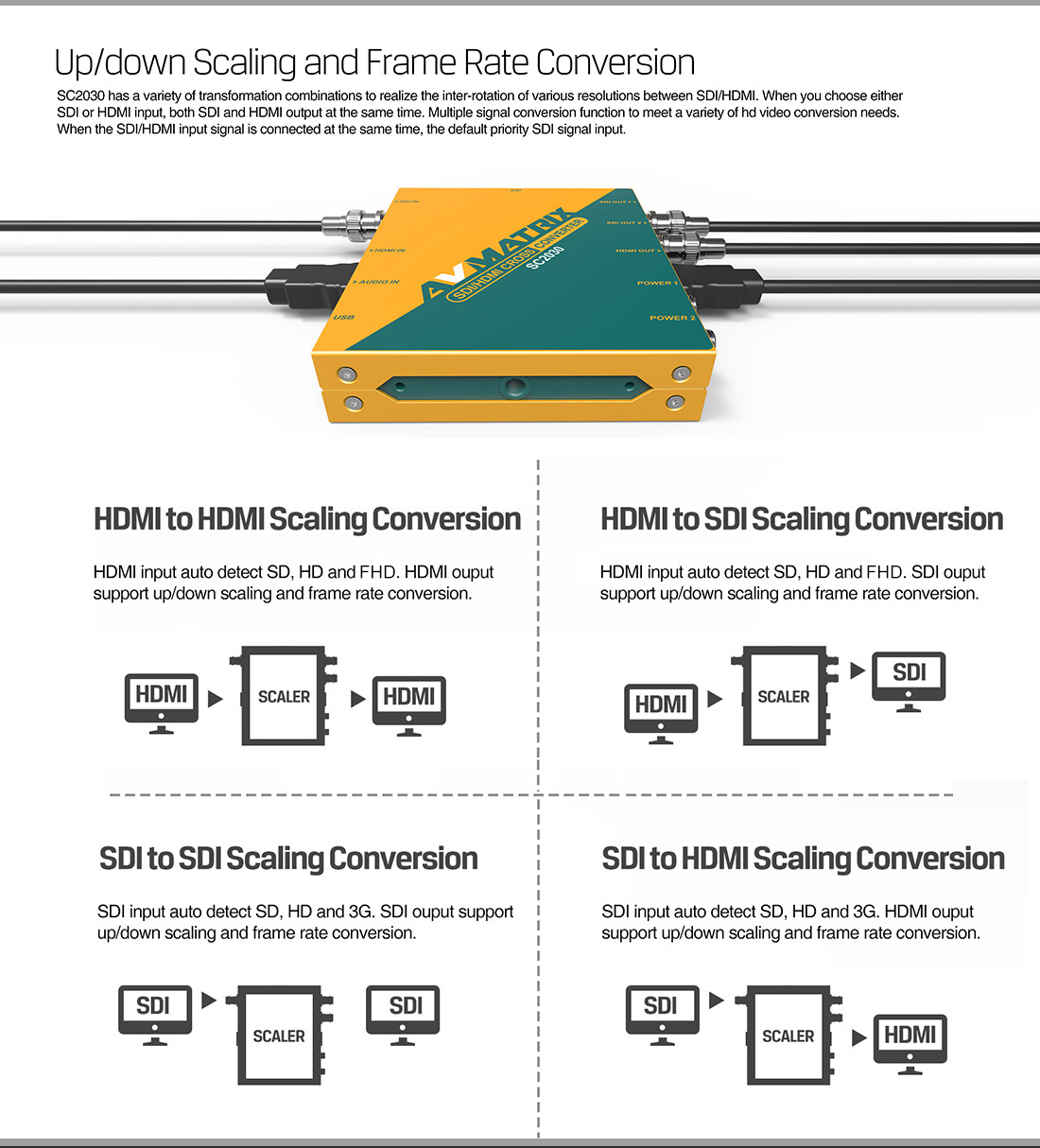

SC2030 accepts HDMI or 3G-SDI and simultaneously creates HDMI and dual SDI outputs. Integrated scaling and frame-rate conversion connect equipment using different formats.

For fixed or mobile installations

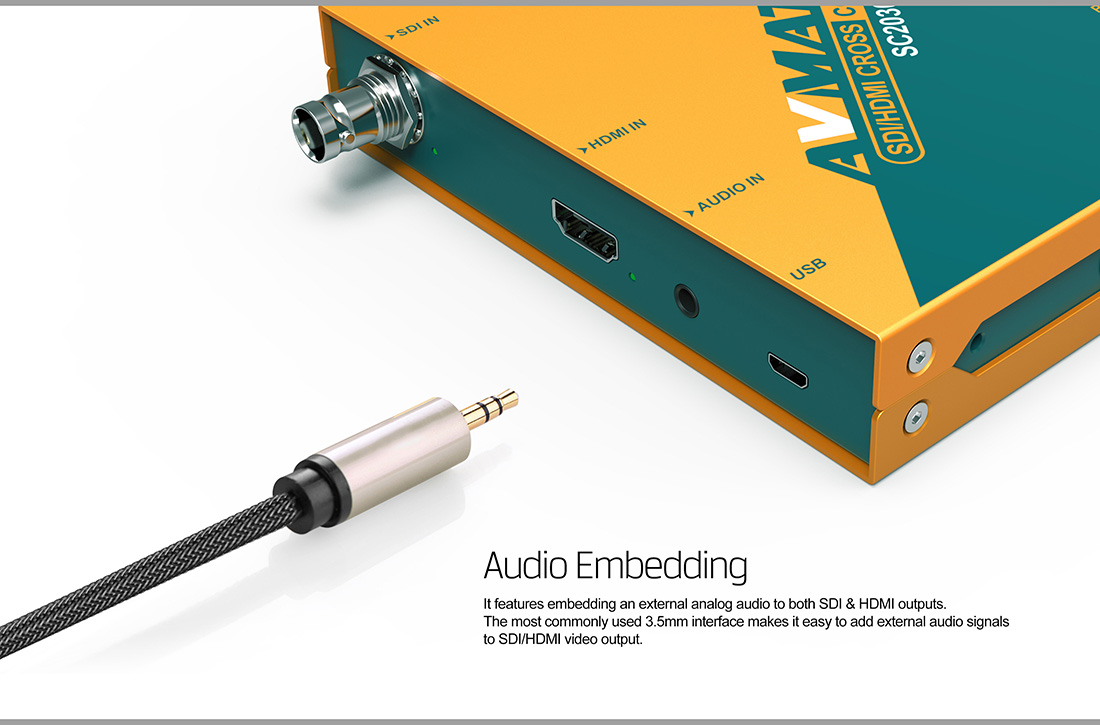

Analogue audio can be embedded into the resulting signal. Dual power paths support redundant operation and the detachable bracket simplifies fixed mounting.
