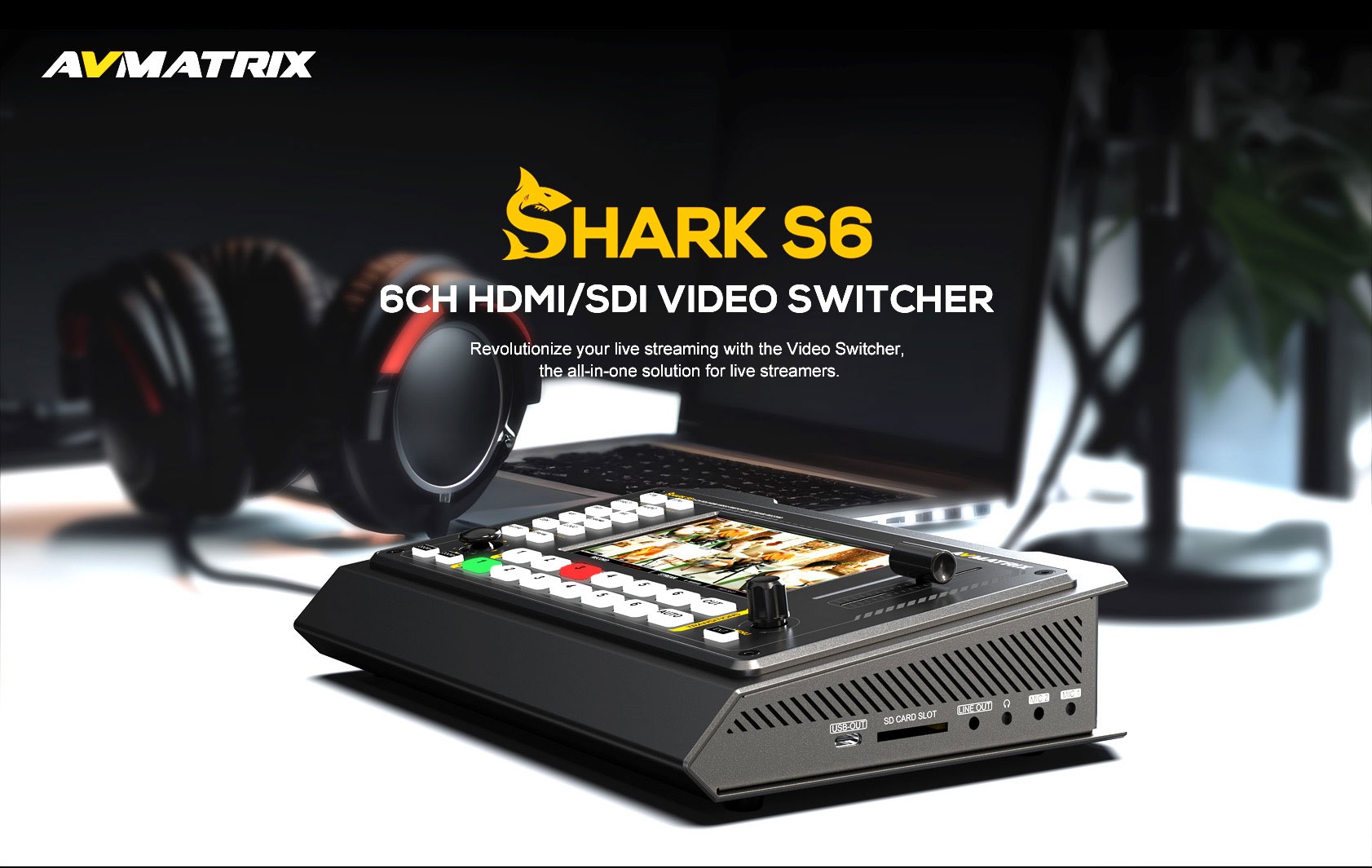

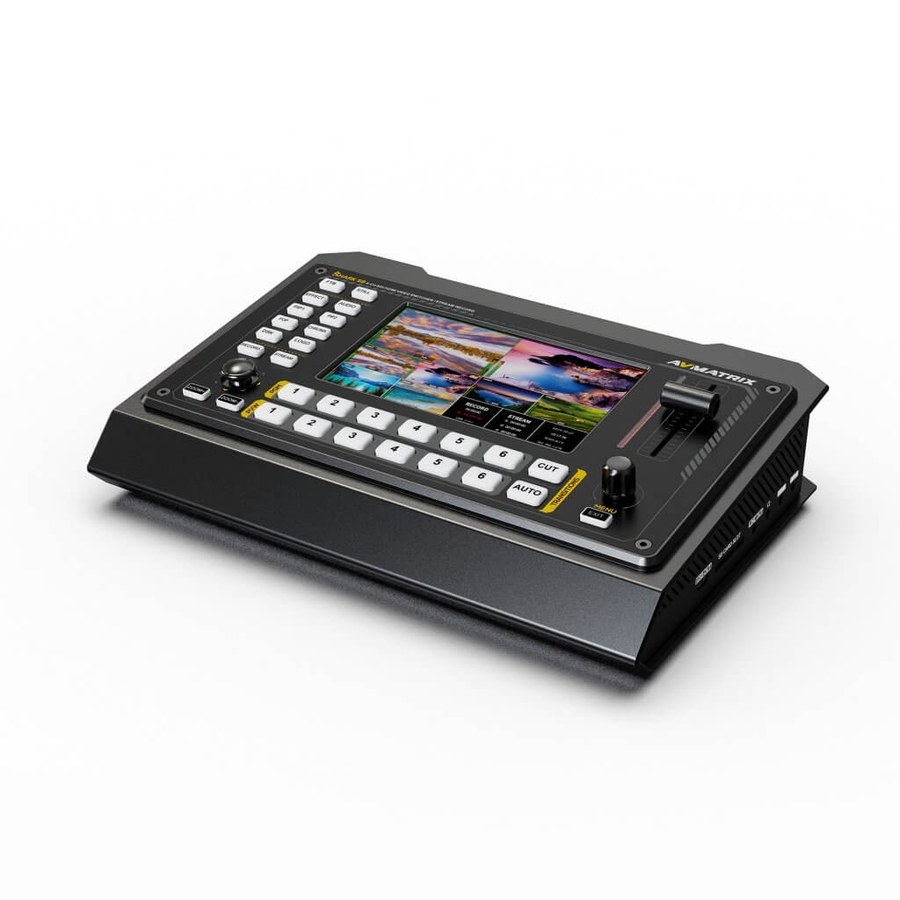

AVMATRIX Shark S6

AVMATRIX Shark S6 is a professional six-channel switcher for live production, recording and streaming. It provides 4× 3G-SDI and 2× HDMI, dedicated hardware control, HDMI and USB-C outputs, network streaming and recording to an SD card or USB drive.

AVMATRIX Shark S6 is a professional six-channel switcher for live production, recording and streaming. It provides 4× 3G-SDI and 2× HDMI, dedicated hardware control, HDMI and USB-C outputs, network streaming and recording to an SD card or USB drive.

Key features

• 4× 3G-SDI and 2× HDMI video inputs
• PGM, Multiview and USB-C capture outputs
• RTMP streaming and SD/USB recording
• Luma Key, Chroma Key, PIP, POP, DSK and logo
• T-bar, AUTO, CUT, WIPE, MIX and DIP

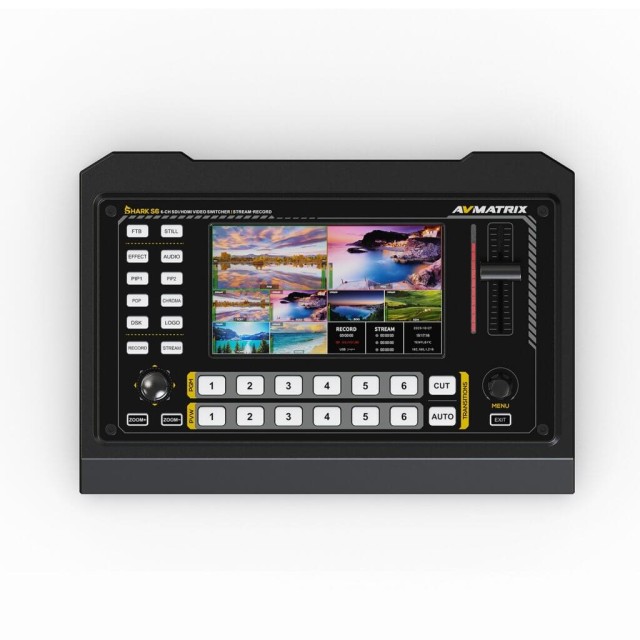

• Built-in 5-inch LCD display

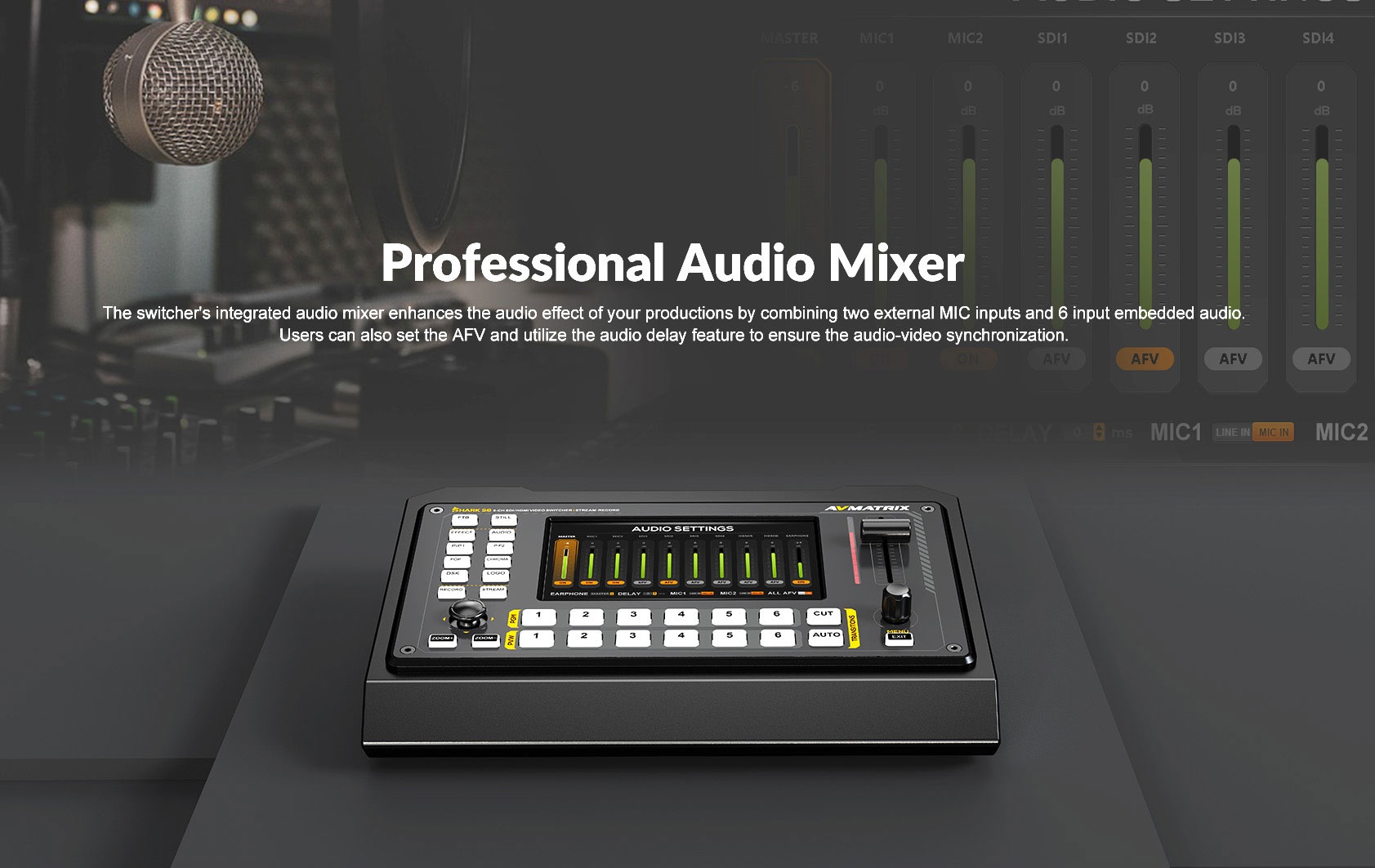

• Audio mixer for 6 embedded sources and 2 microphone inputs
• PTZ camera control via VISCA, ONVIF and Pelco D/P

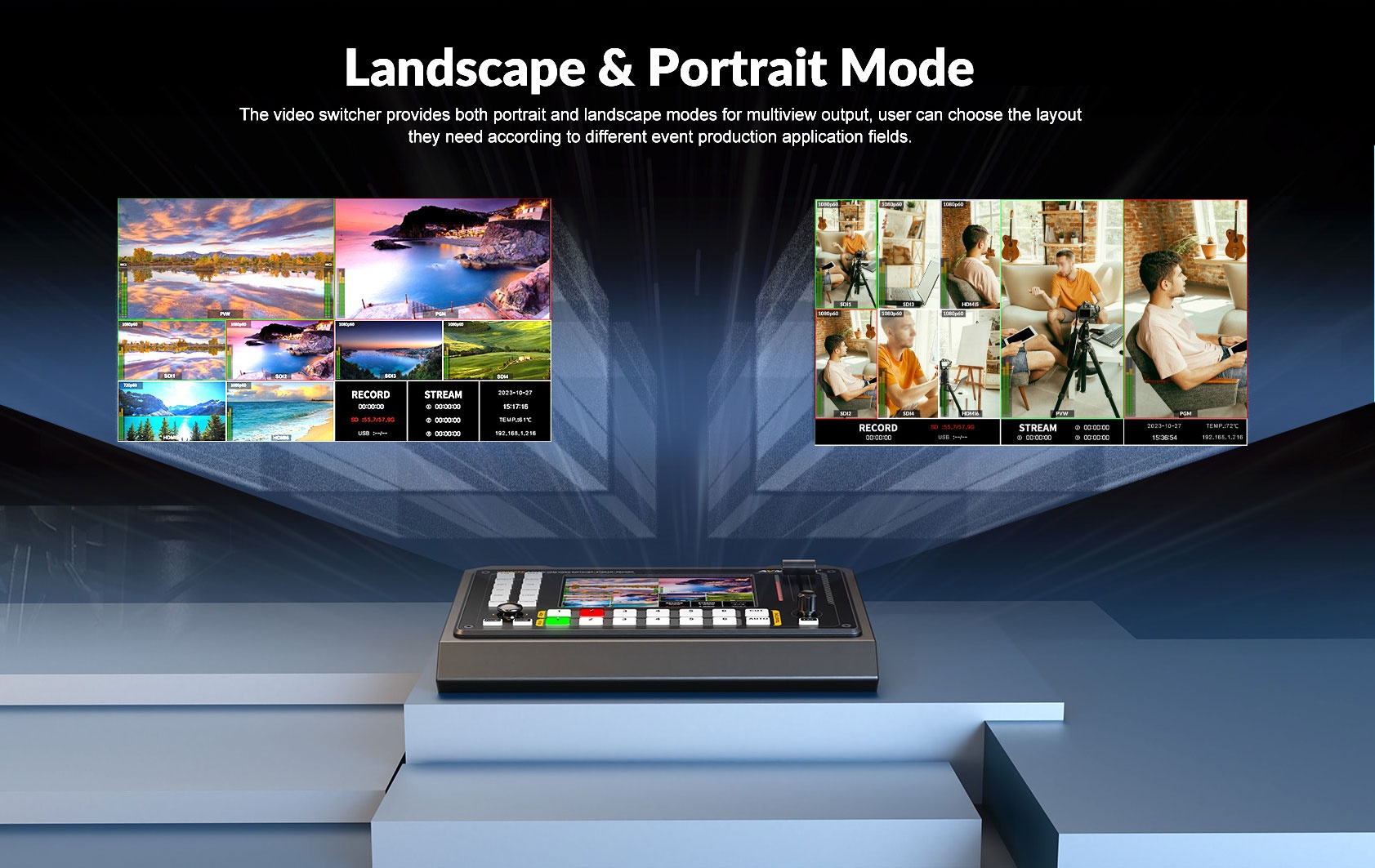

• Landscape and portrait Multiview layouts

Video switching for complete productions

Dedicated PGM/PVW buttons, T-bar and transitions make it quick to build a programme from multiple sources. Keying, PIP, DSK and logo create a finished graphic composition inside the unit.

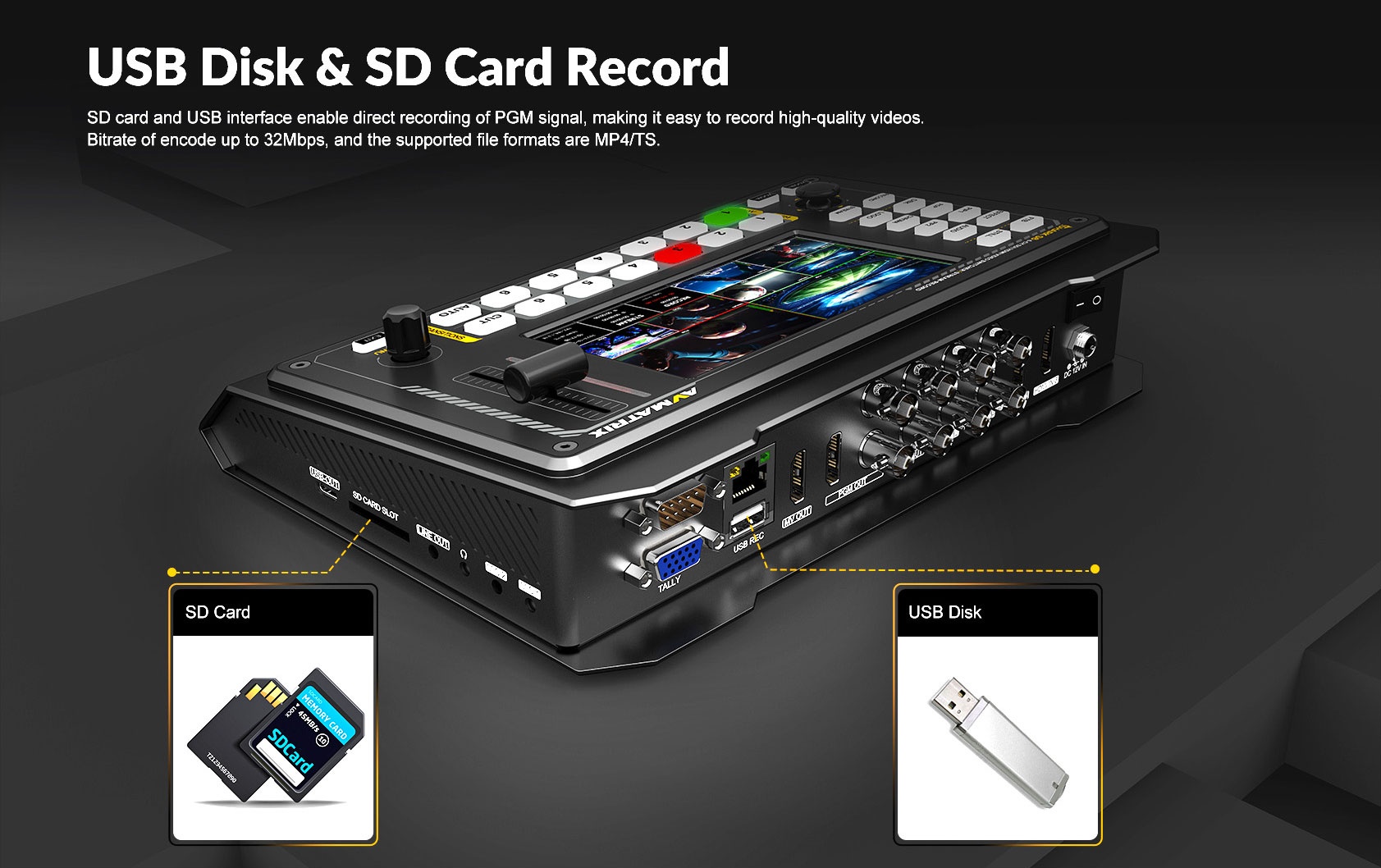

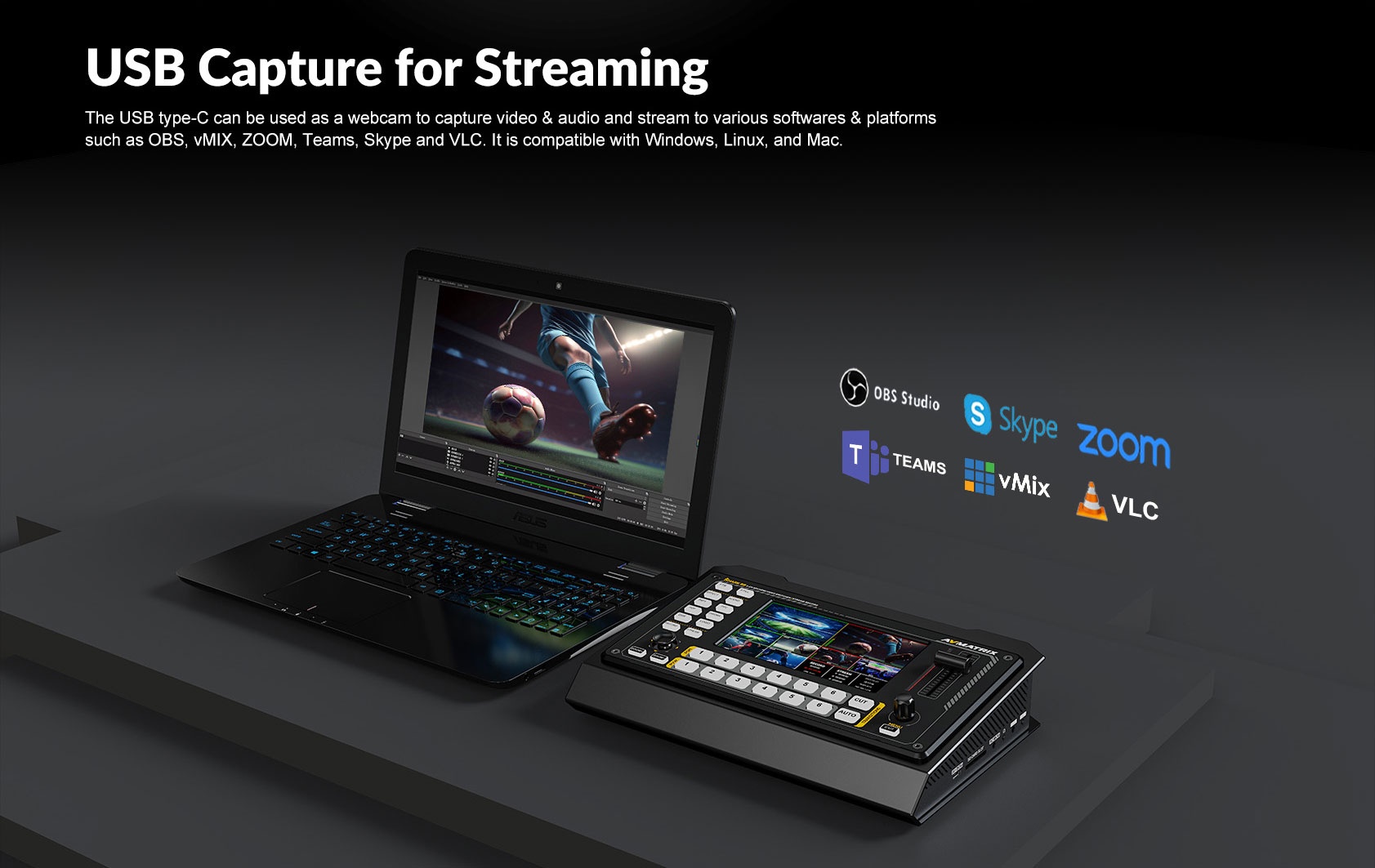

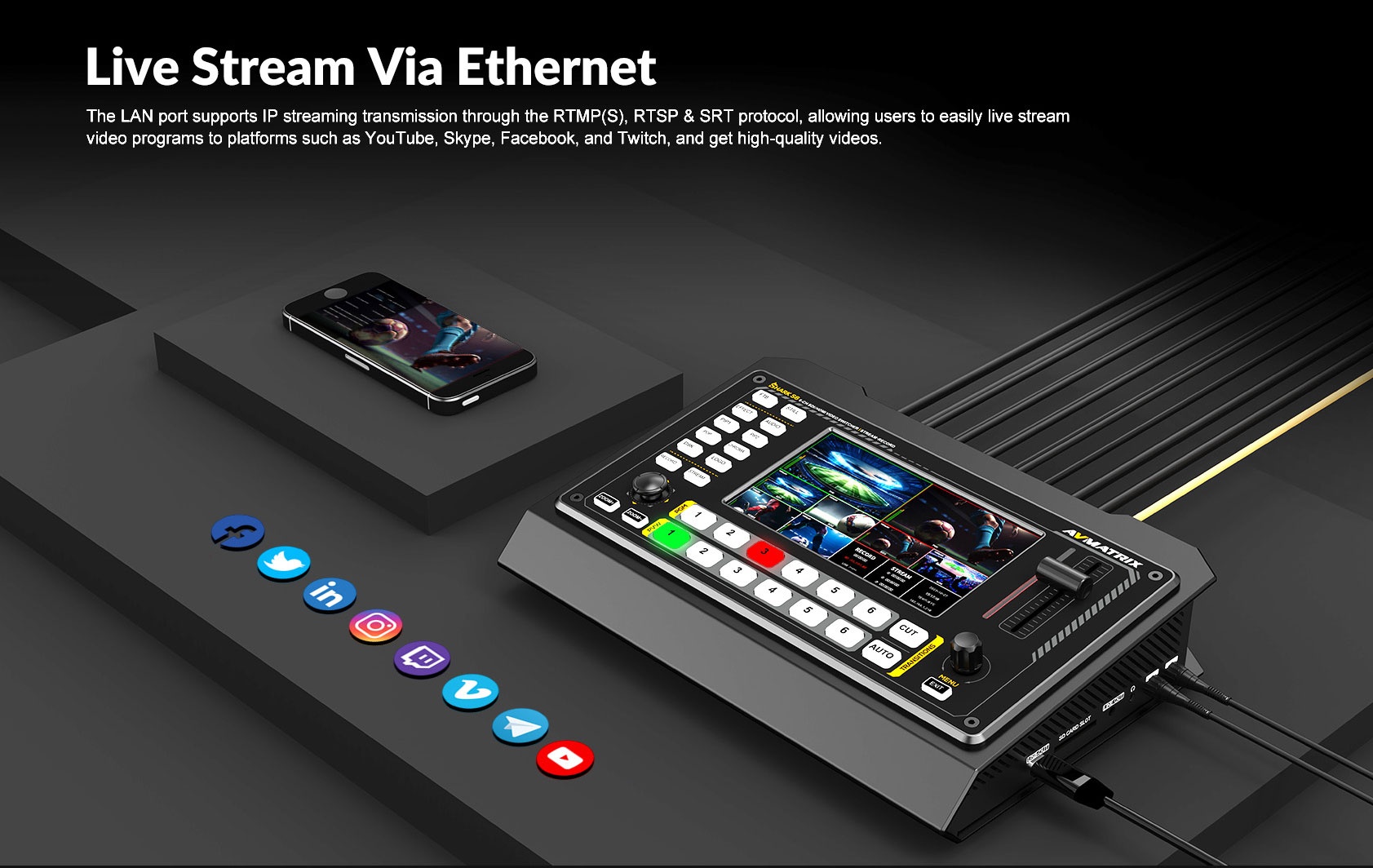

Streaming, USB capture and recording

The programme can be streamed directly over the network, sent to a computer as USB video and recorded to an SD card or USB drive at the same time.

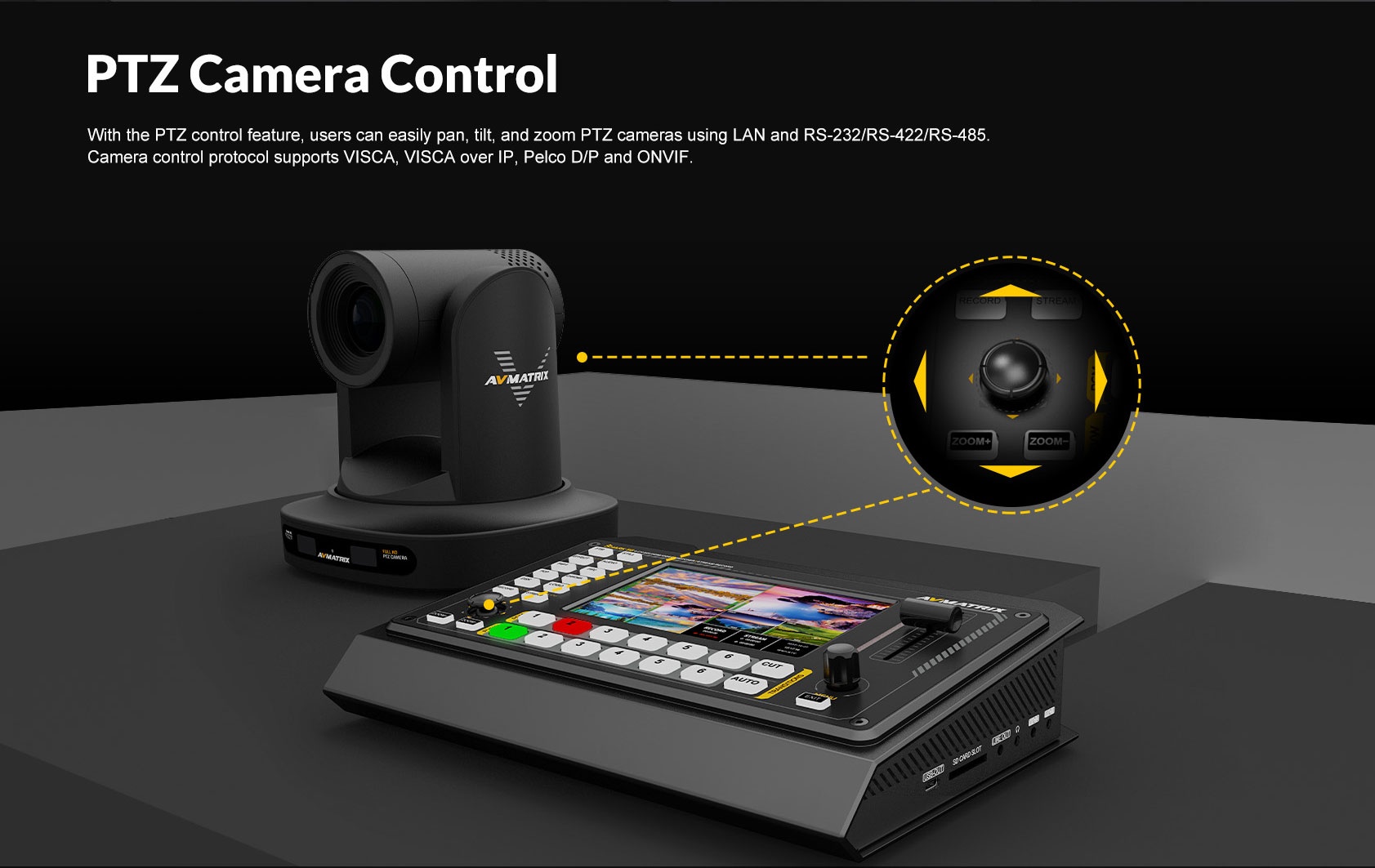

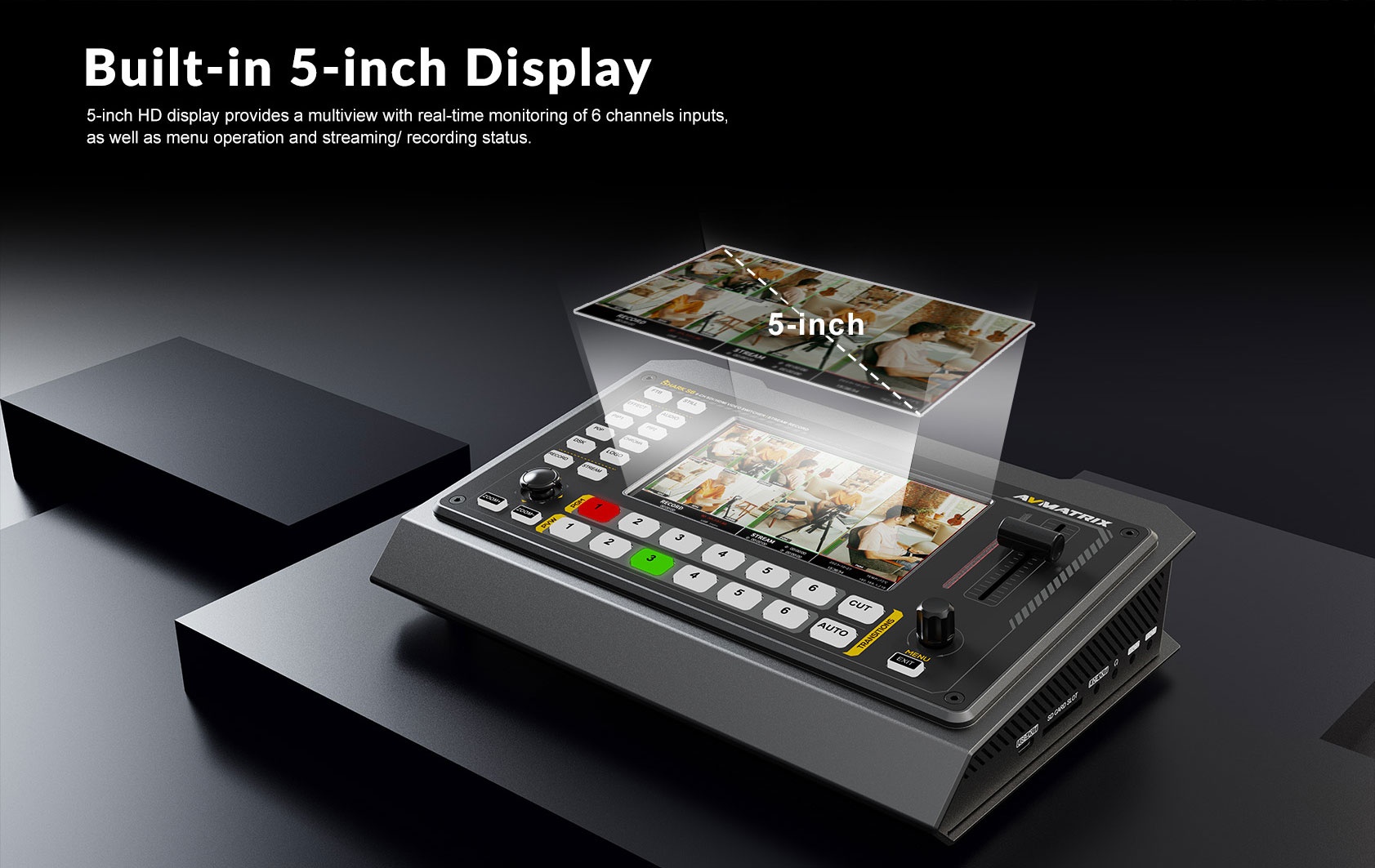

Integrated monitoring and PTZ

The five-inch display presents production status and Multiview. Six-channel PTZ control supports VISCA, VISCA over IP, ONVIF and Pelco D/P, allowing cameras to be operated directly from the switcher.

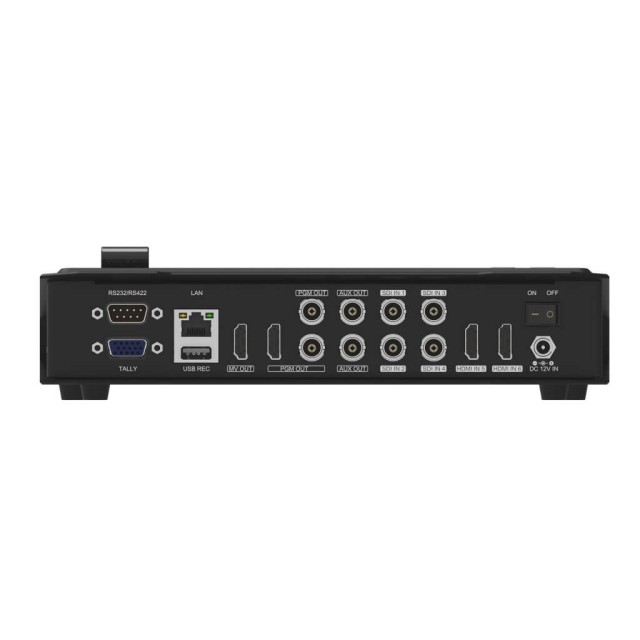

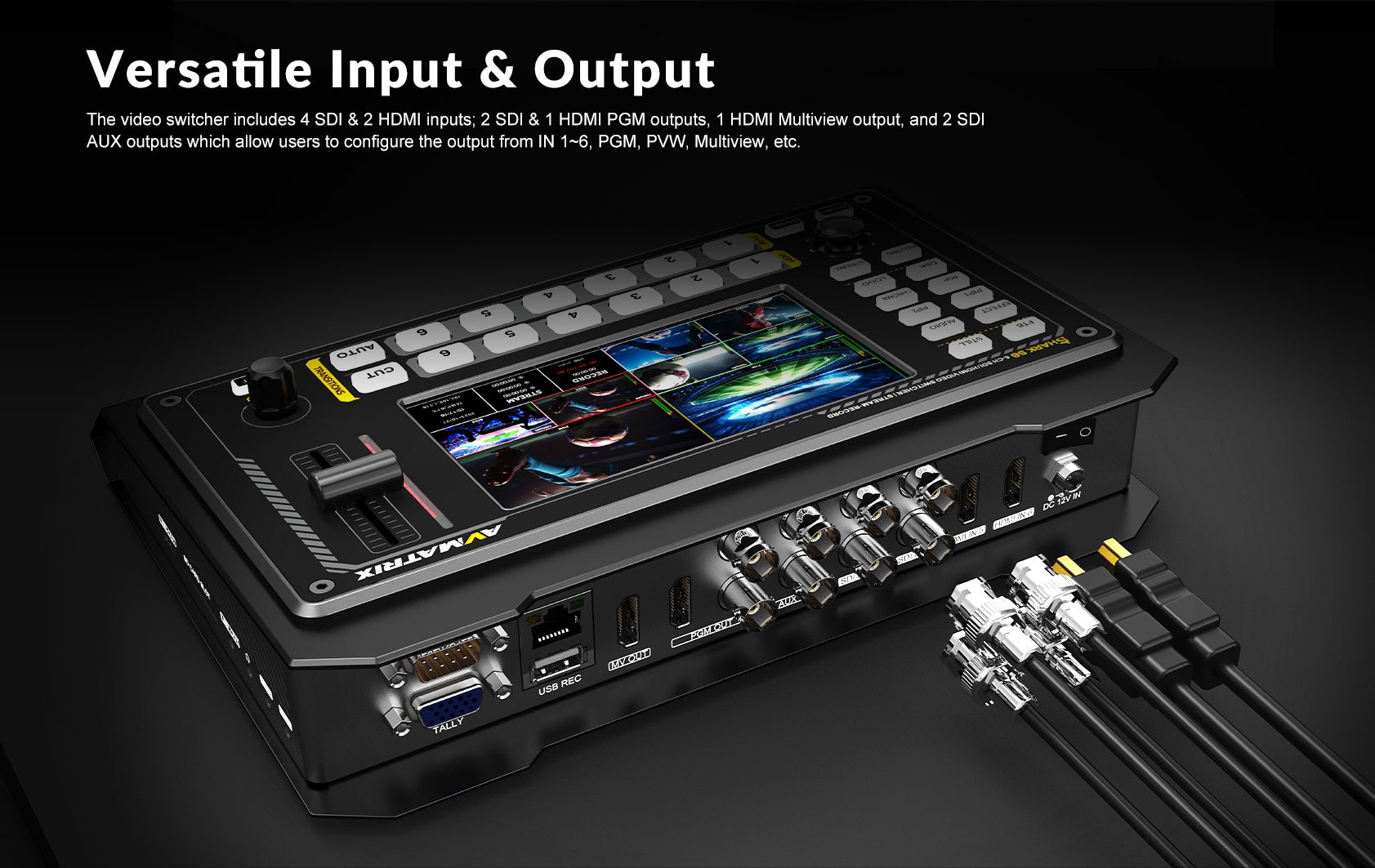

Professional outputs

Alongside HDMI PGM and Multiview, the unit provides SDI programme and AUX outputs, USB-C capture and GPIO tally for studio integration.
