AVMatrix SHARK S6 PLUS

AVMatrix Shark S6 Plus – 17.3″ 6-Channel SDI/HDMI Portable Live Switcher: 4×3G-SDI + 2×4K HDMI inputs, multi-view routing, 6×PGM outputs, RTMP streaming, USB-C UVC capture, pro XLR audio, 6×PTZ control, T-bar, chroma/luma key, 3×PIP, macros & tally.

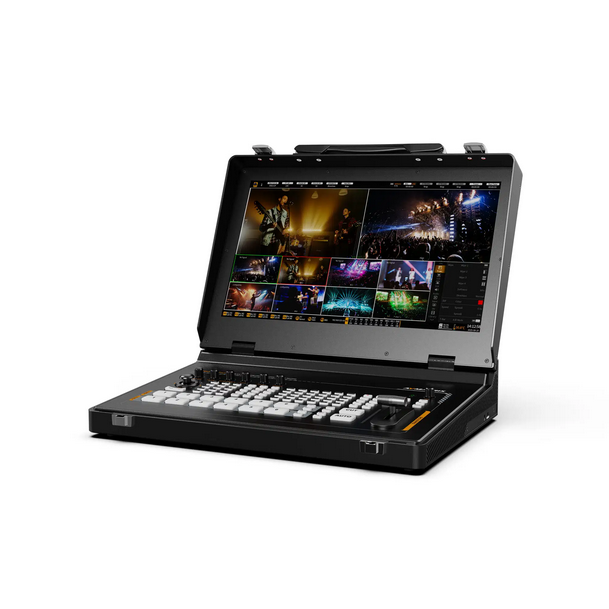

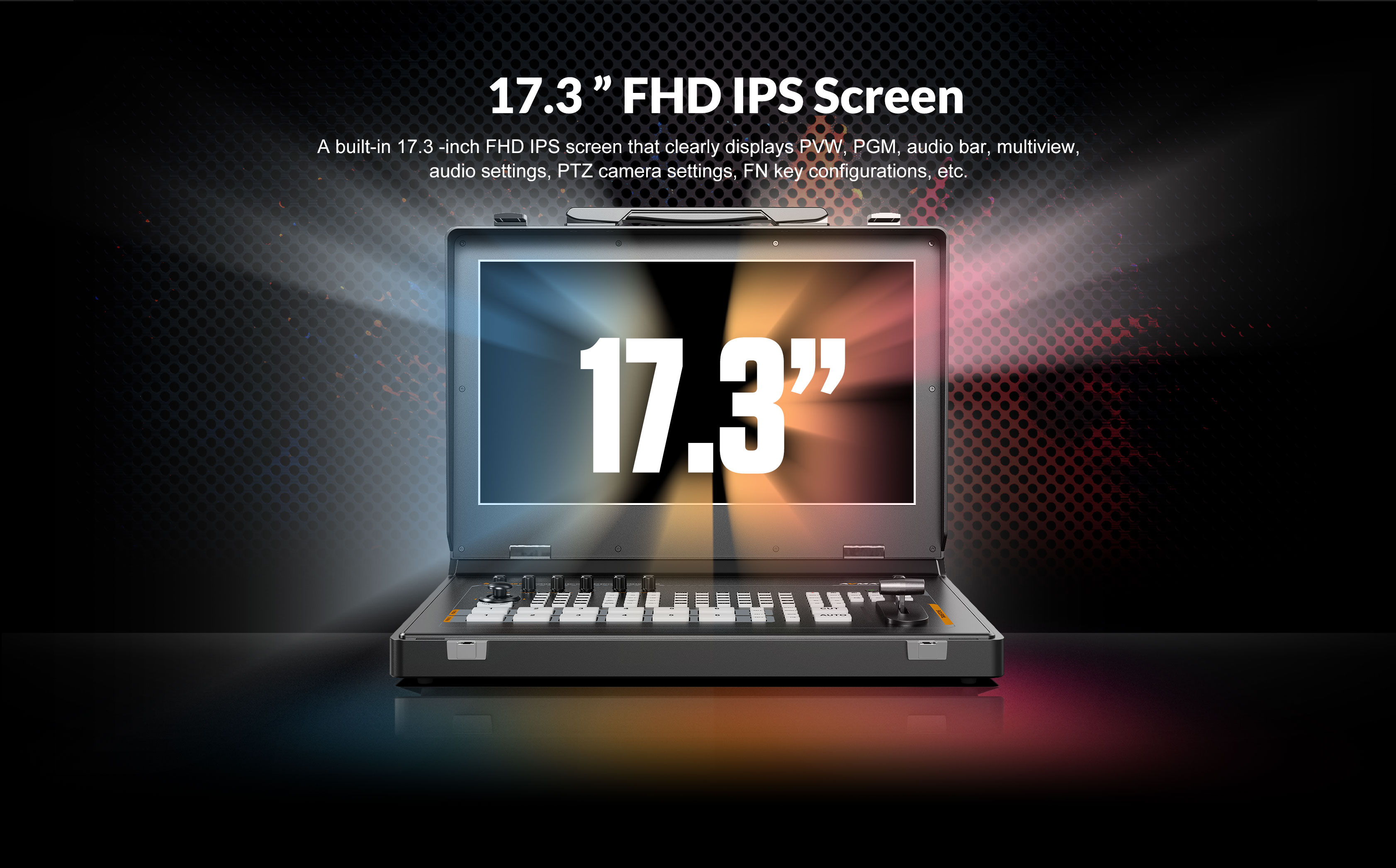

The AVMatrix Shark S6 Plus is the ultimate all-in-one portable production powerhouse. Built around a bright 17.3″ 1080p touchscreen, this 6-channel switcher handles up to 4×3G-SDI and 2×4K60 HDMI inputs with full multi-view source routing – freely assign any input to any preview window for total flexibility.

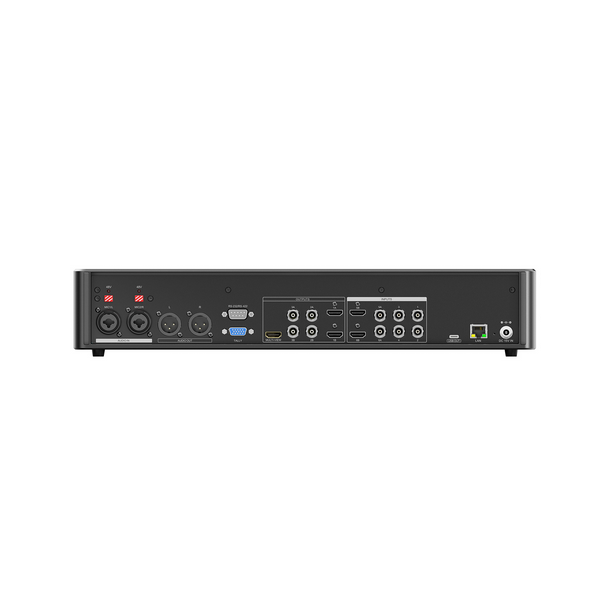

Output simultaneously via 2×HDMI PGM, 4×SDI PGM (all independently configurable), plus 1×HDMI multiview. Stream directly via RTMP while recording clean PGM or full ISO to USB drive/SD card. The USB-C port delivers lossless UVC/UAC capture straight to your laptop (OBS, vMix, Zoom, etc.).

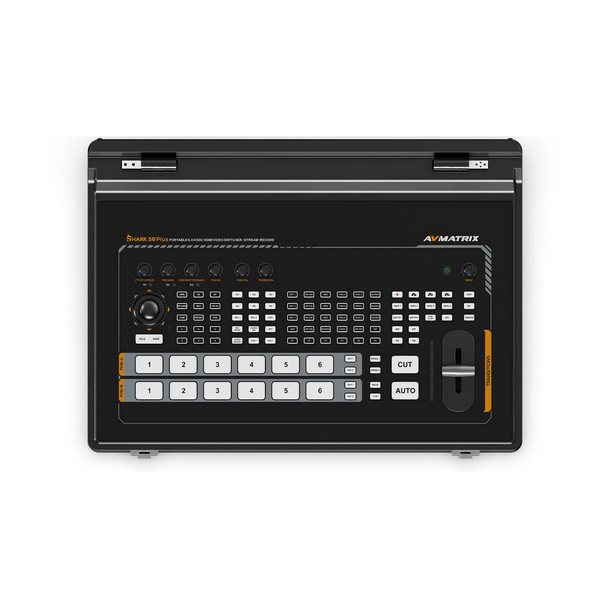

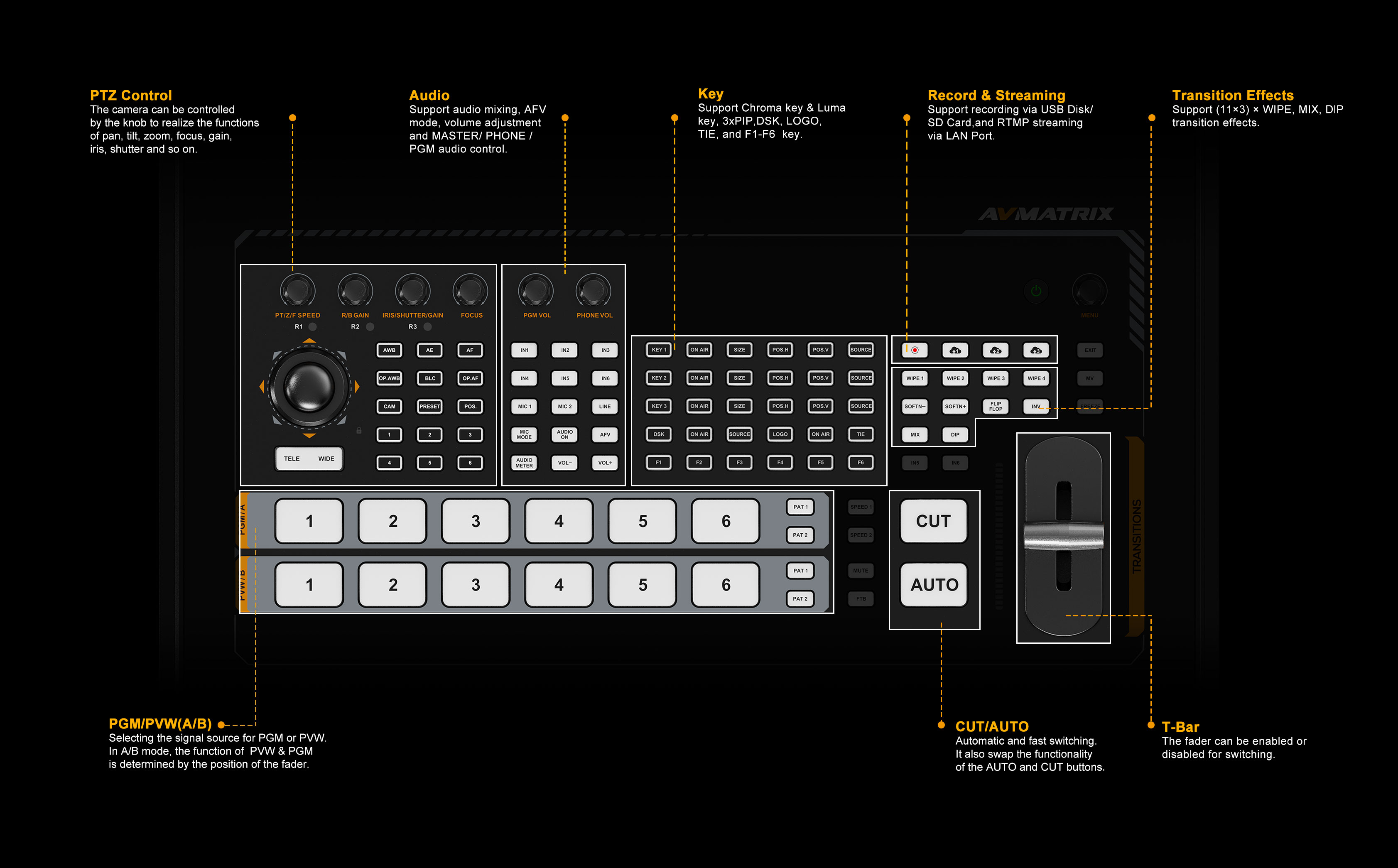

Advanced vision mixing includes chroma key, luma key, 3× resizable PIP/POP, DSK, logo overlay, and silky-smooth T-bar/Auto/Cut transitions. Professional balanced XLR audio (48V phantom) with embedded, line, and mic inputs plus full mixing and monitoring. Control up to 6 PTZ cameras with speed, presets, white balance, and focus – all from the panel. Record and edit macro scripts for complex sequences, and send tally via GPIO.

Lightweight, rugged, and powered by a single 12V supply, the Shark S6 Plus is the perfect flypack solution for live events, houses of worship, education, corporate, and mobile production.

Key Features

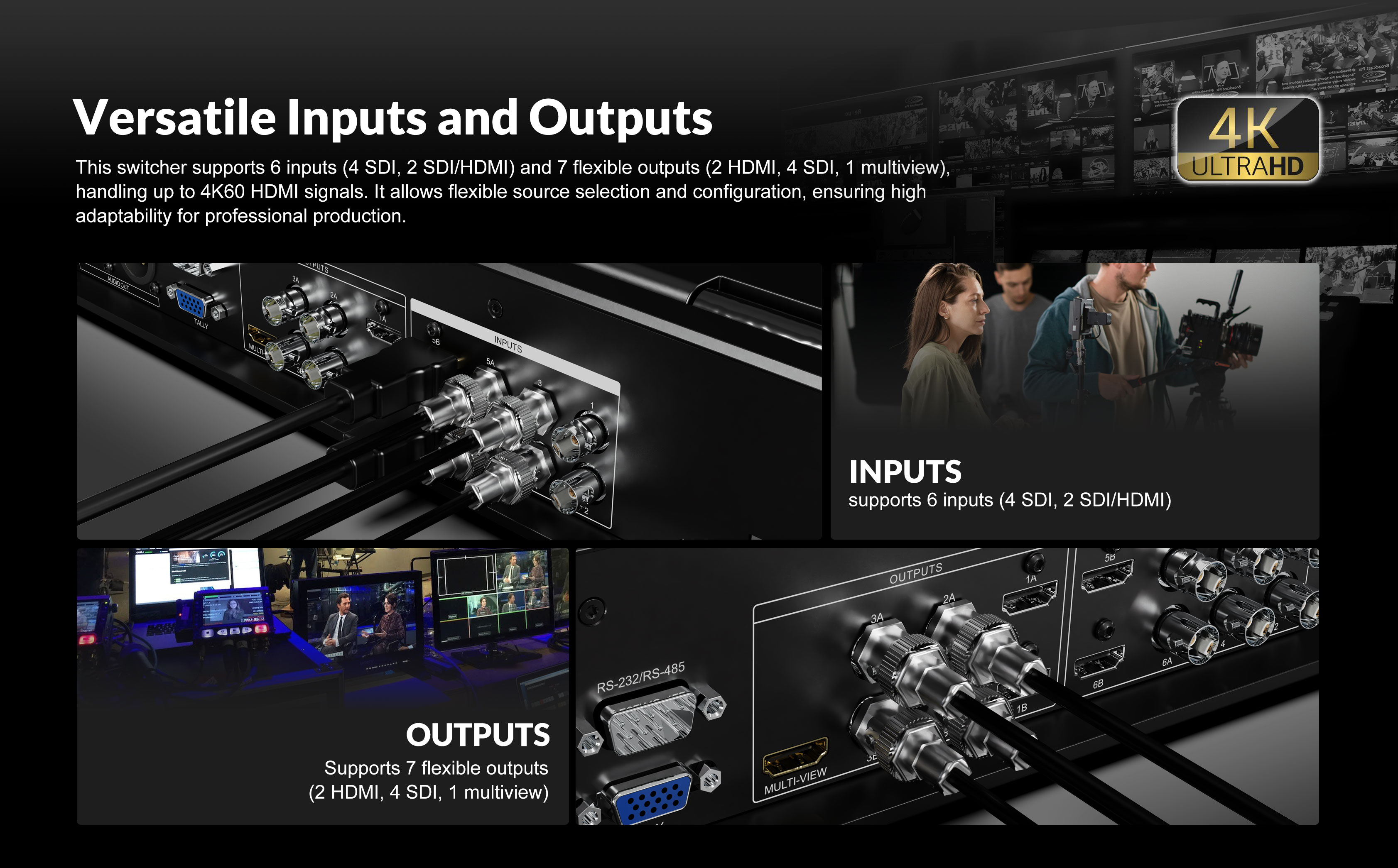

• 6-Channel Switching – 4×3G-SDI + 2×HDMI 2.0 (4K60) inputs

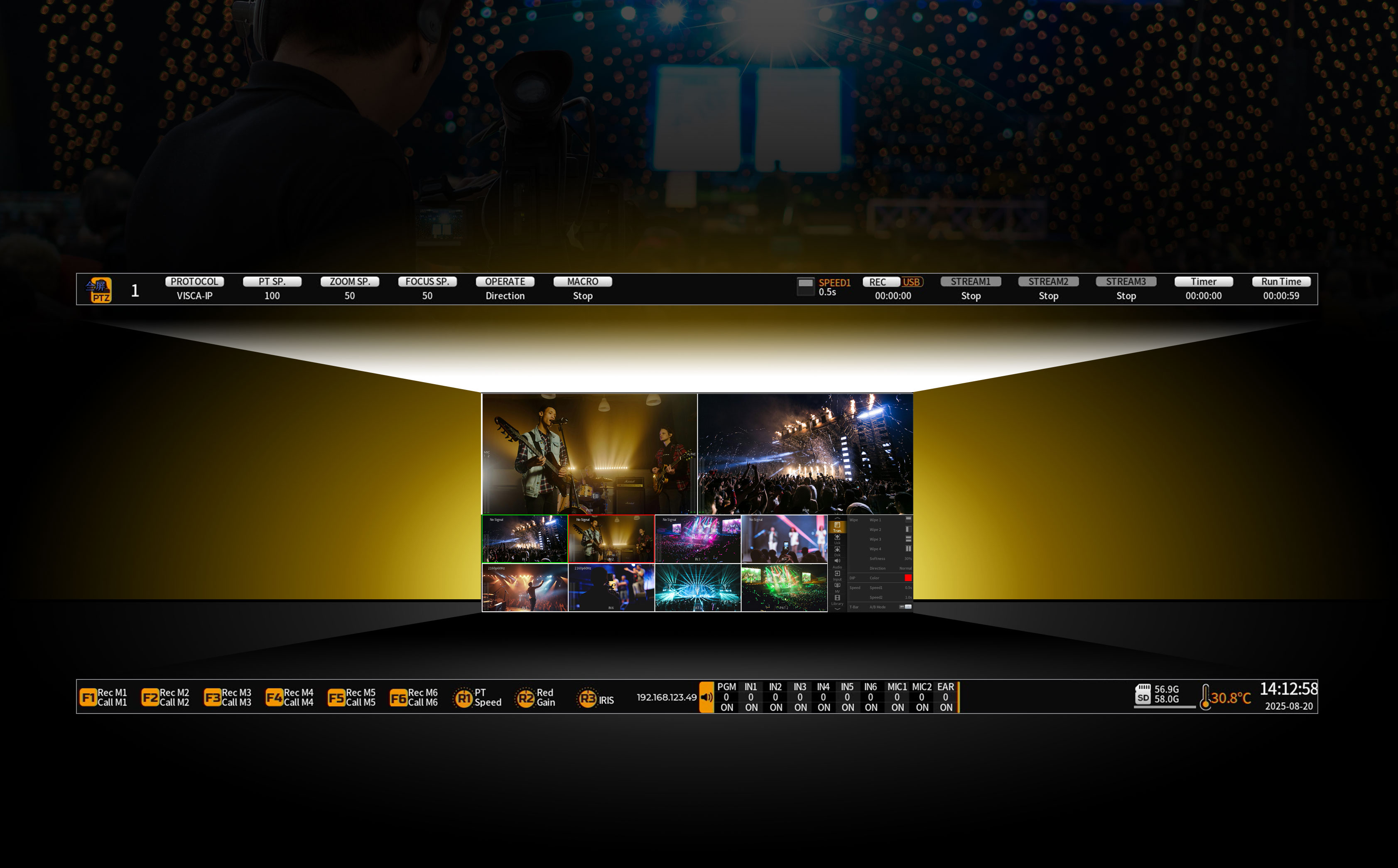

• Flexible Multi-View – Freely route any source to any preview window

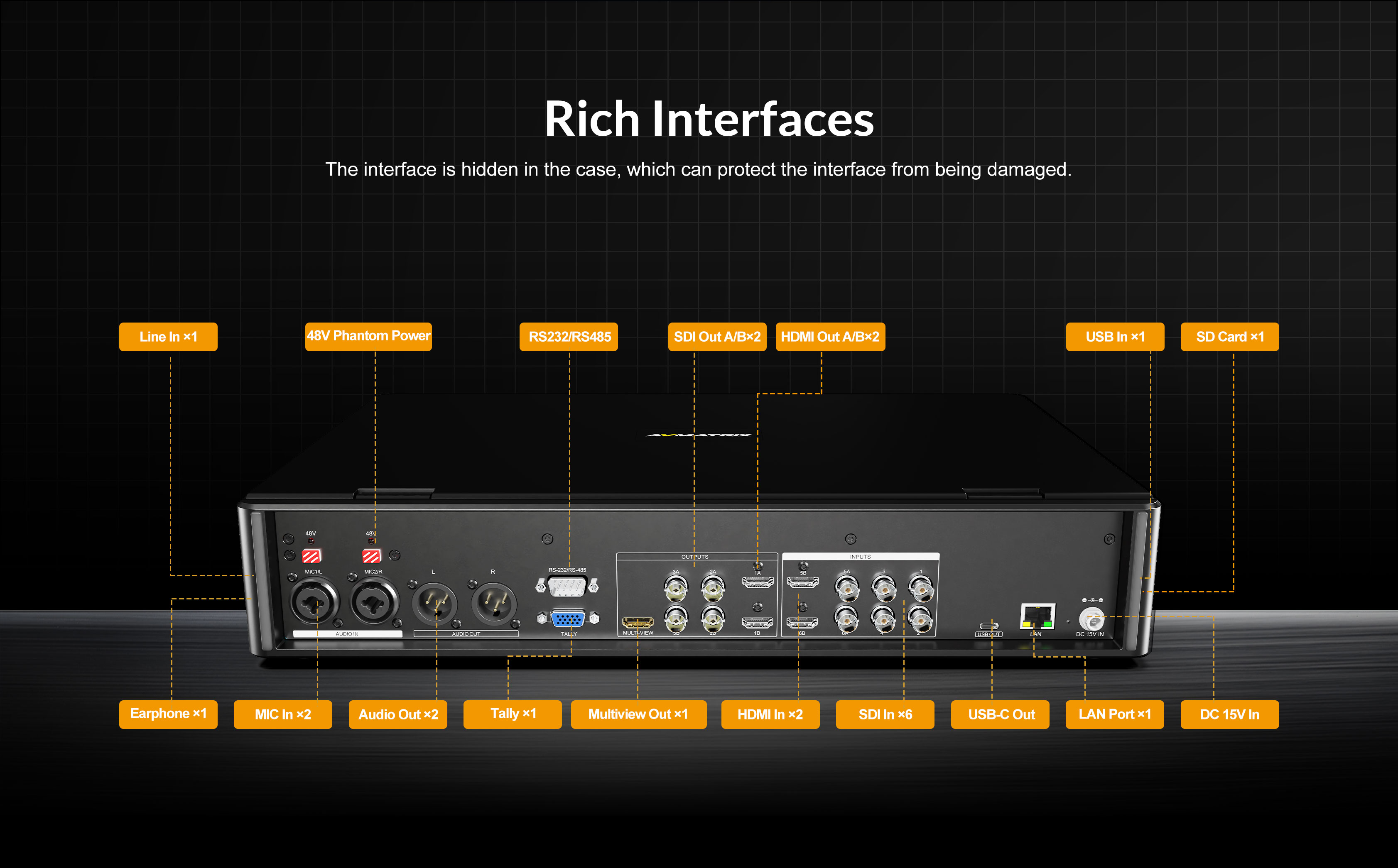

• Outputs – 2×HDMI PGM + 4×SDI PGM (configurable) + 1×HDMI multiview

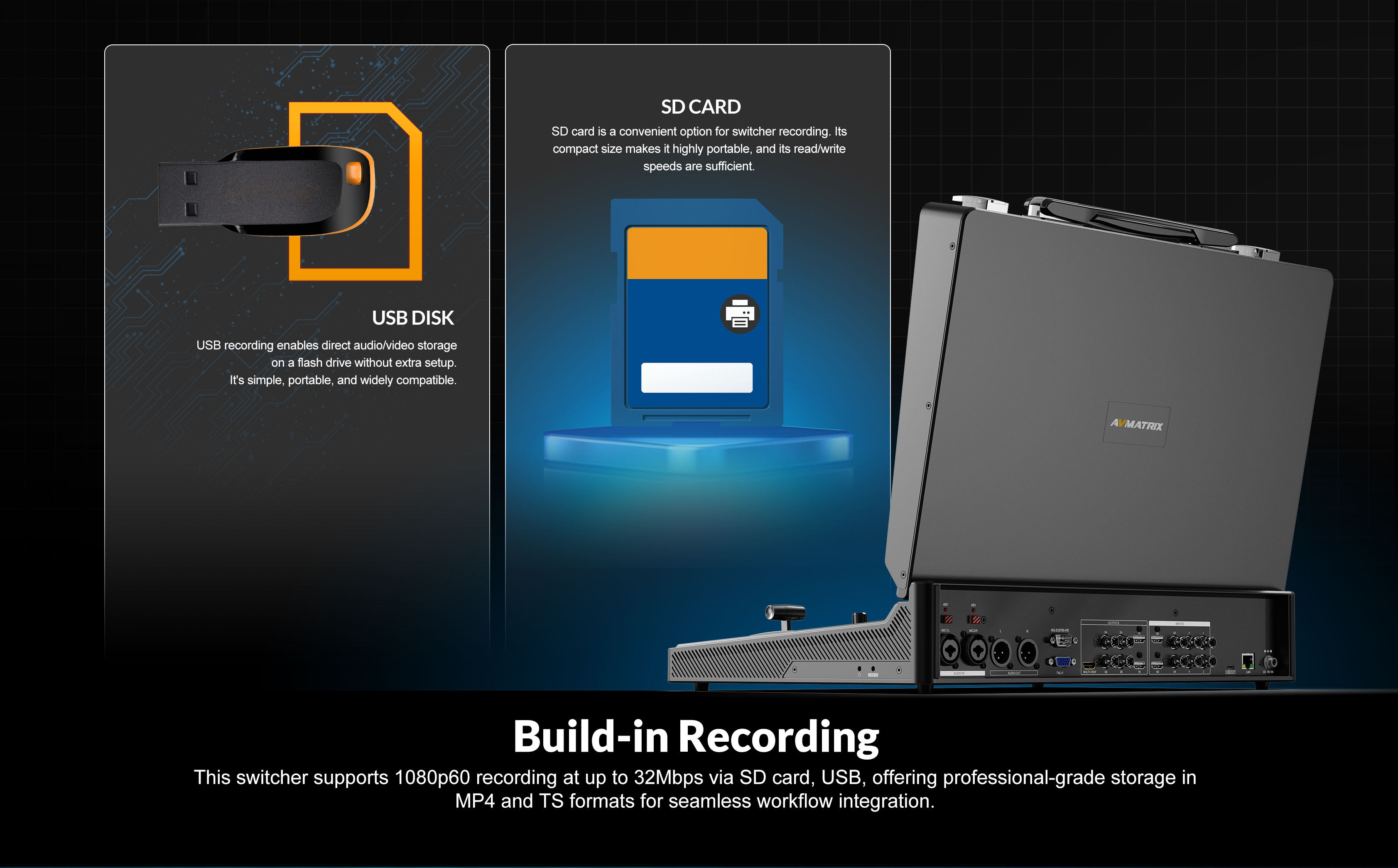

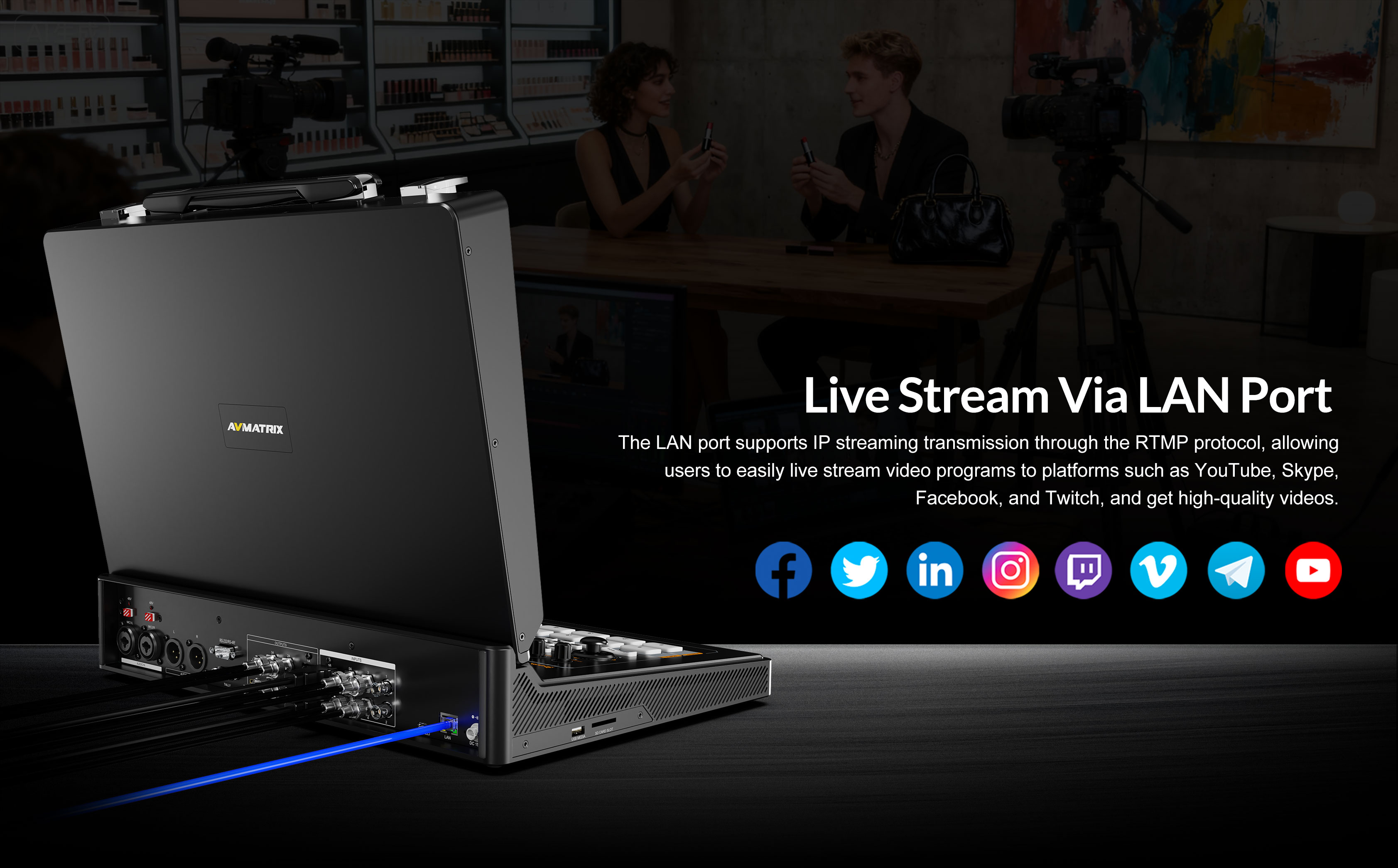

• Streaming & Recording – Built-in RTMP + USB/SD recording
• USB-C UVC Output – Lossless plug-and-play capture to laptop

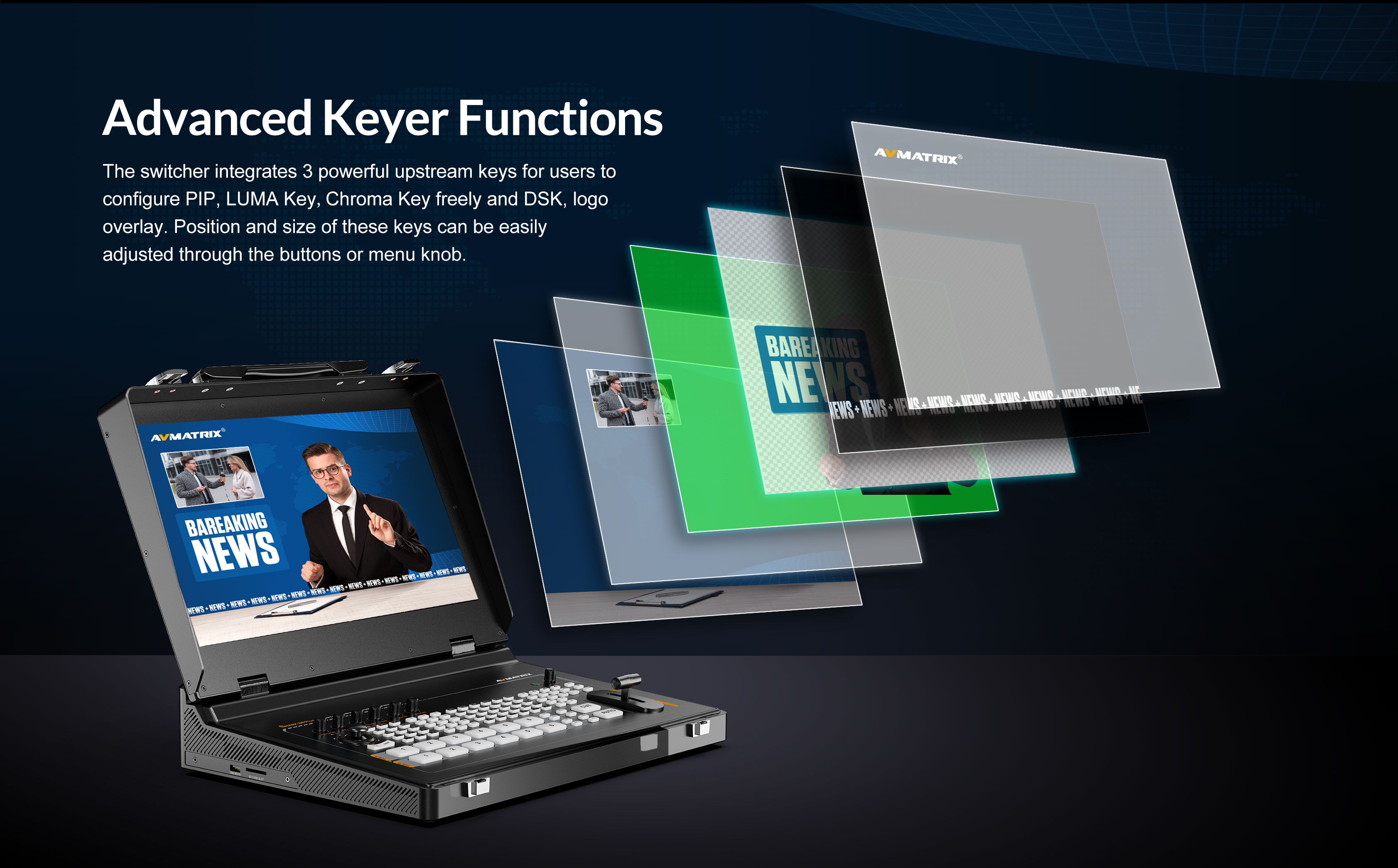

• Advanced Keying – Chroma key, luma key, 3×PIP/POP, DSK, logo overlay

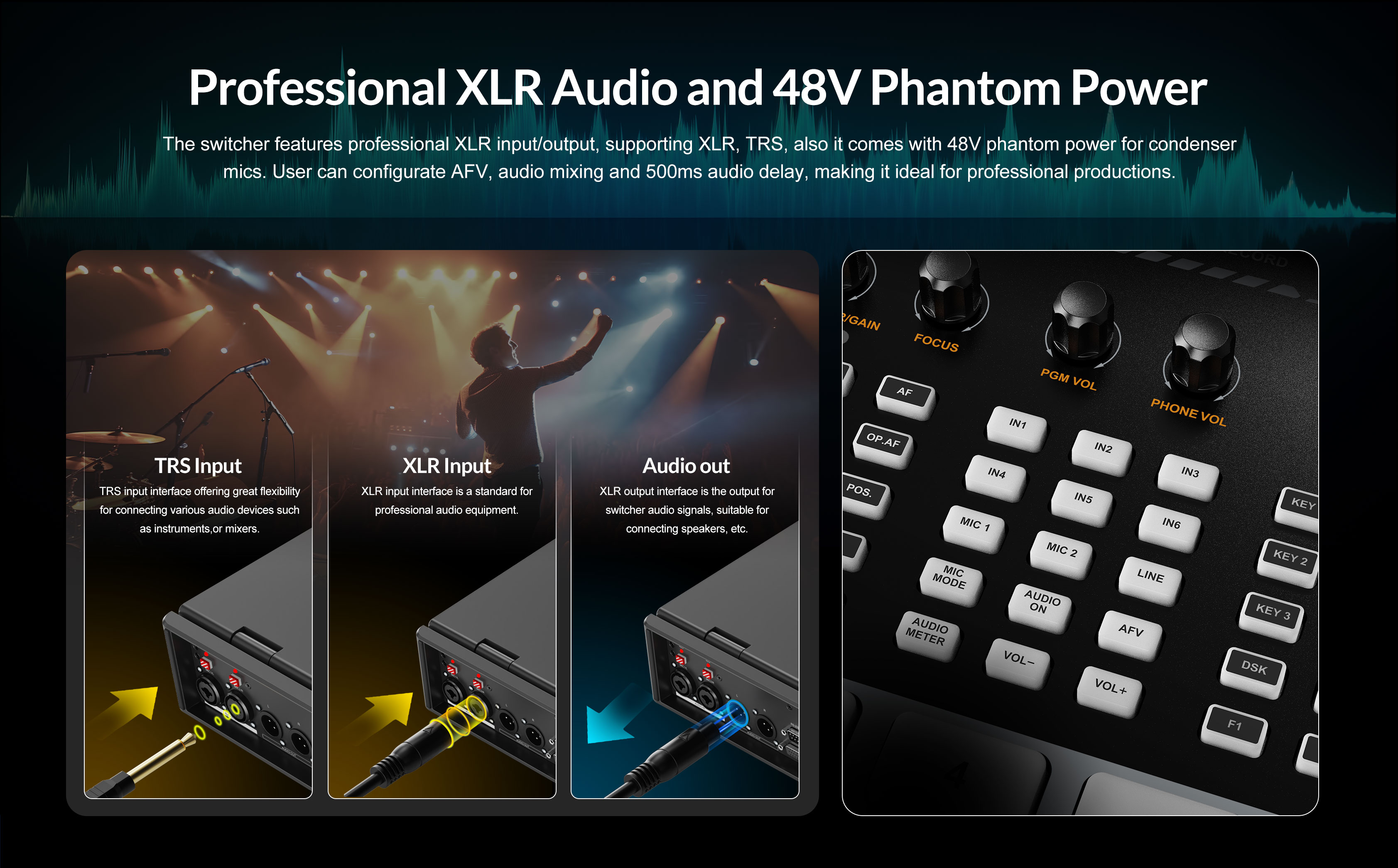

• Pro Audio – 2×XLR balanced (48V phantom), embedded + line inputs, XLR + 3.5mm monitoring

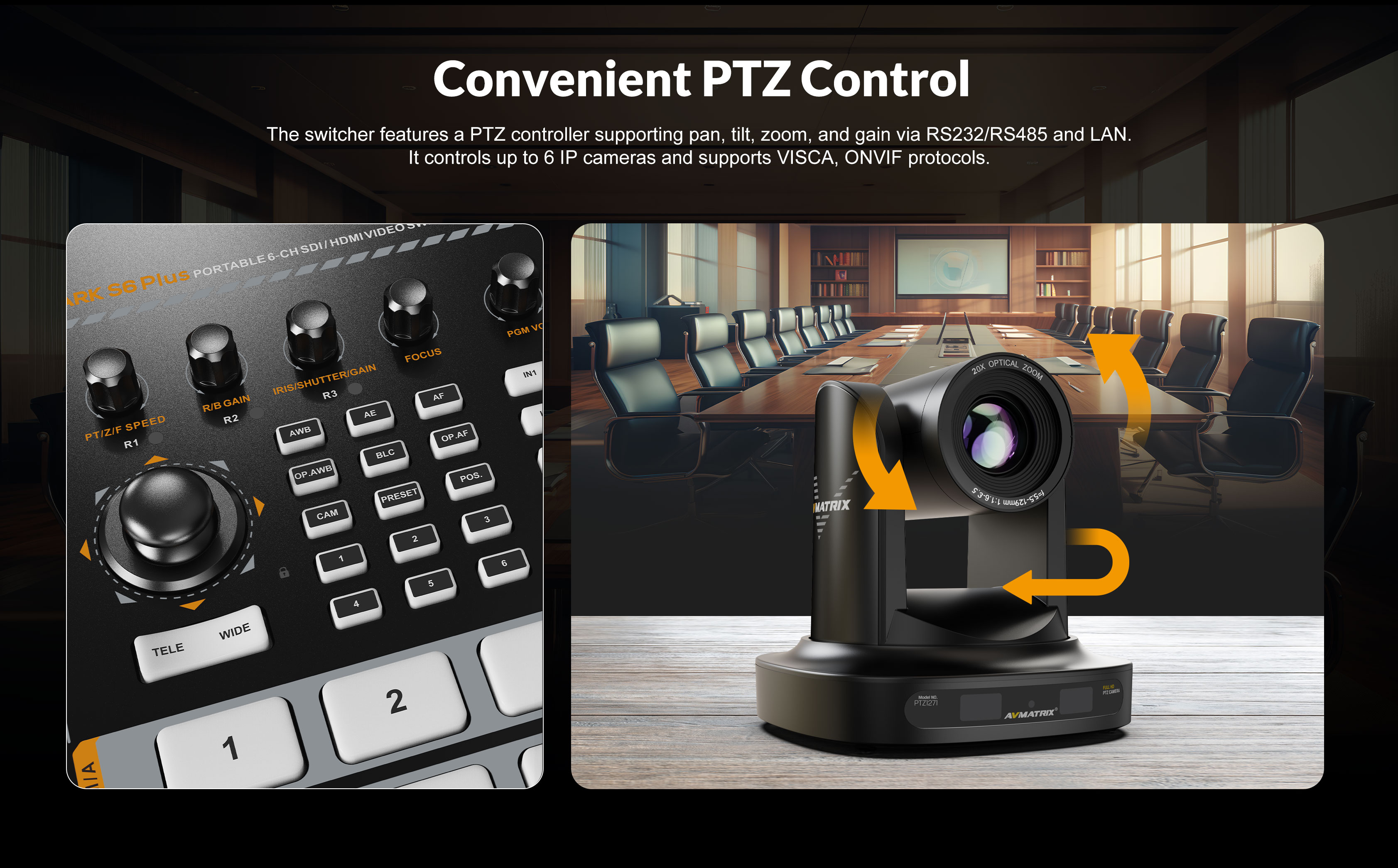

• 6×PTZ Control – VISCA-over-IP / Pelco, presets, speed, WB, focus
• T-Bar + Macros – Manual transitions + programmable macro scripts
• Tally – GPIO port for light control
