AvMatrix Shark S4 Plus

Name: AvMatrix Shark S4 Plus
Brand: AVMATRIX
SKU: Shark S4 Plus
Price: 909 EUR
Availability: InStock

SKU: Shark S4 Plus

AVMATRIX Shark S4 Plus is a portable 4-channel video switcher with an integrated 10.1″ Full HD IPS display, two HDMI and two 3G-SDI inputs, HDMI outputs, USB-C capture, network streaming and recording to an SD card or USB drive. It is well suited to events, education, corporate streaming, compact studios and mobile multicamera production.…

More information

909 € with VAT 751.24 € without VAT

Price history

Availability

Backordered 2 pcs - 13.11.2026

SKU:
Shark S4 Plus

Price history

Top accessories for AvMatrix Shark S4 Plus

AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)

Top product

AVMATRIX TS3019-4 is a wireless tally system with a base unit and four tally lamps.

489 €

In stock 5 pcs

Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny

22 €

In stock > 5 pcs

Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny

18 €

To be sent > 5 pcs

AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter wPSU

AVMATRIX Mini SC1221 is a compact HDMI to dual 3G-SDI converter for bringing HDMI

96 €

In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

4K / UHD
SHOWROOM PRAHA

Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel

8.1 €

In stock 3 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

4K / UHD

Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel

9.3 €

To be sent > 5 pcs

AVMATRIX Mini SC1112 3G-SDI to HDMI Mini Converter wPSU

AVMATRIX Mini SC1112 is a pocket-sized 3G-SDI to HDMI converter with an SDI loop

96 €

To be sent 2 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX Shark S4 Plus is a portable 4-channel video switcher with an integrated 10.1″ Full HD IPS display, two HDMI and two 3G-SDI inputs, HDMI outputs, USB-C capture, network streaming and recording to an SD card or USB drive. It is well suited to events, education, corporate streaming, compact studios and mobile multicamera production.

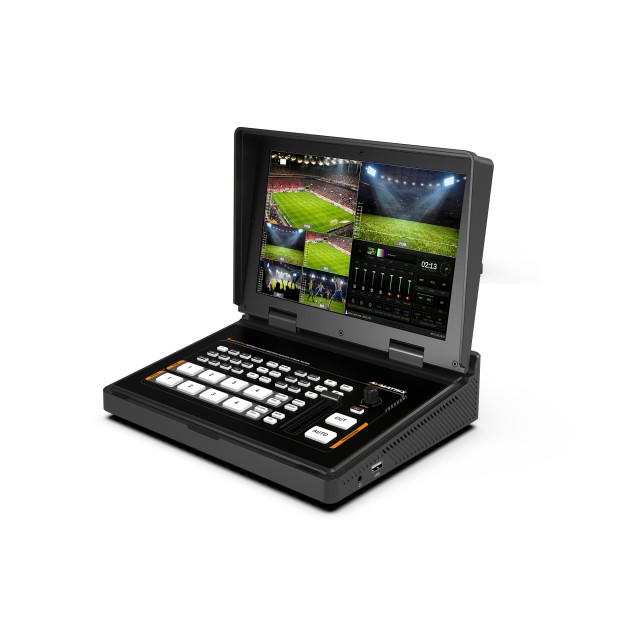

Portable 4-input switcher with a 10.1″ display

Shark S4 Plus combines a 2× HDMI and 2× 3G-SDI switcher, a folding Full HD monitor, streaming, recording and USB capture in one briefcase-style body. Plug in your cameras and go live.

2× HDMI + 2× 3G-SDI10.1″ IPS Full HDRTMP / RTMPS / SRTSD and USB recordingUSB-C captureUp to 1080p60

A complete control room, no external monitor

The built-in folding 10.1″ display shows multiview, preview, program and audio meters. Together with streaming, recording and USB capture, one unit replaces a switcher, preview monitor, encoder and recorder.

4 inputs

Two HDMI and two 3G-SDI inputs with automatic format detection up to 1080p60.

Stream and record

RTMP, RTMPS and SRT streaming at 2–32 Mbps plus simultaneous MP4/TS recording to an SD card or USB drive.

Keys and transitions

Luma Key, Chroma Key, two PIPs, POP, DSK and logo; T-bar, AUTO and CUT transitions with WIPE, MIX and DIP effects.

Audio mixing

Mix audio from four video inputs and two 3.5 mm MIC/Line inputs with 0–500 ms delay.

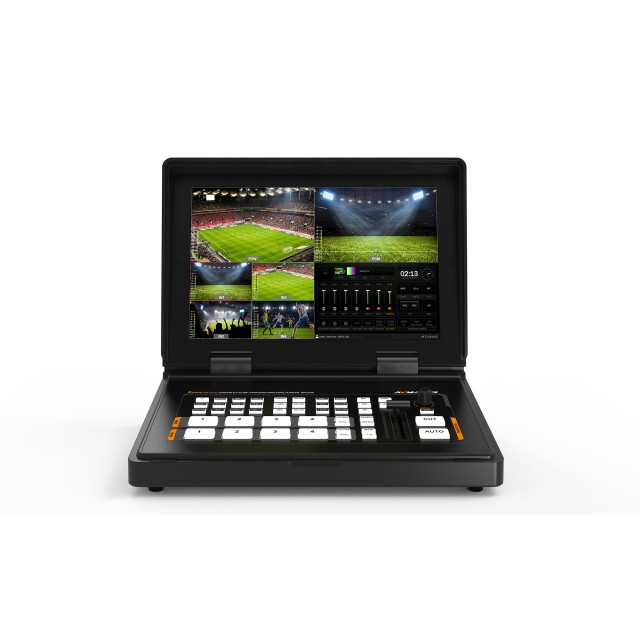

Multiview on the built-in display

The folding 10.1″ IPS display shows all inputs, preview, program, audio meters and the menu. Multiview can be shown in landscape or portrait layout.

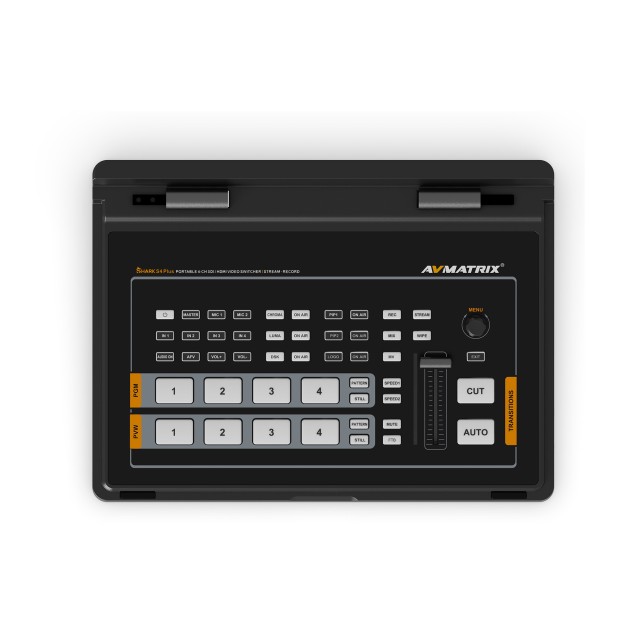

Control panel with T-bar

PGM and PVW button rows for four inputs, CUT and AUTO buttons, a T-bar for manual transitions and direct key and effect buttons.

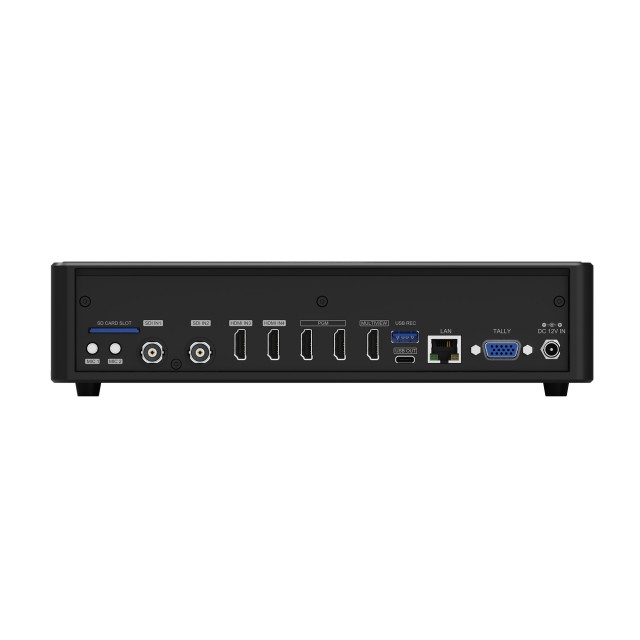

Rear panel connectors

SD card slot, SDI IN1 and IN2, HDMI IN3 and IN4, two PGM outputs, a Multiview output, USB for recording, LAN for streaming, DB-15 tally and DC power.

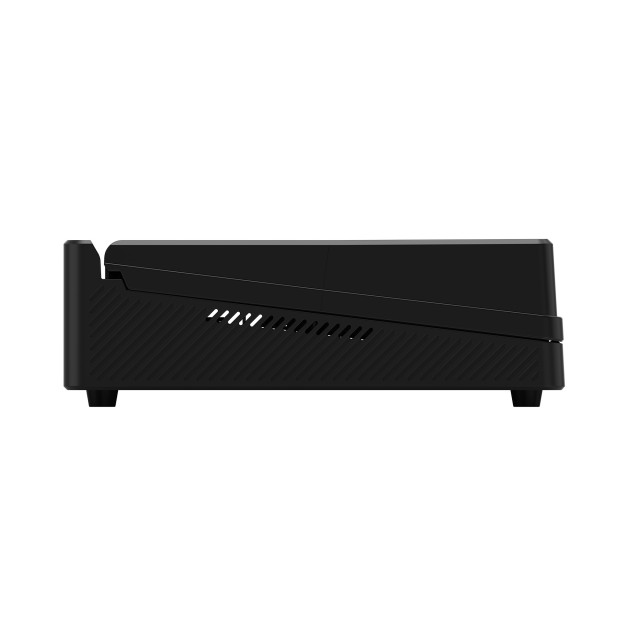

Compact briefcase body

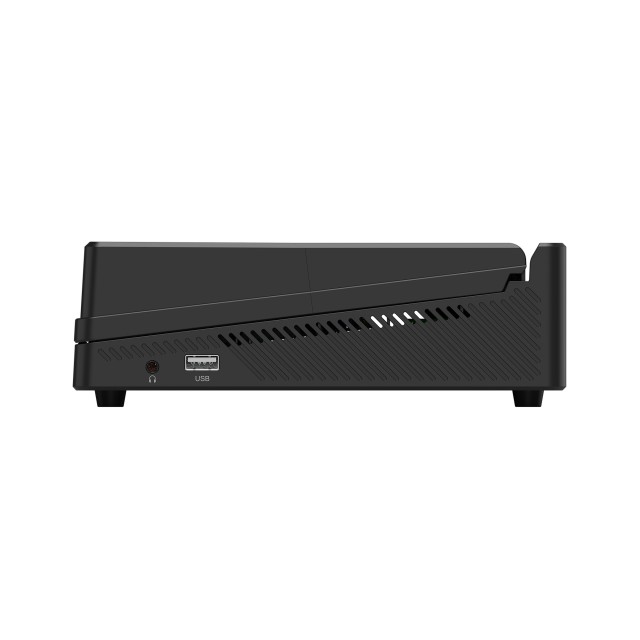

261.4 × 193.9 × 58 mm and 1.73 kg. A USB port and a 3.5 mm headphone output sit on the side.

More information

SDI/HDMI production, streaming and recording in one body

AVMATRIX Shark S4 Plus combines hardware switching, a 10.1″ monitoring display, audio mixing, graphic layers, recording and live streaming. The 2× HDMI + 2× 3G-SDI input configuration is ideal for productions that mix cameras, computers and professional SDI equipment.

10.1″ Full HD IPS display

The built-in folding monitor shows multiview, preview, program, audio meters, clock and menu settings, so the switcher can work without an external monitor.

HDMI and 3G-SDI inputs

Four auto-detected inputs accept signals up to 1080p60. Two HDMI PGM outputs and a dedicated Multiview output cover local monitoring, projection and further signal distribution.

Streaming, USB capture and local recording

The LAN port supports RTMP, RTMPS and SRT streaming. USB-C works as a UVC/UAC source for OBS, vMix, Teams or Zoom, while the program can also be recorded to an SD card or USB drive.

Keys, transitions and audio mixing

Luma Key, Chroma Key, two PIP layers, POP, DSK, logo overlay, CUT/AUTO/T-bar transitions and WIPE, MIX or DIP effects are available. The audio mixer combines embedded audio with two 3.5 mm MIC/Line inputs.

PACKAGE CONTENT

1 x AVMATRIX Shark S4 Plus
1 x 12 V / 2 A power adapter
1 x USB-A / USB-C cable
1 x DB-15 tally connector
1 x user documentation

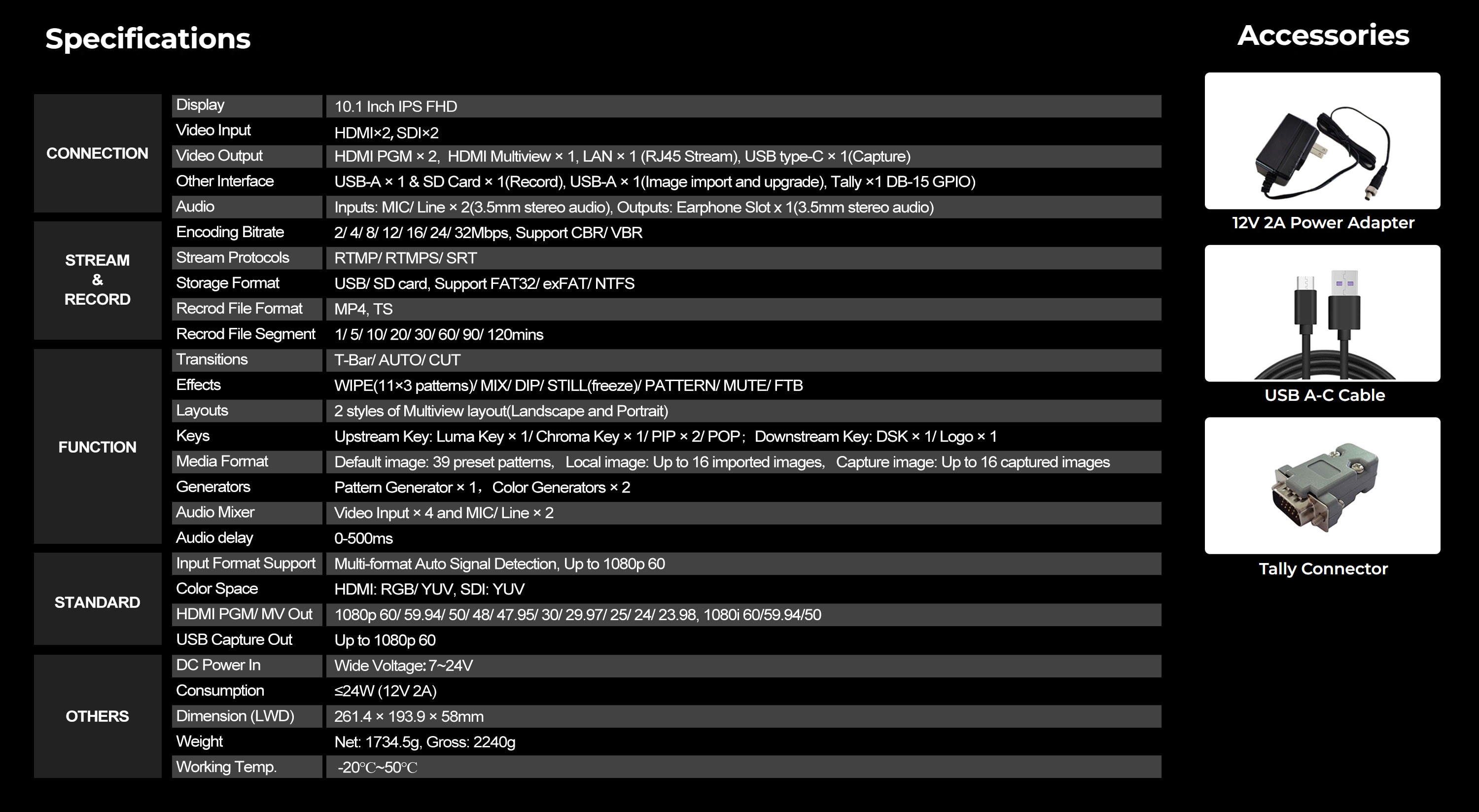

SPECIFICATIONS

Brand: AVMATRIX
Model: Shark S4 Plus
Display: 10.1″ IPS Full HD (1920 × 1080), folding
Video inputs: 2× HDMI, 2× 3G-SDI, automatic format detection up to 1080p60
Video outputs: 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C (UVC/UAC capture up to 1080p60)
HDMI output formats: 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98, 1080i 60/59.94/50
Streaming: RTMP, RTMPS, SRT via LAN (RJ45), 2–32 Mbps, CBR/VBR
Recording: SD card or USB drive (FAT32/exFAT/NTFS), MP4/TS, file segments 1–120 min
Keys: Luma Key, Chroma Key, 2× PIP, POP, DSK, logo
Transitions and effects: T-bar, AUTO, CUT, WIPE (11 × 3 patterns), MIX, DIP, STILL, FTB
Audio: mixes 4 video inputs and 2× MIC/Line (3.5 mm), 3.5 mm headphone output, 0–500 ms delay
Other interfaces: USB-A for image import and upgrades, DB-15 GPIO tally
Power: 7–24 V DC (12 V / 2 A adapter), consumption ≤ 24 W
Dimensions: 261.4 × 193.9 × 58 mm
Weight: 1734.5 g net, 2240 g gross
Operating temperature: −20 to 50 °C

ARTICLES

Režie AVMATRIX Shark

WE RECOMMEND

The AvMatrix Shark S4 Plus is a versatile 4-channel video switcher with an integrated 10.1" LCD display that combines SDI and HDMI inputs for professional live production. To take full advantage of its features, we recommend supplementing the setup with a wireless tally system, compatible PTZ cameras, and advanced signal distribution converters.

Tally and Signaling - Systems for visual signaling of the status of cameras connected to the control room via the GPIO port.

AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)

Cameras and Video Sources - Professional PTZ cameras fully compatible with the control room’s SDI and HDMI inputs.

Converters and Signal Distribution - Devices for converting, extending, and distributing video signals between the control room and sources.

Recording and Streaming to PC - External and internal cards for digitizing output from the control room to a computer for further processing.

Accessories and Mounting - Mechanical accessories for mounting and installing system components.

AVMatrix Large Mounting Bracket

Parameters

Manufacturer:	AVMATRIX
Category:	Switchers

Main parameters

Number of inputs	4
Switcher inputs	HDMI · 3G-SDI
Switcher outputs	HDMI · USB
Scaler on inputs	Yes
Resolution	HD
Features	Streaming · Recording · DSK · Chroma Key · Built-in display · Streaming via Ethernet · Audio mixing · Multiviewer
Control panel	Yes
