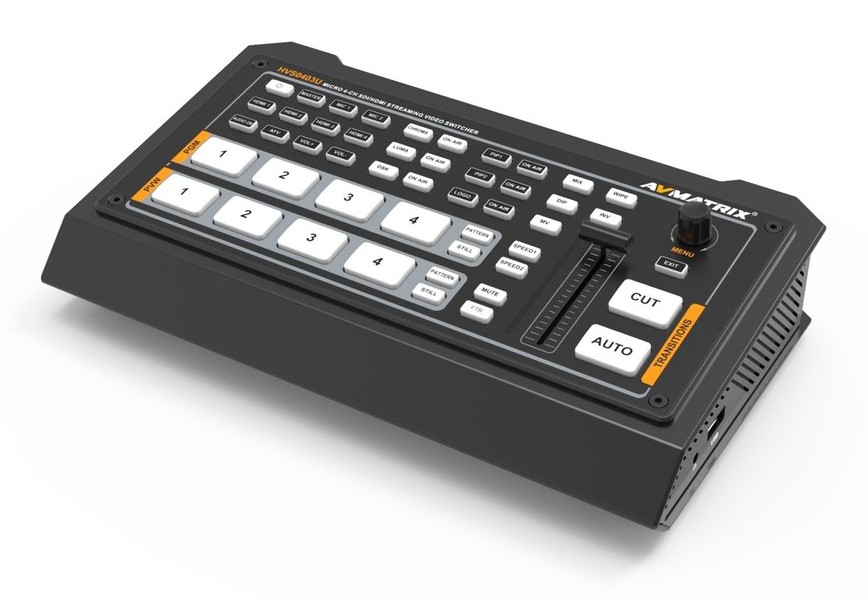

AVMATRIX HVS0403U Micro 4 Channel SDI&HDMI Video Switcher

+4
SKU: HVS0403U

AVMATRIX HVS0403U is a compact 4-channel Full HD video switcher with 2× HDMI and 2× 3G-SDI, hardware control, Multiview and USB-C output for uncompressed capture and streaming.

More information

729 € with VAT 602.48 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
HVS0403U
Add to Compare Price history

AVMATRIX PVS0403U Portable 10.1 inch 4-CH SDI&HDMI Video Switcher

849 €without VAT 701.65 €

Top accessories for AVMATRIX HVS0403U Micro 4 Channel SDI&HDMI Video Switcher

AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)

  • Top product
AVMATRIX TS3019-4 is a wireless tally system with a base unit and four tally lamps.
489 €
In stock > 5 pcs

Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 5m

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

AVMATRIX Mini SC1112 3G-SDI to HDMI Mini Converter wPSU

AVMATRIX Mini SC1112 is a pocket-sized 3G-SDI to HDMI converter with an SDI loop
96 €
In stock > 5 pcs

AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter wPSU

AVMATRIX Mini SC1221 is a compact HDMI to dual 3G-SDI converter for bringing HDMI
96 €
In stock > 5 pcs

Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 3m

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
  • SHOWROOM PRAHA
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX HVS0403U is a compact 4-channel Full HD video switcher with 2× HDMI and 2× 3G-SDI, hardware control, Multiview and USB-C output for uncompressed capture and streaming.

AVMATRIX HVS0403U

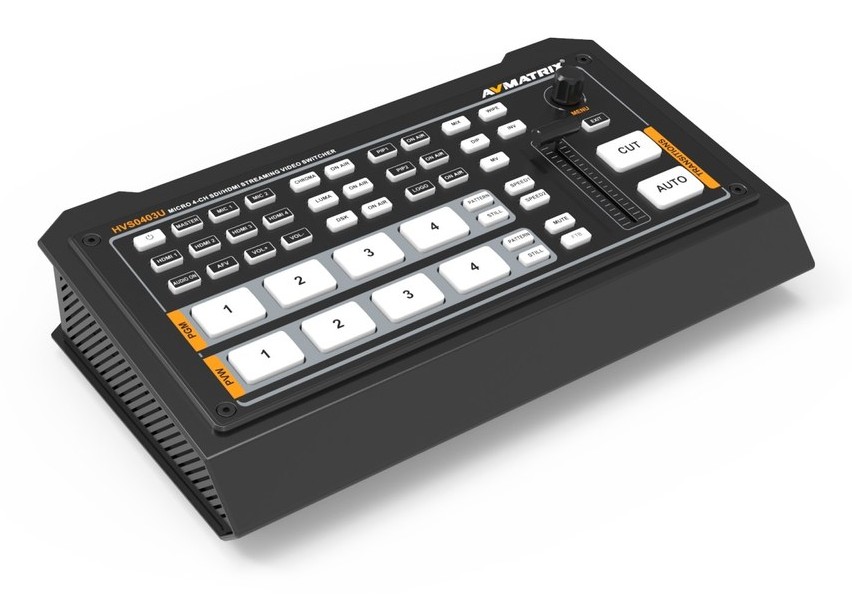

Compact SDI/HDMI video switcher

Four inputs, multiview and USB-C streaming in a small body

AVMATRIX HVS0403U is a micro 4-channel Full HD switcher for live events, education, corporate streaming and mobile production. It combines 2× HDMI, 2× 3G-SDI, hardware control, multiview and a USB-C output compatible with UVC/UAC.

2× HDMI2× 3G-SDIUSB-C UVC/UACMultiviewGPIO tally
SDI and HDMIAutomatic input detection and scaled programme output up to 1080p60.
USB streamingUSB-C appears to a computer or Android device as a UVC/UAC source.
Production toolsPIP/POP, Luma Key, Chroma Key, DSK, logo, audio mixer and transitions.

Control for live work

Input buttons, T-bar, AUTO and CUT give the operator physical control over switching. MIX, FADE and WIPE transitions including 11×2 patterns help cover a live event without an additional control panel.

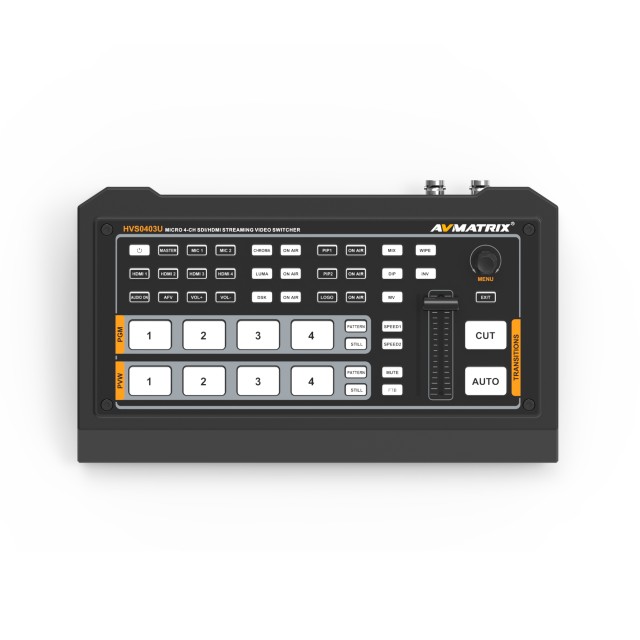

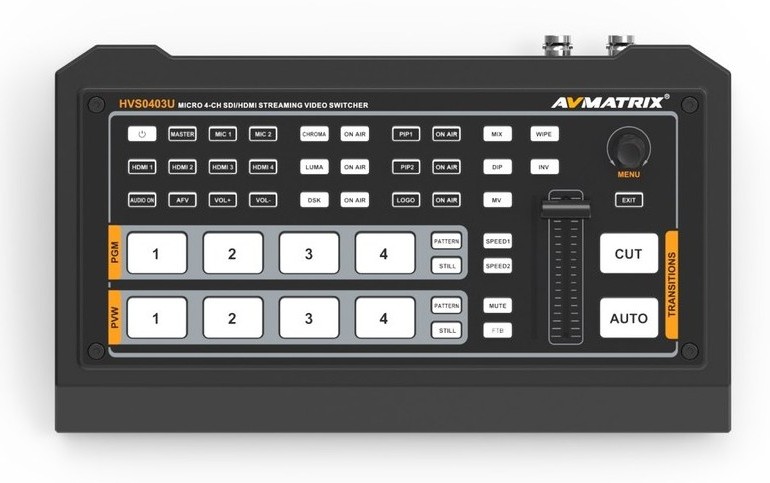

AVMATRIX HVS0403U control panel

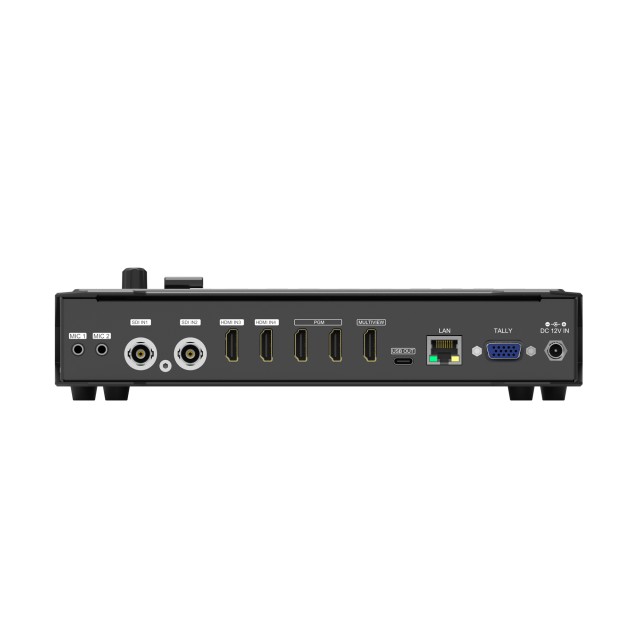

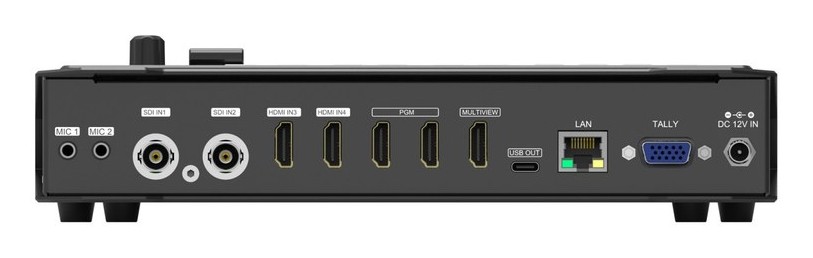

AVMATRIX HVS0403U connectors

Outputs for switching, recording and streaming

Two HDMI programme outputs, a dedicated HDMI multiview output and USB-C are available. All outputs are configurable and assignable, so monitoring, streaming computer and downstream production devices can be wired as needed.

Multiview and graphics in one unit

Multiview shows inputs, preview, programme and device status. Image composition tools include adjustable PIP, upstream key, downstream key, logo overlay and a media library for imported or captured stills.

HVS0403U multiview and production tools

PACKAGE CONTENT

  • AVMATRIX HVS0403U ×1
  • Power adapter ×1
  • USB cable ×1
  • Tally connector ×1
  • User manual ×1

SPECIFICATIONS

  • Video inputs: 2× HDMI, 2× 3G-SDI, automatic detection
  • Video outputs: 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C
  • Maximum format: up to 1080p60
  • USB: UVC/UAC uncompressed video for capture and streaming
  • Transitions: T-bar, AUTO, CUT, MIX, FADE, WIPE 11×2 patterns, FTB
  • Video tools: PIP, POP, Luma Key, Chroma Key, DSK, logo overlay
  • Audio: audio mixer, Audio Follow Video
  • Control: hardware buttons, T-bar, GPIO tally

WE RECOMMEND

The AVMATRIX HVS0403U is a compact 4-channel video switcher that combines SDI and HDMI inputs for flexible HD production and streaming. To expand its capabilities, it is essential to add compatible signal converters, wireless tally systems for signaling, and professional PTZ cameras that fully utilize its inputs.

Cameras and Video Sources - Professional PTZ cameras fully compatible with the switcher’s SDI and HDMI inputs.

Signal Conversion and Distribution - Tools for extending the range, changing the format, or distributing SDI and HDMI signals.

Tally and Monitoring - Accessories for camera status indication and equipment mounting in production environments.

Recording, Streaming, and Decoding - External and internal cards for capturing output from the control room to a PC or decoding streams.

Parameters

Parameters

Manufacturer: AVMATRIX
Category: Switchers

Main parameters

Video inputHDMI
Number of inputs4
Switcher inputsHDMI
Streaming service typesYouTube Live · Facebook Live
Switcher inputs3G-SDI
Switcher OutputsHDMI · USB
Internal RecordingYes
Scaler on inputsYes
ResolutionHD
FeaturesDSK · AUX · Chroma Key · Zvukový mix · Multiviewer
Control panelYes
