AVMATRIX PVS0403U Portable 10.1 inch 4-CH SDI&HDMI Video Switcher

+8
  • SHOWROOM PRAHA
SKU: PVS0403U

AVMATRIX PVS0403U is a portable four-channel video switcher with a folding 10.1" Full HD IPS monitor for streaming, recording and events. It has 2× HDMI and 2× 3G-SDI inputs, USB-C capture output, Multiview, Luma/Chroma Key, 2× PIP, audio mixer and GPIO tally.

More information

849 € with VAT 701.65 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
PVS0403U
Add to Compare Price history

AVMATRIX HVS0403U Micro 4 Channel SDI&HDMI Video Switcher

729 €without VAT 602.48 €

Top accessories for AVMATRIX PVS0403U Portable 10.1 inch 4-CH SDI&HDMI Video Switcher

AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)

  • Top product
AVMATRIX TS3019-4 is a wireless tally system with a base unit and four tally lamps.
489 €
In stock 5 pcs

Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter wPSU

AVMATRIX Mini SC1221 is a compact HDMI to dual 3G-SDI converter for bringing HDMI
96 €
In stock > 5 pcs

Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
  • SHOWROOM PRAHA
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs

AVMATRIX Mini SC1112 3G-SDI to HDMI Mini Converter wPSU

AVMATRIX Mini SC1112 is a pocket-sized 3G-SDI to HDMI converter with an SDI loop
96 €
To be sent 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX PVS0403U is a portable four-channel video switcher with a folding 10.1" Full HD IPS monitor for streaming, recording and events. It has 2× HDMI and 2× 3G-SDI inputs, USB-C capture output, Multiview, Luma/Chroma Key, 2× PIP, audio mixer and GPIO tally.

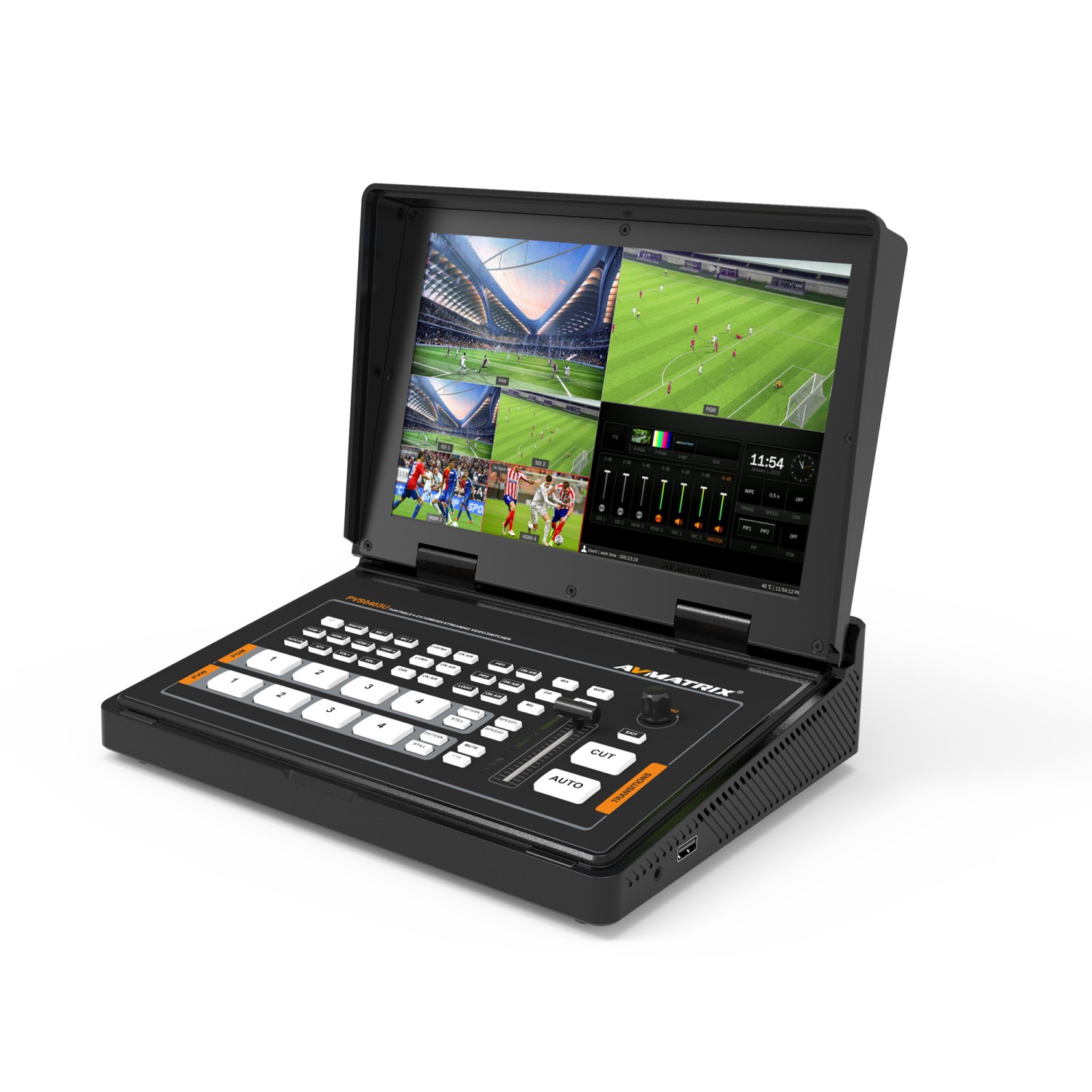

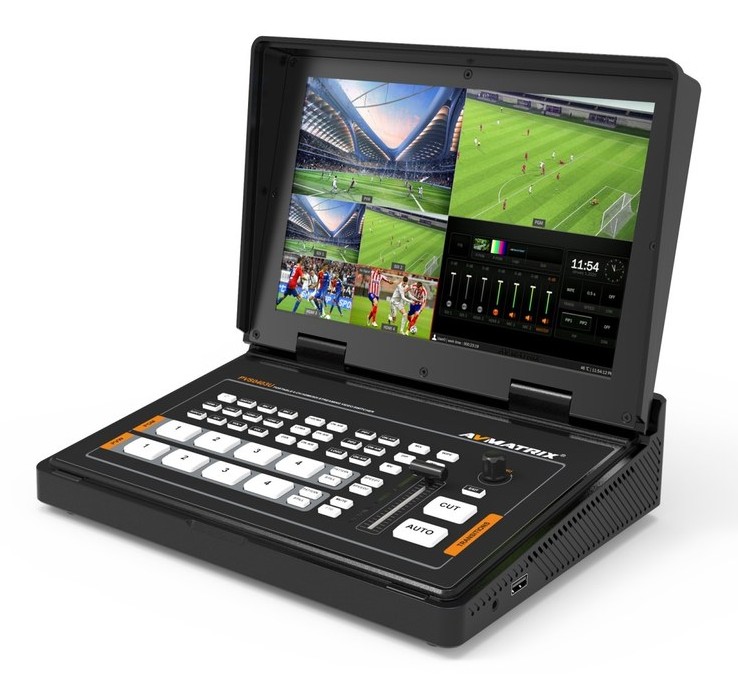

4-channel switcher with a 10.1″ screen

AVMATRIX PVS0403U is a portable 4-channel video switcher with a 10.1″ Full HD IPS monitor, 2× HDMI + 2× 3G-SDI and hardware controls for live broadcasting, recording and smaller events.

AVMATRIX PVS0403U
2× HDMI + 2× 3G-SDIMultiview10.1″ screenUSB-C UVC/UACGPIO tallyEthernet

The whole switcher without an external monitor

The built-in 10.1″ Full HD IPS screen shows the inputs, preview, programme, audio meters and system status, so you can run the show without an extra monitor.

Inputs

2× HDMI + 2× 3G-SDI. The format is detected automatically.

Keying and transitions

Luma Key, Chroma Key, 2× PIP/POP, DSK, logo. Transitions: T-bar, AUTO, CUT, WIPE, MIX, DIP/FADE.

USB-C capture

The USB-C output works as a UVC device for OBS, vMix, Teams and other software.

Audio

Audio mixer for embedded SDI/HDMI sound and 2× MIC/Line inputs, including audio delay.

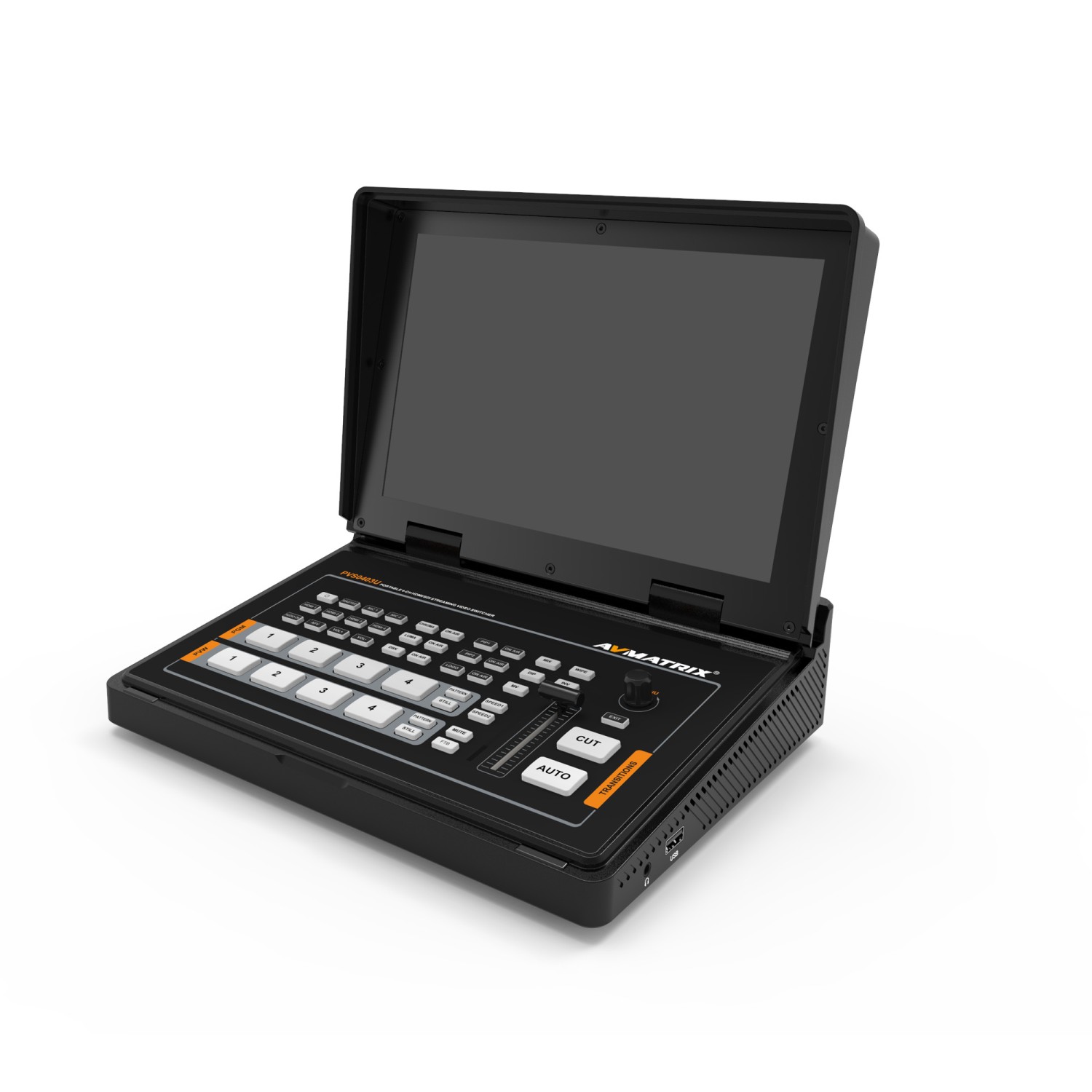

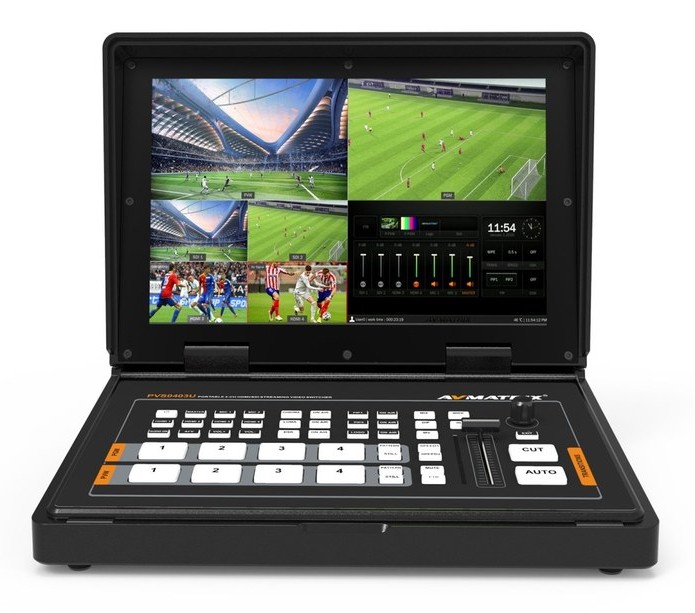

AVMATRIX PVS0403U – Control panel

Control panel

Input buttons, a T-bar, AUTO and CUT give the operator physical control over switching.

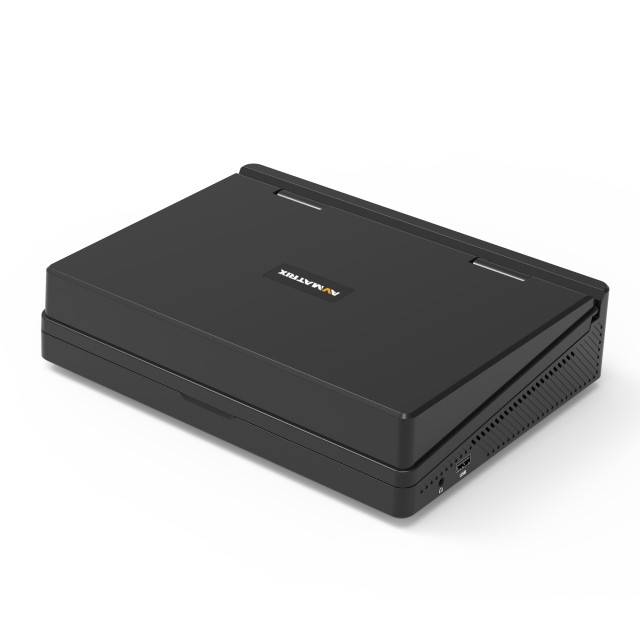

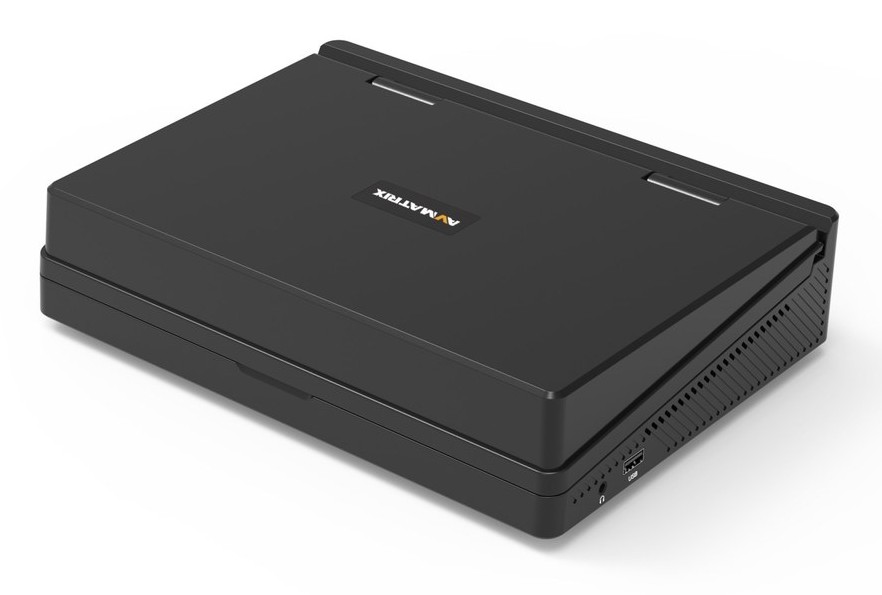

AVMATRIX PVS0403U – Flip-up body with a screen

Flip-up body with a screen

The sturdy flip-up body protects the screen and the control panel in transit.

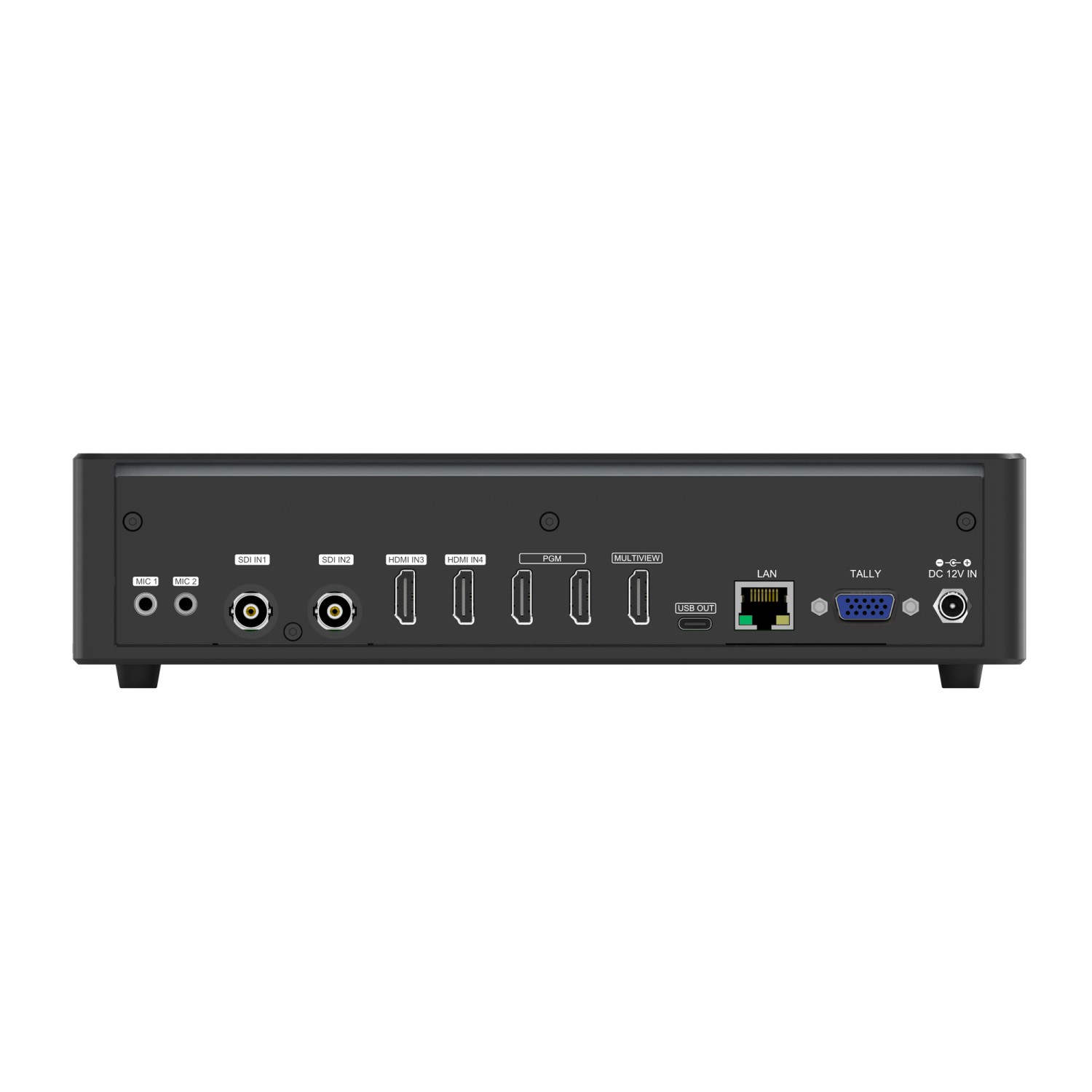

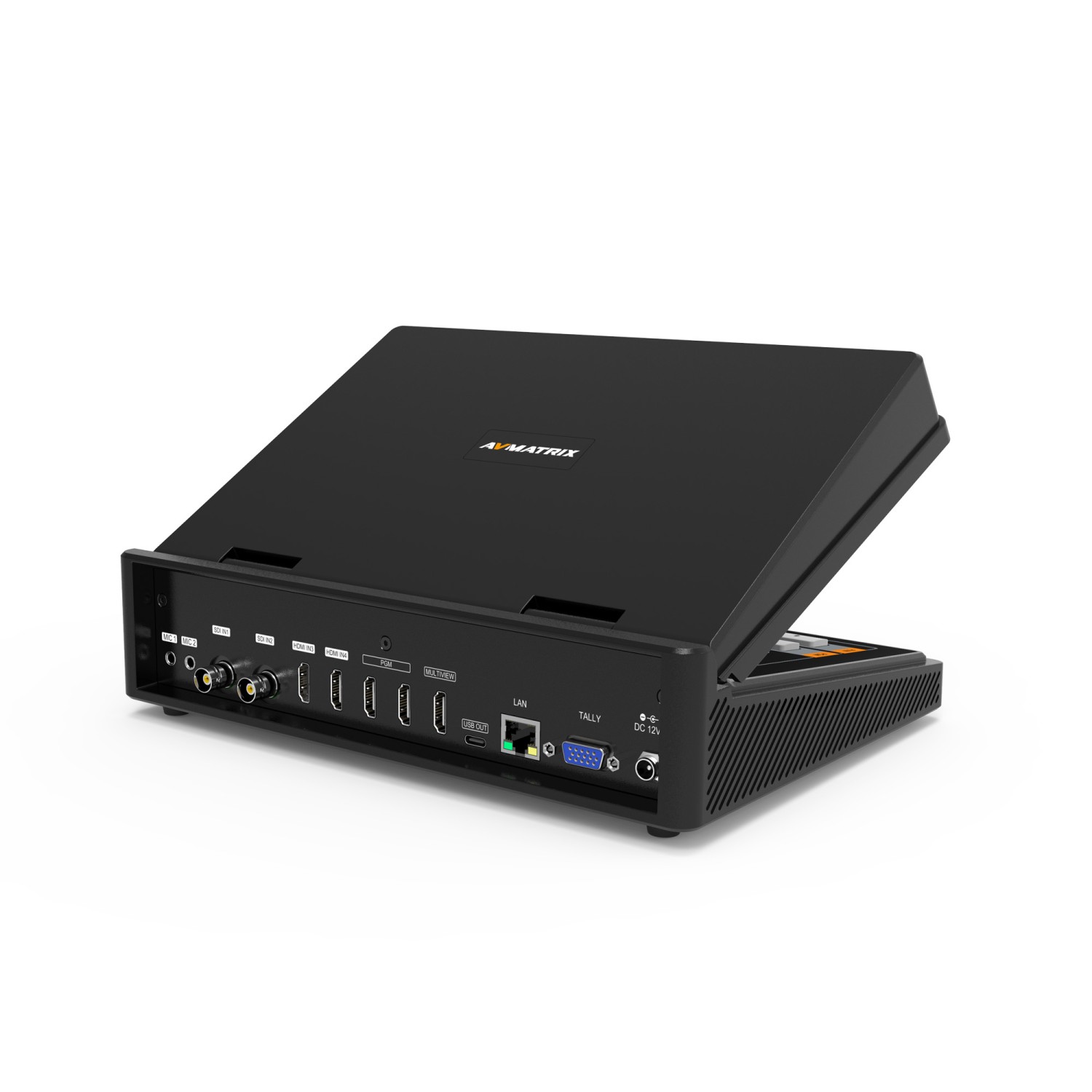

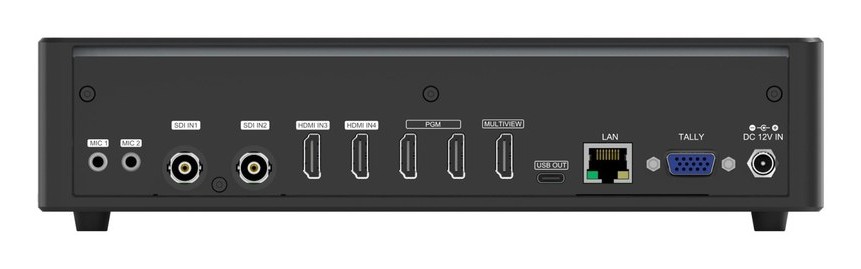

AVMATRIX PVS0403U – Rear-panel connectors

Rear-panel connectors

Inputs: 2× HDMI + 2× 3G-SDI. Outputs: 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C.

More information

AVMATRIX PVS0403U combines a 10.1″ Full HD IPS monitor, 2× HDMI and 2× 3G-SDI inputs, hardware controls and production tools for live streaming, recording and compact events.

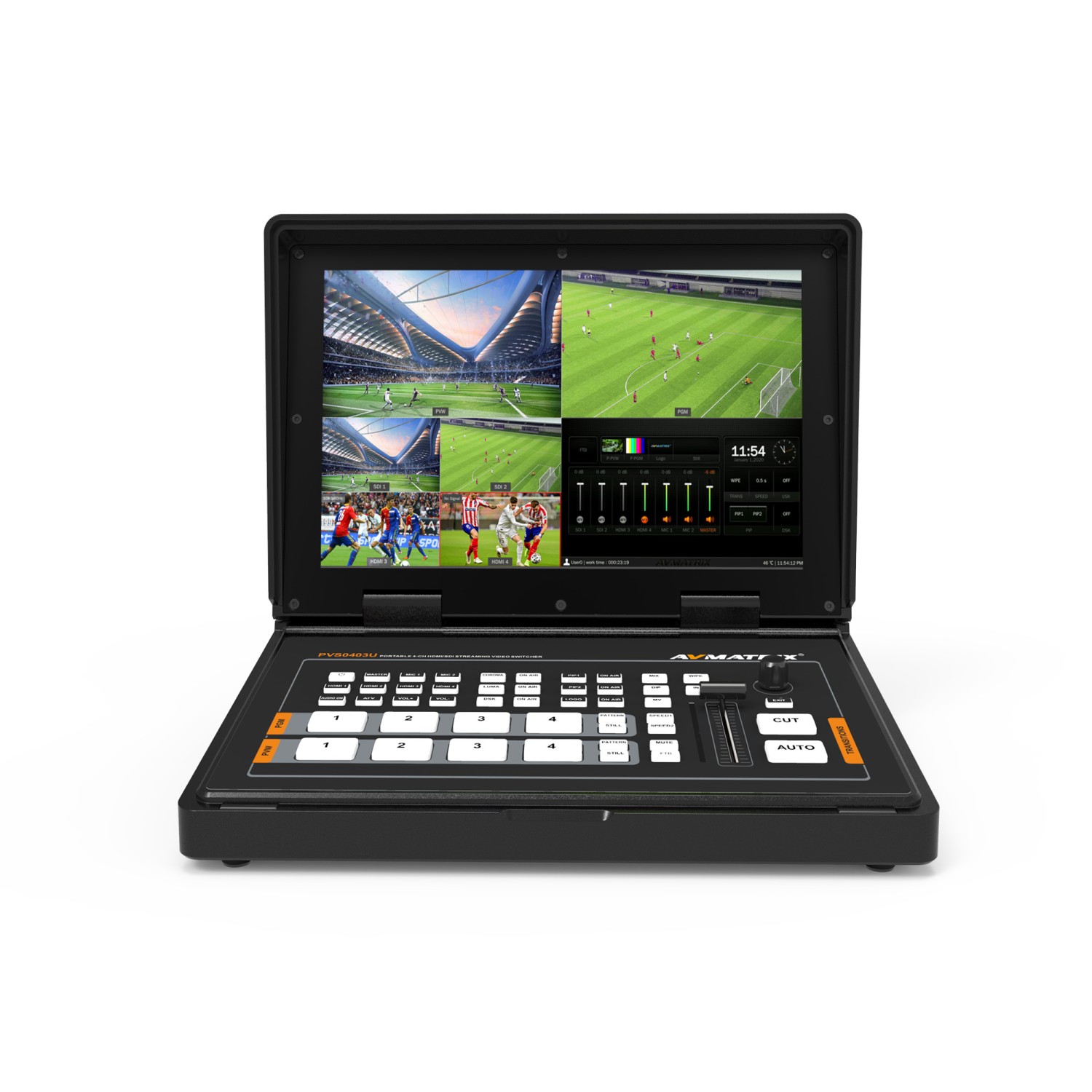

Clear multiview without an extra monitor

The integrated display shows preview, program, all inputs, audio bars, menu and status information. Smaller crews save space and setup time.

HDMI and SDI for mixed setups

Two HDMI and two auto-detected 3G-SDI inputs let you combine cameras, computers and players. Outputs can be assigned for program, multiview, clean program or other production feeds.

Production functions without extra modules

PVS0403U supports PIP, POP, Luma Key, Chroma Key, DSK, logo overlay and media handling. It includes 39 default patterns, 16 imported images, 16 captured images and 2 colour generators.

USB-C capture and remote control

USB-C works as a UVC/UAC source for OBS, vMix, Teams and other apps. LAN supports PC software control and GPIO provides tally signalling.

PACKAGE CONTENT

  • AVMATRIX PVS0403U ×1
  • Power adapter ×1
  • USB cable ×1
  • Tally connector ×1
  • User manual ×1

SPECIFICATIONS

  • Video inputs: 2× HDMI, 2× 3G-SDI, auto detection
  • Outputs: 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C
  • Display: 10.1″ Full HD IPS
  • Maximum format: up to 1080p60
  • USB: UVC/UAC uncompressed capture/streaming to PC
  • Output modes: assignable PGM, PVW/Clean PGM and Multiview
  • Transitions: T-bar, AUTO, CUT, WIPE 11×2 patterns, MIX, DIP/FADE
  • Video functions: 2× PIP/POP, Luma Key, Chroma Key, DSK, logo overlay
  • Media: 39 default patterns, 16 imported images, 16 captured images, 2 colour generators
  • Audio: 2× SDI, 2× HDMI embedded audio, 2× MIC/Line, audio delay
  • Control: hardware buttons, T-bar, LAN/PC software
  • Other: FTB, MUTE, STILL, GPIO tally

WE RECOMMEND

The AVMATRIX PVS0403U is a compact 4-channel video switcher with an integrated 10.1" monitor that combines 3G-SDI and HDMI inputs for flexible production. For professional use, it is essential to supplement it with a tally system, high-quality converters for signal distribution, and external cards for recording or streaming to a PC.

Tally Systems - Accessories for signaling the status of cameras connected to the switcher via the GPIO port.

Converters and Signal Extenders - Devices for converting between HDMI/SDI formats and transmitting signals over long distances.

Streaming and Recording to PC - External and internal cards for digitizing output from the control room for streaming or post-production purposes.

Cameras and Video Sources - Compatible PTZ cameras with SDI and HDMI outputs suitable for integration into the control room.

Accessories and Mounting - Mechanical accessories for mounting and installing equipment.

Parameters

Parameters

Manufacturer: AVMATRIX
Category: Switchers

Main parameters

Encoder video inputHD/SD SDI · HDMI · 3G-SDI
Number of inputs4
Switcher inputsHDMI
Streaming servicesYouTube Live · Facebook Live
Switcher inputs3G-SDI
Switcher outputsHDMI · USB
Internal recordingYes
Scaler on inputsYes
ResolutionHD
FeaturesDSK · AUX · Chroma Key · Built-in display · Audio mixing · Multiviewer
Control panelYes
