AVMatrix 6CH HDMI SDI Streaming Video Switcher VS0601U

AVMATRIX VS0601U is a compact 6-channel Full HD video switcher with 4× 3G-SDI and 2× HDMI, hardware control, Multiview and USB-C output for uncompressed capture and streaming.

AVMATRIX VS0601U is a compact 6-channel Full HD video switcher with 4× 3G-SDI and 2× HDMI, hardware control, Multiview and USB-C output for uncompressed capture and streaming.

Key features

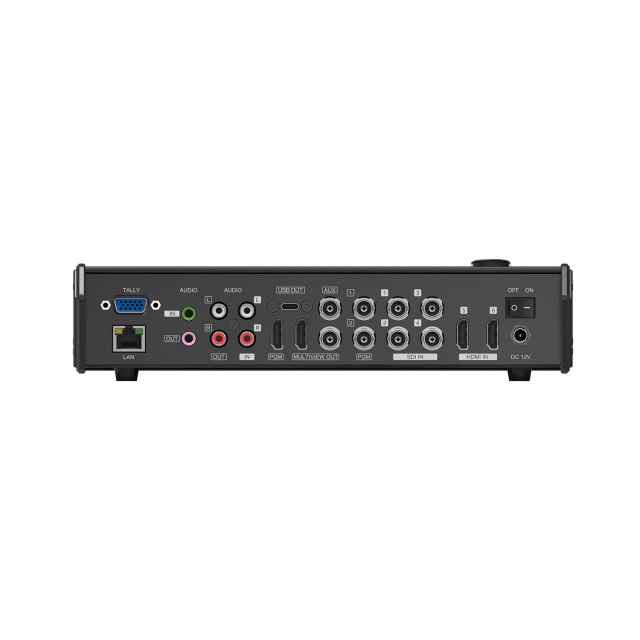

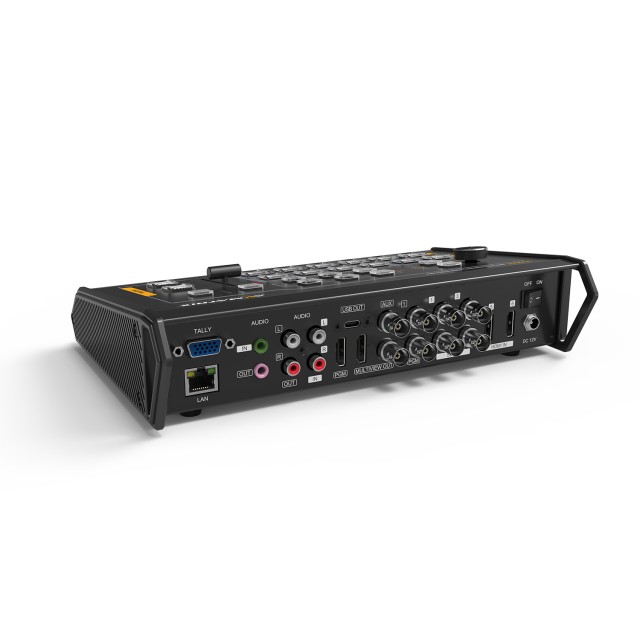

• 6 inputs: 4× 3G-SDI and 2× HDMI
• 2× SDI PGM, 1× HDMI PGM, SDI/HDMI Multiview, SDI AUX a USB-C
• USB-C UVC/UAC capture up to 1080p60
• Automatic input format detection and scaled PGM
• PIP with adjustable size and position

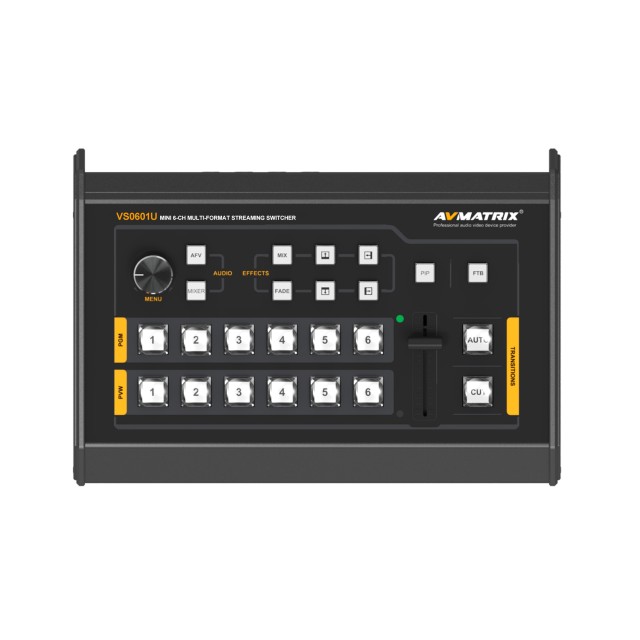

• T-bar, AUTO, CUT, MIX, FADE and WIPE
• Audio mixer and Audio Follow Video
• Multiview, GPIO tally and Fade to Black

Multi-format switching

Input sources are detected automatically and programme output can be set to a common format up to 1080p60. Buttons, T-bar and automatic transitions suit live events, education and corporate production.

USB-C for a computer

Uncompressed UVC/UAC output appears in OBS, vMix, Teams and other applications without a special driver.

Multiview and production tools

A dedicated Multiview output shows inputs, preview, programme and device status. PIP, transitions, audio mixing, FTB and tally form a complete compact switcher.
