AVMATRIX Micro 4-Channel HDMI & DP Video Switcher

+4
SKU: HVS0401U

AVMATRIX HVS0401U is a compact four-channel Full HD video switcher for live events, education and business streaming. It has 3× HDMI and 1× HDMI/DisplayPort inputs, a T-bar with transitions, PIP, Multiview, audio mixer, GPIO tally and USB-C uncompressed capture.

More information

429 € with VAT 354.55 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
HVS0401U
Add to Compare Price history

AVMATRIX HVS0401E Micro 4-Channel HDMI & DP Video Switcher with Streaming & Recording

489 €without VAT 404.13 €

Top accessories for AVMATRIX Micro 4-Channel HDMI & DP Video Switcher

AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)

  • Top product
AVMATRIX TS3019-4 is a wireless tally system with a base unit and four tally lamps.
489 €
In stock 5 pcs

Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs

Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC

Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs

AVMATRIX Mini SC1221 HDMI to 3G-SDI Mini Converter wPSU

AVMATRIX Mini SC1221 is a compact HDMI to dual 3G-SDI converter for bringing HDMI
96 €
In stock > 5 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs

HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m

  • 4K / UHD
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs

AVMATRIX Mini SC1112 3G-SDI to HDMI Mini Converter wPSU

AVMATRIX Mini SC1112 is a pocket-sized 3G-SDI to HDMI converter with an SDI loop
96 €
To be sent 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX HVS0401U is a compact four-channel Full HD video switcher for live events, education and business streaming. It has 3× HDMI and 1× HDMI/DisplayPort inputs, a T-bar with transitions, PIP, Multiview, audio mixer, GPIO tally and USB-C uncompressed capture.

4-channel video switcher for live production

AVMATRIX HVS0401U is a compact 4-channel Full HD video switcher with hardware controls, multiview and a USB-C output for lossless capture and streaming.

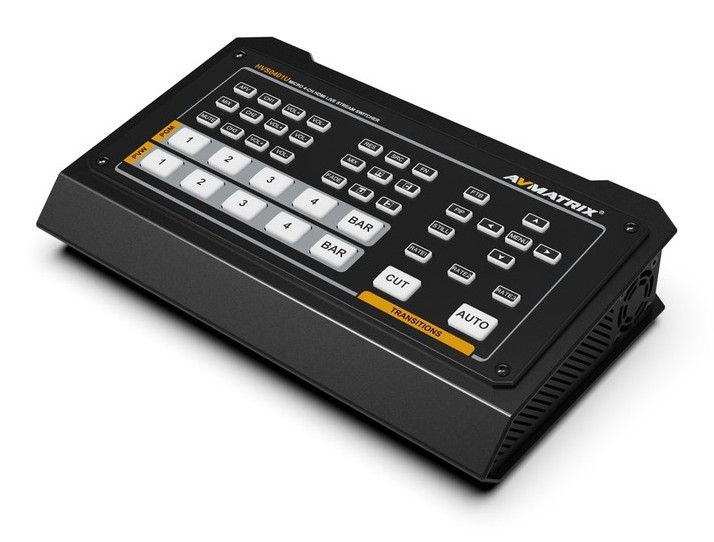

AVMATRIX HVS0401U
3× HDMI + 1× HDMI/DPMultiviewUSB-C UVC/UAC1080p60PIPGPIO tally

USB-C capture without a driver

The uncompressed UVC/UAC output appears in OBS, vMix, Teams and other applications without a special driver.

Inputs

3× HDMI + 1× HDMI/DisplayPort. The format is detected automatically.

Outputs

2× HDMI PGM, 1× HDMI Multiview, 1× USB-C.

PIP and transitions

PIP with adjustable size and position; transitions T-bar, AUTO, CUT, MIX, FADE, WIPE.

Audio

Audio mixer and Audio Follow Video.

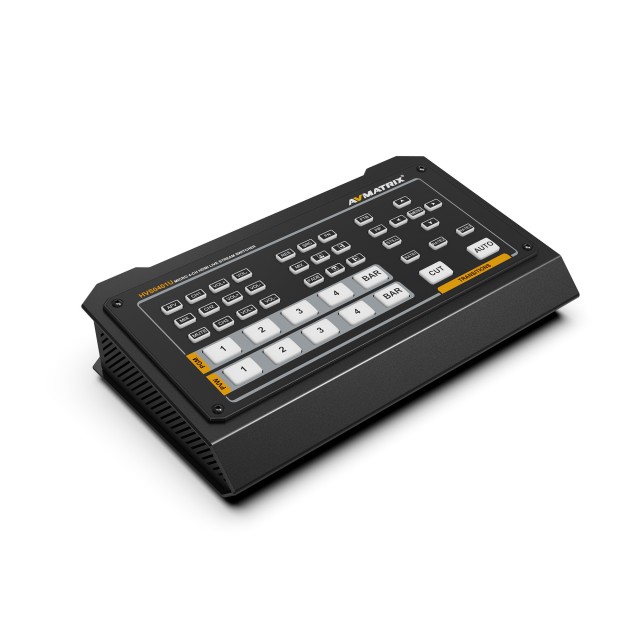

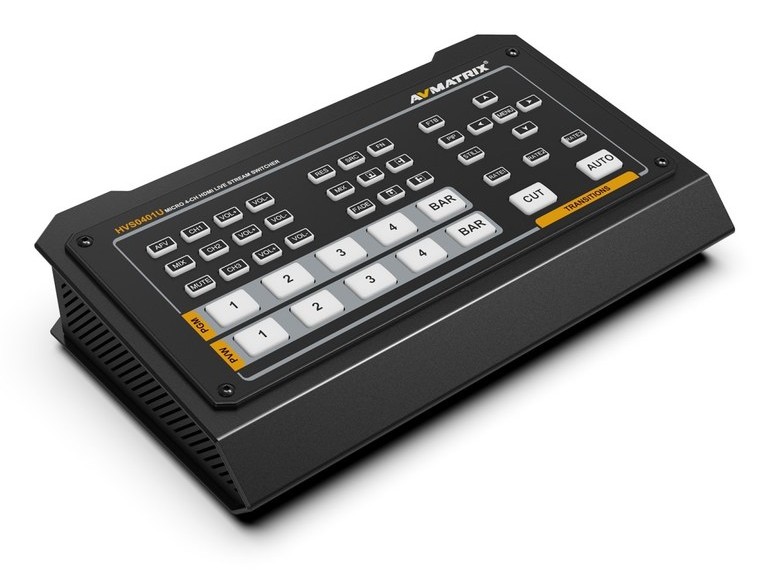

AVMATRIX HVS0401U – Control panel

Control panel

Input buttons, a T-bar, AUTO and CUT give the operator physical control over switching.

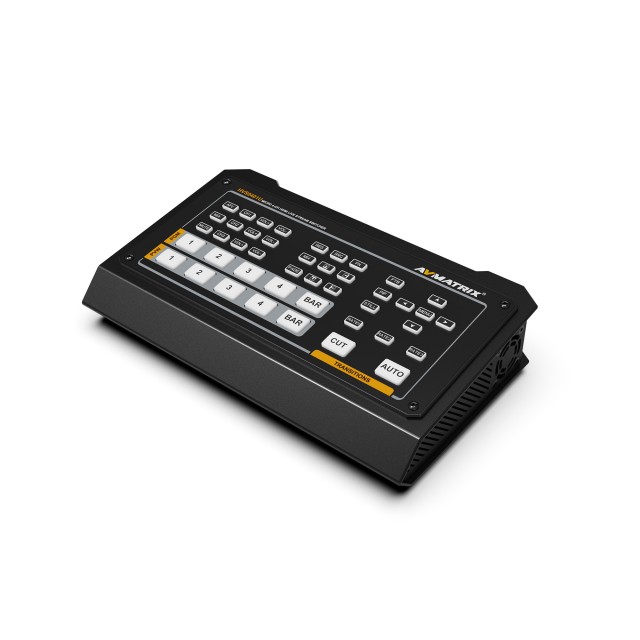

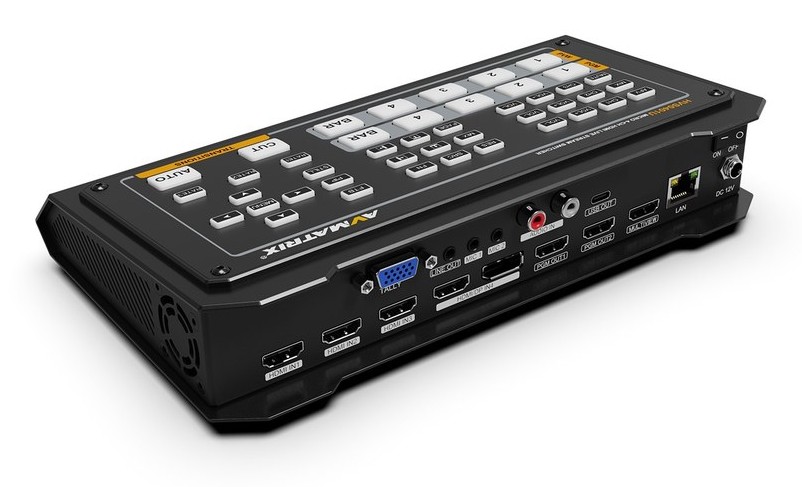

AVMATRIX HVS0401U – Compact switcher body

Compact switcher body

4-channel video switcher with hardware controls, multiview and a USB-C output.

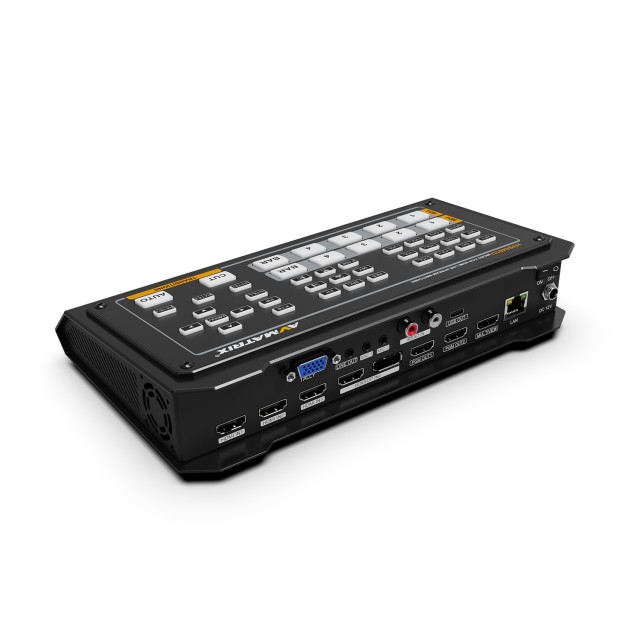

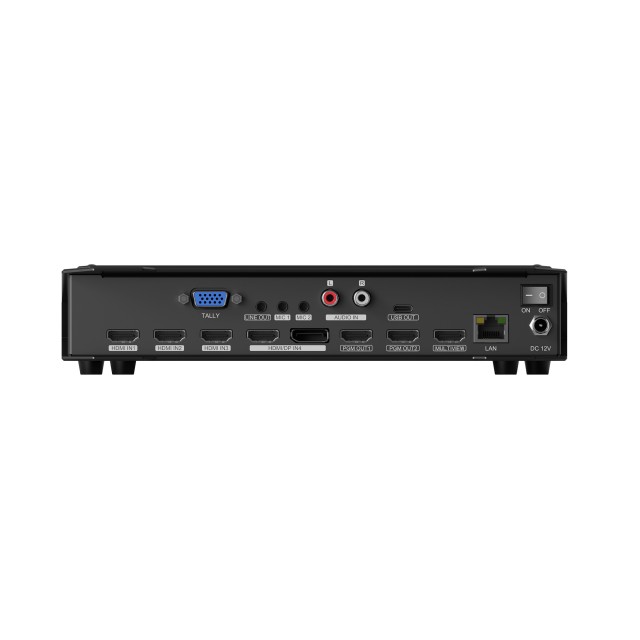

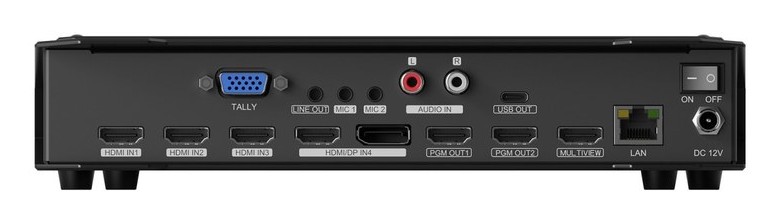

AVMATRIX HVS0401U – Rear-panel connectors

Rear-panel connectors

Inputs: 3× HDMI + 1× HDMI/DisplayPort. Outputs: 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C.

More information

AVMATRIX HVS0401U is a compact 4-channel Full HD video switcher with 3× HDMI and 1× HDMI/DisplayPort, hardware control, Multiview and USB-C output for uncompressed capture and streaming.

Key features

  • 4 inputs: 3× HDMI and 1× HDMI/DisplayPort
  • 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C
  • USB-C UVC/UAC capture up to 1080p60
  • Automatic input format detection and scaled PGM
  • PIP with adjustable size and position
  • T-bar, AUTO, CUT, MIX, FADE and WIPE
  • Audio mixer and Audio Follow Video
  • Multiview, GPIO tally and Fade to Black

Multi-format switching

Input sources are detected automatically and programme output can be set to a common format up to 1080p60. Buttons, T-bar and automatic transitions suit live events, education and corporate production.

USB-C for a computer

Uncompressed UVC/UAC output appears in OBS, vMix, Teams and other applications without a special driver.

Multiview and production tools

A dedicated Multiview output shows inputs, preview, programme and device status. PIP, transitions, audio mixing, FTB and tally form a complete compact switcher.

PACKAGE CONTENT

  • 1× AVMATRIX HVS0401U
  • 1× power adapter
  • 1× USB cable
  • 1× tally connector
  • 1× user manual

SPECIFICATIONS

Video

  • Inputs: 3× HDMI and 1× HDMI/DisplayPort
  • Outputs: 2× HDMI PGM, 1× HDMI Multiview, 1× USB-C
  • Format: up to 1080p60
  • USB: UVC/UAC uncompressed video

Functions

  • PIP, T-bar, AUTO, CUT, MIX, FADE, WIPE and FTB
  • Multiview, audio MIX/AFV and GPIO tally

WE RECOMMEND

The AVMATRIX HVS0401U is a compact 4-channel switcher with HDMI and DisplayPort inputs, ideal for live streaming and professional video production in HD resolution. For maximum workflow efficiency, we recommend supplementing the switcher with a wireless tally system, compatible PTZ cameras, and converters for integrating various signal types.

Tally and Signaling - Systems for indicating camera status that connect directly to the switcher’s Tally output.

Cameras and Signal Sources - Professional PTZ cameras fully compatible with this control room’s HDMI inputs.

Converters and extenders - Accessories for signal conversion and long-distance transmission to the control room’s HDMI/DP inputs.

Recording and External Streaming - Cards and devices for capturing PGM output to a computer for archiving or further streaming.

Distribution and Monitoring - Devices for splitting the output signal and preview monitors.

Mounting and Installation - Accessories for fixed installation of control units in a rack or on a desktop.

Parameters

Parameters

Manufacturer: AVMATRIX
Category: Switchers

Main parameters

Encoder video inputHDMI
Number of inputs4
Switcher inputsHDMI
Streaming servicesYouTube Live · Facebook Live
Switcher inputsDisplayPort
Switcher outputsHDMI · USB
Internal recordingYes
Scaler on inputsYes
ResolutionHD
FeaturesAUX · Audio mixing · Multiviewer
Control panelYes
