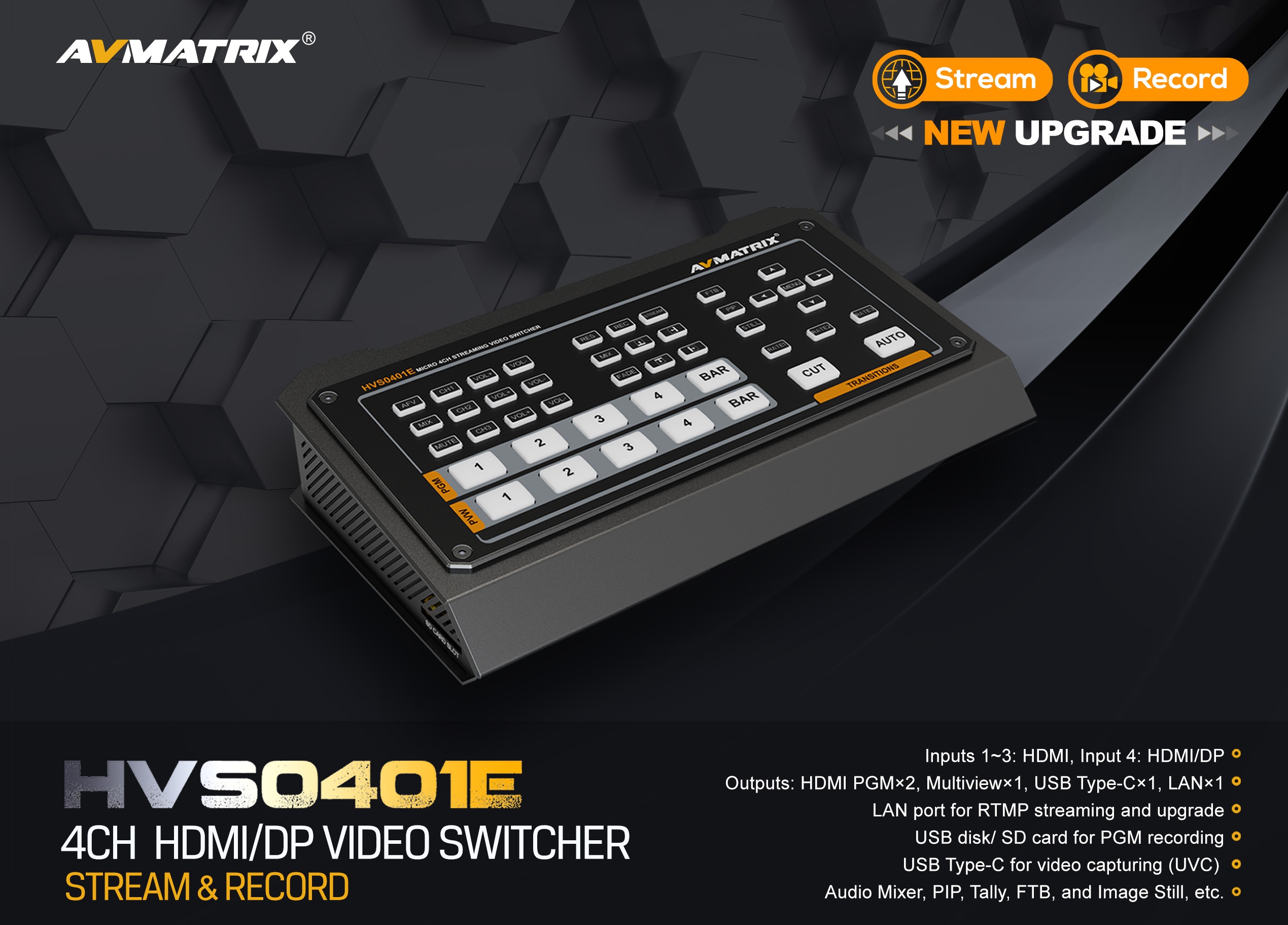

AVMATRIX HVS0401E Micro 4-Channel HDMI & DP Video Switcher with Streaming & Recording

AVMATRIX HVS0401E is a compact four-channel HDMI/DisplayPort video switcher for streaming and recording. It provides three HDMI inputs plus a fourth selectable HDMI/DisplayPort input, two HDMI PGM outputs, Multiview, USB-C capture, RTMP streaming and recording to an SD card or USB drive.

AVMATRIX HVS0401E is a compact four-channel HDMI/DisplayPort video switcher for streaming and recording. It provides three HDMI inputs plus a fourth selectable HDMI/DisplayPort input, two HDMI PGM outputs, Multiview, USB-C capture, RTMP streaming and recording to an SD card or USB drive.

Key features

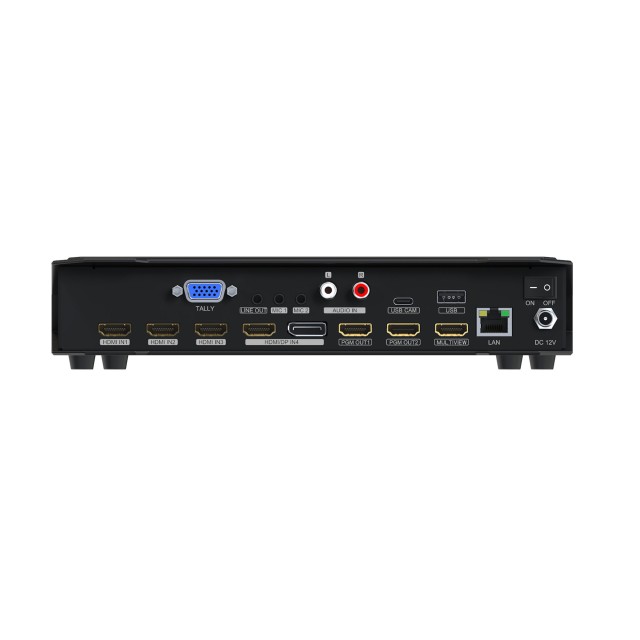

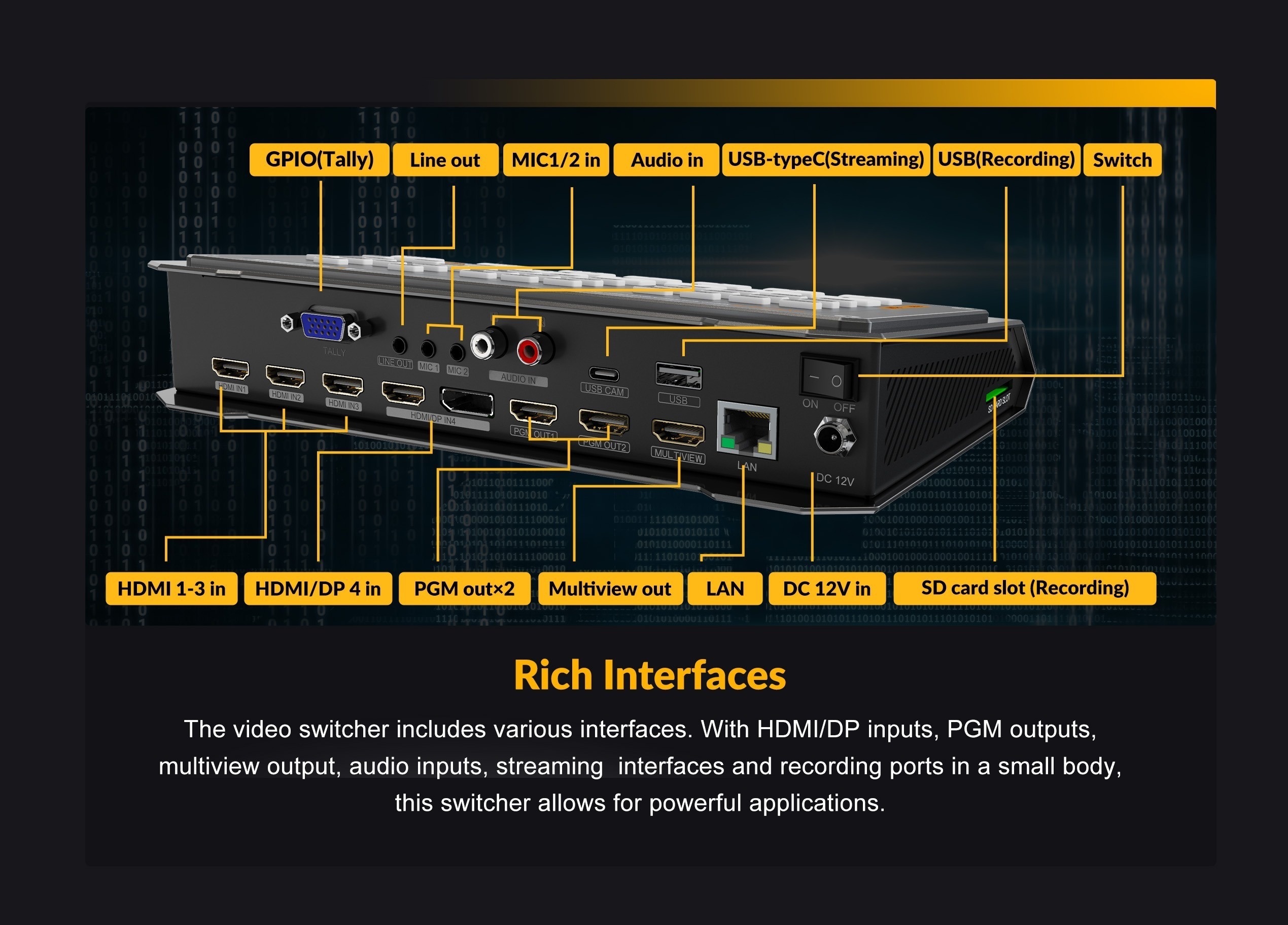

• 4 channels: inputs 1–3 HDMI, input 4 HDMI or DisplayPort
• 2× HDMI PGM and 1× HDMI Multiview
• USB-C UVC capture up to 1080p60
• RTMP streaming over Ethernet
• PGM recording to an SD card or USB drive
• Adjustable PIP size and position

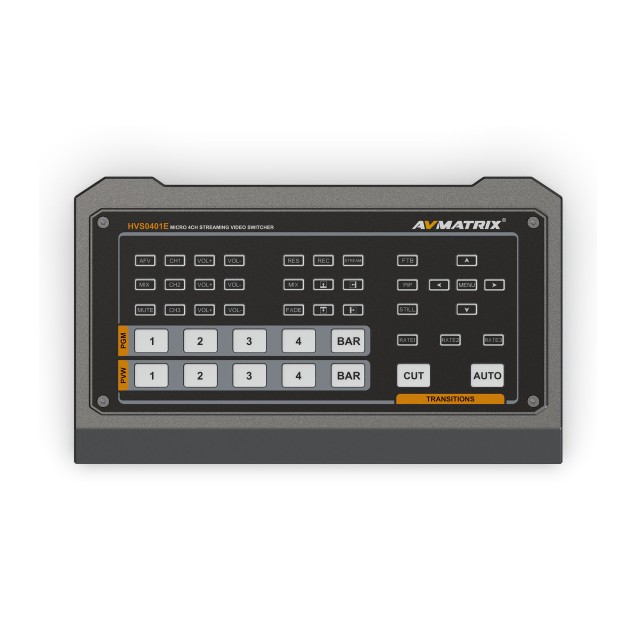

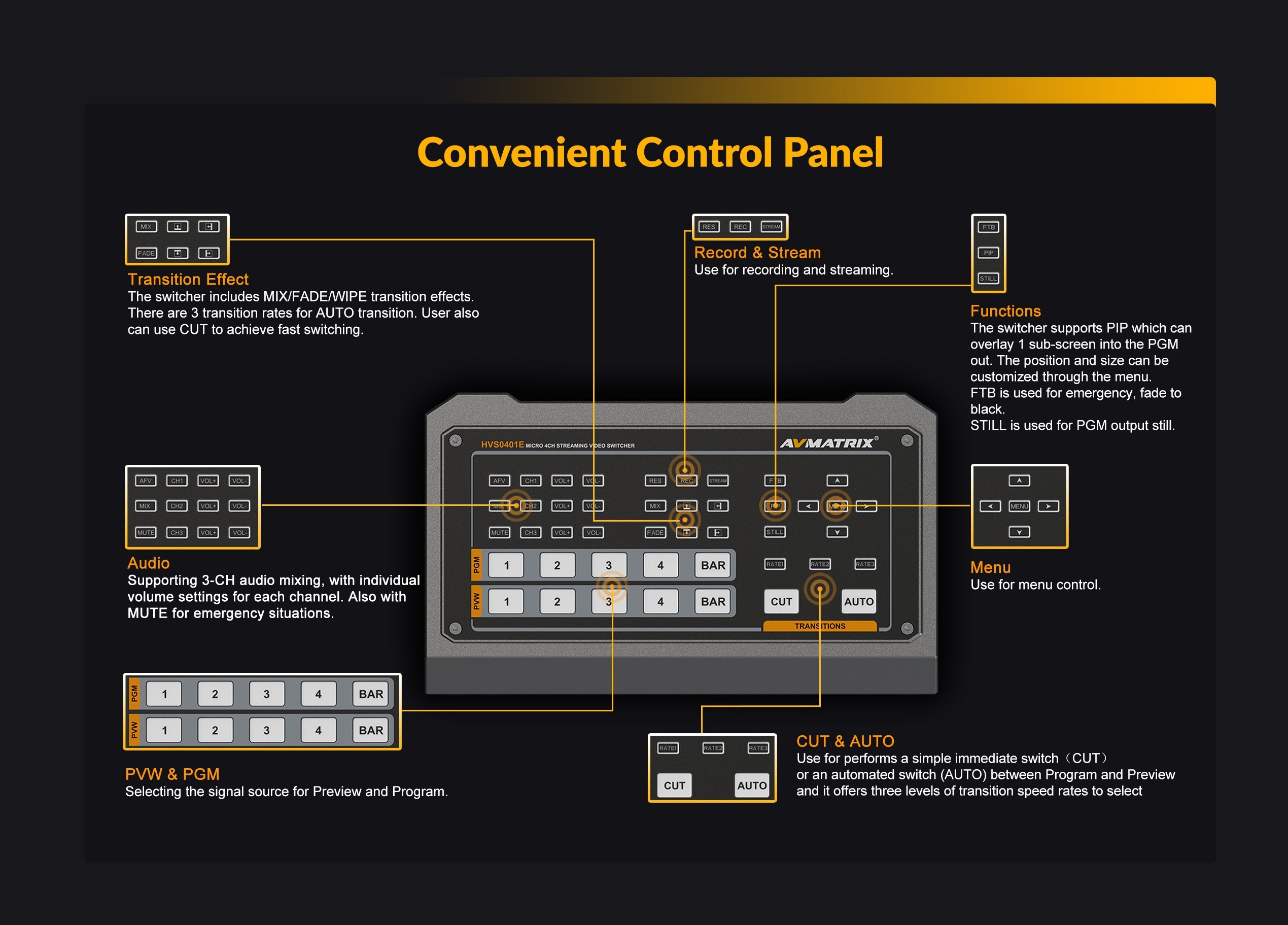

• AUTO/CUT transitions with MIX, FADE and WIPE
• Audio mixer: embedded HDMI, 3.5mm MIC and RCA
• Web/IP control, GPIO tally and Fade to Black

Four inputs in a compact design

Three HDMI sources are joined by a fourth channel selectable between HDMI and DisplayPort. Input formats up to 1080p60 can be switched to programme with buttons, automatic transitions or the T-bar.

Streaming and recording

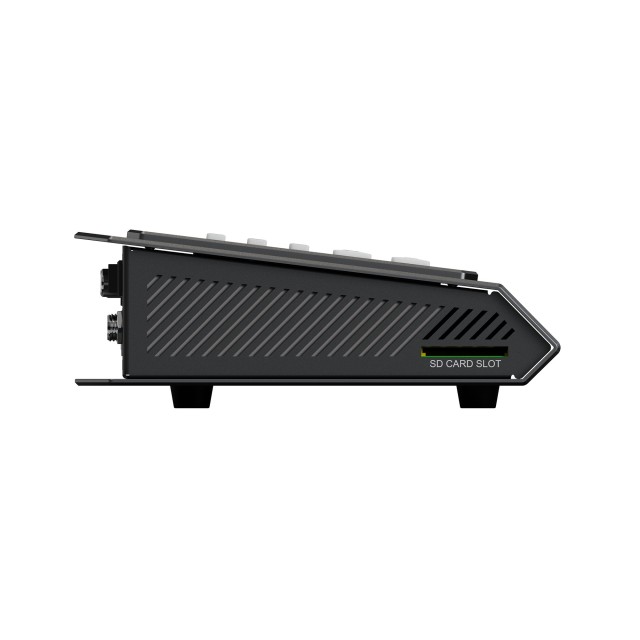

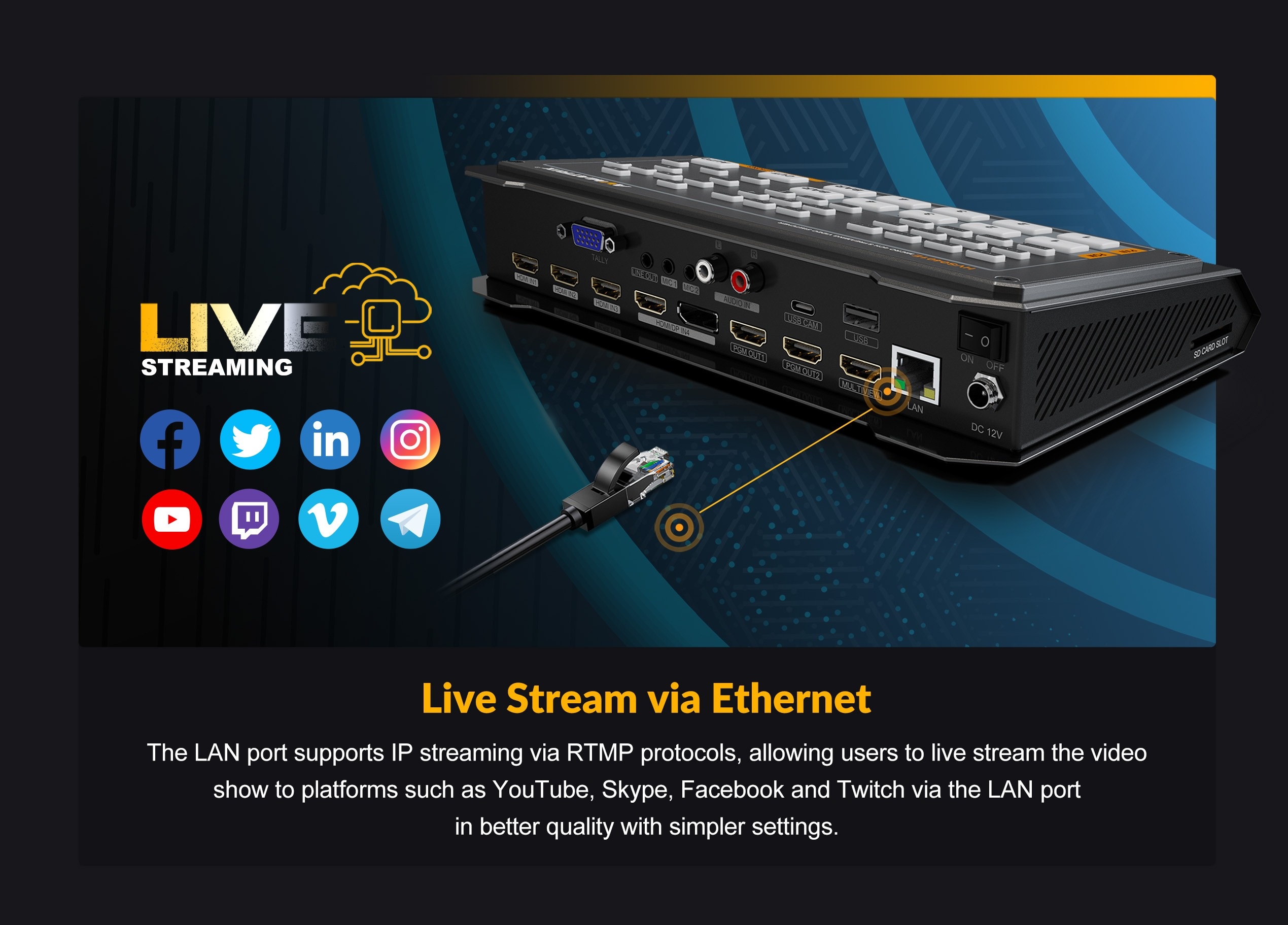

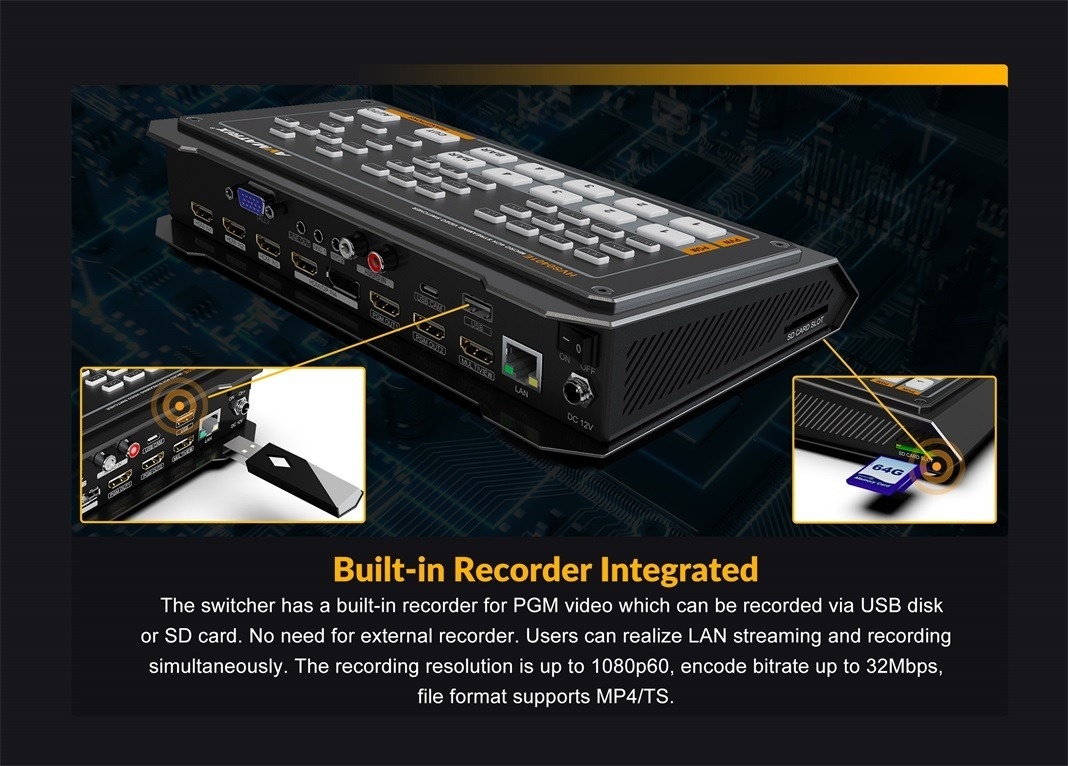

The LAN port enables direct RTMP streaming. Programme output can also be recorded to an SD card or USB drive in H.264/H.265 at up to 32Mbps.

USB capture and remote control

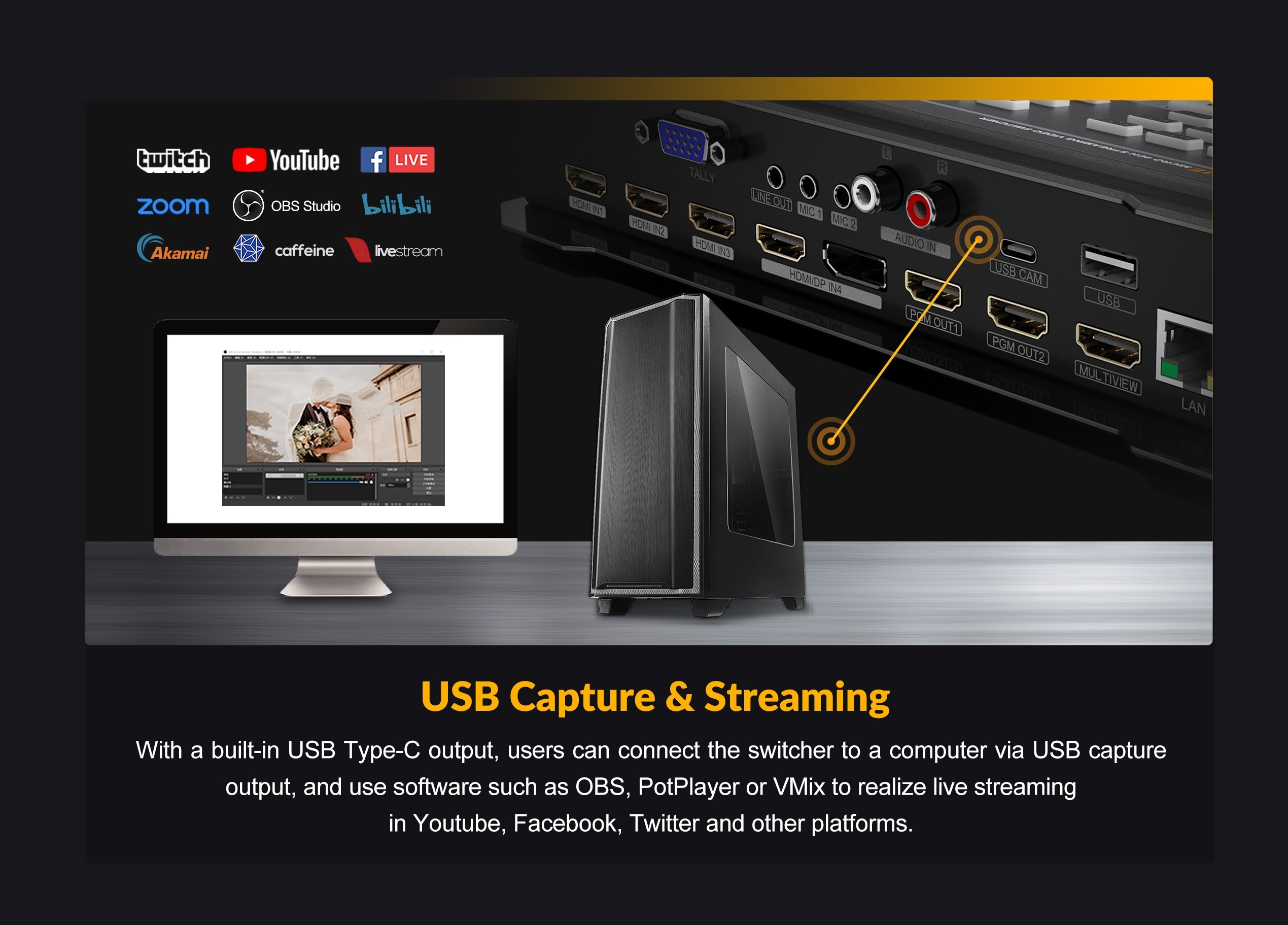

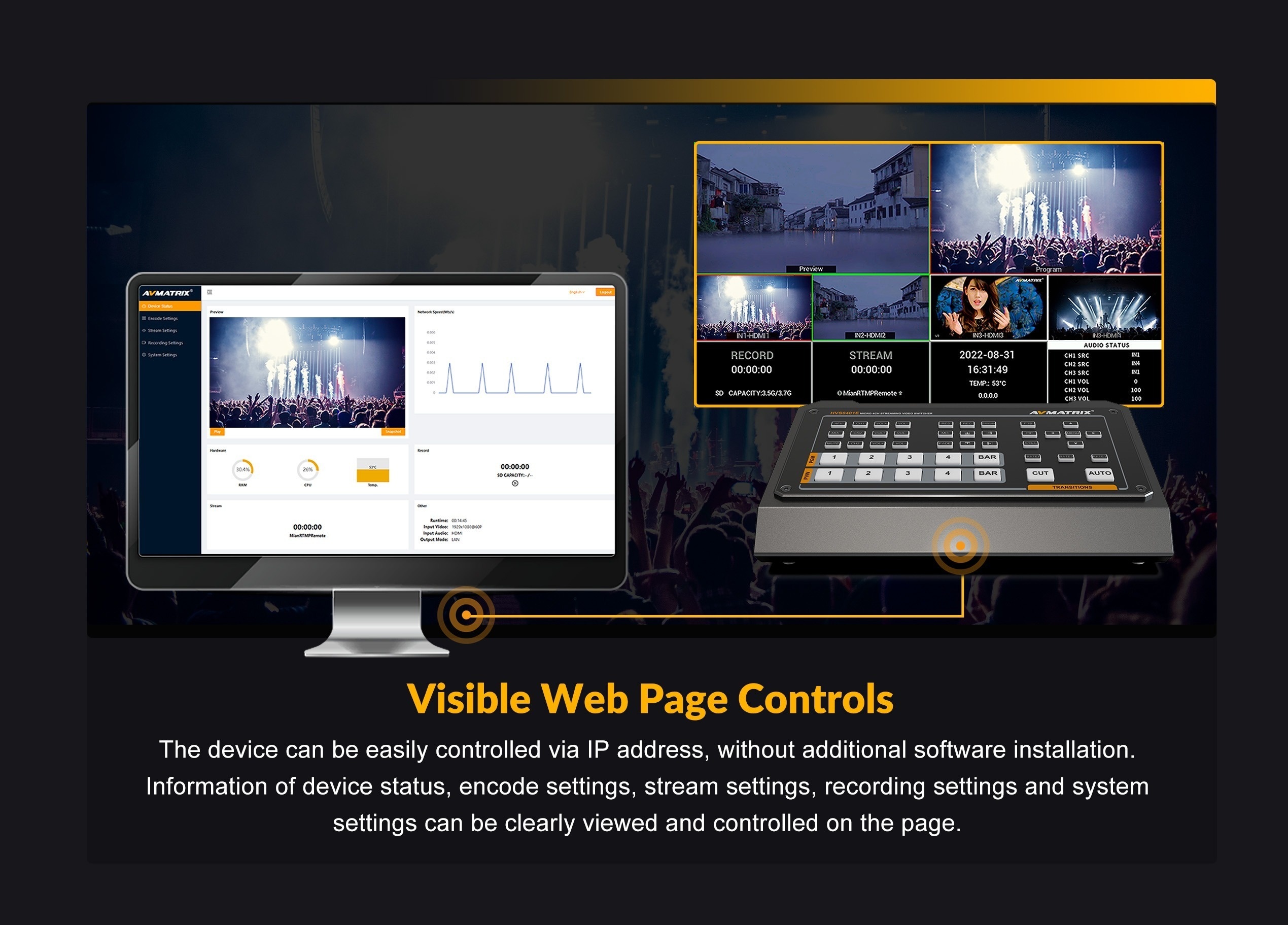

USB-C operates as a standard UVC device for OBS, vMix and other software. Settings can also be managed through a network web page.

Video, audio and tally

Adjustable PIP, transition effects, audio mixing, Fade to Black and DB-15 GPIO tally provide a practical feature set for small studios, education and corporate streaming.
