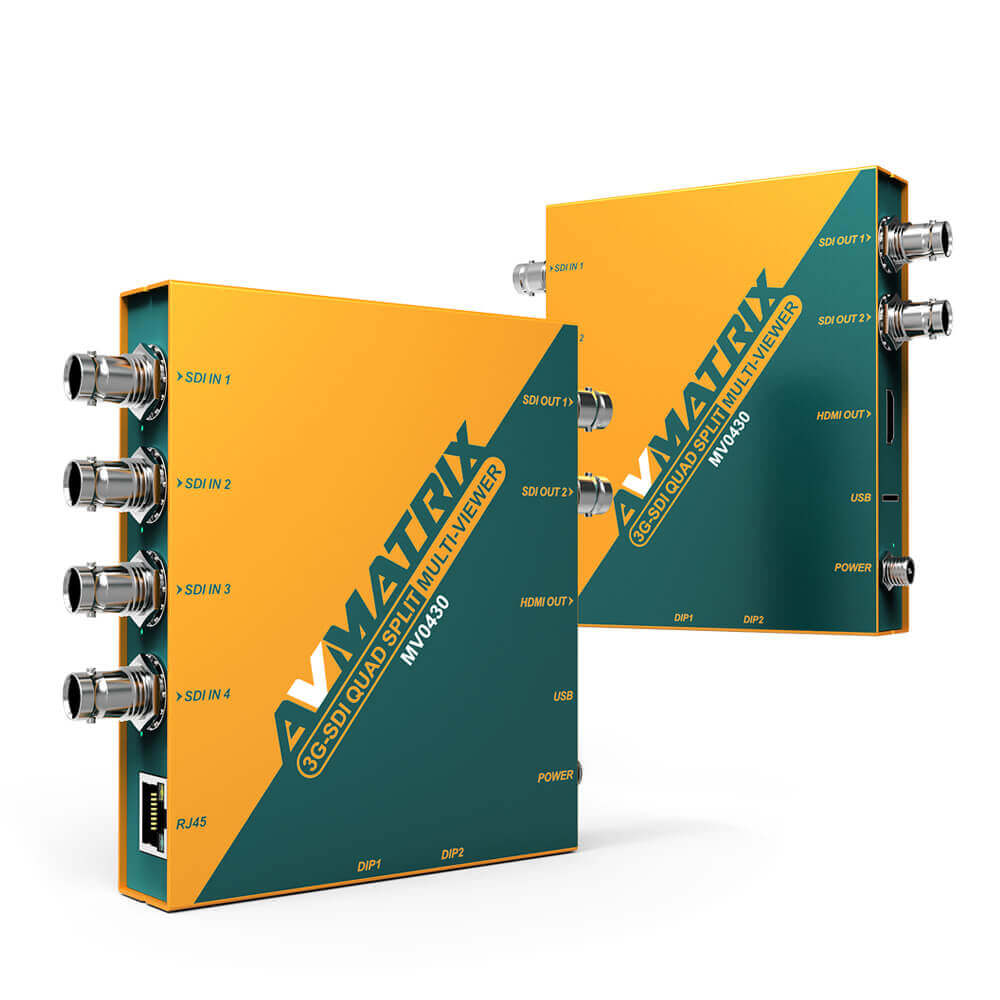

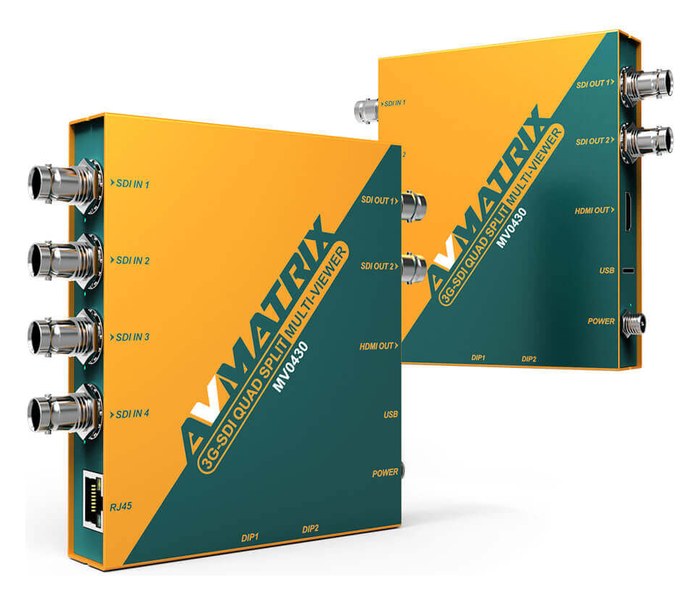

AVMATRIX MV0430 4 Channel SDI Multiviewer
SKU: MV0430
AVMATRIX MV0430 is a compact four-channel 3G-SDI multiviewer for production monitoring, signal control and AV post-production. It combines 4 auto-adaptive SD/HD/3G-SDI inputs, 2 SDI outputs and 1 HDMI output, 16 preset layouts, UMD labels, audio meters and configuration via DIP switches or LAN.
350 € with VAT
289.26 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for AVMATRIX MV0430 4 Channel SDI Multiviewer
Infinitek L-2.5CHWS 5m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
22 €
In stock > 5 pcs
Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
To be sent > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
AVMatrix Large Mounting Bracket
AVMATRIX LMB is a large metal mounting bracket for secure, tidy installation of larger
24 €
In stock 2 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
AVMATRIX MV0430 is a compact four-channel 3G-SDI multiviewer for production monitoring, signal control and AV post-production. It combines 4 auto-adaptive SD/HD/3G-SDI inputs, 2 SDI outputs and 1 HDMI output, 16 preset layouts, UMD labels, audio meters and configuration via DIP switches or LAN.
Four SDI sources clearly on one monitor
A compact multiviewer with four auto-adaptive 3G/HD/SD-SDI inputs and outputs on HDMI and a pair of SDI. It fits mobile control rooms, studios and post-production.
4× SDI input2× SDI + 1× HDMI output16 layoutsUMD up to 11 charactersDC 6–24 V
UMD labels and audio meters right in the picture
Add UMD labels of up to 11 characters and adjustable audio meters to the multiview image. The position and size of the overlay elements are adjustable, so you tailor the view to your control room.

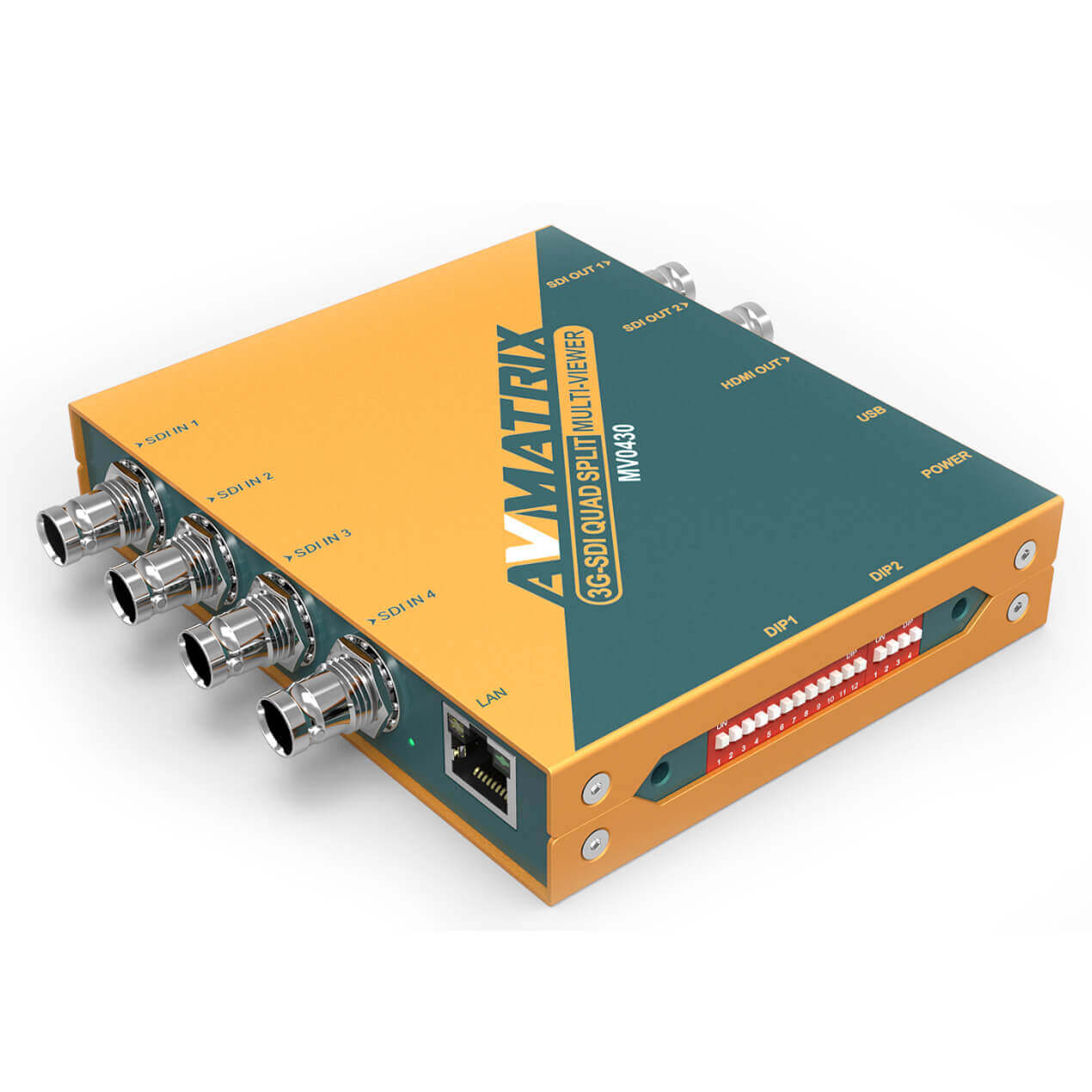

16 layouts
Quad split, full screen, triple window, PIP and POP.
SDI and HDMI output
A broadcast chain and an ordinary monitor at once.
DIP switches
Basic setup right on the unit.

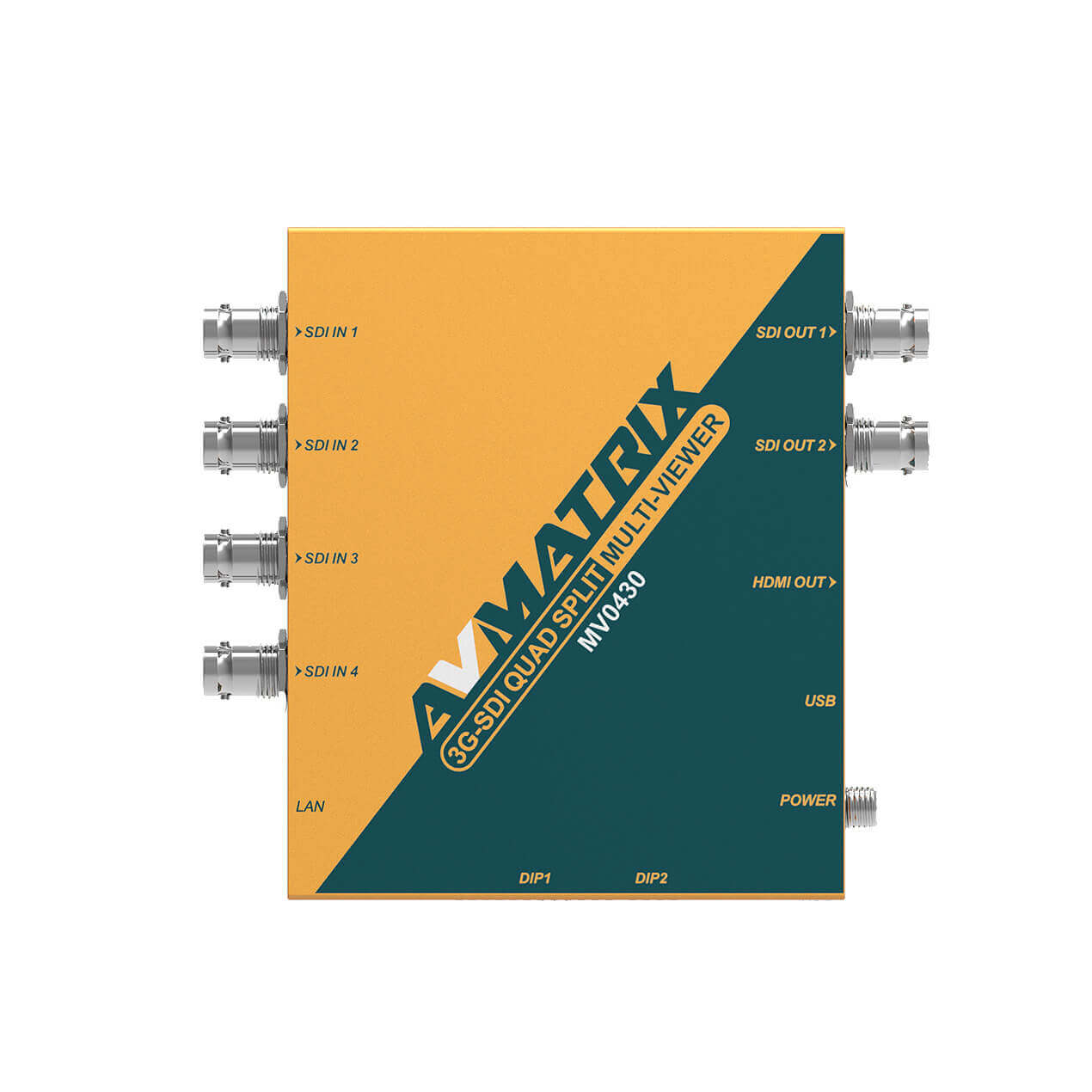

LAN configuration
Detailed setup from a computer, plus a USB keyboard.

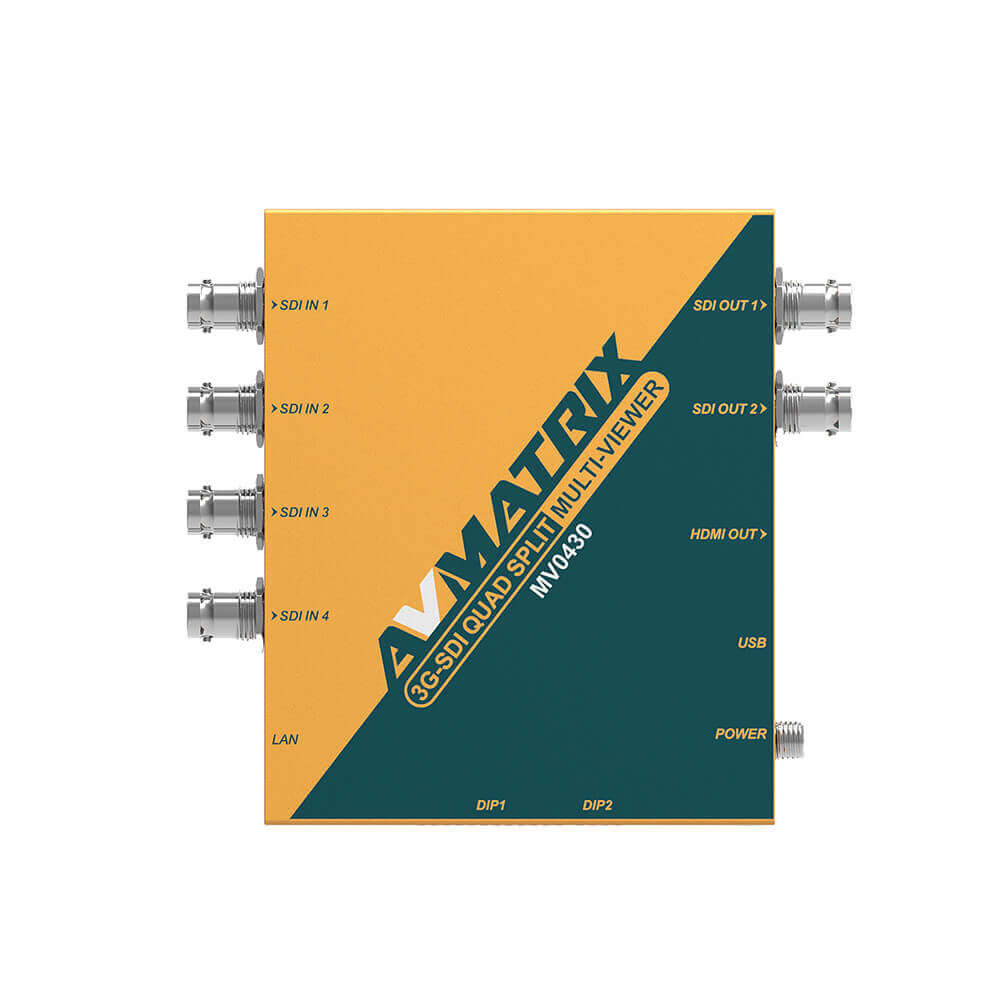

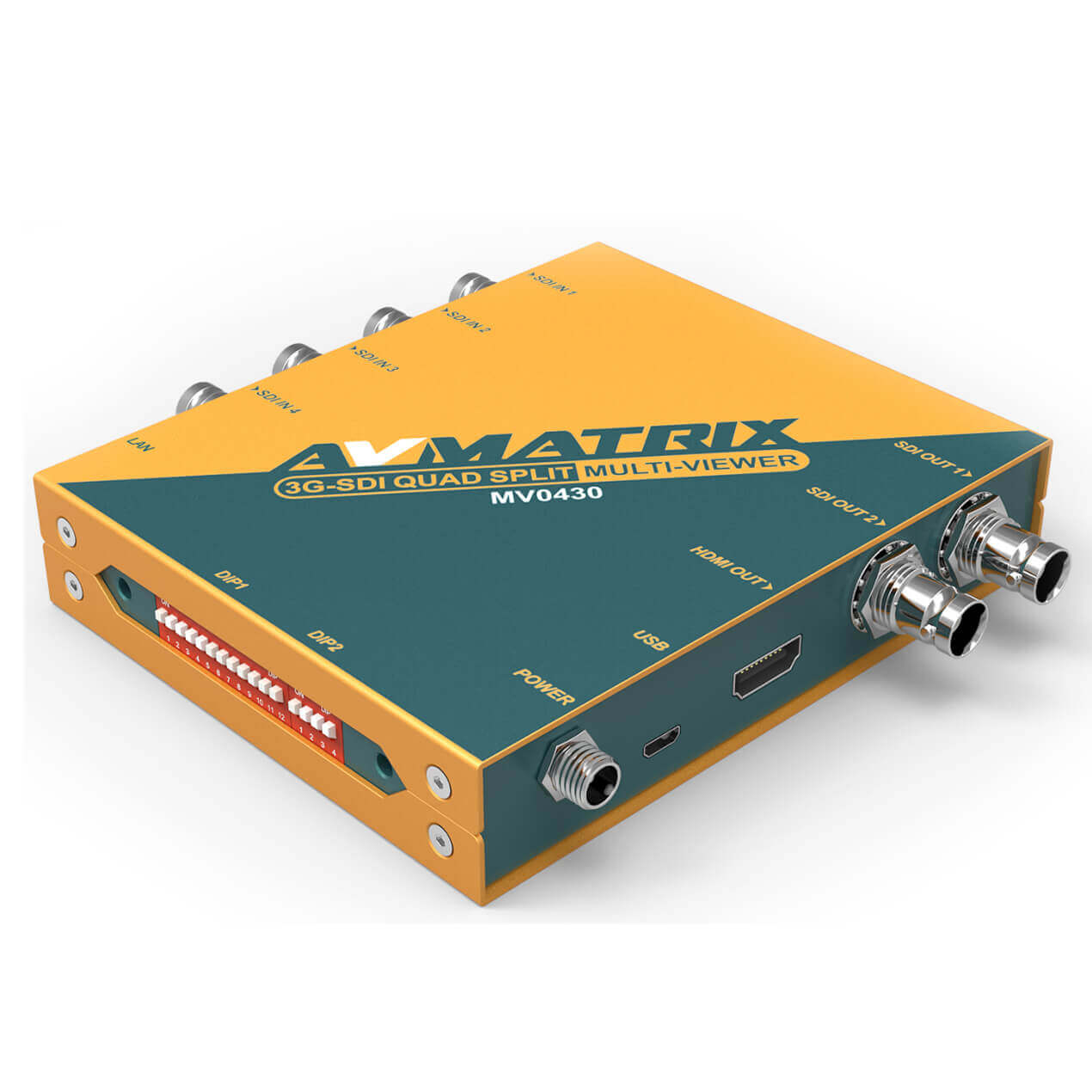

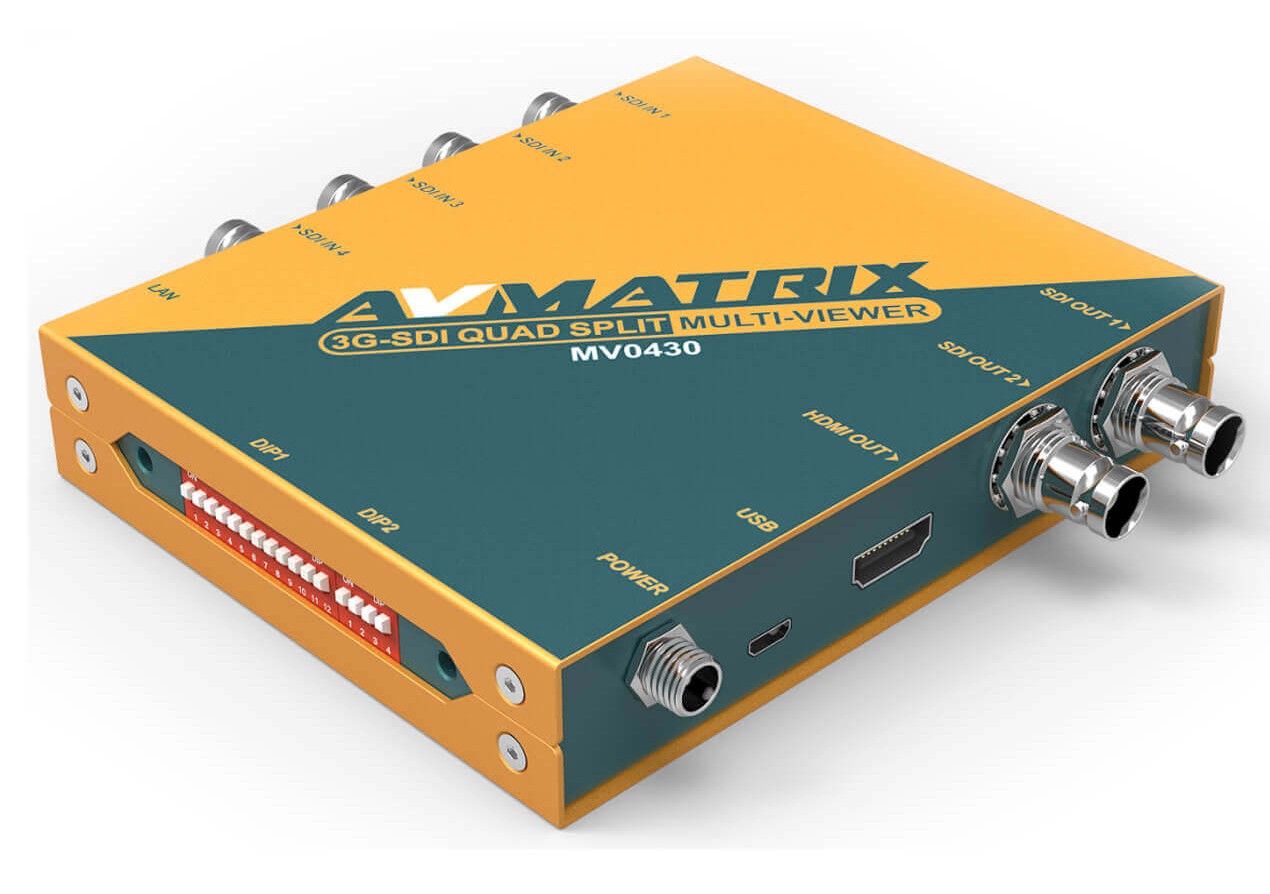

Inputs and outputs
Four SDI inputs, two SDI outputs, HDMI and LAN.

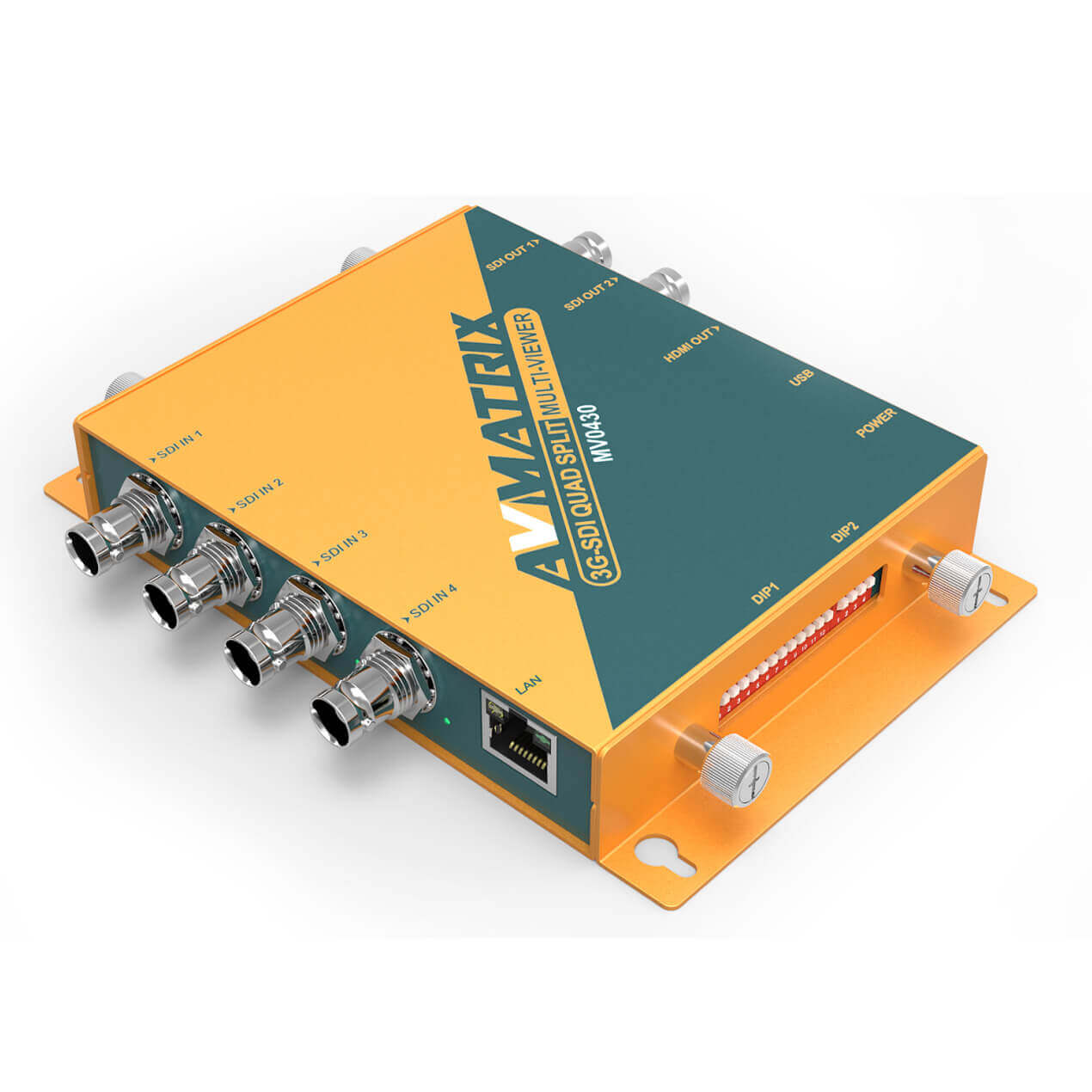

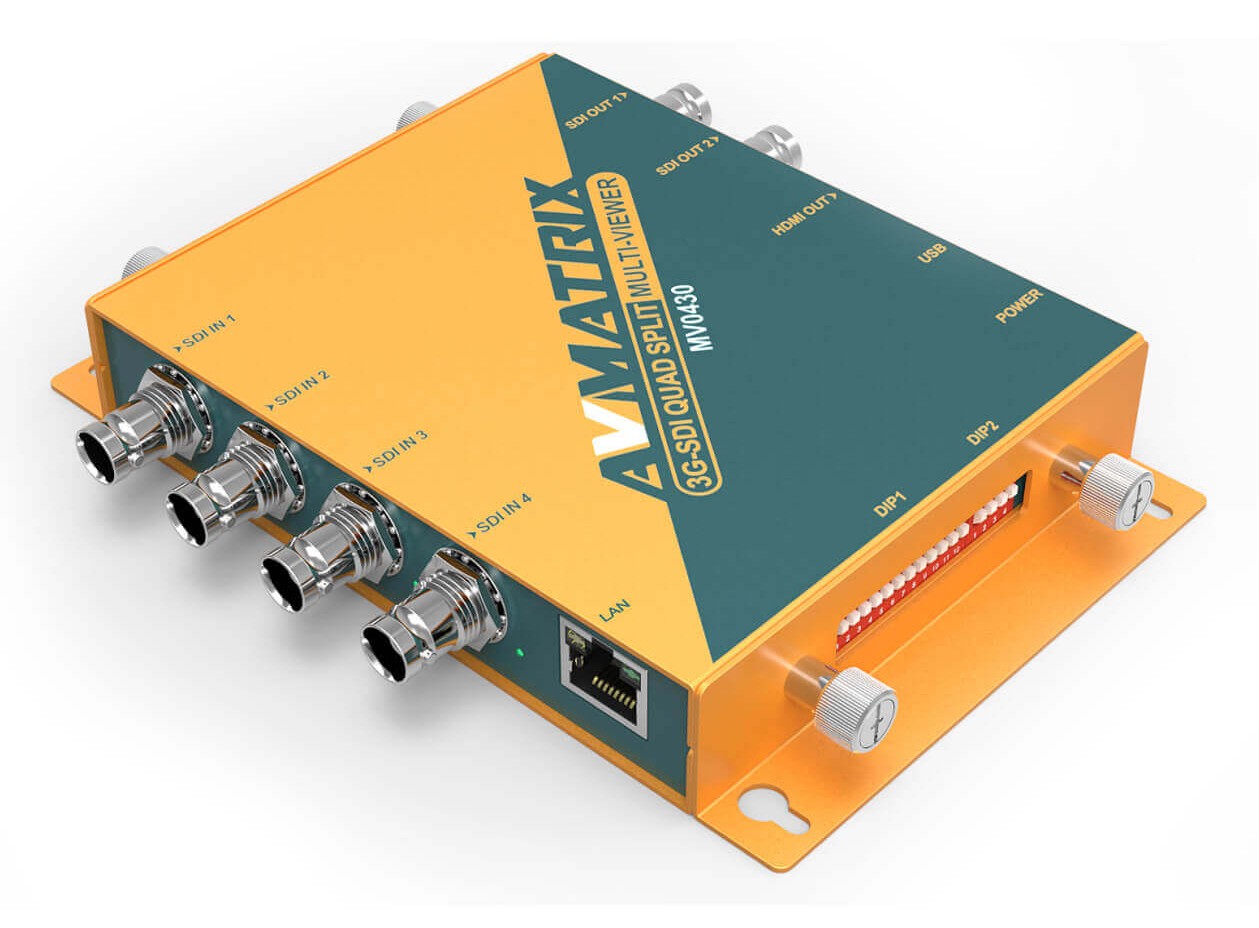

DIP switches on the body
Output format, layout, audio meters, UMD and status can be set right on the unit.

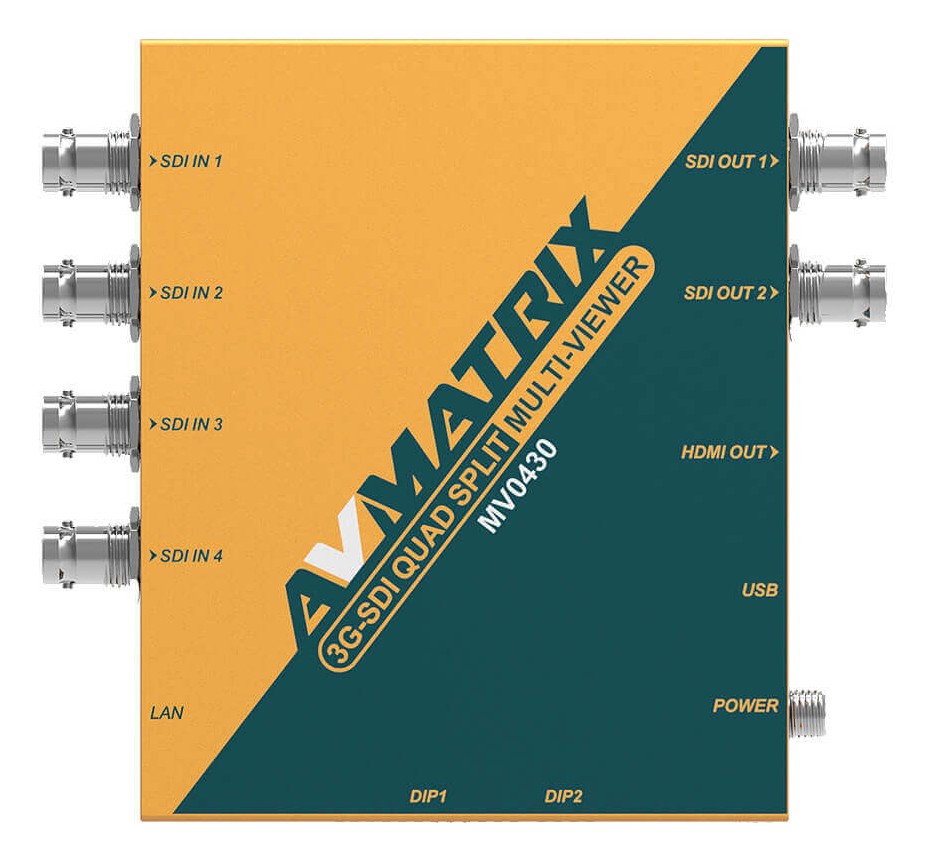

Mounting bracket
The unit can be fixed with the bracket included in the box.
More information
About the product
Four SDI sources clearly displayed on one monitor
AVMATRIX MV0430 is a compact professional multiviewer with four auto-adaptive 3G/HD/SD-SDI inputs. The output can be sent simultaneously over HDMI and two 3G-SDI ports, making it a practical fit for mobile production, studios and AV post-production rooms.

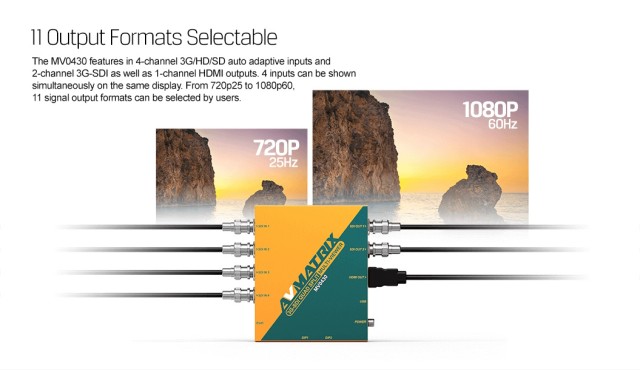

SDI and HDMI outputs for signal monitoring
MV0430 accepts up to four SD/HD/3G-SDI signals on BNC connectors and combines them into a clean multiview output. Two SDI outputs and one HDMI output allow simultaneous connection to a broadcast chain and a standard monitor.
- automatic SD/HD/3G-SDI input detection
- output over 2× SD/HD/3G-SDI
- output over HDMI Type-A
- output scaling and frame-rate conversion support

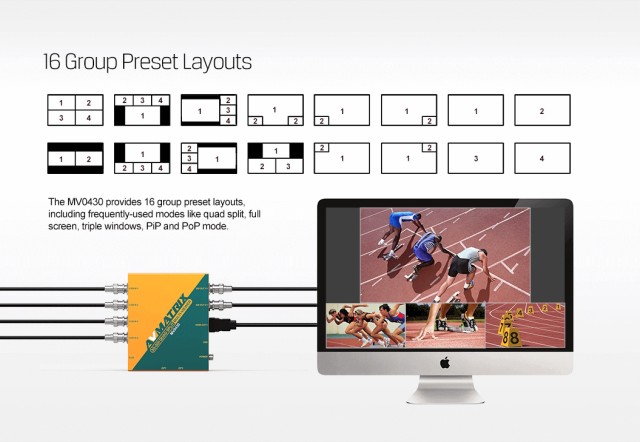

16 picture layouts
Choose quad split, full-screen view, triple-window, PIP or POP modes quickly to match the production workflow.

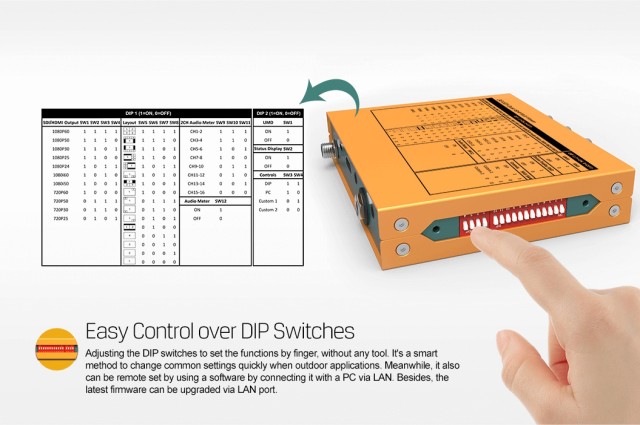

On-board DIP switches
Basic output format, layout, audio meter, UMD and status-display settings can be configured directly on the device.
LAN configuration
More detailed setup is available from a computer over LAN, which simplifies deployment in fixed installations.

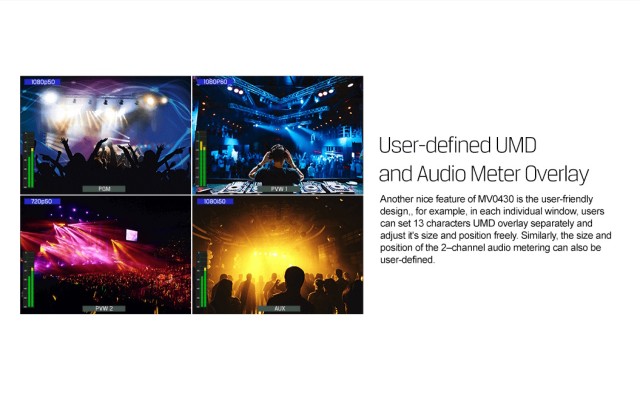

UMD labels and audio meters in the output
The multiview output can include UMD labels up to 11 characters and adjustable audio meters. Overlay position and size are configurable, so the monitoring view can be tailored to the control room.
Key features
- 4 auto-adaptive 3G/HD/SD-SDI inputs
- 2 SD/HD/3G-SDI and 1 HDMI output
- 16 preset multiview layouts
- UMD labels up to 11 characters
- adjustable audio meters
- DIP switches, USB keyboard and PC configuration over LAN
PACKAGE CONTENT
- 1× AVMATRIX MV0430
- 1× power adapter
- 1× mounting bracket
- 1× user documentation
SPECIFICATIONS
- Video inputs: 4× SD/HD/3G-SDI, 75Ω BNC
- Video outputs: 2× SD/HD/3G-SDI, 75Ω BNC; 1× HDMI Type-A
- Layouts: 16 preset layouts
- UMD: up to 11 characters, adjustable position and size
- Audio: 2-channel audio meters from 16 channels of embedded SDI audio
- Control: DIP switches, USB keyboard, PC over LAN
- Supported SDI inputs: 1080p60/59.94/50 down to SD PAL/NTSC
- Output formats: 1080p60/50/30/25/24, 1080i60/50, 720p60/50/30/25
- SDI standards: SMPTE 424M, 292M, 259M, 352M, 296M
- Power: DC 6–24 V, threaded locking connector
- Power consumption: approx. 6 W
- Dimensions: 125.5 × 104 × 24.5 mm
- Weight: approx. 512 g
- Applications: broadcast control rooms, mobile production, AV post-production
WE RECOMMEND
The AVMATRIX MV0430 is a professional SDI multiviewer with four 3G-SDI inputs and dual outputs (SDI/HDMI), serving as a key component for real-time monitoring. To fully utilize it in a professional workflow, it is recommended to supplement it with signal converters for various source types, recording devices for the output signal, and mounting accessories.
Signal Converters and Distribution - Devices for converting, extending, and distributing SDI and HDMI signals entering or exiting the multiviewer.
- AVMATRIX FE1121 3G-SDI Fiber Optic Extender
- AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Converter
- AvMatrix SC7030
- AVMatrix SD1242-4K
- AVMatrix DE21-4K PRO
Image Recording and Processing - External and internal cards enabling digitization and recording of multiview output to a computer.
Production Equipment and Mounting - Accessories for integration into studio systems, signaling, and equipment mounting.
Parameters
| Manufacturer: | AVMATRIX |
| Category: | Multiviewer |
Main parameters
| Multiview resolution | HD · SD |
| Number of multiview inputs | 4 |
