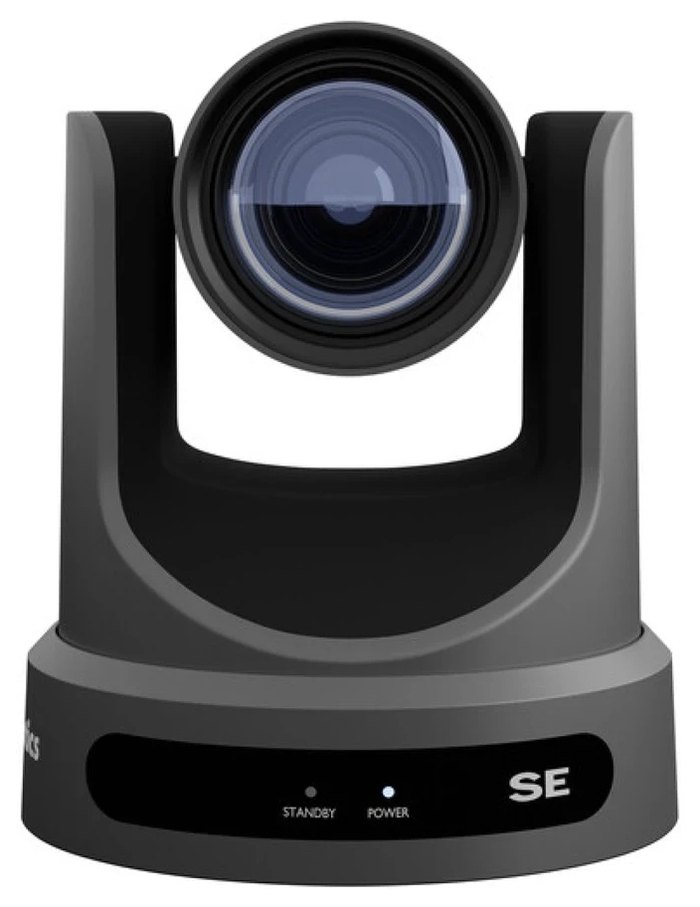

PTZOptics PT30X-SE-GY-G3

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (Gray) is a professional full HD PTZ camera designed for live streaming, video conferencing, education, and broadcast production. Featuring 1080p60 video capture, advanced auto-tracking, 30x optical zoom, NDI|HX support, and simultaneous HDMI, 3G-SDI, USB-C,…

More information

1 799 € with VAT 1 486.78 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (Gray) is a professional full HD PTZ camera designed for live streaming, video conferencing, education, and broadcast production. Featuring 1080p60 video capture, advanced auto-tracking, 30x optical zoom, NDI|HX support, and simultaneous HDMI, 3G-SDI, USB-C, and IP streaming outputs, this versatile camera delivers high-quality video performance with exceptional low-light capability and flexible control options.

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (Gray) is an advanced PTZ camera solution engineered for professional live production, remote learning, corporate conferencing, worship streaming, and hybrid event environments. Equipped with a high-performance 1/2.8"-type CMOS sensor and support for resolutions up to 1080p60, the Move SE delivers smooth, detailed video with accurate color reproduction and reliable low-light performance.

Designed for dynamic presentations and unattended productions, the built-in auto-tracking functionality automatically follows presenters as they move throughout the room, eliminating the need for a dedicated camera operator. The powerful 30x optical zoom lens combined with up to 16x digital zoom allows precise close-up shots while maintaining excellent image clarity, making it ideal for large auditoriums, classrooms, and worship spaces.

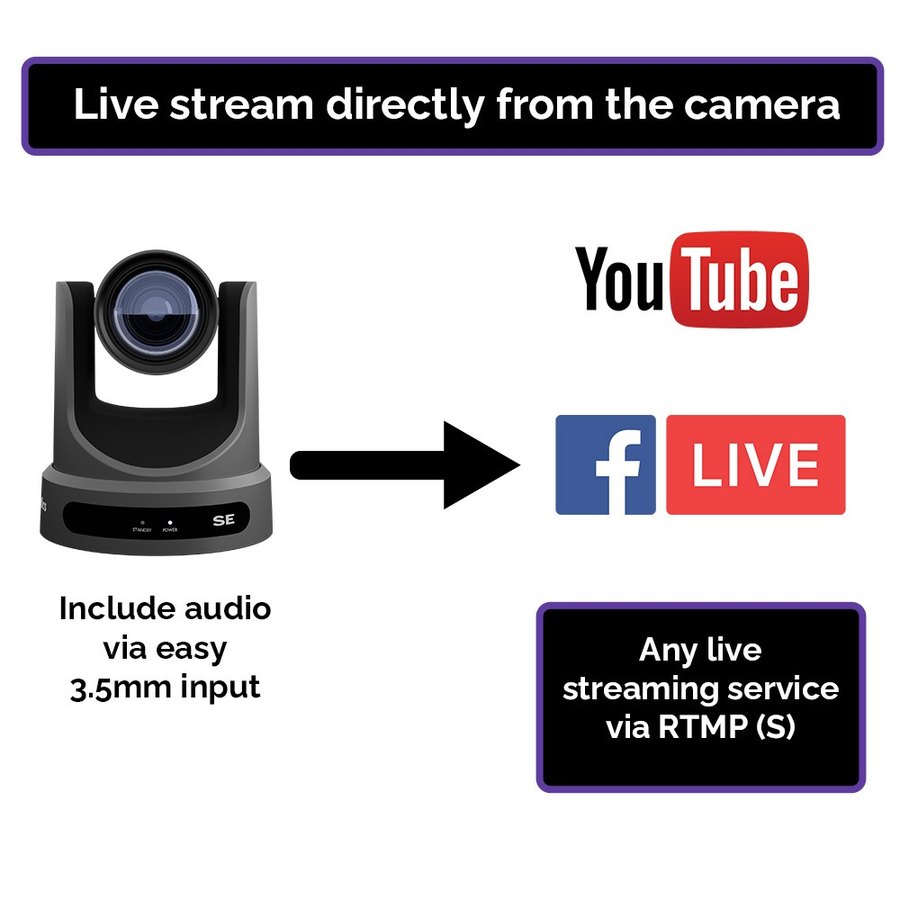

The camera supports simultaneous video output through HDMI, 3G-SDI, USB-C, and IP streaming, providing exceptional workflow flexibility for streaming, recording, and broadcasting applications. Integrated support for H.264, H.265, and MJPEG compression enables efficient network streaming, while compatibility with protocols including RTSP, RTMP, RTMPS, SRT, ONVIF, TCP, and UDP ensures broad integration with professional AV systems and streaming platforms.

A free upgrade for NDI|HX support enhances production workflows by enabling low-latency IP video transmission across compatible networks. The camera also includes 255 programmable presets for rapid camera positioning and supports control via IP, RS-232, RS-485, and the included IR remote control.

Additional professional features include wide dynamic range, 3D noise reduction, stereo audio embedding through 3.5mm audio input/output connections, tally light support, PoE capability, and compatibility with Windows, macOS, and Linux operating systems.

Key Features

  • Full HD PTZ camera with up to 1080p60 video output

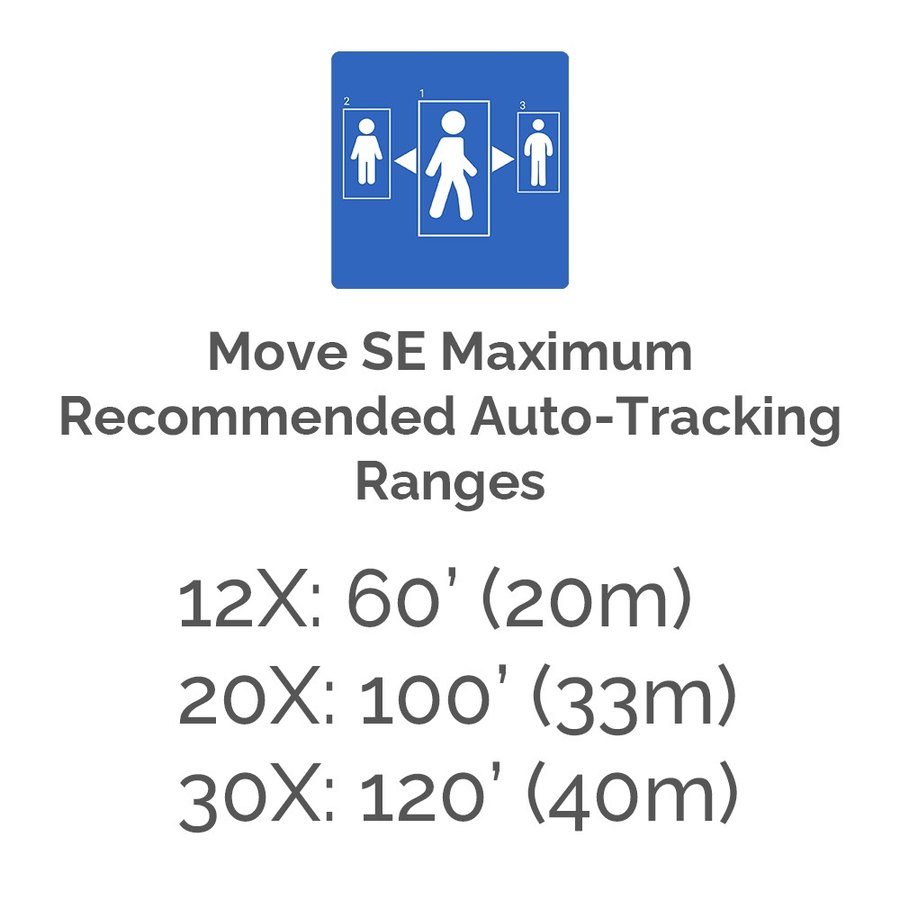

  • Built-in auto-tracking for presenter tracking
  • Powerful 30x optical zoom lens
  • Up to 16x digital zoom
  • Simultaneous HDMI, 3G-SDI, USB-C, and IP outputs
  • Free NDI|HX upgrade support
  • H.264, H.265, and MJPEG video compression
  • Supports RTSP, RTMP, RTMPS, SRT, ONVIF, TCP, and UDP streaming protocols
  • Excellent low-light performance with 3D noise reduction
  • 255 programmable camera presets
  • IP, RS-232, RS-485, and IR remote control support
  • Stereo audio input and output via 3.5mm jacks
  • PoE (802.3af) and 12V DC power support
  • Wide compatibility with conferencing and streaming platforms including Zoom, Microsoft Teams, and Skype

PACKAGE CONTENT

  • PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (Gray)

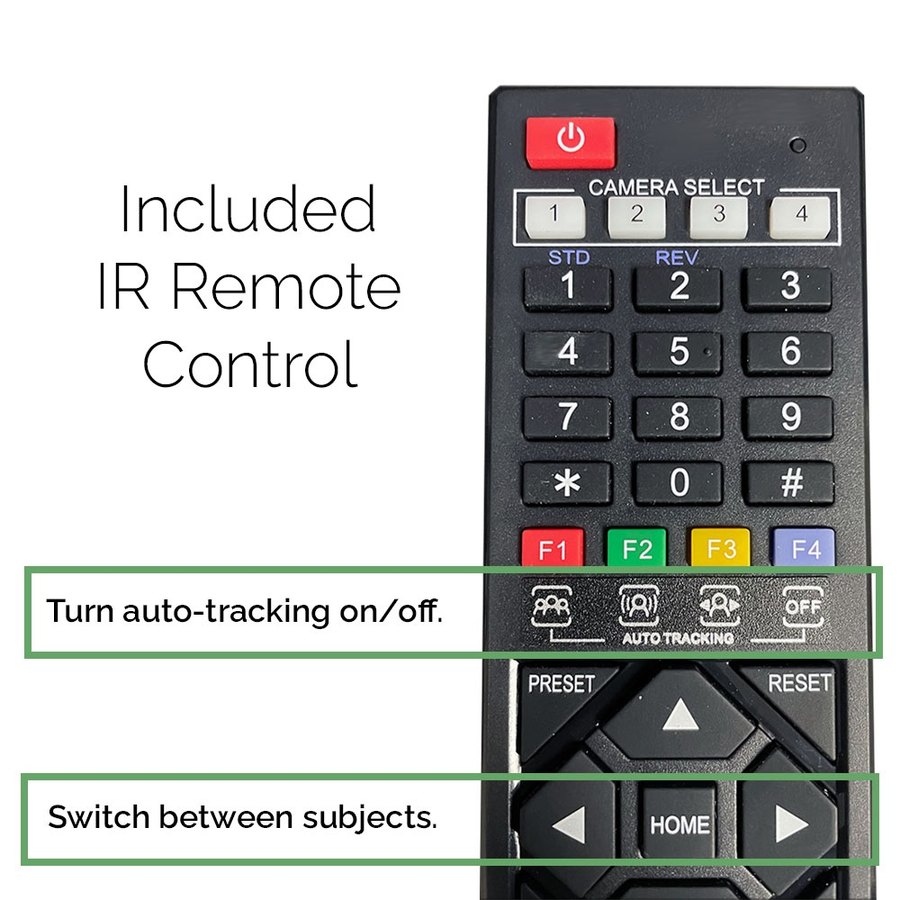

  • IR Remote Control
  • Power Adapter
  • Hardware & Documentation

SPECIFICATIONS

Imaging

  • Image Sensor: 1/2.8"-Type CMOS
  • Effective Resolution: 2.07 MP
  • Shutter Speed: 1/10000 to 1/30 sec
  • Minimum Illumination: 0.5 lux
  • Signal-to-Noise Ratio: 55 dB
  • Focus Control: Auto / Manual
  • White Balance: Auto, Indoor, Outdoor, Manual, One Push
  • Image Functions: Flip, Mirror (Vertical)

Lens

  • Focal Length: 4.42 to 132.6mm
  • Optical Zoom: 30x
  • Digital Zoom: 16x
  • Maximum Aperture: f/1.8 to 2.8

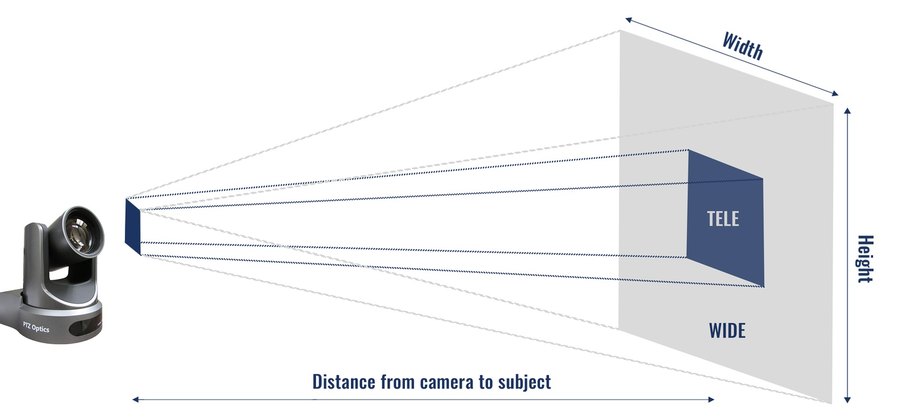

  • Field of View:
    • Horizontal: 60.7° to 2.3°
    • Vertical: 34.1° to 1.28°

Video & Streaming

  • Maximum Video Resolution:
    • 1920 × 1080p up to 60 fps
    • 1280 × 720p up to 60 fps
  • Streaming Compression: H.264 / H.265 / MJPEG
  • Streaming Protocols: HTTP, NDI, ONVIF, RTMP, RTMPS, RTSP, SRT, TCP, UDP
  • Broadcast Standards: NTSC / PAL
  • Internal Recording: No

Pan & Tilt

  • Pan Range: 340° (-170° to 170°)
  • Tilt Range: 120° (-30° to 90°)
  • Pan Speed: 1.7 to 69.9°/s
  • Tilt Speed: 1.7 to 100°/s
  • Preset Positions: 255

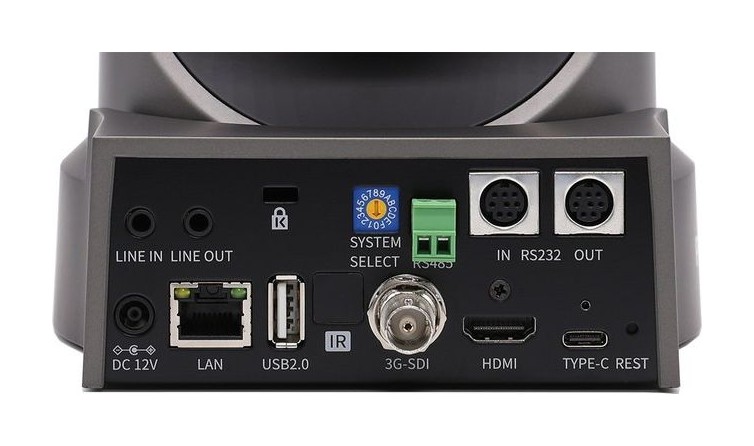

Connectivity

  • Video Outputs:
    • 1x HDMI 1.4
    • 1x 3G-SDI (BNC)
    • 1x RJ45 IP Output
    • 1x USB-C 3.0
  • Audio I/O:
    • 1x 3.5mm Stereo Line In
    • 1x 3.5mm Stereo Line Out
  • Control Interfaces:
    • RS-232 In/Out
    • RS-485
    • IP Control
    • IR Remote
  • Firmware Port: USB-A

Power

  • Power Input: 12V DC
  • PoE Support: IEEE 802.3af
  • Power Consumption: 12W

Physical

  • Color: Gray
  • Materials: Aluminum, Plastic
  • Mounting Options: 1/4"-20 Female, M3 Female
  • Dimensions: 6.7 × 6.5 × 5.6" (169 × 164 × 142 mm)
  • Weight: 3 lb (1.36 kg)

Compatibility

  • Operating Systems: Windows 7 or later, macOS, Linux
Parameters

Parameters

Manufacturer: PTZOptics
Category: PTZ

Main parameters

Camera Sensor size1/2.8"-Type CMOS
Zoom3016x

Other parameters

Min. focal length4.4mm
Max. focal length132.6mm
Battery type12V DC ,IEEE 802.3af , 12W
