PTZ Pole Mount HCM-1C-WH

PTZOptics HCM-1C pole mount (white) in heavy-gauge steel for Move 4K/Link 4K 12X/20X and Move SE cameras on 1" NPT pipe. Mount the camera upright or inverted, run cables through the pipe and fix it with a 1/4"-20 screw.

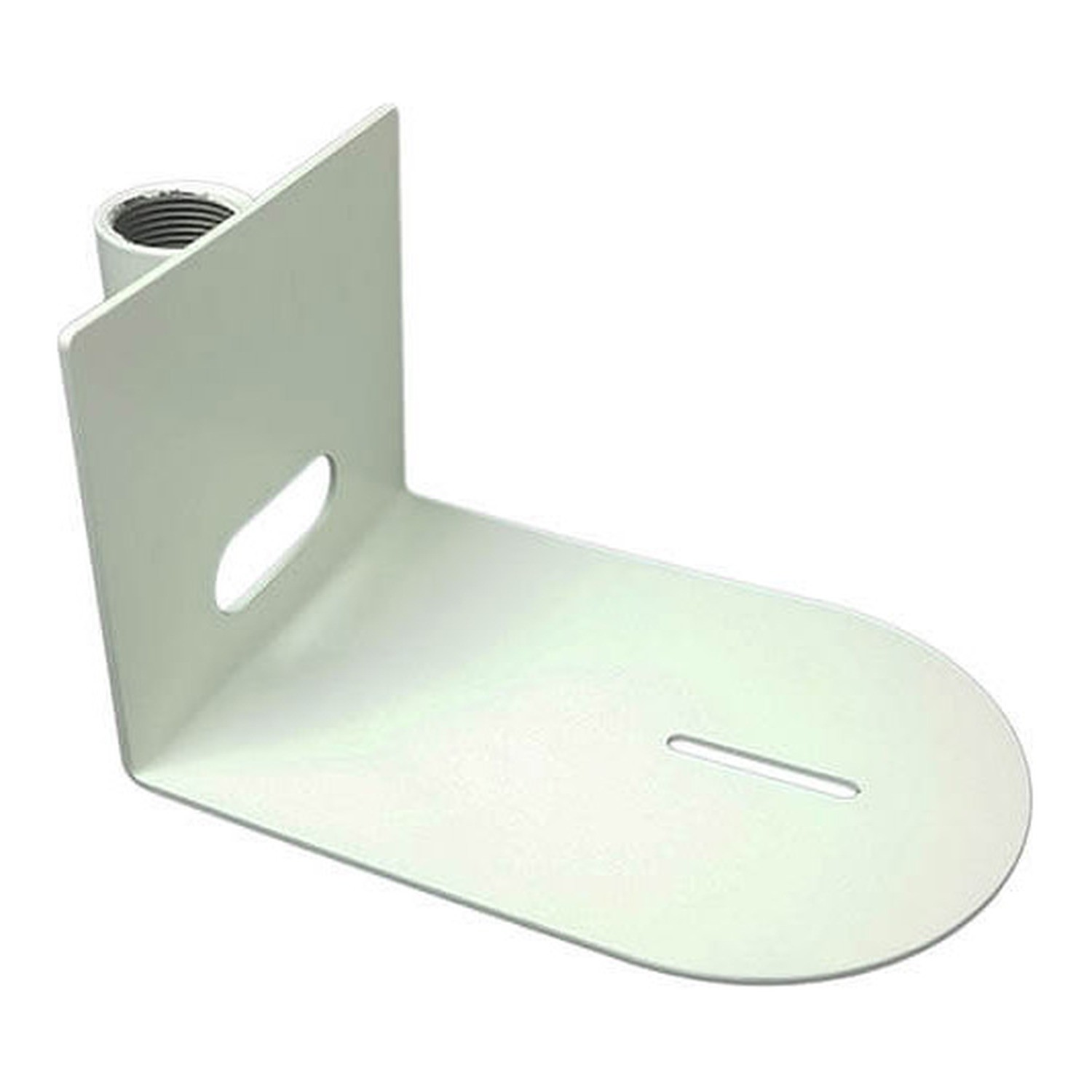

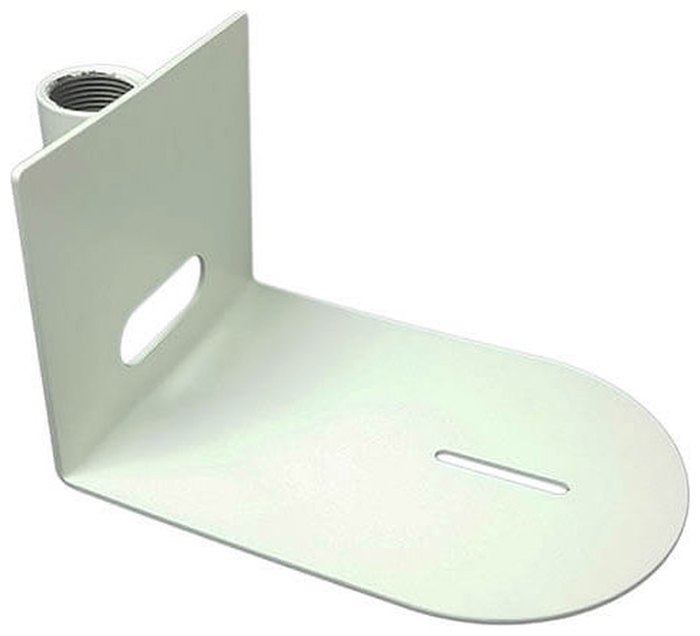

The PTZOptics HCM-1C is a compact mount with a 144 mm wide tray that screws onto 1" NPT pipe, so you can place the camera at exactly the height you need. Designed for smaller PTZ cameras such as the Move 4K 12X/20X, Link 4K 12X/20X and Move SE, it is made of steel with a white powder coat and holds the camera with a 1/4"-20 screw. The camera can sit upright on the mount or hang upside down, with cables running through or along the pipe.

Your camera at the right height

Steel mount for the Move 4K 12X/20X, Link 4K 12X/20X and Move SE with an integrated 1" NPT thread for pipe mounting.

Heavy-gauge steel1/4"-20 screwFor Move 4K, Link 4K, SE1" NPT threadUpright or invertedMade in USA

Height as you need it

The mount screws onto 1" NPT pipe, so you can bring the camera to the ideal height even under a high ceiling. Pipe and ceiling flange are not included; for a 1½" flange, use a 1½"–1" reducing bushing.

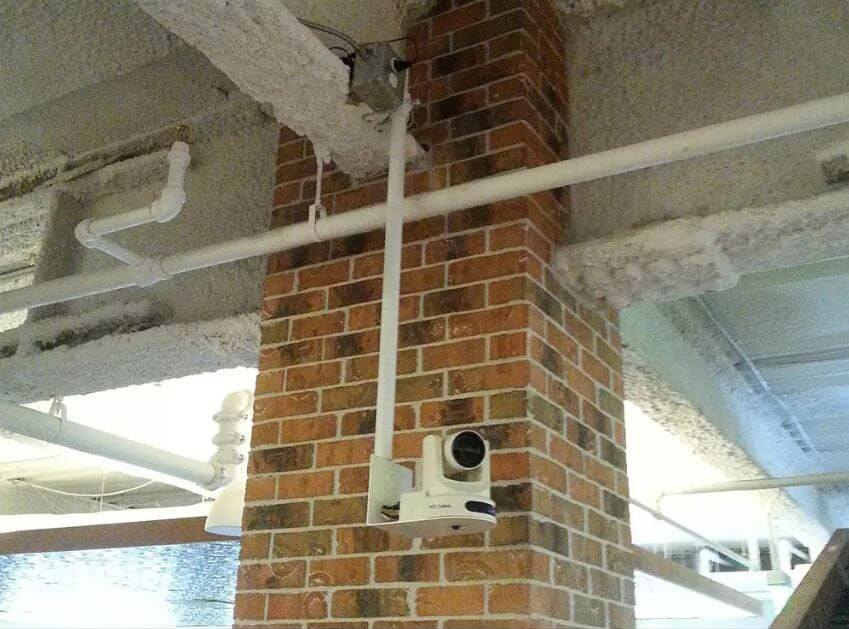

Upright or upside down

The universal design lets you stand the camera on the mount or hang it underneath. Washers in the box help seat most cameras with a 1/4"-20 thread precisely and firmly.

Cables through the pipe

Run cabling straight through the pipe and mount, or dress it along the outside of the pipe. The installation stays clean and tidy.

Built for demanding installs

The mount is made in Pennsylvania from quality steel with a durable powder coat. A set screw locks it securely on the pipe.

Standard attachment

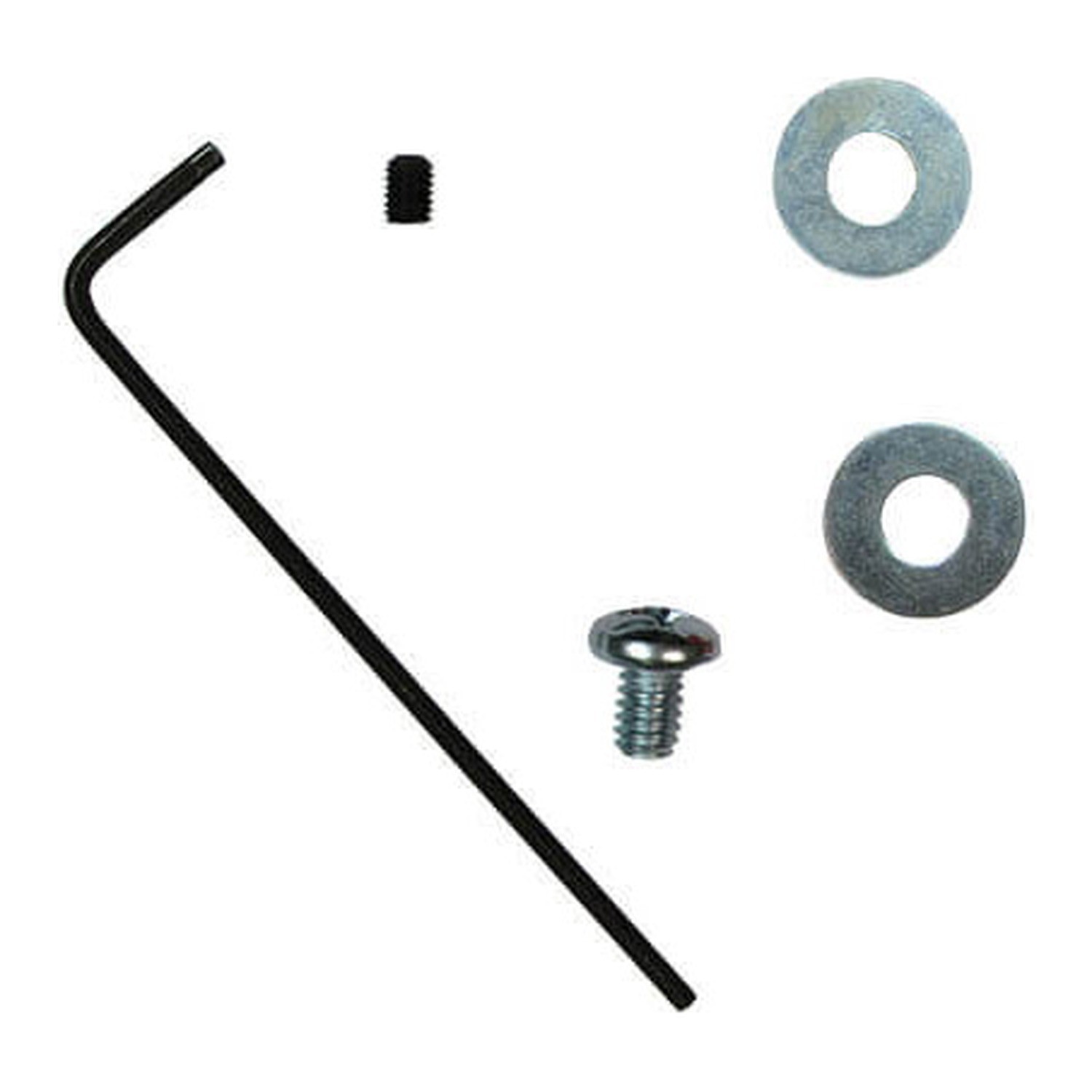

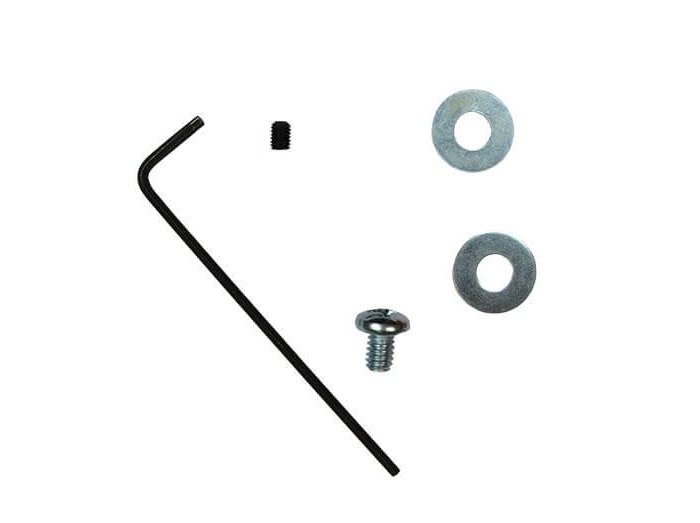

The camera fixes with the 1/4"-20 screw supplied in the box.

Size and weight

145 × 251 × 129 mm, weight 1.14 kg.

144 mm tray

Fits Move 4K and Link 4K 12X/20X, Move SE and most smaller PTZ cameras.

For halls and studios

Suited to lecture halls, houses of worship, studios and high-ceiling venues.
