PTZ ceiling mount PT-CM-1-BK

PTZOptics PT-CM-1 ceiling mount (black) in heavy-gauge steel for Move 4K/Link 4K 12X/20X and Move SE cameras. Two-piece design with safety screws, fits ceilings as well as U.S. and European electrical boxes, 1/4"-20 camera attachment.

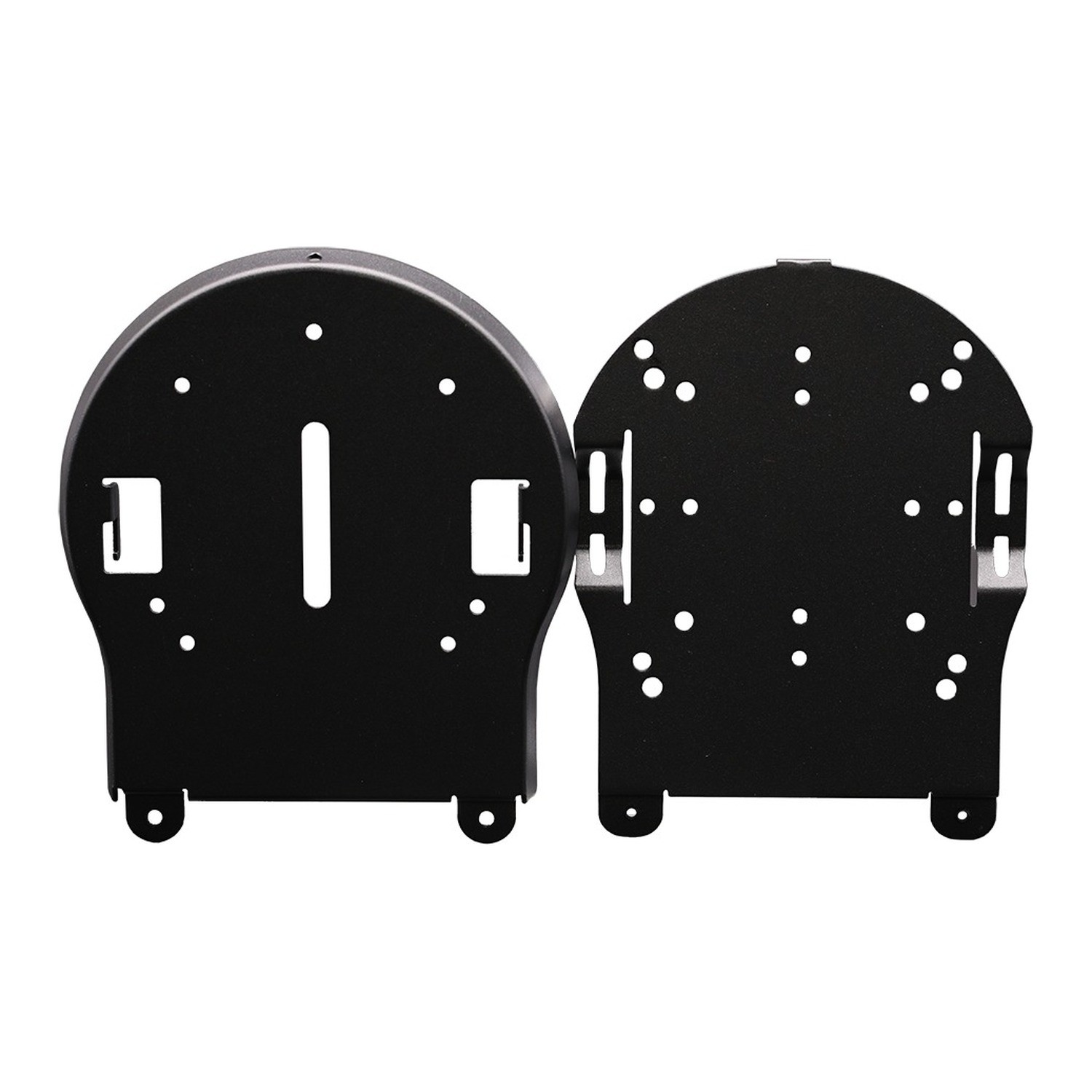

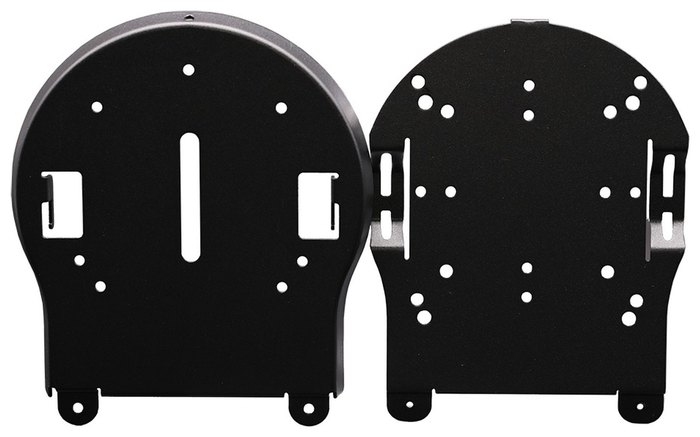

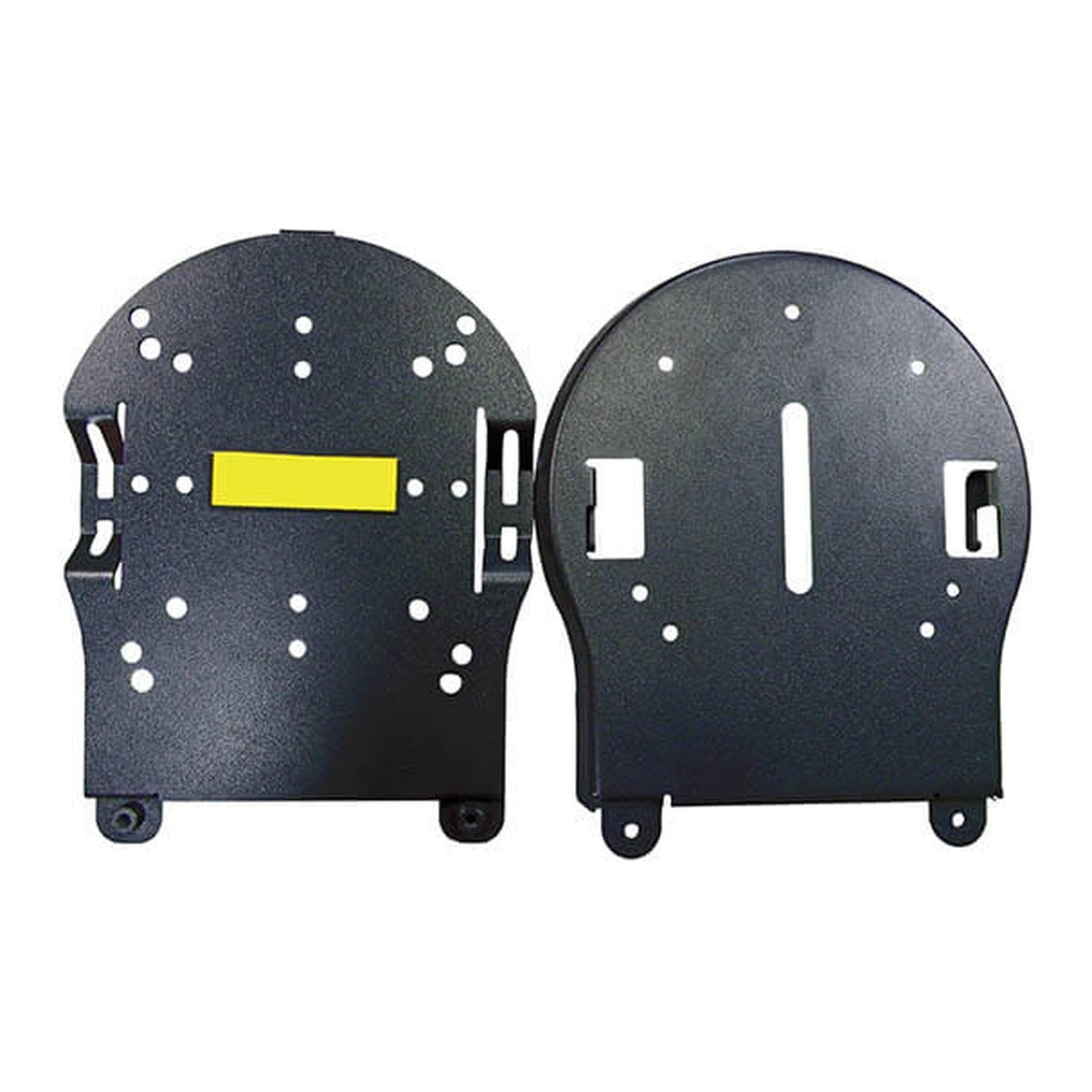

The PTZOptics PT-CM-1 is a compact ceiling mount for hanging a smaller PTZ camera upside down, such as the Move 4K 12X/20X, Link 4K 12X/20X and Move SE. It consists of a ceiling bracket and a camera bracket that slide together and lock with safety screws. The ceiling bracket fixes to wood, drywall or an electrical box, and the camera bracket holds the camera with a 1/4"-20 screw.

Your camera on the ceiling

Two-piece steel mount for the Move 4K 12X/20X, Link 4K 12X/20X and Move SE that hangs the camera securely upside down.

Heavy-gauge steel1/4"-20 screwFor Move 4K, Link 4K, SETwo-piece designSafety screwsUS and EU boxes

Ceiling first, camera second

Install the ceiling bracket on its own while the camera is screwed to the camera bracket. Then simply slide the two parts together and lock them with the safety screws, which makes work at height easier.

On the ceiling or on a box

The ceiling bracket fixes to wood or drywall ceilings, to U.S. 102 mm square, round and octagonal electrical boxes, and to European boxes with a 60 mm hole pattern. Screws for every option are included.

For smaller PTZ cameras

The mount fits Move 4K and Link 4K cameras in their 12X and 20X versions, the whole Move SE range and most smaller cameras from other brands with a 1/4"-20 thread. Slotted holes let you level it precisely after installation.

Discreet and secure overhead

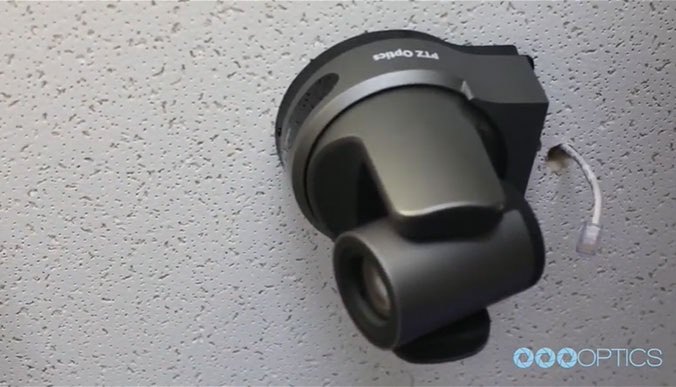

A ceiling-mounted camera has a clear view across the whole room and stays out of everyone’s way. Steel construction with safety screws holds it reliably in permanent installations.

Standard attachment

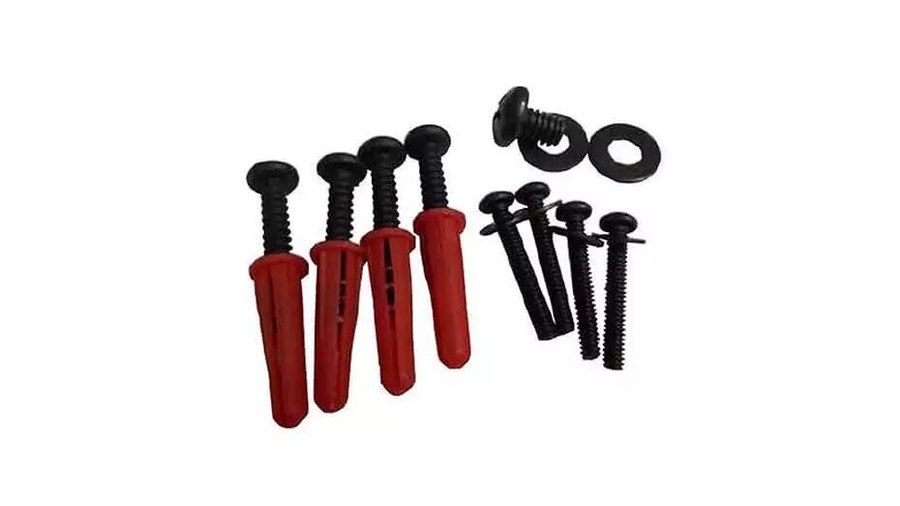

The camera fixes with the 1/4"-20 screw and washer supplied.

Size and weight

164 × 141 × 13 mm, weight 0.45 kg.

Colour to match

Black powder coat; the mount comes in both white and black.

For classrooms and halls

Suited to meeting rooms, classrooms, houses of worship and broadcast studios.
