PTZOptics PT20X-SE-WH-G3

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White) is a professional full HD PTZ camera designed for live streaming, video conferencing, education, and worship applications. Featuring 1080p60 video capture, auto-tracking, 20x optical zoom, NDI|HX support, and simultaneous HDMI, 3G-SDI, USB-C, and IP…

More information

1 629 € with VAT 1 346.28 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White) is a professional full HD PTZ camera designed for live streaming, video conferencing, education, and worship applications. Featuring 1080p60 video capture, auto-tracking, 20x optical zoom, NDI|HX support, and simultaneous HDMI, 3G-SDI, USB-C, and IP outputs, this versatile camera delivers high-quality video performance with flexible streaming and control options.

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White) is a high-performance PTZ camera built for professional live production, hybrid learning, corporate conferencing, worship streaming, and remote collaboration environments. Equipped with a 1/2.8"-type CMOS sensor and support for Full HD 1080p60 video capture, the Move SE delivers smooth, detailed video with reliable low-light performance and advanced image enhancement technologies.

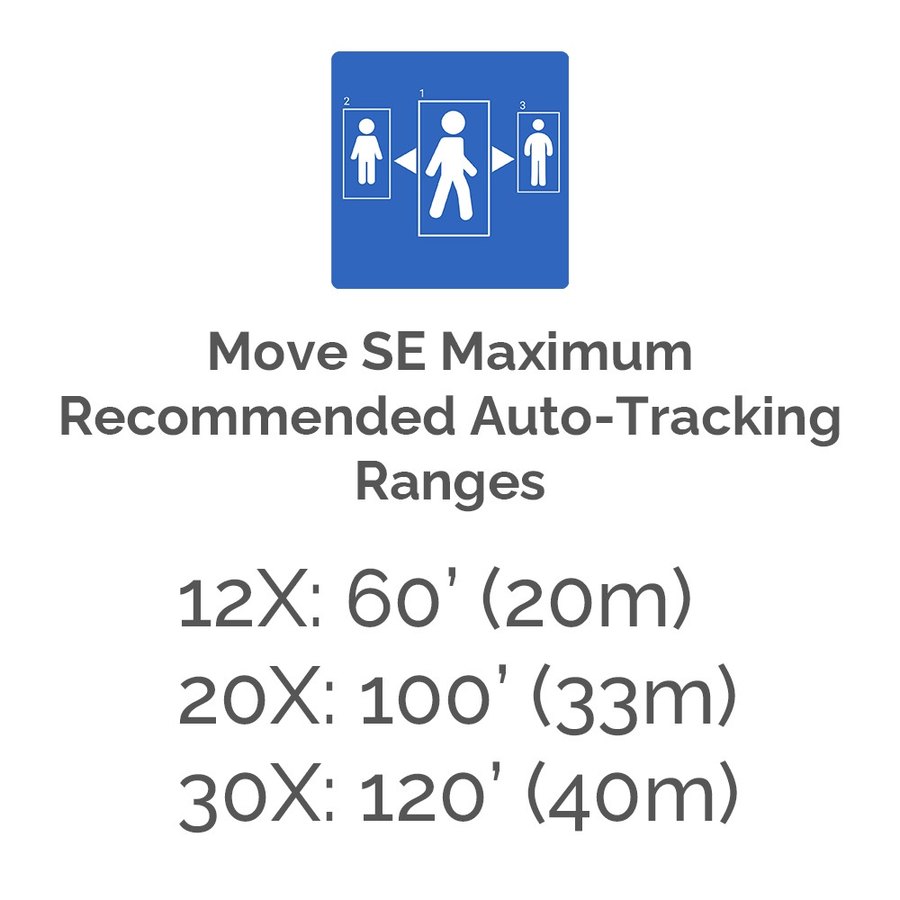

The integrated auto-tracking functionality allows the camera to automatically follow presenters or speakers as they move throughout the room, making it ideal for classrooms, conference rooms, houses of worship, and training environments without requiring a dedicated camera operator. Its powerful 20x optical zoom lens combined with up to 16x digital zoom enables clear close-up shots from long distances while maintaining excellent image quality.

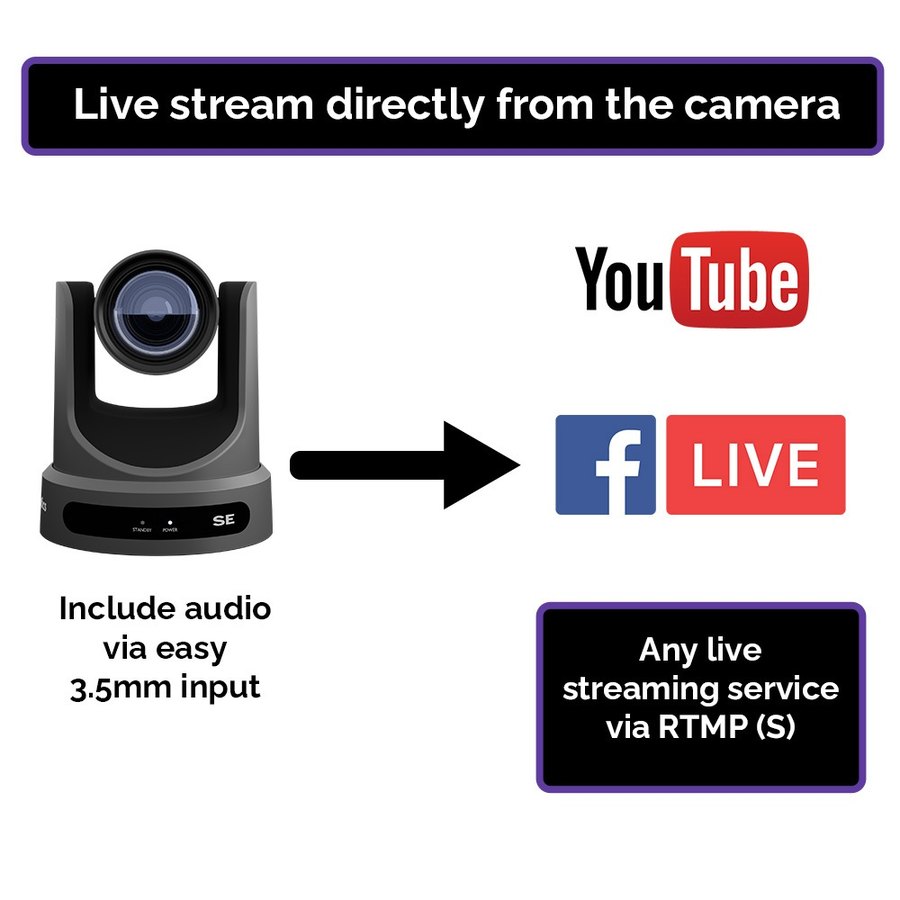

Designed for flexible professional workflows, the camera supports simultaneous video output via HDMI, 3G-SDI, USB-C, and IP streaming connections. Native support for H.264, H.265, and MJPEG compression ensures efficient network streaming, while compatibility with RTSP, RTMP, RTMPS, SRT, ONVIF, TCP, and UDP protocols allows integration into a wide variety of broadcast, conferencing, and AV systems. A free NDI|HX upgrade is also available for enhanced IP-based video production workflows.

Additional professional features include 255 programmable presets, wide dynamic range, 3D noise reduction, stereo audio embedding through 3.5mm audio connections, and support for IP, RS-232, RS-485, and IR remote control. The camera can be powered via the included 12V power supply or through PoE (Power over Ethernet) for simplified installation.

Key Features

  • Full HD 1080p60 PTZ camera
  • Built-in auto-tracking functionality
  • 20x optical zoom lens with 16x digital zoom
  • Simultaneous HDMI, 3G-SDI, USB-C, and IP outputs
  • Free NDI|HX support upgrade available
  • Supports H.264, H.265, and MJPEG compression
  • RTSP, RTMP, RTMPS, SRT, ONVIF, TCP, and UDP streaming support
  • Wide dynamic range and 3D noise reduction
  • Excellent low-light performance
  • 255 programmable camera presets
  • IP, RS-232, RS-485, and IR remote control support
  • Stereo audio input/output via 3.5mm connectors
  • PoE (802.3af) and 12V DC power support
  • Compatible with Zoom, Microsoft Teams, Skype, and other conferencing platforms

PACKAGE CONTENT

  • PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White)

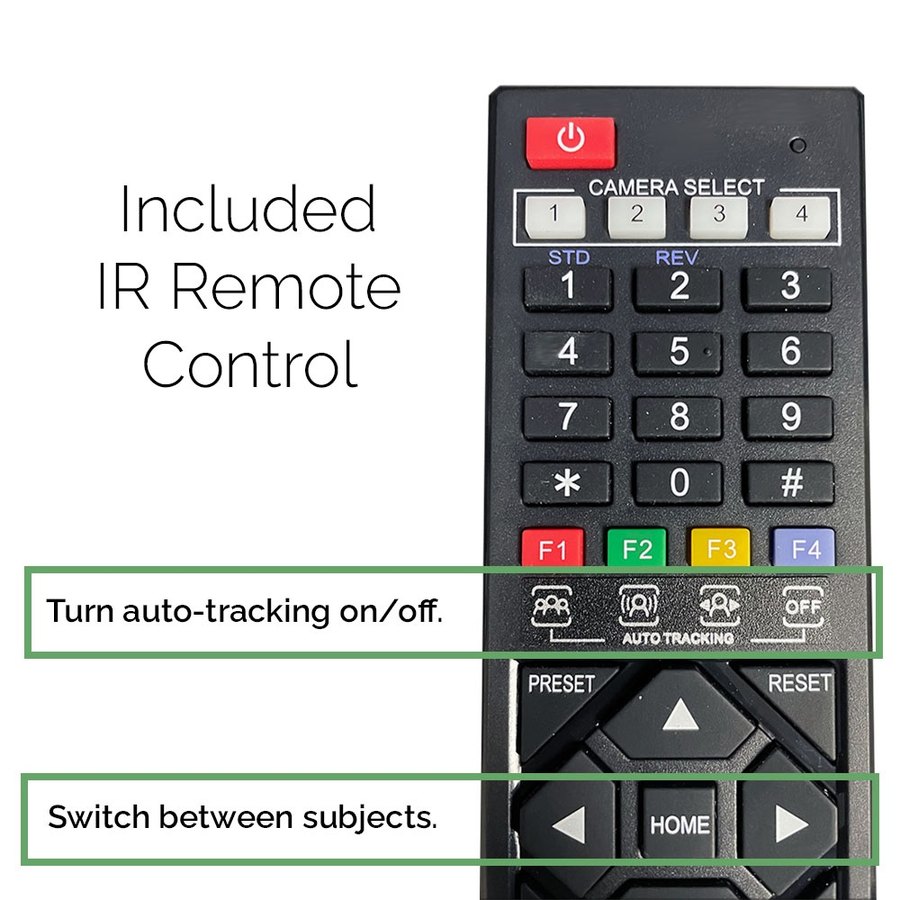

  • IR Remote Control
  • Power Adapter
  • Documentation

SPECIFICATIONS

Imaging

  • Image Sensor: 1/2.8"-Type CMOS
  • Effective Resolution: 2.07 MP
  • Shutter Speed: 1/10000 to 1/30 sec
  • Minimum Illumination: 0.5 lux
  • Signal-to-Noise Ratio: 55 dB
  • Focus Control: Auto / Manual
  • White Balance: Auto, Indoor, Outdoor, Manual, One Push
  • Image Functions: Flip, Mirror (Vertical)

Lens

  • Focal Length: 4.42 to 88.5mm
  • Optical Zoom: 20x
  • Digital Zoom: 16x
  • Maximum Aperture: f/1.8 to 2.8

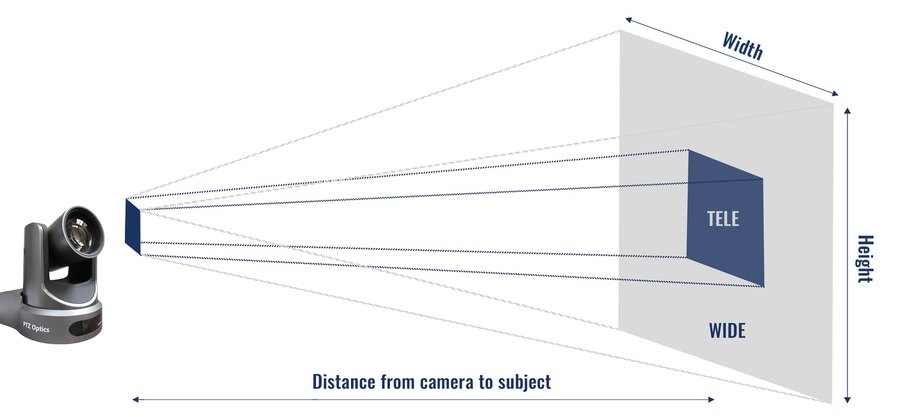

  • Field of View:
    • Horizontal: 60.7° to 3.4°
    • Vertical: 34.1° to 1.9°

Video & Streaming

  • Maximum Resolution:
    • 1920 × 1080p up to 60 fps
    • 1280 × 720p up to 60 fps
  • Streaming Compression: H.264 / H.265 / MJPEG
  • Streaming Protocols: ONVIF, RTMP, RTMPS, RTSP, SRT, TCP, UDP
  • Broadcast Standards: NTSC / PAL
  • Internal Recording: No

Pan & Tilt

  • Pan Range: 340° (-170° to 170°)
  • Tilt Range: 120° (-30° to 90°)
  • Pan Speed: 1.7 to 69.9°/s
  • Tilt Speed: 1.7 to 100°/s
  • Preset Positions: 255

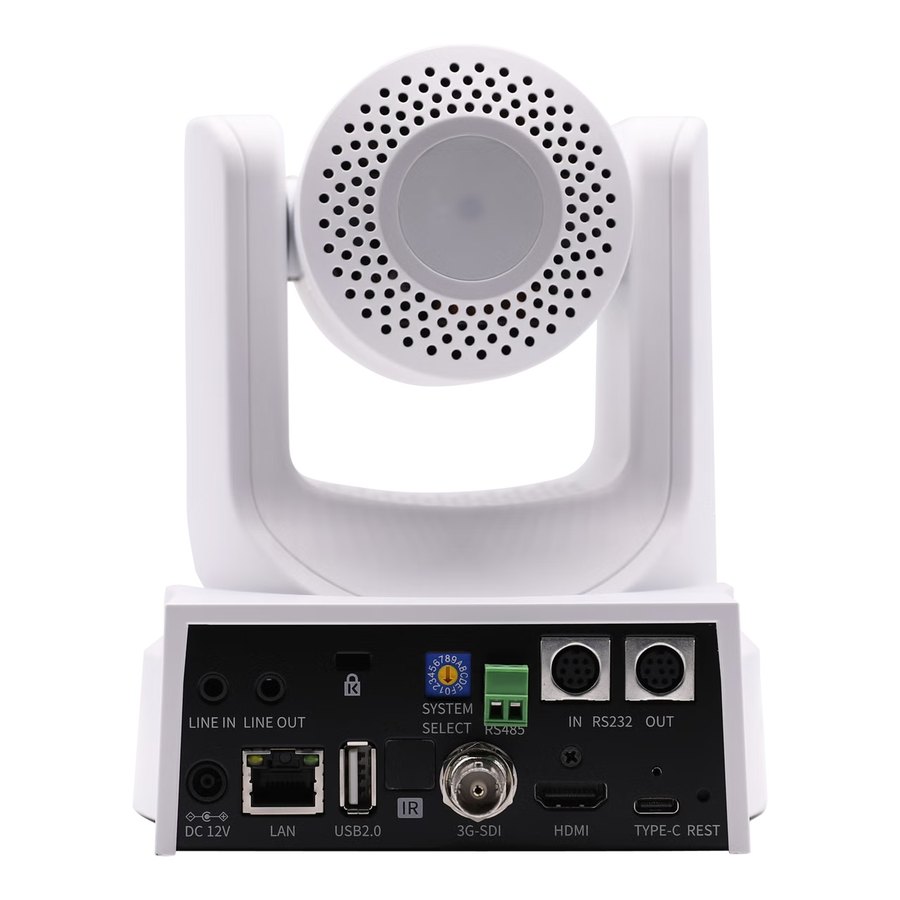

Connectivity

  • Video Outputs:
    • HDMI 1.4
    • 3G-SDI (BNC)
    • RJ45 IP Output
    • USB-C 3.0
  • Audio I/O:
    • 3.5mm Stereo Line Input
    • 3.5mm Stereo Line Output
  • Control Interfaces:
    • RS-232 In/Out
    • RS-485
    • IP Control
    • IR Remote
  • Firmware Port: USB-A

Power

  • Power Input: 12V DC
  • PoE Support: IEEE 802.3af
  • Power Consumption: 12W

Physical

  • Color: White
  • Materials: Aluminum, Plastic
  • Mounting Options: 1/4"-20 Female, 3x M3 Female
  • Dimensions: 6.7 × 6.5 × 5.6" (169 × 164 × 142 mm)
  • Weight: 3 lb (1.36 kg)

Compatibility

  • Operating Systems: Windows 7 or later, macOS, Linux
Parameters

Parameters

Manufacturer: PTZOptics
Category: PTZ

Main parameters

Camera Sensor size1/2.8"-Type CMOS

Other parameters

Lens lens aperture1.8f
Min. focal length4.4mm
Max. focal length88.5mm
Battery type12V DC , IEEE 802.3af , 12W
