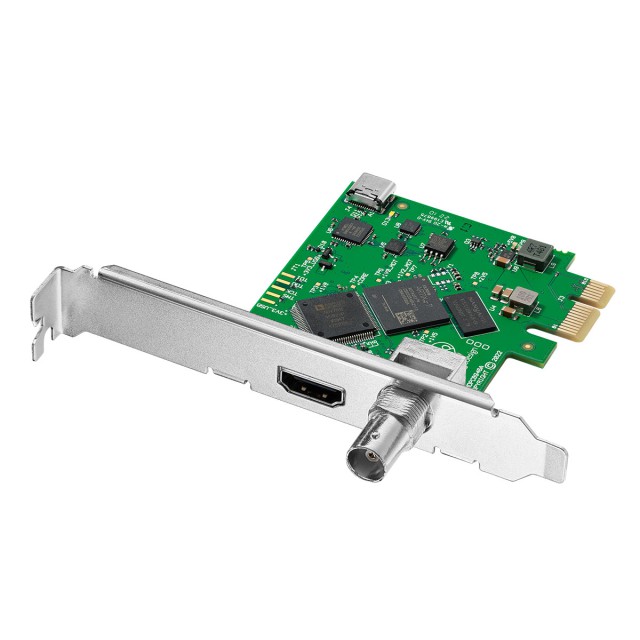

Blackmagic Design DeckLink Mini Monitor HD

SDI and HDMI output at the same time

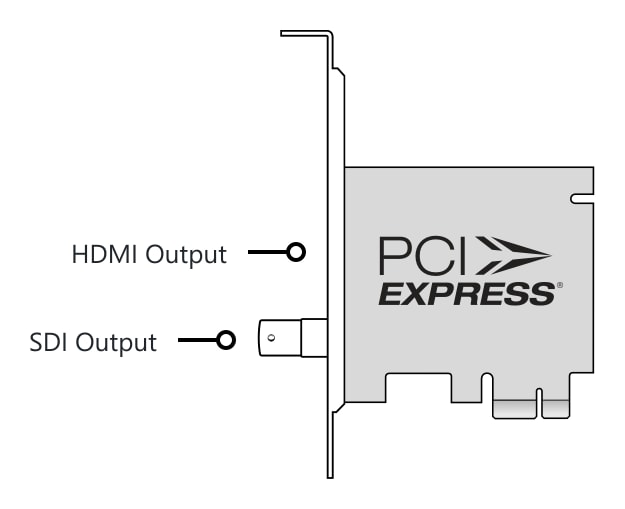

The card has a 3G-SDI output on a BNC connector and an HDMI 2.0 type A output, so it feeds a professional SDI monitor and a television at once. It embeds up to 16 audio channels in SDI and 8 channels in HDMI, always at 48 kHz and 24 bits.

Formats up to 2Kp60 DCI and HDR

The output covers SD and HD up to 1080p60 including 1080PsF, and via SDI also 2K DCI up to 2Kp60. It works with 12-bit RGB 4:4:4 up to 1080p30 and 10-bit YUV 4:2:2 in all formats, with Rec. 601, 709 and 2020 color spaces, and carries HDR metadata with HLG and PQ characteristics.

Details for accurate HD monitoring

The updated models of the popular DeckLink Mini Monitor and DeckLink Mini Recorder PCIe cards for video monitoring and capture feature 3G-SDI and HDMI connections, support resolutions up to 1080p60 and 2Kp60 DCI and the Rec. 2020 color space, and are also more affordable. Drivers are available for macOS 15 and later, Windows 10 (64-bit) and Windows 11, and Linux.

The DeckLink Mini Recorder HD and DeckLink Mini Monitor HD cards feature high end electronics for capturing and playing back uncompressed and compressed 10-bit video in HD and SD resolutions. The new models replace the previous generation with 1.5G-SDI and support resolutions up to 1080p60 and 2Kp60 DCI, a wide color gamut including Rec. 2020, and 10-bit YUV and 12-bit RGB 4:4:4 video formats.

The new DeckLink Mini HD models are compact PCI Express x1 generation 2 cards, so they install easily in regular workstations and rack servers. They can be used to capture from video decks and cameras, or to monitor on displays and projectors. They are ideal tools for video editing, effects work, graphics and many other tasks.

The DeckLink Mini Recorder HD captures video from 3G-SDI and HDMI sources on regular computers with a PCIe bus. All standard SD and HD video sources are supported, including HDCAM, D5, SDCAM, Digital Betacam and others. The DeckLink Mini Recorder HD of course also supports common video streaming applications including OBS, making it much easier to stream live productions. The DeckLink Mini Monitor HD is designed for monitoring video up to 1080p60 on televisions, projectors and other equipment with 3G-SDI or HDMI connections. It also supports the latest HDR formats for color accurate monitoring of modern video formats.

Features of DeckLink Mini Monitor HD and DeckLink Mini Recorder HD

• Dedicated models for capture (DeckLink Mini Recorder HD) and monitoring (DeckLink Mini Monitor HD)
• Compact PCIe x1 Gen 2 cards

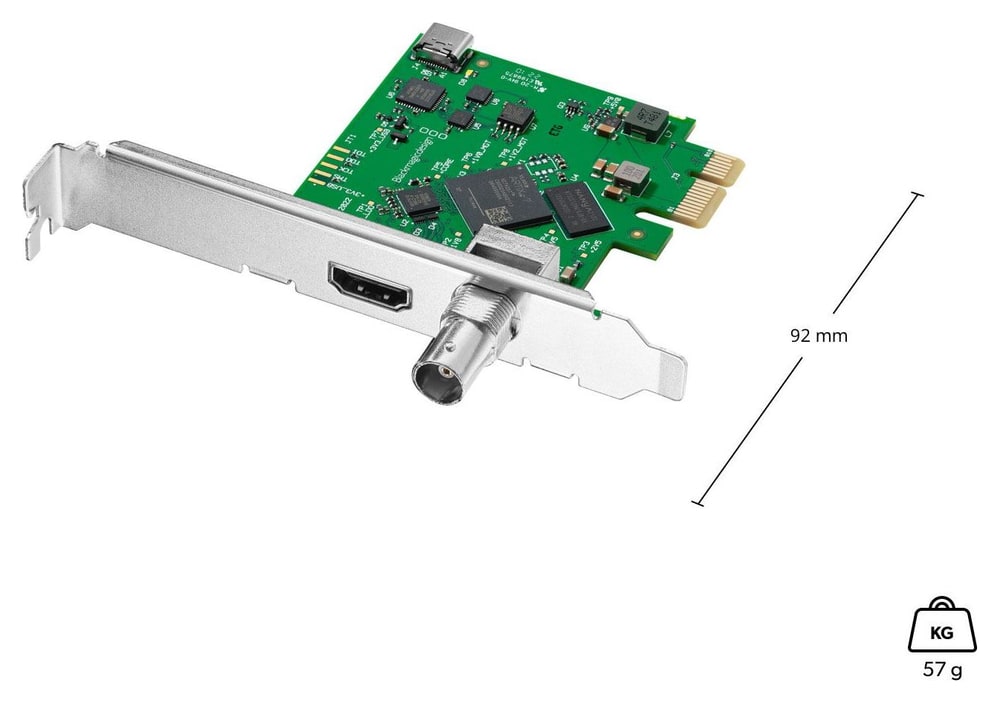

• PCIe bracket for standard and low profile cases
• 3G-SDI and HDMI connections
• Support for all common SD/HD video formats up to 1080p60
• Support for DCI formats up to 2Kp60 via SDI
• Uncompressed and compressed 10-bit YUV 4:2:2 or RGB quality
• Support for DaVinci Resolve and other video post production applications
• Free developer tools
