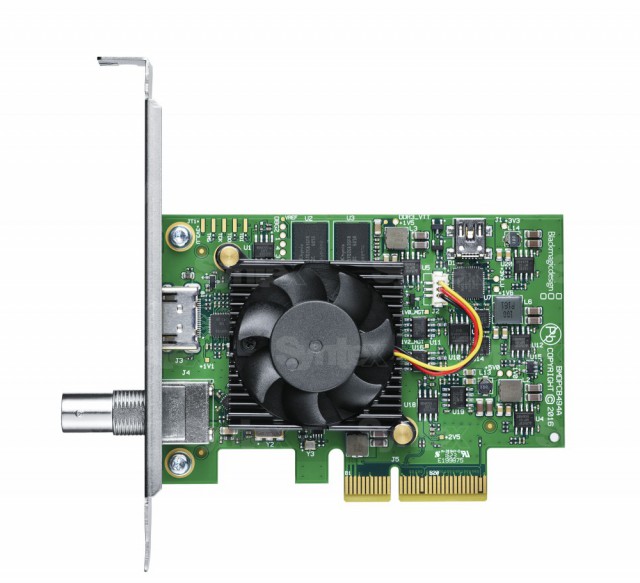

Blackmagic Design DeckLink Mini Monitor 4K

SDI and HDMI output at the same time

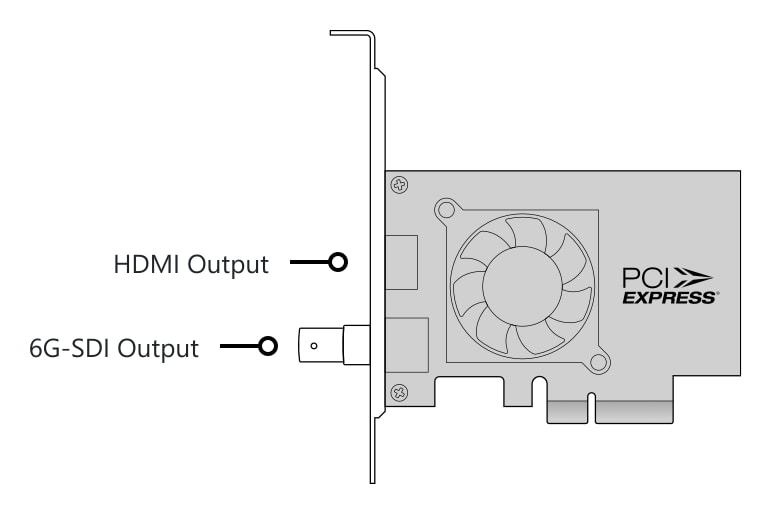

The card has a 6G-SDI output on a BNC connector and an HDMI 2.0a type A output, so it feeds a professional SDI monitor and a television at once. It embeds up to 16 audio channels in SDI and 8 channels in HDMI, always at 48 kHz and 24 bits.

Ultra HD and HDR

SDI and HDMI switch automatically between SD, HD, 2K and Ultra HD up to 2160p30, support 4K DCI up to 25p and via SDI also 2K DCI. The card works with 12-bit RGB 4:4:4 up to 1080p60 and 10-bit YUV 4:2:2 in all formats, with color spaces up to Rec. 2020, and carries HDR metadata with HLG and PQ characteristics.

Details for 4K HDR monitoring

Dedicated 4K monitoring output

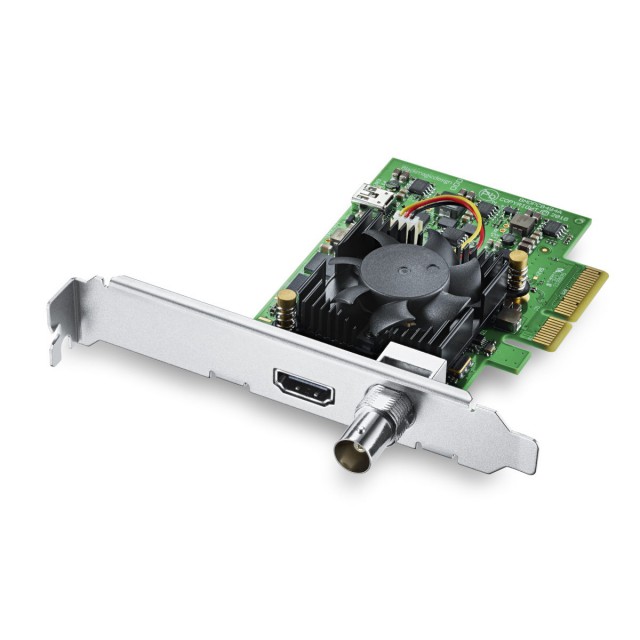

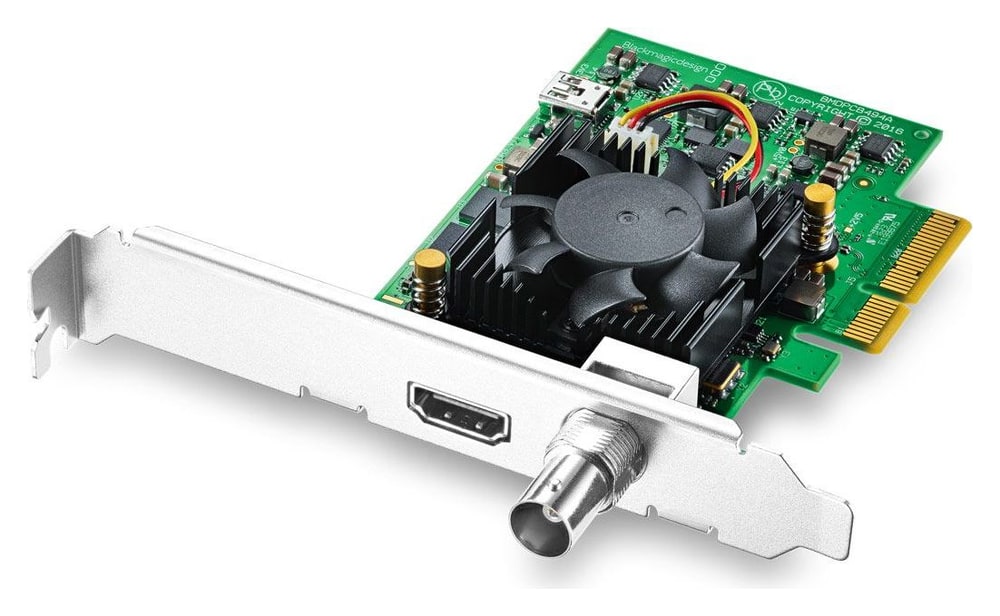

Low profile output card with 6G-SDI and HDMI 2.0a up to 2160p30.

The DeckLink Mini Monitor 4K PCIe monitoring card offers the same features as the HD model plus support for Ultra HD up to 2160p30 and HDR video. The low profile PCI Express 2.0 x4 card uses 6G-SDI and HDMI 2.0a.

It supports high quality 10-bit YUV and 12-bit RGB video, Rec. 2020 and HDR including HDR metadata. It is compatible with the Blackmagic Desktop Video SDK for end users as well as developers of video applications and systems.

The DeckLink Mini Monitor 4K is used for high quality SDI and HDMI monitoring and for playing back all formats up to 2160p30. It suits editing suites and post production studios, for example for grading in DaVinci Resolve.

The output switches automatically to the current video format, so the card is easy to use with televisions, professional displays and modern HDMI projectors. HDR support makes it an affordable solution for playing back HDR material.

The card works with uncompressed and compressed video including QuickTime and DPX and is compatible with DaVinci Resolve, Fusion, Media Composer, Final Cut Pro, Premiere Pro and other applications for editing, grading and VFX.

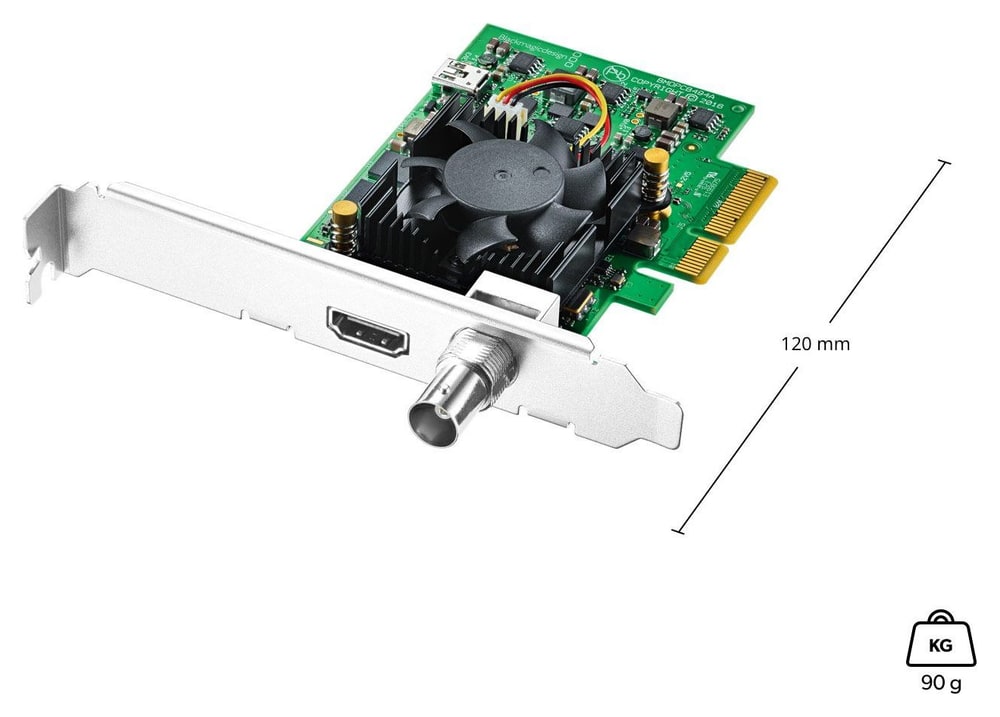

Full-height and low profile mounting brackets are included for standard and low profile installations.
