Blackmagic Design Intensity Pro 4K
SKU: BINTSPRO4K
Blackmagic Intensity Pro 4K is a PCI Express card for video capture and playback via HDMI and analog connections. It supports Ultra HD up to 2160p30 and HD up to 1080p60 and lets you digitize footage from cameras, game consoles and older video archives on computers with macOS, Windows and Linux. A breakout cable for component, composite and S-Video signals…
Promotion: -18%
295.24 €
241.99 € with VAT
199.99 € without VAT
Availability
Backordered 2 pcs
Top accessories for Blackmagic Design Intensity Pro 4K
Contour Design ShuttleXpress
Contour Design ShuttleXpress is a compact USB controller for video editing, audio
71 €
In stock > 5 pcs
Contour Design ShuttlePro V2
Contour Design ShuttlePro V2 is a USB controller for video editing, audio production
103 €
In stock > 5 pcs
PremiumCord ULTRA HDMI 2.1 High Speed + Ethernet cable 8K@60Hz 2m gold
PremiumCord is a unique brand of cables, adapters, and accessories for computers,
9.6 €
In stock 4 pcs
vMix Software Pro
vMix is a PC-only (Windows) software overhead that uses SDI and HDMI input/output
1 329 €
To be sent 2 pcs
PremiumCord HDMI 2.1 High Speed + Ethernet cable 8K@60Hz, 5m
Shielded HDMI cable transmits audio/video at 8K (7680 × 4320 px) at 60 Hz / 4K (3840
14 €
on request
MagicSoft Streamer
MagicSoft Streamer Software Application for Live IP Streaming. 1 channel stream
363 €
7-14 days
MagicSoft Recorder
MagicSoft Recorder is an ingest application designed for the broadcast and post-production
Call us for pricing information
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Intensity Pro 4K is a PCI Express card for video capture and playback via HDMI and analog connections. It supports Ultra HD up to 2160p30 and HD up to 1080p60 and lets you digitize footage from cameras, game consoles and older video archives on computers with macOS, Windows and Linux. A breakout cable for component, composite and S-Video signals and analog audio is included.

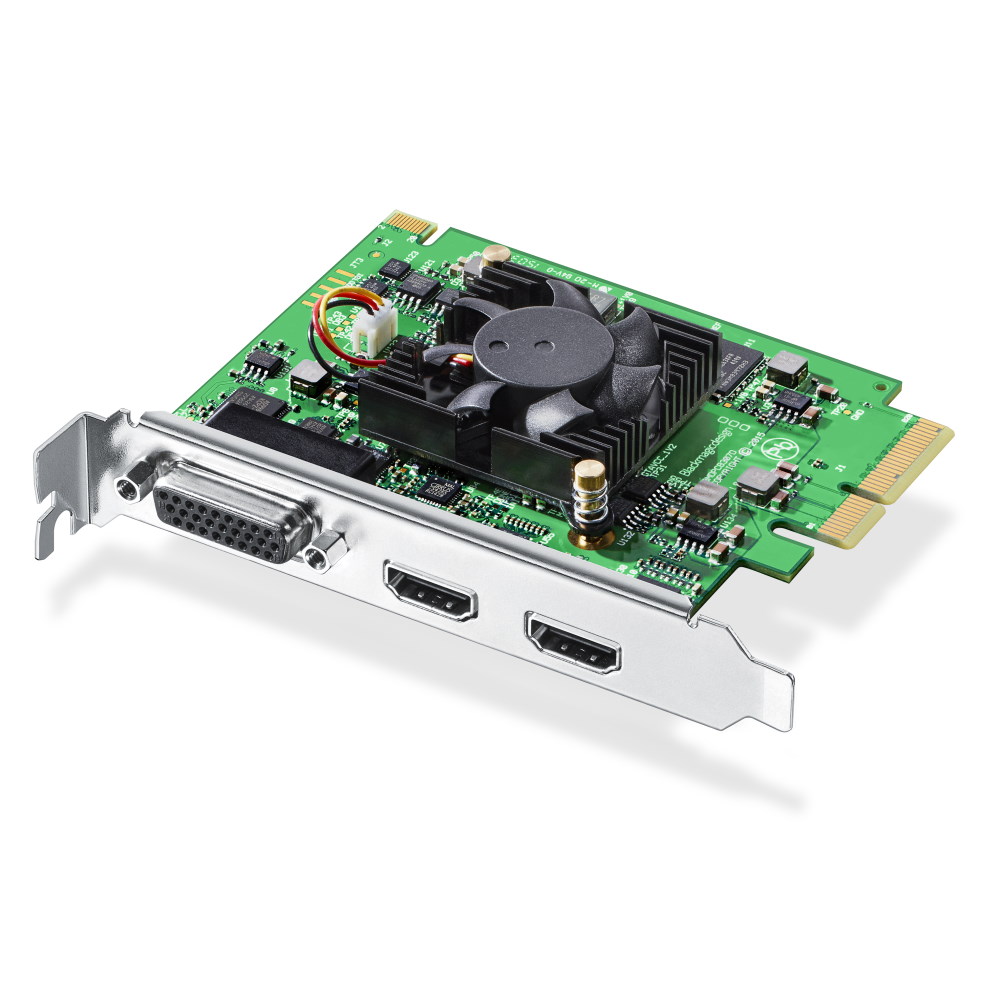

HDMI and analog capture in one card
Intensity Pro 4K brings modern HDMI sources as well as older component, composite and S-Video signals into the computer – for editing, streaming, game capture and gradually digitizing video libraries.
HDMI 1.4bUltra HD 2160p301080p60Analog input/outputPCIe x4
DaVinci Resolve and Media Express included
Media Express handles capture and playback, DaVinci Resolve for macOS and Windows handles editing and grading – without buying any extra software.
Game capture
HD up to 60 frames per second with deep color from game consoles.
Digitizing tapes
VHS, Betamax and DVD as uncompressed or compressed files.
Streaming and presentations
A camera via HDMI for live streaming and video conferencing.
Preview on a television
HDMI output for editing preview on a big screen.

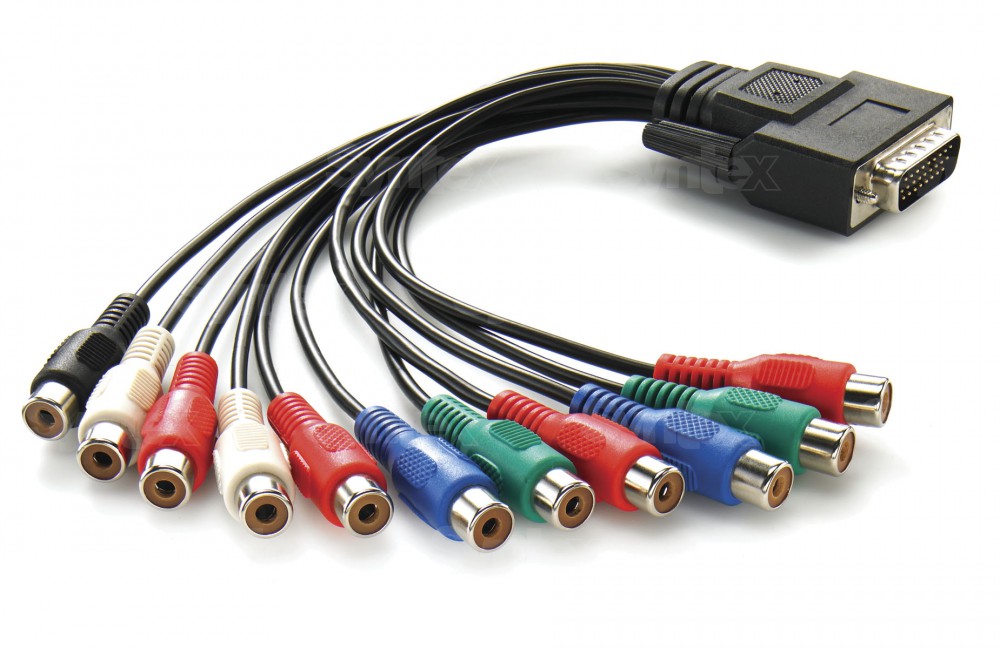

From game consoles to archive tape decks
HDMI captures images from cameras and consoles, while the breakout cable provides component, composite and S-Video inputs and outputs including stereo audio. Before capture you can adjust video and audio levels and save an old VHS or Betamax tape uncompressed or compressed.
Game capture in 1080p60
Current game consoles run at up to 60 frames per second with deep color. Intensity Pro 4K captures 1080 HD at up to 60 frames per second and Ultra HD at up to 30 frames per second, so it records smooth motion and 10-bit color for walkthroughs and gameplay videos online.
Formats and quality
The card works with NTSC, PAL, 720p, 1080i and 1080p up to 60 frames per second and Ultra HD 2160p up to 30 frames per second. HDMI carries 8 and 10-bit RGB 4:4:4 (Deep Color) up to 1080p60 and 8 and 10-bit YUV 4:2:2 in all formats with 8 channels of embedded audio; analog audio has two RCA channels in 24-bit. Files can be saved in ProRes, DNxHD or as uncompressed 10-bit video.

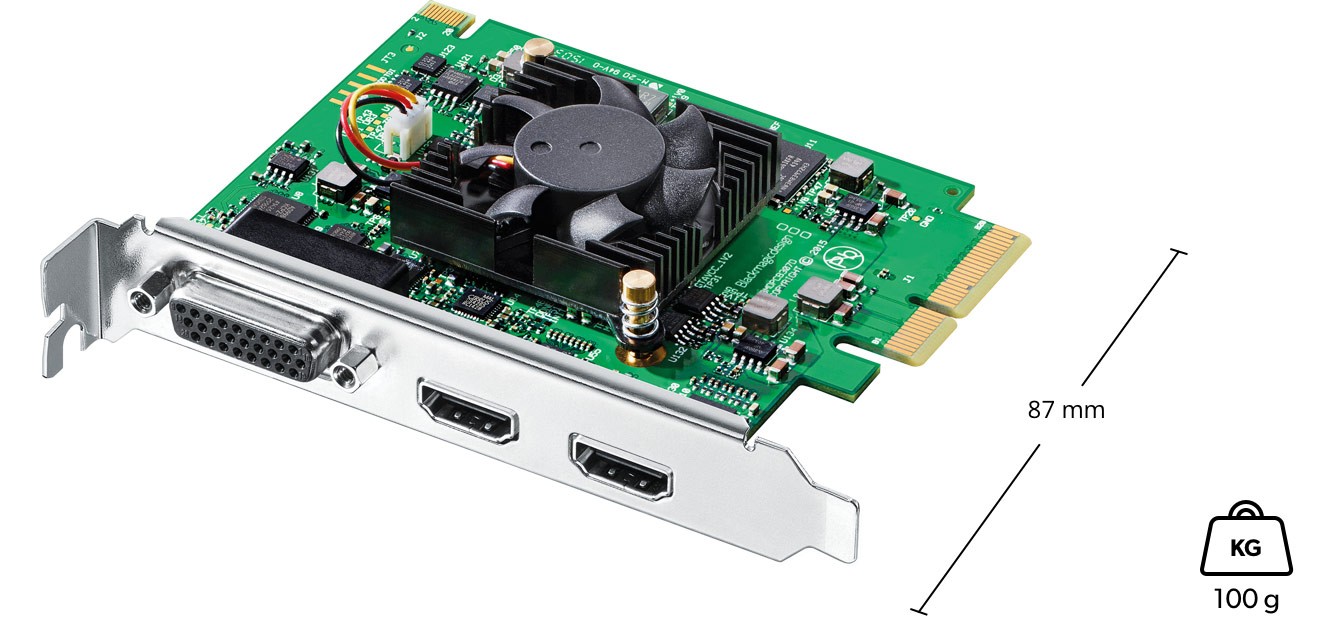

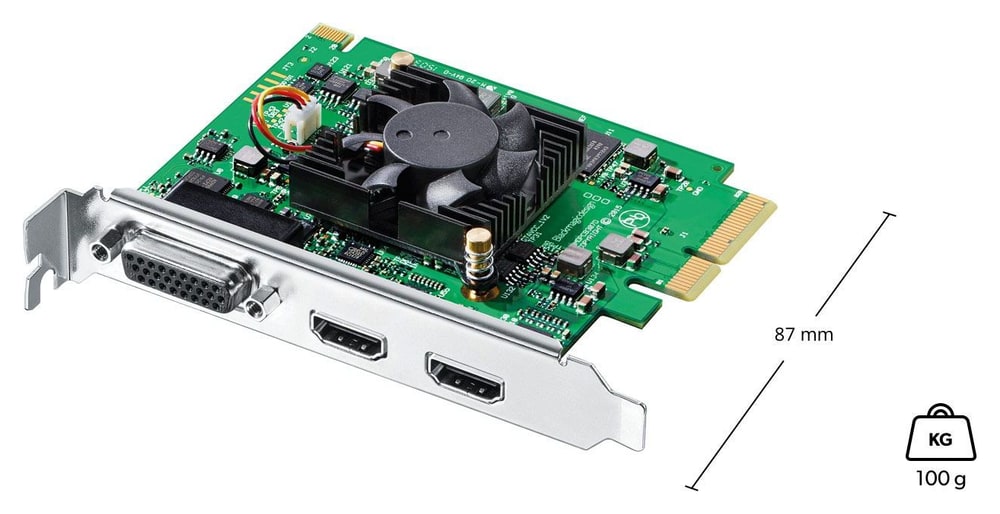

Dimensions and installation
The card is 87 mm long, weighs 100 g and draws 17 W. The PCI Express x4 interface works in x4, x8 and x16 slots; among Mac computers, a Mac Pro with PCI Express slots is required.

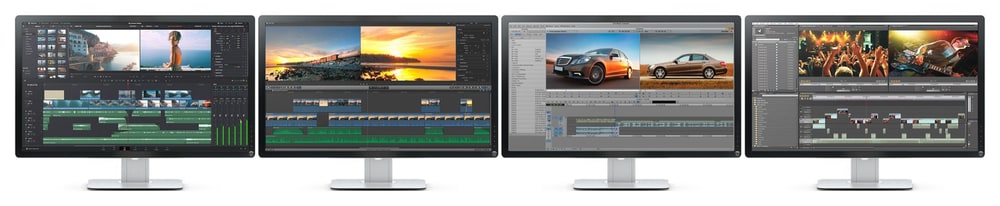

Work in your favorite software
Media Express for macOS, Windows and Linux, DaVinci Resolve for macOS and Windows, Disk Speed Test, LiveKey, Desktop Video Utility and the driver are included. The card works with Final Cut Pro, Premiere Pro, After Effects, Media Composer, Vegas Pro and Fusion as well as streaming applications OBS, vMix or Wirecast.

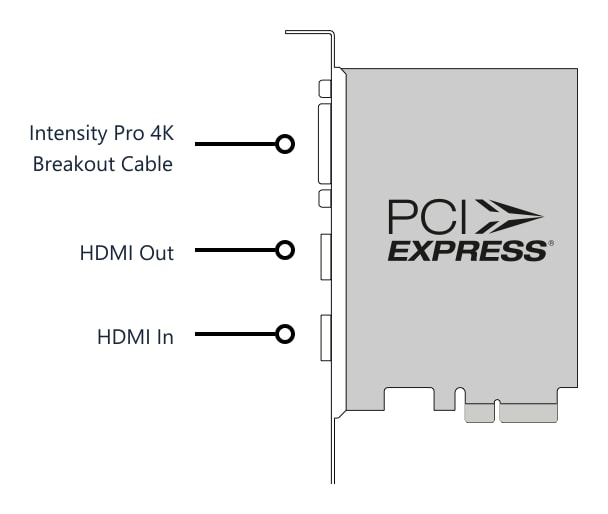

Connectors
The bracket carries the breakout cable connector with the HDMI output and input below it.

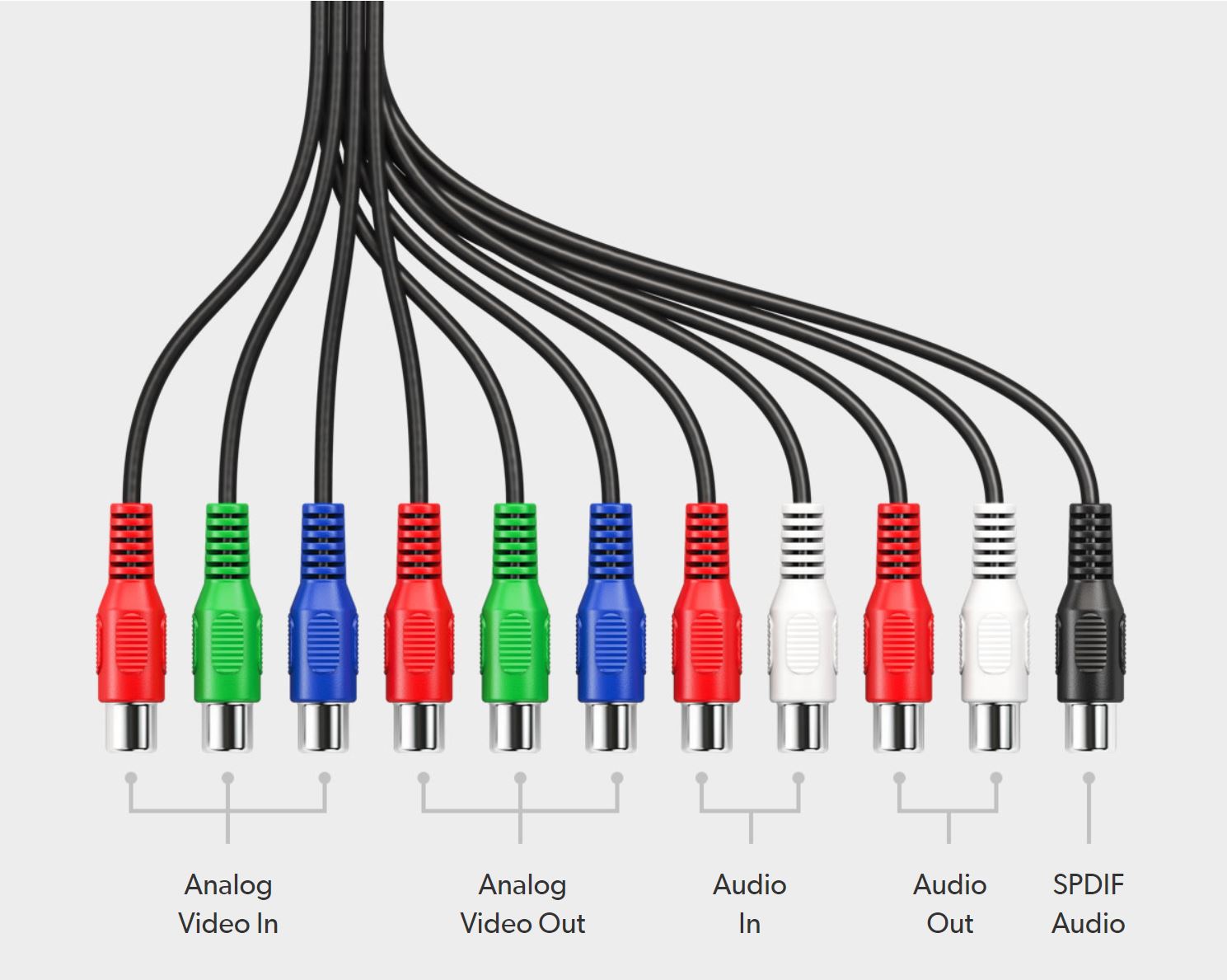

Breakout cable
The breakout cable carries RCA connectors: three for analog video input, three for analog video output, two for audio input, two for audio output and one for S/PDIF audio.
More information

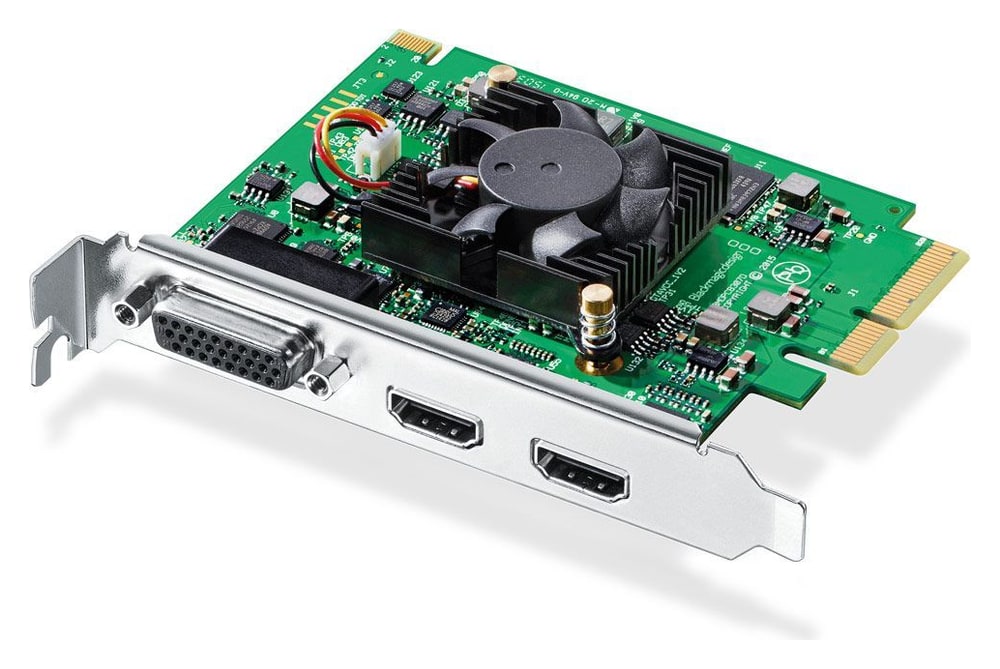

Details of the Intensity Pro 4K card
Intensity Pro 4K is a universal card for capturing and playing back video via HDMI and analog connections.
It works with Ultra HD up to 2160p30 and with the high 1080p60 frame rate, which suits cameras, live video and game capture.
The breakout cable lets you convert older component, composite and S-Video sources including home video archives, while HDMI connects the card to modern displays and recorders.
Media Express software is available and the card is compatible with common editing, graphics and streaming applications on Mac, Windows and Linux. Current system requirements and supported formats may change with the Blackmagic Desktop Video version.
PACKAGE CONTENT
- Intensity Pro 4K card
- Breakout cable for analog connections
- Welcome wallet with QR code for software download
SPECIFICATIONS
- Function: Simultaneous capture and playback
- HDMI input: 1 x HDMI 1.4b type A with Deep Color, configures automatically to the display
- HDMI output: 1 x HDMI 1.4b type A with Deep Color, configures automatically to the display
- Analog video input: component, composite or S-Video (breakout cable); component SD and HD
- Analog video output: component, composite or S-Video (breakout cable); component SD and HD
- Analog audio: 2 channel RCA HiFi, 24-bit, input and output; S/PDIF (RCA) on the breakout cable
- Embedded audio: HDMI: 8 channels in SD, HD and Ultra HD; 48 kHz, 24-bit
- Maximum format: HDMI Ultra HD 2160p30, HD up to 1080p60
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- HDMI sampling and color precision: 4:4:4, 4:2:2, 4:2:0; 8/10-bit RGB 4:4:4 (Deep Color) up to 1080p60, 8/10-bit YUV 4:2:2 in all formats
- Color space: Rec. 601, Rec. 709
- Copy protection: HDMI input cannot capture copy protected sources
- Processing: software Ultra HD/HD down conversion during playback; real time SD to 1080 and 720 HD up conversion during capture; real time effects in DaVinci Resolve, Final Cut Pro, Premiere Pro and Media Composer
- Computer interface: PCI Express x4, compatible with x4, x8, x16 slots
- Form factor: Internal PCI Express card
- Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4
- Software included: DaVinci Resolve (macOS, Windows), Media Express download, Disk Speed Test, LiveKey, Desktop Video Utility and driver; for Linux Media Express, Desktop Video Utility and driver
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 10 (64-bit), Windows 11; Linux; among Mac computers, only a Mac Pro with PCI Express slots
- Power consumption: 17 W
- Card length: 87 mm
- Weight: 100 g
- Operating temperature: 5–40 °C
- Storage temperature: −20–45 °C
- Relative humidity: 0–90% non-condensing
